[Java知识库]SpringBoot 整合 Quartz 实现分布式调度

一、摘要

springboot + quartz + postgres实现持久化分布式调度
集群环境任务调度测试

二、Quartz 集群架构

Quartz 是 Java 领域最著名的开源任务调度工具。

在上篇文章中，我们详细的介绍了 Quartz 的单体应用实践，如果只在单体环境中应用，Quartz 未必是最好的选择，例如Spring Scheduled一样也可以实现任务调度，并且与SpringBoot无缝集成，支持注解配置，非常简单，但是它有个缺点就是在集群环境下，会导致任务被重复调度！

而与之对应的 Quartz 提供了极为广用的特性，如任务持久化、集群部署和分布式调度任务等等，正因如此，基于 Quartz 任务调度功能在系统开发中应用极为广泛！

在集群环境下，Quartz 集群中的每个节点是一个独立的 Quartz 应用，没有负责集中管理的节点，而是通过数据库表来感知另一个应用，利用数据库锁的方式来实现集群环境下进行并发控制，每个任务当前运行的有效节点有且只有一个！

特别需要注意的是：分布式部署时需要保证各个节点的系统时间一致！

三、数据表初始化

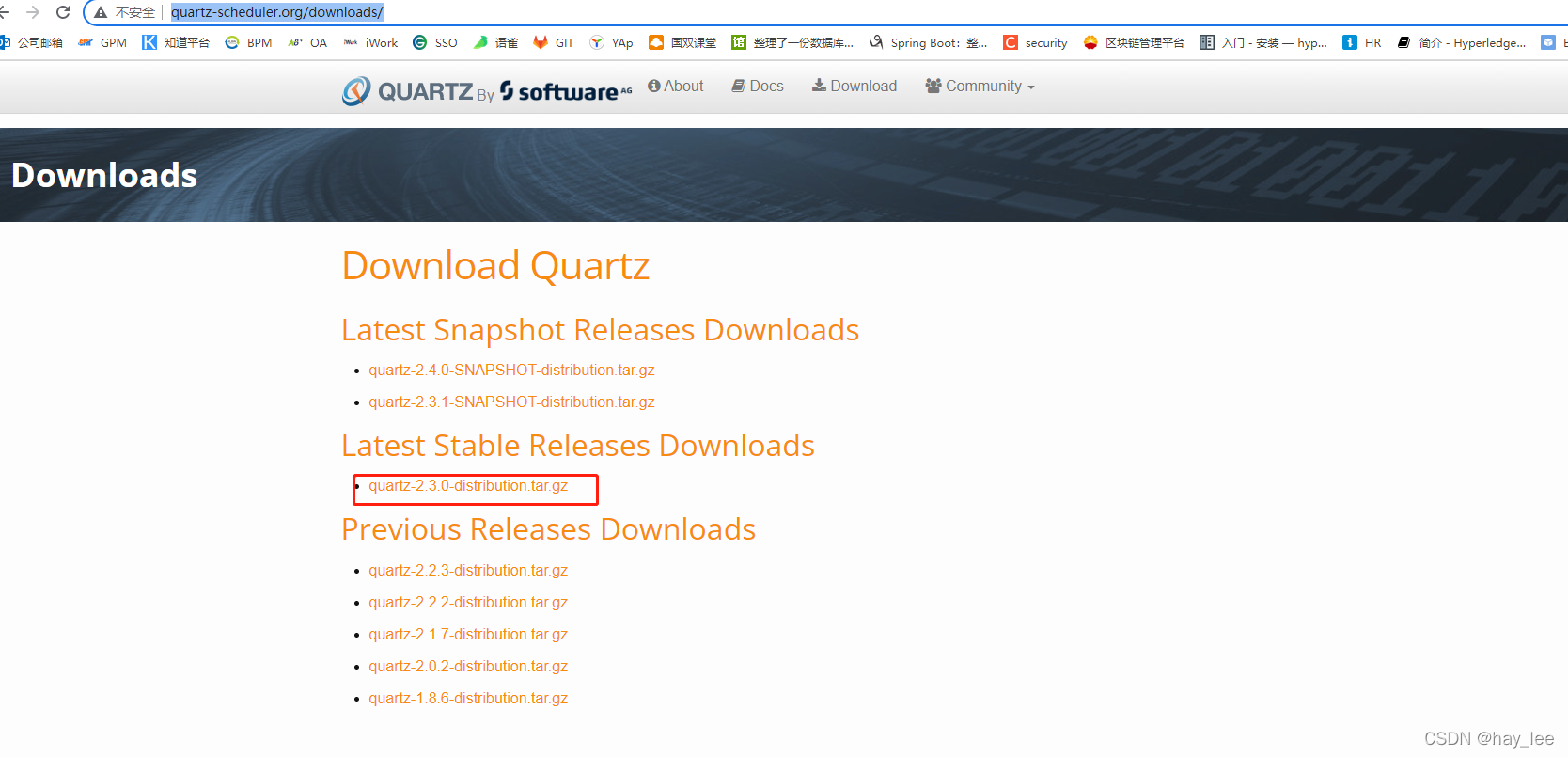

数据库表结构去官网下载，地址：quartz官网地址

这里下载2.3.0?

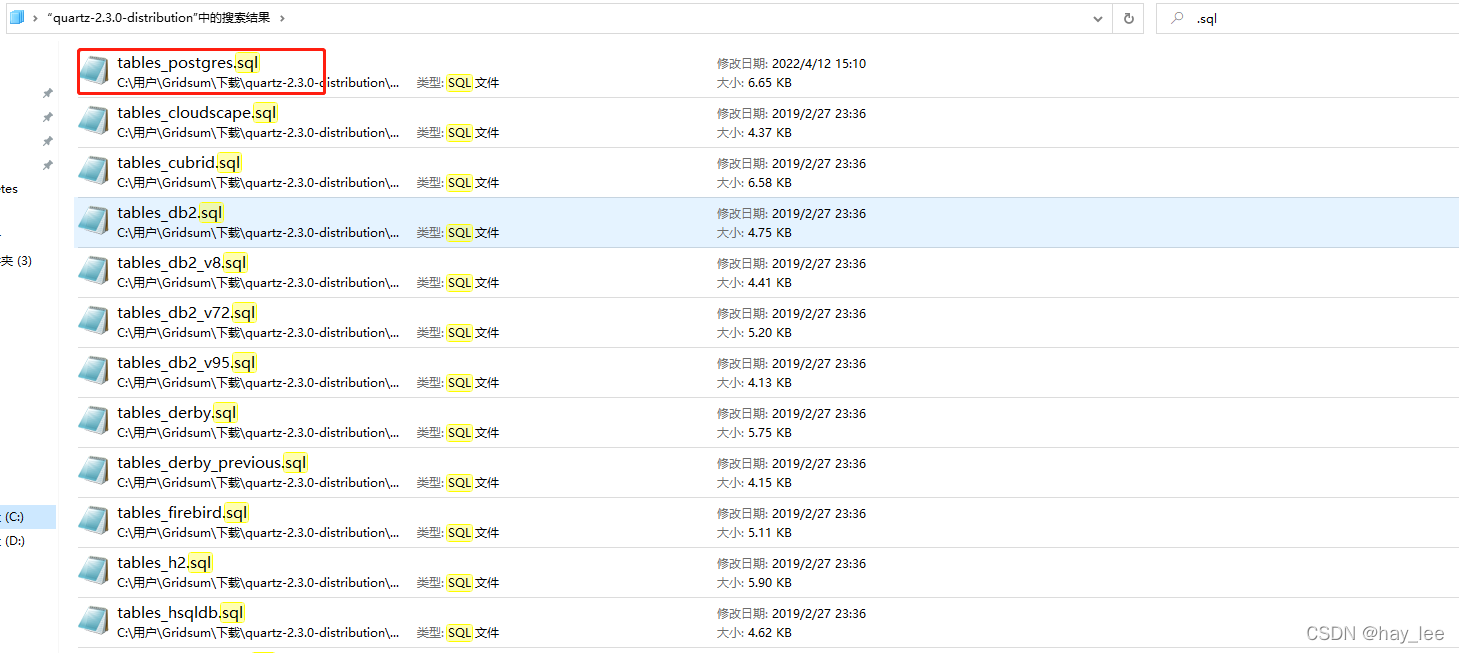

选择对应的数据库脚本，我们选择的是postgres

-- Thanks to Patrick Lightbody for submitting this...
--
-- In your Quartz properties file, you'll need to set
-- org.quartz.jobStore.driverDelegateClass = org.quartz.impl.jdbcjobstore.PostgreSQLDelegate

DROP TABLE IF EXISTS  qrtz_fired_triggers;
DROP TABLE IF EXISTS  QRTZ_PAUSED_TRIGGER_GRPS;
DROP TABLE IF EXISTS  QRTZ_SCHEDULER_STATE;
DROP TABLE IF EXISTS  QRTZ_LOCKS;
DROP TABLE IF EXISTS  qrtz_simple_triggers;
DROP TABLE IF EXISTS  qrtz_cron_triggers;
DROP TABLE IF EXISTS  qrtz_simprop_triggers;
DROP TABLE IF EXISTS  QRTZ_BLOB_TRIGGERS;
DROP TABLE IF EXISTS  qrtz_triggers;
DROP TABLE IF EXISTS  qrtz_job_details;
DROP TABLE IF EXISTS  qrtz_calendars;

CREATE TABLE qrtz_job_details
  (
    SCHED_NAME VARCHAR(120) NOT NULL,
    JOB_NAME  VARCHAR(200) NOT NULL,
    JOB_GROUP VARCHAR(200) NOT NULL,
    DESCRIPTION VARCHAR(250) NULL,
    JOB_CLASS_NAME   VARCHAR(250) NOT NULL,
    IS_DURABLE BOOL NOT NULL,
    IS_NONCONCURRENT BOOL NOT NULL,
    IS_UPDATE_DATA BOOL NOT NULL,
    REQUESTS_RECOVERY BOOL NOT NULL,
    JOB_DATA BYTEA NULL,
    PRIMARY KEY (SCHED_NAME,JOB_NAME,JOB_GROUP)
);

CREATE TABLE qrtz_triggers
  (
    SCHED_NAME VARCHAR(120) NOT NULL,
    TRIGGER_NAME VARCHAR(200) NOT NULL,
    TRIGGER_GROUP VARCHAR(200) NOT NULL,
    JOB_NAME  VARCHAR(200) NOT NULL,
    JOB_GROUP VARCHAR(200) NOT NULL,
    DESCRIPTION VARCHAR(250) NULL,
    NEXT_FIRE_TIME BIGINT NULL,
    PREV_FIRE_TIME BIGINT NULL,
    PRIORITY INTEGER NULL,
    TRIGGER_STATE VARCHAR(16) NOT NULL,
    TRIGGER_TYPE VARCHAR(8) NOT NULL,
    START_TIME BIGINT NOT NULL,
    END_TIME BIGINT NULL,
    CALENDAR_NAME VARCHAR(200) NULL,
    MISFIRE_INSTR SMALLINT NULL,
    JOB_DATA BYTEA NULL,
    PRIMARY KEY (SCHED_NAME,TRIGGER_NAME,TRIGGER_GROUP),
    FOREIGN KEY (SCHED_NAME,JOB_NAME,JOB_GROUP)
	REFERENCES QRTZ_JOB_DETAILS(SCHED_NAME,JOB_NAME,JOB_GROUP)
);

CREATE TABLE qrtz_simple_triggers
  (
    SCHED_NAME VARCHAR(120) NOT NULL,
    TRIGGER_NAME VARCHAR(200) NOT NULL,
    TRIGGER_GROUP VARCHAR(200) NOT NULL,
    REPEAT_COUNT BIGINT NOT NULL,
    REPEAT_INTERVAL BIGINT NOT NULL,
    TIMES_TRIGGERED BIGINT NOT NULL,
    PRIMARY KEY (SCHED_NAME,TRIGGER_NAME,TRIGGER_GROUP),
    FOREIGN KEY (SCHED_NAME,TRIGGER_NAME,TRIGGER_GROUP)
	REFERENCES QRTZ_TRIGGERS(SCHED_NAME,TRIGGER_NAME,TRIGGER_GROUP)
);

CREATE TABLE qrtz_cron_triggers
  (
    SCHED_NAME VARCHAR(120) NOT NULL,
    TRIGGER_NAME VARCHAR(200) NOT NULL,
    TRIGGER_GROUP VARCHAR(200) NOT NULL,
    CRON_EXPRESSION VARCHAR(120) NOT NULL,
    TIME_ZONE_ID VARCHAR(80),
    PRIMARY KEY (SCHED_NAME,TRIGGER_NAME,TRIGGER_GROUP),
    FOREIGN KEY (SCHED_NAME,TRIGGER_NAME,TRIGGER_GROUP)
	REFERENCES QRTZ_TRIGGERS(SCHED_NAME,TRIGGER_NAME,TRIGGER_GROUP)
);

CREATE TABLE qrtz_simprop_triggers
  (
    SCHED_NAME VARCHAR(120) NOT NULL,
    TRIGGER_NAME VARCHAR(200) NOT NULL,
    TRIGGER_GROUP VARCHAR(200) NOT NULL,
    STR_PROP_1 VARCHAR(512) NULL,
    STR_PROP_2 VARCHAR(512) NULL,
    STR_PROP_3 VARCHAR(512) NULL,
    INT_PROP_1 INT NULL,
    INT_PROP_2 INT NULL,
    LONG_PROP_1 BIGINT NULL,
    LONG_PROP_2 BIGINT NULL,
    DEC_PROP_1 NUMERIC(13,4) NULL,
    DEC_PROP_2 NUMERIC(13,4) NULL,
    BOOL_PROP_1 BOOL NULL,
    BOOL_PROP_2 BOOL NULL,
    PRIMARY KEY (SCHED_NAME,TRIGGER_NAME,TRIGGER_GROUP),
    FOREIGN KEY (SCHED_NAME,TRIGGER_NAME,TRIGGER_GROUP)
    REFERENCES QRTZ_TRIGGERS(SCHED_NAME,TRIGGER_NAME,TRIGGER_GROUP)
);

CREATE TABLE qrtz_blob_triggers
  (
    SCHED_NAME VARCHAR(120) NOT NULL,
    TRIGGER_NAME VARCHAR(200) NOT NULL,
    TRIGGER_GROUP VARCHAR(200) NOT NULL,
    BLOB_DATA BYTEA NULL,
    PRIMARY KEY (SCHED_NAME,TRIGGER_NAME,TRIGGER_GROUP),
    FOREIGN KEY (SCHED_NAME,TRIGGER_NAME,TRIGGER_GROUP)
        REFERENCES QRTZ_TRIGGERS(SCHED_NAME,TRIGGER_NAME,TRIGGER_GROUP)
);

CREATE TABLE qrtz_calendars
  (
    SCHED_NAME VARCHAR(120) NOT NULL,
    CALENDAR_NAME  VARCHAR(200) NOT NULL,
    CALENDAR BYTEA NOT NULL,
    PRIMARY KEY (SCHED_NAME,CALENDAR_NAME)
);


CREATE TABLE qrtz_paused_trigger_grps
  (
    SCHED_NAME VARCHAR(120) NOT NULL,
    TRIGGER_GROUP  VARCHAR(200) NOT NULL,
    PRIMARY KEY (SCHED_NAME,TRIGGER_GROUP)
);

CREATE TABLE qrtz_fired_triggers
  (
    SCHED_NAME VARCHAR(120) NOT NULL,
    ENTRY_ID VARCHAR(95) NOT NULL,
    TRIGGER_NAME VARCHAR(200) NOT NULL,
    TRIGGER_GROUP VARCHAR(200) NOT NULL,
    INSTANCE_NAME VARCHAR(200) NOT NULL,
    FIRED_TIME BIGINT NOT NULL,
    SCHED_TIME BIGINT NOT NULL,
    PRIORITY INTEGER NOT NULL,
    STATE VARCHAR(16) NOT NULL,
    JOB_NAME VARCHAR(200) NULL,
    JOB_GROUP VARCHAR(200) NULL,
    IS_NONCONCURRENT BOOL NULL,
    REQUESTS_RECOVERY BOOL NULL,
    PRIMARY KEY (SCHED_NAME,ENTRY_ID)
);

CREATE TABLE qrtz_scheduler_state
  (
    SCHED_NAME VARCHAR(120) NOT NULL,
    INSTANCE_NAME VARCHAR(200) NOT NULL,
    LAST_CHECKIN_TIME BIGINT NOT NULL,
    CHECKIN_INTERVAL BIGINT NOT NULL,
    PRIMARY KEY (SCHED_NAME,INSTANCE_NAME)
);

CREATE TABLE qrtz_locks
  (
    SCHED_NAME VARCHAR(120) NOT NULL,
    LOCK_NAME  VARCHAR(40) NOT NULL,
    PRIMARY KEY (SCHED_NAME,LOCK_NAME)
);

create index idx_qrtz_j_req_recovery on qrtz_job_details(SCHED_NAME,REQUESTS_RECOVERY);
create index idx_qrtz_j_grp on qrtz_job_details(SCHED_NAME,JOB_GROUP);

create index idx_qrtz_t_j on qrtz_triggers(SCHED_NAME,JOB_NAME,JOB_GROUP);
create index idx_qrtz_t_jg on qrtz_triggers(SCHED_NAME,JOB_GROUP);
create index idx_qrtz_t_c on qrtz_triggers(SCHED_NAME,CALENDAR_NAME);
create index idx_qrtz_t_g on qrtz_triggers(SCHED_NAME,TRIGGER_GROUP);
create index idx_qrtz_t_state on qrtz_triggers(SCHED_NAME,TRIGGER_STATE);
create index idx_qrtz_t_n_state on qrtz_triggers(SCHED_NAME,TRIGGER_NAME,TRIGGER_GROUP,TRIGGER_STATE);
create index idx_qrtz_t_n_g_state on qrtz_triggers(SCHED_NAME,TRIGGER_GROUP,TRIGGER_STATE);
create index idx_qrtz_t_next_fire_time on qrtz_triggers(SCHED_NAME,NEXT_FIRE_TIME);
create index idx_qrtz_t_nft_st on qrtz_triggers(SCHED_NAME,TRIGGER_STATE,NEXT_FIRE_TIME);
create index idx_qrtz_t_nft_misfire on qrtz_triggers(SCHED_NAME,MISFIRE_INSTR,NEXT_FIRE_TIME);
create index idx_qrtz_t_nft_st_misfire on qrtz_triggers(SCHED_NAME,MISFIRE_INSTR,NEXT_FIRE_TIME,TRIGGER_STATE);
create index idx_qrtz_t_nft_st_misfire_grp on qrtz_triggers(SCHED_NAME,MISFIRE_INSTR,NEXT_FIRE_TIME,TRIGGER_GROUP,TRIGGER_STATE);

create index idx_qrtz_ft_trig_inst_name on qrtz_fired_triggers(SCHED_NAME,INSTANCE_NAME);
create index idx_qrtz_ft_inst_job_req_rcvry on qrtz_fired_triggers(SCHED_NAME,INSTANCE_NAME,REQUESTS_RECOVERY);
create index idx_qrtz_ft_j_g on qrtz_fired_triggers(SCHED_NAME,JOB_NAME,JOB_GROUP);
create index idx_qrtz_ft_jg on qrtz_fired_triggers(SCHED_NAME,JOB_GROUP);
create index idx_qrtz_ft_t_g on qrtz_fired_triggers(SCHED_NAME,TRIGGER_NAME,TRIGGER_GROUP);
create index idx_qrtz_ft_tg on qrtz_fired_triggers(SCHED_NAME,TRIGGER_GROUP);


commit;

其中，QRTZ_LOCKS 就是 Quartz 集群实现同步机制的行锁表！?

四、Quartz?springboot代码实现

4.1、创建springboot项目，导入maven依赖包?

<dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-quartz</artifactId>
</dependency>

?4.2、注册 Quartz 任务工厂

/**
 * @Author haylee
 * @Date 2021/4/13 15:50
 * @Version 1.0
 * @Description 解决job中service注入为空的问题。
 */
@Component
public class SpringJobFactory extends AdaptableJobFactory {

    @Autowired
    private AutowireCapableBeanFactory capableBeanFactory;

    @Override
    protected Object createJobInstance(TriggerFiredBundle bundle) throws Exception {
        //调用父类的方法
        Object jobInstance = super.createJobInstance(bundle);
        //进行注入
        capableBeanFactory.autowireBean(jobInstance);
        return jobInstance;
    }
}

4.3、注册调度工厂

这里我们使用spring默认的数据源，网上基本都是独立数据源，很少人想到怎么使用spring数据源。因为spring数据源datasource已经被spring容器管理，我们只需要实例SchedulerFactoryBean是注入就可以了。?

/**
 * @Author haylee
 * @Date 2021/4/13 15:50
 * @Version 1.0
 * @Description TODO
 */
@Configuration
public class QuartzConfig {

    /**
     * 重写AdaptableJobFactory，解决service注入为null的问题
     */
    @Autowired
    private SpringJobFactory springJobFactory;

    @Bean
    public SchedulerFactoryBean schedulerFactoryBean(DataSource dataSource) {
        SchedulerFactoryBean factory = new SchedulerFactoryBean();
        factory.setDataSource(dataSource);

        //quartz参数
        Properties prop = new Properties();
        prop.put("org.quartz.scheduler.instanceName", "safeScheduler");
        prop.put("org.quartz.scheduler.instanceId", "AUTO");
        //线程池配置
        prop.put("org.quartz.threadPool.class", "org.quartz.simpl.SimpleThreadPool");
        prop.put("org.quartz.threadPool.threadCount", "20");
        prop.put("org.quartz.threadPool.threadPriority", "5");
        //JobStore配置
        prop.put("org.quartz.jobStore.class", "org.quartz.impl.jdbcjobstore.JobStoreTX");
        //集群配置
        prop.put("org.quartz.jobStore.isClustered", "true");
        prop.put("org.quartz.jobStore.clusterCheckinInterval", "15000");
        prop.put("org.quartz.jobStore.maxMisfiresToHandleAtATime", "1");

        prop.put("org.quartz.jobStore.misfireThreshold", "12000");
        prop.put("org.quartz.jobStore.tablePrefix", "QRTZ_");
        prop.put("org.quartz.jobStore.selectWithLockSQL", "SELECT * FROM {0}LOCKS UPDLOCK WHERE LOCK_NAME = ?");

        //PostgreSQL数据库，需要打开此注释
        prop.put("org.quartz.jobStore.driverDelegateClass", "org.quartz.impl.jdbcjobstore.PostgreSQLDelegate");

        factory.setQuartzProperties(prop);

        factory.setSchedulerName("safeScheduler");
        //延时启动
        factory.setStartupDelay(30);
        factory.setApplicationContextSchedulerContextKey("applicationContextKey");
        //可选，QuartzScheduler 启动时更新己存在的Job，这样就不用每次修改targetObject后删除qrtz_job_details表对应记录了
        factory.setOverwriteExistingJobs(true);
        //设置自动启动，默认为true
        factory.setAutoStartup(true);


        factory.setJobFactory(springJobFactory);
        return factory;
    }

    @Bean
    public Scheduler scheduler(DataSource dataSource) {
        return schedulerFactoryBean(dataSource).getScheduler();
    }

}

4.4、编写quartz任务实现类

/**
 * @Author haylee
 * @Date 2021/4/13 15:50
 * @Version 1.0
 * @Description TODO
 */
@Service
public class QuartzJobService {

    @Autowired
    private Scheduler scheduler;

    /**
     * 创建定时任务Simple
     * quartzBean.getInterval()==null表示单次提醒，
     * 否则循环提醒（quartzBean.getEndTime()!=null）
     * @param quartzBean
     */
    public void createScheduleJobSimple(QuartzBean quartzBean) throws Exception{
        //获取到定时任务的执行类  必须是类的绝对路径名称
        //定时任务类需要是job类的具体实现 QuartzJobBean是job的抽象类。
        Class<? extends Job> jobClass = (Class<? extends Job>) Class.forName(quartzBean.getJobClass());
        // 构建定时任务信息
        JobDetail jobDetail = JobBuilder.newJob(jobClass)
                .withIdentity(quartzBean.getJobName(), ObjectUtils.isNotEmpty(quartzBean.getJobGroup()) ?quartzBean.getJobGroup():null)
                .setJobData(quartzBean.getJobDataMap())
                .build();
        // 设置定时任务执行方式
        SimpleScheduleBuilder simpleScheduleBuilder = null;
        if (quartzBean.getInterval() ==  null) { //单次
            simpleScheduleBuilder = SimpleScheduleBuilder.simpleSchedule();
        } else { //循环
            simpleScheduleBuilder = SimpleScheduleBuilder.repeatMinutelyForever(quartzBean.getInterval());
        }
        // 构建触发器trigger
        Trigger trigger = null;
        if (quartzBean.getInterval() ==  null) { //单次
            trigger = TriggerBuilder.newTrigger()
                    .withIdentity(quartzBean.getJobName(),ObjectUtils.isNotEmpty(quartzBean.getJobGroup()) ?quartzBean.getJobGroup():null)
                    .withSchedule(simpleScheduleBuilder)
                    .startAt(quartzBean.getStartTime())
                    .build();
        } else { //循环
            trigger = TriggerBuilder.newTrigger()
                    .withIdentity(quartzBean.getJobName(),ObjectUtils.isNotEmpty(quartzBean.getJobGroup()) ?quartzBean.getJobGroup():null)
                    .withSchedule(simpleScheduleBuilder)
                    .startAt(quartzBean.getStartTime())
                    .endAt(quartzBean.getEndTime())
                    .build();
        }
        scheduler.scheduleJob(jobDetail, trigger);
    }

    /**
     * 创建定时任务Cron
     * 定时任务创建之后默认启动状态
     * @param quartzBean  定时任务信息类
     * @throws Exception
     */
    public void createScheduleJobCron(QuartzBean quartzBean) throws Exception{
        //获取到定时任务的执行类  必须是类的绝对路径名称
        //定时任务类需要是job类的具体实现 QuartzJobBean是job的抽象类。
        Class<? extends Job> jobClass = (Class<? extends Job>) Class.forName(quartzBean.getJobClass());
        // 构建定时任务信息
        JobDetail jobDetail = JobBuilder.newJob(jobClass).withIdentity(quartzBean.getJobName(),ObjectUtils.isNotEmpty(quartzBean.getJobGroup()) ?quartzBean.getJobGroup():null).setJobData(quartzBean.getJobDataMap()).build();
        // 设置定时任务执行方式
        CronScheduleBuilder scheduleBuilder = CronScheduleBuilder.cronSchedule(quartzBean.getCronExpression());
        // 构建触发器trigger
        CronTrigger trigger = TriggerBuilder.newTrigger().withIdentity(quartzBean.getJobName()).withSchedule(scheduleBuilder).build();
        scheduler.scheduleJob(jobDetail, trigger);
    }

    /**
     * 根据任务名称暂停定时任务
     * @param jobName 定时任务名称
     * @param jobGroup 任务组（没有分组传值null）
     * @throws Exception
     */
    public void pauseScheduleJob(String jobName,String jobGroup) throws Exception{
        JobKey jobKey = JobKey.jobKey(jobName,ObjectUtils.isNotEmpty(jobGroup) ?jobGroup:null);
        scheduler.pauseJob(jobKey);
    }

    /**
     * 根据任务名称恢复定时任务
     * @param jobName    定时任务名
     * @param jobGroup 任务组（没有分组传值null）
     * @throws SchedulerException
     */
    public void resumeScheduleJob(String jobName,String jobGroup) throws Exception {
        JobKey jobKey = JobKey.jobKey(jobName,ObjectUtils.isNotEmpty(jobGroup) ?jobGroup:null);
        scheduler.resumeJob(jobKey);
    }

    /**
     * 根据任务名称立即运行一次定时任务
     * @param jobName       定时任务名称
     * @param jobGroup 任务组（没有分组传值null）
     * @throws SchedulerException
     */
    public void runOnce(String jobName,String jobGroup) throws Exception{
        JobKey jobKey = JobKey.jobKey(jobName,ObjectUtils.isNotEmpty(jobGroup) ?jobGroup:null);
        scheduler.triggerJob(jobKey);
    }

    /**
     * 更新定时任务Simple
     * @param quartzBean  定时任务信息类
     * @throws SchedulerException
     */
    public void updateScheduleJobSimple(QuartzBean quartzBean) throws Exception {
        //获取到对应任务的触发器
        TriggerKey triggerKey = TriggerKey.triggerKey(quartzBean.getJobName(), ObjectUtils.isNotEmpty(quartzBean.getJobGroup()) ?quartzBean.getJobGroup():null);
        // 设置定时任务执行方式
        SimpleScheduleBuilder simpleScheduleBuilder = null;
        if (quartzBean.getInterval() ==  null) { //单次
            simpleScheduleBuilder = SimpleScheduleBuilder.simpleSchedule();
        } else { //循环
            simpleScheduleBuilder = SimpleScheduleBuilder.repeatMinutelyForever(quartzBean.getInterval());
        }
        // 构建触发器trigger
        Trigger trigger = null;
        if (quartzBean.getInterval() ==  null) { //单次
            trigger = TriggerBuilder.newTrigger()
                    .withIdentity(quartzBean.getJobName(), ObjectUtils.isNotEmpty(quartzBean.getJobGroup()) ?quartzBean.getJobGroup():null)
                    .withSchedule(simpleScheduleBuilder)
                    .startAt(quartzBean.getStartTime())
                    .build();
        } else { //循环
            TriggerBuilder.newTrigger()
                    .withIdentity(quartzBean.getJobName(), ObjectUtils.isNotEmpty(quartzBean.getJobGroup()) ?quartzBean.getJobGroup():null)
                    .withSchedule(simpleScheduleBuilder)
                    .startAt(quartzBean.getStartTime())
                    .endAt(quartzBean.getEndTime())
                    .build();
        }
        //重置对应的job
        scheduler.rescheduleJob(triggerKey, trigger);
    }

    /**
     * 更新定时任务Cron
     * @param quartzBean  定时任务信息类
     * @throws SchedulerException
     */
    public void updateScheduleJobCron(QuartzBean quartzBean) throws Exception {
        //获取到对应任务的触发器
        TriggerKey triggerKey = TriggerKey.triggerKey(quartzBean.getJobName());
        //设置定时任务执行方式
        CronScheduleBuilder scheduleBuilder = CronScheduleBuilder.cronSchedule(quartzBean.getCronExpression());
        //重新构建任务的触发器trigger
        CronTrigger trigger = (CronTrigger) scheduler.getTrigger(triggerKey);
        trigger = trigger.getTriggerBuilder().withIdentity(triggerKey).withSchedule(scheduleBuilder).build();
        //重置对应的job
        scheduler.rescheduleJob(triggerKey, trigger);
    }

    /**
     * 根据定时任务名称从调度器当中删除定时任务
     * @param jobName   定时任务名称
     * @param jobGroup 任务组（没有分组传值null）
     * @throws SchedulerException
     */
    public void deleteScheduleJob(String jobName,String jobGroup) throws Exception {
        JobKey jobKey = JobKey.jobKey(jobName,ObjectUtils.isNotEmpty(jobGroup) ?jobGroup:null);
        scheduler.deleteJob(jobKey);
    }

    /**
     * 获取任务状态
     * @param jobName
     * @param jobGroup 任务组（没有分组传值null）
     * @return
     * (" BLOCKED ", " 阻塞 ");
     * ("COMPLETE", "完成");
     * ("ERROR", "出错");
     * ("NONE", "不存在");
     * ("NORMAL", "正常");
     * ("PAUSED", "暂停");
     */
    public String getScheduleJobStatus(String jobName,String jobGroup) throws Exception {
        TriggerKey triggerKey = TriggerKey.triggerKey(jobName,ObjectUtils.isNotEmpty(jobGroup) ?jobGroup:null);
        Trigger.TriggerState state = scheduler.getTriggerState(triggerKey);
        return state.name();
    }

    /**
     * 根据定时任务名称来判断任务是否存在
     * @param jobName   定时任务名称
     * @param jobGroup 任务组（没有分组传值null）
     * @throws SchedulerException
     */
    public Boolean checkExistsScheduleJob(String jobName,String jobGroup) throws Exception {
        JobKey jobKey = JobKey.jobKey(jobName, ObjectUtils.isNotEmpty(jobGroup) ?jobGroup:null);
        return scheduler.checkExists(jobKey);
    }

    /**
     * 根据任务組刪除定時任务
     * @param jobGroup 任务组
     * @throws SchedulerException
     */
    public Boolean deleteGroupJob(String jobGroup) throws Exception {
        GroupMatcher<JobKey> matcher = GroupMatcher.groupEquals(jobGroup);
        Set<JobKey> jobkeySet = scheduler.getJobKeys(matcher);
        List<JobKey> jobkeyList = new ArrayList<JobKey>();
        jobkeyList.addAll(jobkeySet);
        return scheduler.deleteJobs(jobkeyList);
    }

    /**
     * 根据任务組批量刪除定時任务
     * @param jobkeyList
     * @throws SchedulerException
     */
    public Boolean batchDeleteGroupJob(List<JobKey> jobkeyList) throws Exception {
        return scheduler.deleteJobs(jobkeyList);
    }

    /**
     * 根据任务組批量查询出jobkey
     * @param jobGroup 任务组
     * @throws SchedulerException
     */
    public void batchQueryGroupJob(List<JobKey> jobkeyList,String jobGroup) throws Exception {
        GroupMatcher<JobKey> matcher = GroupMatcher.groupEquals(jobGroup);
        Set<JobKey> jobkeySet = scheduler.getJobKeys(matcher);
        jobkeyList.addAll(jobkeySet);
    }

    /**
     * 根据jobkey查询job详情
     * @param jobKey
     * @return
     */
    public JobDetail queryJobDetail(JobKey jobKey){
        JobDetail jobDetail = null;
        try {
            jobDetail = scheduler.getJobDetail(jobKey);
        } catch (SchedulerException e) {
            e.printStackTrace();
        }
        return jobDetail;
    }
}

4.5、编写quartz任务实体类

/**
 * @Author haylee
 * @Date 2021/4/13 15:50
 * @Version 1.0
 * @Description 任务实体
 */
@Data
public class QuartzBean {

    /** 任务id */
    private String  id;

    /** 任务名称 */
    private String jobName;

    /** 任务组 */
    private String jobGroup;

    /** 任务执行类 */
    private String jobClass;

    /** 任务状态 启动还是暂停*/
    private Integer status;

    /**
     * 任务开始时间
     */
    private Date startTime;

    /**
     * 任务循环间隔-单位：分钟
     */
    private Integer interval;

    /**
     * 任务结束时间
     */
    private Date endTime;

    /** 任务运行时间表达式 */
    private String cronExpression;

    private JobDataMap jobDataMap;
}

?4.6、编写quartz任务类

@Component
public class MyTask extends QuartzJobBean {
    @Override
    protected void executeInternal(JobExecutionContext context) throws JobExecutionException {
        JobKey jobKey = context.getJobDetail().getKey();
        JobDataMap map = context.getJobDetail().getJobDataMap();
        String userId = map.getString("userId");
        System.out.println("SimpleJob says: " + jobKey + ", userId: " + userId + " executing at " + new Date());
    }
}

??4.7、编写quartz任务操作

@RestController
@RequestMapping("/api/quartz/")
public class JobController {

    @Autowired
    private QuartzJobService quartzJobService;

    //创建&启动
    @GetMapping("startSimpleJob")
    public String startSimpleJob() throws SchedulerException, ClassNotFoundException, ParseException {
        QuartzBean quartzBean = new QuartzBean();
        quartzBean.setJobClass("com.quartz.demo.job.MyTask");
        quartzBean.setJobName("job1");
        JobDataMap map = new JobDataMap();
        map.put("userId", "123456");
        quartzBean.setJobDataMap(map);
        Date now = new Date();
        quartzBean.setStartTime(DateUtils.addSeconds(now, 10));
        quartzBean.setInterval(10);
        quartzBean.setEndTime(DateUtils.addMinutes(now, 1));
        try {
            quartzJobService.createScheduleJobSimple(quartzBean);
        } catch (Exception e) {
            e.printStackTrace();
        }
        return "startJob Success!";
    }

    /**
     * 创建cron Job
     * @param quartzBean
     * @return
     */
    @RequestMapping("/createCronJob")
    @ResponseBody
    public String  createJob(QuartzBean quartzBean)  {
        try {
            //进行测试所以写死
            quartzBean.setJobClass("com.quartz.demo.job.MyTask");
            quartzBean.setJobName("job1");
            quartzBean.setCronExpression("*/5 * * * * ?");
            quartzJobService.createScheduleJobCron(quartzBean);
        } catch (Exception e) {
            return "创建失败";
        }
        return "创建成功";
    }

    /**
     * 暂停job
     * @return
     */
    @RequestMapping(value = {"/pauseJob/{jobName}","/pauseJob/{jobName}/{jobGroup}"})
    @ResponseBody
    public String  pauseJob(@PathVariable("jobName") String  jobName,@PathVariable(required = false) String jobGroup)  {
        try {
        quartzJobService.pauseScheduleJob(jobName,ObjectUtils.isNotEmpty(jobGroup) ?jobGroup:null);
        } catch (Exception e) {
            return "暂停失败";
        }
        return "暂停成功";
    }

    @RequestMapping(value = {"/resume/{jobName}","/resume/{jobName}/{jobGroup}"})
    @ResponseBody
    public String  resume(@PathVariable("jobName") String  jobName,@PathVariable(required = false) String jobGroup)  {
        try {
    quartzJobService.resumeScheduleJob(jobName,ObjectUtils.isNotEmpty(jobGroup) ?jobGroup:null);
        } catch (Exception e) {
            return "启动失败";
        }
        return "启动成功";
    }

    @RequestMapping(value = {"/delete/{jobName}","/delete/{jobName}/{jobGroup}"})
    public String  delete(@PathVariable("jobName") String  jobName,@PathVariable(required = false) String jobGroup)  {
        try {
            quartzJobService.deleteScheduleJob(jobName,ObjectUtils.isNotEmpty(jobGroup) ?jobGroup:null);
        } catch (Exception e) {
            return "删除失败";
        }
        return "删除成功";
    }

    @RequestMapping(value = {"/check/{jobName}","/check/{jobName}/{jobGroup}"})
    public String  check(@PathVariable("jobName") String  jobName,@PathVariable(required = false) String jobGroup)  {
        try {
            if(quartzJobService.checkExistsScheduleJob(jobName,ObjectUtils.isNotEmpty(jobGroup) ?jobGroup:null)){
                return "存在定时任务："+jobName;
            }else{
                return "不存在定时任务："+jobName;
            }
        } catch (Exception e) {
            return "查询任务失败";
        }
    }

    @RequestMapping(value = {"/status/{jobName}","/status/{jobName}/{jobGroup}"})
    @ResponseBody
    public String  status(@PathVariable("jobName") String  jobName,@PathVariable(required = false) String jobGroup)  {
        try {
            return quartzJobService.getScheduleJobStatus(jobName,ObjectUtils.isNotEmpty(jobGroup) ?jobGroup:null);
        } catch (Exception e) {
            return "获取状态失败";
        }
        //return "获取状态成功";
    }

}

五、springboot集群部署测试

springboot服务集群部署，各个节点的系统时间必须一致，数据必须保证连接同一个数据库，这样才能做到分布式任务调度，任务不重复执行。

六、XXL-JOB（在quartz基础上封装的一个开源调度平台，有兴趣的可以研究下）

XXL-JOB是一个分布式任务调度平台，其核心设计目标是开发迅速、学习简单、轻量级、易扩展。现已开放源代码并接入多家公司线上产品线，开箱即用。

官网地址：分布式任务调度平台XXL-JOB
