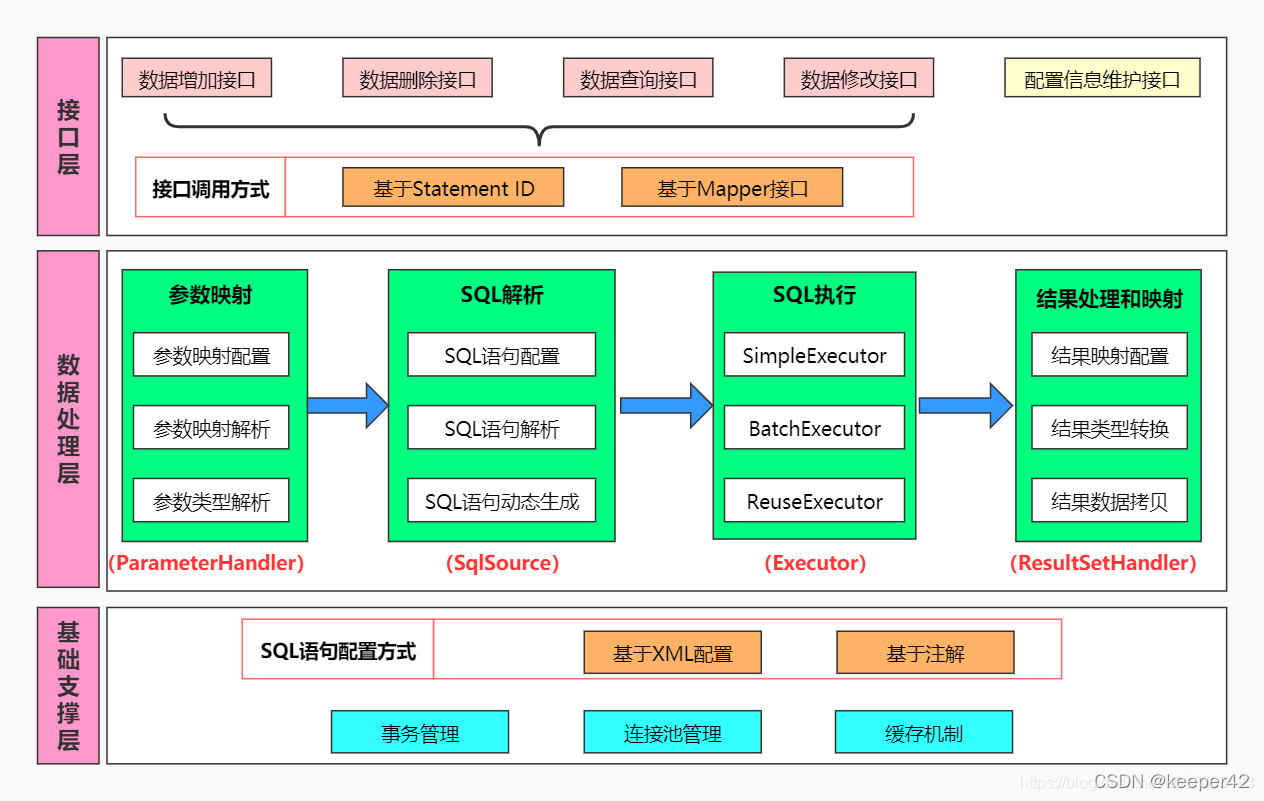

一、Mybatis框架图
牢记上面的图。Mybatis框架大致分三层：基础支持层，数据处理层和接口层。
基础支持层包括连接池管理、事务管理和缓存机制等。
数据处理层则包括：参数映射（ParameterHandler）、SQL解析（SqlSource）、SQL执行（Executor）、结果处理映射（ResultSetHandler）。 这是一个流程。
最后是上层接口层，提供给外部调用的。
二、Mybatis的初始化流程

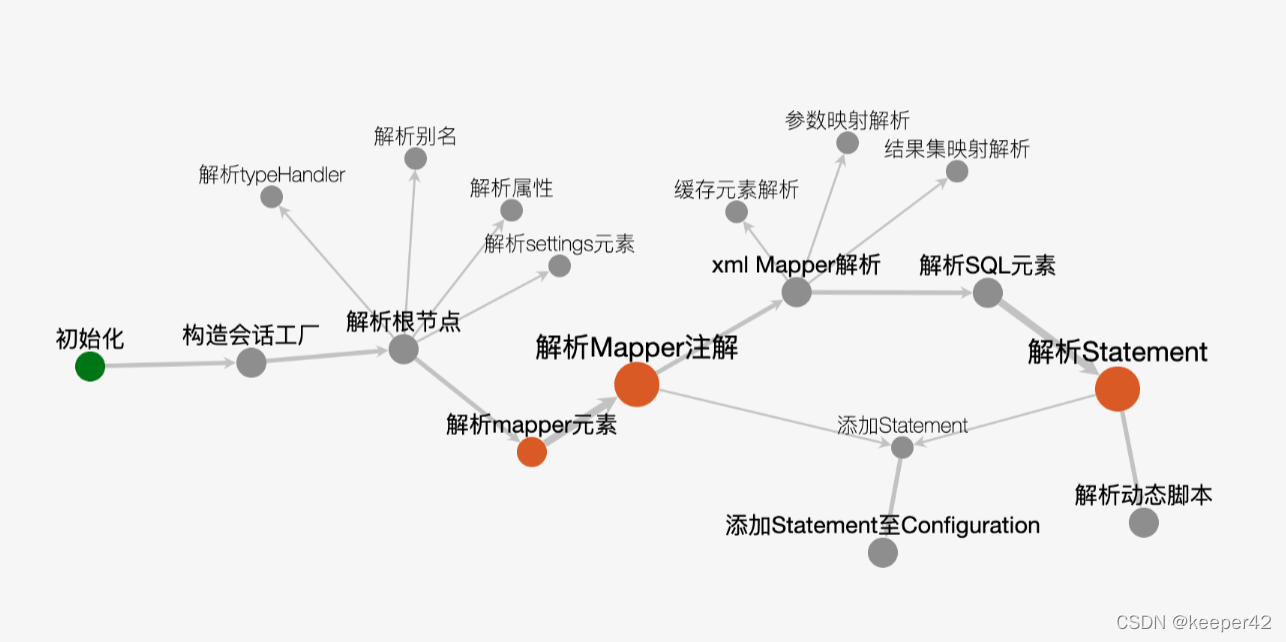

Mybatis初始化流程包括：构造会话工厂->解析配置->解析mapper（元素、注解等）->解析SQL元素、缓存元素、参数映射、结果集映射->构建Statement->最后解析动态脚本并将statement添加至configuration中。
1. 构造会话工厂
debug进来，进来可以看到SqlSessionFactoryBuilder的build方法，它是用来读取配置文件生成全局配置信息的，关键解析代码：build(parser.parse())。它使用了一个参照了XML文档的Reader实例去读取SqlMapConfig.xml文件。
SqlSessionFactory：包含解析后的Configuration对象，存储配置信息，生产SqlSession，全局唯一。
SqlSession：面向用户的使用接口。每个线程都有它自己的 SqlSession 实例。
//可选的参数是environment和properties。Environment决定加载哪种环境(开发环境/生产环境)，包括数据源和事务管理器。
//如果使用properties，那么就会加载那些properties（属性配置文件），那些属性可以用${propName}语法形式多次用在配置文件中。和Spring很像，一个思想？
public SqlSessionFactory build(Reader reader, String environment, Properties properties) {
try {
// 委托XMLConfigBuilder来解析xml文件，并构建
XMLConfigBuilder parser = new XMLConfigBuilder(reader, environment, properties);
// 解析配置文件得到configuration对象，并返回SqlSessionFactory
return build(parser.parse());
} catch (Exception e) {
//这里是捕获异常，包装成自己的异常并抛出的idiom？，最后还要reset ErrorContext
throw ExceptionFactory.wrapException("Error building SqlSession.", e);
} finally {
ErrorContext.instance().reset();
try {
reader.close();
} catch (IOException e) {
// Intentionally ignore. Prefer previous error.
}
}
}
2. 解析配置
接着看parser.parse()方法，它调用了XMLConfigBuilder的parseConfiguration方法，这里是一步一步解析XML中的节点：properties、类型别名、插件、对象工厂、包装工厂、settings、环境、databaseIdProvider、类型处理器、映射器……
public Configuration parse() {
//如果已经解析过了，报错
if (parsed) {
throw new BuilderException("Each XMLConfigBuilder can only be used once.");
}
parsed = true;
//根节点是configuration
parseConfiguration(parser.evalNode("/configuration"));
return configuration;
}
//解析配置
private void parseConfiguration(XNode root) {
try {
//分步骤解析
//1.properties
propertiesElement(root.evalNode("properties"));
//2.类型别名
typeAliasesElement(root.evalNode("typeAliases"));
//3.插件
pluginElement(root.evalNode("plugins"));
//4.对象工厂
objectFactoryElement(root.evalNode("objectFactory"));
//5.对象包装工厂
objectWrapperFactoryElement(root.evalNode("objectWrapperFactory"));
//6.设置
settingsElement(root.evalNode("settings"));
// read it after objectFactory and objectWrapperFactory issue #631
//7.环境
environmentsElement(root.evalNode("environments"));
//8.databaseIdProvider
databaseIdProviderElement(root.evalNode("databaseIdProvider"));
//9.类型处理器
typeHandlerElement(root.evalNode("typeHandlers"));
//10.解析mappers
mapperElement(root.evalNode("mappers"));
} catch (Exception e) {
throw new BuilderException("Error parsing SQL Mapper Configuration. Cause: " + e, e);
}
}
具体的解析就不细看了，主要就是解析各种节点。这里重点看下解析mappers。
3. 解析Mapper
映射器比较复杂，是调用XMLMapperBuilder。在for循环里每个mapper都重新new一个XMLMapperBuilder，来解析。
// 10.映射器
// 10.1使用类路径
// <mappers>
// <mapper resource="org/mybatis/builder/AuthorMapper.xml"/>
// <mapper resource="org/mybatis/builder/BlogMapper.xml"/>
// <mapper resource="org/mybatis/builder/PostMapper.xml"/>
// </mappers>
//
// 10.2使用绝对url路径
// <mappers>
// <mapper url="file:///var/mappers/AuthorMapper.xml"/>
// <mapper url="file:///var/mappers/BlogMapper.xml"/>
// <mapper url="file:///var/mappers/PostMapper.xml"/>
// </mappers>
//
// 10.3使用java类名
// <mappers>
// <mapper class="org.mybatis.builder.AuthorMapper"/>
// <mapper class="org.mybatis.builder.BlogMapper"/>
// <mapper class="org.mybatis.builder.PostMapper"/>
// </mappers>
//
// 10.4自动扫描包下所有映射器
// <mappers>
// <package name="org.mybatis.builder"/>
// </mappers>
private void mapperElement(XNode parent) throws Exception {
if (parent != null) {
for (XNode child : parent.getChildren()) {
if ("package".equals(child.getName())) {
//10.4自动扫描包下所有映射器
String mapperPackage = child.getStringAttribute("name");
configuration.addMappers(mapperPackage);
} else {
String resource = child.getStringAttribute("resource");
String url = child.getStringAttribute("url");
String mapperClass = child.getStringAttribute("class");
if (resource != null && url == null && mapperClass == null) {
//10.1使用类路径
ErrorContext.instance().resource(resource);
InputStream inputStream = Resources.getResourceAsStream(resource);
//映射器比较复杂，调用XMLMapperBuilder
//注意在for循环里每个mapper都重新new一个XMLMapperBuilder，来解析
XMLMapperBuilder mapperParser = new XMLMapperBuilder(inputStream, configuration, resource, configuration.getSqlFragments());
//解析mapper
mapperParser.parse();
} else if (resource == null && url != null && mapperClass == null) {
//10.2使用绝对url路径
ErrorContext.instance().resource(url);
InputStream inputStream = Resources.getUrlAsStream(url);
//映射器比较复杂，调用XMLMapperBuilder
XMLMapperBuilder mapperParser = new XMLMapperBuilder(inputStream, configuration, url, configuration.getSqlFragments());
mapperParser.parse();
} else if (resource == null && url == null && mapperClass != null) {
//10.3使用java类名
Class<?> mapperInterface = Resources.classForName(mapperClass);
//直接把这个映射加入配置
configuration.addMapper(mapperInterface);
} else {
throw new BuilderException("A mapper element may only specify a url, resource or class, but not more than one.");
}
}
}
}
}
mapperParser调用parse方式解析：解析SQL元素，然后解析结果映射、解析缓存、解析Statements语句……
public void parse() {
//如果没有加载过再加载，防止重复加载
if (!configuration.isResourceLoaded(resource)) {
//配置mapper，这里面解析SQL元素
configurationElement(parser.evalNode("/mapper"));
//标记一下，已经加载过了
configuration.addLoadedResource(resource);
//绑定映射器到namespace
bindMapperForNamespace();
}
//还有没解析完的东东这里接着解析
parsePendingResultMaps();
parsePendingChacheRefs();
parsePendingStatements();
}
4. 构建Statement
进入configurationElement看一下，里面是设置各种配置和构建Statement
private void configurationElement(XNode context) {
try {
//1.配置namespace
String namespace = context.getStringAttribute("namespace");
if (namespace.equals("")) {
throw new BuilderException("Mapper's namespace cannot be empty");
}
builderAssistant.setCurrentNamespace(namespace);
//2.配置cache-ref
cacheRefElement(context.evalNode("cache-ref"));
//3.配置cache
cacheElement(context.evalNode("cache"));
//4.配置parameterMap(已经废弃,老式风格的参数映射)
parameterMapElement(context.evalNodes("/mapper/parameterMap"));
//5.配置resultMap(高级功能)s
resultMapElements(context.evalNodes("/mapper/resultMap"));
//6.配置sql(定义可重用的 SQL 代码段)
sqlElement(context.evalNodes("/mapper/sql"));
//7.配置select|insert|update|delete
//构建Statement
buildStatementFromContext(context.evalNodes("select|insert|update|delete"));
} catch (Exception e) {
throw new BuilderException("Error parsing Mapper XML. Cause: " + e, e);
}
}
后面是构建Statement语句
//7.配置select|insert|update|delete
private void buildStatementFromContext(List<XNode> list) {
//调用7.1构建语句
if (configuration.getDatabaseId() != null) {
buildStatementFromContext(list, configuration.getDatabaseId());
}
buildStatementFromContext(list, null);
}
//7.1构建Statement语句
private void buildStatementFromContext(List<XNode> list, String requiredDatabaseId) {
for (XNode context : list) {
//构建所有语句,一个mapper下可以有很多select
//语句比较复杂，核心都在这里面，所以调用XMLStatementBuilder
final XMLStatementBuilder statementParser = new XMLStatementBuilder(configuration, builderAssistant, context, requiredDatabaseId);
try {
//核心XMLStatementBuilder.parseStatementNode
statementParser.parseStatementNode();
} catch (IncompleteElementException e) {
//如果出现SQL语句不完整，把它记下来，塞到configuration去
configuration.addIncompleteStatement(statementParser);
}
}
}
核心代码是XMLStatementBuilder.parseStatementNode
public void parseStatementNode() {
String id = context.getStringAttribute("id");
String databaseId = context.getStringAttribute("databaseId");
//如果databaseId不匹配，退出
if (!databaseIdMatchesCurrent(id, databaseId, this.requiredDatabaseId)) {
return;
}
//暗示驱动程序每次批量返回的结果行数
Integer fetchSize = context.getIntAttribute("fetchSize");
//超时时间
Integer timeout = context.getIntAttribute("timeout");
//引用外部 parameterMap,已废弃
String parameterMap = context.getStringAttribute("parameterMap");
//参数类型
String parameterType = context.getStringAttribute("parameterType");
Class<?> parameterTypeClass = resolveClass(parameterType);
//引用外部的 resultMap(高级功能)
String resultMap = context.getStringAttribute("resultMap");
//结果类型
String resultType = context.getStringAttribute("resultType");
//脚本语言,mybatis3.2的新功能
String lang = context.getStringAttribute("lang");
//得到语言驱动
LanguageDriver langDriver = getLanguageDriver(lang);
Class<?> resultTypeClass = resolveClass(resultType);
//结果集类型，FORWARD_ONLY|SCROLL_SENSITIVE|SCROLL_INSENSITIVE 中的一种
String resultSetType = context.getStringAttribute("resultSetType");
//语句类型, STATEMENT|PREPARED|CALLABLE 的一种
StatementType statementType = StatementType.valueOf(context.getStringAttribute("statementType", StatementType.PREPARED.toString()));
ResultSetType resultSetTypeEnum = resolveResultSetType(resultSetType);
//获取命令类型(select|insert|update|delete)
String nodeName = context.getNode().getNodeName();
SqlCommandType sqlCommandType = SqlCommandType.valueOf(nodeName.toUpperCase(Locale.ENGLISH));
boolean isSelect = sqlCommandType == SqlCommandType.SELECT;
boolean flushCache = context.getBooleanAttribute("flushCache", !isSelect);
//是否要缓存select结果
boolean useCache = context.getBooleanAttribute("useCache", isSelect);
//仅针对嵌套结果 select 语句适用：如果为 true，就是假设包含了嵌套结果集或是分组了，这样的话当返回一个主结果行的时候，就不会发生有对前面结果集的引用的情况。
//这就使得在获取嵌套的结果集的时候不至于导致内存不够用。默认值：false。
boolean resultOrdered = context.getBooleanAttribute("resultOrdered", false);
// Include Fragments before parsing
//解析之前先解析<include>SQL片段
XMLIncludeTransformer includeParser = new XMLIncludeTransformer(configuration, builderAssistant);
includeParser.applyIncludes(context.getNode());
// Parse selectKey after includes and remove them.
//解析之前先解析<selectKey>
processSelectKeyNodes(id, parameterTypeClass, langDriver);
// Parse the SQL (pre: <selectKey> and <include> were parsed and removed)
//解析成SqlSource，一般是DynamicSqlSource
SqlSource sqlSource = langDriver.createSqlSource(configuration, context, parameterTypeClass);
String resultSets = context.getStringAttribute("resultSets");
//(仅对 insert 有用) 标记一个属性, MyBatis 会通过 getGeneratedKeys 或者通过 insert 语句的 selectKey 子元素设置它的值
String keyProperty = context.getStringAttribute("keyProperty");
//(仅对 insert 有用) 标记一个属性, MyBatis 会通过 getGeneratedKeys 或者通过 insert 语句的 selectKey 子元素设置它的值
String keyColumn = context.getStringAttribute("keyColumn");
KeyGenerator keyGenerator;
String keyStatementId = id + SelectKeyGenerator.SELECT_KEY_SUFFIX;
keyStatementId = builderAssistant.applyCurrentNamespace(keyStatementId, true);
if (configuration.hasKeyGenerator(keyStatementId)) {
keyGenerator = configuration.getKeyGenerator(keyStatementId);
} else {
keyGenerator = context.getBooleanAttribute("useGeneratedKeys",
configuration.isUseGeneratedKeys() && SqlCommandType.INSERT.equals(sqlCommandType))
? new Jdbc3KeyGenerator() : new NoKeyGenerator();
}
//又去调助手类
builderAssistant.addMappedStatement(id, sqlSource, statementType, sqlCommandType,
fetchSize, timeout, parameterMap, parameterTypeClass, resultMap, resultTypeClass,
resultSetTypeEnum, flushCache, useCache, resultOrdered,
keyGenerator, keyProperty, keyColumn, databaseId, langDriver, resultSets);
}
5. 解析动态脚本并将statement添加至configuration中
最后是解析动态脚本得到SqlSource
public SqlSource parseScriptNode() {
List<SqlNode> contents = parseDynamicTags(context);
MixedSqlNode rootSqlNode = new MixedSqlNode(contents);
SqlSource sqlSource = null;
if (isDynamic) {
sqlSource = new DynamicSqlSource(configuration, rootSqlNode);
} else {
sqlSource = new RawSqlSource(configuration, rootSqlNode, parameterType);
}
return sqlSource;
}
这就是Mybatis的初始化流程了。
三、Mybatis的查询过程
接下来，再来看下它的查询过程吧。

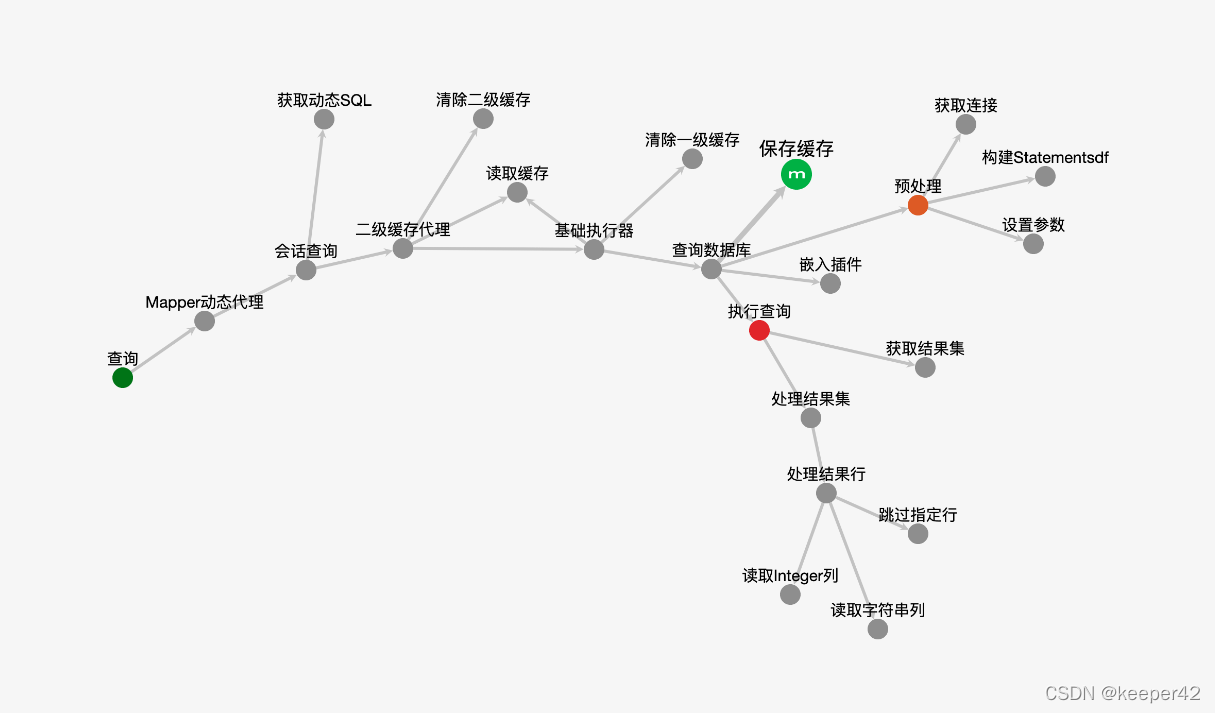

查询过程包括了：Mapper动态代理、会话查询、二级缓存代理、基础执行器执行、查询数据库、保存缓存、预处理、执行查询、处理结果集等。
1. Mapper动态代理
代理以后，所有Mapper的方法调用时，都会调用这个invoke方法。并不是任何一个方法都需要执行调用代理对象进行执行，如果这个方法是Object中通用的方法（toString、hashCode等）则无需执行
/**
* 映射器代理，代理模式
*/
public class MapperProxy<T> implements InvocationHandler, Serializable {
private static final long serialVersionUID = -6424540398559729838L;
private final SqlSession sqlSession;
private final Class<T> mapperInterface;
private final Map<Method, MapperMethod> methodCache;
public MapperProxy(SqlSession sqlSession, Class<T> mapperInterface, Map<Method, MapperMethod> methodCache) {
this.sqlSession = sqlSession;
this.mapperInterface = mapperInterface;
this.methodCache = methodCache;
}
@Override
public Object invoke(Object proxy, Method method, Object[] args) throws Throwable {
// 代理以后，所有Mapper的方法调用时，都会调用这个invoke方法。并不是任何一个方法都需要执行调用代理对象进行执行，如果这个方法是Object中通用的方法（toString、hashCode等）则无需执行
if (Object.class.equals(method.getDeclaringClass())) {
try {
return method.invoke(this, args);
} catch (Throwable t) {
throw ExceptionUtil.unwrapThrowable(t);
}
}
//这里优化了，去缓存中找MapperMethod
final MapperMethod mapperMethod = cachedMapperMethod(method);
//执行
return mapperMethod.execute(sqlSession, args);
}
//去缓存中找MapperMethod
private MapperMethod cachedMapperMethod(Method method) {
MapperMethod mapperMethod = methodCache.get(method);
if (mapperMethod == null) {
//找不到才去new
mapperMethod = new MapperMethod(mapperInterface, method, sqlSession.getConfiguration());
methodCache.put(method, mapperMethod);
}
return mapperMethod;
}
}
2. 执行sqlSesion
public Object execute(SqlSession sqlSession, Object[] args) {
Object result;
//可以看到执行时就是4种情况，insert|update|delete|select，分别调用SqlSession的4大类方法
if (SqlCommandType.INSERT == command.getType()) {
Object param = method.convertArgsToSqlCommandParam(args);
result = rowCountResult(sqlSession.insert(command.getName(), param));
} else if (SqlCommandType.UPDATE == command.getType()) {
Object param = method.convertArgsToSqlCommandParam(args);
result = rowCountResult(sqlSession.update(command.getName(), param));
} else if (SqlCommandType.DELETE == command.getType()) {
Object param = method.convertArgsToSqlCommandParam(args);
result = rowCountResult(sqlSession.delete(command.getName(), param));
} else if (SqlCommandType.SELECT == command.getType()) {
if (method.returnsVoid() && method.hasResultHandler()) {
//如果有结果处理器
executeWithResultHandler(sqlSession, args);
result = null;
} else if (method.returnsMany()) {
//如果结果有多条记录
result = executeForMany(sqlSession, args);
} else if (method.returnsMap()) {
//如果结果是map
result = executeForMap(sqlSession, args);
} else {
//否则就是一条记录
Object param = method.convertArgsToSqlCommandParam(args);
result = sqlSession.selectOne(command.getName(), param);
}
} else {
throw new BindingException("Unknown execution method for: " + command.getName());
}
if (result == null && method.getReturnType().isPrimitive() && !method.returnsVoid()) {
throw new BindingException("Mapper method '" + command.getName()
+ " attempted to return null from a method with a primitive return type (" + method.getReturnType() + ").");
}
return result;
}
看下执行查询多条记录的方法executeForMany
//多条记录
private <E> Object executeForMany(SqlSession sqlSession, Object[] args) {
List<E> result;
Object param = method.convertArgsToSqlCommandParam(args);
//代入RowBounds
if (method.hasRowBounds()) {
RowBounds rowBounds = method.extractRowBounds(args);
result = sqlSession.<E>selectList(command.getName(), param, rowBounds);
} else {
result = sqlSession.<E>selectList(command.getName(), param);
}
// issue #510 Collections & arrays support
if (!method.getReturnType().isAssignableFrom(result.getClass())) {
if (method.getReturnType().isArray()) {
return convertToArray(result);
} else {
return convertToDeclaredCollection(sqlSession.getConfiguration(), result);
}
}
return result;
}
其中主要的function是selectList，看下selectList
//核心selectList
@Override
public <E> List<E> selectList(String statement, Object parameter, RowBounds rowBounds) {
try {
//根据传参statement id找从配置信息中获得对应的sql信息封装MappedStatement
MappedStatement ms = configuration.getMappedStatement(statement);
//转而用执行器来查询结果,注意这里传入的ResultHandler是null
return executor.query(ms, wrapCollection(parameter), rowBounds, Executor.NO_RESULT_HANDLER);
} catch (Exception e) {
throw ExceptionFactory.wrapException("Error querying database. Cause: " + e, e);
} finally {
ErrorContext.instance().reset();
}
}
3. 二级缓存代理
默认情况下是没有开启缓存的(二级缓存，二级缓存会因为namespace而造成脏数据问题)。要开启二级缓存,你需要在你的 SQL 映射文件中添加一行: 。简单的说，就是先查CacheKey，查不到再委托给实际的执行器去查。
@Override
public <E> List<E> query(MappedStatement ms, Object parameterObject, RowBounds rowBounds, ResultHandler resultHandler) throws SQLException {
//sqlSource.getBoundSql，获取动态sql
BoundSql boundSql = ms.getBoundSql(parameterObject);
//query时传入一个cachekey参数
CacheKey key = createCacheKey(ms, parameterObject, rowBounds, boundSql);
return query(ms, parameterObject, rowBounds, resultHandler, key, boundSql);
}
@Override
public <E> List<E> query(MappedStatement ms, Object parameterObject, RowBounds rowBounds, ResultHandler resultHandler, CacheKey key, BoundSql boundSql)
throws SQLException {
Cache cache = ms.getCache();
//默认情况下是没有开启缓存的(二级缓存).要开启二级缓存,你需要在你的 SQL 映射文件中添加一行: <cache/>
//简单的说，就是先查CacheKey，查不到再委托给实际的执行器去查
if (cache != null) {
flushCacheIfRequired(ms);
if (ms.isUseCache() && resultHandler == null) {
ensureNoOutParams(ms, parameterObject, boundSql);
@SuppressWarnings("unchecked")
List<E> list = (List<E>) tcm.getObject(cache, key);
if (list == null) {
list = delegate.<E> query(ms, parameterObject, rowBounds, resultHandler, key, boundSql);
tcm.putObject(cache, key, list); // issue #578 and #116
}
return list;
}
}
return delegate.<E> query(ms, parameterObject, rowBounds, resultHandler, key, boundSql);
}
4. 基础执行器
@SuppressWarnings("unchecked")
@Override
public <E> List<E> query(MappedStatement ms, Object parameter, RowBounds rowBounds, ResultHandler resultHandler, CacheKey key, BoundSql boundSql) throws SQLException {
ErrorContext.instance().resource(ms.getResource()).activity("executing a query").object(ms.getId());
//如果已经关闭，报错
if (closed) {
throw new ExecutorException("Executor was closed.");
}
//先清局部缓存，再查询.但仅查询堆栈为0，才清。为了处理递归调用
if (queryStack == 0 && ms.isFlushCacheRequired()) {
clearLocalCache();
}
List<E> list;
try {
//加一,这样递归调用到上面的时候就不会再清局部缓存了
queryStack++;
//先根据cachekey从localCache去查
list = resultHandler == null ? (List<E>) localCache.getObject(key) : null;
if (list != null) {
//若查到localCache缓存，处理localOutputParameterCache
handleLocallyCachedOutputParameters(ms, key, parameter, boundSql);
} else {
//在这里从数据库查
list = queryFromDatabase(ms, parameter, rowBounds, resultHandler, key, boundSql);
}
} finally {
//清空堆栈
queryStack--;
}
if (queryStack == 0) {
//延迟加载队列中所有元素
for (DeferredLoad deferredLoad : deferredLoads) {
deferredLoad.load();
}
// issue #601
//清空延迟加载队列
deferredLoads.clear();
if (configuration.getLocalCacheScope() == LocalCacheScope.STATEMENT) {
// issue #482
//如果是STATEMENT，清本地缓存
clearLocalCache();
}
}
return list;
}
5. 查询数据库 queryFromDatabase
//从数据库查
private <E> List<E> queryFromDatabase(MappedStatement ms, Object parameter, RowBounds rowBounds, ResultHandler resultHandler, CacheKey key, BoundSql boundSql) throws SQLException {
List<E> list;
//先向缓存中放入占位符
localCache.putObject(key, EXECUTION_PLACEHOLDER);
try {
list = doQuery(ms, parameter, rowBounds, resultHandler, boundSql);
} finally {
//最后删除占位符
localCache.removeObject(key);
}
//加入缓存,即保存缓存
localCache.putObject(key, list);
//如果是存储过程，OUT参数也加入缓存
if (ms.getStatementType() == StatementType.CALLABLE) {
localOutputParameterCache.putObject(key, parameter);
}
return list;
}
6. 执行查询 doQuery
@Override
public <E> List<E> doQuery(MappedStatement ms, Object parameter, RowBounds rowBounds, ResultHandler resultHandler, BoundSql boundSql) throws SQLException {
Statement stmt = null;
try {
Configuration configuration = ms.getConfiguration();
//新建一个StatementHandler
//这里看到ResultHandler传入了
StatementHandler handler = configuration.newStatementHandler(wrapper, ms, parameter, rowBounds, resultHandler, boundSql);
//准备语句
stmt = prepareStatement(handler, ms.getStatementLog());
//StatementHandler.query
return handler.<E>query(stmt, resultHandler);
} finally {
closeStatement(stmt);
}
}
7. 预处理，准备Statement
private Statement prepareStatement(StatementHandler handler, Log statementLog) throws SQLException {
Statement stmt;
Connection connection = getConnection(statementLog);
//调用StatementHandler.prepare
stmt = handler.prepare(connection);
//调用StatementHandler.parameterize
handler.parameterize(stmt);
return stmt;
}
8. statement执行sql
//select-->结果给ResultHandler
@Override
public <E> List<E> query(Statement statement, ResultHandler resultHandler) throws SQLException {
String sql = boundSql.getSql();
statement.execute(sql);
//先执行Statement.execute，然后交给ResultSetHandler.handleResultSets
return resultSetHandler.<E>handleResultSets(statement);
}
9. 处理结果集
//处理结果集
private void handleResultSet(ResultSetWrapper rsw, ResultMap resultMap, List<Object> multipleResults, ResultMapping parentMapping) throws SQLException {
try {
if (parentMapping != null) {
handleRowValues(rsw, resultMap, null, RowBounds.DEFAULT, parentMapping);
} else {
if (resultHandler == null) {
//如果没有resultHandler
//新建DefaultResultHandler
DefaultResultHandler defaultResultHandler = new DefaultResultHandler(objectFactory);
//调用自己的handleRowValues
handleRowValues(rsw, resultMap, defaultResultHandler, rowBounds, null);
//得到记录的list
multipleResults.add(defaultResultHandler.getResultList());
} else {
//如果有resultHandler
handleRowValues(rsw, resultMap, resultHandler, rowBounds, null);
}
}
} finally {
//最后别忘了关闭结果集，这个居然出bug了
// issue #228 (close resultsets)
closeResultSet(rsw.getResultSet());
}
}
