? ? ? ? swagger文档在springboot项目中使用已经非常广泛，作为api接口管理工具 使用起来也很简单，只需要简单配置一下，就可以生成文档管理页面，在页面上管理查看api接口文档，以及进行接口调试等
配置示例
首先引入knife4j依赖
<properties>
<project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
<project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
<java.version>1.8</java.version>
<knife4j.version>2.0.2</knife4j.version>
<hutool.version>5.7.10</hutool.version>
</properties>
<!--knife4j整合了swagger文档-->
<dependency>
<groupId>com.github.xiaoymin</groupId>
<artifactId>knife4j-spring-boot-starter</artifactId>
<version>${knife4j.version}</version>
</dependency>然后创建一个配置类
import io.swagger.annotations.ApiOperation;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import springfox.documentation.builders.ApiInfoBuilder;
import springfox.documentation.builders.PathSelectors;
import springfox.documentation.builders.RequestHandlerSelectors;
import springfox.documentation.service.ApiInfo;
import springfox.documentation.service.ApiKey;
import springfox.documentation.service.AuthorizationScope;
import springfox.documentation.service.SecurityReference;
import springfox.documentation.spi.DocumentationType;
import springfox.documentation.spi.service.contexts.SecurityContext;
import springfox.documentation.spring.web.plugins.Docket;
import springfox.documentation.swagger2.annotations.EnableSwagger2;
import java.util.List;
import static com.google.common.collect.Lists.newArrayList;
/**
* @author xiaomifeng1010
* 配置swagger2
*/
@Configuration("swaggerConfiguration")
@EnableSwagger2
public class SwaggerConfiguration {
@Bean
public Docket createRestApi() {
return new Docket(DocumentationType.SWAGGER_2)
// 不想使用dcboot中的配置，但是需要添加一个分组，不然会提示重复的Docket对象，
// 加上分组与dcboot脚手架中的Docket对象进行区分
.groupName("C3运营端服务接口")
.apiInfo(apiInfo())
.select()
//加了ApiOperation注解的类，才生成接口文档
.apis(RequestHandlerSelectors.withMethodAnnotation(ApiOperation.class))
//包下的类，才生成接口文档
.apis(RequestHandlerSelectors.basePackage("com.dcboot.module"))
.paths(PathSelectors.any())
.build()
.securitySchemes(securitySchemes())
.securityContexts(securityContexts());
}
// 设置spring security oauth2的认证授权的token请求头全局设置
private List<ApiKey> securitySchemes() {
return newArrayList(
new ApiKey("Authorization", "Authorization", "header"));
}
private List<SecurityContext> securityContexts() {
return newArrayList(
SecurityContext.builder()
.securityReferences(defaultAuth())
.forPaths(PathSelectors.regex("^(?!auth).*$"))
.build()
);
}
List<SecurityReference> defaultAuth() {
AuthorizationScope authorizationScope = new AuthorizationScope("global", "accessEverything");
AuthorizationScope[] authorizationScopes = new AuthorizationScope[1];
authorizationScopes[0] = authorizationScope;
return newArrayList(
new SecurityReference("Authorization", authorizationScopes));
}
private ApiInfo apiInfo() {
return new ApiInfoBuilder()
.title("C3系统运营端服务")
.description("C3系统运营端服务Api文档")
// .termsOfServiceUrl("")
.version("2.0.0")
.build();
}
}在配置类上加上@Configuration注解，让spring扫描到，并且识别是一个配置类，然后加上@EnableSwagger2注解，表示启用swagger2
因为项目中用了spring security oauth2做系统的认证，所以在swagger配置中也加入了认证所需的请求头 Authrozation请求头。
最后在启动类上加上@EnableKnife4j,开启swagger增强
@Slf4j
@SpringBootApplication
@EnableKnife4j
@ComponentScan(value = {"com.dcboot.*"},
excludeFilters = @ComponentScan.Filter(type = FilterType.ASSIGNABLE_TYPE, classes = SwaggerConfig.class))
public class DcbC3creditOpmInstallApplication {
public static void main(String[] args) throws UnknownHostException {
ConfigurableApplicationContext application = SpringApplication.run(DcbC3creditOpmInstallApplication.class, args);
Environment env = application.getEnvironment();
String ip = CommonUtil.getInet4Address().getHostAddress();
String port = env.getProperty("server.port");
String path = env.getProperty("server.servlet.context-path");
log.info("http://" + ip + ":" + port + path);
log.info("swagger接口路径");
log.info("http://" + ip + ":" + port + path + "/swagger-ui.html");
log.info("knife4j接口路径");
log.info("http://" + ip + ":" + port + path + "/doc.html");
Map<String, Object> map = application.getBeansWithAnnotation(Controller.class);
System.out.println(map.keySet());
}
}公司自己搞了一个脚手架dcboot，不太好用，虽然脚手架里边已经有swagger2的配置，但是配置的并不友好，所以自定义了配置，需要在启动类中把dcboot中的原来的swagger配置类SwaggerConfig排除

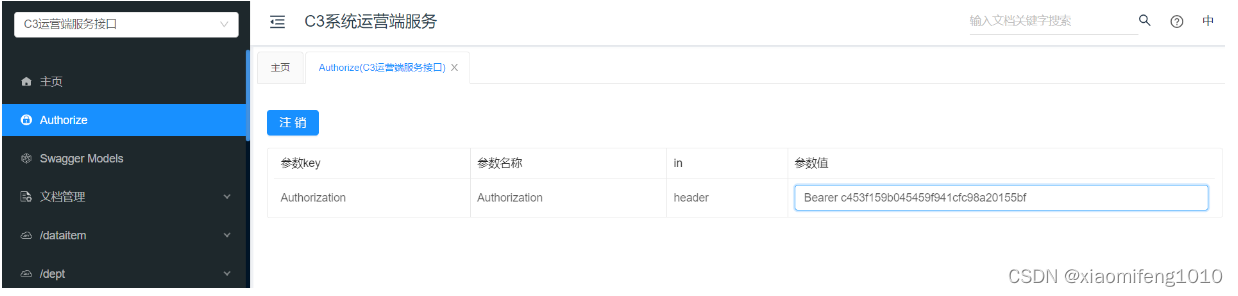

然后访问swagger文档，就会在左侧的菜单中多出来一个Ahthorize的菜单项?
?然后把oauth认证后拿到的token值填入即可，然后调用其他接口就直接可以携带token信息了

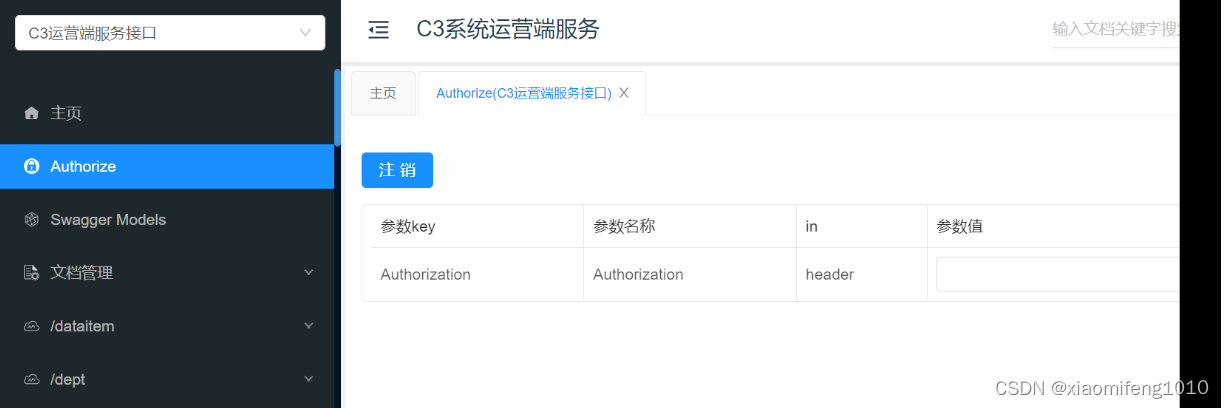

如果要让token失效，直接点击注销就可以了，不过一般token都设置了有效期，长时间不操作会自动失效?
