[Java知识库]Guacamole搭建教程

安装

参考链接：
?https://blog.csdn.net/Yg854879464/article/details/82151314? （有jdk、tomcat配置教程）
?https://blog.csdn.net/asd372506589/article/details/106399868?
?https://blog.csdn.net/cuiran/article/details/106609133?

系统环境

CentOS7 + tomcat + jdk + guacamole

安装依赖环境

rpm --import http://li.nux.ro/download/nux/RPM-GPG-KEY-nux.ro

yum -y install http://li.nux.ro/download/nux/dextop/el7/x86_64/nux-dextop-release-0-1.el7.nux.noarch.rpm

安装依赖包

yum -y install cairo-devel libjpeg-devel libpng-devel uuid-devel

yum -y install ffmpeg-devel freerdp-devel pango-devel libssh2-devel

yum -y install libtelnet-devel libvncserver-devel pulseaudio-libs-devel

yum -y install openssl-devel libvorbis-devel libwebp-devel

yum -y install freerdp-plugins

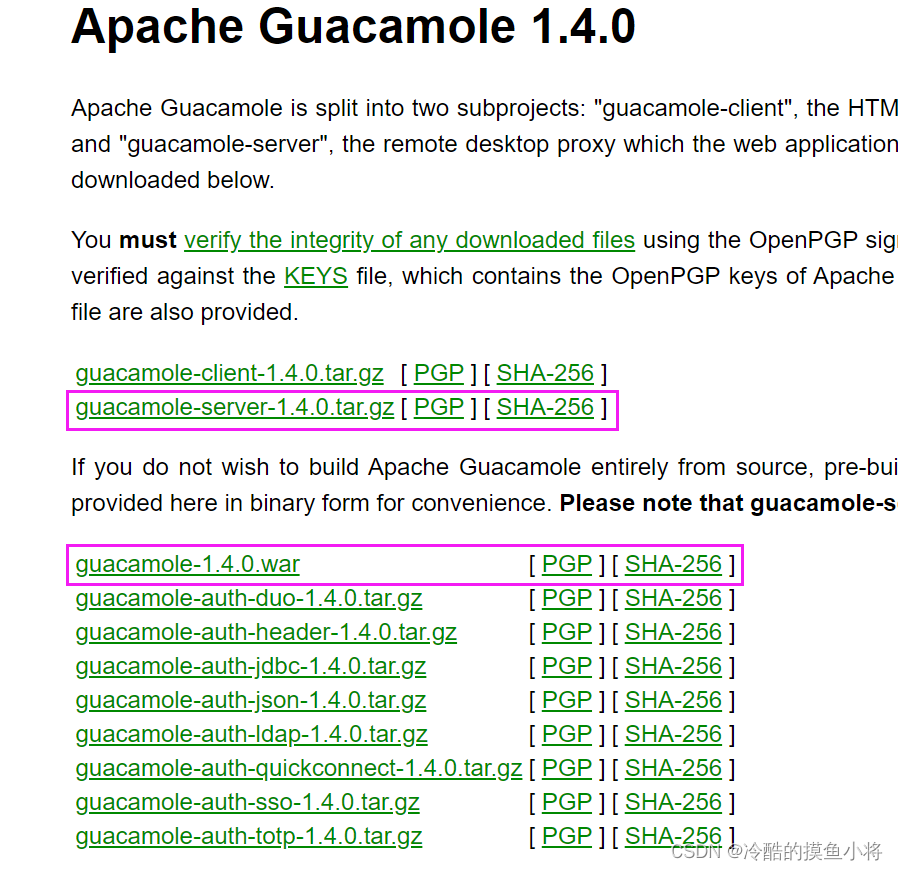

下载安装包

https://guacamole.apache.org/releases/1.4.0/

服务端安装

解压下载的guacamole-server-1.4.0.tar.gz放在任意目录都可以

解压并安装：

tar -xzvf guacamole-server-0.9.14.tar.gz

cd /guacamole-server-0.9.14/

./configure --with-init-dir=/etc/init.d

在当前目录下继续执行：

make
make install
ldconfig

安装完成之后，可以使用以下来看guacd是否安装成功：

service guacd start
service guacd stop
service guacd restart
//success

以上：服务端安装好了

客户端安装

将下载的guacamole-1.4.0.war，放入webapp目录下。

创建/etc/guacamole/文件目录：

mkdir /etc/guacamole/

创建guacamole.properties文件:

cd /etc/guacamole/

vi guacamole.properties

guacamole.properties文本内容：

basic-user-mapping: /etc/guacamole/user-mapping.xml

在/etc/guacamole/目录下创建user-mapping.xml文件:

vi user-mapping.xml

user-mapping.xml文本内容：

<user-mapping>
        <authorize  password="123456" username="admin">
                 <connection name="rdp-windows-zongmin">
                        <protocol>rdp</protocol>
                        <param name="hostname">119.XXXX.121.XXXX</param>
                        <param name="port">3389</param>
                        <param name="username">XXXX</param>
                        <param name="password">XXXXXX</param>
                </connection>
                 <connection name="rdp-192.XXXX.41.XXXX">
                        <protocol>rdp</protocol>
                        <param name="hostname">192.XXXX.41.XXXX</param>
                        <param name="port">3389</param>
                        <param name="username">XXXXX</param>
                        <param name="password">XXXXX</param>
                </connection>
                <connection name="ssh-192.XXXX.41.XXXX">
                        <protocol>ssh</protocol>
                        <param name="hostname">192.XXXX.41.XXXX</param>
                        <param name="port">22</param>
                        <param name="username">XXXXX</param>
                        <param name="password">XXXXX</param>
                        <param name="enable-sftp">true</param>
                        <param name="sftp-hostname">192.XXXX.41.XXXX</param>
                        <param name="sftp-root-directory">/data/sftp</param>
                        <param name="sftp-username">XXXXX</param>
                        <param name="sftp-password">XXXXX</param>
                </connection>
                 <connection name="ssh-192.XXXX.41.XXXX">
                        <protocol>ssh</protocol>
                        <param name="hostname">192.XXXX.41.XXXX</param>
                        <param name="port">22</param>
                        <param name="username">XXXXX</param>
                        <param name="password">XXXXX</param>
                        <param name="enable-sftp">true</param>
                        <param name="sftp-hostname">192.XXXX.41.XXXX</param>
                        <param name="sftp-root-directory">/data/sftp</param>
                        <param name="sftp-username">XXXXX</param>
                        <param name="sftp-password">XXXXX</param>
                </connection>
         </authorize>
</user-mapping>

验证是否成功

开tomcat、开guacd

systemctl tomcat start
service guacd restart

浏览器页面

输入： http://虚拟机的ip地址:8080/guacamole/#/e

用户名：admin
密码：123456
