一、前端项目搭建

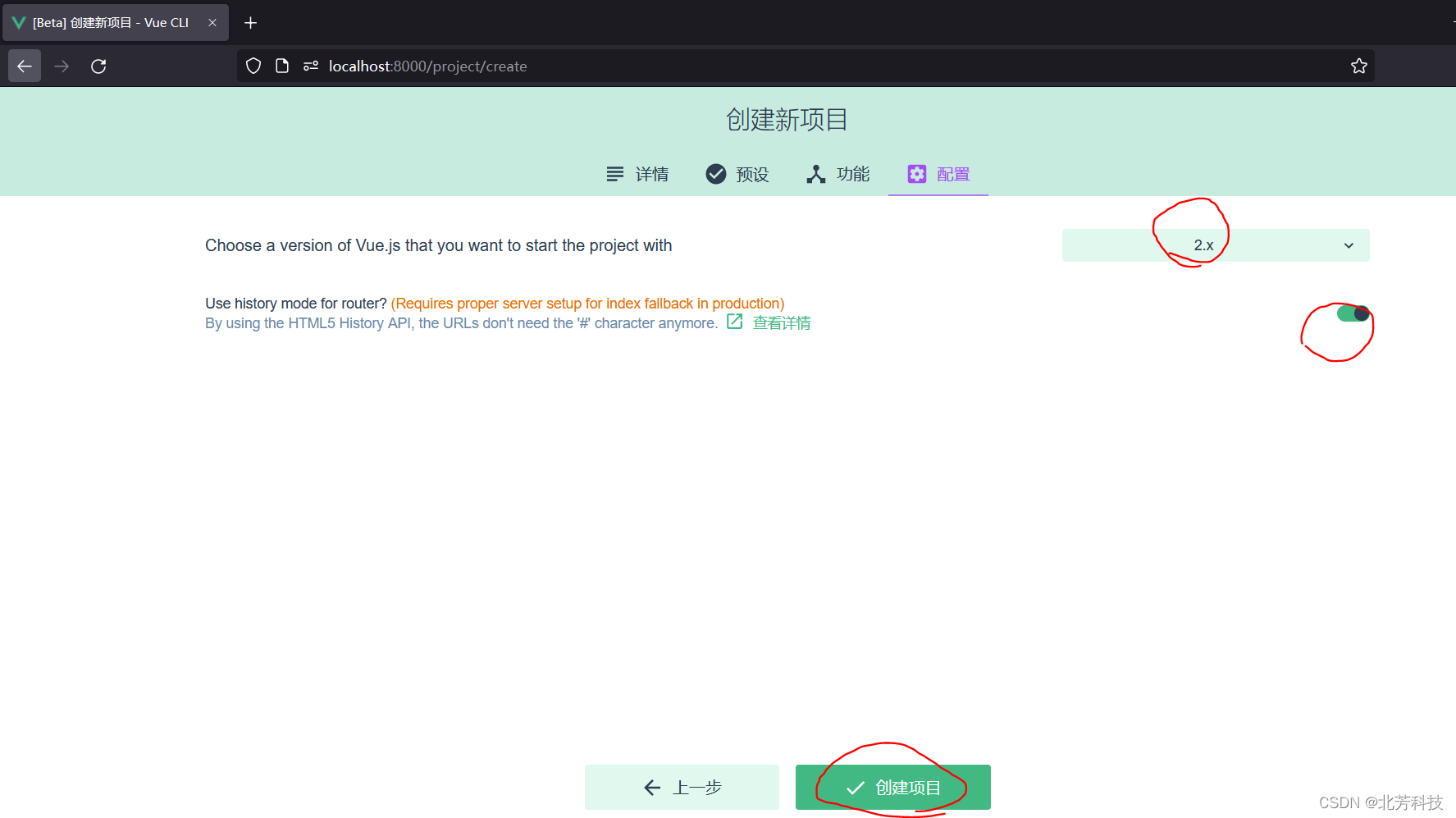

1、项目初始化

安装 vue可视化

npm install --g vue-cli

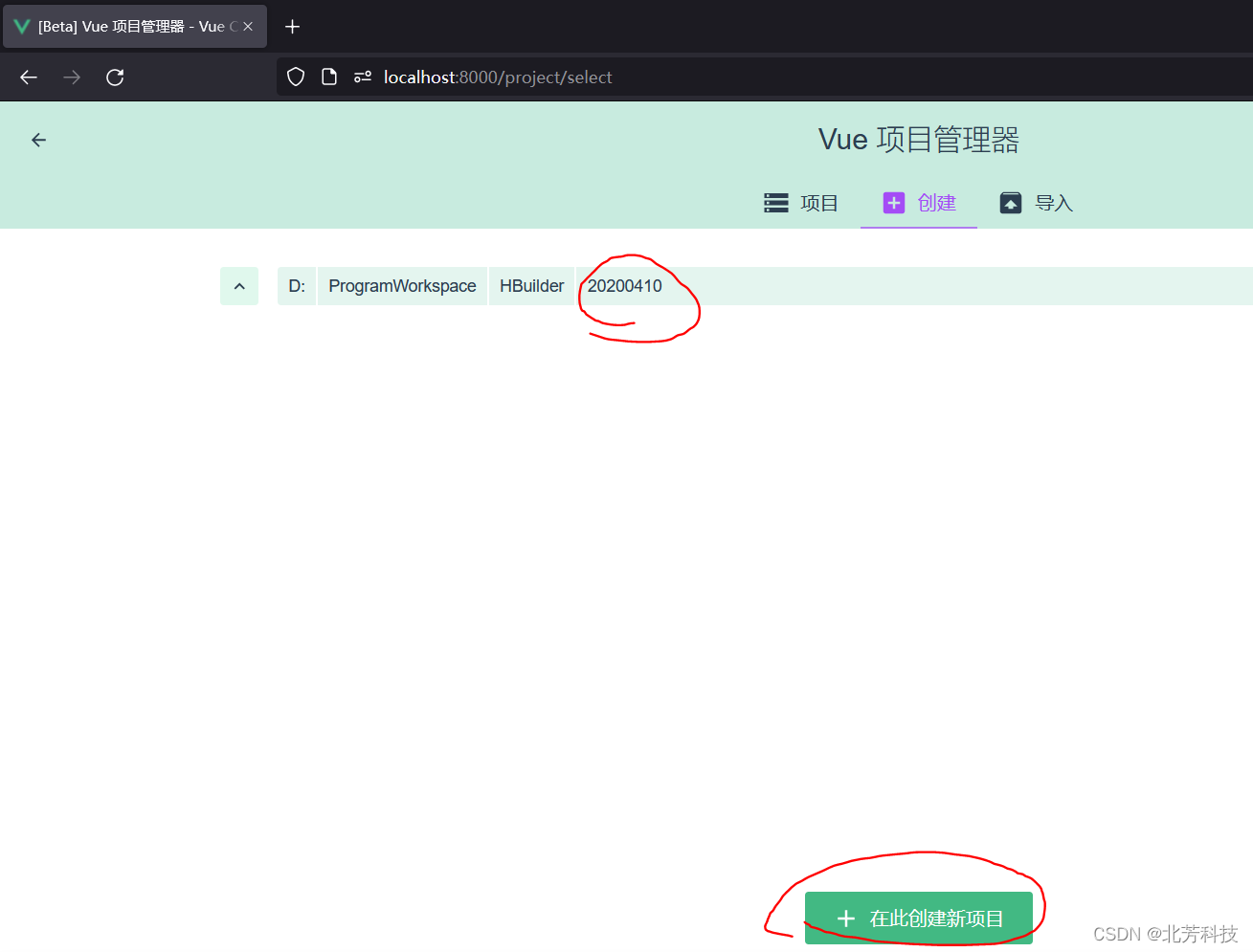

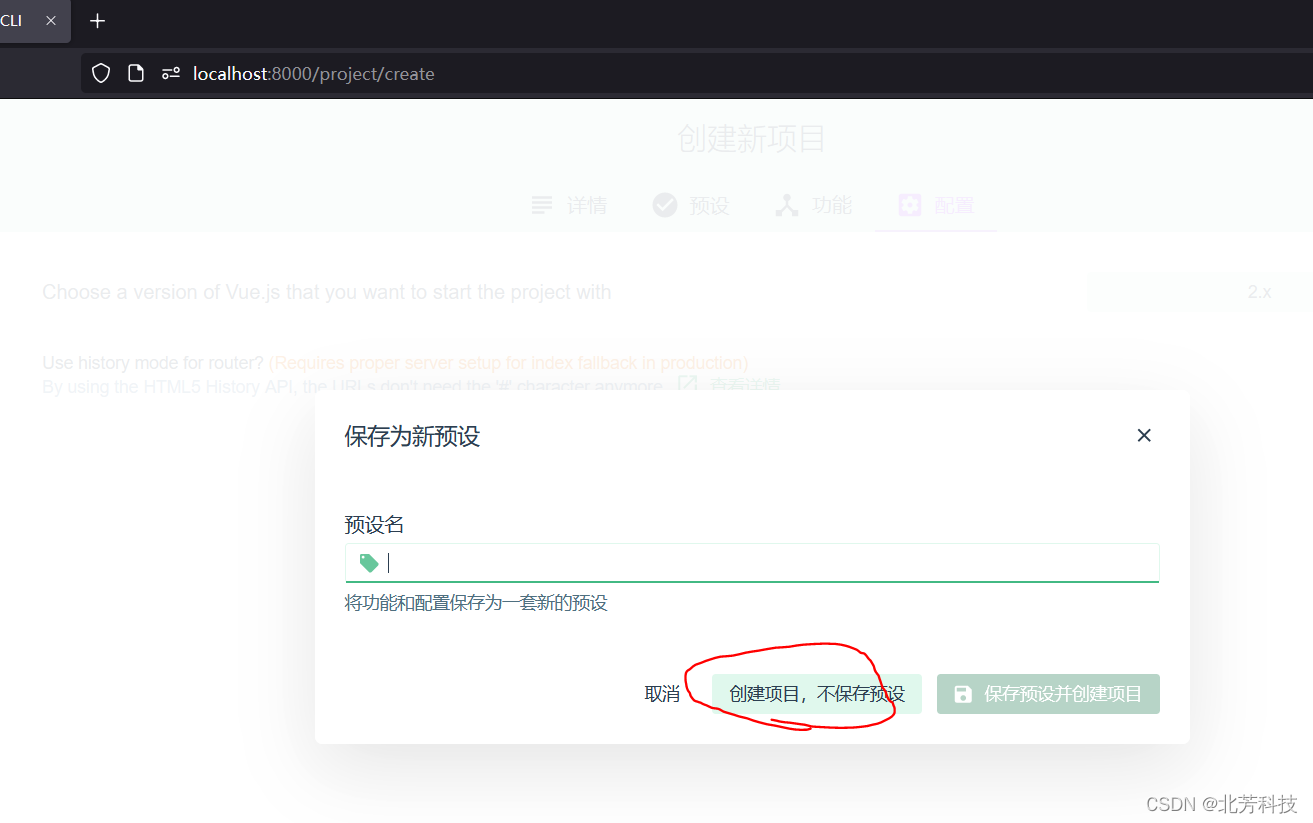

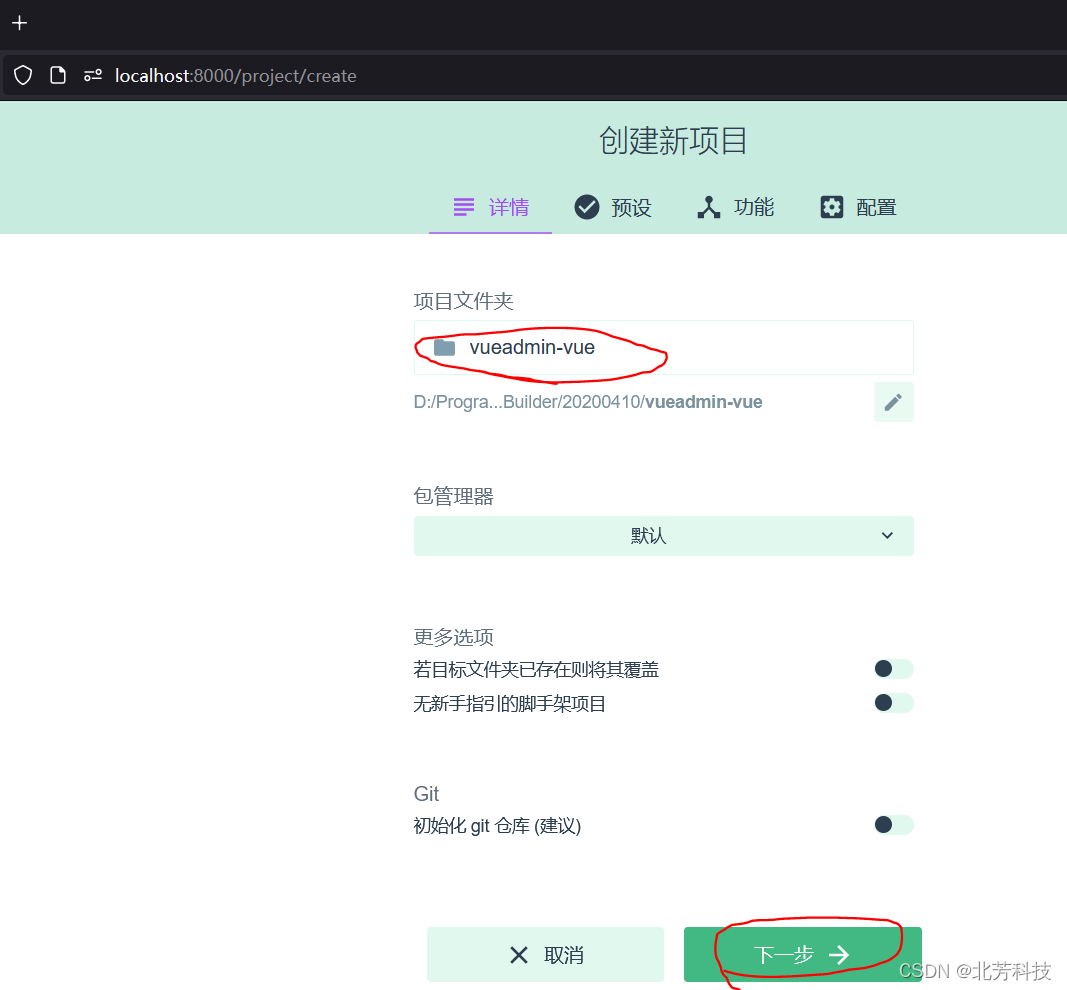

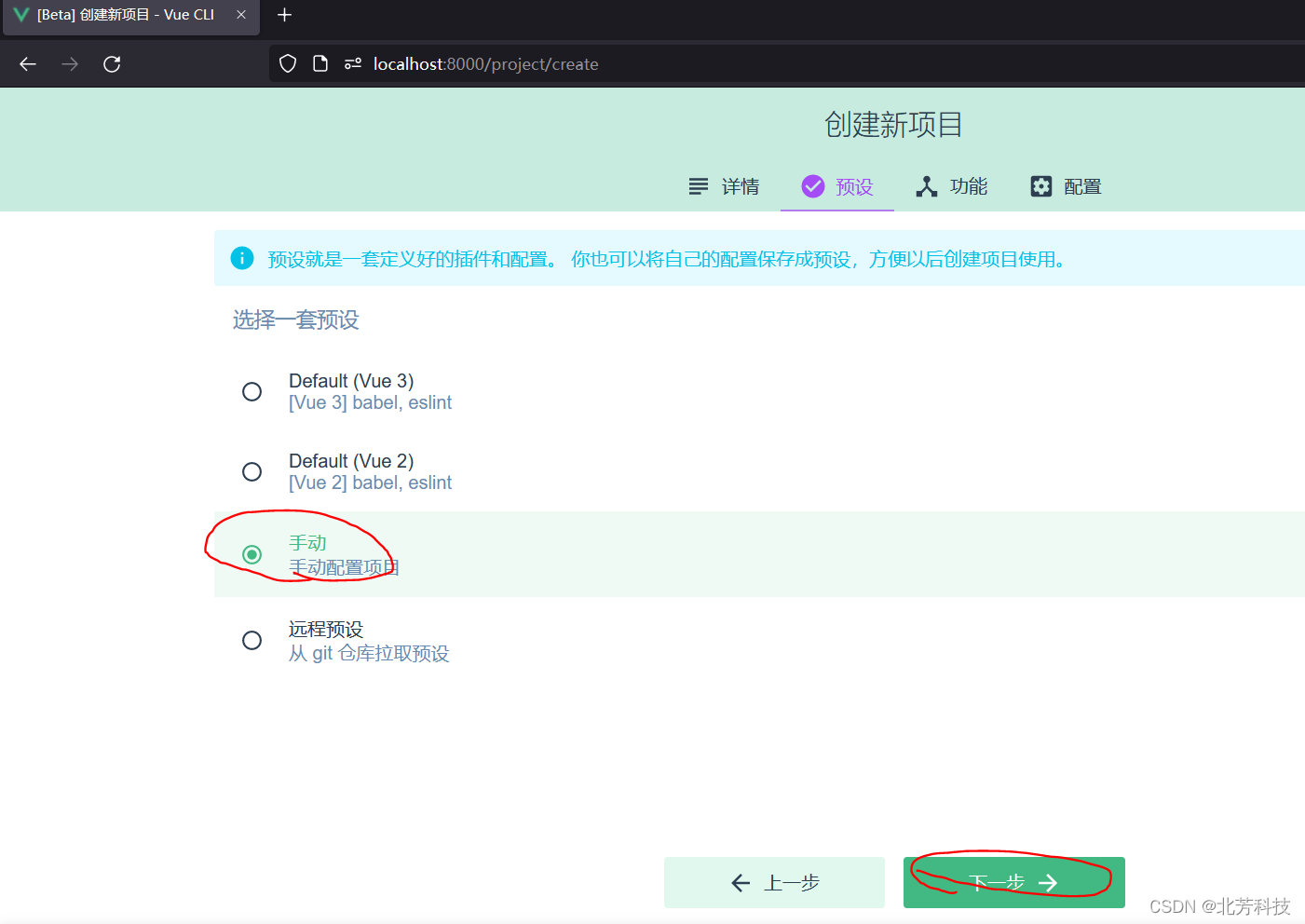

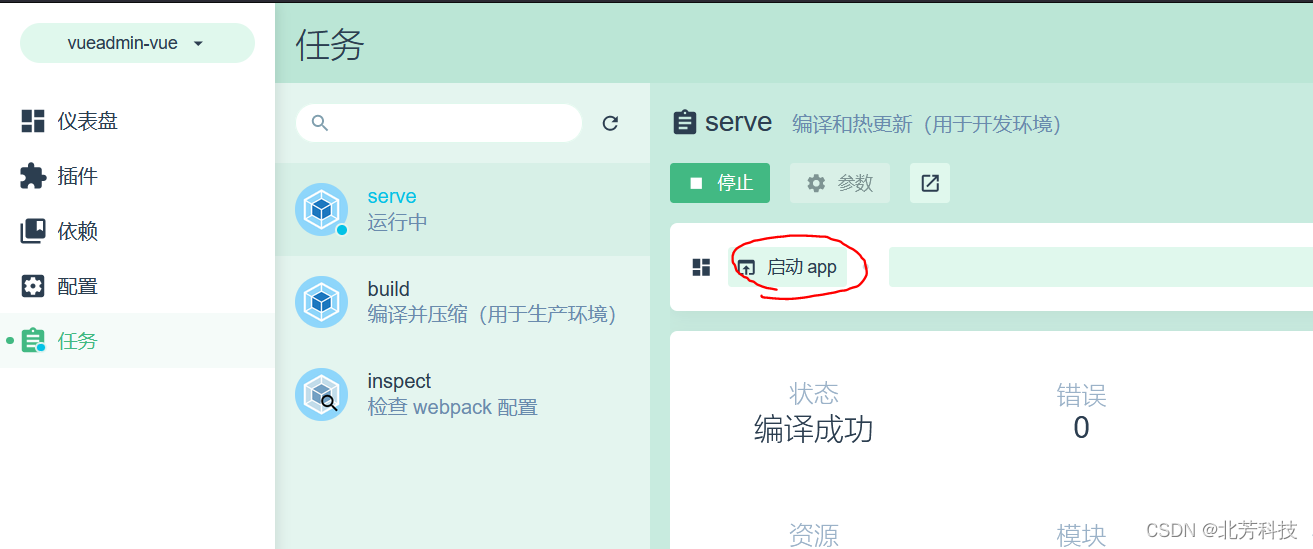

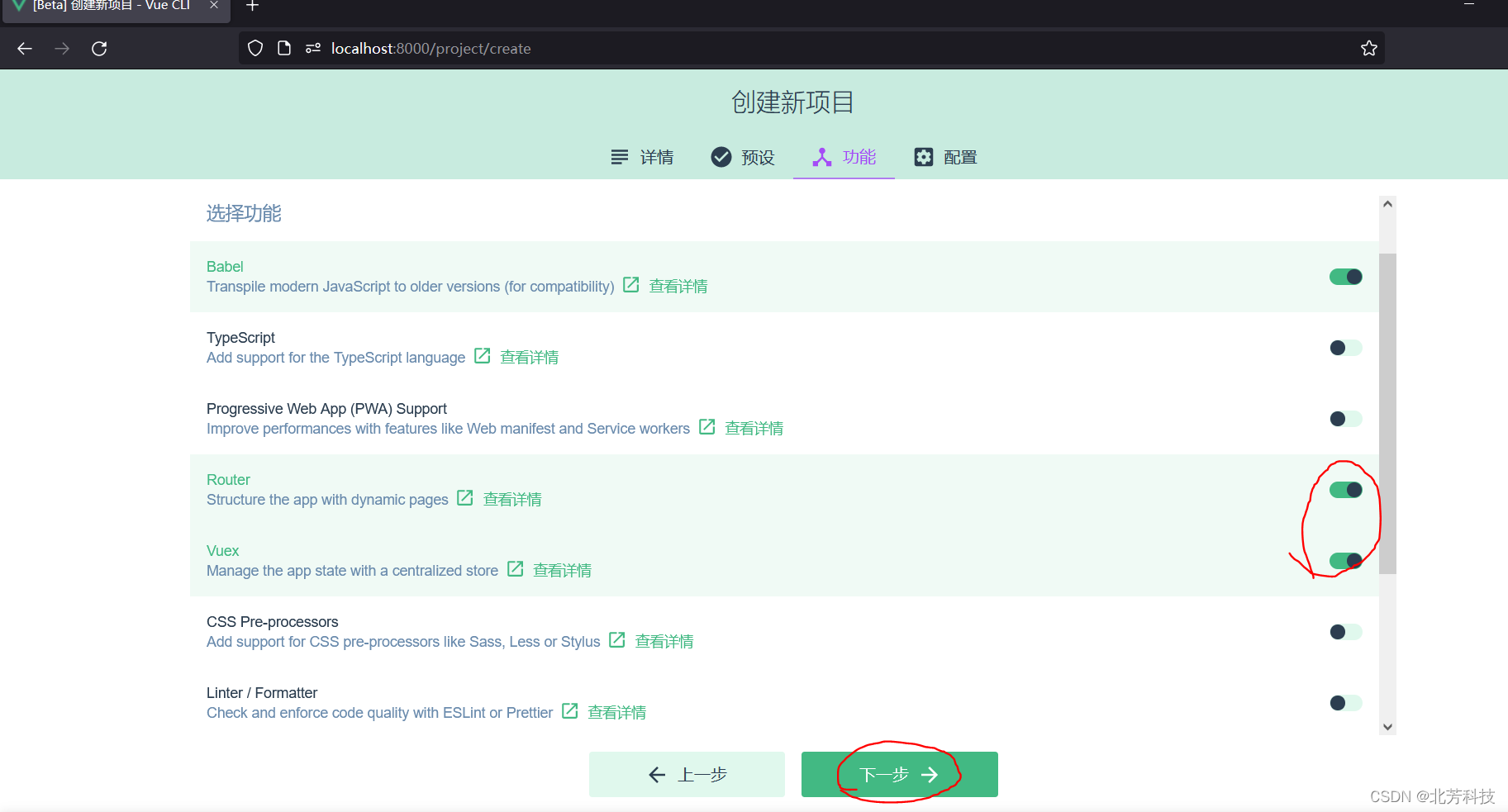

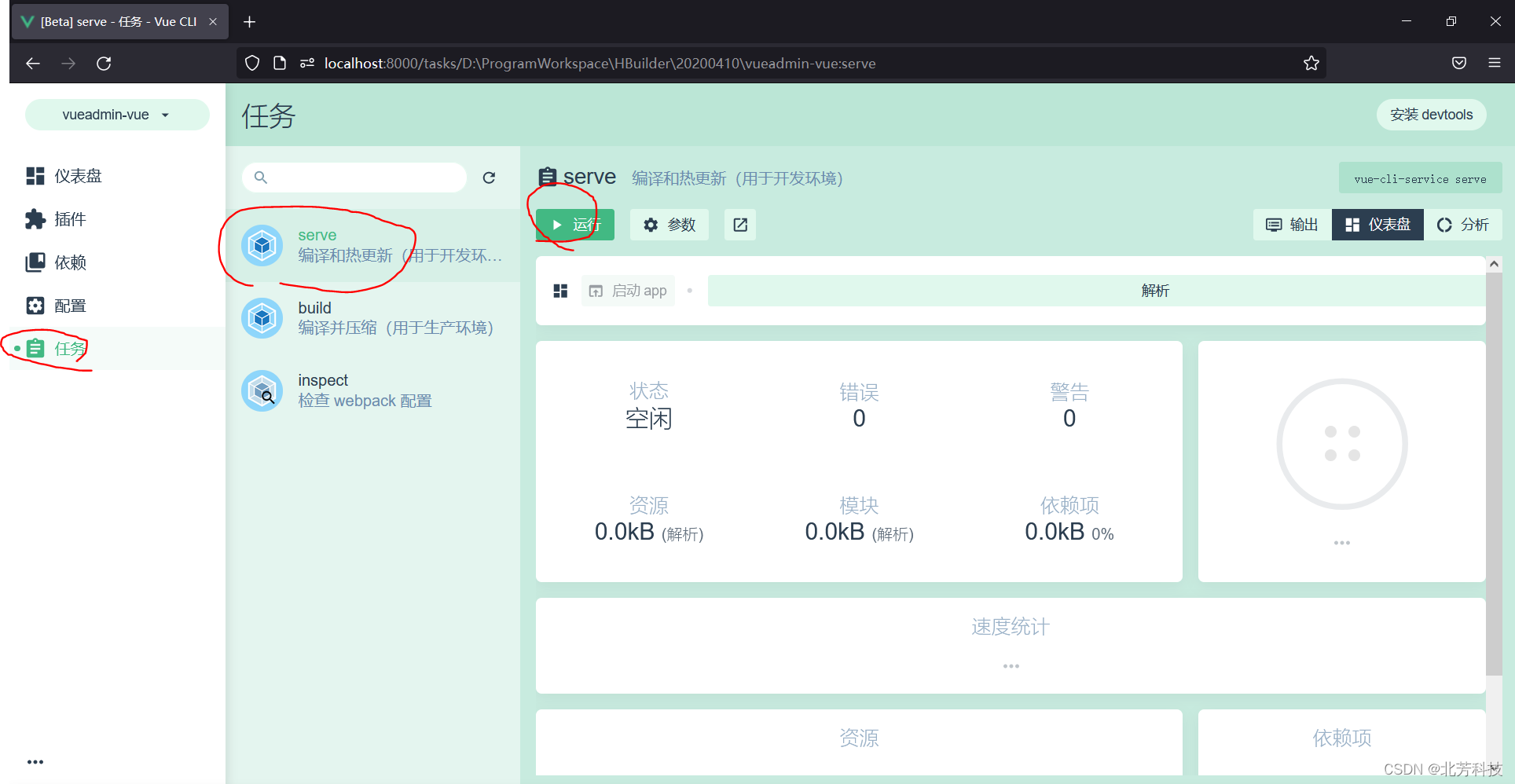

打开vue的的可视化管理工具页面

vue ui

访问该地址：

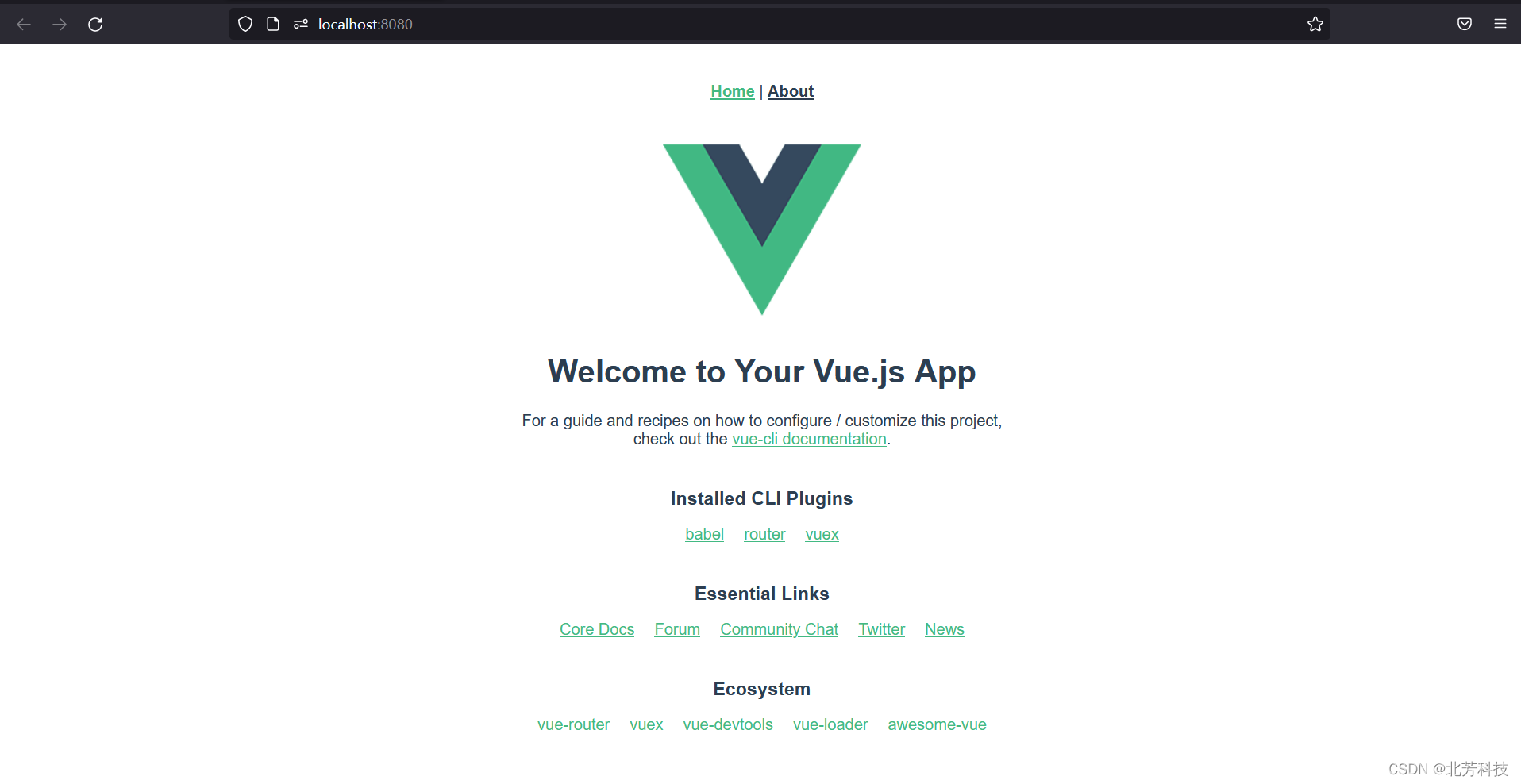

访问成功

使用Hbuilder打开项目

2、实现相关依赖的安装

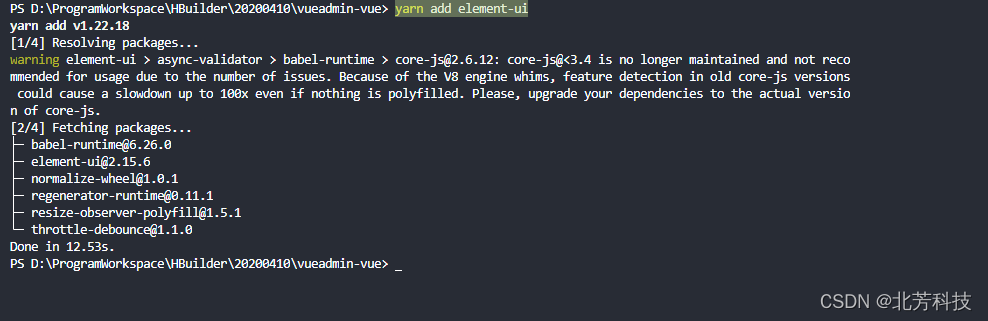

安装 element-ui

yarn add element-ui

安装成功

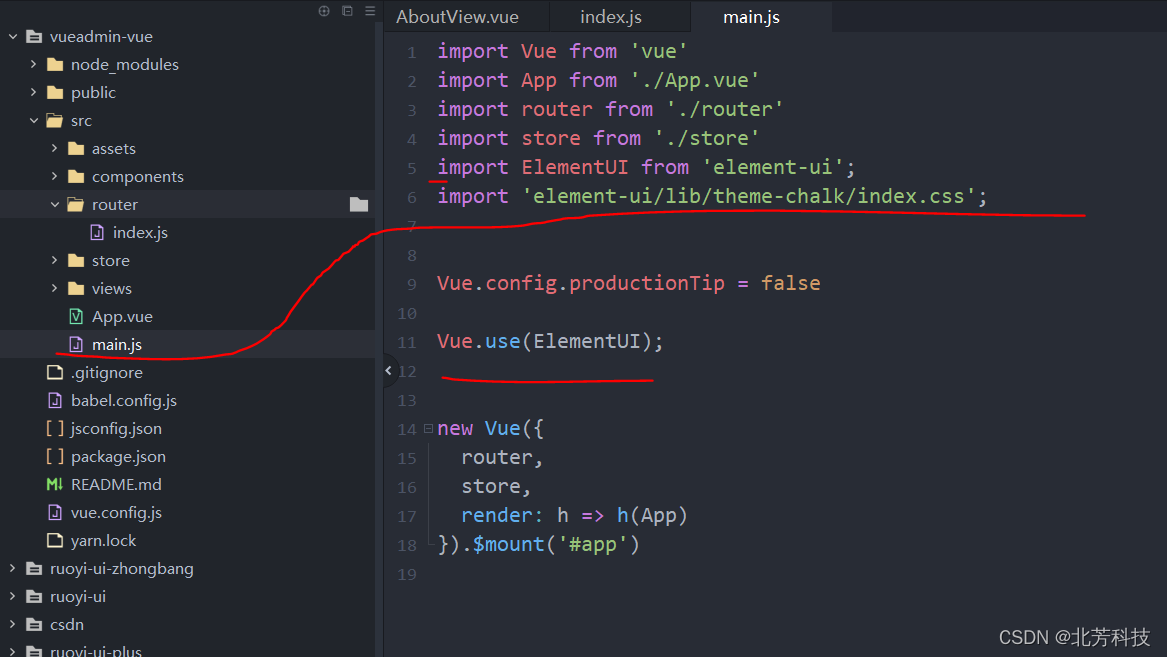

引入element-ui

import Vue from 'vue'
import App from './App.vue'
import router from './router'
import store from './store'
import ElementUI from 'element-ui';
import 'element-ui/lib/theme-chalk/index.css';


Vue.config.productionTip = false

Vue.use(ElementUI);


new Vue({
  router,
  store,
  render: h => h(App)
}).$mount('#app')

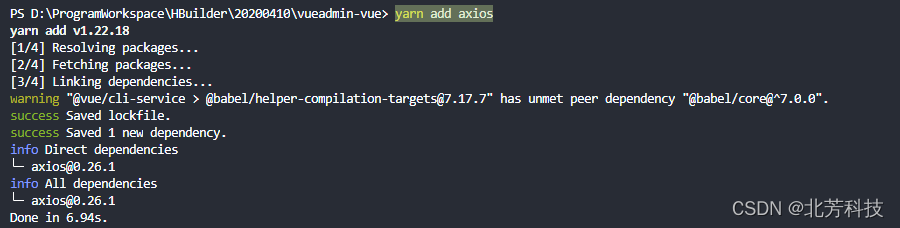

安装axios
axios:一个基于promise的HTTP库，类ajax

yarn add axios

引入全局axios

import axios from 'axios'
Vue.prototype.$axios = axios

安装qs
qs:查询参数序列化和解析库

yarn add qs

安装mockjs
mockjs:为我们生成随机数据的工具库

yarn add mockjs

3、设置页面路由

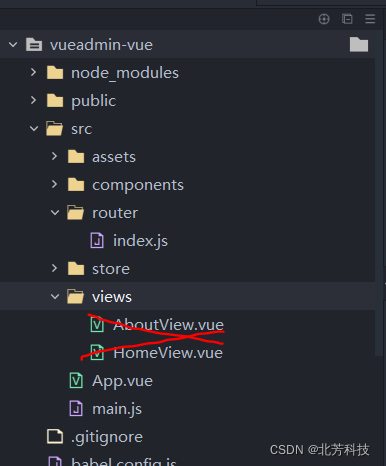

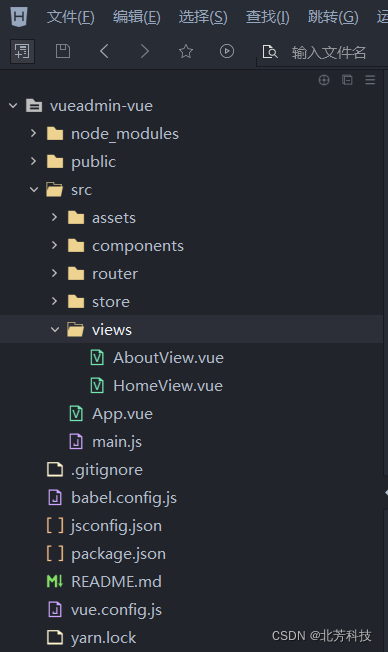

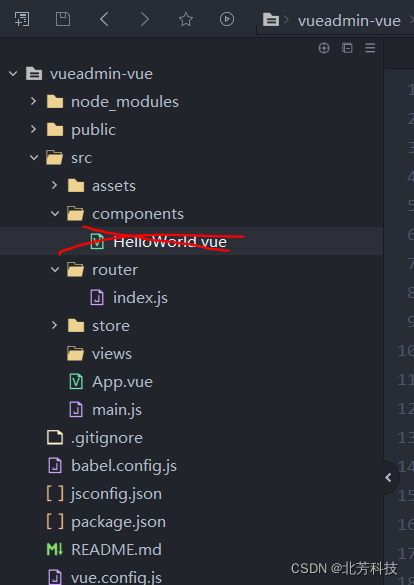

删除页面的自动创建好的页面

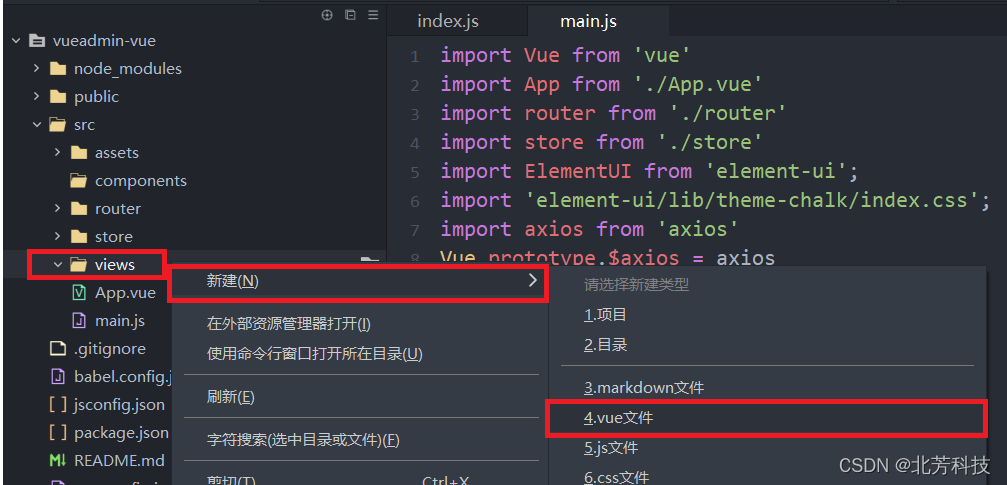

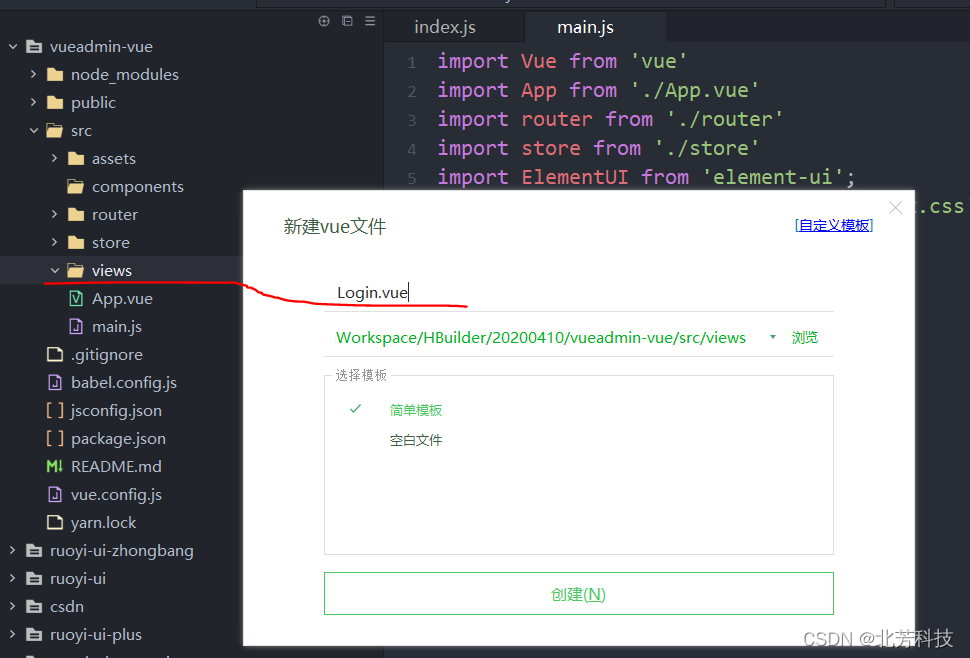

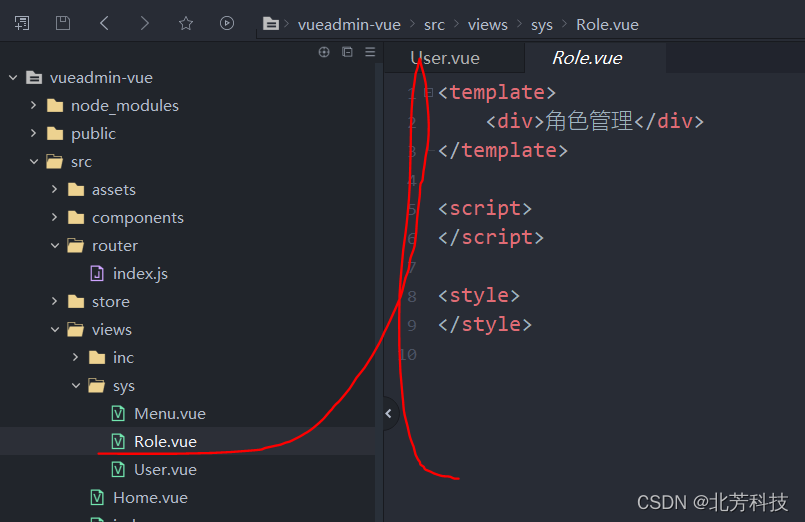

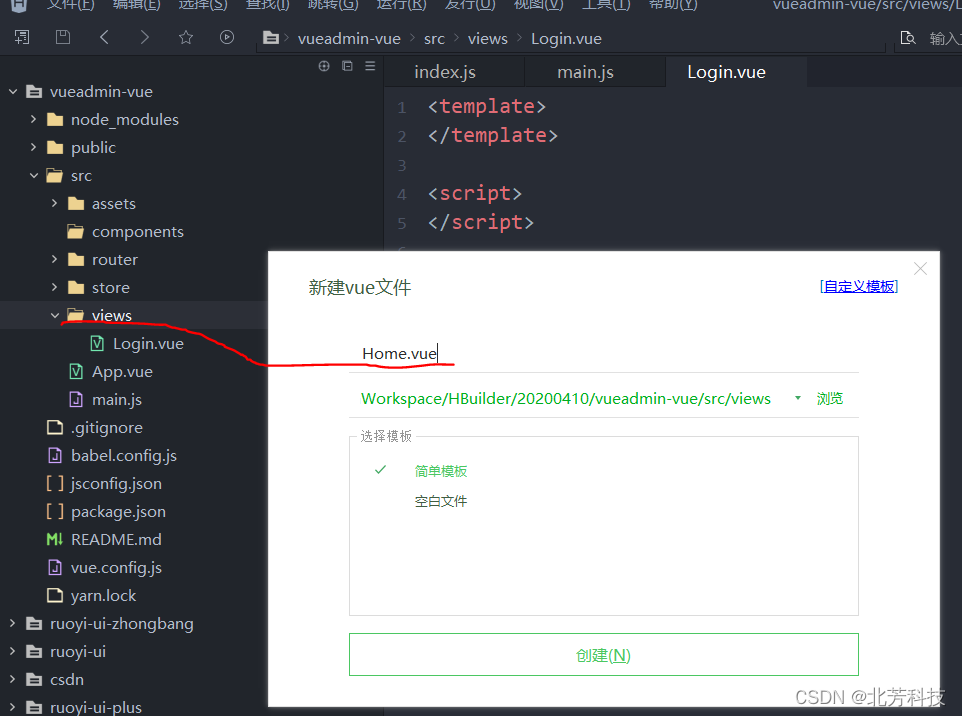

创建一些自定义页面

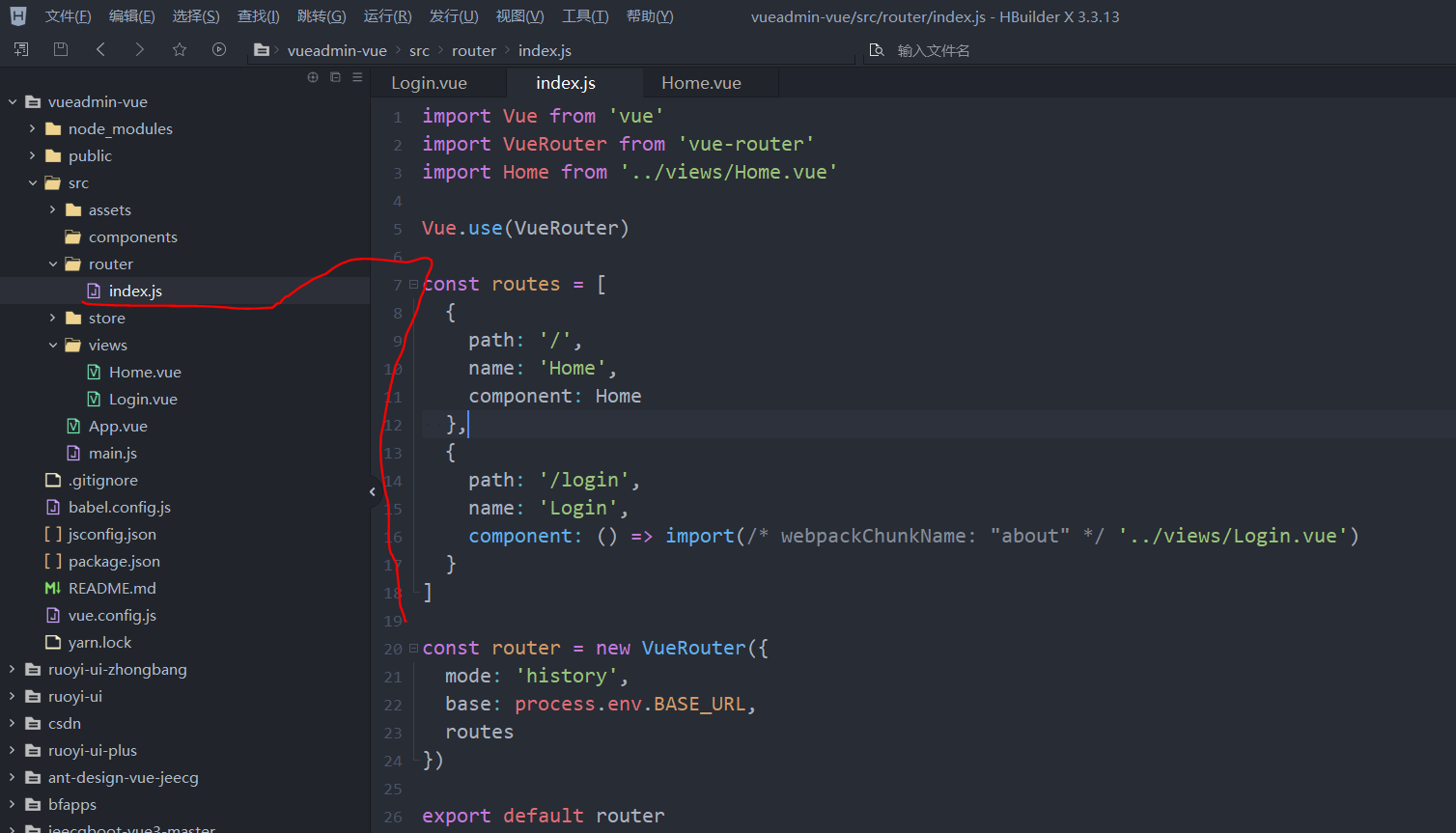

设置路由

import Vue from 'vue'
import VueRouter from 'vue-router'
import Home from '../views/Home.vue'

Vue.use(VueRouter)

const routes = [
  {
    path: '/',
    name: 'Home',
    component: Home
  },
  {
    path: '/login',
    name: 'Login',
    component: () => import(/* webpackChunkName: "about" */ '../views/Login.vue')
  }
]

const router = new VueRouter({
  mode: 'history',
  base: process.env.BASE_URL,
  routes
})

export default router

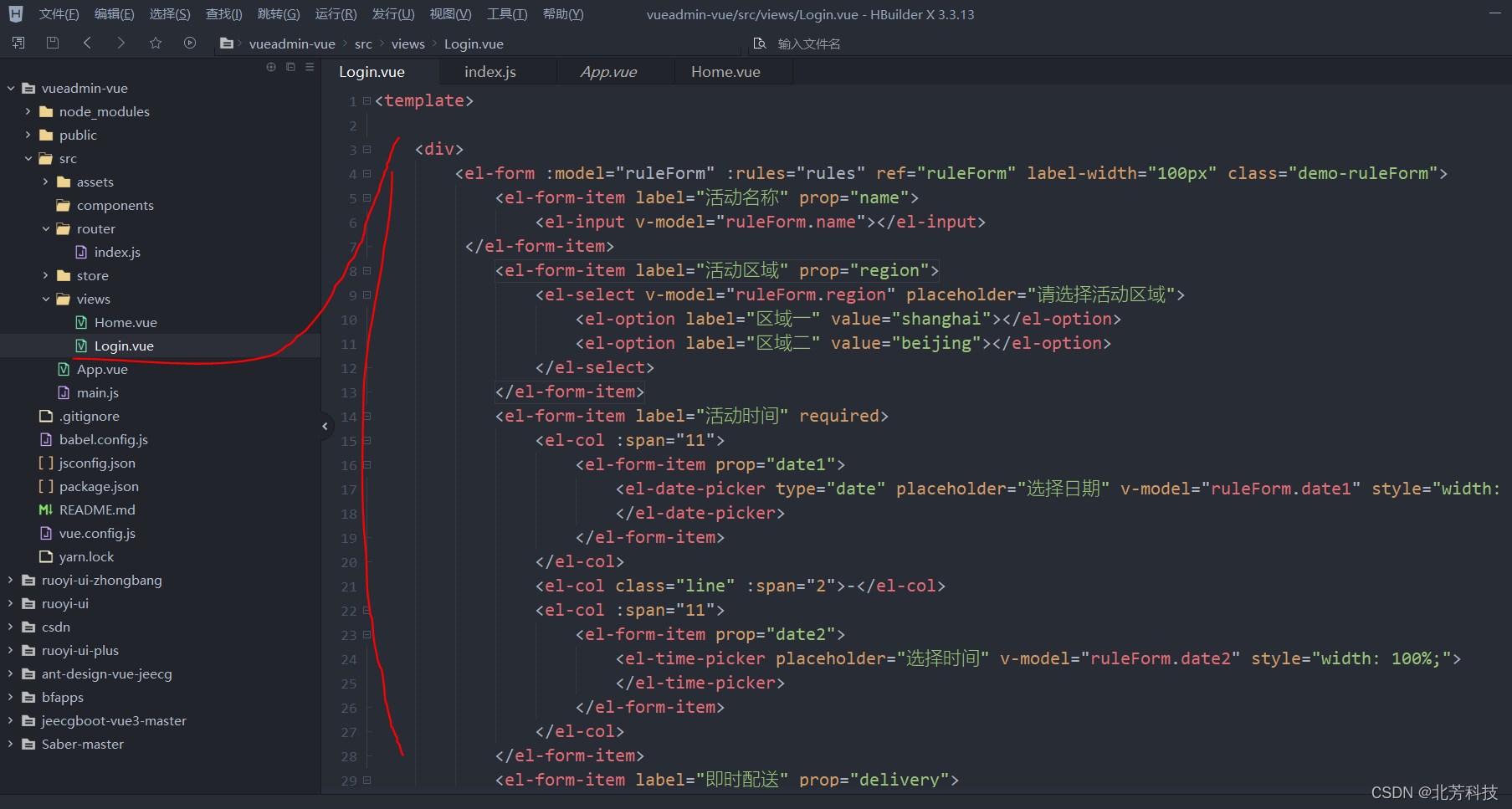

设置登录页面

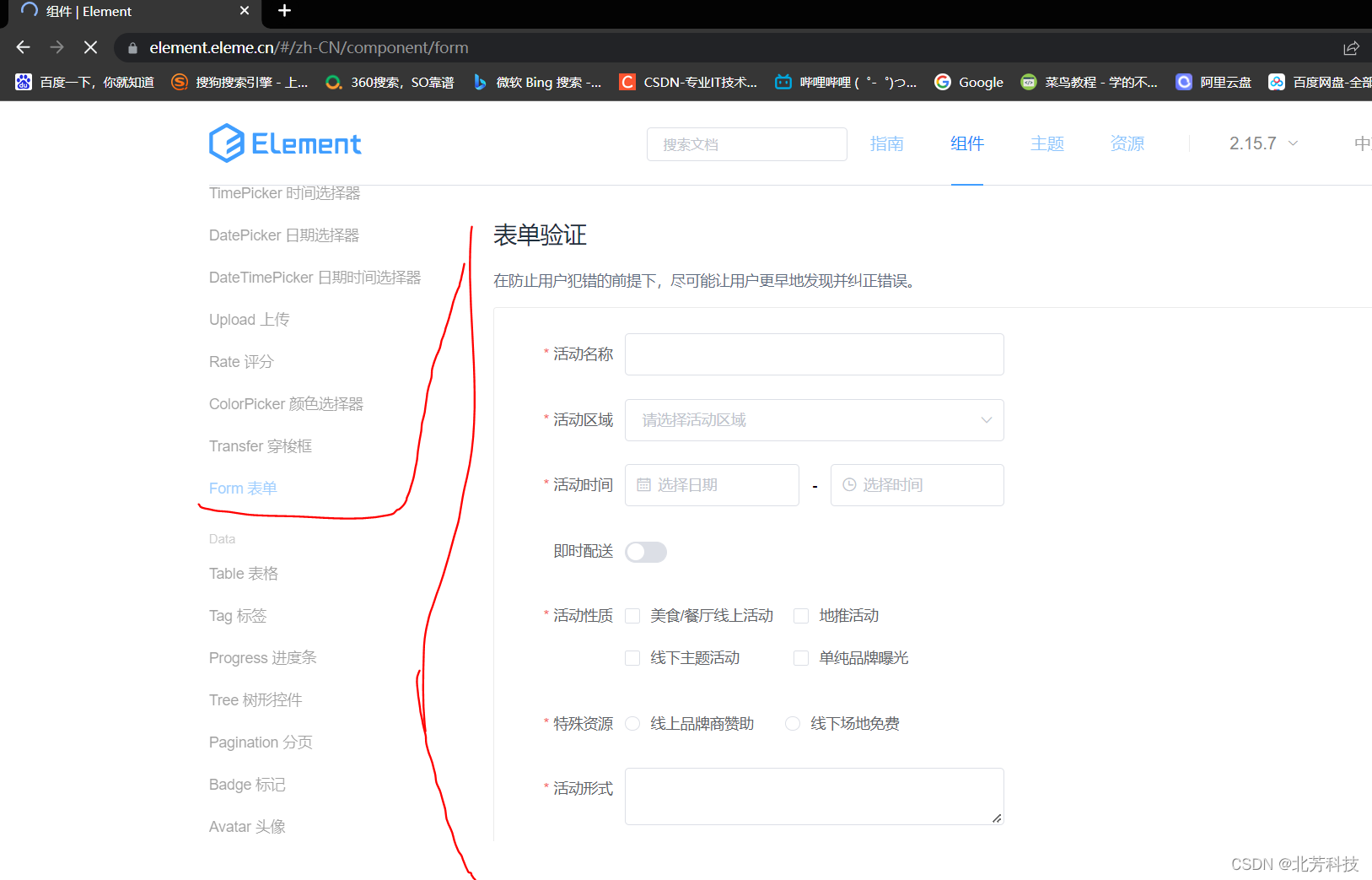

找到Element UI的页面

<template>

	<div>
		<el-form :model="ruleForm" :rules="rules" ref="ruleForm" label-width="100px" class="demo-ruleForm">
			<el-form-item label="活动名称" prop="name">
				<el-input v-model="ruleForm.name"></el-input>
		 </el-form-item>
			<el-form-item label="活动区域" prop="region">
				<el-select v-model="ruleForm.region" placeholder="请选择活动区域">
					<el-option label="区域一" value="shanghai"></el-option>
					<el-option label="区域二" value="beijing"></el-option>
				</el-select>
			</el-form-item>
			<el-form-item label="活动时间" required>
				<el-col :span="11">
					<el-form-item prop="date1">
						<el-date-picker type="date" placeholder="选择日期" v-model="ruleForm.date1" style="width: 100%;">
						</el-date-picker>
					</el-form-item>
				</el-col>
				<el-col class="line" :span="2">-</el-col>
				<el-col :span="11">
					<el-form-item prop="date2">
						<el-time-picker placeholder="选择时间" v-model="ruleForm.date2" style="width: 100%;">
						</el-time-picker>
					</el-form-item>
				</el-col>
			</el-form-item>
			<el-form-item label="即时配送" prop="delivery">
				<el-switch v-model="ruleForm.delivery"></el-switch>
			</el-form-item>
			<el-form-item label="活动性质" prop="type">
				<el-checkbox-group v-model="ruleForm.type">
					<el-checkbox label="美食/餐厅线上活动" name="type"></el-checkbox>
					<el-checkbox label="地推活动" name="type"></el-checkbox>
					<el-checkbox label="线下主题活动" name="type"></el-checkbox>
					<el-checkbox label="单纯品牌曝光" name="type"></el-checkbox>
				</el-checkbox-group>
			</el-form-item>
			<el-form-item label="特殊资源" prop="resource">
				<el-radio-group v-model="ruleForm.resource">
					<el-radio label="线上品牌商赞助"></el-radio>
					<el-radio label="线下场地免费"></el-radio>
				</el-radio-group>
			</el-form-item>
			<el-form-item label="活动形式" prop="desc">
				<el-input type="textarea" v-model="ruleForm.desc"></el-input>
			</el-form-item>
			<el-form-item>
				<el-button type="primary" @click="submitForm('ruleForm')">立即创建</el-button>
				<el-button @click="resetForm('ruleForm')">重置</el-button>
			</el-form-item>
		</el-form>
	</div>

</template>

<script>
	export default {
		data() {
			return {
				ruleForm: {
					name: '',
					region: '',
					date1: '',
					date2: '',
					delivery: false,
					type: [],
					resource: '',
					desc: ''
				},
				rules: {
					name: [{
							required: true,
							message: '请输入活动名称',
							trigger: 'blur'
						},
						{
							min: 3,
							max: 5,
							message: '长度在 3 到 5 个字符',
							trigger: 'blur'
						}
					],
					region: [{
						required: true,
						message: '请选择活动区域',
						trigger: 'change'
					}],
					date1: [{
						type: 'date',
						required: true,
						message: '请选择日期',
						trigger: 'change'
					}],
					date2: [{
						type: 'date',
						required: true,
						message: '请选择时间',
						trigger: 'change'
					}],
					type: [{
						type: 'array',
						required: true,
						message: '请至少选择一个活动性质',
						trigger: 'change'
					}],
					resource: [{
						required: true,
						message: '请选择活动资源',
						trigger: 'change'
					}],
					desc: [{
						required: true,
						message: '请填写活动形式',
						trigger: 'blur'
					}]
				}
			};
		},
		methods: {
			submitForm(formName) {
				this.$refs[formName].validate((valid) => {
					if (valid) {
						alert('submit!');
					} else {
						console.log('error submit!!');
						return false;
					}
				});
			},
			resetForm(formName) {
				this.$refs[formName].resetFields();
			}
		}
	}
</script>

<style>
</style>

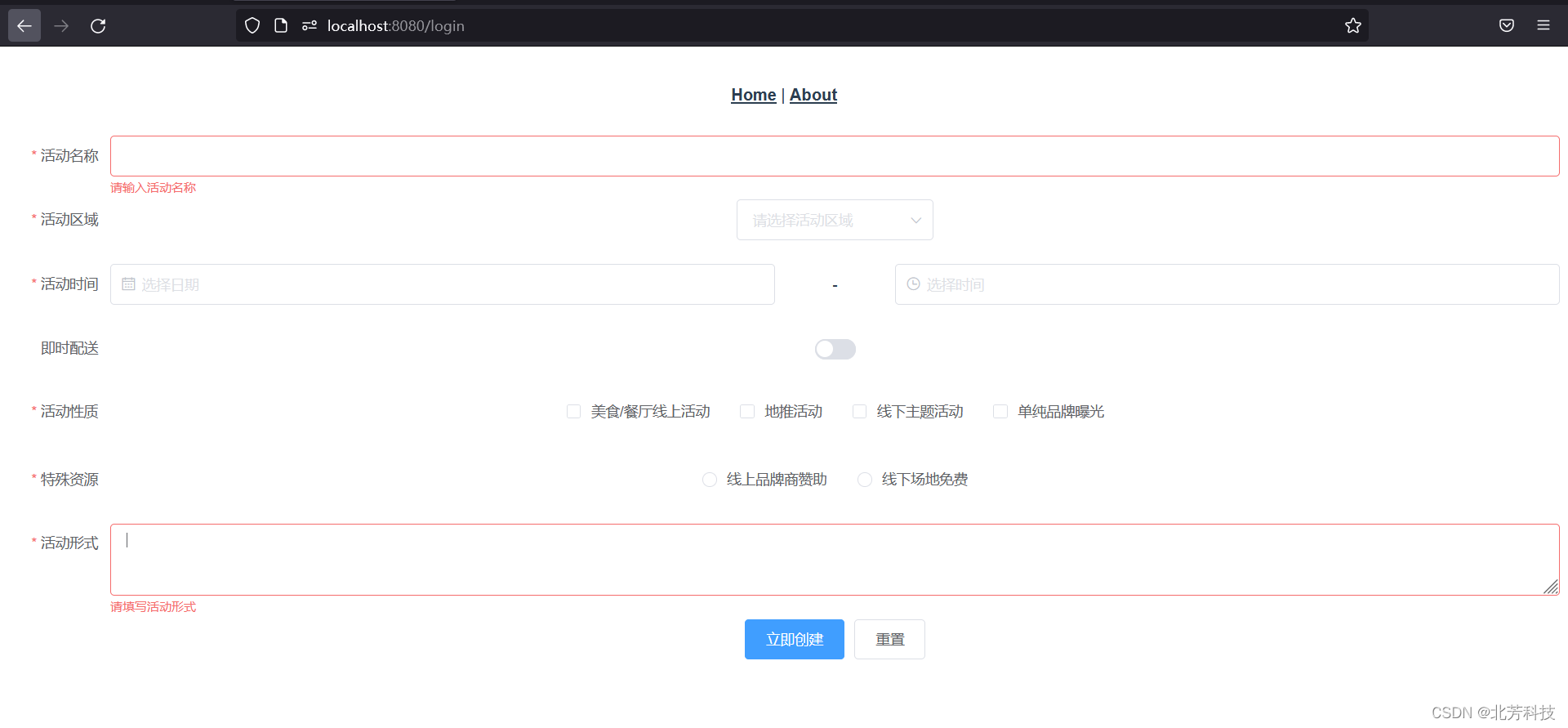

运行测试
http://localhost:8080/login

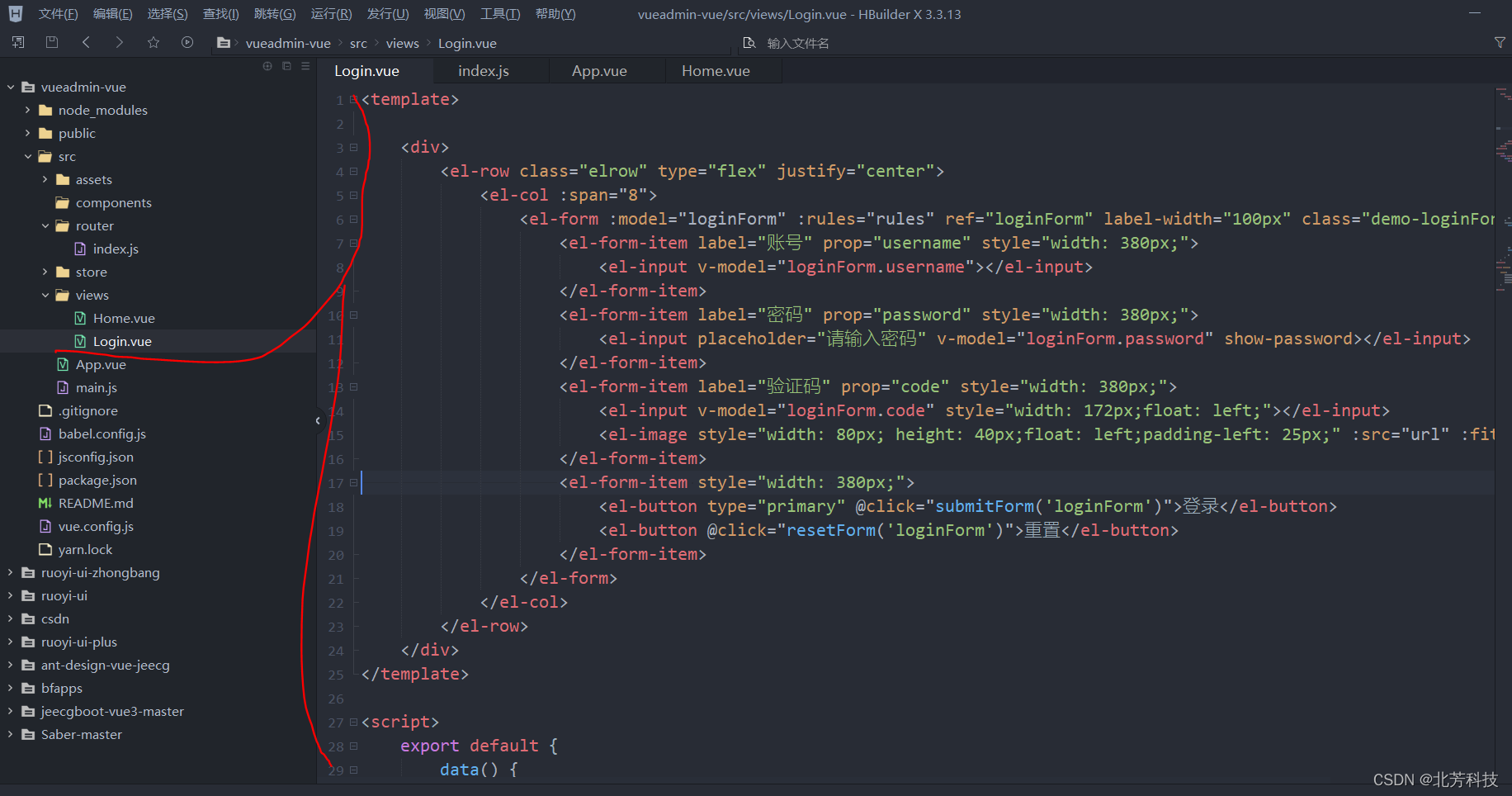

修改页面设置为登录页面

<template>

	<div>
		<el-row class="elrow" type="flex" justify="center">
			<el-col :span="8">
				<el-form :model="loginForm" :rules="rules" ref="loginForm" label-width="100px" class="demo-loginForm">
					<el-form-item label="账号" prop="username" style="width: 380px;">
						<el-input v-model="loginForm.username"></el-input>
					</el-form-item>
					<el-form-item label="密码" prop="password" style="width: 380px;">
						<el-input placeholder="请输入密码" v-model="loginForm.password" show-password></el-input>
					</el-form-item>
					<el-form-item label="验证码" prop="code" style="width: 380px;">
						<el-input v-model="loginForm.code" style="width: 172px;float: left;"></el-input>
						<el-image style="width: 80px; height: 40px;float: left;padding-left: 25px;" :src="url" :fit="fit"></el-image>
					</el-form-item>
					<el-form-item style="width: 380px;">
						<el-button type="primary" @click="submitForm('loginForm')">登录</el-button>
						<el-button @click="resetForm('loginForm')">重置</el-button>
					</el-form-item>
				</el-form>
			</el-col>
		</el-row>
	</div>
</template>

<script>
	export default {
		data() {
			return {
				loginForm: {
					username: '',
					password: '',
					code:'',
				},
				rules: {
					username: [ {
						required: true,
						message: '请输入用户名',
						trigger: 'blur'
					}],
					password: [{
						required: true,
						message: '请设置密码',
						trigger: 'blur'
					}],
					code: [{
						required: true,
						message: '请输入验证码',
						trigger: 'change'
					}]
				}
			};
		},
		methods: {
			submitForm(formName) {
				this.$refs[formName].validate((valid) => {
					if (valid) {
						alert('submit!');
					} else {
						console.log('error submit!!');
						return false;
					}
				});
			},
			resetForm(formName) {
				this.$refs[formName].resetFields();
			}
		}
	}
</script>

<style scoped>

	.elrow{
		display: flex;
		align-items: center;
		text-align: center;
		height:100%;
	}

</style>

4、设置前端发起请求，设置验证码相关内容

<template>

	<div>
		<el-row class="elrow" type="flex" justify="center">
			<el-col :span="8">
				<el-form :model="loginForm" :rules="rules" ref="loginForm" label-width="100px" class="demo-loginForm">
					<el-form-item label="账号" prop="username" style="width: 380px;">
						<el-input v-model="loginForm.username"></el-input>
					</el-form-item>
					<el-form-item label="密码" prop="password" style="width: 380px;">
						<el-input placeholder="请输入密码" v-model="loginForm.password" show-password></el-input>
					</el-form-item>
					<el-form-item label="验证码" prop="code" style="width: 380px;">
						<el-input v-model="loginForm.code" style="width: 172px;float: left;"></el-input>
						<el-image style="width: 80px; height: 40px;float: left;padding-left: 25px;" :src="captchaImg" :fit="fit"></el-image>
					</el-form-item>
					<el-form-item style="width: 380px;">
						<el-button type="primary" @click="submitForm('loginForm')">登录</el-button>
						<el-button @click="resetForm('loginForm')">重置</el-button>
					</el-form-item>
				</el-form>
			</el-col>
		</el-row>
	</div>
</template>

<script>
	export default {
		data() {
			return {
				loginForm: {
					username: '',
					password: '',
					code:'',
					token:''
				},
				rules: {
					username: [ {
						required: true,
						message: '请输入用户名',
						trigger: 'blur'
					}],
					password: [{
						required: true,
						message: '请设置密码',
						trigger: 'blur'
					}],
					code: [{
						required: true,
						message: '请输入验证码',
						trigger: 'change'
					}]
				},
				captchaImg:null
			};
		},
		methods: {
			submitForm(formName) {
				this.$refs[formName].validate((valid) => {
					if (valid) {
						this.$axios.post("url",this.loginForm).then(res =>{
						})
					} else {
						console.log('error submit!!');
						return false;
					}
				});
			},
			resetForm(formName) {
				this.$refs[formName].resetFields();
			},

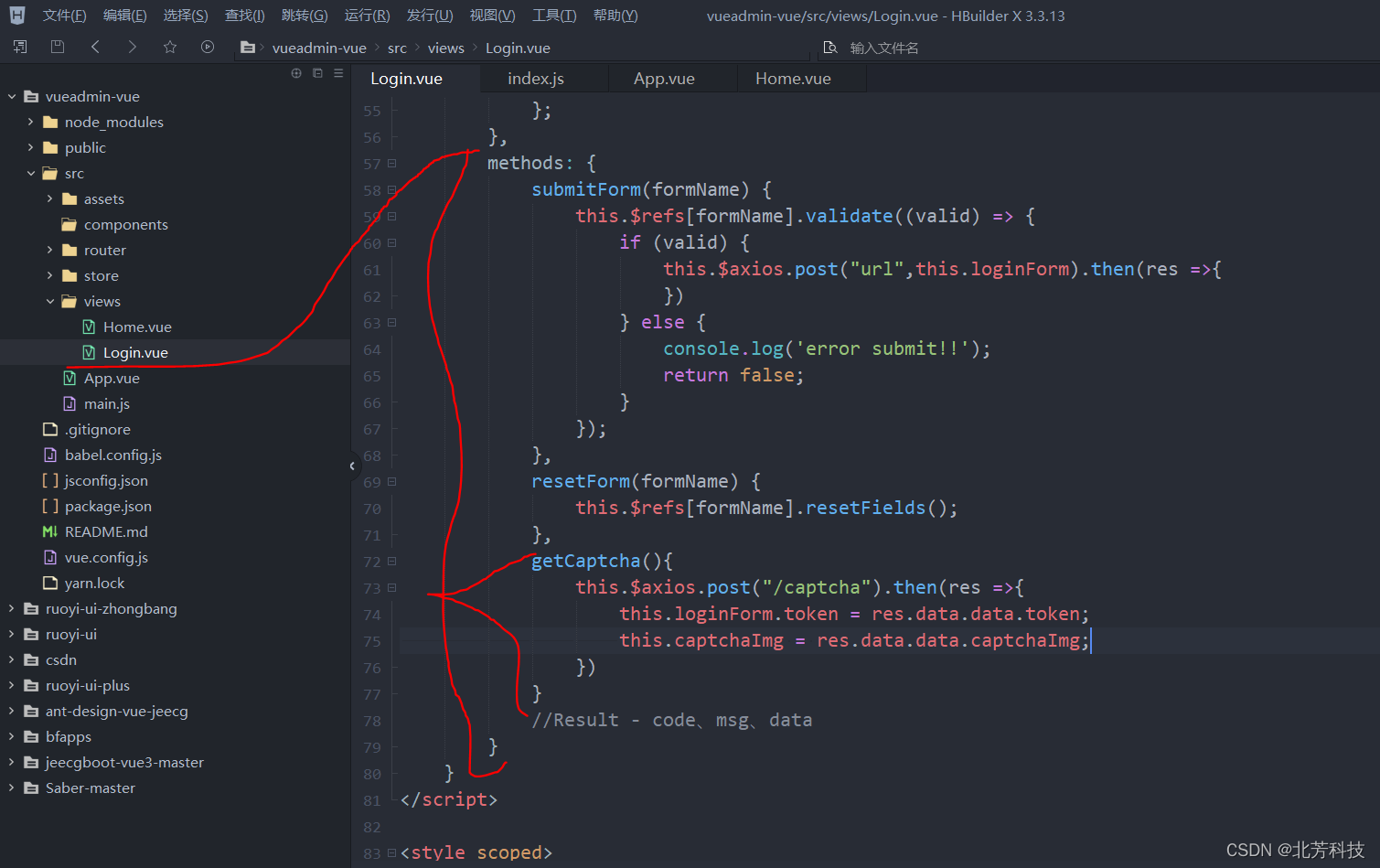

			getCaptcha(){
				this.$axios.post("/captcha").then(res =>{
					this.loginForm.token = res.data.data.token;
					this.captchaImg = res.data.data.captchaImg;
				})
			}
			//Result - code、msg、data
		}
	}
</script>

<style scoped>

	.elrow{
		display: flex;
		align-items: center;
		text-align: center;
		height:100%;
	}

</style>

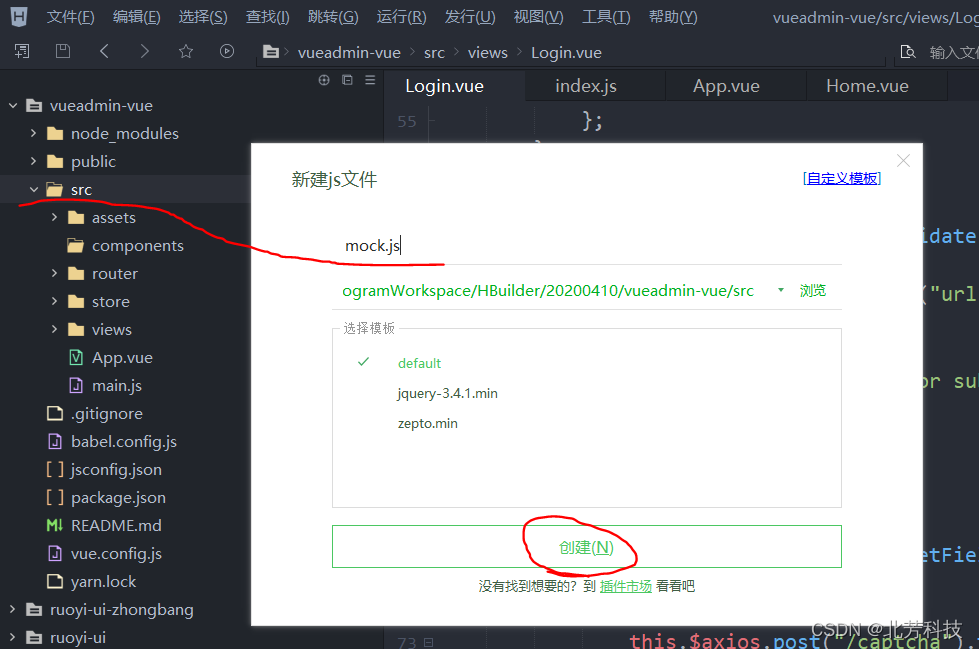

5、创建mock.js

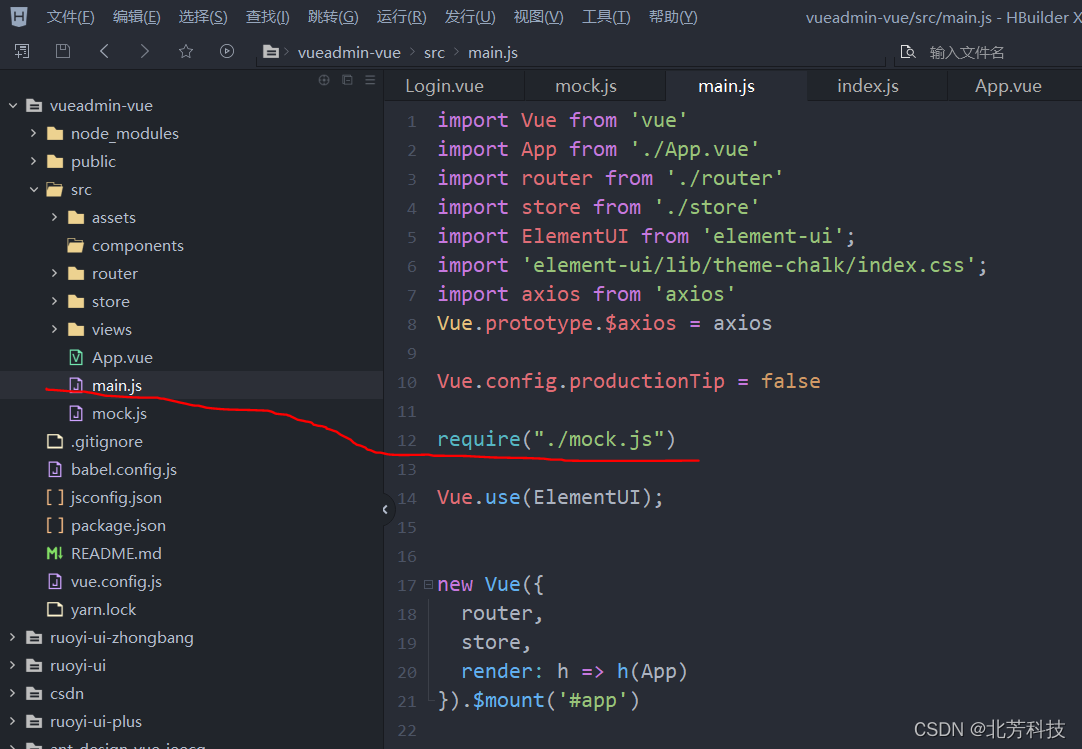

在main.js当中引入mock.js

require("./mock.js")

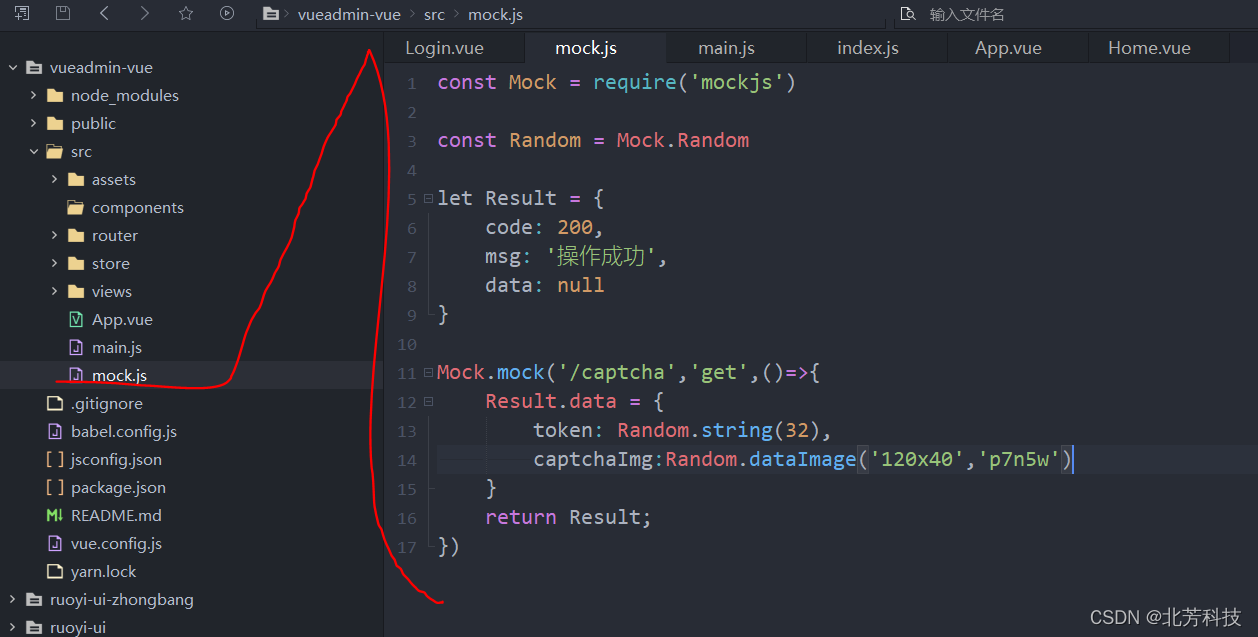

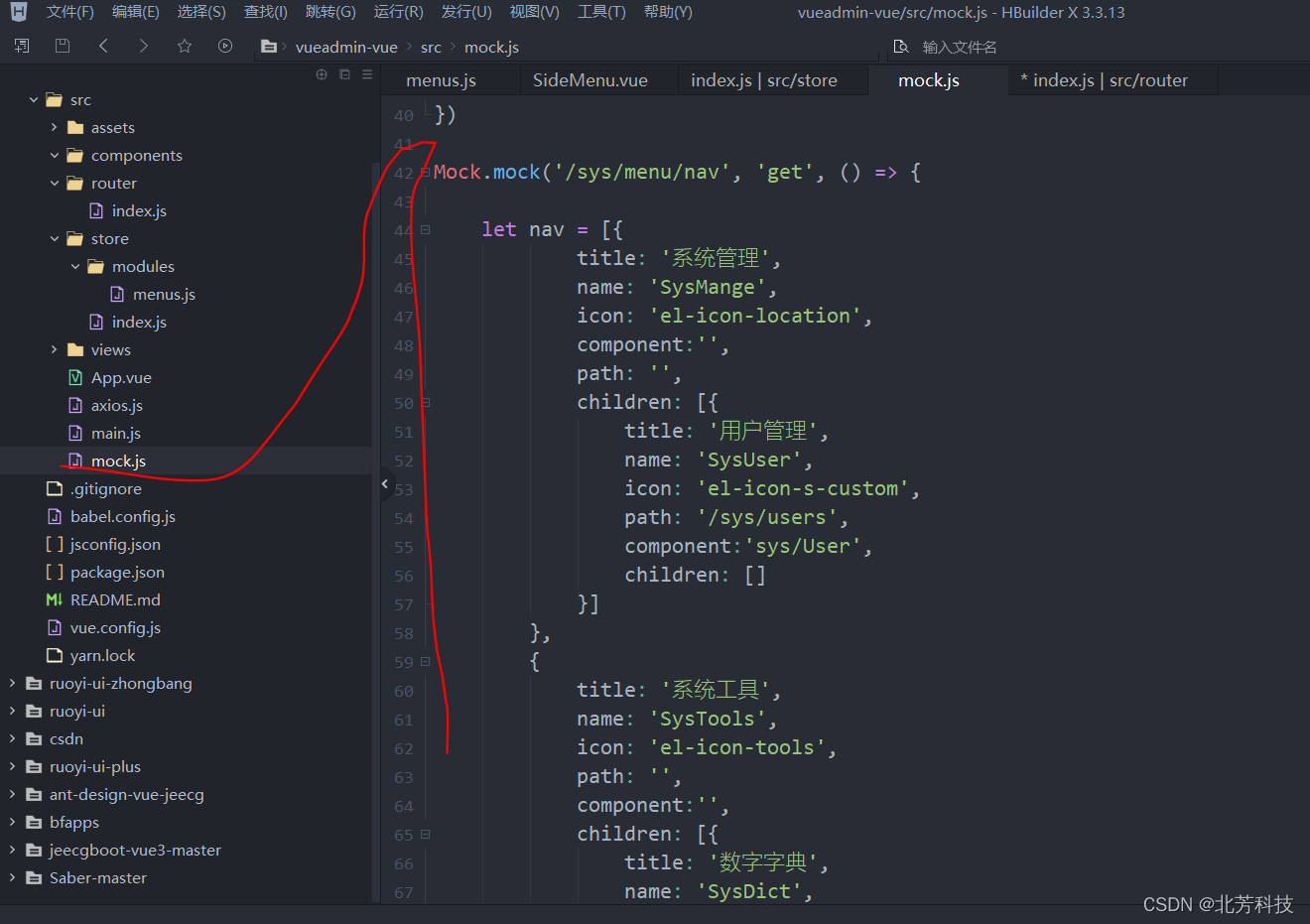

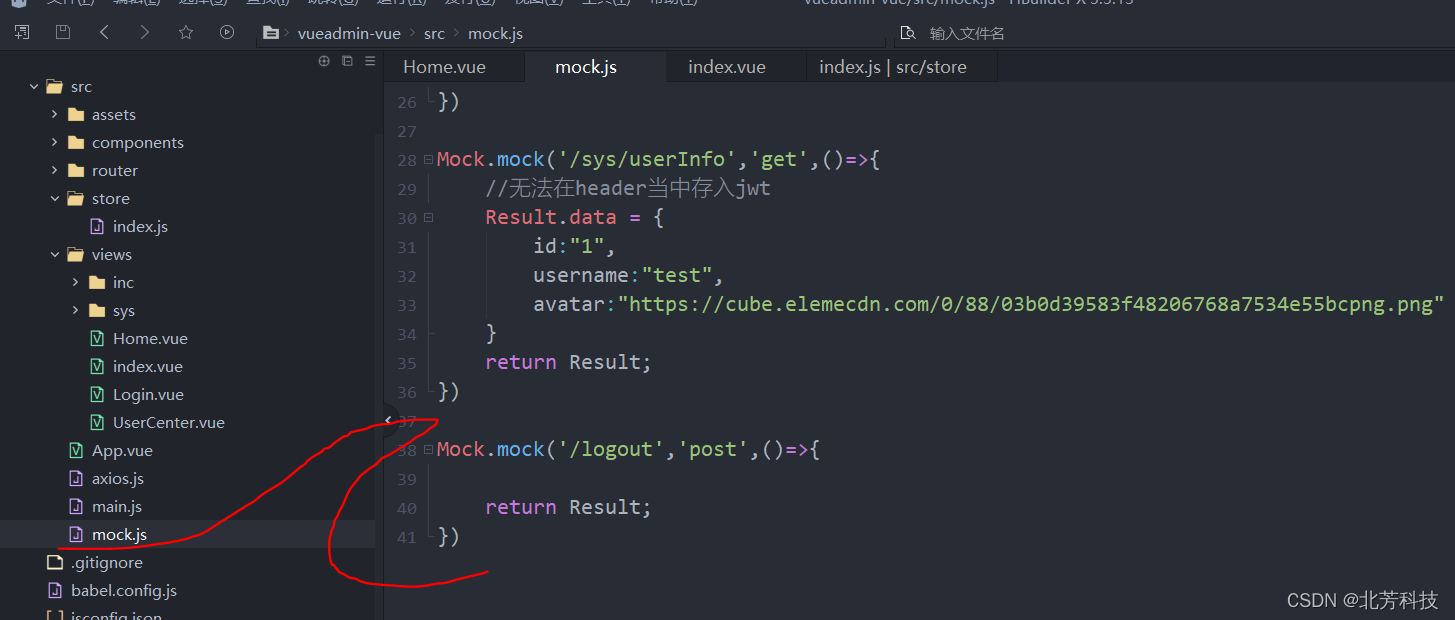

完善mock.js

const Mock = require('mockjs')

const Random = Mock.Random

let Result = {
	code: 200,
	msg: '操作成功',
	data: null
}

Mock.mock('/captcha','get',()=>{
	Result.data = {
		token: Random.string(32),
		captchaImg:Random.dataImage('120x40','p7n5w')
	}
	return Result;
})

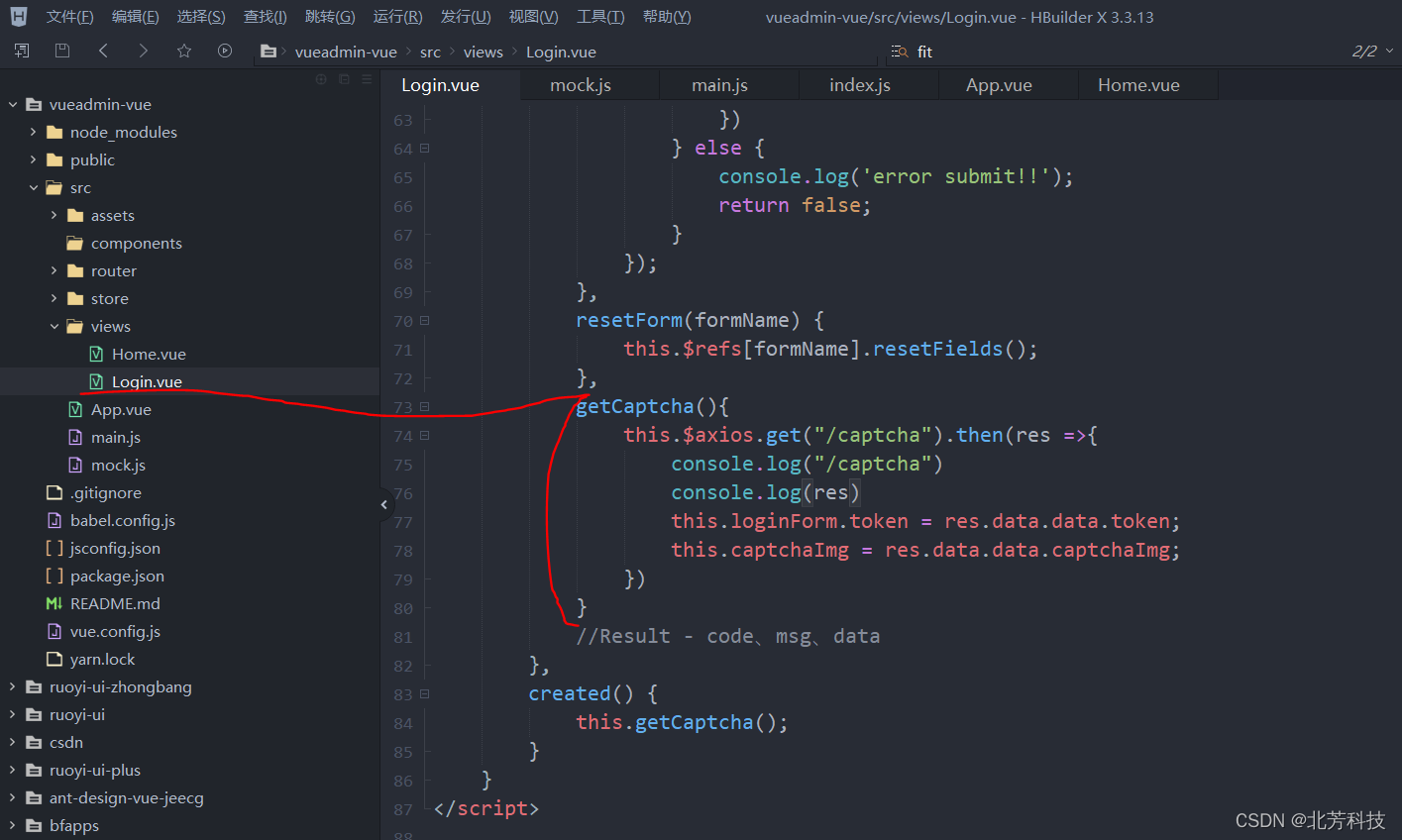

修改Login.vue，设置发起请求

		   getCaptcha(){
				this.$axios.get("/captcha").then(res =>{
					console.log("/captcha")
					console.log(res)
					this.loginForm.token = res.data.data.token;
					this.captchaImg = res.data.data.captchaImg;
				})
			}

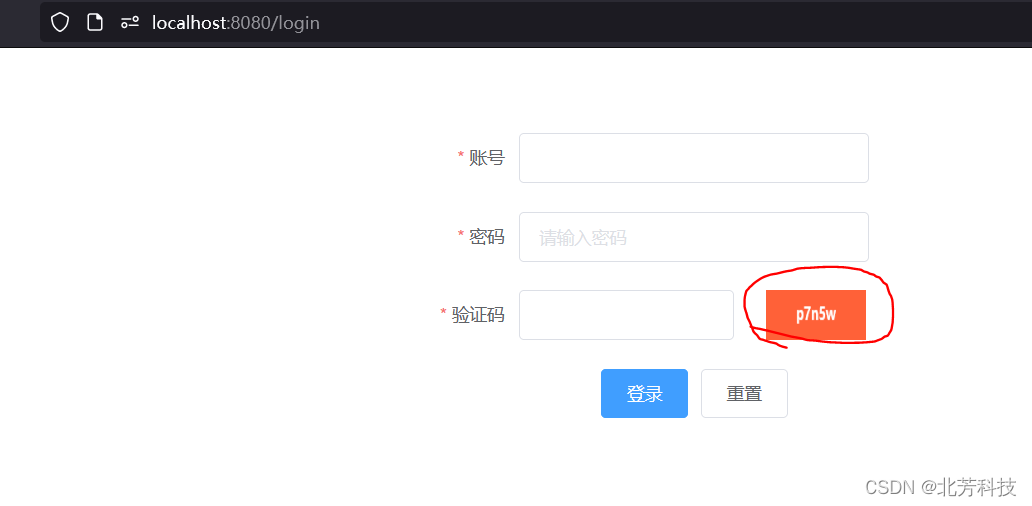

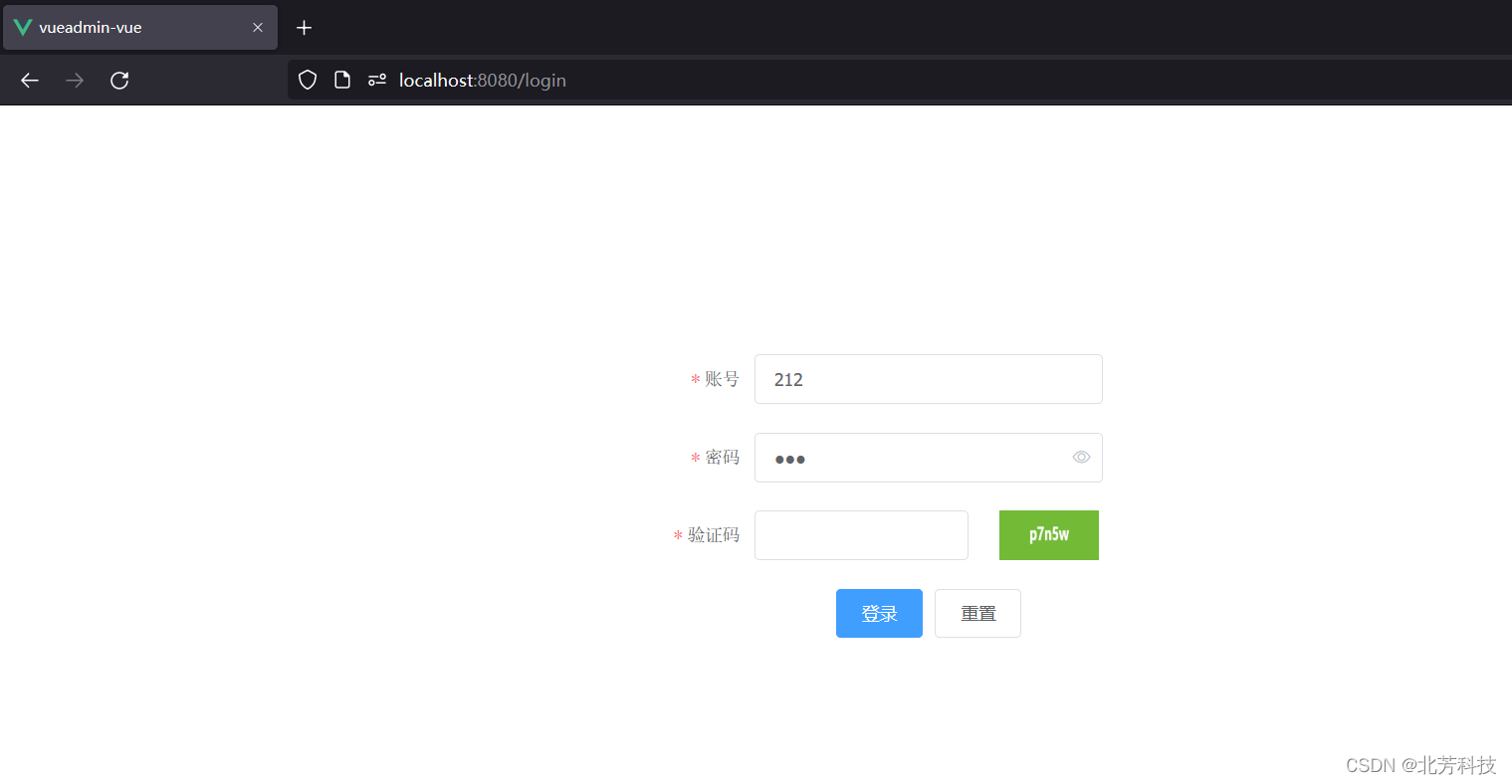

查看页面
http://localhost:8080/login

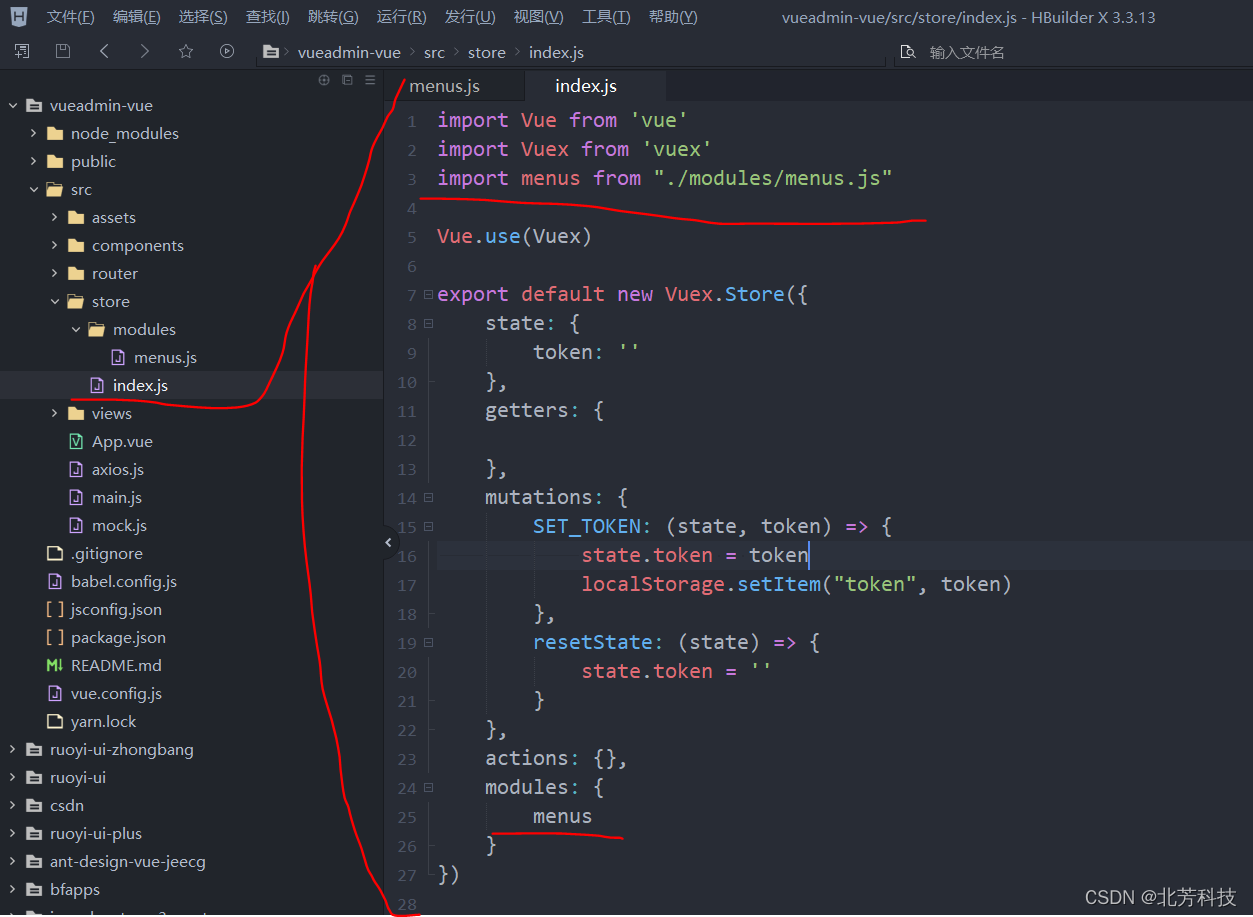

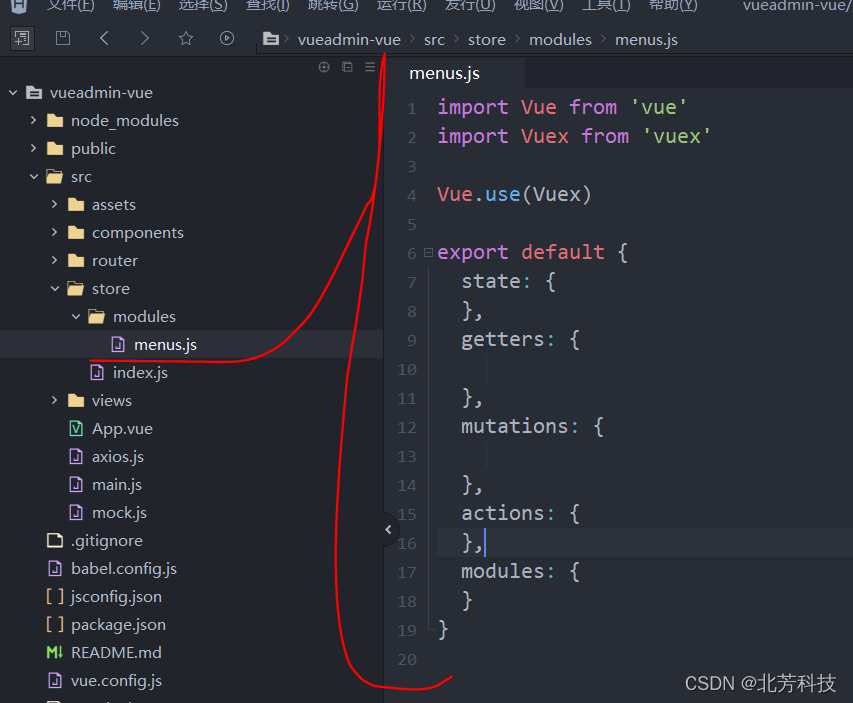

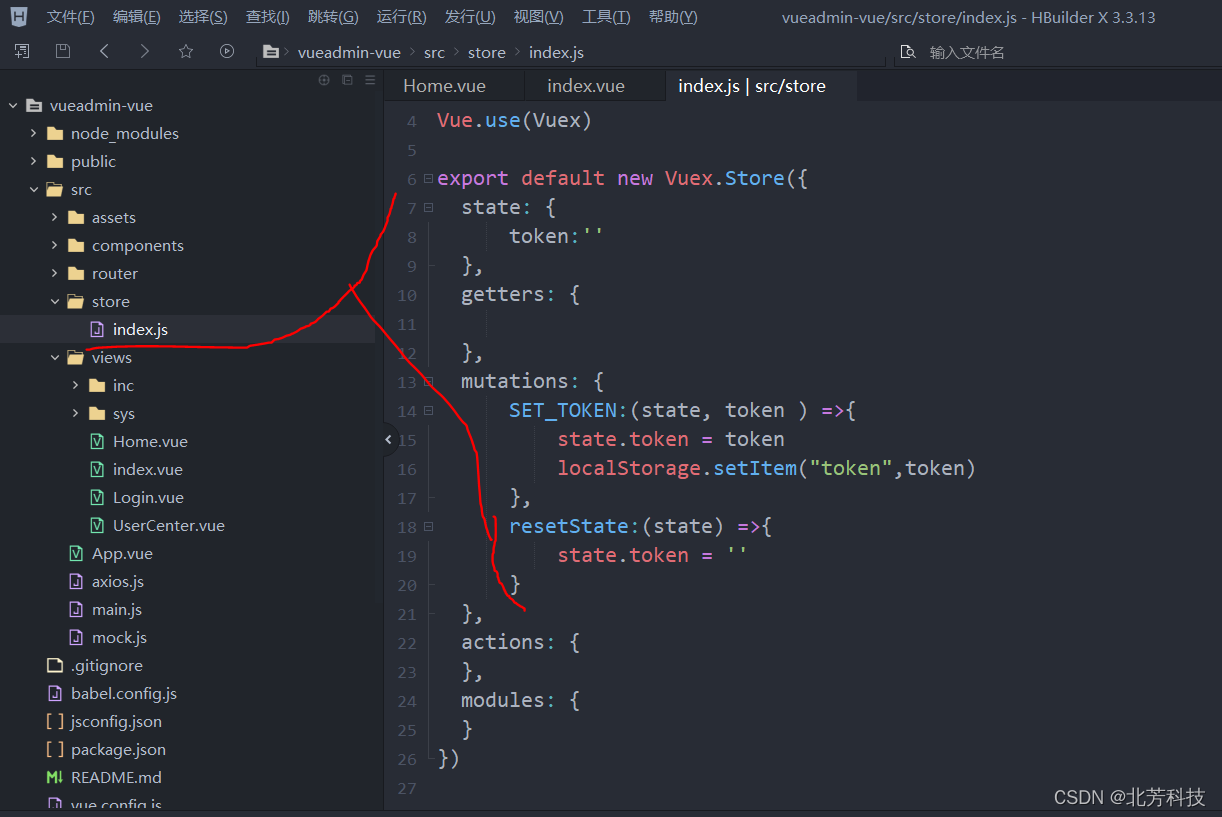

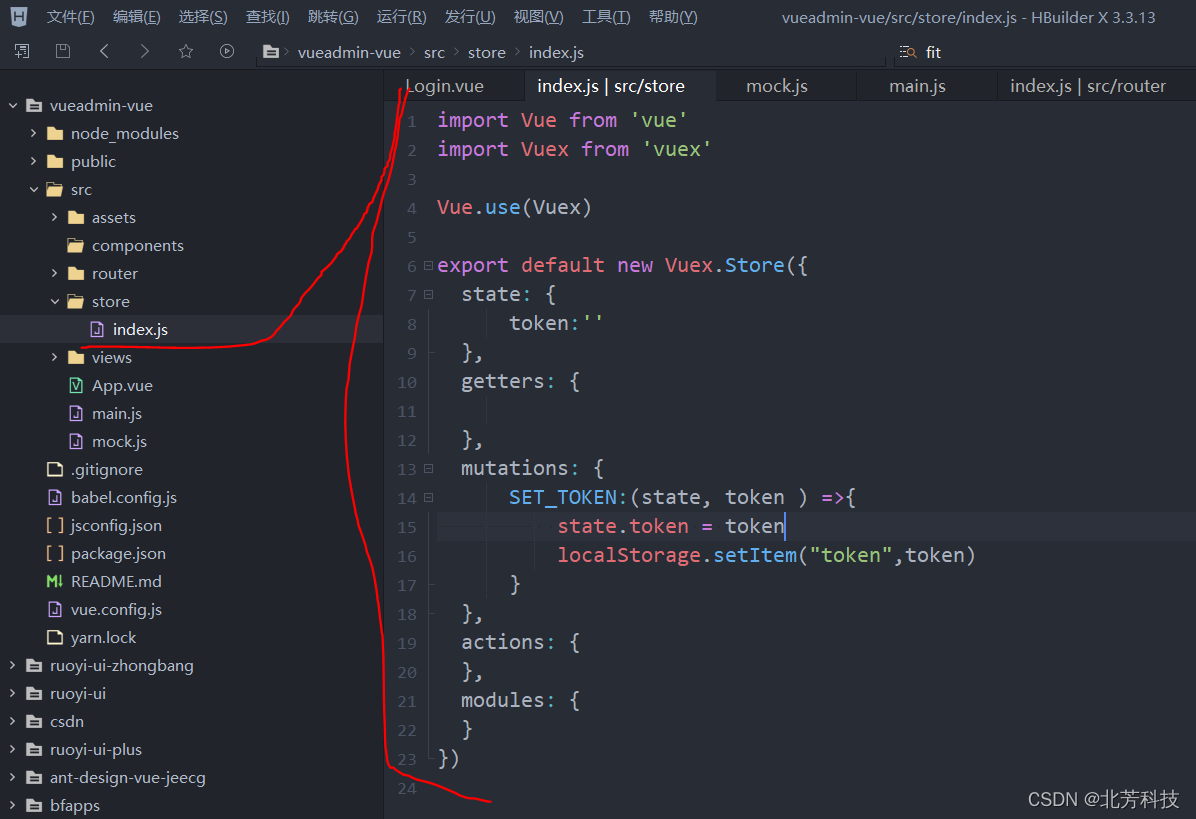

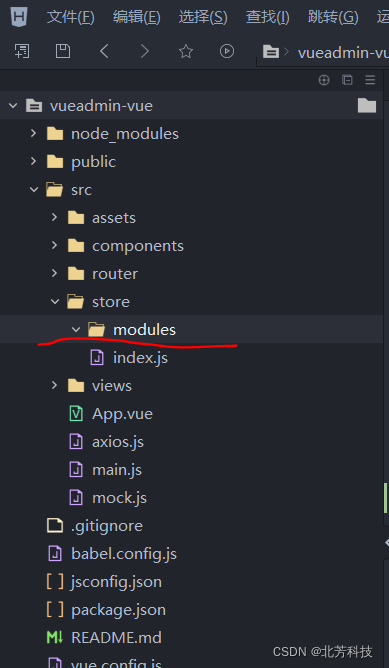

6、在store当中的index.js设置SET_TOKEN

import Vue from 'vue'
import Vuex from 'vuex'

Vue.use(Vuex)

export default new Vuex.Store({
  state: {
	  token:''
  },
  getters: {

  },
  mutations: {
	  SET_TOKEN:(state, token ) =>{
		  state.token = token
		  localStorage.setItem("token",token)
	  }
  },
  actions: {
  },
  modules: {
  }
})

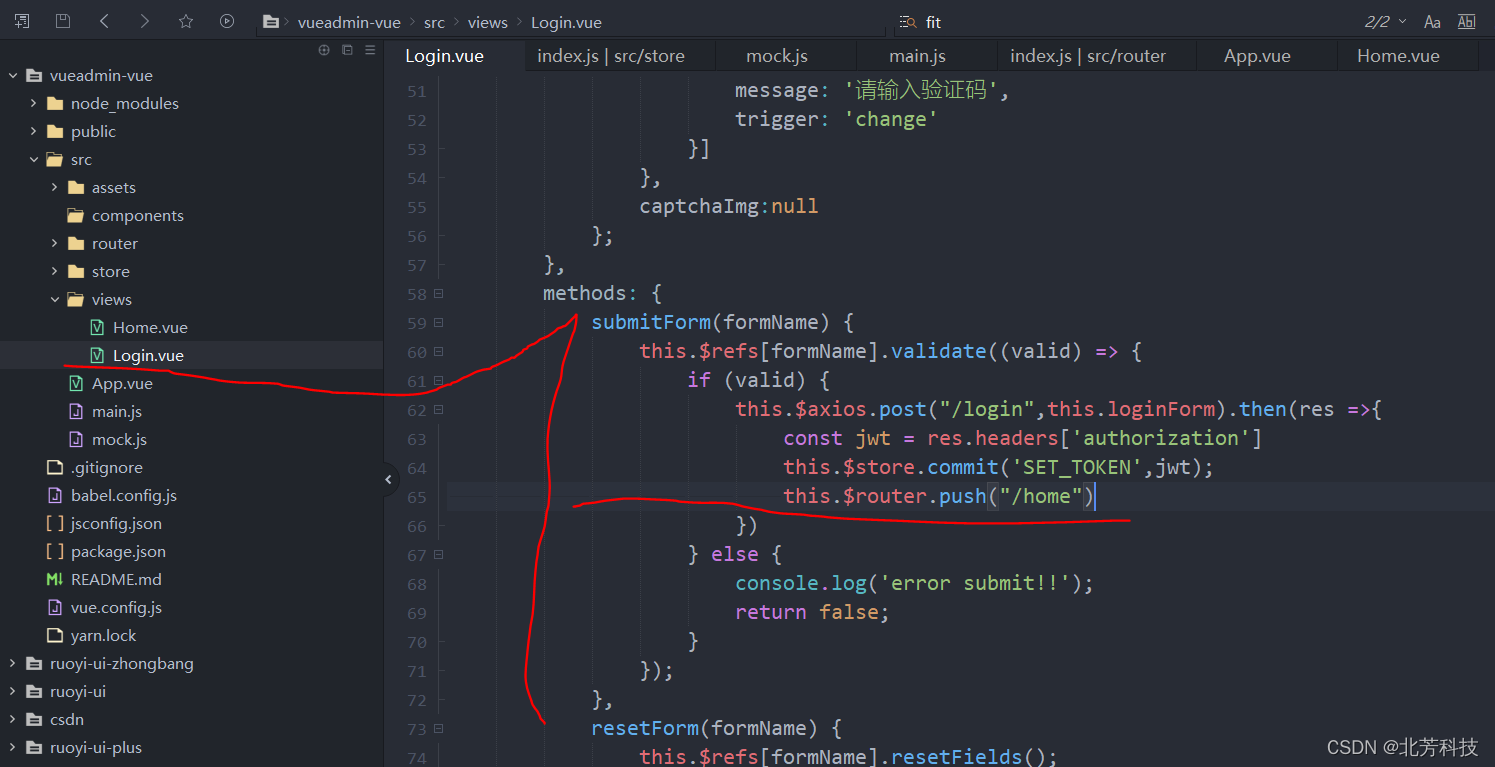

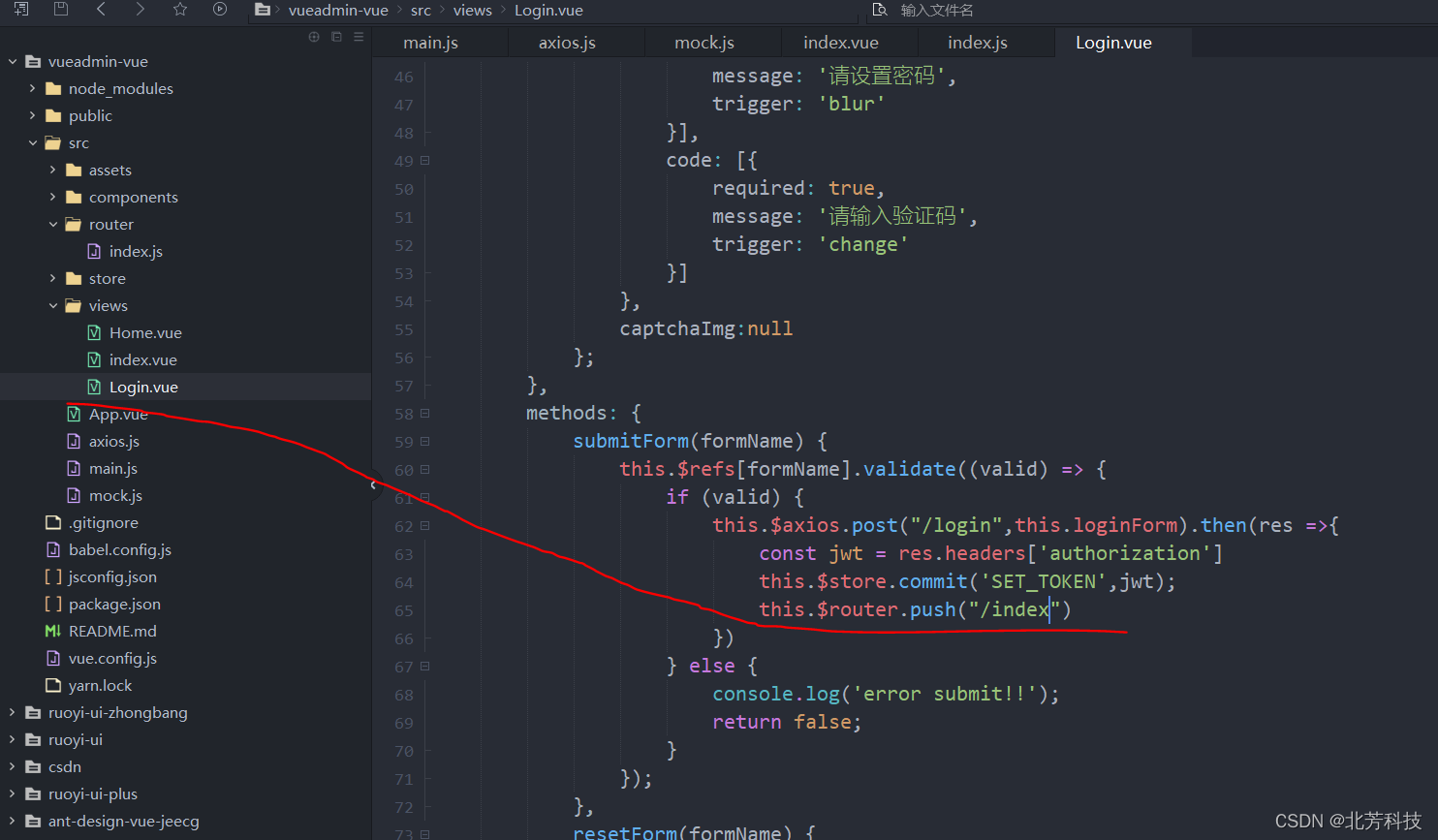

7、完善登录的请求

		 submitForm(formName) {
				this.$refs[formName].validate((valid) => {
					if (valid) {
						this.$axios.post("/login",this.loginForm).then(res =>{
							const jwt = res.headers['authorization']
							this.$store.commit('SET_TOKEN',jwt);
							this.$router.push("/home")
						})
					} else {
						console.log('error submit!!');
						return false;
					}
				});
			},

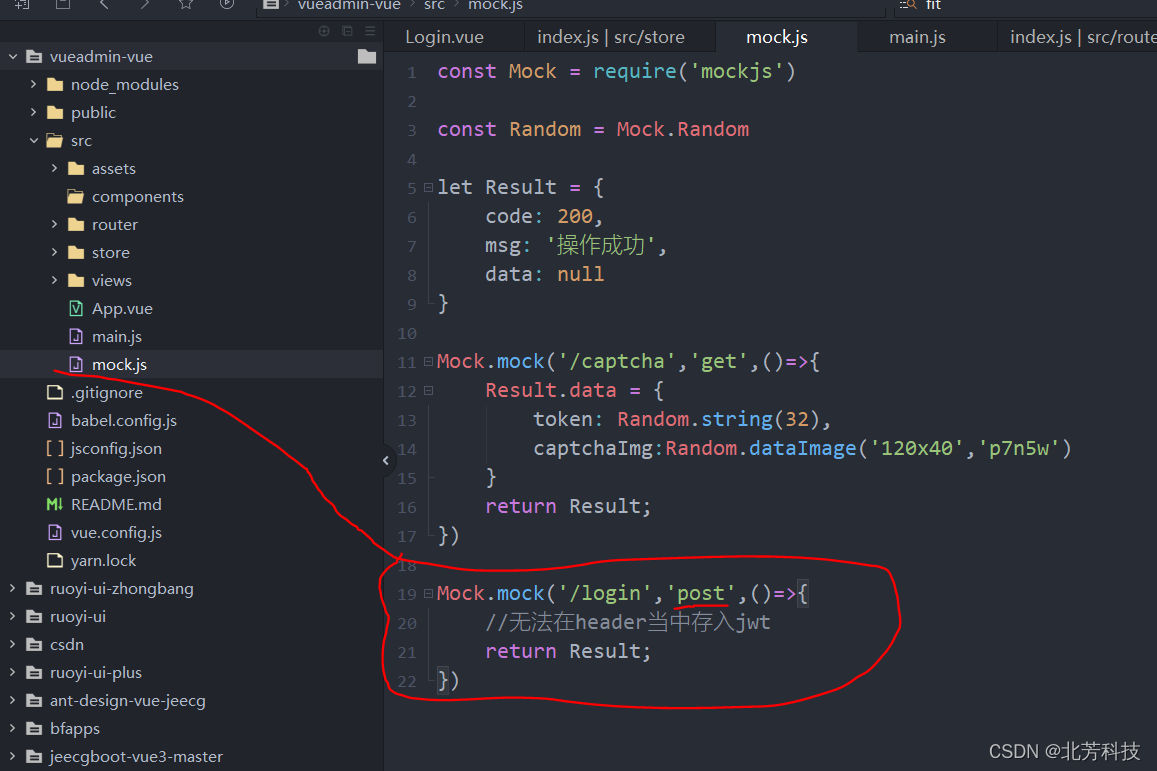

设置mock.js

Mock.mock('/login','post',()=>{
	//无法在header当中存入jwt
	return Result;
})

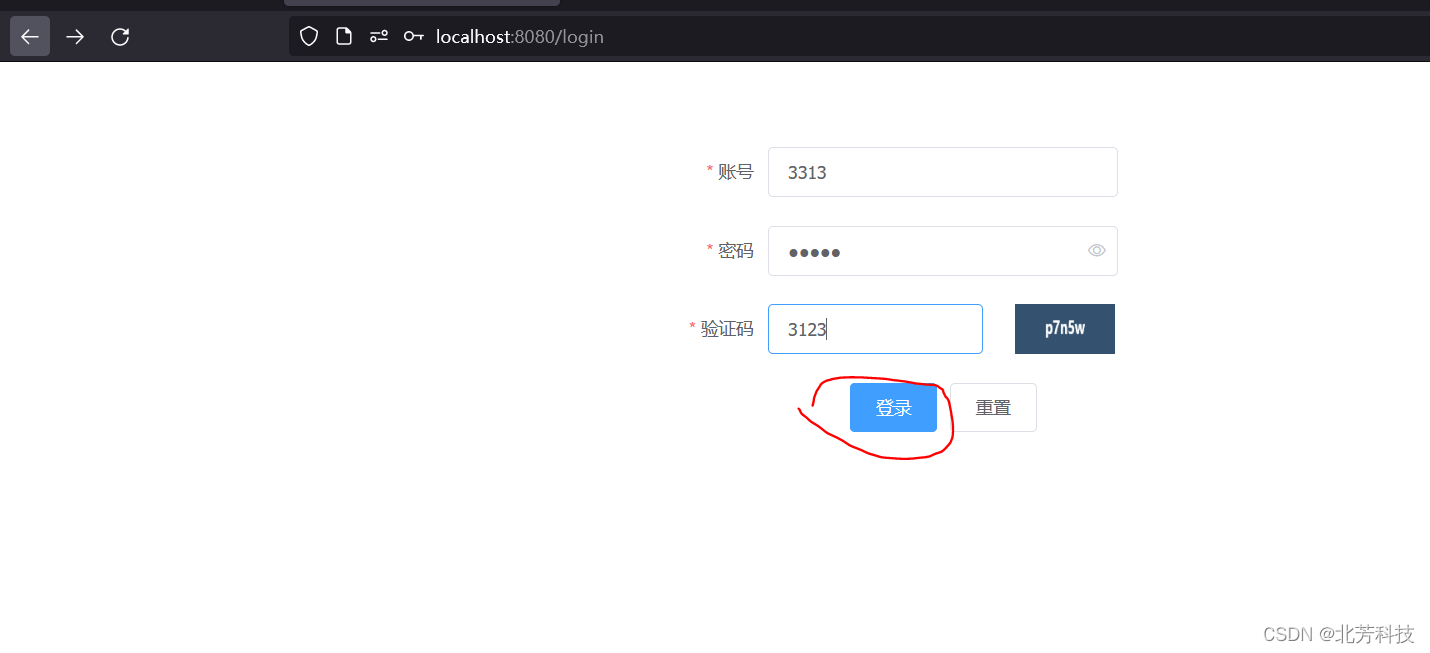

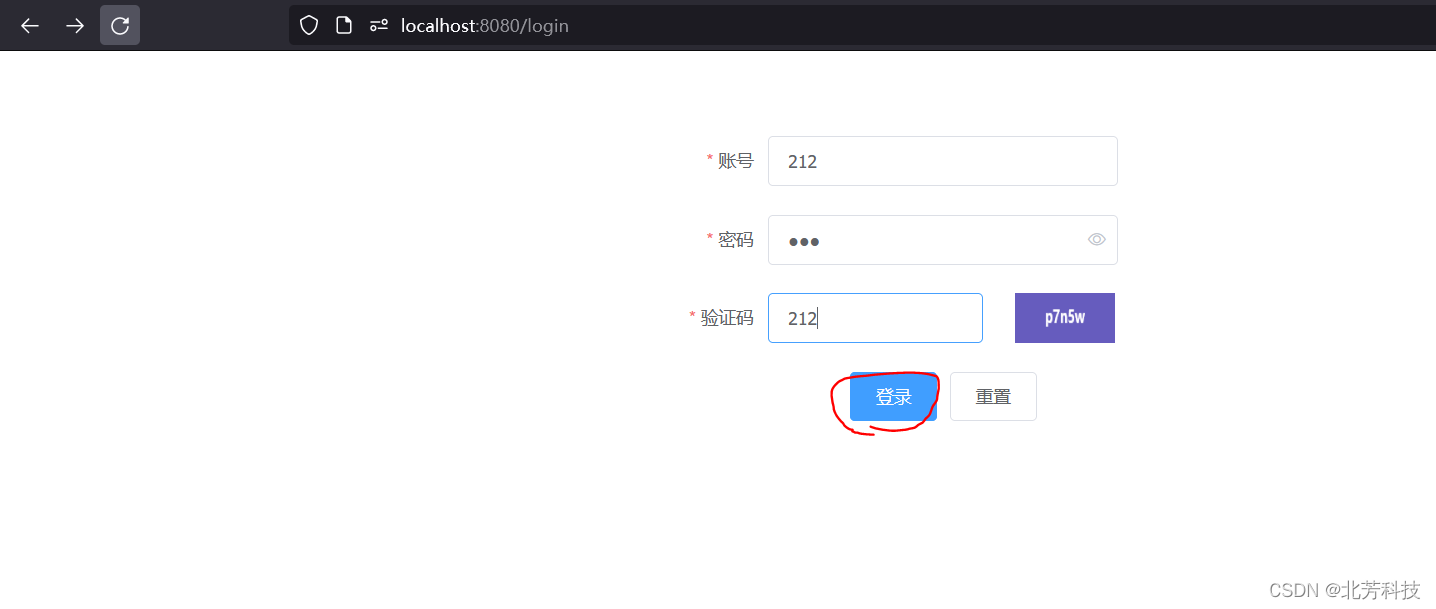

在登录页测试

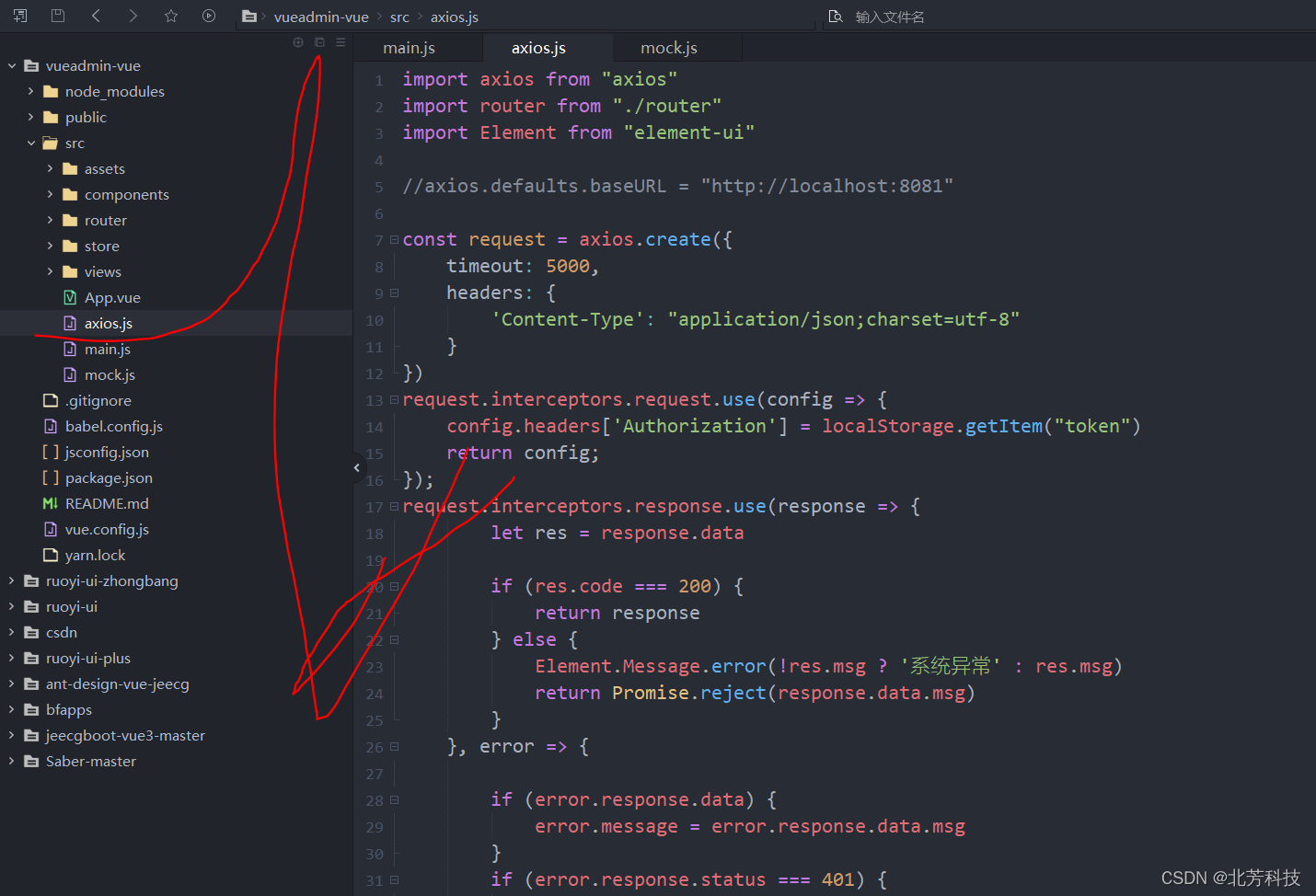

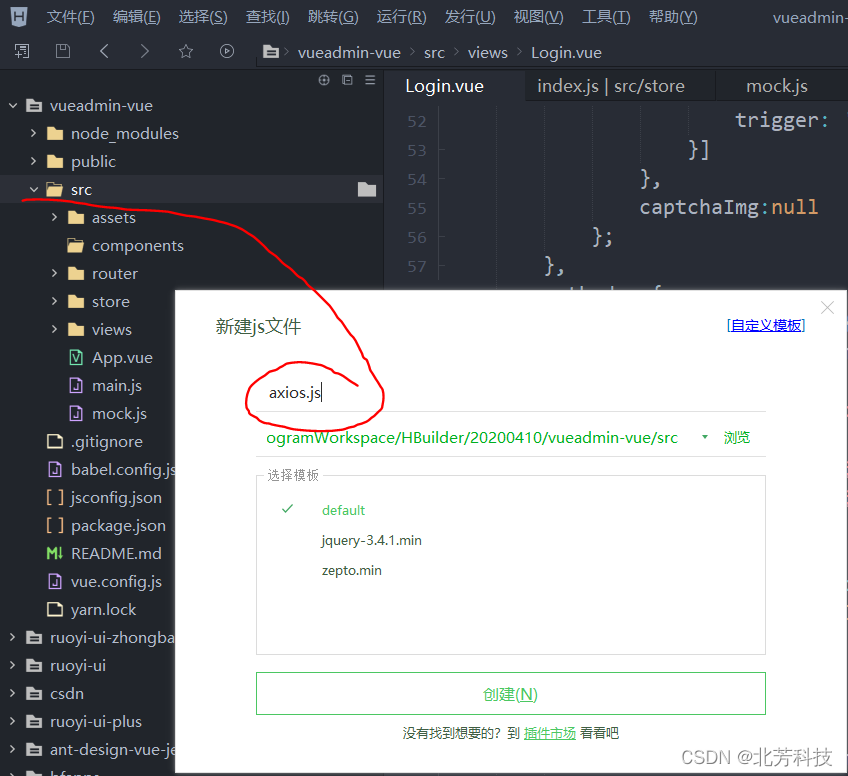

8、定义全局axios拦截器

import axios from "axios"
import router from "./router"
import Element from "element-ui"

//axios.defaults.baseURL = "http://localhost:8081"

const request = axios.create({
	timeout: 5000,
	headers: {
		'Content-Type': "application/json;charset=utf-8"
	}
})
request.interceptors.request.use(config => {
	config.headers['Authorization'] = localStorage.getItem("token")
	return config;
});
request.interceptors.response.use(response => {
		let res = response.data

		if (res.code === 200) {
			return response
		} else {
			Element.Message.error(!res.msg ? '系统异常' : res.msg)
			return Promise.reject(response.data.msg)
		}
	}, error => {

		if (error.response.data) {
			error.message = error.response.data.msg
		}
		if (error.response.status === 401) {
			router.push("/login")
		}
		Element.Message.error(error.message, { duration: 3000 })
		return Promise.reject(error)
	}
)

export default request

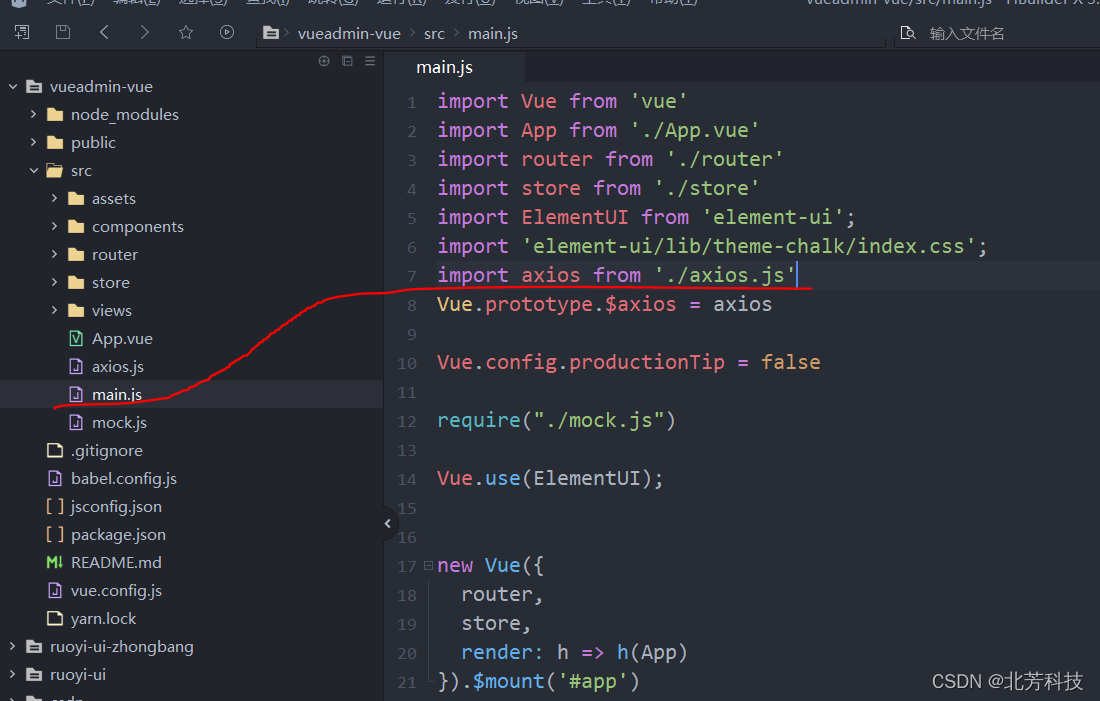

在main.js当中引入axios.js

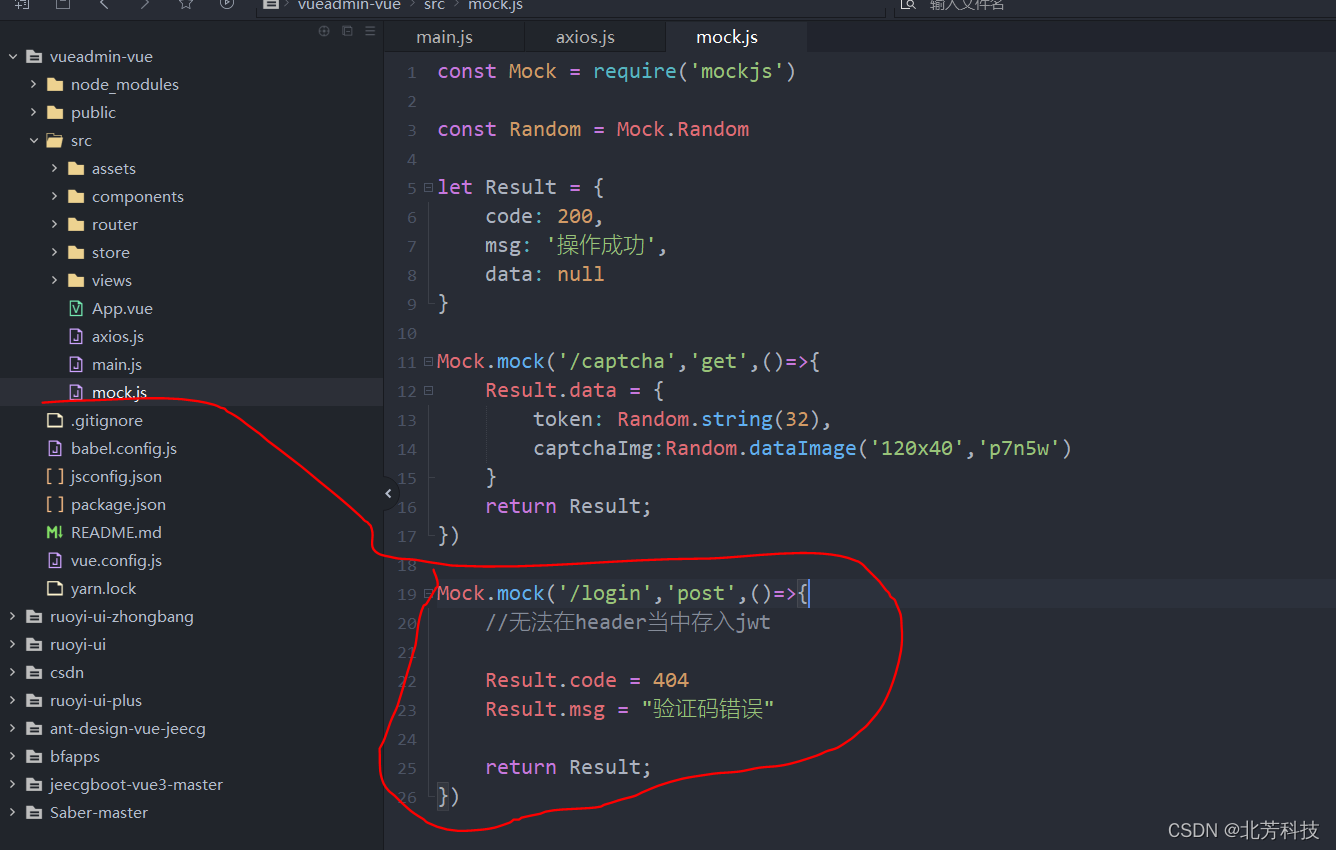

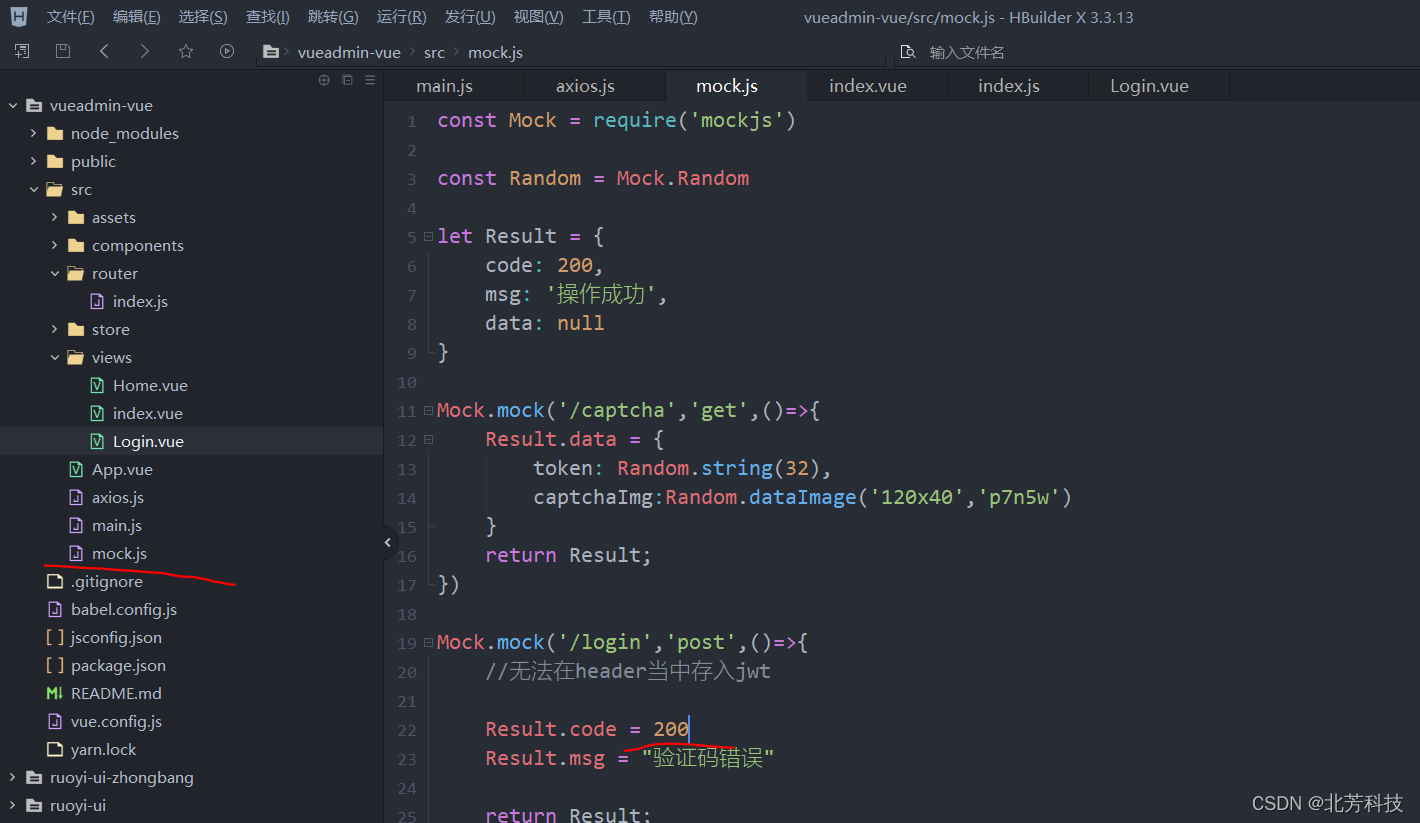

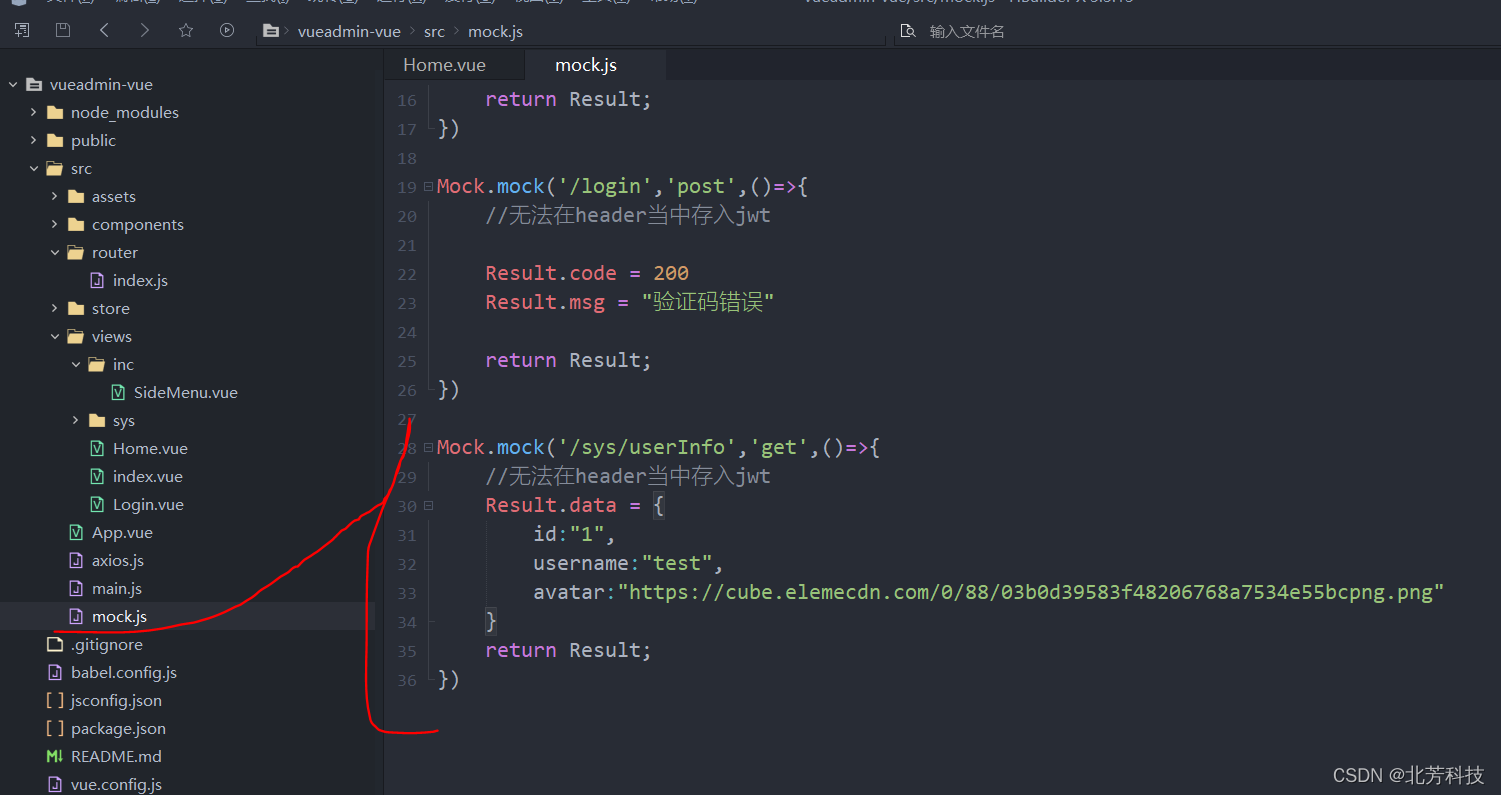

在mock.js当中这请求返回数据

Mock.mock('/login','post',()=>{
	//无法在header当中存入jwt

	Result.code = 404
	Result.msg = "验证码错误"

	return Result;
})

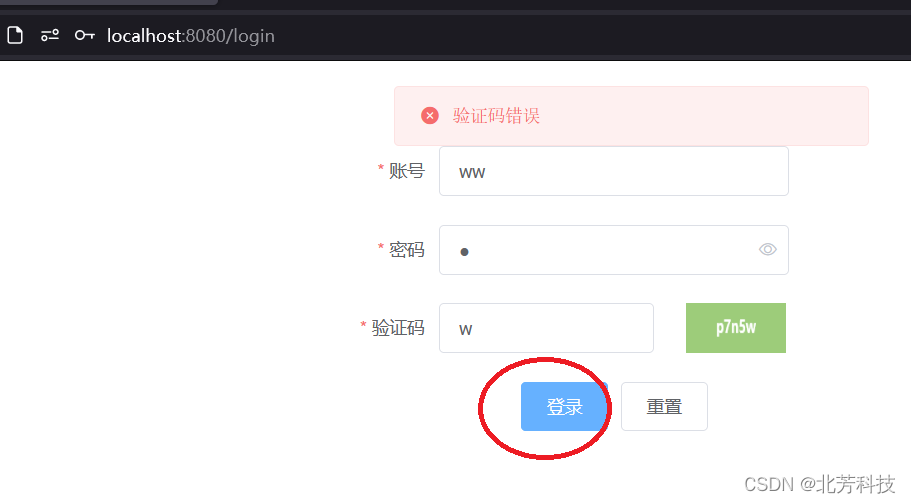

的登录页面发起请求测试

二、后台管理界面开发

1、创建index.vue

一般来说，管理系统的页面我们都是头部是一个简单的信息展示系统名称和登录用户信息，然后中间的左边是菜单导航栏，右边是内容，对应到elementui的组件中，我们可以找到这个

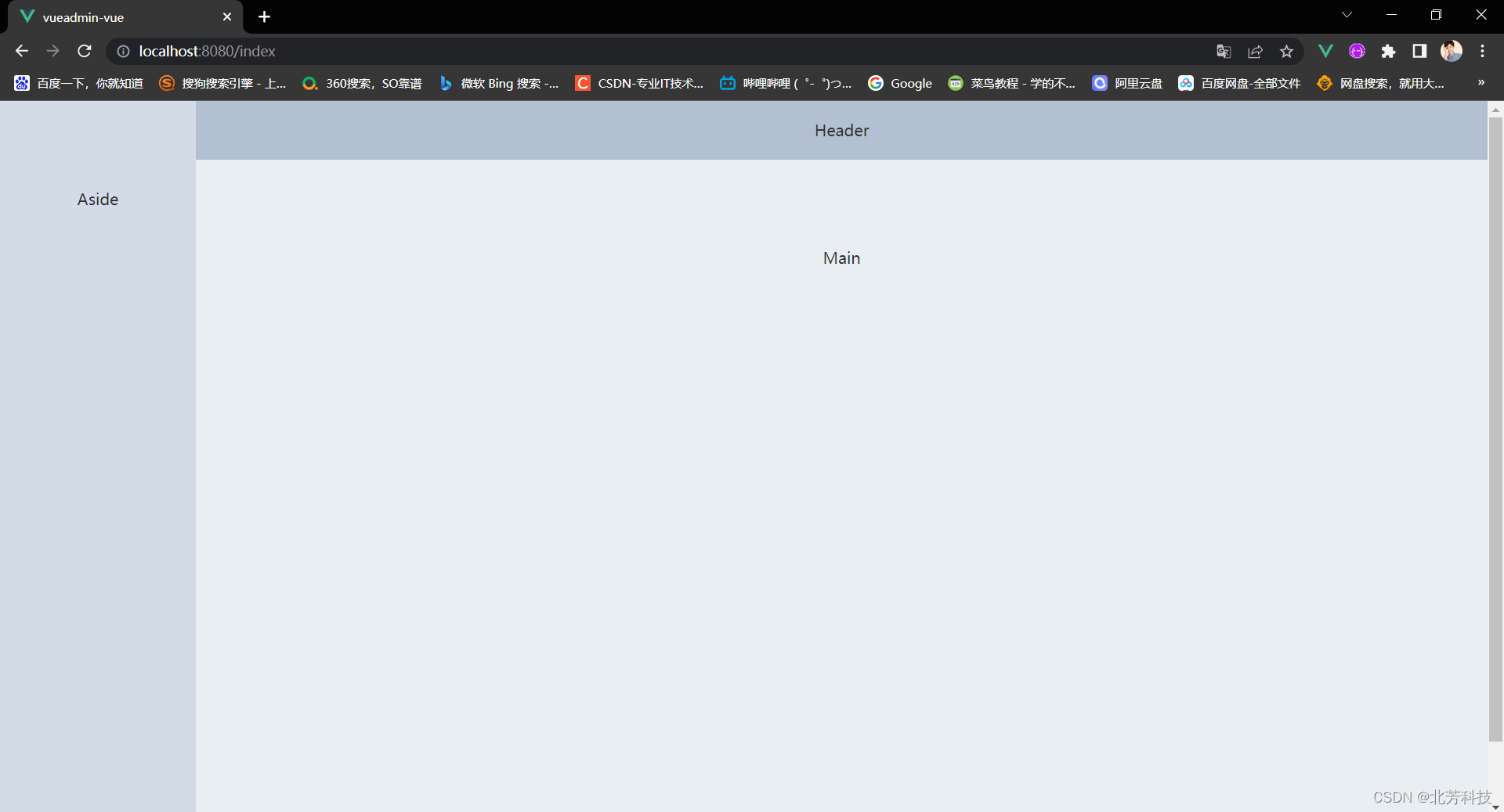

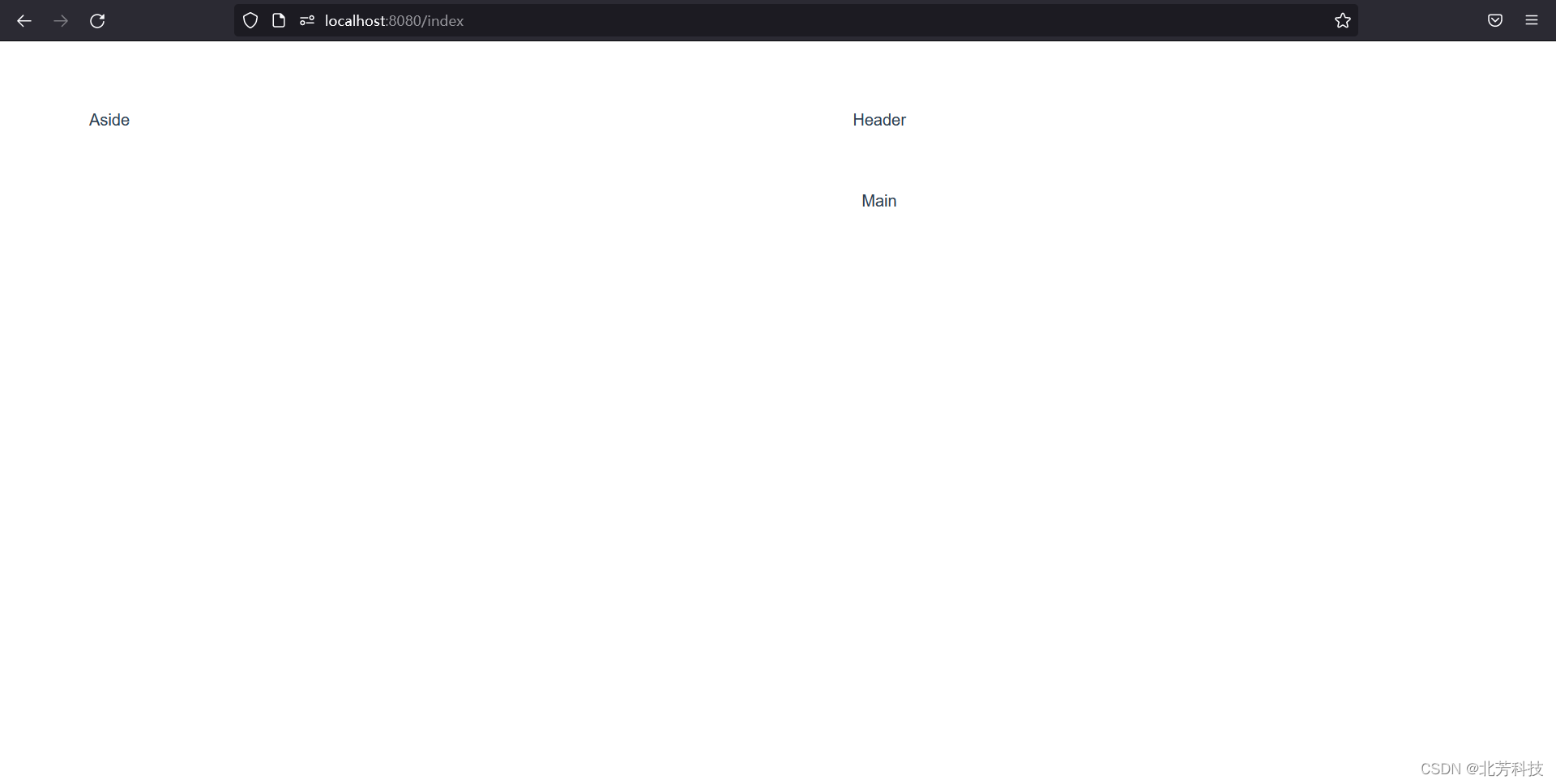

Container布局容器用于布局，方便快速搭建页面的基本结构。

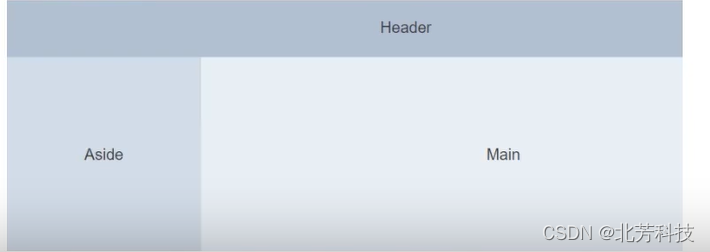

而我们采用这个布局:

直接使用Element UI提供的布局

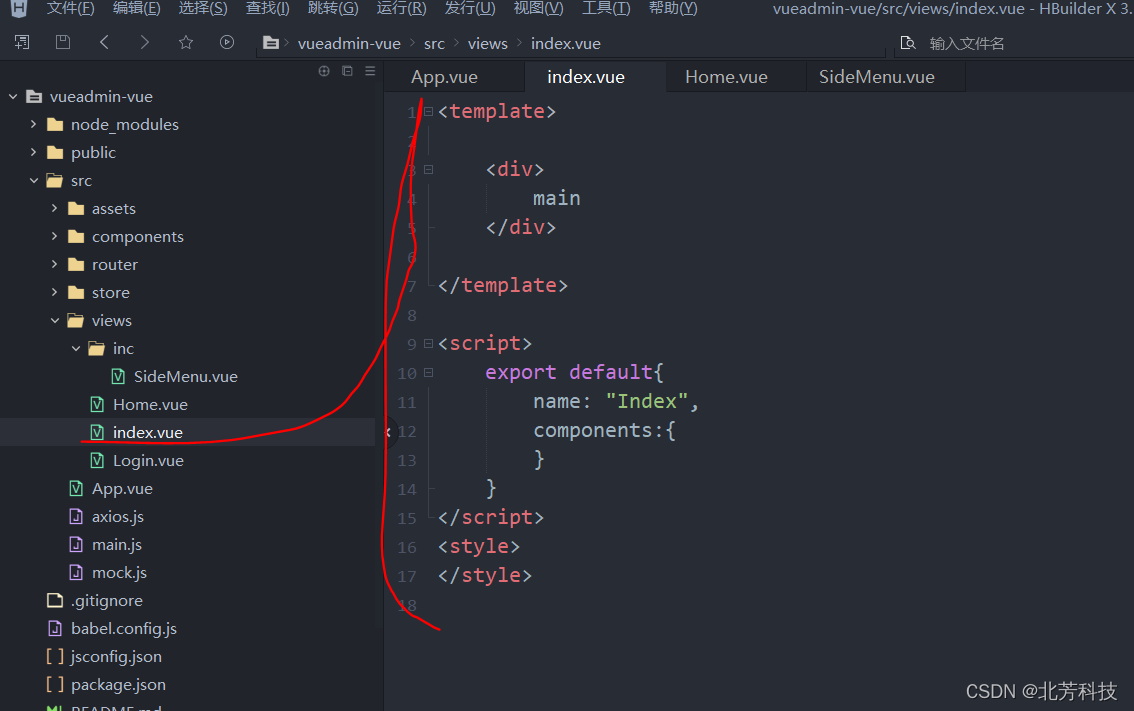

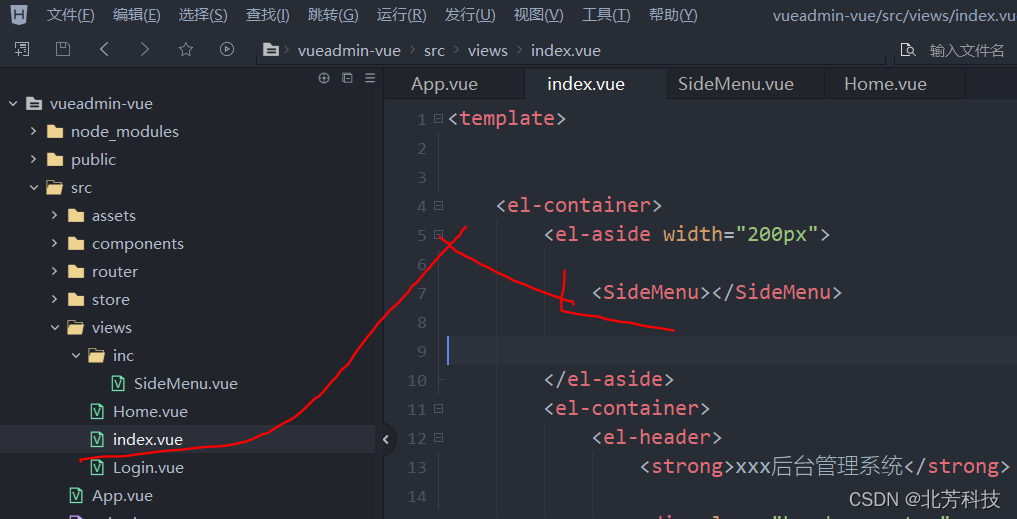

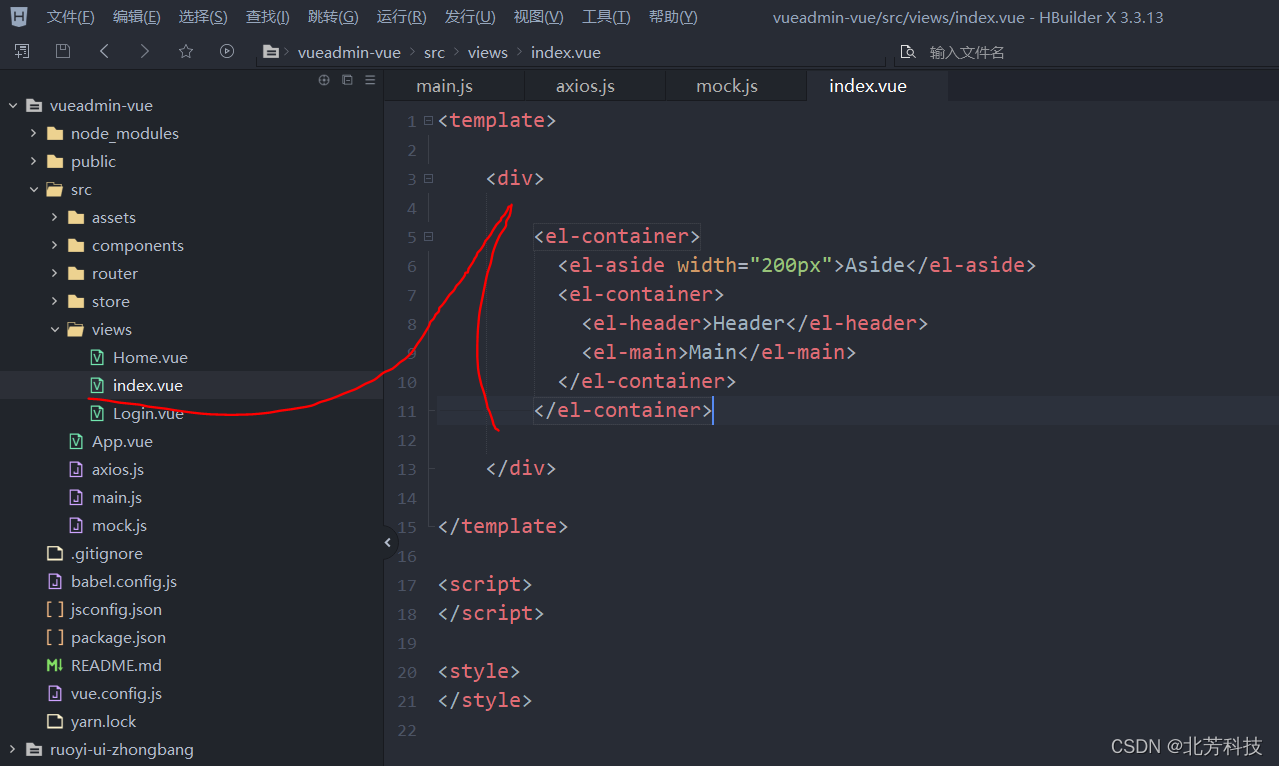

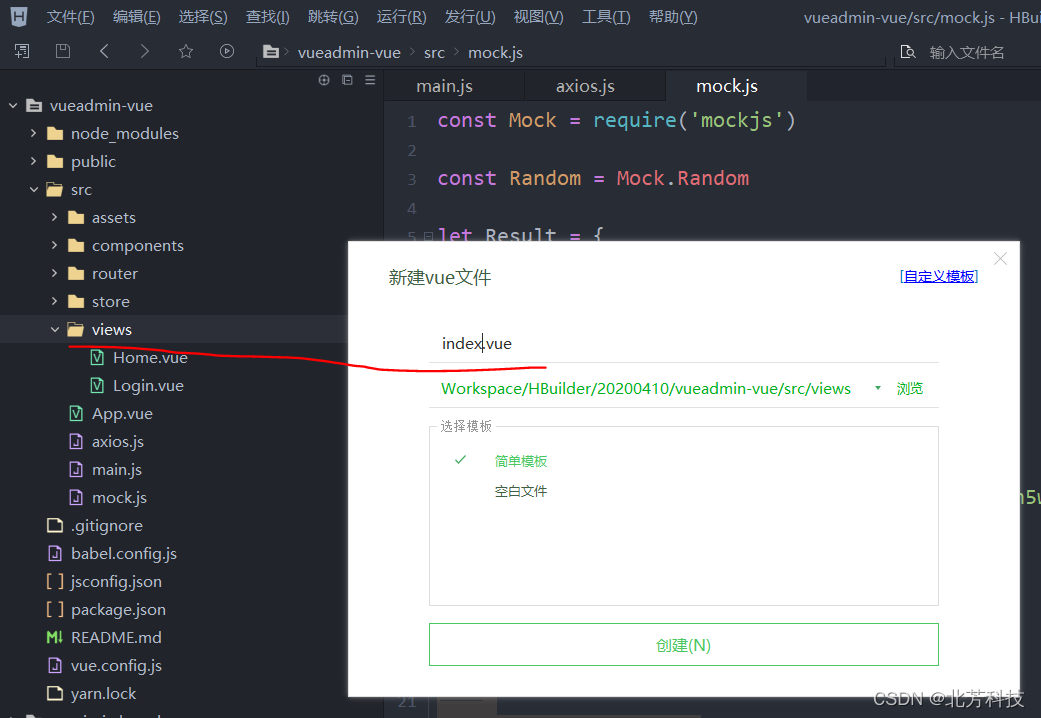

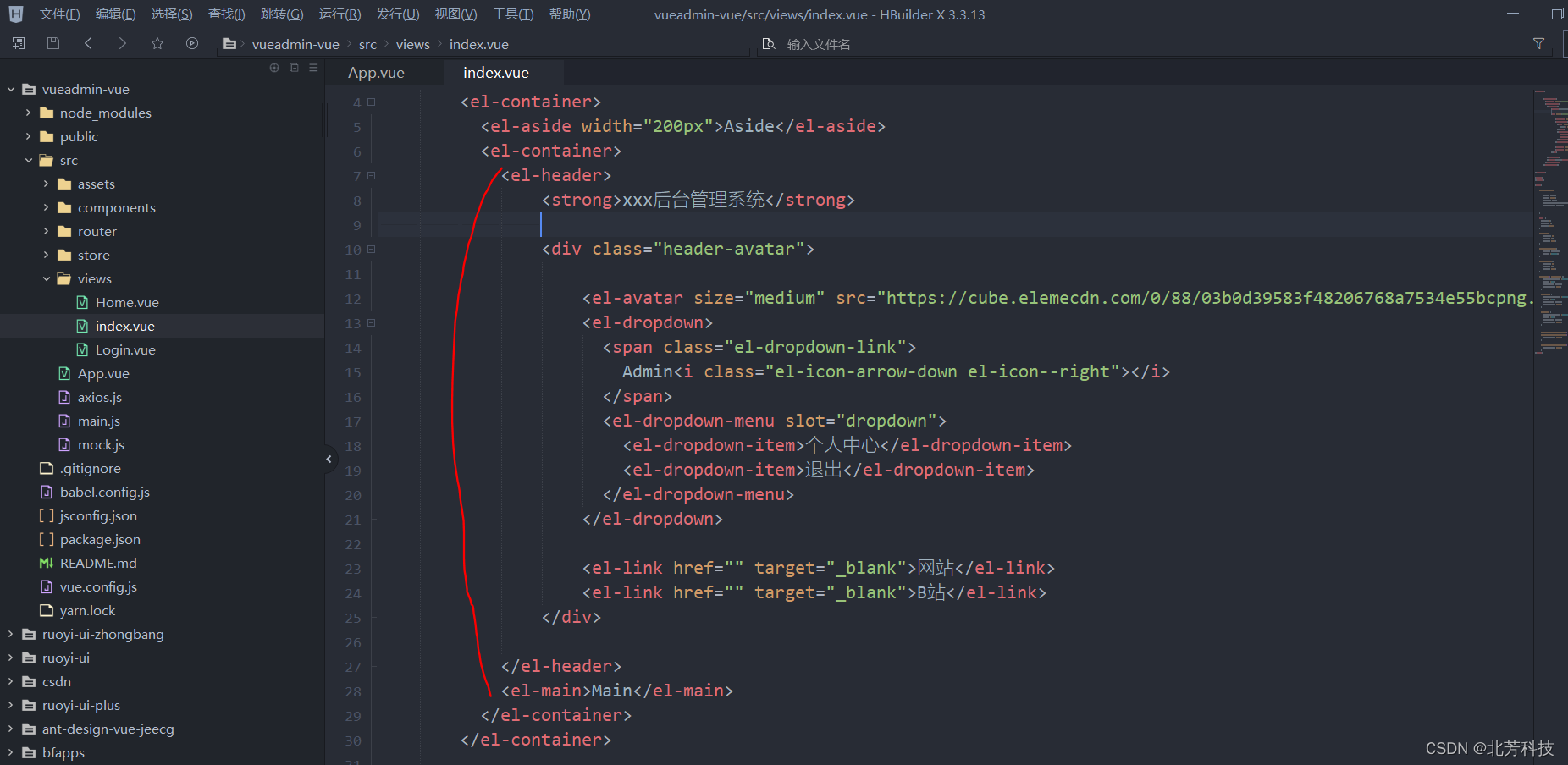

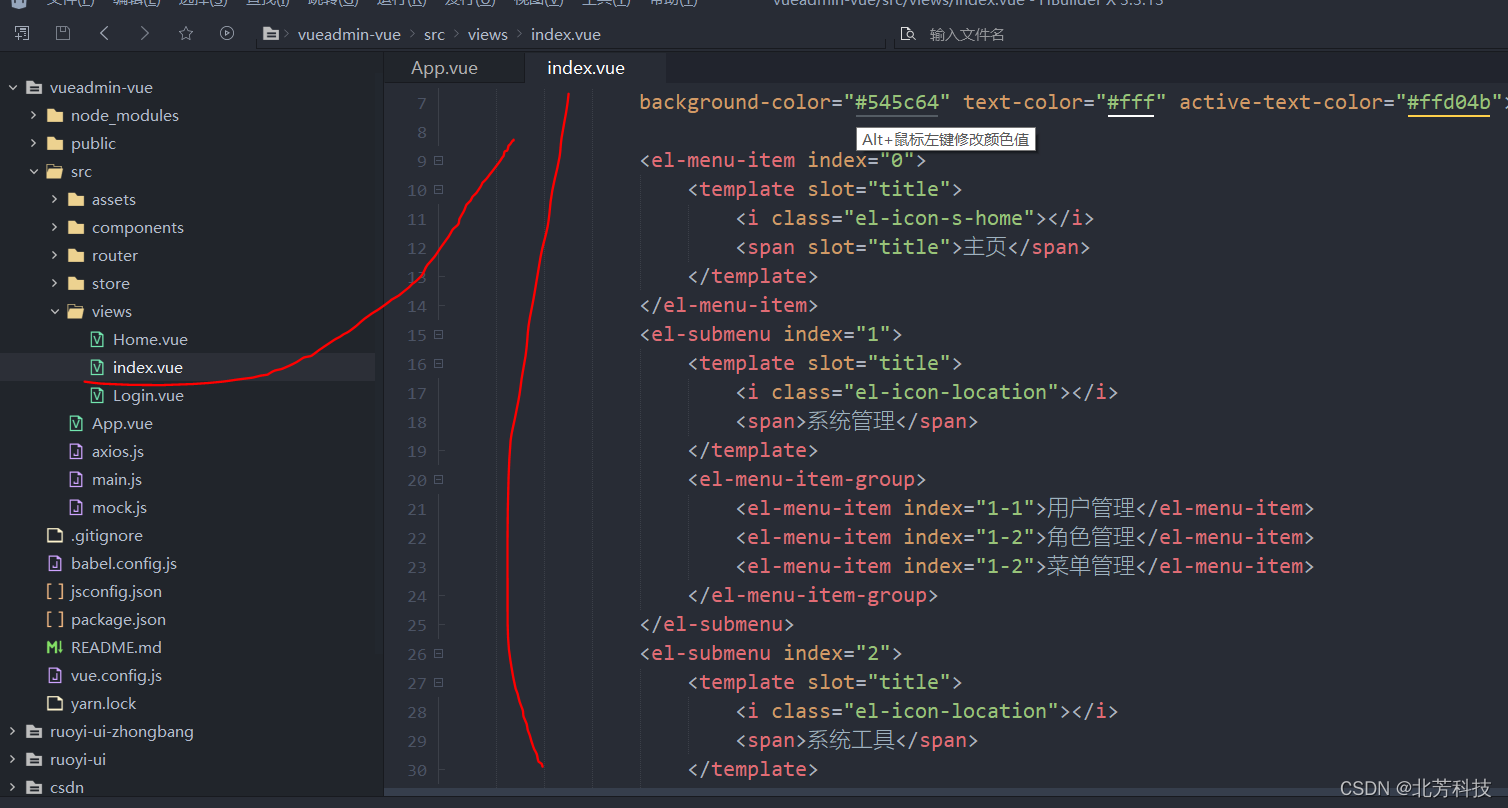

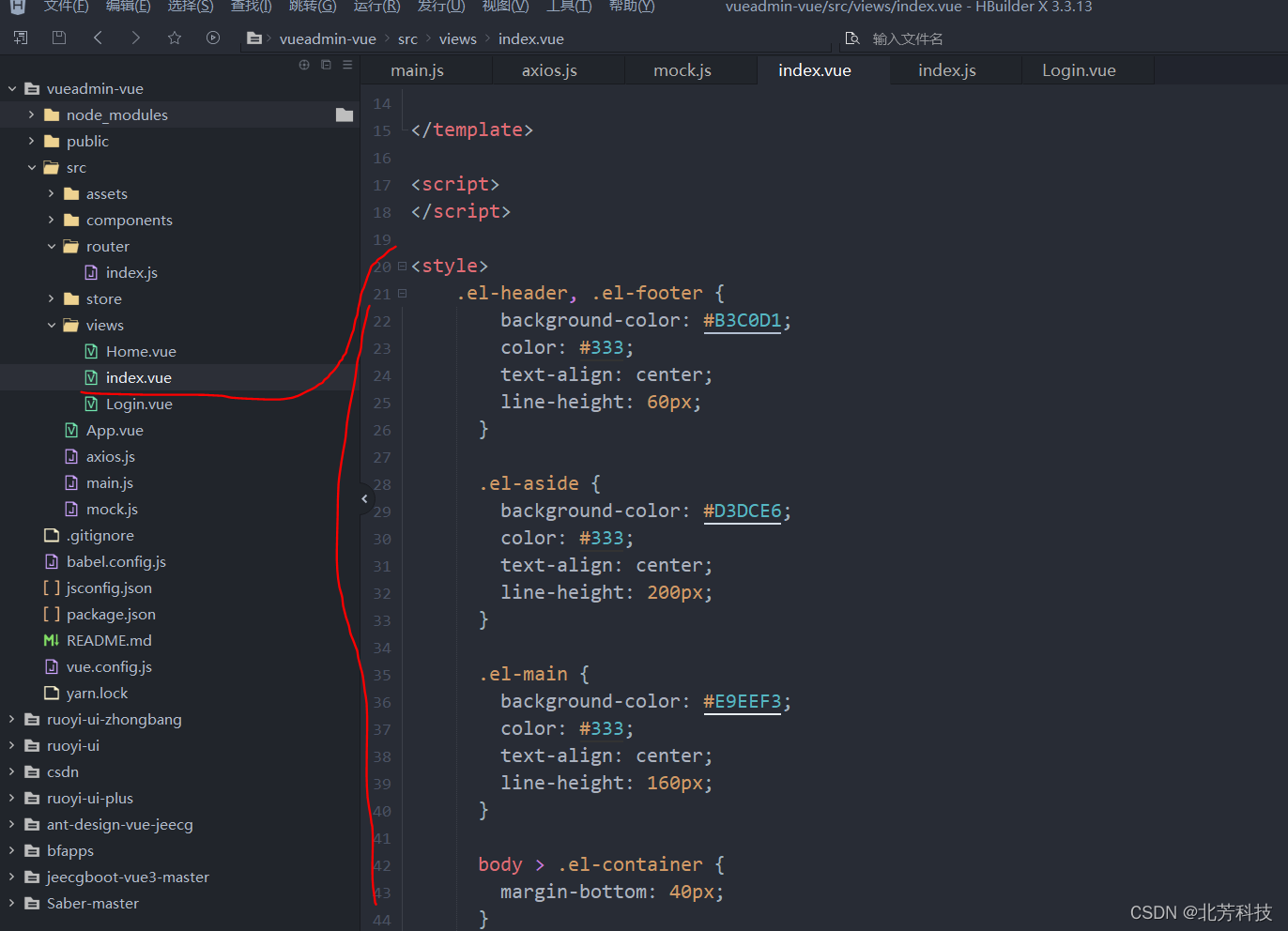

创建index.vue

<template>

	<div>

		<el-container>
		  <el-aside width="200px">Aside</el-aside>
		  <el-container>
		    <el-header>Header</el-header>
		    <el-main>Main</el-main>
		  </el-container>
		</el-container>

	</div>

</template>

<script>
</script>

<style>
</style>

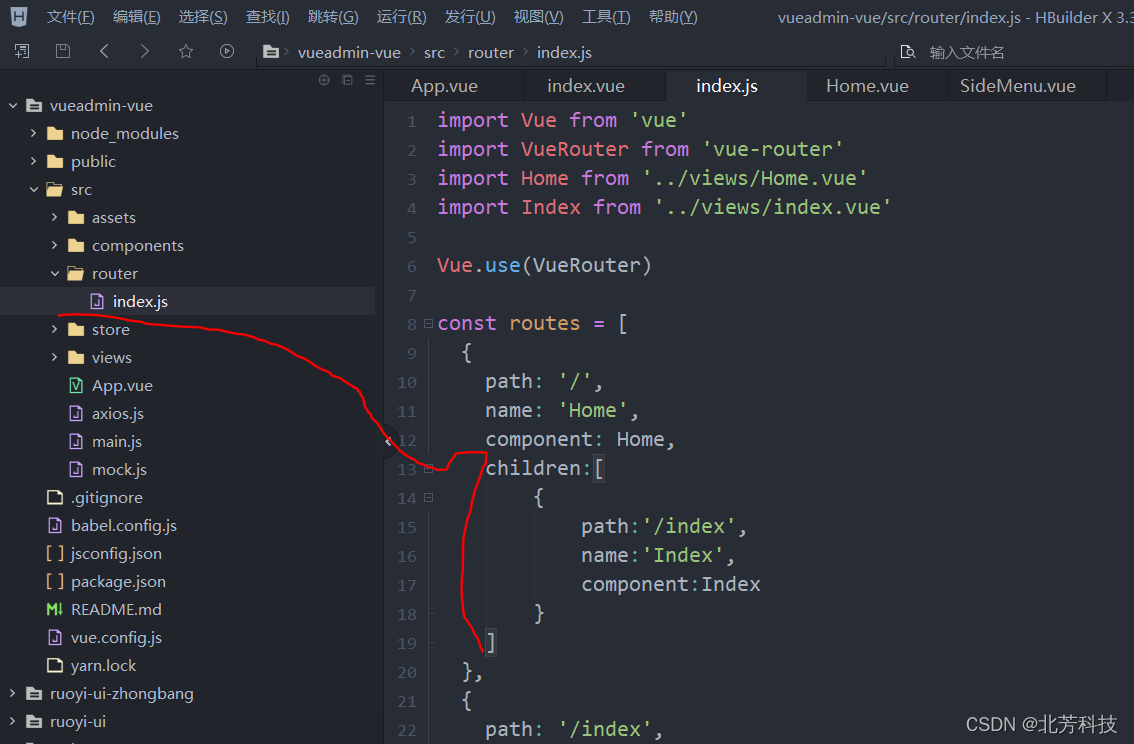

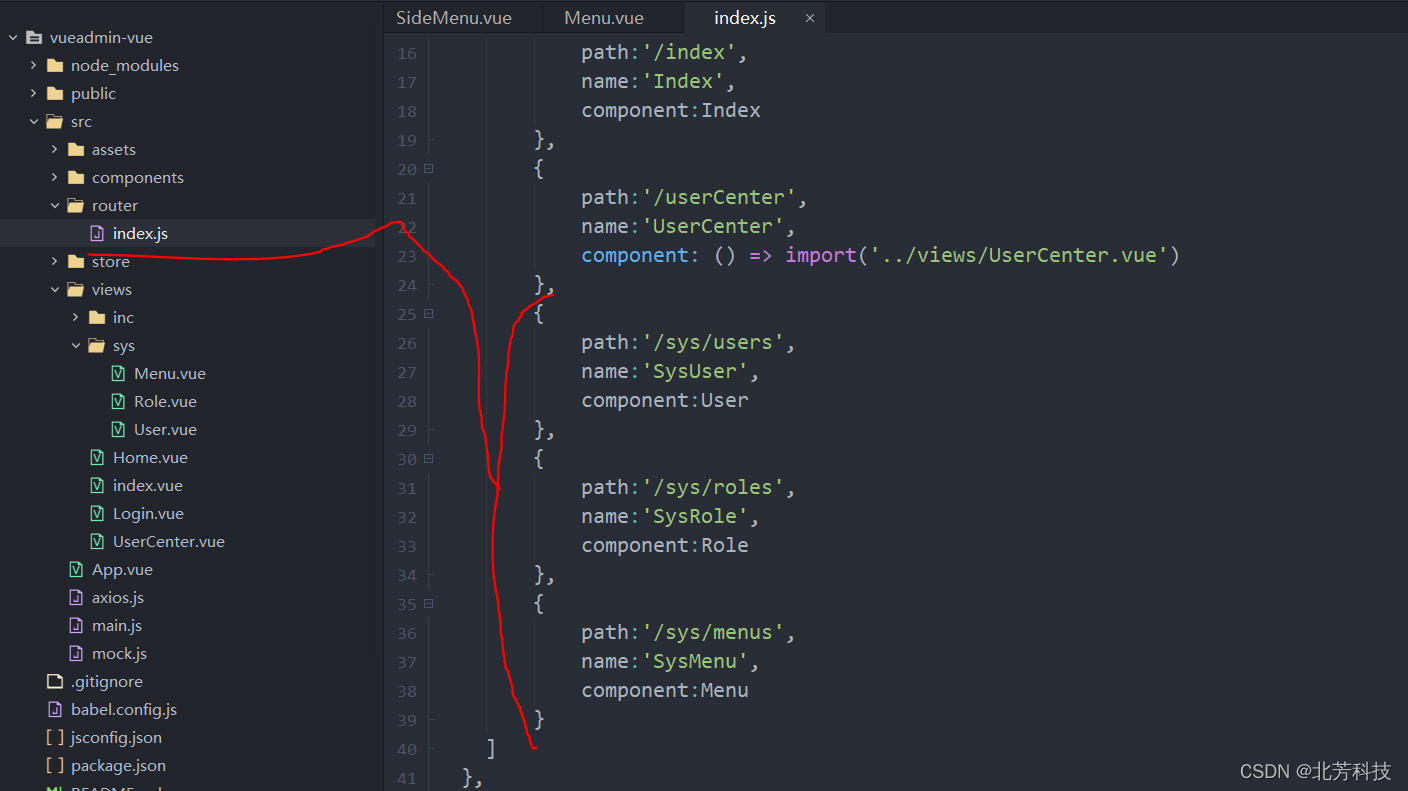

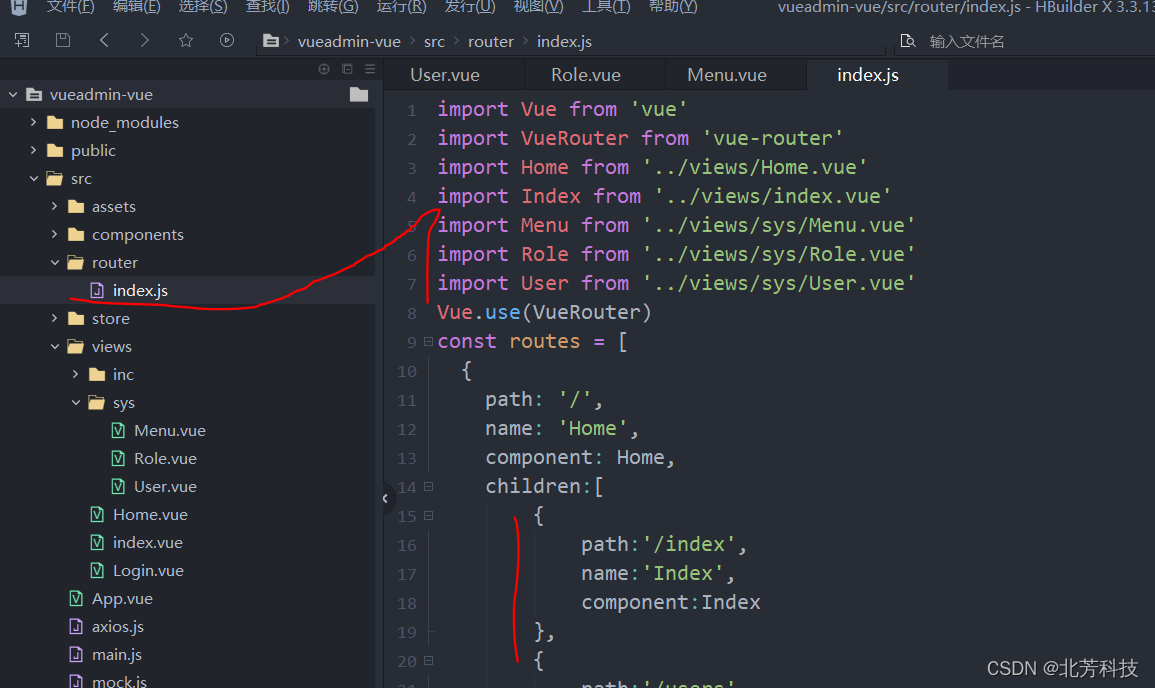

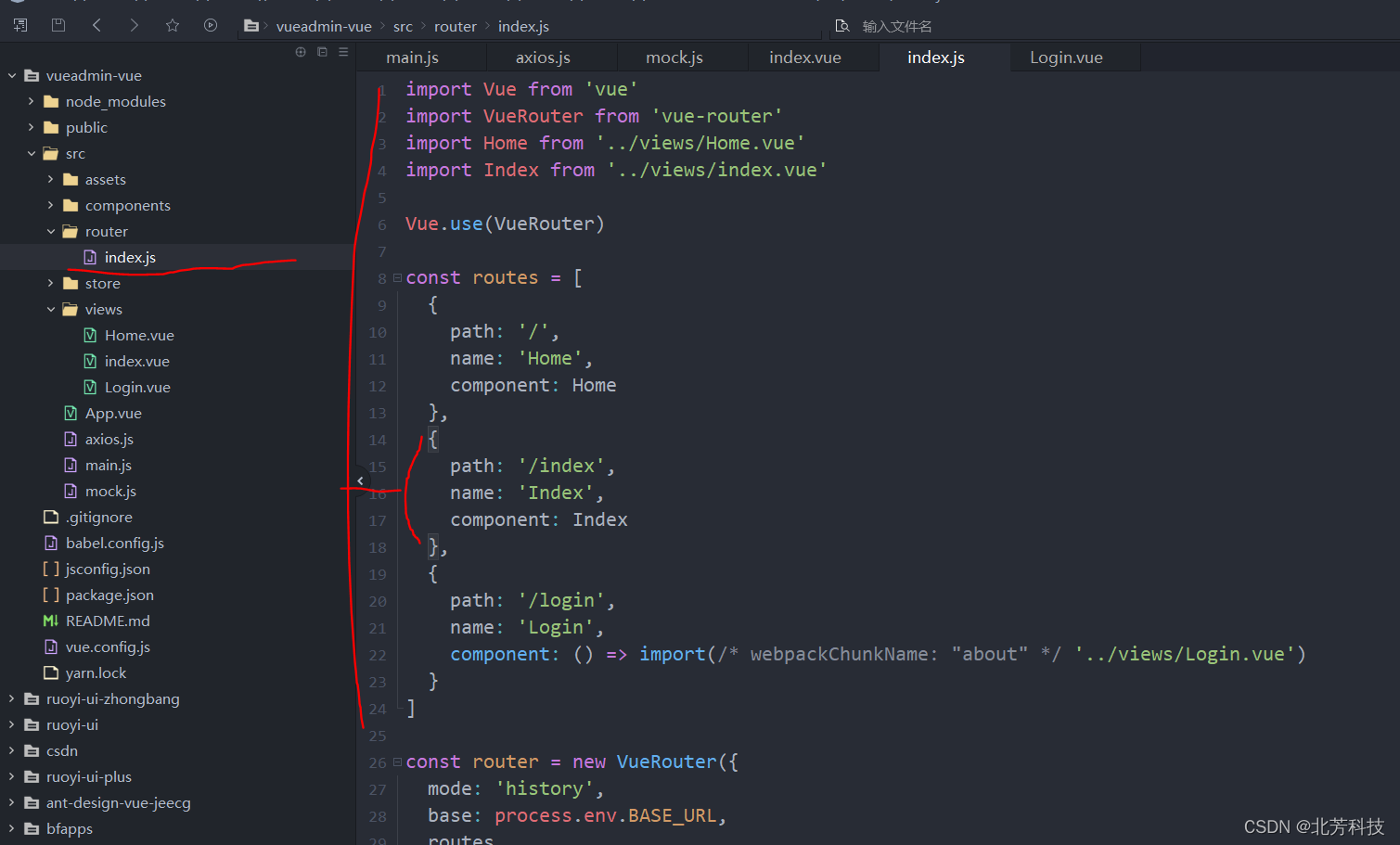

2、设置页面路由和跳转路径

import Vue from 'vue'
import VueRouter from 'vue-router'
import Home from '../views/Home.vue'
import Index from '../views/index.vue'

Vue.use(VueRouter)

const routes = [
  {
    path: '/',
    name: 'Home',
    component: Home
  },
  {
    path: 'index',
    name: 'Index',
    component: Index
  },
  {
    path: '/login',
    name: 'Login',
    component: () => import(/* webpackChunkName: "about" */ '../views/Login.vue')
  }
]

const router = new VueRouter({
  mode: 'history',
  base: process.env.BASE_URL,
  routes
})

export default router

设置跳转路径

设置一下状态码使其跳转成功

3、设置页面布局

引入一些ELement UI提供的样式

<style>
	.el-header, .el-footer {
	    background-color: #B3C0D1;
	    color: #333;
	    text-align: center;
	    line-height: 60px;
	  }

	  .el-aside {
	    background-color: #D3DCE6;
	    color: #333;
	    text-align: center;
	    line-height: 200px;
	  }

	  .el-main {
	    background-color: #E9EEF3;
	    color: #333;
	    text-align: center;
	    line-height: 160px;
	  }

	  body > .el-container {
	    margin-bottom: 40px;
	  }

	  .el-container:nth-child(5) .el-aside,
	  .el-container:nth-child(6) .el-aside {
	    line-height: 260px;
	  }

	  .el-container:nth-child(7) .el-aside {
	    line-height: 320px;
	  }
	  .el-container{
		padding: 0;
		margin: 0;
		height: 100%;
	}

</style>

设置一些元件

<template>


		<el-container>
		  <el-aside width="200px">Aside</el-aside>
		  <el-container>
		    <el-header>
				<strong>xxx后台管理系统</strong>

				<div class="header-avatar">

					<el-avatar size="medium" src="https://cube.elemecdn.com/0/88/03b0d39583f48206768a7534e55bcpng.png"></el-avatar>
					<el-dropdown>
					  <span class="el-dropdown-link">
					    Admin<i class="el-icon-arrow-down el-icon--right"></i>
					  </span>
					  <el-dropdown-menu slot="dropdown">
					    <el-dropdown-item>个人中心</el-dropdown-item>
					    <el-dropdown-item>退出</el-dropdown-item>
					  </el-dropdown-menu>
					</el-dropdown>

					<el-link href="" target="_blank">网站</el-link>
					<el-link href="" target="_blank">B站</el-link>
				</div>

			</el-header>
		    <el-main>Main</el-main>
		  </el-container>
		</el-container>


</template>

<script>
</script>

<style>

	.header-avatar{

		float: right;
		width: 210px;
		display: flex;
		justify-content: space-around;
		align-items: center;


	}

	body  {
	  margin: 0;
	  padding: 0;
	  height: 100%;
	}

	.template{
		padding: 0;
		margin: 0;
		height: 100%;
	}

	.el-dropdown-link{
		cursor: pointer;
		color: #409EFF;
	}

	.el-container{
		padding: 0;
		margin: 0;
		height: 100%;
	}

	.el-header, .el-footer {
	    background-color: #B3C0D1;
	    color: #333;
	    text-align: center;
	    line-height: 60px;
	  }

	  .el-aside {
	    background-color: #D3DCE6;
	    color: #333;
	    text-align: center;
	    line-height: 200px;
	  }

	  .el-main {
	    background-color: #E9EEF3;
	    color: #333;
	    text-align: center;
	    line-height: 160px;
	  }


	  .el-container:nth-child(5) .el-aside,
	  .el-container:nth-child(6) .el-aside {
	    line-height: 260px;
	  }

	  .el-container:nth-child(7) .el-aside {
	    line-height: 320px;
	  }
</style>

4、设置左侧导航

<template>


	<el-container>
		<el-aside width="200px">
			<el-menu default-active="2" class="el-menu-vertical-demo" @open="handleOpen" @close="handleClose"
				background-color="#545c64" text-color="#fff" active-text-color="#ffd04b">

				<el-menu-item index="0">
					<template slot="title">
						<i class="el-icon-s-home"></i>
						<span slot="title">主页</span>
					</template>
				</el-menu-item>
				<el-submenu index="1">
					<template slot="title">
						<i class="el-icon-location"></i>
						<span>系统管理</span>
					</template>
					<el-menu-item-group>
						<el-menu-item index="1-1">用户管理</el-menu-item>
						<el-menu-item index="1-2">角色管理</el-menu-item>
						<el-menu-item index="1-2">菜单管理</el-menu-item>
					</el-menu-item-group>
				</el-submenu>
				<el-submenu index="2">
					<template slot="title">
						<i class="el-icon-location"></i>
						<span>系统工具</span>
					</template>
					<el-menu-item-group>
						<el-menu-item index="1-1">数字字典</el-menu-item>
					</el-menu-item-group>
				</el-submenu>
			</el-menu>


		</el-aside>
		<el-container>
			<el-header>
				<strong>xxx后台管理系统</strong>

				<div class="header-avatar">

					<el-avatar size="medium" src="https://cube.elemecdn.com/0/88/03b0d39583f48206768a7534e55bcpng.png">
					</el-avatar>
					<el-dropdown>
						<span class="el-dropdown-link">
							Admin<i class="el-icon-arrow-down el-icon--right"></i>
						</span>
						<el-dropdown-menu slot="dropdown">
							<el-dropdown-item>个人中心</el-dropdown-item>
							<el-dropdown-item>退出</el-dropdown-item>
						</el-dropdown-menu>
					</el-dropdown>

					<el-link href="" target="_blank">网站</el-link>
					<el-link href="" target="_blank">B站</el-link>
				</div>

			</el-header>
			<el-main>Main</el-main>
		</el-container>
	</el-container>


</template>

<script>
</script>

<style>
	.header-avatar {
		float: right;
		width: 210px;
		display: flex;
		justify-content: space-around;
		align-items: center;
	}

	body {
		margin: 0;
		padding: 0;
		height: 100%;
	}

	.el-aside{
		background-color: #545c64;
	}

	.template {
		padding: 0;
		margin: 0;
		height: 100%;
	}

	.el-dropdown-link {
		cursor: pointer;
		color: #409EFF;
	}

	.el-container {
		padding: 0;
		margin: 0;
		height: 100%;
	}

	.el-header  {
		background-color: #0bd18f;
		color: #333;
		text-align: center;
		line-height: 60px;
	}


	.el-main {
		color: #333;
		text-align: center;
		line-height: 160px;
	}


</style>

5、Vue代码抽取

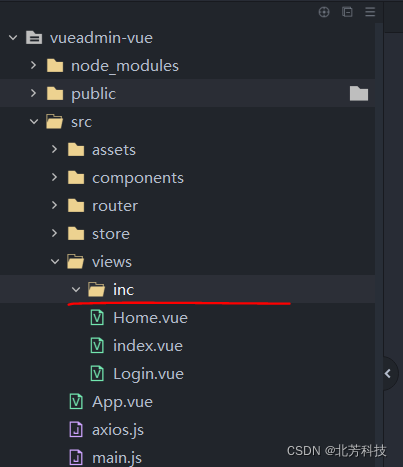

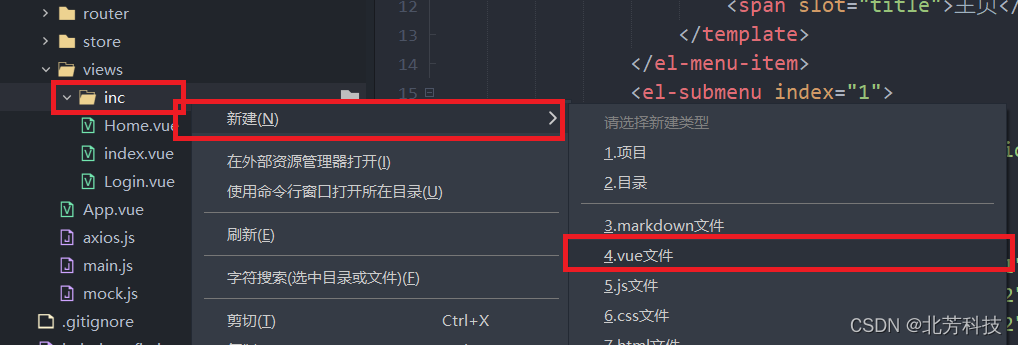

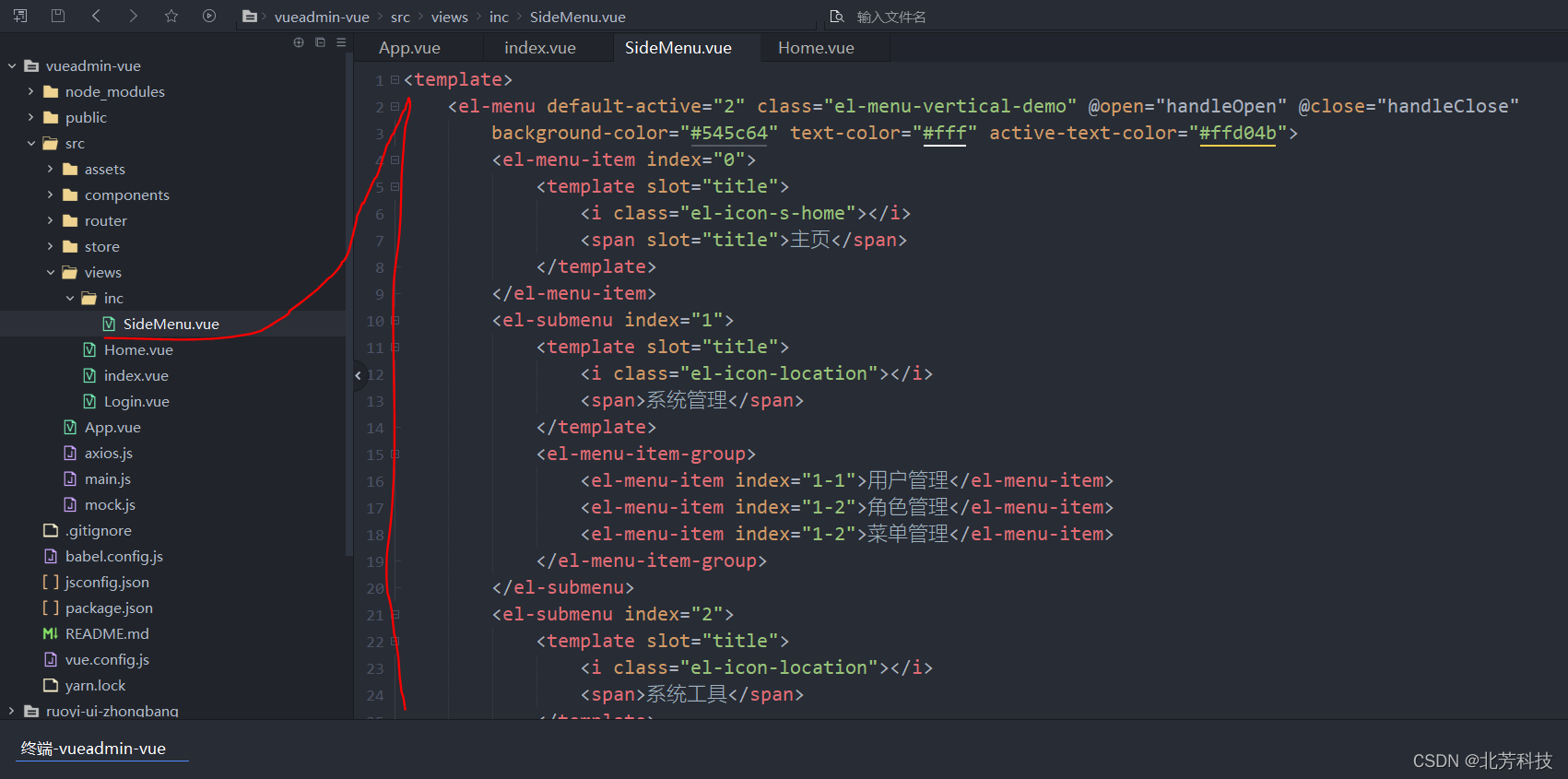

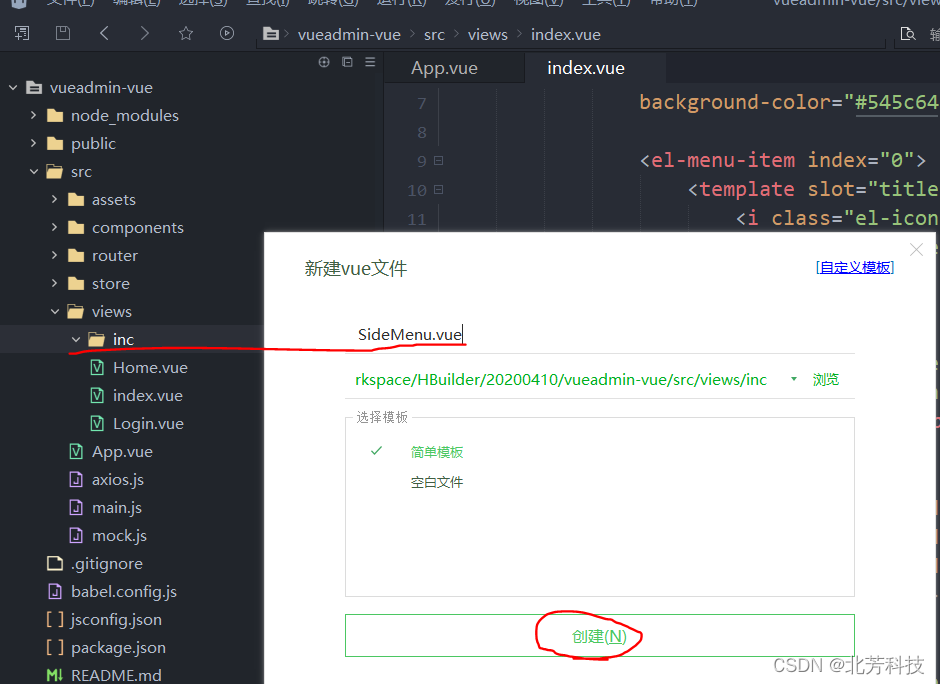

（1）抽取菜单

<template>
	<el-menu default-active="2" class="el-menu-vertical-demo" @open="handleOpen" @close="handleClose"
		background-color="#545c64" text-color="#fff" active-text-color="#ffd04b">
		<el-menu-item index="0">
			<template slot="title">
				<i class="el-icon-s-home"></i>
				<span slot="title">主页</span>
			</template>
		</el-menu-item>
		<el-submenu index="1">
			<template slot="title">
				<i class="el-icon-location"></i>
				<span>系统管理</span>
			</template>
			<el-menu-item-group>
				<el-menu-item index="1-1">用户管理</el-menu-item>
				<el-menu-item index="1-2">角色管理</el-menu-item>
				<el-menu-item index="1-2">菜单管理</el-menu-item>
			</el-menu-item-group>
		</el-submenu>
		<el-submenu index="2">
			<template slot="title">
				<i class="el-icon-location"></i>
				<span>系统工具</span>
			</template>
			<el-menu-item-group>
				<el-menu-item index="1-1">数字字典</el-menu-item>
			</el-menu-item-group>
		</el-submenu>
	</el-menu>

</template>

<script>
</script>

<style>

	.el-menu-vertical-demo{
		height: 100%;
	}

</style>

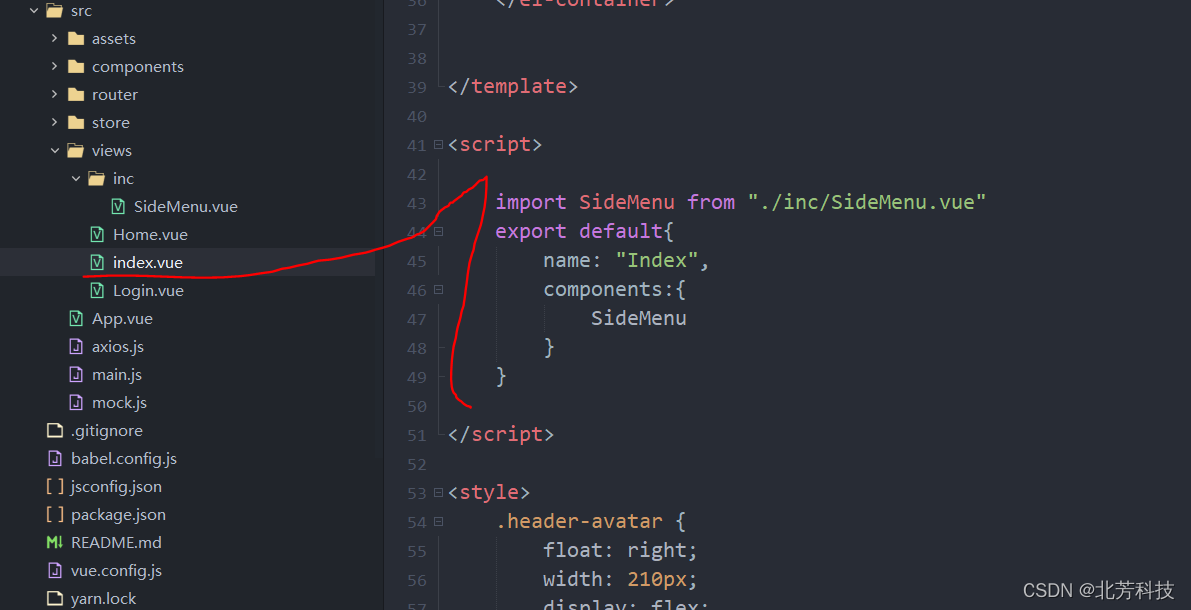

在index.vue当中引用SideMenu

<template>


	<el-container>
		<el-aside width="200px">

			<SideMenu></SideMenu>


		</el-aside>
		<el-container>
			<el-header>
				<strong>xxx后台管理系统</strong>

				<div class="header-avatar">

					<el-avatar size="medium" src="https://cube.elemecdn.com/0/88/03b0d39583f48206768a7534e55bcpng.png">
					</el-avatar>
					<el-dropdown>
						<span class="el-dropdown-link">
							Admin<i class="el-icon-arrow-down el-icon--right"></i>
						</span>
						<el-dropdown-menu slot="dropdown">
							<el-dropdown-item>个人中心</el-dropdown-item>
							<el-dropdown-item>退出</el-dropdown-item>
						</el-dropdown-menu>
					</el-dropdown>

					<el-link href="" target="_blank">网站</el-link>
					<el-link href="" target="_blank">B站</el-link>
				</div>

			</el-header>
			<el-main>Main</el-main>
		</el-container>
	</el-container>


</template>

<script>

	import SideMenu from "./inc/SideMenu.vue"
	export default{
		name: "Index",
		components:{
			SideMenu
		}
	}

</script>

<style>
	.header-avatar {
		float: right;
		width: 210px;
		display: flex;
		justify-content: space-around;
		align-items: center;
	}

	body {
		margin: 0;
		padding: 0;
		height: 100%;
	}

	.el-aside{
		background-color: #545c64;
	}

	.template {
		padding: 0;
		margin: 0;
		height: 100%;
	}

	.el-dropdown-link {
		cursor: pointer;
		color: #409EFF;
	}

	.el-container {
		padding: 0;
		margin: 0;
		height: 100%;
	}

	.el-header  {
		background-color: #0bd18f;
		color: #333;
		text-align: center;
		line-height: 60px;
	}

</style>

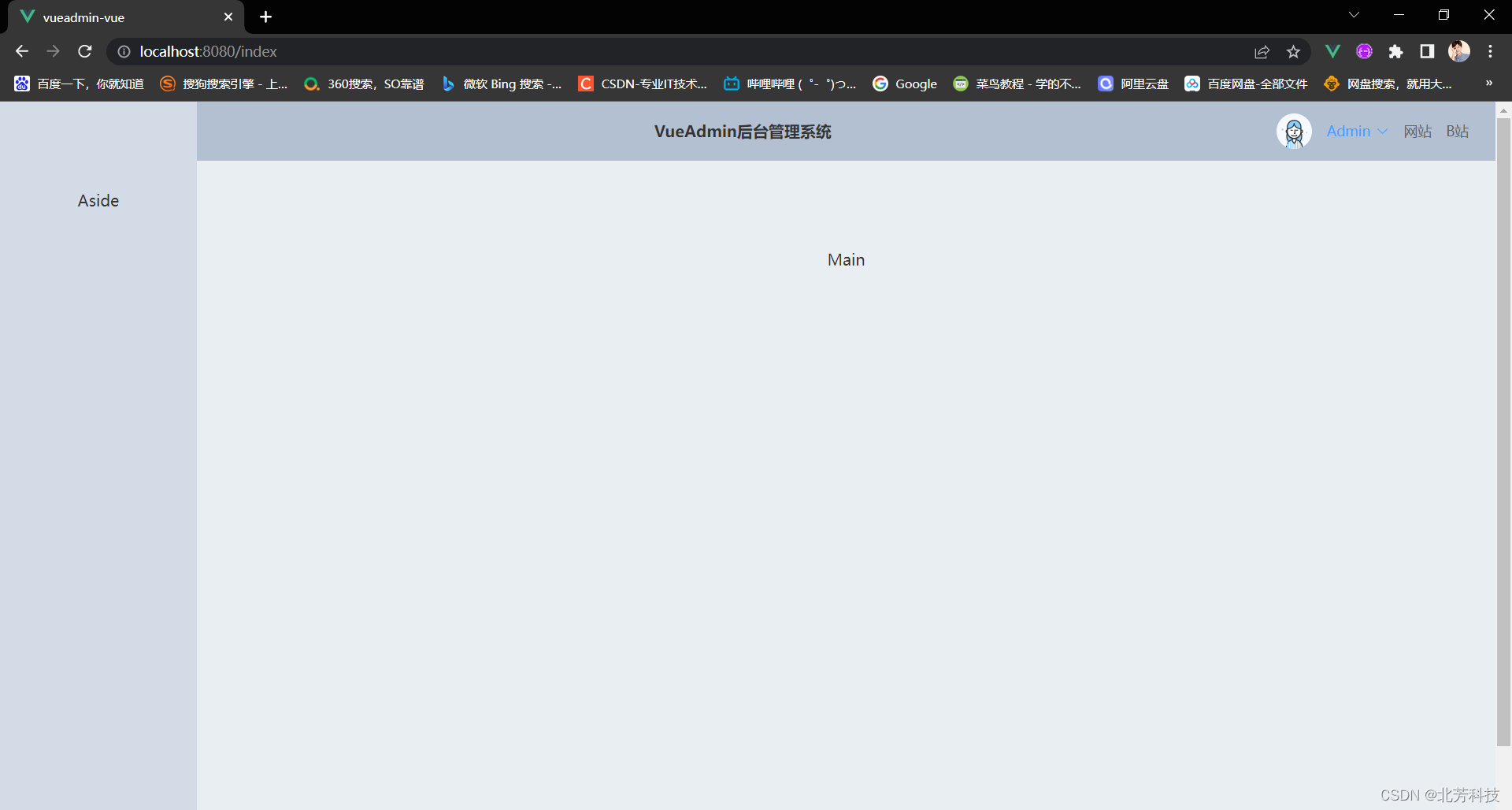

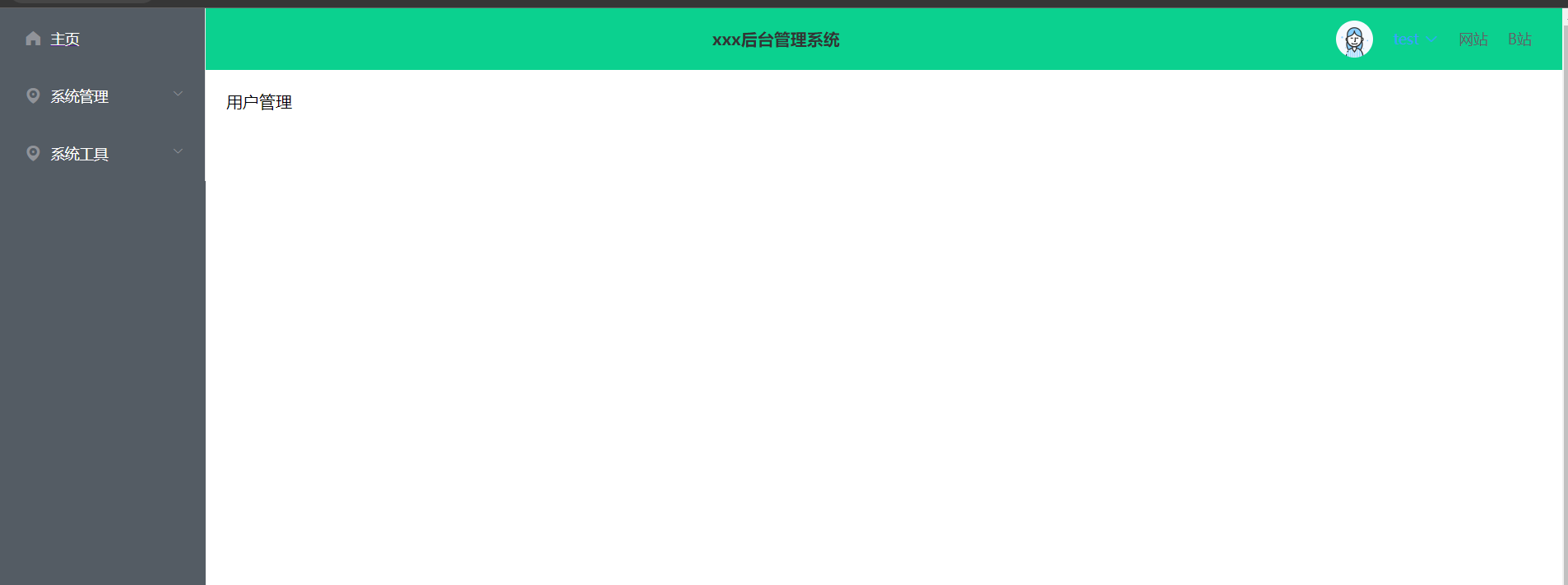

最后效果

（2）index

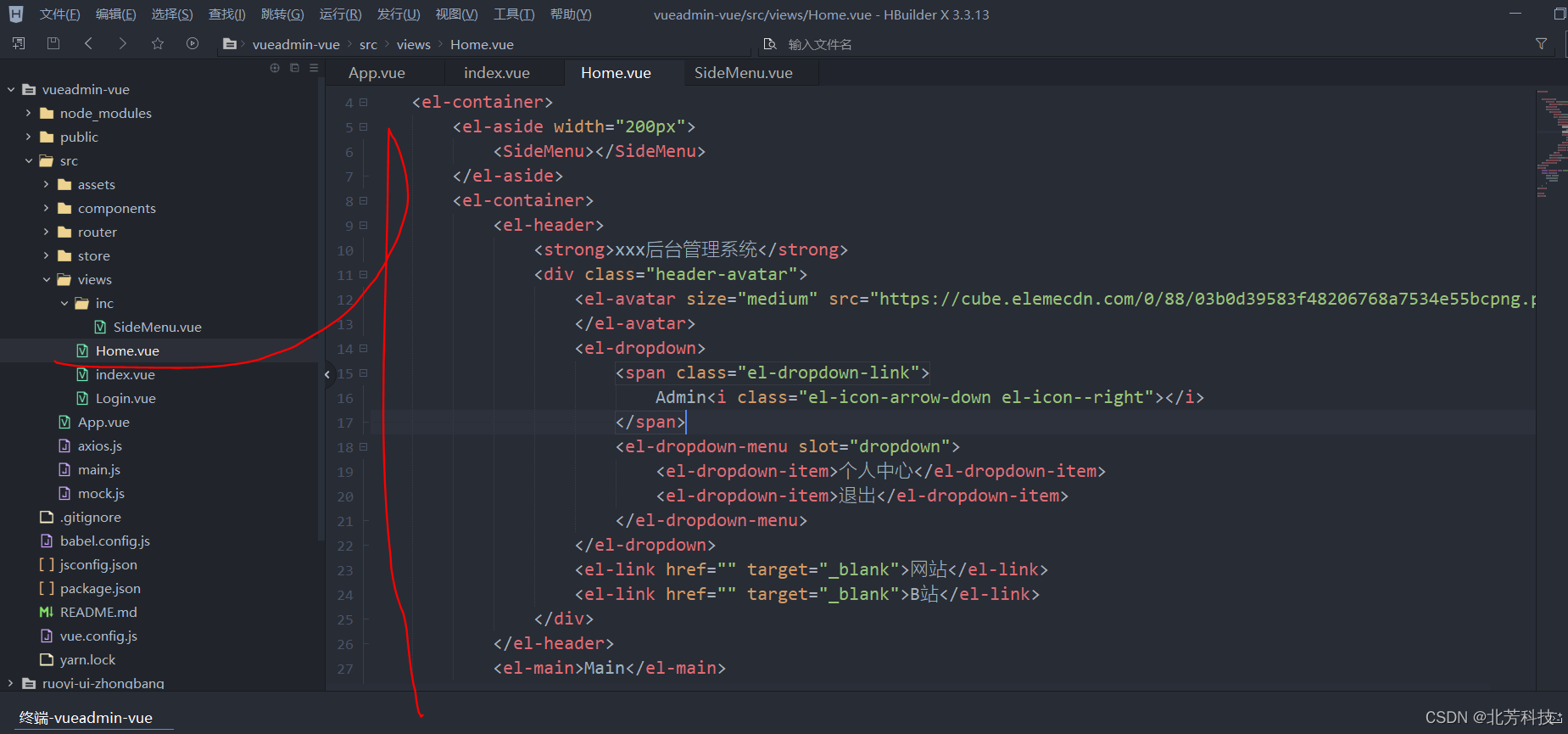

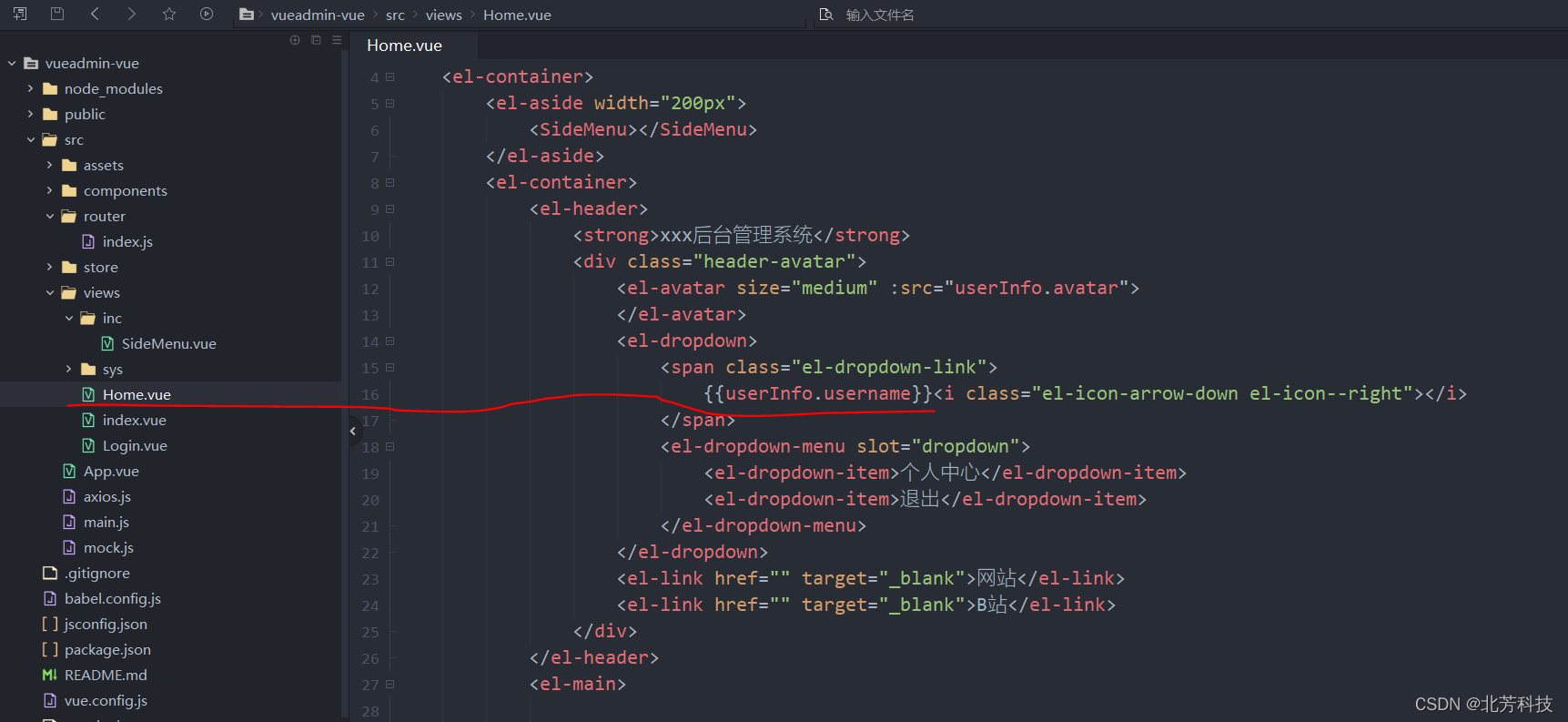

将index.vue的内容全部抽取到Home

<template>


	<el-container>
		<el-aside width="200px">
			<SideMenu></SideMenu>
		</el-aside>
		<el-container>
			<el-header>
				<strong>xxx后台管理系统</strong>
				<div class="header-avatar">
					<el-avatar size="medium" src="https://cube.elemecdn.com/0/88/03b0d39583f48206768a7534e55bcpng.png">
					</el-avatar>
					<el-dropdown>
						<span class="el-dropdown-link">
							Admin<i class="el-icon-arrow-down el-icon--right"></i>
						</span>
						<el-dropdown-menu slot="dropdown">
							<el-dropdown-item>个人中心</el-dropdown-item>
							<el-dropdown-item>退出</el-dropdown-item>
						</el-dropdown-menu>
					</el-dropdown>
					<el-link href="" target="_blank">网站</el-link>
					<el-link href="" target="_blank">B站</el-link>
				</div>
			</el-header>
			<el-main>Main</el-main>
		</el-container>
	</el-container>
</template>
<script>
	import SideMenu from "./inc/SideMenu.vue"
	export default{
		name: "Home",
		components:{
			SideMenu
		}
	}
</script>

<style>
</style>

index.vue当中

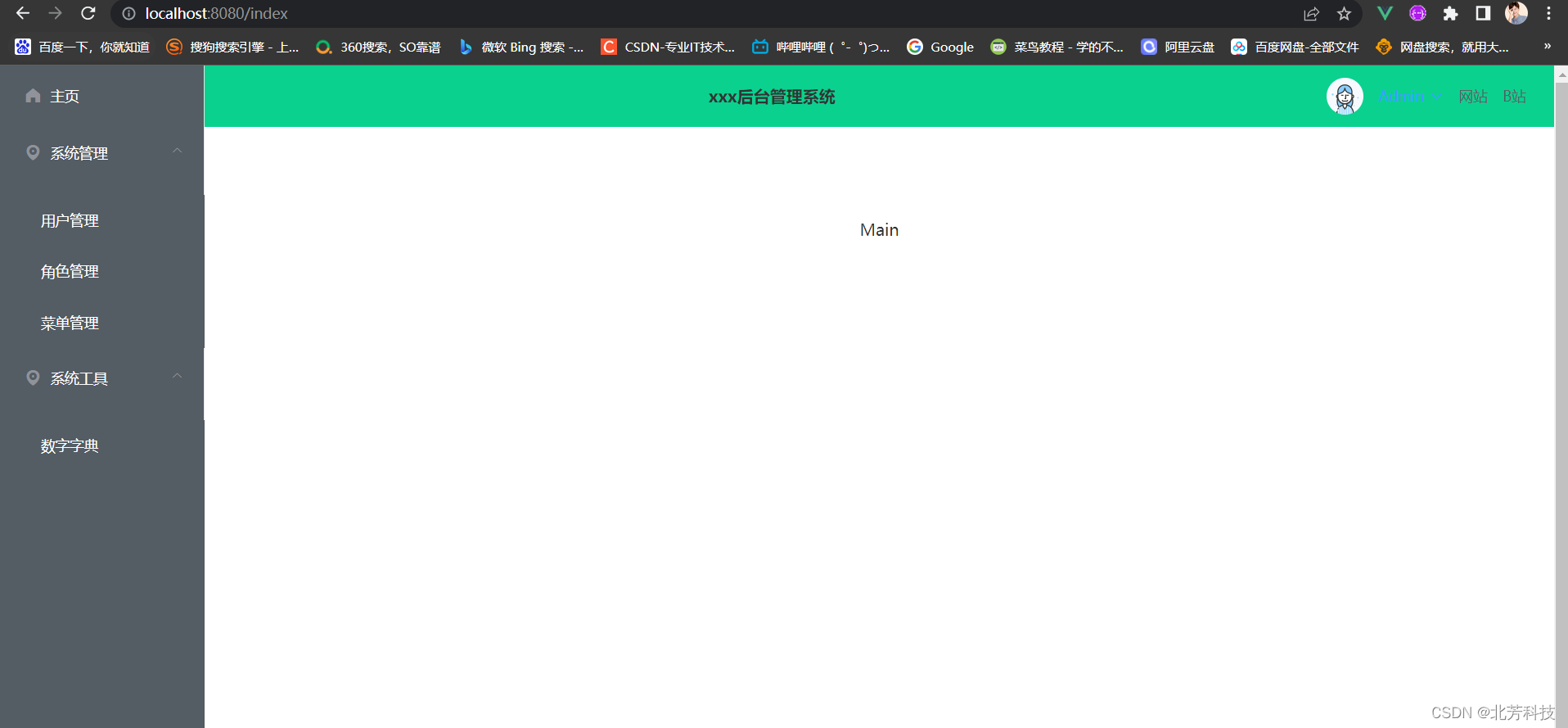

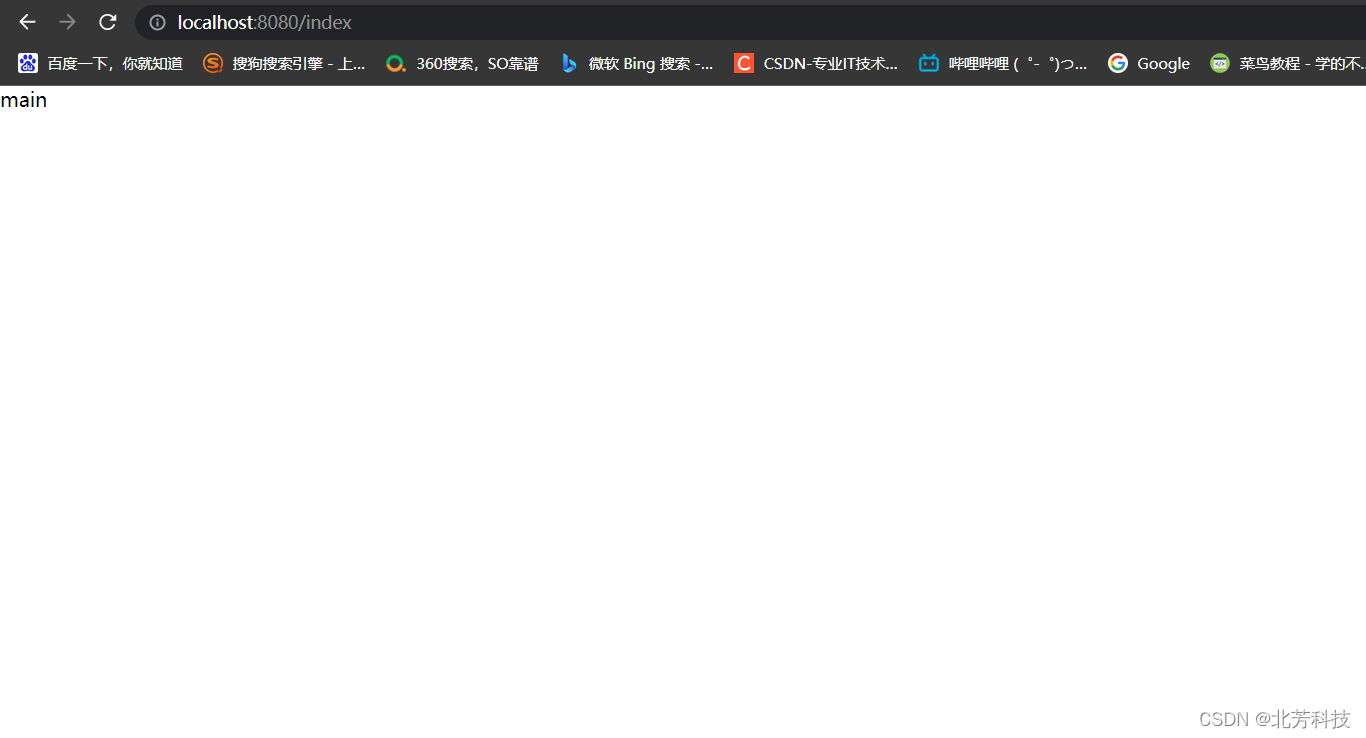

访问页面：http://localhost:8080/index

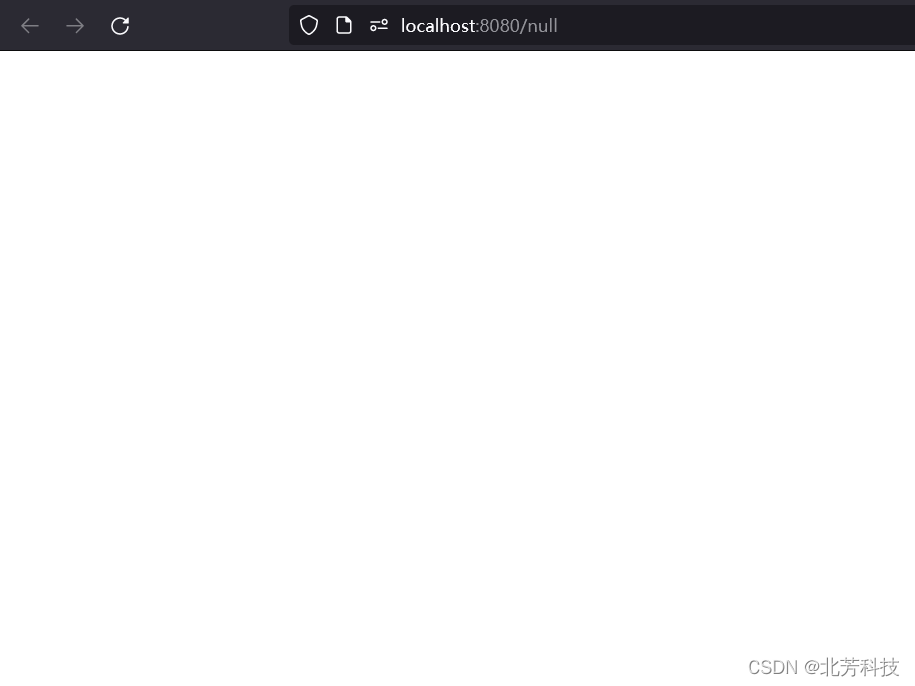

访问也发现空白

（3）设置子路由

	children:[
		{
			path:'/index',
			name:'Index',
			component:Index
		}
	]

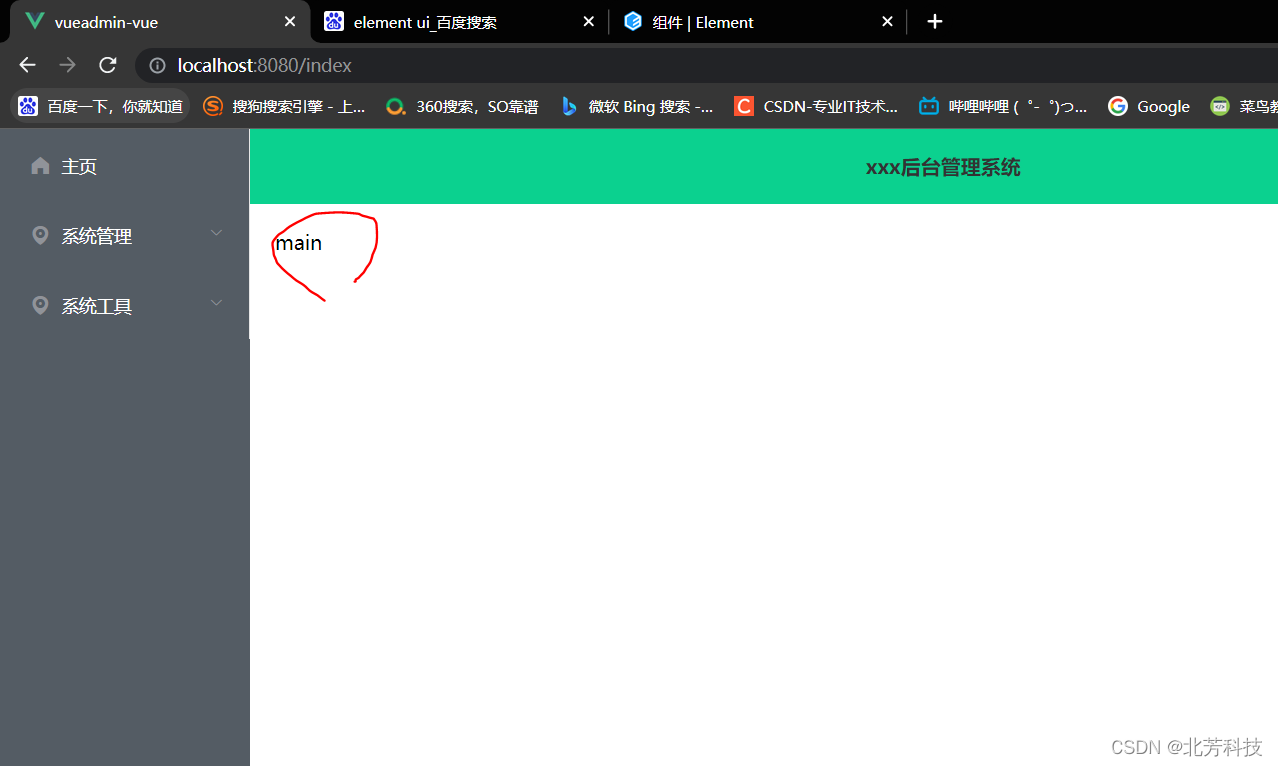

再次访问：

但是我们发现上面没有index的内容

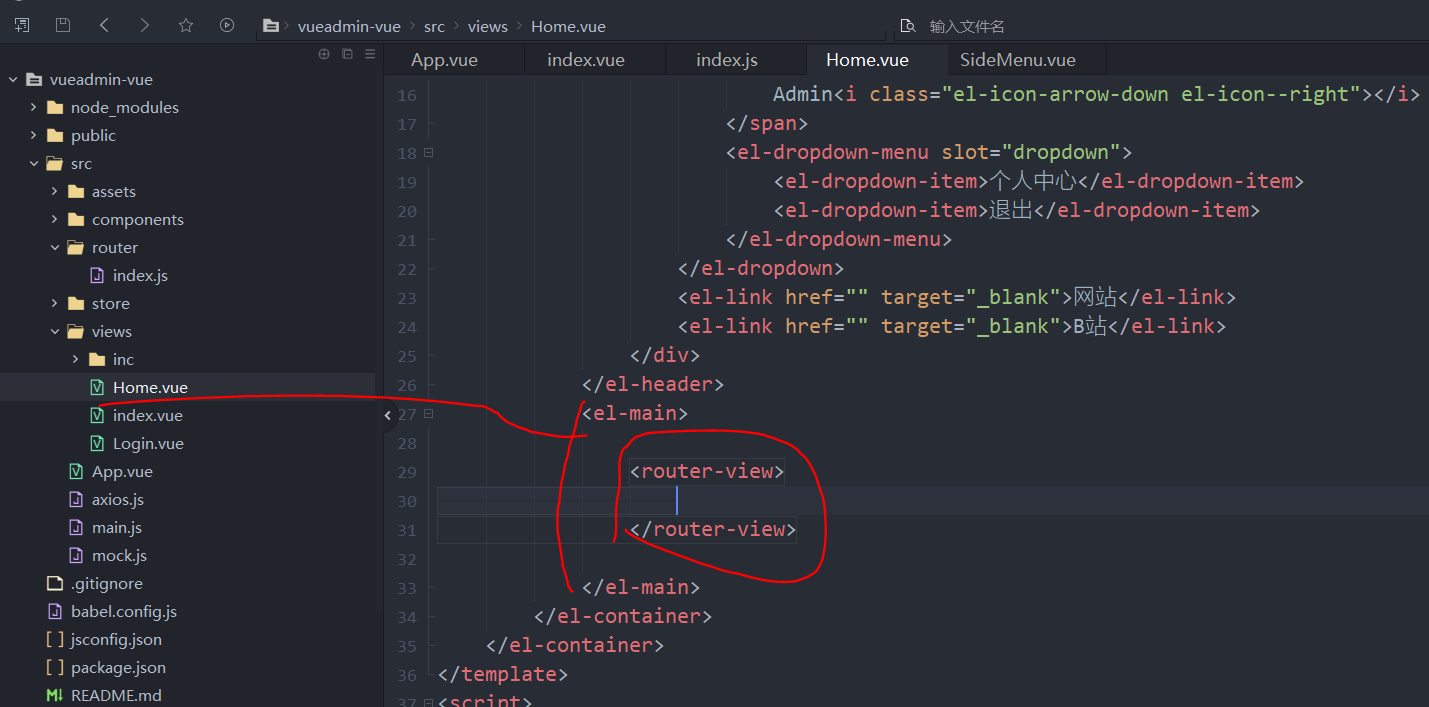

设置内容

				<router-view>
				</router-view>

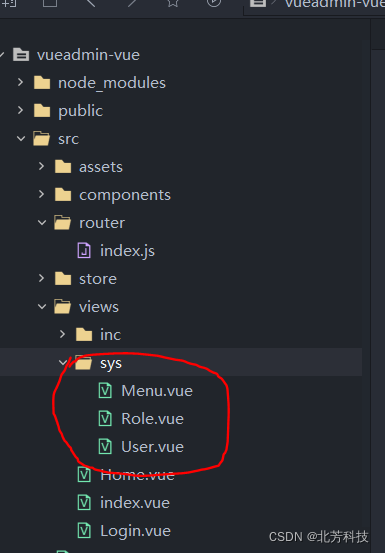

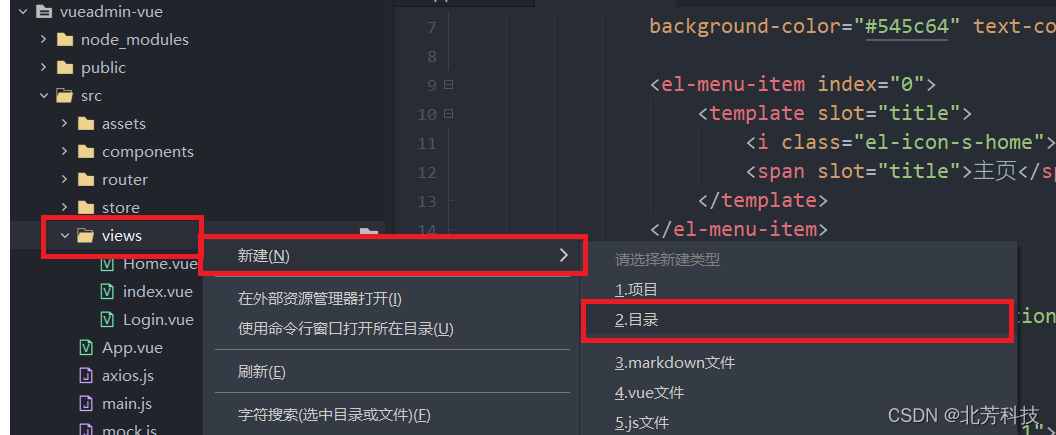

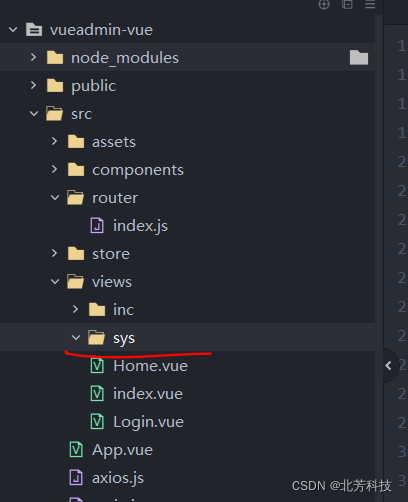

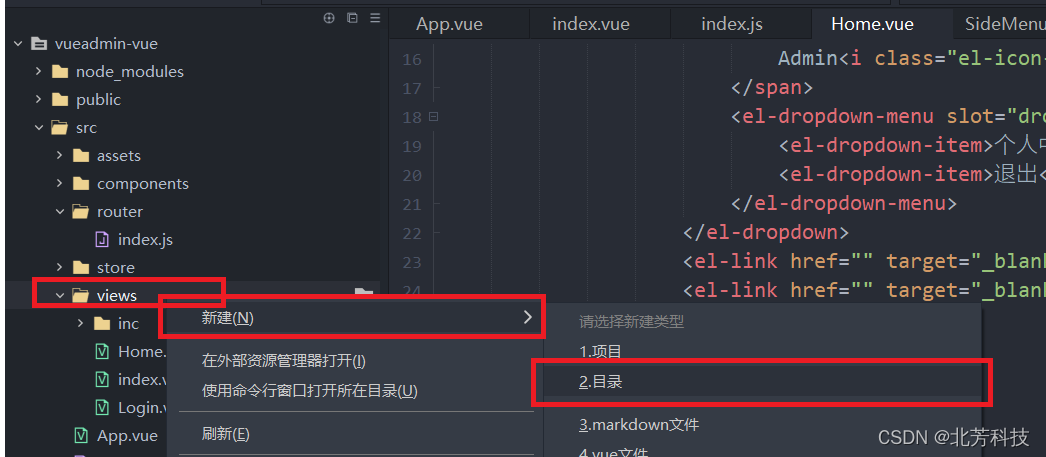

6、编写导航栏路由

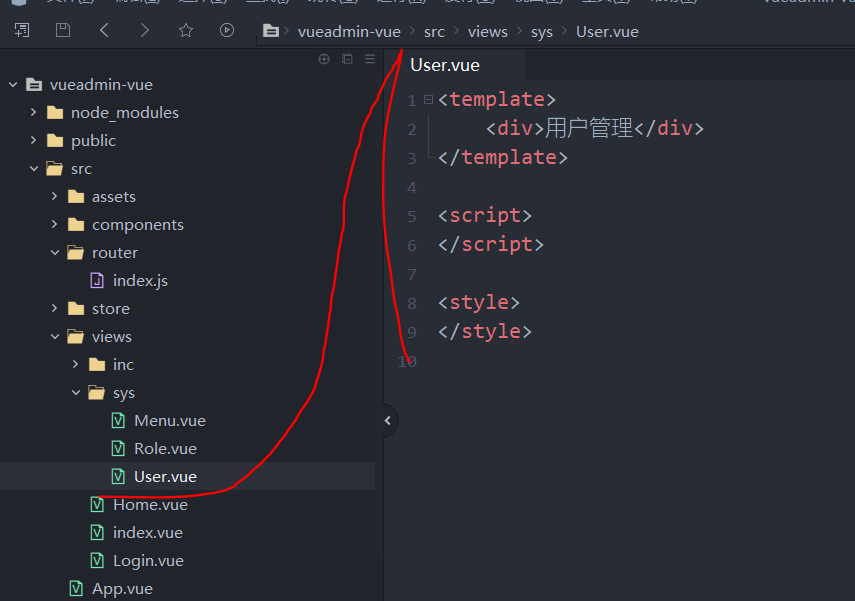

<template>
	<div>用户管理</div>
</template>

<script>
</script>

<style>
</style>

<template>
	<div>角色管理</div>
</template>

<script>
</script>

<style>
</style>

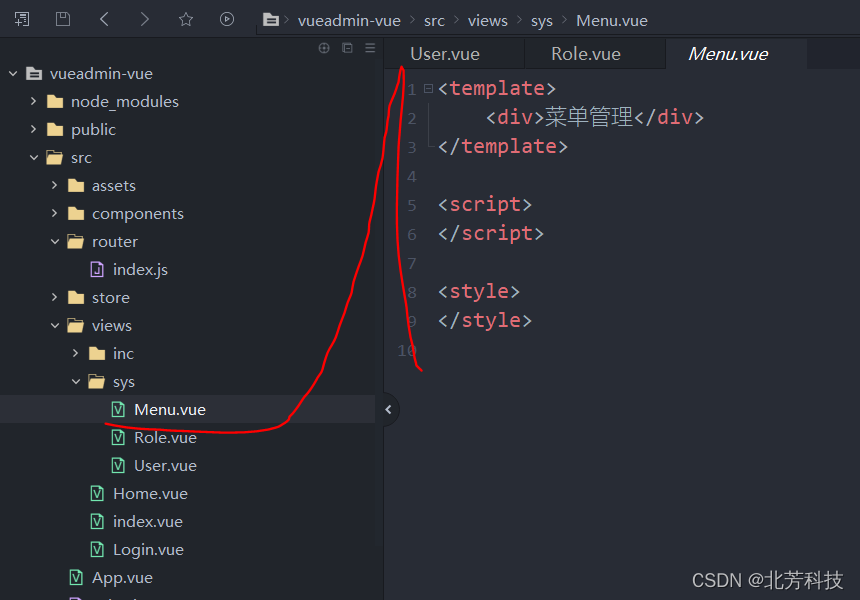

<template>
	<div>菜单管理</div>
</template>

<script>
</script>

<style>
</style>

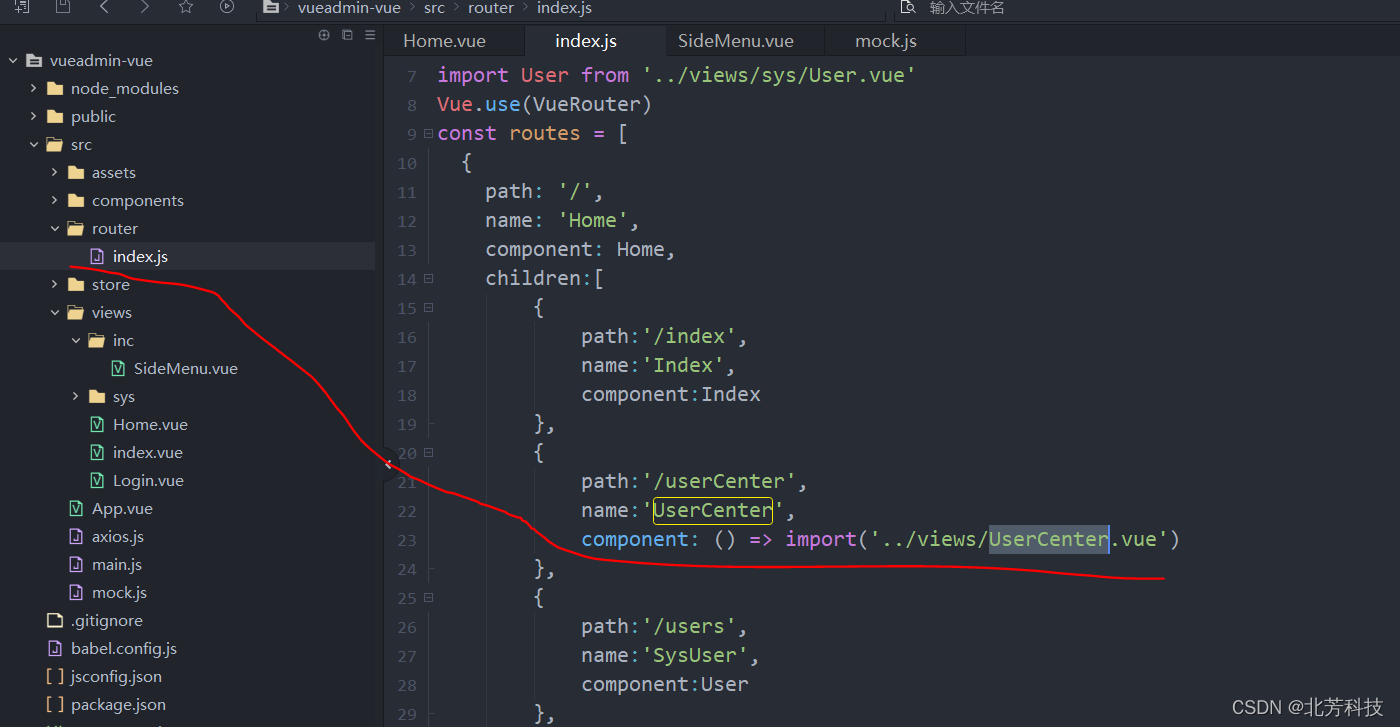

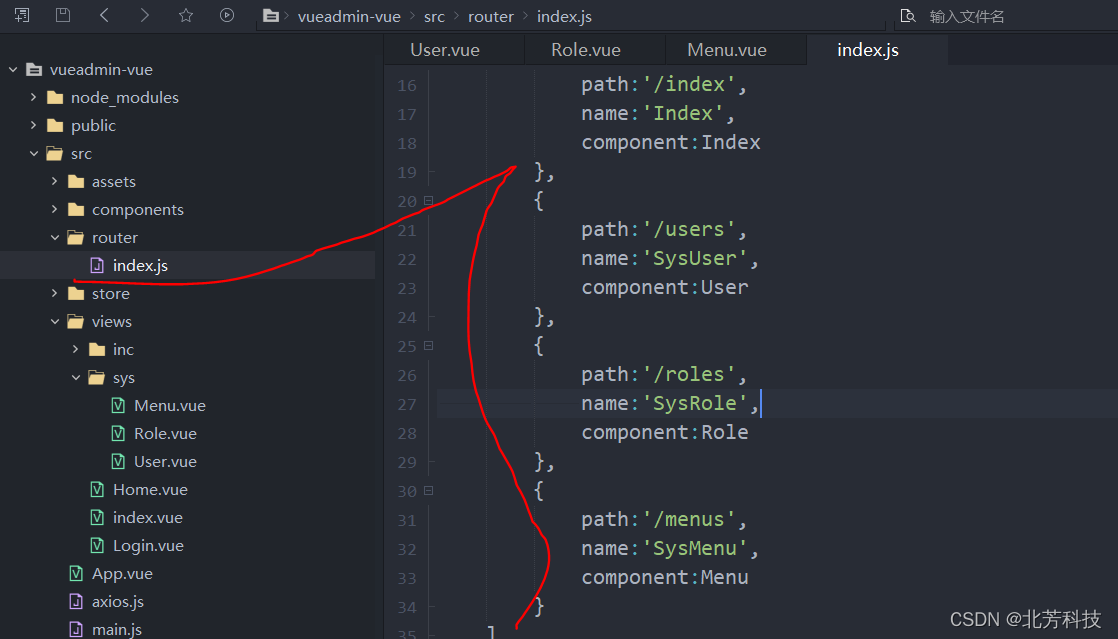

设置子路由

import Vue from 'vue'
import VueRouter from 'vue-router'
import Home from '../views/Home.vue'
import Index from '../views/index.vue'
import Menu from '../views/sys/Menu.vue'
import Role from '../views/sys/Role.vue'
import User from '../views/sys/User.vue'
Vue.use(VueRouter)
const routes = [
  {
    path: '/',
    name: 'Home',
    component: Home,
	children:[
		{
			path:'/index',
			name:'Index',
			component:Index
		},
		{
			path:'/users',
			name:'SysUser',
			component:User
		},
		{
			path:'/roles',
			name:'SysRole',
			component:Role
		},
		{
			path:'/menus',
			name:'SysMenu',
			component:Menu
		}
	]
  },
  {
    path: '/index',
    name: 'Index',
    component: Index
  },
  {
    path: '/login',
    name: 'Login',
    component: () => import(/* webpackChunkName: "about" */ '../views/Login.vue')
  }
]
const router = new VueRouter({
  mode: 'history',
  base: process.env.BASE_URL,
  routes
})
export default router

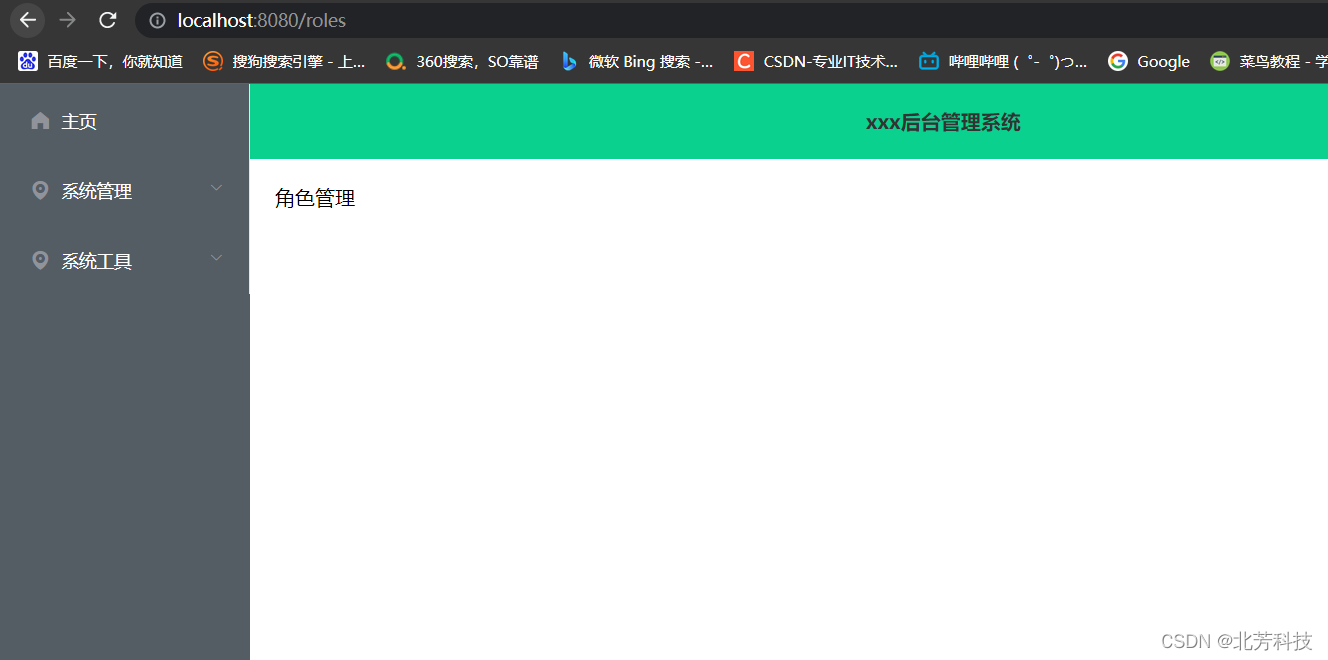

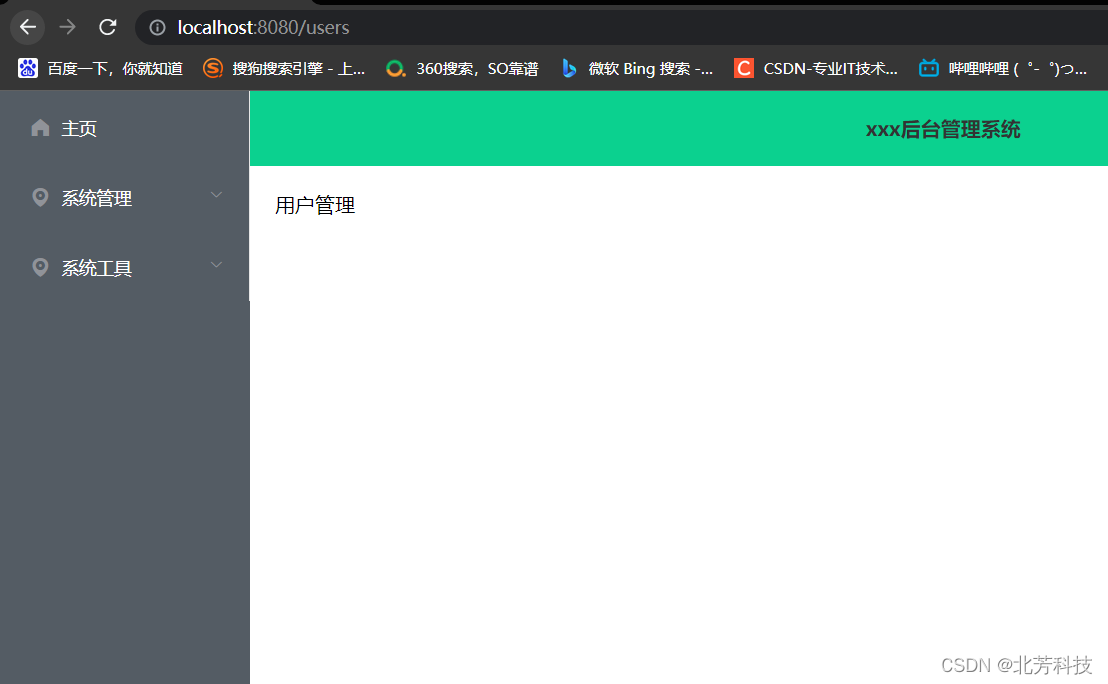

访问：http://localhost:8080/roles

http://localhost:8080/users

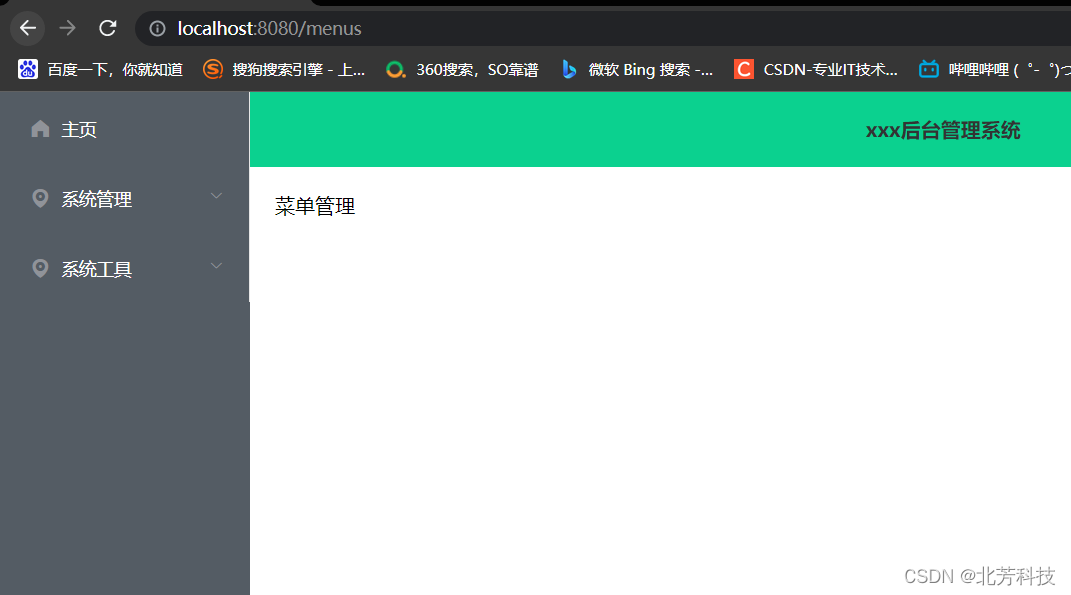

http://localhost:8080/menus

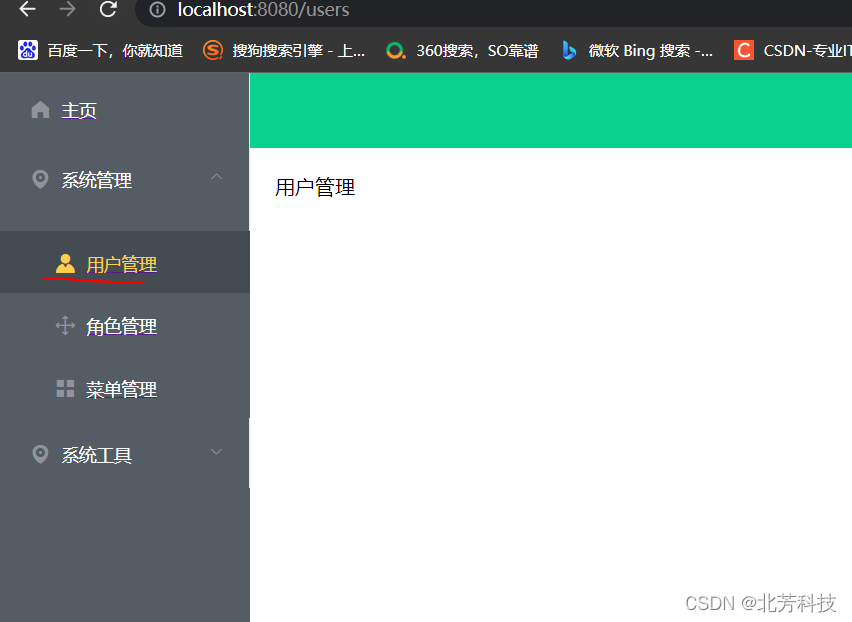

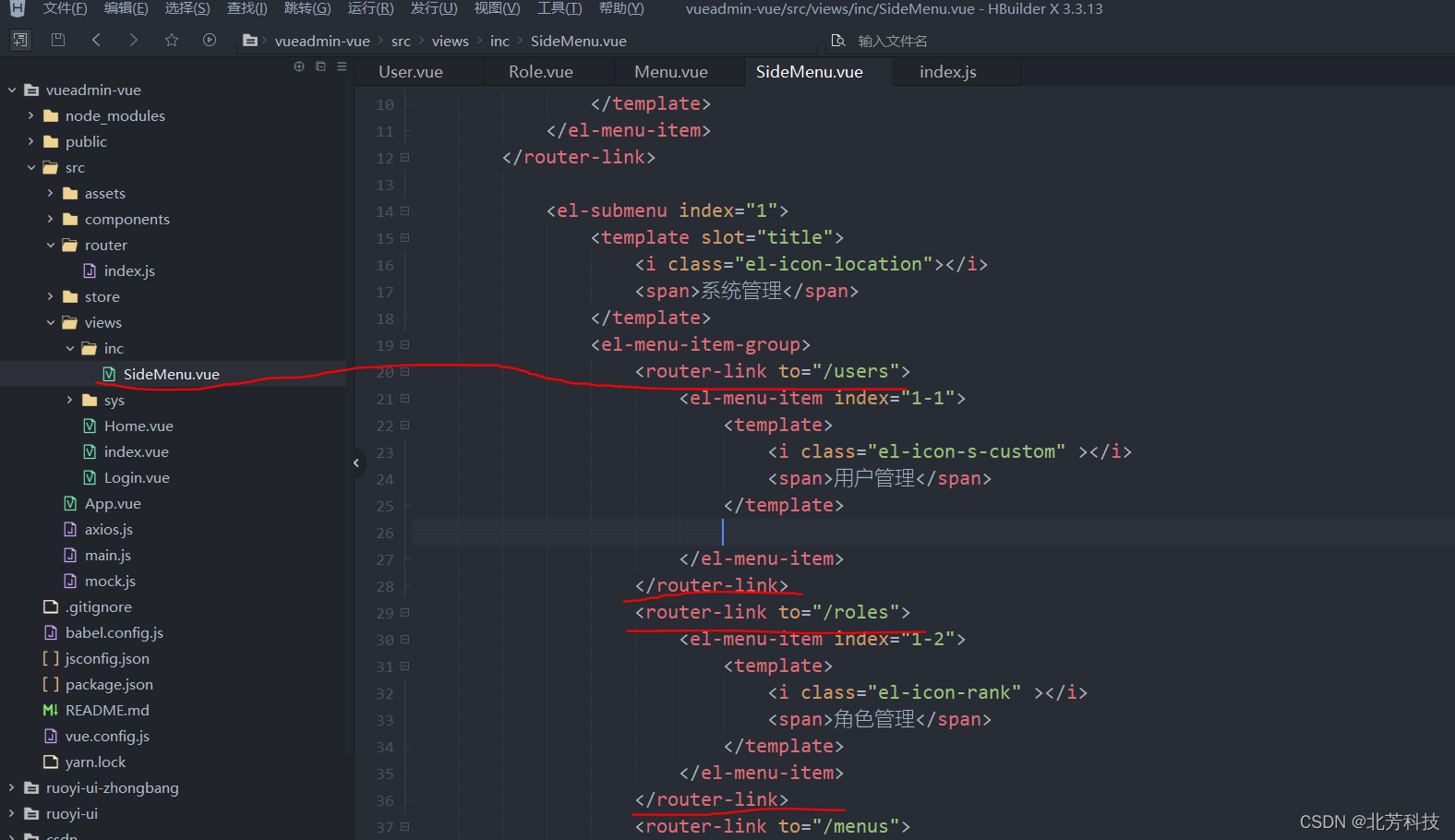

设置页面路由

<template>
	<el-menu default-active="2" class="el-menu-vertical-demo" @open="handleOpen" @close="handleClose"
		background-color="#545c64" text-color="#fff" active-text-color="#ffd04b">

		<router-link to="/index">
			<el-menu-item index="0">
				<template slot="title">
					<i class="el-icon-s-home"></i>
					<span slot="title">主页</span>
				</template>
			</el-menu-item>
		</router-link>

			<el-submenu index="1">
				<template slot="title">
					<i class="el-icon-location"></i>
					<span>系统管理</span>
				</template>
				<el-menu-item-group>
					<router-link to="/users">
						<el-menu-item index="1-1">
							<template>
								<i class="el-icon-s-custom" ></i>
								<span>用户管理</span>
							</template>

						</el-menu-item>
					</router-link>
					<router-link to="/roles">
						<el-menu-item index="1-2">
							<template>
								<i class="el-icon-rank" ></i>
								<span>角色管理</span>
							</template>
						</el-menu-item>
					</router-link>
					<router-link to="/menus">
						<el-menu-item index="1-3">
							<template>
								<i class="el-icon-menu" ></i>
								<span>菜单管理</span>
							</template>
						</el-menu-item>
					</router-link>
				</el-menu-item-group>
			</el-submenu>

		<el-submenu index="2">
			<template slot="title">
				<i class="el-icon-location"></i>
				<span>系统工具</span>
			</template>
			<el-menu-item-group>
				<el-menu-item index="2-1">
					<template>
						<i class="el-icon-menu" ></i>
						<span>数字字典</span>
					</template>
				</el-menu-item>
			</el-menu-item-group>
		</el-submenu>
	</el-menu>
</template>
<script>
	export default{
		name: "SideMenu",
	}
</script>
<style>
	.header-avatar {
		float: right;
		width: 210px;
		display: flex;
		justify-content: space-around;
		align-items: center;
	}

	body {
		margin: 0;
		padding: 0;
		height: 100%;
	}

	.el-aside {
		background-color: #545c64;
	}

	.template {
		padding: 0;
		margin: 0;
		height: 100%;
	}

	.el-dropdown-link {
		cursor: pointer;
		color: #409EFF;
	}

	.el-container {
		padding: 0;
		margin: 0;
		height: 100%;
	}

	.el-header {
		background-color: #0bd18f;
		color: #333;
		text-align: center;
		line-height: 60px;
	}
</style>

点击测试

三、用户登录信息展示

管理界面的右上角的用户信息现在是写死的，
因为我们现在已经登录成功，所以我们可以通过接口去请求获取到当前的用户信息了，
这样我们就可以动态显示用户的信息，这个接口比较简单，然后退出登录的链接也一起完成，
就请求接口同时把浏览器中的缓存删除就退出了哈。

1、实现用户信息页面编写

<template>


	<el-container>
		<el-aside width="200px">
			<SideMenu></SideMenu>
		</el-aside>
		<el-container>
			<el-header>
				<strong>xxx后台管理系统</strong>
				<div class="header-avatar">
					<el-avatar size="medium" :src="userInfo.avatar">
					</el-avatar>
					<el-dropdown>
						<span class="el-dropdown-link">
							{{userInfo.username}}<i class="el-icon-arrow-down el-icon--right"></i>
						</span>
						<el-dropdown-menu slot="dropdown">
							<el-dropdown-item>个人中心</el-dropdown-item>
							<el-dropdown-item>退出</el-dropdown-item>
						</el-dropdown-menu>
					</el-dropdown>
					<el-link href="" target="_blank">网站</el-link>
					<el-link href="" target="_blank">B站</el-link>
				</div>
			</el-header>
			<el-main>

				<router-view>

				</router-view>

			</el-main>
		</el-container>
	</el-container>
</template>
<script>
	import SideMenu from "./inc/SideMenu.vue"
	export default{
		name: "Home",
		components:{
			SideMenu
		},
		data(){
			return {
				userInfo:{
					id:"",
					username:"",
					avatar:""
				}
			}
		},
		created() {
			this.getUserInfo();
		},

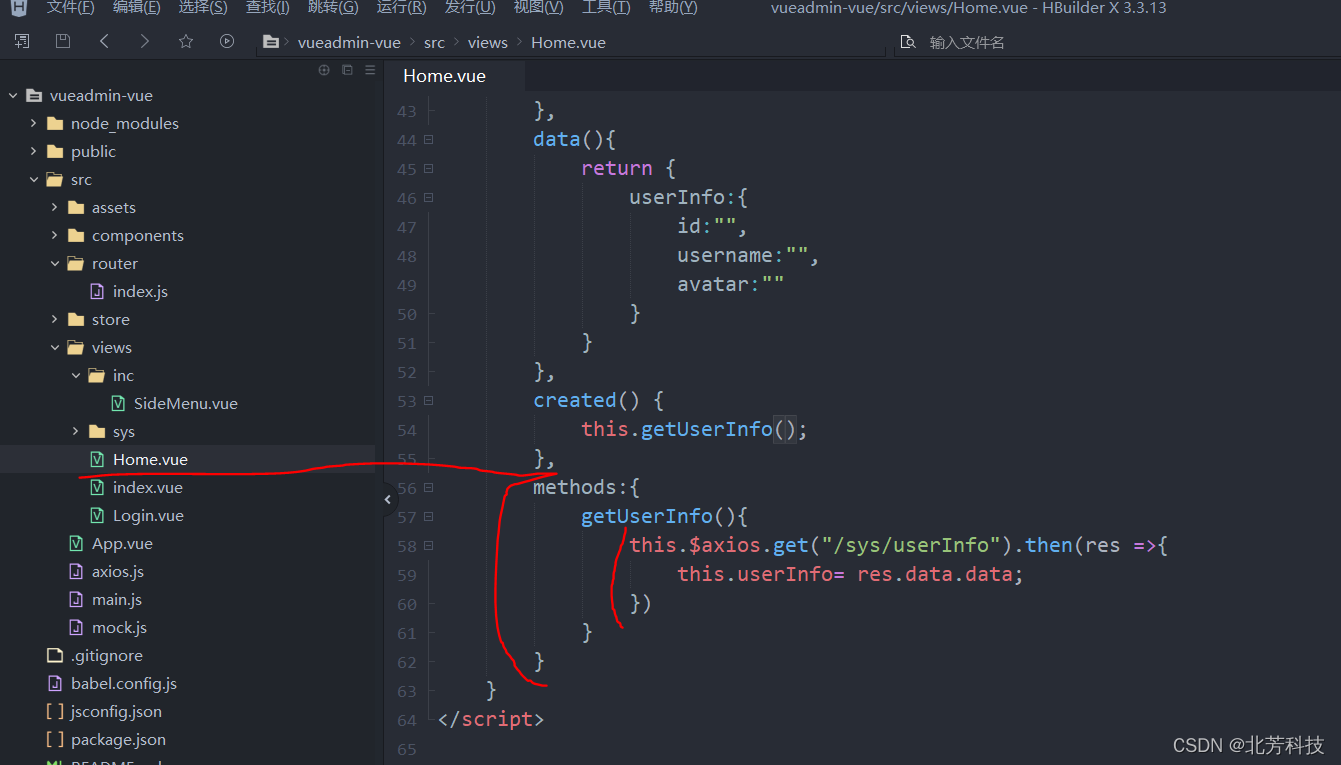

		methods:{
			getUserInfo(){
				this.$axios.get("/sys/userInfo").then(res =>{
					this.userInfo= res.data.data;
				})
			}
		}
	}
</script>
<style>
</style>

2、设置mock.js

Mock.mock('/sys/userInfo','get',()=>{
	//无法在header当中存入jwt
	Result.data = {
		id:"1",
		username:"test",
		avatar:"https://cube.elemecdn.com/0/88/03b0d39583f48206768a7534e55bcpng.png"
	}
	return Result;
})

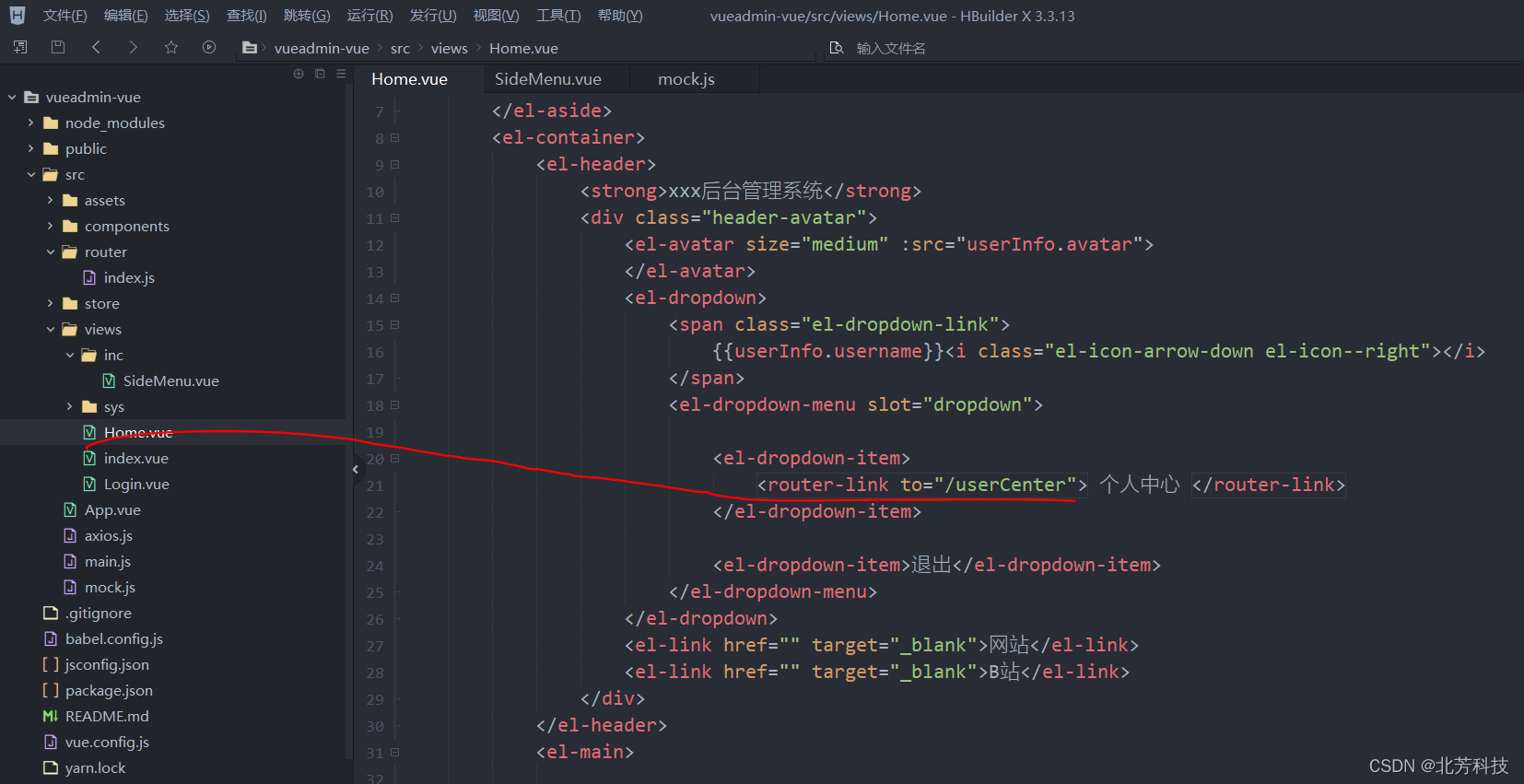

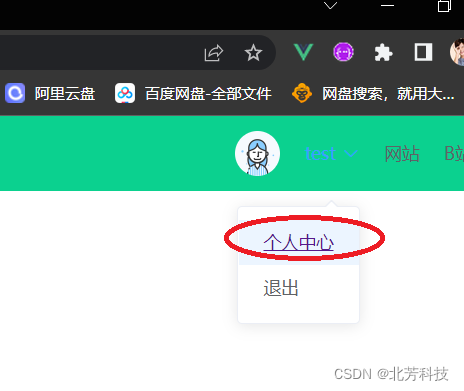

3、设置个人中心的路由

	<router-link to="/userCenter"> 个人中心 </router-link>

{
			path:'/userCenter',
			name:'UserCenter',
			component: () => import('../views/UserCenter.vue')
		},

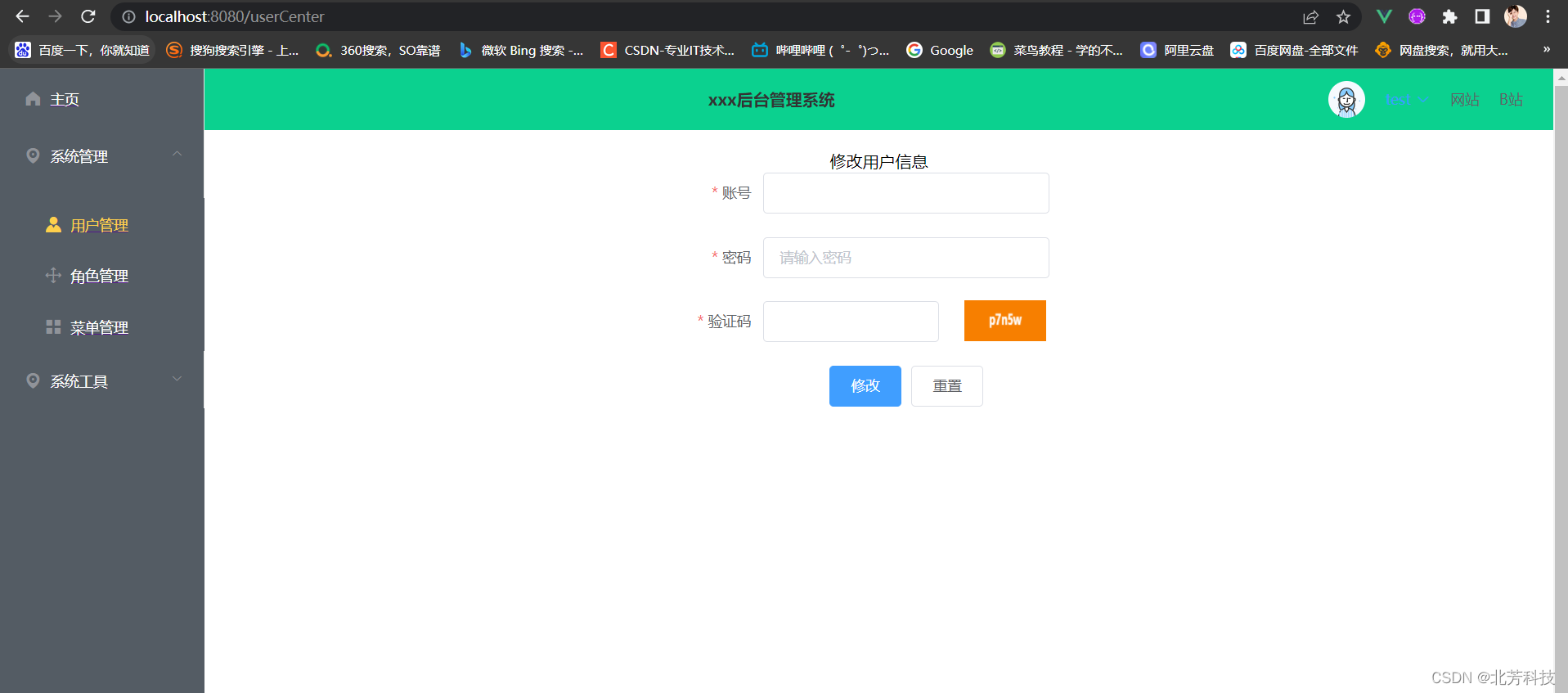

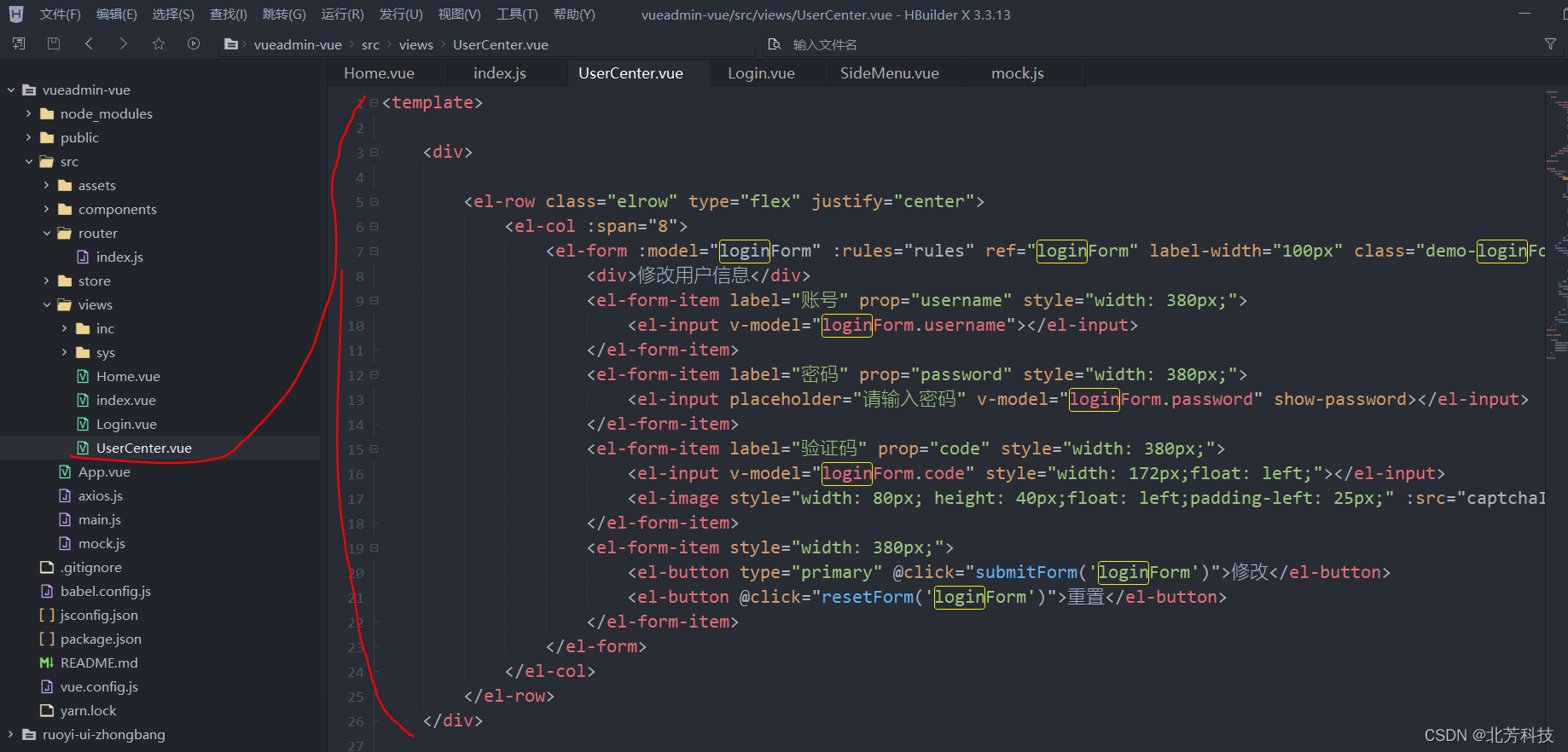

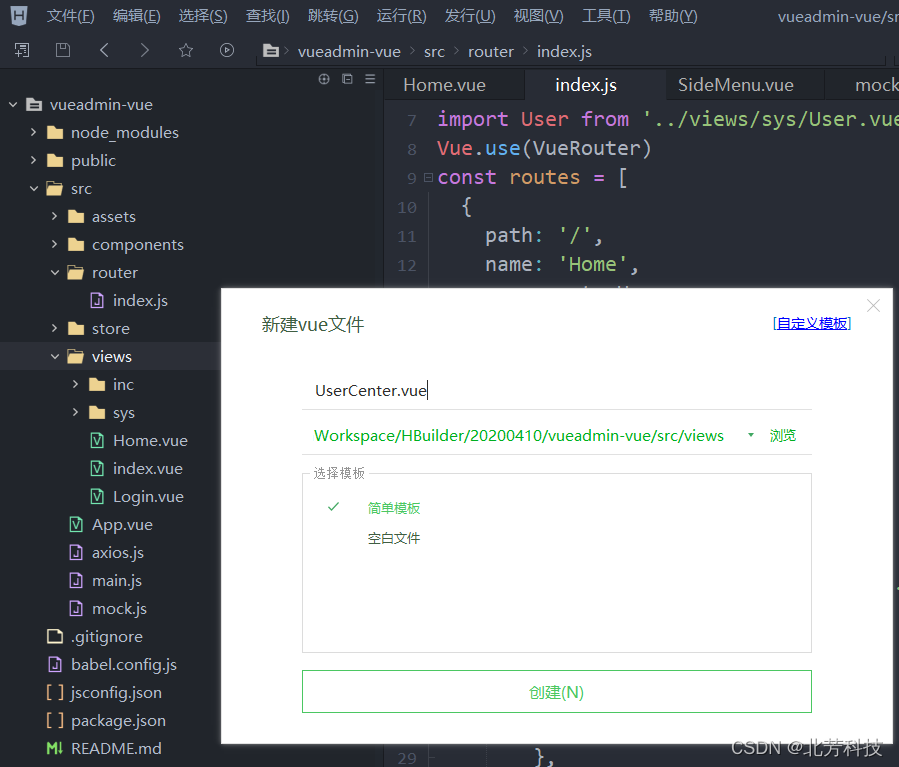

创建UserCenter.vue

<template>

	<div>

		<el-row class="elrow" type="flex" justify="center">
			<el-col :span="8">
				<el-form :model="loginForm" :rules="rules" ref="loginForm" label-width="100px" class="demo-loginForm">
					<div>修改用户信息</div>
					<el-form-item label="账号" prop="username" style="width: 380px;">
						<el-input v-model="loginForm.username"></el-input>
					</el-form-item>
					<el-form-item label="密码" prop="password" style="width: 380px;">
						<el-input placeholder="请输入密码" v-model="loginForm.password" show-password></el-input>
					</el-form-item>
					<el-form-item label="验证码" prop="code" style="width: 380px;">
						<el-input v-model="loginForm.code" style="width: 172px;float: left;"></el-input>
						<el-image style="width: 80px; height: 40px;float: left;padding-left: 25px;" :src="captchaImg" ></el-image>
					</el-form-item>
					<el-form-item style="width: 380px;">
						<el-button type="primary" @click="submitForm('loginForm')">修改</el-button>
						<el-button @click="resetForm('loginForm')">重置</el-button>
					</el-form-item>
				</el-form>
			</el-col>
		</el-row>
	</div>

</template>


<script>
	export default {
		data() {
			return {
				loginForm: {

					username: '',
					password: '',
					code:'',
					token:''
				},
				rules: {
					username: [ {
						required: true,
						message: '请输入用户名',
						trigger: 'blur'
					}],
					password: [{
						required: true,
						message: '请设置密码',
						trigger: 'blur'
					}],
					code: [{
						required: true,
						message: '请输入验证码',
						trigger: 'change'
					}]
				},
				captchaImg:null
			};
		},
		methods: {
			submitForm(formName) {
				this.$refs[formName].validate((valid) => {
					if (valid) {
						this.$axios.post("/updateUser",this.loginForm).then(res =>{
							const jwt = res.headers['authorization']
							this.$store.commit('SET_TOKEN',jwt);
							this.$router.push("/index")
						})
					} else {
						console.log('error submit!!');
						return false;
					}
				});
			},
			resetForm(formName) {
				this.$refs[formName].resetFields();
			},
			getCaptcha(){
				this.$axios.get("/captcha").then(res =>{
					console.log("/captcha")
					console.log(res)
					this.loginForm.token = res.data.data.token;
					this.captchaImg = res.data.data.captchaImg;
				})
			}
			//Result - code、msg、data
		},
		created() {
			this.getCaptcha();
		}
	}
</script>

<style scoped>

	.elrow{
		display: flex;
		align-items: center;
		text-align: center;
		height:100%;
	}

</style>

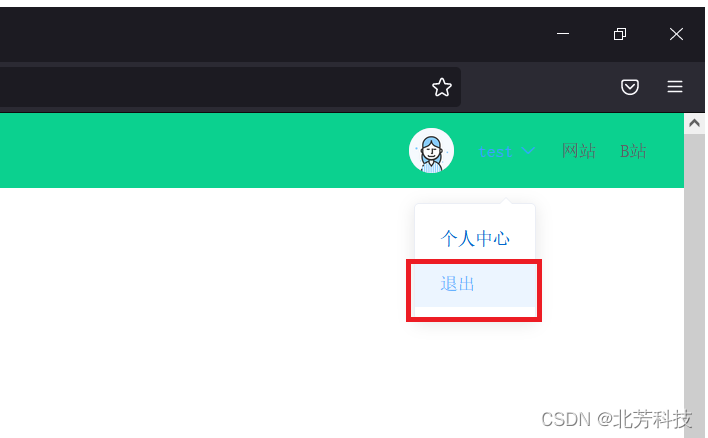

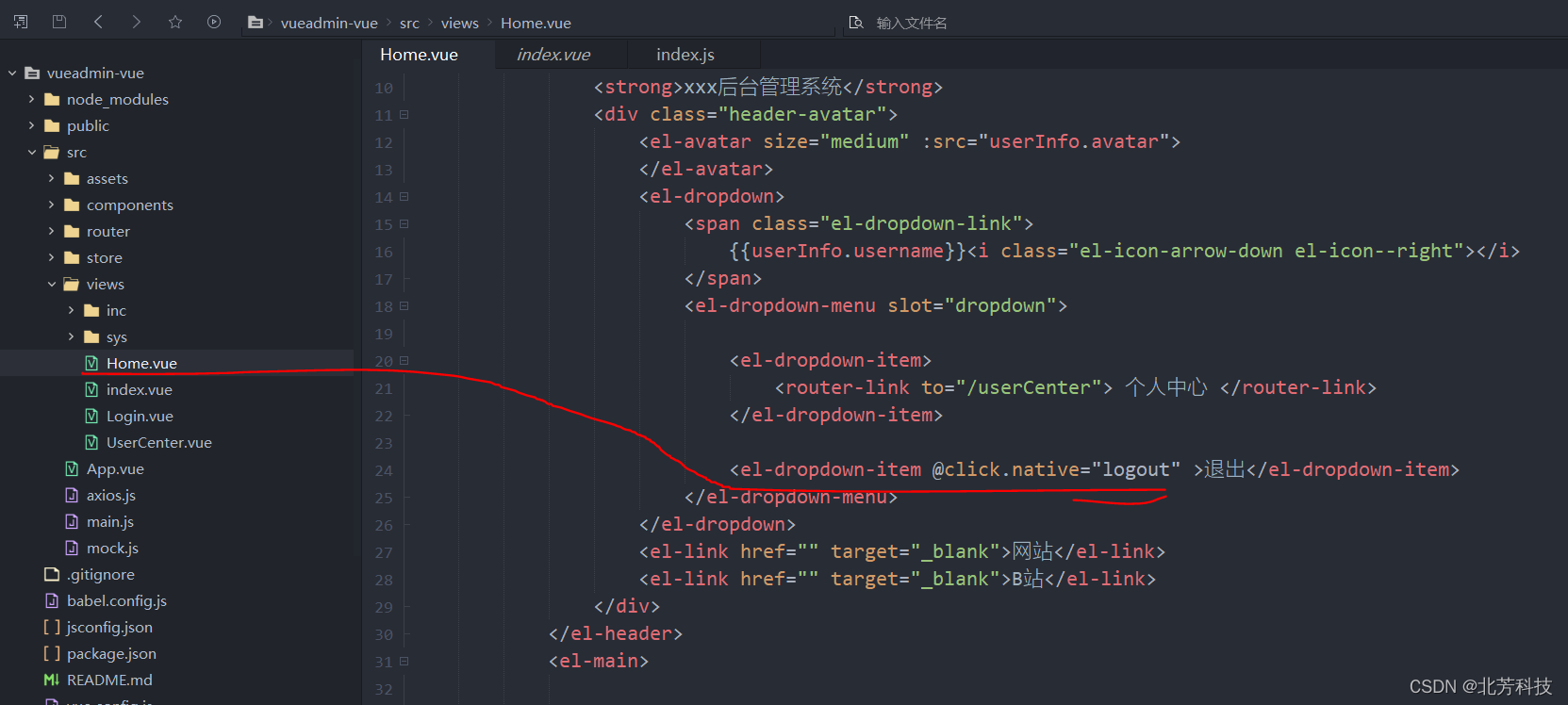

4、设置退出登录

<el-dropdown-item @click.native="logout" >退出</el-dropdown-item>

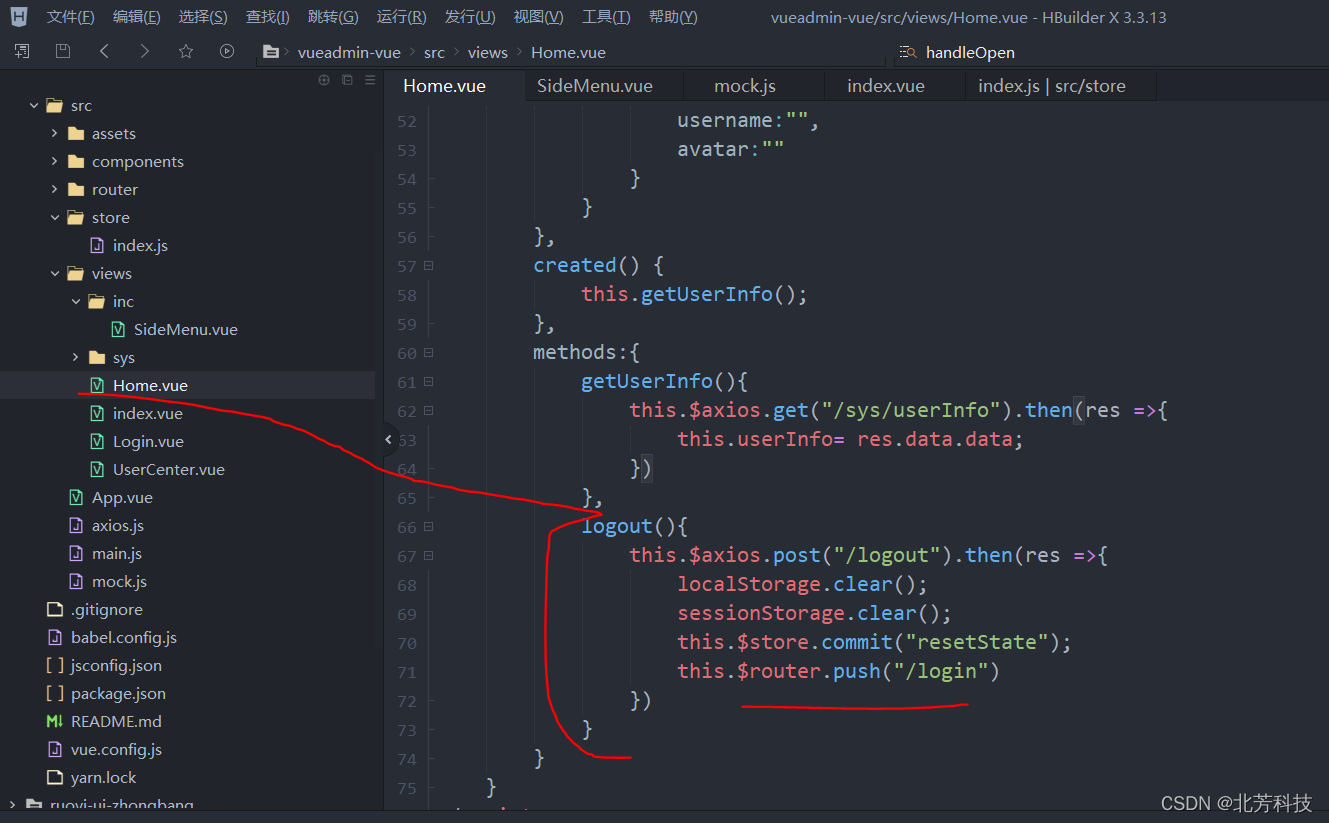

		   logout(){
				this.$axios.post("/logout").then(res =>{
					localStorage.clear();
					sessionStorage.clear();
					this.$store.commit("resetState");
					this.$router.push("/login")
				})
			}

  resetState:(state) =>{
		  state.token = ''
	  }

设置模拟登出

Mock.mock('/logout','post',()=>{
	return Result;
})

四、动态菜单栏的开发

1、修改一下路由规则

	   {
			path:'/sys/users',
			name:'SysUser',
			component:User
		},
		{
			path:'/sys/roles',
			name:'SysRole',
			component:Role
		},
		{
			path:'/sys/menus',
			name:'SysMenu',
			component:Menu
		}

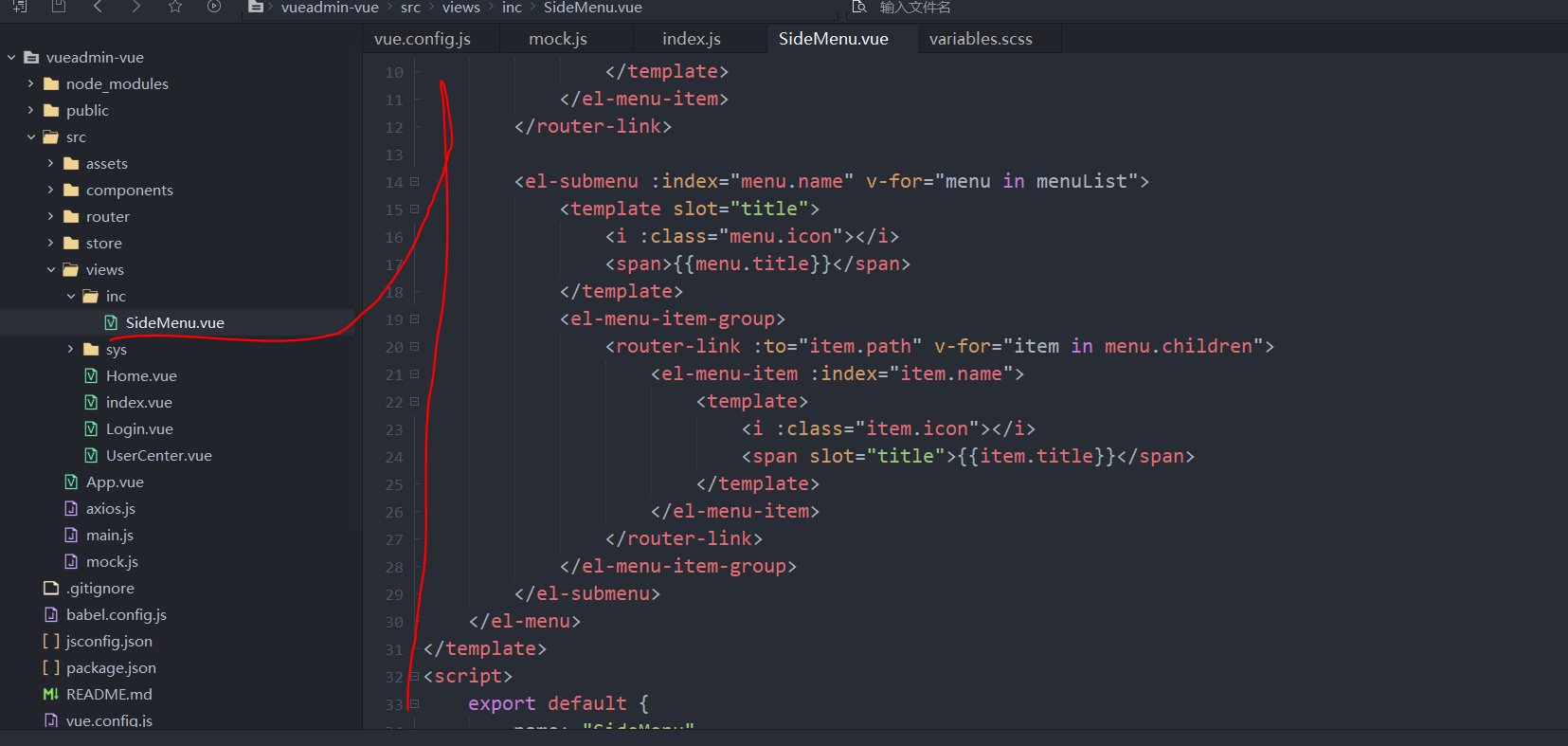

2、设置动态菜单的数据

<template>
	<el-menu default-active="2" class="el-menu-vertical-demo" background-color="#545c64" text-color="#fff"
		active-text-color="#ffd04b">

		<router-link to="/index">
			<el-menu-item index="0">
				<template slot="title">
					<i class="el-icon-s-home"></i>
					<span slot="title">主页</span>
				</template>
			</el-menu-item>
		</router-link>

		<el-submenu :index="menu.name" v-for="menu in menuList">
			<template slot="title">
				<i :class="menu.icon"></i>
				<span>{{menu.title}}</span>
			</template>
			<el-menu-item-group>
				<router-link :to="item.path" v-for="item in menu.children">
					<el-menu-item :index="item.name">
						<template>
							<i :class="item.icon"></i>
							<span slot="title">{{item.title}}</span>
						</template>
					</el-menu-item>
				</router-link>
			</el-menu-item-group>
		</el-submenu>
	</el-menu>
</template>
<script>
	export default {
		name: "SideMenu",
		data() {
			return {
				menuList: [{
						title: '系统管理',
						name: 'SysMange',
						icon: 'el-icon-location',
						path: '',
						children: [{
							title: '用户管理',
							name: 'SysUser',
							icon: 'el-icon-s-custom',
							path: '/sys/users',
							children: []
						}]
					},
					{
						title: '系统工具',
						name: 'SysTools',
						icon: 'el-icon-tools',
						path: '',
						children: [{
							title: '数字字典',
							name: 'SysDict',
							icon: 'el-icon-s-order',
							path: '/sys/dicts',
							children: []
						}]
					}
				]
			}
		},
		methods: {

		}
	}
</script>
<style>
	.header-avatar {
		float: right;
		width: 210px;
		display: flex;
		justify-content: space-around;
		align-items: center;
	}
	body {
		margin: 0;
		padding: 0;
		height: 100%;
	}
	.el-aside {
		background-color: #545c64;
	}
	.template {
		padding: 0;
		margin: 0;
		height: 100%;
	}
	.el-dropdown-link {
		cursor: pointer;
		color: #409EFF;
	}
	.el-container {
		padding: 0;
		margin: 0;
		height: 100%;
	}
	.el-header {
		background-color: #0bd18f;
		color: #333;
		text-align: center;
		line-height: 60px;
	}
</style>

3、设置mock.js获取导航数据

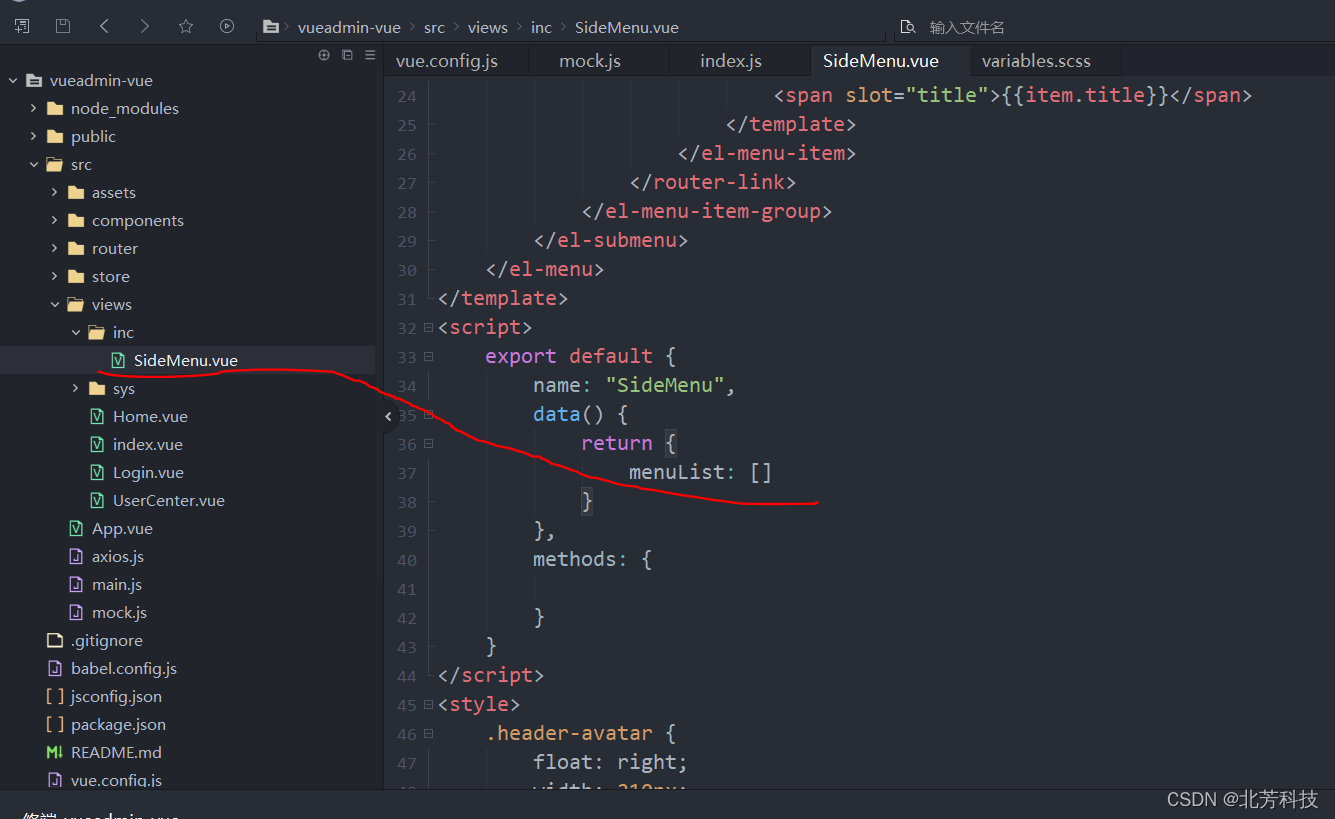

将SideMenu的数据清空

设置mockjs

Mock.mock('/sys/menu/nav', 'get', () => {

	let nav = [{
			title: '系统管理',
			name: 'SysMange',
			icon: 'el-icon-location',
			component:'',
			path: '',
			children: [{
				title: '用户管理',
				name: 'SysUser',
				icon: 'el-icon-s-custom',
				path: '/sys/users',
				component:'sys/User',
				children: []
			}]
		},
		{
			title: '系统工具',
			name: 'SysTools',
			icon: 'el-icon-tools',
			path: '',
			component:'',
			children: [{
				title: '数字字典',
				name: 'SysDict',
				icon: 'el-icon-s-order',
				path: '/sys/dicts',
				component:'',
				children: []
			}]
		}
	];

	let authoritys = [];

	Result.data = {
		nav: nav,
		authoritys: authoritys
	}
	return Result;
})

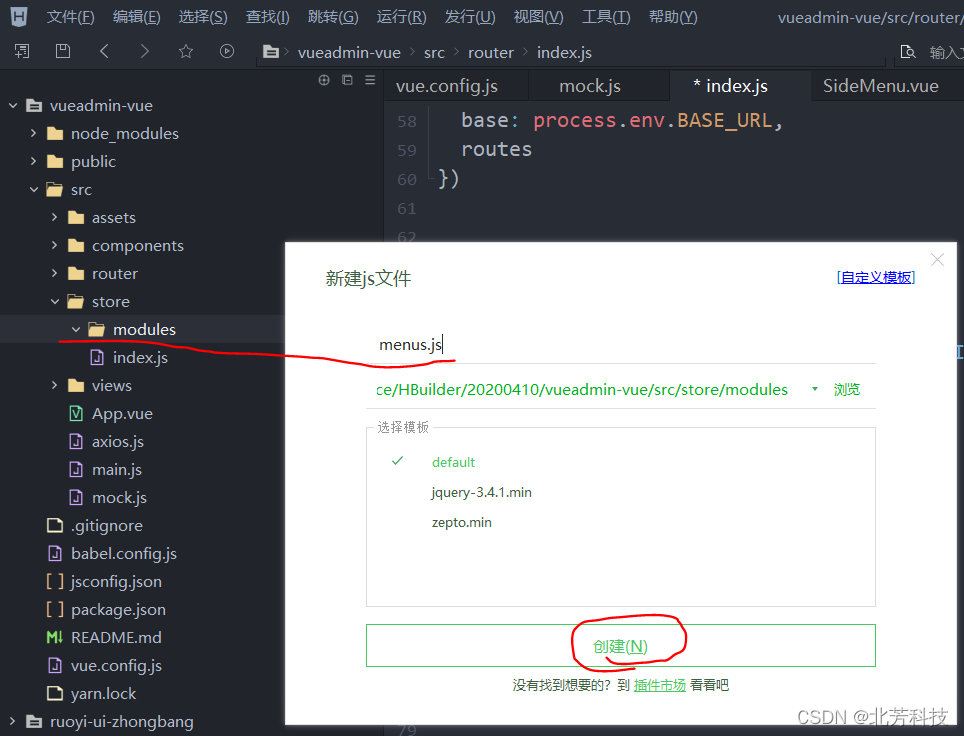

创建新模块

import Vue from 'vue'
import Vuex from 'vuex'

Vue.use(Vuex)

export default {
  state: {
  },
  getters: {

  },
  mutations: {

  },
  actions: {
  },
  modules: {
  }
}

在store当中的index当中引用上面创建好的menus.js

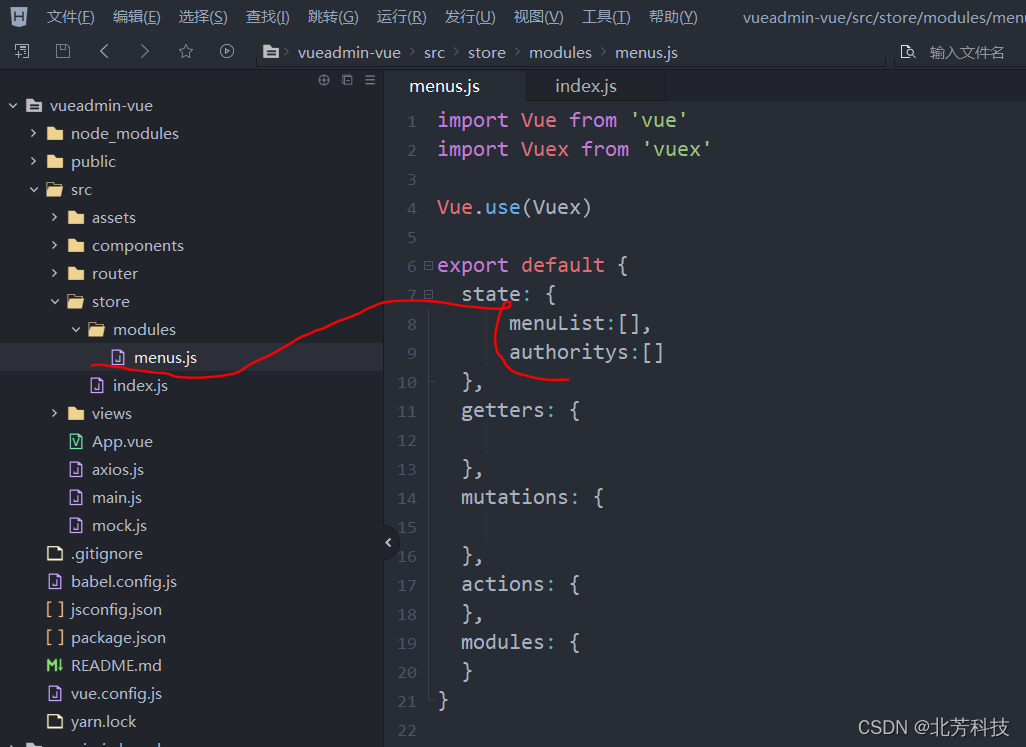

完善menus.js

	  menuList:[],
	  authoritys:[]

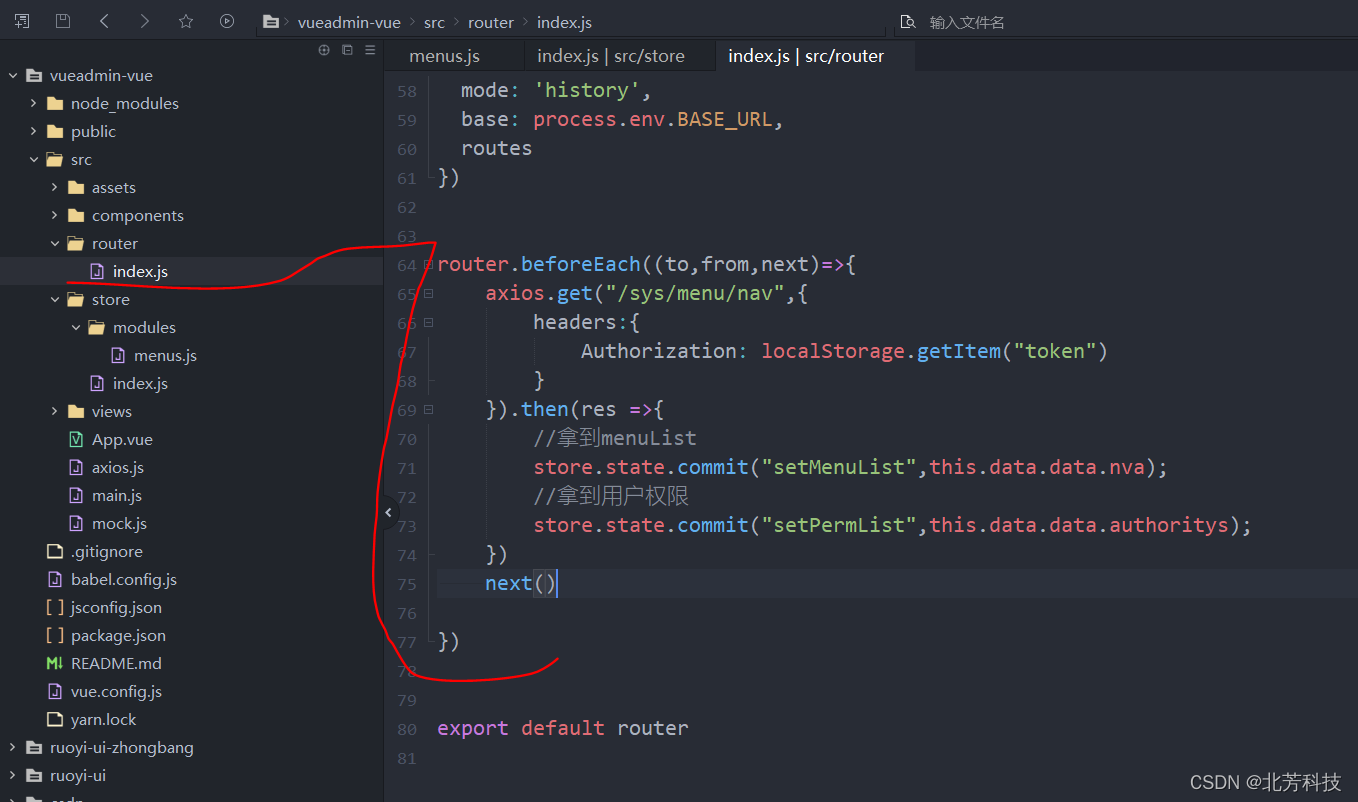

设置路由规则

router.beforeEach((to,from,next)=>{
	axios.get("/sys/menu/nav",{
		headers:{
			Authorization: localStorage.getItem("token")
		}
	}).then(res =>{
		//拿到menuList
		store.state.commit("setMenuList",this.data.data.nva);
		//拿到用户权限
		store.state.commit("setPermList",this.data.data.authoritys);
	})
	next()

})

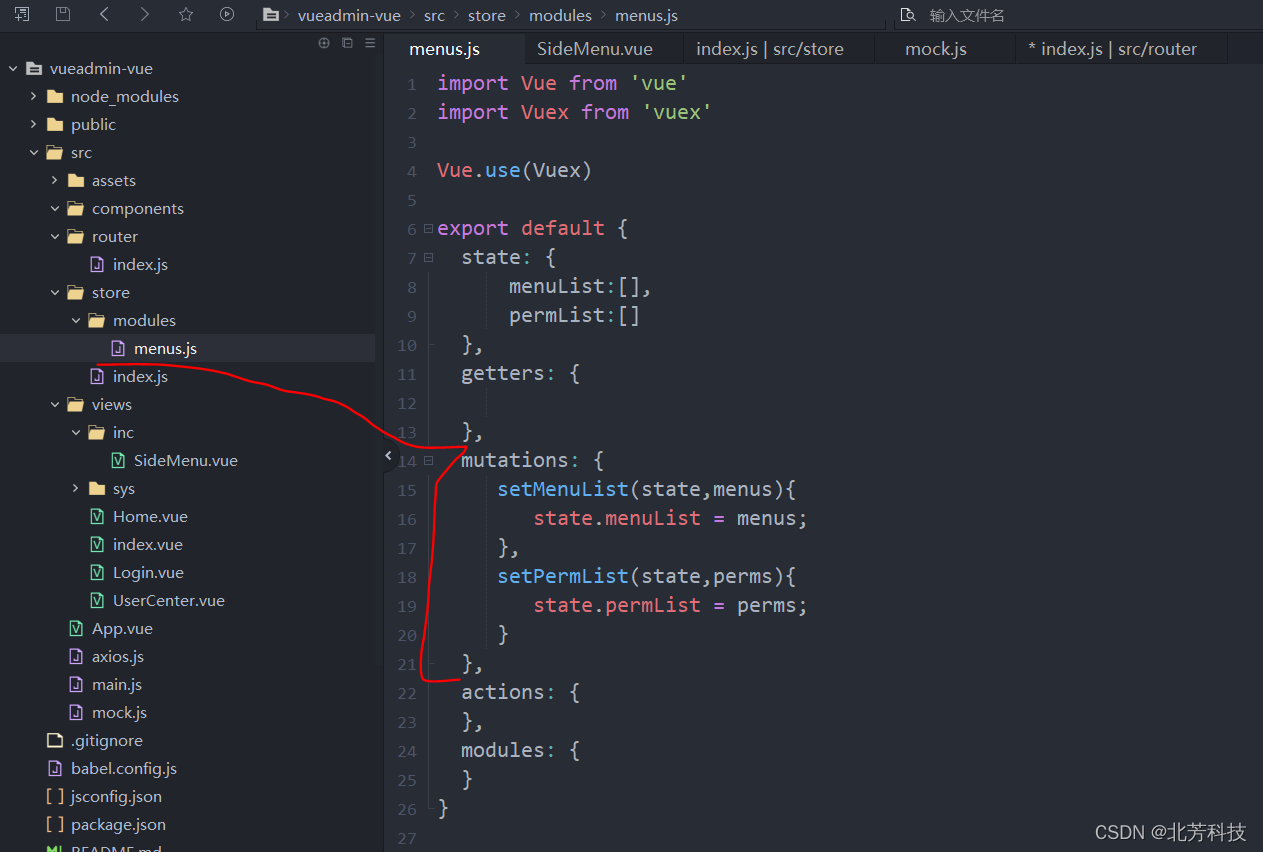

设置菜单方法

import Vue from 'vue'
import Vuex from 'vuex'
Vue.use(Vuex)
export default {
  state: {
	  menuList:[],
	  permList:[]
  },
  getters: {
  },
  mutations: {
	 setMenuList(state,menus){
		state.menuList = menus;
	 },
	 setPermList(state,perms){
		state.permList = perms;
	 }
  },
  actions: {
  },
  modules: {
  }
}

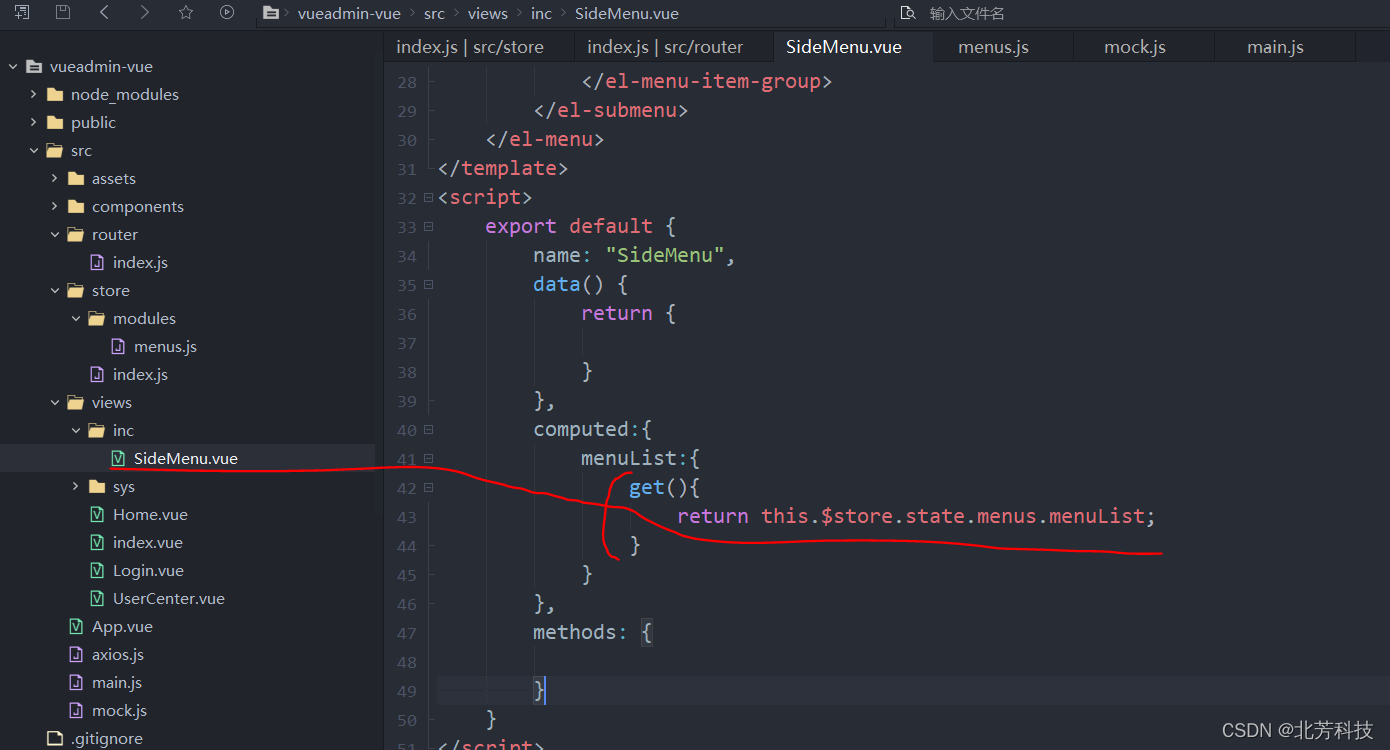

	get(){
		return this.$store.state.menus.menuList;
	}

4、设置动态路由

router.beforeEach((to,from,next)=>{
	axios.get("/sys/menu/nav",{
		headers:{
			Authorization: localStorage.getItem("token")
		}
	}).then(res =>{
		//拿到menuList
		store.commit("setMenuList",res.data.data.nav);
		//拿到用户权限
		store.commit("setPermList",res.data.data.authoritys);
		console.log(store.state.menus.menuList)
		//设置动态绑定路由
		let newRoutes = router.options.routes;
		res.data.data.nav.forEach(menu => {
			if(menu.children){
				menu.children.forEach(e =>{
					//生成路由
					let route = menuToRoute(e)
					//把路由添加到路由器管理中
					if(route){
						newRoutes[0].children.push(route)
					}
				})
			}
		})
		console.log("newRoutes")
		console.log(newRoutes)
		router.addRoutes(newRoutes)
	})
	next()
})
//导航转成路由
const menuToRoute = (menu) => {
	if(!menu.component){
		return null;
	}
	let route = {
		name: menu.name,
		path: menu.path,
		meta: {
			icon: menu.icon,
			title: menu.title
		}
	}
	route.component = () => import('@/views/'+ menu.component +'.vue')

	return route;
}
export default router

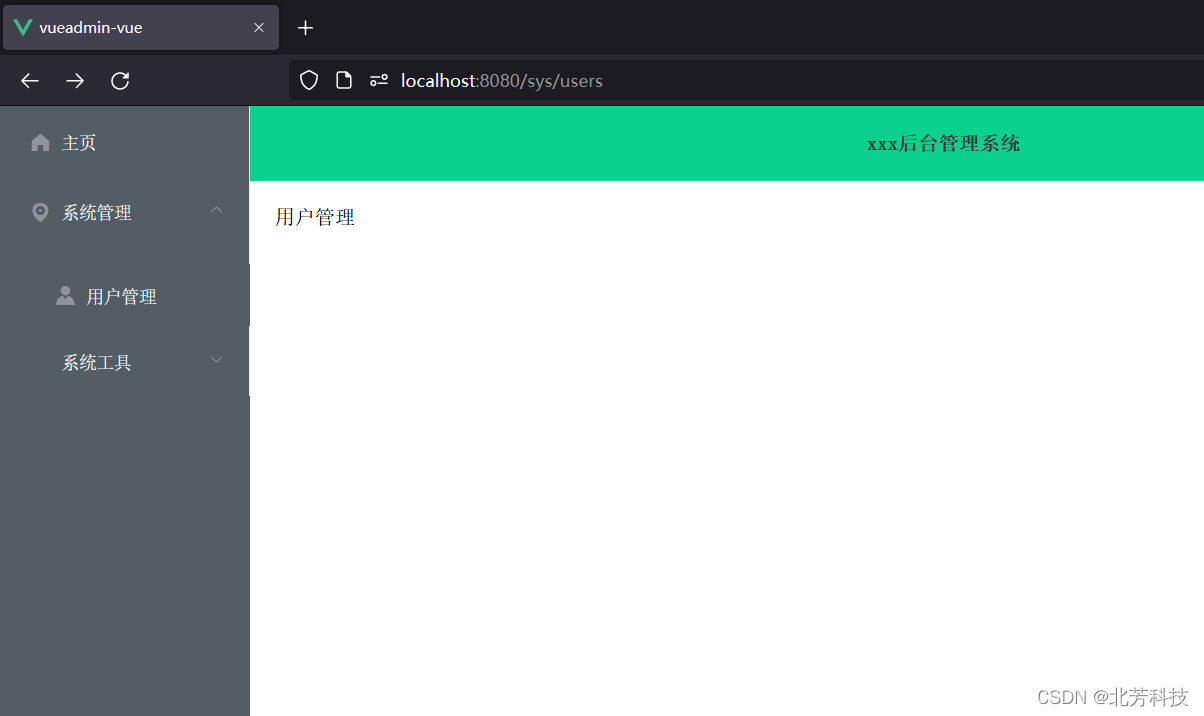

访问测试

5、设置动态路由加载一次以后无需二次加载

menus.js

import Vue from 'vue'
import Vuex from 'vuex'

Vue.use(Vuex)

export default {
  state: {
	  menuList:[],
	  permList:[],
	  hasRoutes: false
  },
  getters: {

  },
  mutations: {
	 setMenuList(state,menus){
		state.menuList = menus;
	 },
	 setPermList(state,perms){
		state.permList = perms;
	 },
	 changeRouteStatus(state,hasRoutes){
		 state.hasRoutes = hasRoutes;
	 }
  },
  actions: {
  },
  modules: {
  }
}

router.beforeEach((to,from,next)=>{
	let hasRoute = store.state.menus.hasRoutes;
	if(!hasRoute){
		axios.get("/sys/menu/nav",{
			headers:{
				Authorization: localStorage.getItem("token")
			}
		}).then(res =>{
			//拿到menuList
			store.commit("setMenuList",res.data.data.nav);
			//拿到用户权限
			store.commit("setPermList",res.data.data.authoritys);
			console.log(store.state.menus.menuList)
			//设置动态绑定路由
			let newRoutes = router.options.routes;
			res.data.data.nav.forEach(menu => {
				if(menu.children){
					menu.children.forEach(e =>{
						//生成路由
						let route = menuToRoute(e)
						//把路由添加到路由器管理中
						if(route){
							newRoutes[0].children.push(route)
						}
					})
				}
			})
			router.addRoutes(newRoutes)
			hasRoute = true
			store.commit("changeRouteStatus",hasRoute);
		})
	}
	next()
})

6、实现动态导航

<template>
	<el-tabs v-model="editableTabsValue" type="card" closable @tab-remove="removeTab">
		<el-tab-pane v-for="(item, index) in editableTabs" :key="item.name" :label="item.title" :name="item.name">
			{{item.content}}
		</el-tab-pane>
	</el-tabs>
</template>

<script>
	export default {
		data() {
			return {
				editableTabsValue: '2',
				editableTabs: [{
					title: 'Tab 1',
					name: '1',
					content: 'Tab 1 content'
				}, {
					title: 'Tab 2',
					name: '2',
					content: 'Tab 2 content'
				}],
				tabIndex: 2
			}
		},
		methods: {
			handleTabsEdit(targetName, action) {
				if (action === 'add') {
					let newTabName = ++this.tabIndex + '';
					this.editableTabs.push({
						title: 'New Tab',
						name: newTabName,
						content: 'New Tab content'
					});
					this.editableTabsValue = newTabName;
				}
				if (action === 'remove') {
					let tabs = this.editableTabs;
					let activeName = this.editableTabsValue;
					if (activeName === targetName) {
						tabs.forEach((tab, index) => {
							if (tab.name === targetName) {
								let nextTab = tabs[index + 1] || tabs[index - 1];
								if (nextTab) {
									activeName = nextTab.name;
								}
							}
						});
					}

					this.editableTabsValue = activeName;
					this.editableTabs = tabs.filter(tab => tab.name !== targetName);
				}
			}
		}
	}
</script>
<style>
	.el-main{
		padding: 0px;
		text-align: center;
	}
</style>

查看效果
在Home当中引入该内容

<template>
	<el-container>
		<el-aside width="200px">
			<SideMenu></SideMenu>
		</el-aside>
		<el-container>
			<el-header>
				<strong>xxx后台管理系统</strong>
				<div class="header-avatar">
					<el-avatar size="medium" :src="userInfo.avatar">
					</el-avatar>
					<el-dropdown>
						<span class="el-dropdown-link">
							{{userInfo.username}}<i class="el-icon-arrow-down el-icon--right"></i>
						</span>
						<el-dropdown-menu slot="dropdown">

							<el-dropdown-item>
								<router-link to="/userCenter"> 个人中心 </router-link>
							</el-dropdown-item>

							<el-dropdown-item @click.native="logout" >退出</el-dropdown-item>
						</el-dropdown-menu>
					</el-dropdown>
					<el-link href="" target="_blank">网站</el-link>
					<el-link href="" target="_blank">B站</el-link>
				</div>
			</el-header>
			<el-main>
				<Tabs>
				</Tabs>
				<router-view/>
			</el-main>
		</el-container>
	</el-container>
</template>
<script>
	import SideMenu from "./inc/SideMenu.vue"
	import Tabs from "./inc/Tabs.vue"
	export default{
		name: "Home",
		components:{
			SideMenu,Tabs
		},
		data(){
			return {
				userInfo:{
					id:"",
					username:"",
					avatar:""
				}
			}
		},
		created() {
			this.getUserInfo();
		},
		methods:{
			getUserInfo(){
				this.$axios.get("/sys/userInfo").then(res =>{
					this.userInfo= res.data.data;
				})
			},
			logout(){
				this.$axios.post("/logout").then(res =>{
					localStorage.clear();
					sessionStorage.clear();
					this.$store.commit("resetState");
					this.$router.push("/login")
				})
			}
		}
	}
</script>
<style>
	a{
		text-decoration: none;
	}
</style>
