<!DOCTYPE html>
<html style="height: 100%">
<head>
<meta charset="utf-8">
</head>
<body style="height: 100%; margin: 0">
<div id="container" style="height: 100%"></div>
<script type="text/javascript" src="https://cdn.jsdelivr.net/npm/echarts@5/dist/echarts.min.js"></script>
<script type="text/javascript">
var dom = document.getElementById("container");
var myChart = echarts.init(dom);
var app = {};
var option;

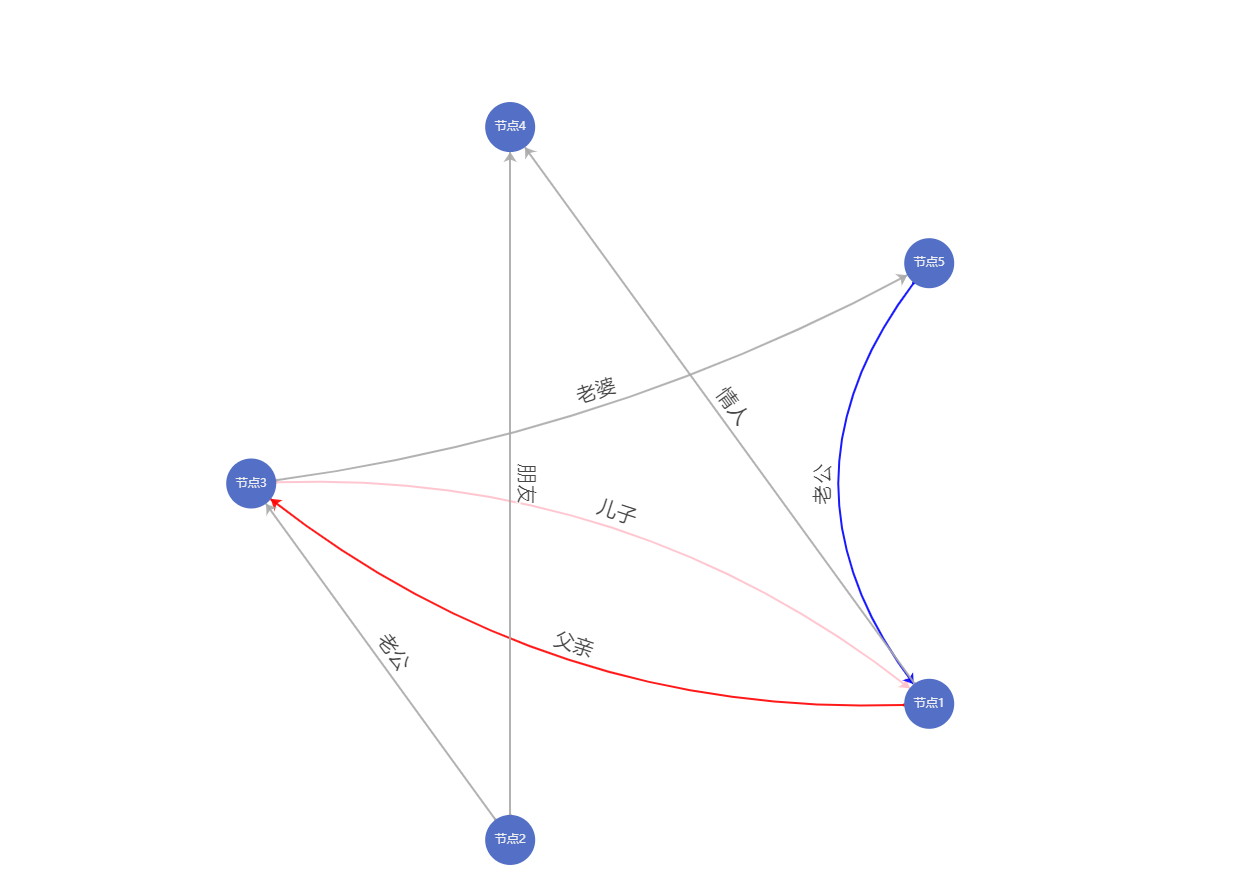

option = {
title: {
text: 'Graph 简单示例'
},
tooltip: {},
animationDurationUpdate: 1500,
animationEasingUpdate: 'quinticInOut',
series: [
{
type: 'graph',
layout: 'circular',
symbolSize: 50,
roam: true,
label: {
show: true
},
edgeSymbol: ['circle', 'arrow'],
edgeSymbolSize: [3, 10],
focusNodeAdjacency: true,
edgeLabel: {
normal: {
show: true,
textStyle: {
fontSize: 20
},
formatter: "{c}"
}
},
// layout:'',
data: [{
name: '人物1',
// x: 300,
// y: 300
}, {
name: '人物2',
// x: 800,
// y: 300
}, {
name: '人物3',
// x: 550,
// y: 100
}, {
name: '人物4',
// x: 550,
// y: 500
},{
name: '人物5',
// x: 580,
// y: 400
}],
// links: [],
links: [{
source:0,
target: 2,
value: '父亲',
// symbolSize: [5, 20],
// label: {
// show: true,
// },
lineStyle: {
color: 'red',
curveness: '-0.4'
}
},{
source:2,
target: 0,
value: '儿子',
// symbolSize: [5, 20],
// label: {
// show: true,
// },
lineStyle: {
color: 'pink',
curveness: 0.4
}
}, {
source: 2,
target: 3,
value: '情人',
lineStyle: {
curveness: -0.2
}
}, {
source: 4,
target: 0,
value: '夫妻',
lineStyle: {
color:'blue',
curveness: 0.1
}
}, {
source: 0,
target: 4,
value: '夫妻',
lineStyle: {
color:'red',
curveness: '-0.1'
}
},{
source: 1,
target: 2,
value: '朋友',
}, {
source: 1,
target: 3,
value: '朋友',
}, {
source: 0,
target: 3,
value: '情人',
}],
lineStyle: {
opacity: 0.9,
width: 2,
curveness: 0
}
}
]
};
if (option && typeof option === 'object') {
myChart.setOption(option);
}
</script>
</body>
</html>
?
具体参数说明参考官方文档：https://echarts.apache.org/zh/option.html#series-graph.type
