1 步骤说明

创建项目web? ? ? ? ? ?>vue create web30_3
》创建过程中选项? ? ? ?选择 Manually select features??
》创建过程中选项? ? ? ?选择Babel，Router, Vuex?
》创建过程中选项? ? ? ?选择版本3.0
》创建过程中选项? ? ? ?选择In dedicated config files?
》创建过程中选项? ? ? ?如果保存选择，则对 Save this as a preset for future project 选择yes
cd web30_3?
npm run serve?
安装插件? ? ? ? ? ? ? ? ? >npm i element-plus --save? ?注--save作用是项目拷贝时已经有包保存
修改src下main.js文件，见编程说明部分2.1

2 编程说明

2.1 main.js 修改说明

增加两行内容?

import ElementPlus from 'element-plus'

import 'element-plus/lib/theme-chalk/index.css'

再用use引入。这点与vue2.0 编程一致。

import {createApp} from 'vue'
import App from './App.vue'
import router from './router'
import store from './store'
import ElementPlus from 'element-plus'
import 'element-plus/lib/theme-chalk/index.css'

createApp(App).use(store).use(router).use(ElementPlus).mount(rootContainer:'#app')

?2.2 设计login页面

设计表单，形成为独立Login页面，可以单独建立目录来存放，如后台 /back，则该文件为src/views/back/Login.vue

全部代码为：

<template>
    <el-form :model="ruleForm" status-icon :rules="rules" ref="ruleForm" label-width="100px" class="demo-ruleForm">
        <el-form-item label="密码" prop="pass">
            <el-input type="password" v-model="ruleForm.pass" autocomplete="off"></el-input>
        </el-form-item>
        <el-form-item label="确认密码" prop="checkPass">
            <el-input type="password" v-model="ruleForm.checkPass" autocomplete="off"></el-input>
        </el-form-item>
        <el-form-item label="年龄" prop="age">
            <el-input v-model.number="ruleForm.age"></el-input>
        </el-form-item>
        <el-form-item>
            <el-button type="primary" @click="submitForm('ruleForm')">提交</el-button>
            <el-button @click="resetForm('ruleForm')">重置</el-button>
        </el-form-item>
    </el-form>
</template>

<script>
    export default {
        data() {
            var checkAge = (rule, value, callback) => {
                if (!value) {
                    return callback(new Error('年龄不能为空'));
                }
                setTimeout(() => {
                    if (!Number.isInteger(value)) {
                        callback(new Error('请输入数字值'));
                    } else {
                        if (value < 18) {
                            callback(new Error('必须年满18岁'));
                        } else {
                            callback();
                        }
                    }
                }, 1000);
            };
            var validatePass = (rule, value, callback) => {
                if (value === '') {
                    callback(new Error('请输入密码'));
                } else {
                    if (this.ruleForm.checkPass !== '') {
                        this.$refs.ruleForm.validateField('checkPass');
                    }
                    callback();
                }
            };
            var validatePass2 = (rule, value, callback) => {
                if (value === '') {
                    callback(new Error('请再次输入密码'));
                } else if (value !== this.ruleForm.pass) {
                    callback(new Error('两次输入密码不一致!'));
                } else {
                    callback();
                }
            };
            return {
                ruleForm: {
                    pass: '',
                    checkPass: '',
                    age: ''
                },
                rules: {
                    pass: [
                        { validator: validatePass, trigger: 'blur' }
                    ],
                    checkPass: [
                        { validator: validatePass2, trigger: 'blur' }
                    ],
                    age: [
                        { validator: checkAge, trigger: 'blur' }
                    ]
                }
            };
        },
        methods: {
            submitForm(formName) {
                alert(1)
                this.$refs[formName].validate((valid) => {
                    if (valid) {
                        alert('submit!');
                    } else {
                        console.log('error submit!!');
                        return false;
                    }
                });
            },
            resetForm(formName) {
                this.$refs[formName].resetFields();
            }
        }
    }
</script>

<style scoped>
</style>

2.3 App.vue 嵌入login页面

<router-link to="/Login">登录</router-link>
<el-button @click="this.$router.push('/about')">跳转</el-button>

全文件如下：

<template>
  <div id="nav">
    <router-link to="/">Home</router-link> |
    <router-link to="/Login">登录</router-link>
    <el-button @click="this.$router.push('/about')">跳转</el-button>
  </div>
  <router-view/>
</template>

<style>
#app {
  font-family: Avenir, Helvetica, Arial, sans-serif;
  -webkit-font-smoothing: antialiased;
  -moz-osx-font-smoothing: grayscale;
  text-align: center;
  color: #2c3e50;
}

#nav {
  padding: 30px;
}

#nav a {
  font-weight: bold;
  color: #2c3e50;
}

#nav a.router-link-exact-active {
  color: #42b983;
}
</style>

?2.4 修改路由文件

router/index.js 需要配置网页路由

,
{
  path: '/Login',
  name: 'Login',
  // route level code-splitting
  // this generates a separate chunk (about.[hash].js) for this route
  // which is lazy-loaded when the route is visited.
  component: () => import(/* webpackChunkName: "about" */ '../views/back/Login.vue')
}

形成为如下文件

import { createRouter, createWebHashHistory } from 'vue-router'
import Home from '../views/Home.vue'

const routes = [
  {
    path: '/',
    name: 'Home',
    component: Home
  },
  {
    path: '/about',
    name: 'About',
    // route level code-splitting
    // this generates a separate chunk (about.[hash].js) for this route
    // which is lazy-loaded when the route is visited.
    component: () => import(/* webpackChunkName: "about" */ '../views/About.vue')
  },
  {
    path: '/Login',
    name: 'Login',
    component: ()=>import('../views/back/Login')
  }
]

const router = createRouter({
  history: createWebHashHistory(),
  routes
})

export default router

3 编译运行和测试

D:\workspace_vue\web30_3>npm run serve

> web30_3@0.1.0 serve D:\workspace_vue\web30_3
> vue-cli-service serve

?INFO ?Starting development server...
98% after emitting CopyPlugin

?DONE ?Compiled successfully in 7941ms

?? App running at:
? - Local: ? http://localhost:8080/
? - Network: http://192.168.137.168:8080/

? Note that the development build is not optimized.
? To create a production build, run npm run build.

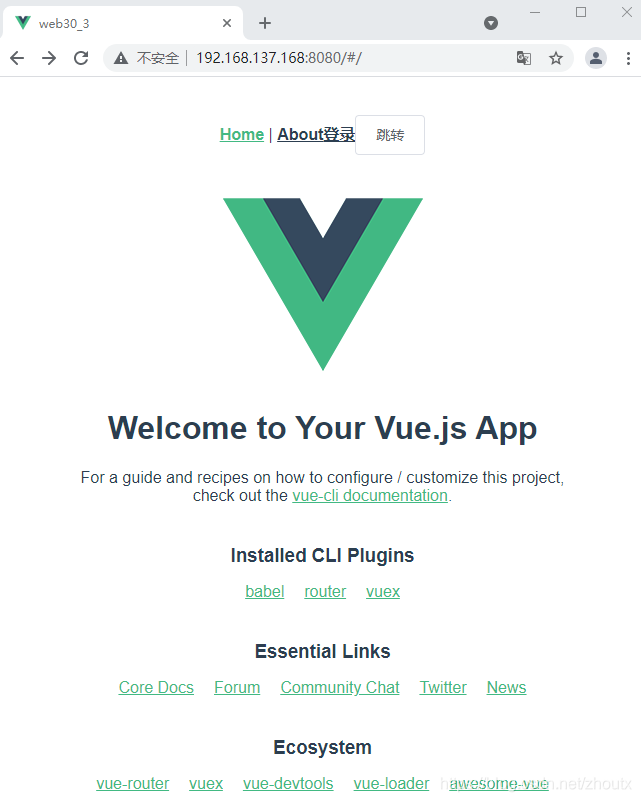

现在可以输入网址，http://192.168.137.168:8080/，在浏览器可以看到首页Home，再点击登录，可以进入登录页面。后面就是后台的对接工作了。

http://192.168.137.168:8080/
