[JavaScript知识库]Vue e2e端对端测试实现流程

前言

在做前端开发时，总想借助一些方法，让代码更可靠。Vue这块前端的自动化测试主要包括：单元测试、端对端测试（e2e）、和快照测试，今天这里主要记录一下，基于Vue2.0的e2e测试。

依赖安装

在使用Vue-Cli创建Vue2.x的项目时，会有一个选项是否加入e2e测试，这里不建议使用使用这种方法，因为这种方法nightwatch的版本比较老，需要安装额外依赖。这里采用创建项目又自己配置的方法实现，也比较简单。

# 建议直接指定版本
npm install nightwatch@^1.7.8 --save-dev

# 安装浏览器驱动
npm install nightwatch geckodriver chromedriver --save-dev

实现流程

nightwatch.conf.js

在根目录下创建nightwatch.conf.js，nightwatch的主要配置文件，内容如下：

// Autogenerated by Nightwatch
// Refer to the online docs for more details: https://nightwatchjs.org/gettingstarted/configuration/
const Services = {}; loadServices();

module.exports = {
  // An array of folders (excluding subfolders) where your tests are located;
  // if this is not specified, the test source must be passed as the second argument to the test runner.
  src_folders: ['test/nightwatch/spec'],

  // See https://nightwatchjs.org/guide/working-with-page-objects/
  page_objects_path: '',

  // See https://nightwatchjs.org/guide/extending-nightwatch/#writing-custom-commands
  custom_commands_path:  '',

  // See https://nightwatchjs.org/guide/extending-nightwatch/#writing-custom-assertions
  custom_assertions_path: '',

  // See https://nightwatchjs.org/guide/#external-globals
  globals_path : '',

  webdriver: {},

  test_settings: {
    default: {
      disable_error_log: false,
      launch_url: 'https://nightwatchjs.org',

      screenshots: {
        enabled: false,
        path: 'screens',
        on_failure: true
      },

      desiredCapabilities: {
        browserName : 'chrome'
      },

      webdriver: {
        start_process: true,
        server_path: (Services.chromedriver? Services.chromedriver.path : '')
      }
    },



    firefox: {
      desiredCapabilities : {
        browserName : 'firefox',
        alwaysMatch: {
          acceptInsecureCerts: true,
          'moz:firefoxOptions': {
            args: [
              // '-headless',
              // '-verbose'
            ]
          }
        }

      },
      webdriver: {
        start_process: true,
        port: 4444,
        server_path: (Services.geckodriver ? Services.geckodriver.path : ''),
        cli_args: [
          // very verbose geckodriver logs
          // '-vv'
        ]
      }
    },

    chrome: {
      desiredCapabilities : {
        browserName : 'chrome',
        'goog:chromeOptions' : {
          // More info on Chromedriver: https://sites.google.com/a/chromium.org/chromedriver/
          //
          // This tells Chromedriver to run using the legacy JSONWire protocol (not required in Chrome 78)
          w3c: false,
          args: [
            //'--no-sandbox',
            //'--ignore-certificate-errors',
            //'--allow-insecure-localhost',
            //'--headless'
          ]
        }
      },

      webdriver: {
        start_process: true,
        port: 9515,
        server_path: (Services.chromedriver ? Services.chromedriver.path : ''),
        cli_args: [
          // --verbose
        ]
      }
    },

    edge: {
      desiredCapabilities : {
        browserName : 'MicrosoftEdge',
        'ms:edgeOptions' : {
          w3c: false,
          // More info on EdgeDriver: https://docs.microsoft.com/en-us/microsoft-edge/webdriver-chromium/capabilities-edge-options
          args: [
            //'--headless'
          ]
        }
      },

      webdriver: {
        start_process: true,
        // Download msedgedriver from https://docs.microsoft.com/en-us/microsoft-edge/webdriver-chromium/
        //  and set the location below:
        server_path: '',
        cli_args: [
          // --verbose
        ]
      }
    },

    //
    // Configuration for when using the browserstack.com cloud service               |
    //                                                                               |
    // Please set the username and access key by setting the environment variables:  |
    // - BROWSERSTACK_USER                                                           |
    // - BROWSERSTACK_KEY                                                            |
    // .env files are supported                                                      |
    //
    browserstack: {
      selenium: {
        host: 'hub-cloud.browserstack.com',
        port: 443
      },
      // More info on configuring capabilities can be found on:
      // https://www.browserstack.com/automate/capabilities?tag=selenium-4
      desiredCapabilities: {
        'bstack:options' : {
          userName: '${BROWSERSTACK_USER}',
          accessKey: '${BROWSERSTACK_KEY}',
        }
      },

      disable_error_log: true,
      webdriver: {
        timeout_options: {
          timeout: 15000,
          retry_attempts: 3
        },
        keep_alive: true,
        start_process: false
      }
    },

    'browserstack.local': {
      extends: 'browserstack',
      desiredCapabilities: {
        'browserstack.local': true
      }
    },

    'browserstack.chrome': {
      extends: 'browserstack',
      desiredCapabilities: {
        browserName: 'chrome',
        chromeOptions : {
          w3c: false
        }
      }
    },

    'browserstack.firefox': {
      extends: 'browserstack',
      desiredCapabilities: {
        browserName: 'firefox'
      }
    },

    'browserstack.ie': {
      extends: 'browserstack',
      desiredCapabilities: {
        browserName: 'internet explorer',
        browserVersion: '11.0'
      }
    },

    'browserstack.safari': {
      extends: 'browserstack',
      desiredCapabilities: {
        browserName: 'safari'
      }
    },

    'browserstack.local_chrome': {
      extends: 'browserstack.local',
      desiredCapabilities: {
        browserName: 'chrome'
      }
    },

    'browserstack.local_firefox': {
      extends: 'browserstack.local',
      desiredCapabilities: {
        browserName: 'firefox'
      }
    },
    //
    // Configuration for when using the Selenium service, either locally or remote,  |
    //  like Selenium Grid                                                           |
    //
    selenium_server: {
      // Selenium Server is running locally and is managed by Nightwatch
      selenium: {
        start_process: true,
        port: 4444,
        server_path: (Services.seleniumServer ? Services.seleniumServer.path : ''),
        cli_args: {
          'webdriver.gecko.driver': (Services.geckodriver ? Services.geckodriver.path : ''),
          'webdriver.chrome.driver': (Services.chromedriver ? Services.chromedriver.path : '')
        }
      }
    },

    'selenium.chrome': {
      extends: 'selenium_server',
      desiredCapabilities: {
        browserName: 'chrome',
        chromeOptions : {
          w3c: false
        }
      }
    },

    'selenium.firefox': {
      extends: 'selenium_server',
      desiredCapabilities: {
        browserName: 'firefox',
        'moz:firefoxOptions': {
          args: [
            // '-headless',
            // '-verbose'
          ]
        }
      }
    }
  }
};

function loadServices() {
  try {
    Services.seleniumServer = require('selenium-server');
  } catch (err) {}

  try {
    Services.chromedriver = require('chromedriver');
  } catch (err) {}

  try {
    Services.geckodriver = require('geckodriver');
  } catch (err) {}
}

runner.js

根目录下创建test/nightwatch文件夹，在文件夹下创建runner.js，让nightwatch明白这个一个vue项目，等待项目启动，具体内容如下：

process.env.NODE_ENV = 'testing'

const webpack = require('webpack')
const DevServer = require('webpack-dev-server')

const webpackConfig = require('../../build/webpack.prod.conf')
const devConfigPromise = require('../../build/webpack.dev.conf')

let server

devConfigPromise.then(devConfig => {
  const devServerOptions = devConfig.devServer
  const compiler = webpack(webpackConfig)
  server = new DevServer(compiler, devServerOptions)
  const port = devServerOptions.port
  const host = devServerOptions.host
  return server.listen(port, host)
})
  .then(() => {
    let opts = process.argv.slice(2)
    if (opts.indexOf('--config') === -1) {
      opts = opts.concat(['--config', 'nightwatch.conf.js'])
    }
    if (opts.indexOf('--env') === -1) {
      opts = opts.concat(['--env', 'chrome'])
    }

    const spawn = require('cross-spawn')
    const runner = spawn('./node_modules/.bin/nightwatch', opts, { stdio: 'inherit' })
    console.log(runner)
    runner.on('exit', function (code) {
      server.close()
      process.exit(code)
    })

    runner.on('error', function (err) {
      server.close()
      throw err
    })
  })

first.js

test/nightwatch下创建spec文件夹，然后在文件夹内创建first.js，可以根据自己的情况调整，主要写一些测试内容，其他的测试内容也可以继续写在此文件夹下。

// For authoring Nightwatch tests, see
// http://nightwatchjs.org/guide#usage

module.exports = {
  'my first tests': function (browser) {
    browser
      // 这里的url和端口要和vue dev配置的host和port一致
      .url('http://localhost:8080')
      .waitForElementVisible('#app', 5000)
      .assert.elementPresent('.legend_wrap')
      .assert.containsText('h1', 'Welcome to Your Vue.js App')
      .end()
  }
}

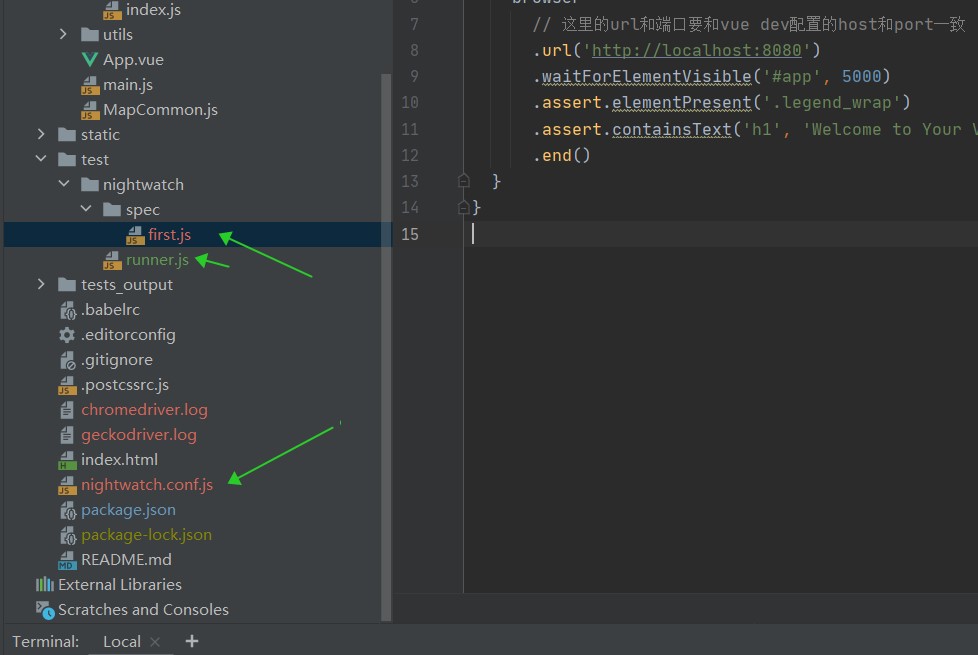

最终的目录结构如下图所示：

目录结构

进行测试

在命令窗口中执行以下命令：

nightwatch

出现以下界面就是进行运行成功，并进行了first.js中的测试
测试结果

注意事项

如果在使用过程中，出现以下错误
```
An error occurred while retrieving a new session: "session not created: This version of ChromeDriver only supports Chrome version 92"
```
这是因为你的驱动版本与已安装的chrome浏览器的版本并不对应，我这里是将chrome浏览器升级到92以上版本就解决了。
