[JavaScript知识库]echarts实现饼图阴影，改变饼图的颜色，改变引导线的颜色

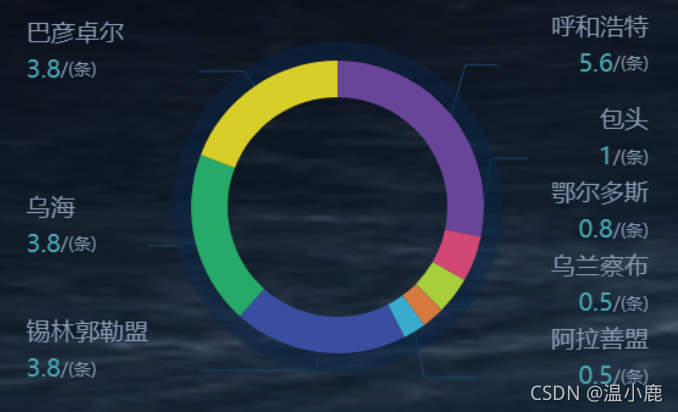

实现效果如下：

需求分析：

> 1、饼图阴影，就是在series中再加图层
> 2、引导线labelLine->normal->lineStyle
> 3、改变饼图的颜色后端返值＋itemStyle或者自己定义在option中color数组
> 4、设置不同标识文字的颜色，在rich中写nameColor的样式
>formatter: function (value) {
   let data = value.data;
   return ("{nameColor|" +data.name +"\n\n" +"}{green|" +data.value +"}{tColol|/" +"(条)}" +"\n\n");
},

源码：

<template>
  <div class="operation-monitoring">
    <div class="power-monitoring-bottom">
      <div
        id="myChart"
        class="my-charts"
        style="width: auto; height: 400px"
      ></div>
    </div>
  </div>
</template>
<script>
export default {
  data() {
    return {};
  },
  created() {},
  watch: {},
  mounted() {
    let that = this;
    that.drawEcharts();
  },
  methods: {
    drawEcharts() {
      // 如果后端传颜色的话，要是数据改变，感觉需要后端传
      // let data = [
      //   { name: "呼和浩特", value: 5.6, itemStyle: { color: "#684599" } },
      //   { name: "包头", value: 1, itemStyle: { color: "#D14874" } },
      //   { name: "鄂尔多斯", value: 0.8, itemStyle: { color: "#A8CE3B" } },
      //   { name: "乌兰察布", value: 0.5, itemStyle: { color: "#D6793E" } },
      //   { name: "阿拉善盟", value: 0.5, itemStyle: { color: "#39ABCD" } },
      //   { name: "锡林郭勒盟", value: 3.8, itemStyle: { color: "#394EA1" } },
      //   { name: "乌海", value: 3.8, itemStyle: { color: "#27A969" } },
      //   { name: "巴彦卓尔", value: 3.8, itemStyle: { color: "#D7CE29" } },
      // ];
      let data = [
        { name: "呼和浩特", value: 5.6 },
        { name: "包头", value: 1 },
        { name: "鄂尔多斯", value: 0.8 },
        { name: "乌兰察布", value: 0.5 },
        { name: "阿拉善盟", value: 0.5 },
        { name: "锡林郭勒盟", value: 3.8 },
        { name: "乌海", value: 3.8 },
        { name: "巴彦卓尔", value: 3.8 },
      ];

      let option = {
        color: [
          "#684599",
          "#D14874",
          "#A8CE3B",
          "#D6793E",
          "#39ABCD",
          "#394EA1",
          "#27A969",
          "#D7CE29",
          "rgba(0,0,0,0)",
        ],
        series: [
          // 主要展示层的
          {
            radius: ["45%", "60%"],
            center: ["50%", "50%"],
            type: "pie",
            hoverAnimation: false, //鼠标移入变大
            label: {
              alignTo: "edge",
              formatter: function (value) {
                let data = value.data;
                return ("{nameColor|" +data.name +"\n\n" +"}{green|" +data.value +"}{tColol|/" +"(条)}" +"\n\n");
              },
              minMargin: 15,
              edgeDistance: 10,
              lineHeight: 15,
              rich: {
                nameColor: {
                  fontSize: 20,
                  color: "#889BB4",
                },
                green: {
                  fontSize: 20,
                  marginBottom: 10,
                  color: "#4BA6B2",
                },
                tColol: {
                  fontSize: 14,
                  color: "#889BB4",
                },
              },
            },
            labelLine: {
              length: 15,
              length2: 0,
              maxSurfaceAngle: 80,
              normal: {
                lineStyle: {
                  color: "#1B4668", // 改变标示线的颜色
                },
              },
            },
            labelLayout: function (params) {
              var isLeft = params.labelRect.x < myChart.getWidth() / 2;
              var points = params.labelLinePoints;
              // Update the end point.
              points[2][0] = isLeft
                ? params.labelRect.x
                : params.labelRect.x + params.labelRect.width;

              return {
                labelLinePoints: points,
              };
            },
            data: data,
          },

          {
            name: "外边框",
            type: "pie",
            clockWise: false,
            clockWise: false, //顺时加载
            hoverAnimation: false, //鼠标移入变大
            radius: ["64%", "64%"], //边框大小
            center: ["50%", "50%"], //边框位置
            data: [
              {
                value: 10,
                itemStyle: {
                  normal: {
                    borderWidth: 15, //设置边框粗细
                    borderColor: "rgb(9,37,71, 0.5)", //边框颜色
                  },
                },
              },
            ],
          },
        ],
      };
      var stackingBar = this.$echarts.init(document.getElementById("myChart"));
      stackingBar.setOption(option);
    },
  },
};
</script>

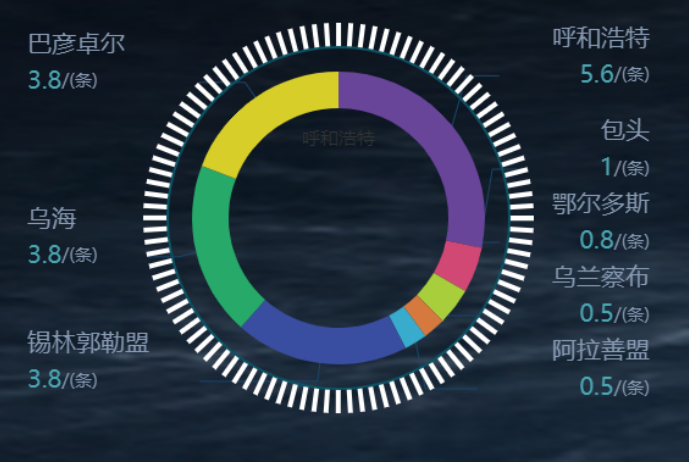

还有一位大佬实现如下图的样式，看了一下是利用到 type: “gauge”，仪表盘之类的，我把外边框的代码复制出来了，直接改就行，如下：

 {
            name: "外边框",
            type: "pie",
            clockWise: false, //顺时加载
            hoverAnimation: false, //鼠标移入变大
            center: ["50%", "50%"],
            radius: ["70%", "70%"],
            label: {
              normal: {
                show: false,
              },
            },
            data: [
              {
                value: 9,
                name: "",
                itemStyle: {
                  normal: {
                    borderWidth: 2,
                    borderColor: "#0b5263",
                  },
                },
              },
            ],
          },
          {
            name: "",
            type: "gauge", //主要是这里，仪表盘之类的
            radius: "80%",
            startAngle: 0,
            endAngle: 359.9,
            splitNumber: 100,
            hoverAnimation: true,
            axisTick: {
              show: false,
            },
            splitLine: {
              length: 20,
              lineStyle: {
                width: 4,
                color: "#fff",
              },
            },
            axisLabel: {
              show: false,
            },
            pointer: {
              show: false,
            },
            axisLine: {
              lineStyle: {
                opacity: 0,
              },
            },
            detail: {
              show: false,
            },
            data: data,
          },

大佬的地址：https://blog.csdn.net/wangxinxin1992816/article/details/88909962
