[JavaScript知识库]鸿蒙 JS FA 调用java PA简单实例

核心：

• 是通过FeatureAbility.callAbility(OBJECT)接口调用的。

一. Java PA 端

????????需要继承 Ability，重写 onConnect 方法并返回 RemoteObject对象，业务逻辑在RemoteObject? 的onRemoteRequest方法中处理。代码如下：

public class DemoService extends Ability {


    MyRemote myRemote = new MyRemote();
    //日志
    private static final HiLogLabel LABEL_LOG = new HiLogLabel(3, 0xD001100, "Demo");


    @Override
    protected IRemoteObject onConnect(Intent intent) {

        //返回RemoteObject的对象
        return myRemote.asObject();
    }

    class MyRemote extends RemoteObject implements IRemoteBroker {

        public MyRemote() {
            super("descriptor");
        }

        @Override
        public boolean onRemoteRequest(int code, MessageParcel data, MessageParcel reply,MessageOption option) throws RemoteException {


            return true;
        }

        @Override
        public IRemoteObject asObject() {
            return this;
        }
    }
}

注意写完service类以后，需要 config.json 中注册service类，代码如下：

"abilities": [
      {
        "skills": [
          {
            "entities": [
              "entity.system.home"
            ],
            "actions": [
              "action.system.home"
            ]
          }
        ],
        "visible": true,
        "name": "com.jiakejian.myapplication.MainAbility",
        "icon": "$media:icon",
        "description": "$string:mainability_description",
        "label": "$string:entry_MainAbility",
        "type": "page",
        "launchType": "standard"
      },
      {
        "name": "com.jiakejian.myapplication.DemoService",
        "icon": "$media:icon",
        "description": "DemoService",
        "type": "service"
      }
    ],

二.JS FA端

简单写了一个hml页面，添加了一个点击事件：

<div class="container">

    <button class="title" @click="onClick">
        向java FA传递数据
    </button>
</div>

?js中需要添加 action 对象，相当于javaFA跳转中的intent ，并设为 异步方法。代码如下：

onClick:async function(){

        //要传递的数据
        var data = {
            id:"001",
            name:"xiaoli"
        }
        //action对象，相当于intent
        var action = {};

        //添加service所在的包名
        action.bundleName = 'com.jiakejian.myapplication';

        //添加service的类名
        action.abilityName = 'com.jiakejian.myapplication.DemoService';

        //添加messageCode ，用于区分其他的action
        action.messageCode = 100;

        //添加数据
        action.data = data;

        //跳转的activity的类型，0代表service
        action.abilityType = 0;

        //最重要的一步：跳转
        var str = await FeatureAbility.callAbility(action);

        //下面是处理 java FA 返回的数据
         var result = JSON.parse(str);
        console.log(result.id);
        console.log(result.name);
    }

三 .Java FA端? 在RemoteObject对象的 onRemoteRequest方法中 处理数据并返回数据，代码如下：

         @Override
        public boolean onRemoteRequest(int code, MessageParcel data, MessageParcel reply,MessageOption option) throws RemoteException {
            switch (code) {
                case 100:
                    String str = data.readString();
                    HiLog.info(LABEL_LOG, "str:"+str);

                    //添加返回数据
                    Map<String, Object> result = new HashMap<String, Object>();
                    result.put("id", "002");
                    result.put("name", "xiaohuang");
                    reply.writeString(ZSONObject.toZSONString(result));
                    break;
                default:
                    return false;
            }
            return true;
        }

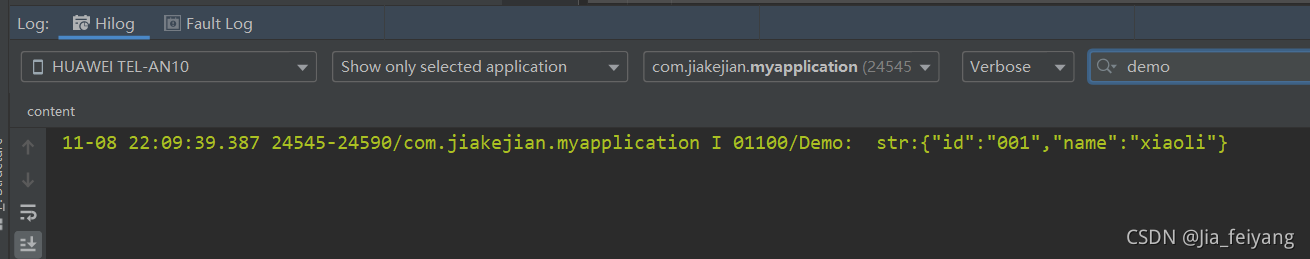

执行结果如下：

?

?
