1.Ajax简介

Ajax是一种异步的JS和XML联合体，可以理解为一种新方法，整合了前端的JavaScript、HTML、CSS、DOM编程和后端的HttpServlet-Tomcat、Mysql数据库，其中JS用于创建异步对象并代替浏览器发送请求，而Servlet用于操作数据库，返回数据，二者由xml或者json统一。

【注意】现在以JS和JSON居多，因为json轻量级、体积小、易解析。

2.Ajax四步法

第一步：在前端创建异步对象XMLHttpRequest→XHR

var xmlHttp = new XMLHttpRequest();

第二步：注册网页状态变化事件

xmlHttp.onreadystatement = function(){

    if(xmlhttp.readyState == 4 && xmlhttp.status == 200){
        //处理返回的结果，反应到DOM对象上；一般需要xmlhttp.responseText;
    }
}

第三步：拼接字符串、URL设置、开启连接

var name = document.getElementById("name").value;
var tizhong = document.getElementById("tizhong").value;
var shengao = document.getElementById("shengao").value;
 //拼接位URL格式
var param = "name="+name+"&"+"tizhong="+tizhong+"&"+"shengao="+shengao;
xmlhttp.open("get","bimajaxurl?"+param,true);//拼接为URL发送

第四步：发送数据

 xmlhttp.send();

【交互过程】用户输入http://localhost:8080/jj/，然后自动到站点下的index.html和index.jsp，后者展现输入框，用户输入，然后通过index.jsp获取输入信息，通过四步法构造Ajax异步对象，拼接为URL字符串进行数据访问；后端Servlet从发过来的URL中得到几个字段，然后经过计算后返回数据，在前端页面展示。

【涉及技术】index.jsp→四步法→URL→getParameter→后台计算→response.getWriter().print()→前台获取→异步对象.responseText→更新DOM.

3.Ajax项目→根据编号返回省份的查询结果

原材料：mysql建表，从该表查询

DROP TABLE IF EXISTS `province`;
CREATE TABLE `province` (
  `id` int(11) NOT NULL AUTO_INCREMENT,
  `name` varchar(255) DEFAULT NULL COMMENT '省份名称',
  `jiancheng` varchar(255) DEFAULT NULL COMMENT '简称',
  `shenghui` varchar(255) DEFAULT NULL,
  PRIMARY KEY (`id`)
) ENGINE=InnoDB AUTO_INCREMENT=10 DEFAULT CHARSET=utf8;


INSERT INTO `province` VALUES ('1', '河北', '冀', '石家庄');
INSERT INTO `province` VALUES ('2', '山西', '晋', '太原市');
INSERT INTO `province` VALUES ('3', '内蒙古', '蒙', '呼和浩特市	');
INSERT INTO `province` VALUES ('4', '辽宁', '辽', '沈阳');
INSERT INTO `province` VALUES ('5', '江苏', '苏', '南京');
INSERT INTO `province` VALUES ('6', '浙江', '浙', '杭州');
INSERT INTO `province` VALUES ('7', '安徽', '皖', '合肥');
INSERT INTO `province` VALUES ('8', '福建', '闽', '福州');
INSERT INTO `province` VALUES ('9', '江西', '赣', '南昌');

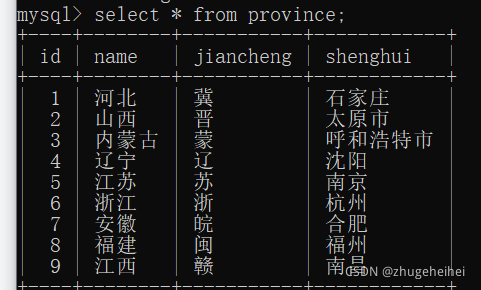

表格数据如下图所示：

思路：略

代码：

//index.jsp文件
<%@ page contentType="text/html;charset=UTF-8" language="java" %>
<html>
<head>
  <title>省份与城市</title>
</head>
<script type="text/javascript">//异步对象代替浏览器发送请求
function serachPro(){
  var xmlhttp = new XMLHttpRequest();
  xmlhttp.onreadystatechange = function(){
    if(xmlhttp.readyState == 4 && xmlhttp.status == 200){
      document.getElementById("mydata").innerHTML = "省份是："+xmlhttp.responseText;
    }
  }
  var number = document.getElementById("number").value;
  var param = "number="+number;
  xmlhttp.open("get","dianji?"+param,true);//拼接为URL发送
  xmlhttp.send();
}
</script>
<body>
<p>写数字，打印省份</p>
<div>
  请输入数字：<input type="text" id="number"/><br/>
  <input type="button" value="点我省份查询" onclick="serachPro()"/>
</div>
<div id="mydata">...正在查询省份数据...</div>
</body>
</html>

//web.xml文件
<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns="http://xmlns.jcp.org/xml/ns/javaee"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/javaee http://xmlns.jcp.org/xml/ns/javaee/web-app_4_0.xsd"
         version="4.0">

    <servlet>
        <servlet-name>sf</servlet-name>
        <servlet-class>noprovince</servlet-class>
    </servlet>
    <servlet-mapping>
        <servlet-name>sf</servlet-name>
        <url-pattern>/dianji</url-pattern>
    </servlet-mapping>


</web-app>

//主程序
import javax.servlet.ServletException;
import javax.servlet.http.HttpServlet;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import java.io.IOException;
import java.io.PrintWriter;
import java.sql.*;

public class noprovince extends HttpServlet {
    @Override
    protected void doGet(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
//        String name = request.getParameter("number");
        response.setContentType("text/html;charset=utf-8");
        Connection col = null;
        PreparedStatement ps = null;  //变为预编译的Statemnet对象
        ResultSet rs = null;
        try {
            Class.forName("com.mysql.cj.jdbc.Driver");
            col = DriverManager.getConnection("jdbc:mysql://localhost:3306/mydb","root","123456");
            String sql = "select name from province where id =? ";
            ps = col.prepareStatement(sql);
            ps.setString(1, request.getParameter("number"));
            rs = ps.executeQuery();

           PrintWriter pw =  response.getWriter();
            while(rs.next()){
//                System.out.println(rs.getString(1));
                pw.print(rs.getString(1));
            }
        } catch (ClassNotFoundException e) {
            e.printStackTrace();
        }
        catch(SQLException e ){
            e.printStackTrace();
        }finally {
            if (rs!=null) {
                try {
                    rs.close();
                } catch (SQLException e) {
                    e.printStackTrace();
                }
            }
            if(ps!=null){
                try {
                    ps.close();
                } catch (SQLException e) {
                    e.printStackTrace();
                }
            }
            if (col !=null) {
                try {
                    col.close();
                } catch (SQLException e) {
                    e.printStackTrace();
                }
            }
        }



    }

    @Override
    protected void doPost(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {

    }
}

总结：本项目前端采用JS和Ajax对象，然后将数据以URL发送到后台的Servlet对象，经过JDBC数据库查询，得到结果后返回给前端，然后异步更新展示。

4.Ajax与Json前后端

上面第三点返回的是单独的一个值，怎么以实际开发中最常用的json格式返回呢？

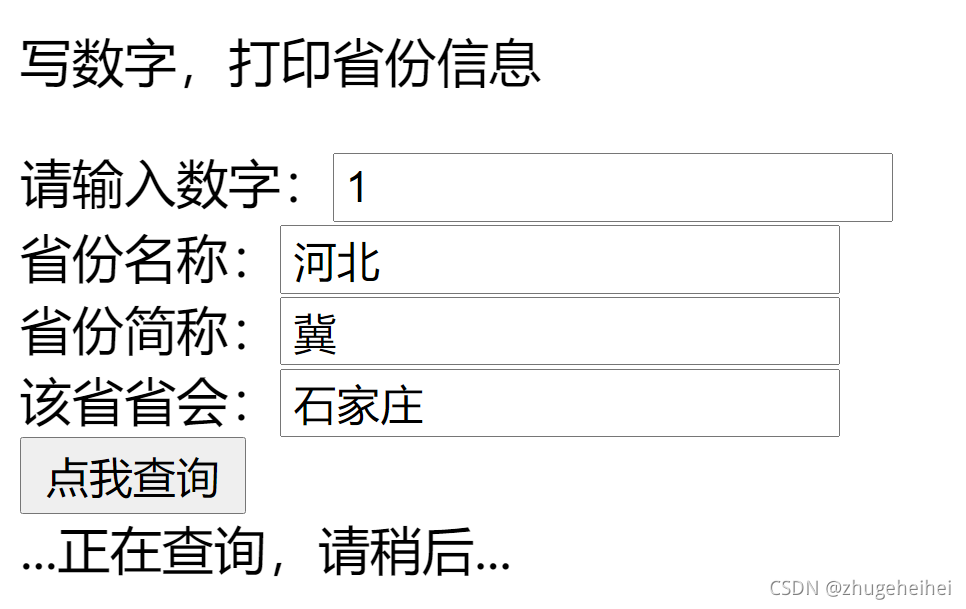

以上面的例子为例，用户输入编号值，要求以json作为桥梁返回到对应的文本框中，效果如下：

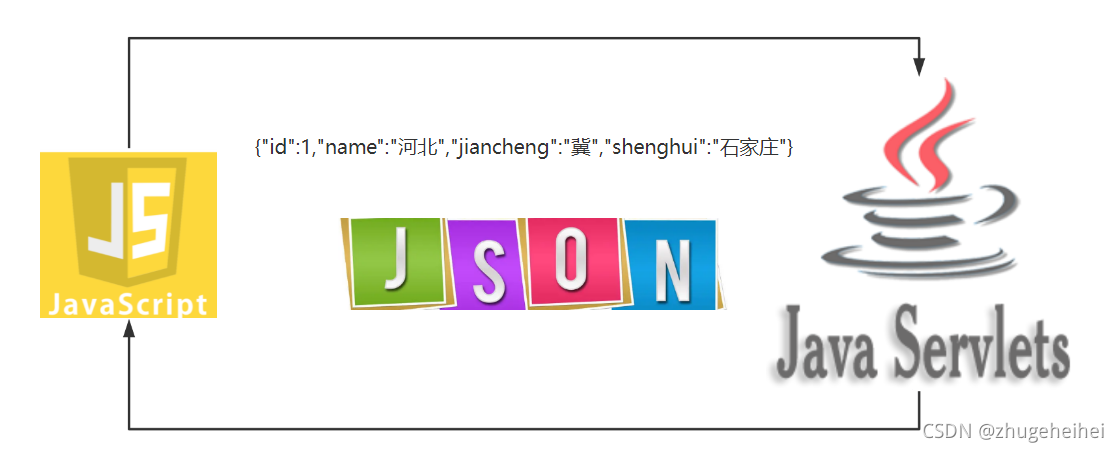

思路：大体过程与3类似，拼接id形式的URL，然后返回json字符串，如下图所示：

?具体代码：

第一步：servlet新建province类，将在mysql查询到的记录格式化为province对象；

public class provinceTable {
    //创建实体表对应的实体类
    private  int id;//把id设置为Integer类型；
    private  String name;
    private  String jiancheng;
    private  String shenghui;

    public provinceTable(int id, String name, String jiancheng, String shenghui) {
        this.id = id;
        this.name = name;
        this.jiancheng = jiancheng;
        this.shenghui = shenghui;
    }

    public provinceTable() {
    }

    public int getId() {
        return id;
    }

    public void setId(int id) {
        this.id = id;
    }

    public String getName() {
        return name;
    }

    public void setName(String name) {
        this.name = name;
    }

    public String getJiancheng() {
        return jiancheng;
    }

    public void setJiancheng(String jiancheng) {
        this.jiancheng = jiancheng;
    }

    public String getShenghui() {
        return shenghui;
    }

    public void setShenghui(String shenghui) {
        this.shenghui = shenghui;
    }


}

第二步：将其转换为JSON对象

import com.fasterxml.jackson.core.JsonProcessingException;
import com.fasterxml.jackson.databind.ObjectMapper;

public class jsontest {
    public static void main(String[] args) throws Exception{
        //jackson转换为json对象；
        //创建实体表对应的实体类
        provinceTable p = new provinceTable(3,"河北","冀","石家庄");
        //转换：
        ObjectMapper om = new ObjectMapper();
        String jsonFromJava = om.writeValueAsString(p);
        System.out.println("转换后的结果是" + jsonFromJava);
    }
}

【注意】这里使用了几个库文件的自带方法，将java对象转化为json对象！

?第三步：前端封装

<!--index.jsp-->
<%@ page contentType="text/html;charset=UTF-8" language="java" %>
<html>
<head>
  <title>省份与城市</title>
</head>
<script type="text/javascript">//异步对象代替浏览器发送请求
function serachPro(){
  var xmlhttp = new XMLHttpRequest();
  xmlhttp.onreadystatechange = function(){
    if(xmlhttp.readyState == 4 && xmlhttp.status == 200){
      // document.getElementById("provin").value = xmlhttp.responseText;
      //解析json字符串；
      // document.getElementById("provin_city").value = xmlhttp.responseText;
      // document.getElementById("provinsimple").value = xmlhttp.responseText;
      var data = xmlhttp.responseText;
      //转换String到json对象
      var jsonObj =eval("("+data+")") ;//获取json格式的字符串，需要转化为json对象
      document.getElementById("provin").value = jsonObj["name"];
      document.getElementById("provin_city").value =  jsonObj["shenghui"];
      document.getElementById("provinsimple").value =  jsonObj["jiancheng"];
    }
  }
  var number = document.getElementById("number").value;
  var param = "number="+number;
  xmlhttp.open("get","dianji?"+param,true);//拼接为URL发送
  xmlhttp.send();
  alert("测试异步与同步");
}
</script>
<body>
<p>写数字，打印省份信息</p>
<div>
  请输入数字：<input type="text" id="number"/><br/>
  省份名称：<input type="text" id="provin"/><br/>
  省份简称：<input type="text" id="provinsimple"/><br/>
  该省省会：<input type="text" id="provin_city"/><br/>

  <input type="button" value="点我查询" onclick="serachPro()"/>

</div>
<div id="mydata">...正在查询，请稍后...</div>
</body>
</html>

第四步：注册web.xml

<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns="http://xmlns.jcp.org/xml/ns/javaee"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/javaee http://xmlns.jcp.org/xml/ns/javaee/web-app_4_0.xsd"
         version="4.0">

    <servlet>
        <servlet-name>sf</servlet-name>
        <servlet-class>noprovince</servlet-class>
    </servlet>
    <servlet-mapping>
        <servlet-name>sf</servlet-name>
        <url-pattern>/dianji</url-pattern>
    </servlet-mapping>


</web-app>

第五步：后台Servlet主程序

import com.fasterxml.jackson.databind.ObjectMapper;

import javax.servlet.ServletException;
import javax.servlet.http.HttpServlet;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import java.io.IOException;
import java.io.PrintWriter;
import java.sql.*;

public class noprovince extends HttpServlet {
    @Override
    protected void doGet(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
//        String name = request.getParameter("number");
//        response.setContentType("text/html;charset=utf-8");
        //告诉浏览器，我现在返回的是json格式的数据；
        response.setContentType("application/json;charset=utf-8");
        Connection col = null;
        PreparedStatement ps = null;  //变为预编译的Statemnet对象
        ResultSet rs = null;
        try {
            Class.forName("com.mysql.cj.jdbc.Driver");
            col = DriverManager.getConnection("jdbc:mysql://localhost:3306/mydb","root","123456");
            String sql = "select * from province where id =? ";
            ps = col.prepareStatement(sql);
            ps.setString(1, request.getParameter("number"));
            rs = ps.executeQuery();
            provinceTable pro;
            String jsonFromJava="{}";//定义在这里是为了保证能够传送回去一个json格式的对象；
           PrintWriter pw =  response.getWriter();
            while(rs.next()){
//                System.out.println(rs.getString(1));
//                pw.print(rs.getString(1));//
                int id = Integer.valueOf(rs.getString("id"));
                String name = rs.getString("name");
                String jiancheng = rs.getString("jiancheng");
                String shenghui = rs.getString("shenghui");

               pro  = new provinceTable(id,name,jiancheng,shenghui);
               //转换为json对象；
                ObjectMapper om = new ObjectMapper();
                 jsonFromJava = om.writeValueAsString(pro);
//                System.out.println("转换后的结果是" + jsonFromJava);
                pw.print(jsonFromJava);//传输回去字符串；
            }
        } catch (ClassNotFoundException e) {
            e.printStackTrace();
        }
        catch(SQLException e ){
            e.printStackTrace();
        }finally {
            if (rs!=null) {
                try {
                    rs.close();
                } catch (SQLException e) {
                    e.printStackTrace();
                }
            }
            if(ps!=null){
                try {
                    ps.close();
                } catch (SQLException e) {
                    e.printStackTrace();
                }
            }
            if (col !=null) {
                try {
                    col.close();
                } catch (SQLException e) {
                    e.printStackTrace();
                }
            }
        }



    }

    @Override
    protected void doPost(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {

    }
}

第六步：配置Tomcat服务器，引入上述几个依赖库即可！
