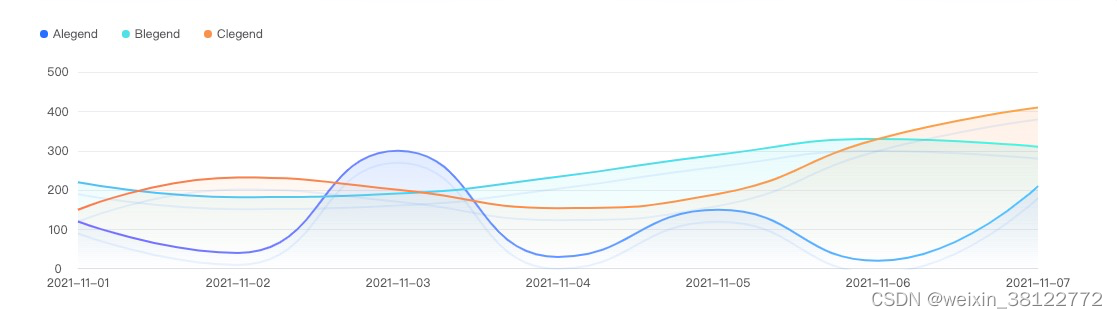

实现的效果：
lineStyle: { // 线条样式
color: {
colorStops: [{
offset: 0, color: '#FA8558',
}, {
offset: 1, color: '#FAAF58'
}],
},
width: 2, // 线条粗细
shadowOffsetY: 12, // 阴影线条的偏移量
shadowColor: 'rgba(59, 138, 254, 0.1)' // 阴影线条的颜色
},
areaStyle: { // 区域样式
color: {
type: 'linear',
x: 0,
y: 0,
x2: 0,
y2: 1,
colorStops: [{
offset: 0, color: 'rgba(250, 157, 88, 0.2)' // 0% 处的颜色
}, {
offset: 1, color: 'rgba(250, 157, 88, 0.0001)' // 100% 处的颜色
}],
}
},
最后贴一下上图的option完整的配置
const lineData = {
legend: ['Alegend', 'Blegend', 'Clegend'],
xData: ['2021-11-01', '2021-11-02', '2021-11-03', '2021-11-04', '2021-11-05', '2021-11-06', '2021-11-07'],
yData: [
{
name: 'Alegend',
data: [120, 40, 300, 30, 150, 20, 210],
type: 'line',
smooth: true,
symbol: 'none',
itemStyle: {
normal: {
color: '#2E79FF',
lineStyle: {
color: {
colorStops: [{
offset: 0, color: '#8477FF',
}, {
offset: 1, color: '#5CCAFF'
}],
},
width: 2,
shadowOffsetY: 12,
shadowColor: 'rgba(59, 138, 254, 0.1)'
},
areaStyle: {
color: {
type: 'linear',
x: 0,
y: 0,
x2: 0,
y2: 1,
colorStops: [{
offset: 0, color: 'rgba(46, 121, 255, 0.2)' // 0% 处的颜色
}, {
offset: 1, color: 'rgba(46, 121, 255, 0.0001)' // 100% 处的颜色
}],
}
},
}
},
},
{
name: 'Blegend',
data: [220, 182, 191, 234, 290, 330, 310],
type: 'line',
smooth: true,
symbol: 'none',
itemStyle: {
normal: {
color: '#5AE4E9',
lineStyle: {
color: {
colorStops: [{
offset: 0, color: '#5FC5F6',
}, {
offset: 1, color: '#57F4E2'
}],
},
width: 2,
shadowOffsetY: 12,
shadowColor: 'rgba(59, 138, 254, 0.1)'
},
areaStyle: {
color: {
type: 'linear',
x: 0,
y: 0,
x2: 0,
y2: 1,
colorStops: [{
offset: 0, color: 'rgba(90, 228, 233, 0.2)' // 0% 处的颜色
}, {
offset: 1, color: 'rgba(90, 228, 233, 0.0001)' // 100% 处的颜色
}],
}
},
}
},
},
{
name: 'Clegend',
data: [150, 232, 201, 154, 190, 330, 410],
type: 'line',
smooth: true,
symbol: 'none',
itemStyle: {
normal: {
color: '#FA9D58', // legend的颜色
lineStyle: { // 线条渐变
color: {
colorStops: [{
offset: 0, color: '#FA8558',
}, {
offset: 1, color: '#FAAF58'
}],
},
width: 2, // 线条粗细
shadowOffsetY: 12, // 阴影线条的偏移量
shadowColor: 'rgba(59, 138, 254, 0.1)' // 阴影线条的颜色
},
areaStyle: { // 区域渐变
color: {
type: 'linear',
x: 0,
y: 0,
x2: 0,
y2: 1,
colorStops: [{
offset: 0, color: 'rgba(250, 157, 88, 0.2)' // 0% 处的颜色
}, {
offset: 1, color: 'rgba(250, 157, 88, 0.0001)' // 100% 处的颜色
}],
}
},
}
},
}
]
}
const option = {
grid: {
left: 48,
top: '18%',
bottom: '10%',
right: 48
},
legend: {
selectedMode: false,
data: this.lineData.legend,
icon: 'circle',
itemHeight: 8, // itemHeight + itemWidth设置icon的大小
itemWidth: 8,
itemGap: 24,
left: 5,
textStyle: {
color: 'rgba(21, 22, 24, 0.72)'
}
},
tooltip: {
trigger: 'axis'
},
xAxis: {
type: 'category',
boundaryGap: false, // 第一个值从原点开始
axisTick: {
show: false // 隐藏刻度尺
},
axisLine: {
lineStyle: {
color: 'rgba(195,202,207,0.3)'
},
axisLabel: {
color: 'rgba(21, 22, 24, 0.72)'
},
data: this.lineData.xData
},
yAxis: {
type: 'value',
axisTick: {
show: false // 隐藏刻度尺
},
axisLine: {
// 坐标轴线的样式
lineStyle: {
color: 'rgba(195,202,207,0)'
},
show: false
},
splitLine: {
// 垂直坐标轴的分割线
lineStyle: {
color: 'rgba(195,202,207,0.3)'
}
},
axisLabel: {
// 坐标轴文字样式
color: 'rgba(21, 22, 24, 0.72)',
align: 'center',
margin: 20
}
},
series: this.lineData.yData
}
