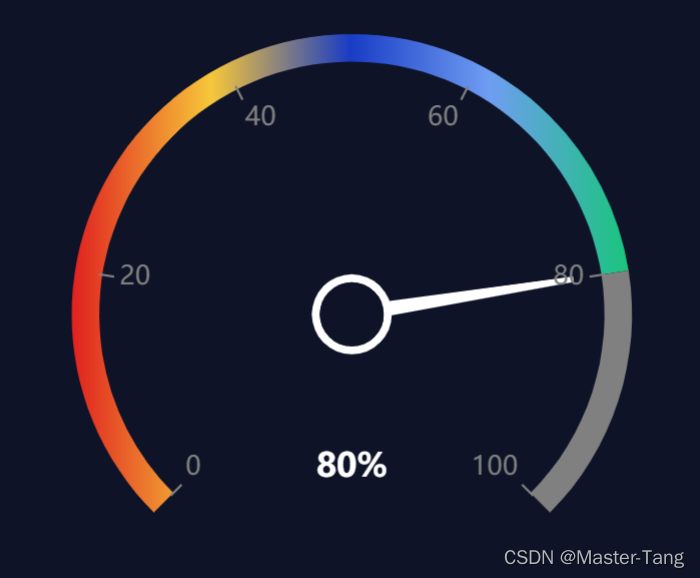

目标图案：
?创建组件DashBoard.vue：
<template>
<div id="dashboardHumidity" style="height: 100%"></div>
</template>
<script>
export default {
name: "DashBoard",
props: {
// 正常的业务数据，对应echarts仪表盘配置中series[0].data
seriesData: {
type: Array,
default: () => [],
},
seriesColor: {
type: Array,
default: () => [],
},
},
data() {
return {
chart: null
};
},
mounted() {
// 仪表盘基础参数
this.chart = this.$echarts.init(this.$el);
this.dashboardBasicParameters();
},
methods: {
dashboardBasicParameters() {
var dataArr = this.seriesData;
var color = new this.$echarts.graphic.LinearGradient(0, 0, 1, 0, this.seriesColor);
var rich = {
white: {//标题参数
fontSize: 14,
color: '#FFFFFF',
padding: [0, 0, 0, 0],
},
radius: {
width: 350,
height: 80,
// lineHeight:80,
borderWidth: 1,
borderColor: '#0092F2',
fontSize: 25,
color: '#fff',
backgroundColor: '#1B215B',
borderRadius: 20,
textAlign: 'center',
},
size: {
height: 300,
padding: [0, 0, 0, 0]
}
}
this.chart.setOption({
tooltip: {
formatter: "{a} : {c}%"
},
series: [
{
name: '综合合格率',
type: 'gauge',
radius: '100%',//外圈半径
startAngle: '225',
endAngle: '-45',
pointer: {//指针参数
shadowColor: 'white', //默认透明
shadowBlur: 1,
length: '70%',
width: "1",
},
itemStyle: {
color: '#fff',
borderColor: "#fff",
borderWidth: 2//指针宽度
},
detail: {//指针文字
formatter: function (value) {
var num = Math.round(value);
return '{white|' + num + '%}';
},
rich: rich,
"offsetCenter": ['0%', "70%"],//中间文字位置
},
data: dataArr,
title: {
show: false,
},
axisLine: {//外圆属性
show: true,
lineStyle: {
color: [
[0, '#f0f2f5'],
[dataArr[0].value / 100, color],
[1, 'gray']
],
width: 12,//有颜色区域宽度
// shadowBlur: 15,//让外圈有阴影
// shadowColor: '#B0C4DE',
shadowOffsetX: 0,
shadowOffsetY: 0,
opacity: 1
}
},
axisTick: {
show: false
},
splitLine: {
show: false,
length: 20,
lineStyle: {
color: '#00377a',
width: 2,
type: 'solid',
},
},
axisLabel: {
show: false
},
animationDuration: 4000,
},
{
name: "白色圈刻度",
type: "gauge",
radius: "80%",//刻度半径
startAngle: 225, //刻度起始
endAngle: -45, //刻度结束
min: 0,
max: 100,
splitNumber: 5,
z: 4,
axisTick: {
show: false
},
splitLine: {
length: 6, //刻度节点线长度
lineStyle: {
width: 2,
color: 'gray'
} //刻度节点线
},
axisLabel: {
color: 'gray',
fontSize: 10,
}, //刻度节点文字颜色
pointer: {
show: false
},
axisLine: {
lineStyle: {
opacity: 0
}
},
detail: {
show: false
},
data: [{
value: 0,
name: ""
}]
},
//如果不需要中间圆环，可以不用
{
//指针外环
name: '综合合格率',
type: 'pie',
hoverAnimation: false,
legendHoverLink: false,
radius: ['5%', '8%'],
z: 5,
label: {
normal: {
show: false
}
},
labelLine: {
normal: {
show: false
}
},
data: [{
value: dataArr[0].value,
name: "综合合格率",
itemStyle: {
normal: {
color: "#fff",
}
}
}]
},
{
//指针内环
name: '综合合格率',
type: 'pie',
hoverAnimation: false,
legendHoverLink: false,
radius: ['0%', '6%'],
z: 5,
label: {
normal: {
show: false
}
},
labelLine: {
normal: {
show: false
}
},
data: [{
value: dataArr[0].value,
name: "综合合格率",
itemStyle: {
normal: {
color: "#0E1327"
}
}
}]
}
]
}, true)
},
},
}
</script>
<style scoped>
</style>
使用组件：
?
<template>
..........
<div>
<Dashboard :series-data="dataArray" :series-color="colorArray"/>
</div>
..........
</template>
<script>
import Dashboard from "";
export default {
components: {
Dashboard,
},
data() {
return {
dataArray: [
{
value: 92,
}
],
colorArray: [
{
offset: 0,
color: 'rgba(224, 32, 32, 1)',
}, {
offset: 0.25,
color: 'rgba(247, 199, 57, 1)',
},
{
offset: 0.5,
color: 'rgba(25, 60, 197, 1)',
},
{
offset: 0.75,
color: 'rgba(111, 157, 242, 1)',
},
{
offset: 1,
color: 'rgba(25, 197, 125, 1)',
}
],
}
}
}
</script>附送学习使用必备网址：
https://echarts.apache.org/examples/zh/index.html#chart-type-gauge
