[Python知识库]python编程-从入门到实践-CSV学习篇

学习笔记-显示2014年最高/最低温度报表

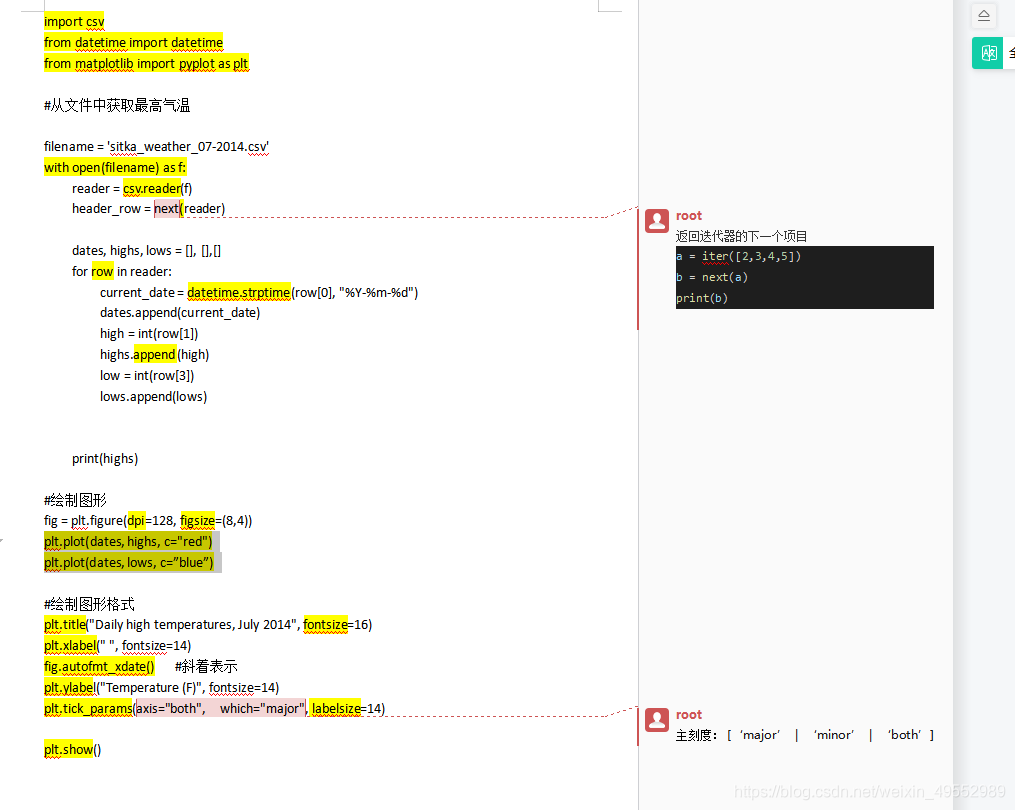

附上代码

import csv
from datetime import datetime
from matplotlib import pyplot as plt
#获取所需数据
filename = "sitka_weather_2014.csv"
with open(filename) as f:
    reader = csv.reader(f)
    header_row = next(reader)

    dates, highs, lows = [],[],[]
    for row in reader:
        current_date = datetime.strptime(row[0], "%Y-%m-%d")
        dates.append(current_date)
        high = int(row[1])
        highs.append(high)
        low = int(row[3])
        lows.append(low)

#创建图形
fig = plt.figure(dpi=128, figsize=(10,8))
plt.plot(dates, highs, c="red")
plt.plot(dates, lows, c="blue")

#编辑图形格式
plt.title("Daily high and low temperatures-2014", fontsize=18)
plt.xlabel("", fontsize=16)
fig.autofmt_xdate()
plt.ylabel("Temperarure(F)", fontsize=16)
plt.tick_params(axis="both", which = "major", labelsize=16)
plt.show()

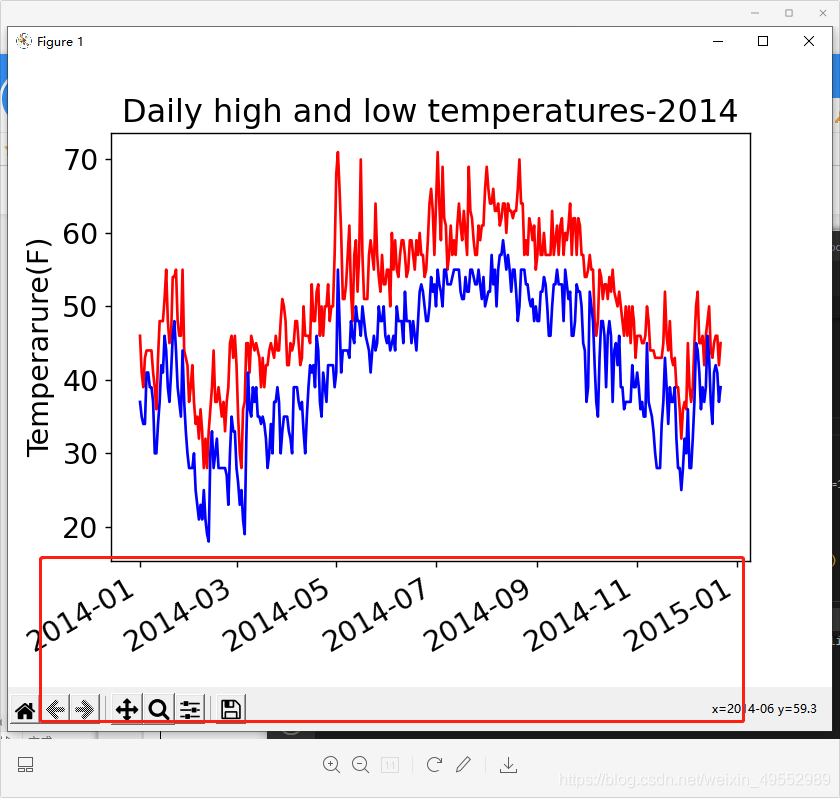

存在x轴时间的bug，需后续解决

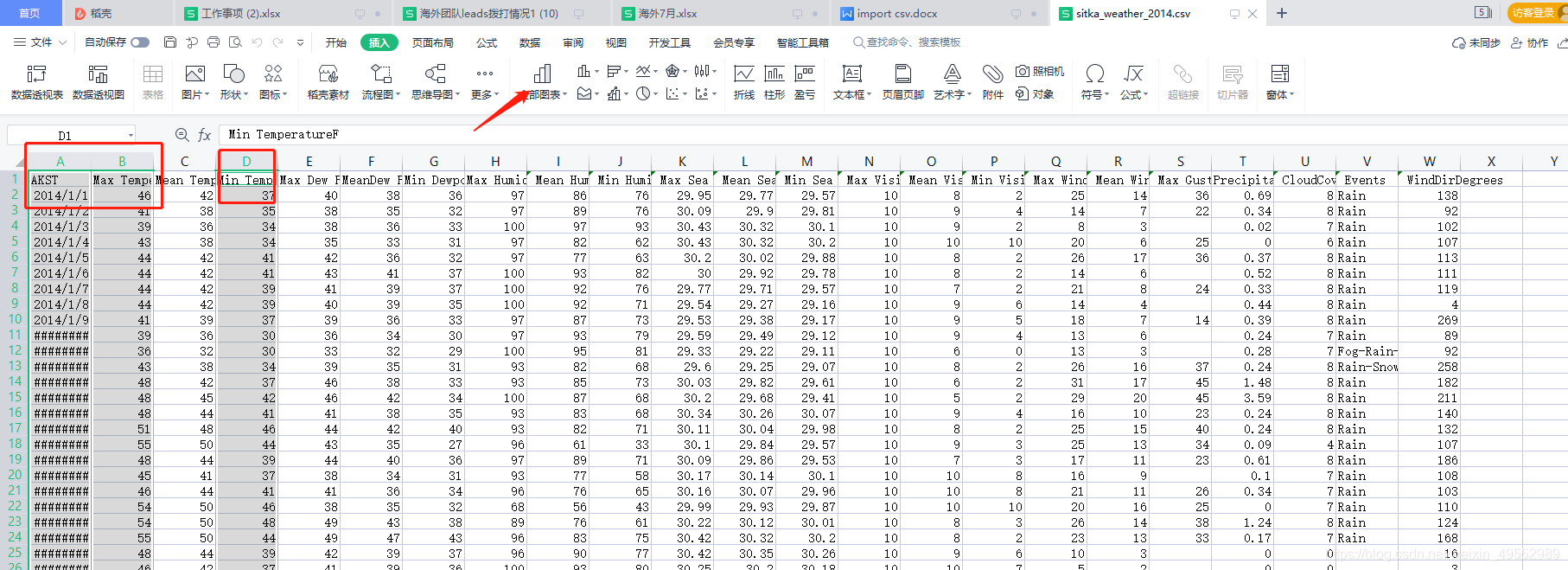

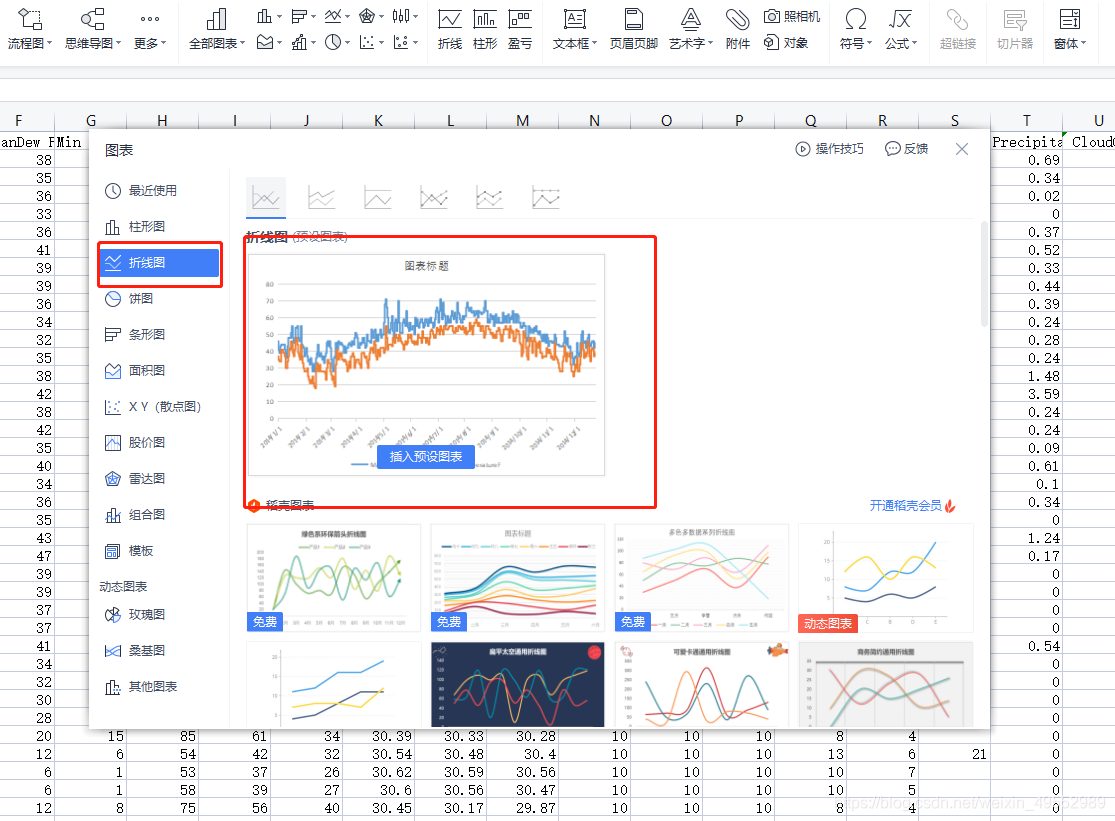

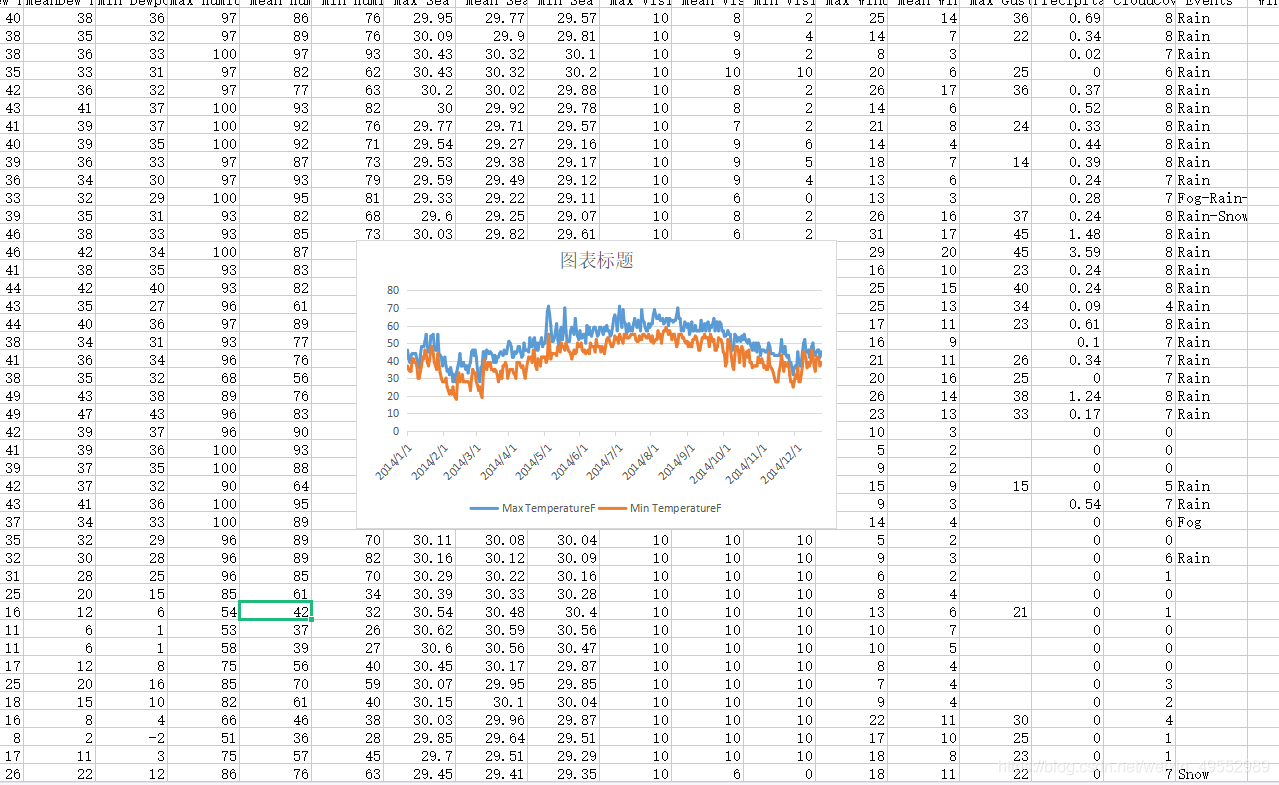

发现excel仅3步骤即可完成, 知道这是用于大数据
