[Python知识库]CUDA编程(三) —— 编程实践

1. 将两个元素数目为1024×1024的float数组相加

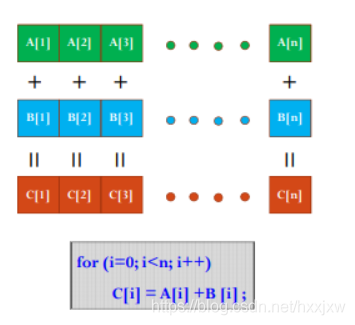

首先我们思考一下如果只用CPU我们怎么串行完成这个任务

#include <iostream>
#include <stdlib.h>
#include <sys/time.h>
#include <math.h>

using namespace std;

int main()
{
    struct timeval start, end;
    gettimeofday( &start, NULL );
    float*A, *B, *C;
    int n = 1024 * 1024;
    int size = n * sizeof(float);
    A = (float*)malloc(size);
    B = (float*)malloc(size);
    C = (float*)malloc(size);

    for(int i=0;i<n;i++)
    {
        A[i] = 90.0;
        B[i] = 10.0;
    }

    for(int i=0;i<n;i++)
    {
        C[i] = A[i] + B[i];
    }

    float max_error = 0.0;
    for(int i=0;i<n;i++)
    {
        max_error += fabs(100.0-C[i]);
    }
    cout << "max_error is " << max_error << endl;
    gettimeofday( &end, NULL );
    int timeuse = 1000000 * ( end.tv_sec - start.tv_sec ) + end.tv_usec - start.tv_usec;
    cout << "total time is " << timeuse/1000 << "ms" <<endl;
    return 0;
}

?输出结果

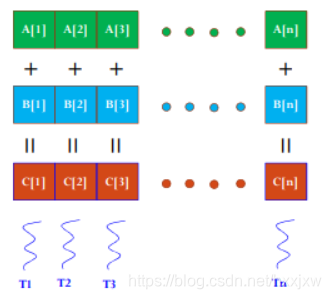

如果我们使用GPU来做并行计算

编程要点：

每个Block中的Thread数最大不超过512；
为了充分利用SM，Block数尽可能多，>100

#include "cuda_runtime.h"
#include <stdlib.h>
#include <iostream>
#include <sys/time.h>

using namespace std;

__global__ void Plus(float A[], float B[], float C[], int n)
{
    int i = blockDim.x * blockIdx.x + threadIdx.x;
    C[i] = A[i] + B[i];
}

int main()
{
    struct timeval start, end;
    gettimeofday( &start, NULL );
    float*A, *Ad, *B, *Bd, *C, *Cd;
    int n = 1024 * 1024;
    int size = n * sizeof(float);

    // CPU端分配内存
    A = (float*)malloc(size);
    B = (float*)malloc(size);
    C = (float*)malloc(size);

    // 初始化数组
    for(int i=0;i<n;i++)
    {
        A[i] = 90.0;
        B[i] = 10.0;
    }

    // GPU端分配内存
    cudaMalloc((void**)&Ad, size);
    cudaMalloc((void**)&Bd, size);
    cudaMalloc((void**)&Cd, size);

    // CPU的数据拷贝到GPU端
    cudaMemcpy(Ad, A, size, cudaMemcpyHostToDevice);
    cudaMemcpy(Bd, B, size, cudaMemcpyHostToDevice);
    cudaMemcpy(Bd, B, size, cudaMemcpyHostToDevice);

    // 定义kernel执行配置，（1024*1024/512）个block，每个block里面有512个线程
    dim3 dimBlock(512);
    dim3 dimGrid(n/512);

    // 执行kernel
    Plus<<<dimGrid, dimBlock>>>(Ad, Bd, Cd, n);

    // 将在GPU端计算好的结果拷贝回CPU端
    cudaMemcpy(C, Cd, size, cudaMemcpyDeviceToHost);

    // 校验误差
    float max_error = 0.0;
    for(int i=0;i<n;i++)
    {
        max_error += fabs(100.0 - C[i]);
    }

    cout << "max error is " << max_error << endl;

    // 释放CPU端、GPU端的内存
    free(A);
    free(B);
    free(C);
    cudaFree(Ad);
    cudaFree(Bd);
    cudaFree(Cd);
    gettimeofday( &end, NULL );
    int timeuse = 1000000 * ( end.tv_sec - start.tv_sec ) + end.tv_usec - start.tv_usec;
    cout << "total time is " << timeuse/1000 << "ms" <<endl;
    return 0;
}

输出结果

由上面的例子看出，使用CUDA编程时我们看不到for循环了，因为CPU编程的循环已经被分散到各个thread上做了，所以我们也就看到不到for一类的语句。从结果上看，CPU的循环计算的速度比GPU计算快多了，原因就在于CUDA中有大量的内存拷贝操作（数据传输花费了大量时间，而计算时间却非常少），如果计算量比较小的话，CPU计算会更合适一些。

2. 矩阵加法

CPU方式

#include <stdlib.h>
#include <iostream>
#include <sys/time.h>
#include <math.h>

#define ROWS 1024
#define COLS 1024

using namespace std;

int main()
{
    struct timeval start, end;
    gettimeofday( &start, NULL );
    int *A, **A_ptr, *B, **B_ptr, *C, **C_ptr;
    int total_size = ROWS*COLS*sizeof(int);
    A = (int*)malloc(total_size);
    B = (int*)malloc(total_size);
    C = (int*)malloc(total_size);
    A_ptr = (int**)malloc(ROWS*sizeof(int*));
    B_ptr = (int**)malloc(ROWS*sizeof(int*));
    C_ptr = (int**)malloc(ROWS*sizeof(int*));

    //CPU一维数组初始化
    for(int i=0;i<ROWS*COLS;i++)
    {
        A[i] = 80;
        B[i] = 20;
    }

    for(int i=0;i<ROWS;i++)
    {
        A_ptr[i] = A + COLS*i;
        B_ptr[i] = B + COLS*i;
        C_ptr[i] = C + COLS*i;
    }

    for(int i=0;i<ROWS;i++)
        for(int j=0;j<COLS;j++)
        {
            C_ptr[i][j] = A_ptr[i][j] + B_ptr[i][j];
        }

    //检查结果
    int max_error = 0;
    for(int i=0;i<ROWS*COLS;i++)
    {
        //cout << C[i] << endl;
        max_error += abs(100-C[i]);
    }

    cout << "max_error is " << max_error <<endl;
    gettimeofday( &end, NULL );
    int timeuse = 1000000 * ( end.tv_sec - start.tv_sec ) + end.tv_usec - start.tv_usec;
    cout << "total time is " << timeuse/1000 << "ms" <<endl;

    return 0;
}

GPU写法

#include "cuda_runtime.h"
#include "device_launch_parameters.h"
#include <sys/time.h>
#include <stdio.h>
#include <math.h>
#define Row  1024
#define Col 1024


__global__ void addKernel(int **C,  int **A, int ** B)
{
    int idx = threadIdx.x + blockDim.x * blockIdx.x;
    int idy = threadIdx.y + blockDim.y * blockIdx.y;
    if (idx < Col && idy < Row) {
        C[idy][idx] = A[idy][idx] + B[idy][idx];
    }
}

int main()
{
    struct timeval start, end;
    gettimeofday( &start, NULL );

    int **A = (int **)malloc(sizeof(int*) * Row);
    int **B = (int **)malloc(sizeof(int*) * Row);
    int **C = (int **)malloc(sizeof(int*) * Row);
    int *dataA = (int *)malloc(sizeof(int) * Row * Col);
    int *dataB = (int *)malloc(sizeof(int) * Row * Col);
    int *dataC = (int *)malloc(sizeof(int) * Row * Col);
    int **d_A;
    int **d_B;
    int **d_C;
    int *d_dataA;
    int *d_dataB;
    int *d_dataC;
    //malloc device memory
    cudaMalloc((void**)&d_A, sizeof(int **) * Row);
    cudaMalloc((void**)&d_B, sizeof(int **) * Row);
    cudaMalloc((void**)&d_C, sizeof(int **) * Row);
    cudaMalloc((void**)&d_dataA, sizeof(int) *Row*Col);
    cudaMalloc((void**)&d_dataB, sizeof(int) *Row*Col);
    cudaMalloc((void**)&d_dataC, sizeof(int) *Row*Col);
    //set value
    for (int i = 0; i < Row*Col; i++) {
        dataA[i] = 90;
        dataB[i] = 10;
    }
    //将主机指针A指向设备数据位置，目的是让设备二级指针能够指向设备数据一级指针
    //A 和  dataA 都传到了设备上，但是二者还没有建立对应关系
    for (int i = 0; i < Row; i++) {
        A[i] = d_dataA + Col * i;
        B[i] = d_dataB + Col * i;
        C[i] = d_dataC + Col * i;
    }

    cudaMemcpy(d_A, A, sizeof(int*) * Row, cudaMemcpyHostToDevice);
    cudaMemcpy(d_B, B, sizeof(int*) * Row, cudaMemcpyHostToDevice);
    cudaMemcpy(d_C, C, sizeof(int*) * Row, cudaMemcpyHostToDevice);
    cudaMemcpy(d_dataA, dataA, sizeof(int) * Row * Col, cudaMemcpyHostToDevice);
    cudaMemcpy(d_dataB, dataB, sizeof(int) * Row * Col, cudaMemcpyHostToDevice);
    dim3 threadPerBlock(16, 16);
    dim3 blockNumber( (Col + threadPerBlock.x - 1)/ threadPerBlock.x, (Row + threadPerBlock.y - 1) / threadPerBlock.y );
    printf("Block(%d,%d)   Grid(%d,%d).\n", threadPerBlock.x, threadPerBlock.y, blockNumber.x, blockNumber.y);
    addKernel << <blockNumber, threadPerBlock >> > (d_C, d_A, d_B);
    //拷贝计算数据-一级数据指针
    cudaMemcpy(dataC, d_dataC, sizeof(int) * Row * Col, cudaMemcpyDeviceToHost);

    int max_error = 0;
    for(int i=0;i<Row*Col;i++)
    {
        //printf("%d\n", dataC[i]);
        max_error += abs(100-dataC[i]);
    }

    //释放内存
    free(A);
    free(B);
    free(C);
    free(dataA);
    free(dataB);
    free(dataC);
    cudaFree(d_A);
    cudaFree(d_B);
    cudaFree(d_C);
    cudaFree(d_dataA);
    cudaFree(d_dataB);
    cudaFree(d_dataC);

    printf("max_error is %d\n", max_error);
    gettimeofday( &end, NULL );
    int timeuse = 1000000 * ( end.tv_sec - start.tv_sec ) + end.tv_usec - start.tv_usec;
    printf("total time is %d ms\n", timeuse/1000);

    return 0;
}

?输出

?从结果看出，CPU计算时间还是比GPU的计算时间短。这里需要指出的是，这种二维数组的程序写法的效率并不高（虽然比较符合我们的思维方式），因为我们做了两次访存操作。所以一般而言，做高性能计算一般不会采取这种编程方式。

3. 矩阵乘法

两矩阵相乘，左矩阵第一行乘以右矩阵第一列（分别相乘，第一个数乘第一个数），乘完之后相加，即为结果的第一行第一列的数，依次往下算，直到计算完所有矩阵元素。

CPU写法

#include <iostream>
#include <stdlib.h>
#include <sys/time.h>

#define ROWS 1024
#define COLS 1024

using namespace std;

void matrix_mul_cpu(float* M, float* N, float* P, int width)
{
    for(int i=0;i<width;i++)
        for(int j=0;j<width;j++)
        {
            float sum = 0.0;
            for(int k=0;k<width;k++)
            {
                float a = M[i*width+k];
                float b = N[k*width+j];
                sum += a*b;
            }
            P[i*width+j] = sum;
        }
}

int main()
{
    struct timeval start, end;
    gettimeofday( &start, NULL );
    float *A, *B, *C;
    int total_size = ROWS*COLS*sizeof(float);
    A = (float*)malloc(total_size);
    B = (float*)malloc(total_size);
    C = (float*)malloc(total_size);

    //CPU一维数组初始化
    for(int i=0;i<ROWS*COLS;i++)
    {
        A[i] = 80.0;
        B[i] = 20.0;
    }

    matrix_mul_cpu(A, B, C, COLS);

    gettimeofday( &end, NULL );
    int timeuse = 1000000 * ( end.tv_sec - start.tv_sec ) + end.tv_usec - start.tv_usec;
    cout << "total time is " << timeuse/1000 << "ms" <<endl;

    return 0;
}

输出

GPU写法

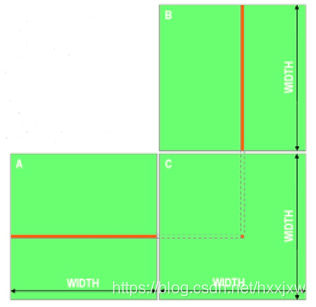

梳理一下CUDA求解矩阵乘法的思路：因为C=A×B，我们利用每个线程求解C矩阵每个(x, y)的元素，每个线程载入A的一行和B的一列，遍历各自行列元素，对A、B对应的元素做一次乘法和一次加法

#include "cuda_runtime.h"
#include "device_launch_parameters.h"
#include <sys/time.h>
#include <stdio.h>
#include <math.h>
#define Row  1024
#define Col 1024


__global__ void matrix_mul_gpu(int *M, int* N, int* P, int width)
{
    int i = threadIdx.x + blockDim.x * blockIdx.x;
    int j = threadIdx.y + blockDim.y * blockIdx.y;

    int sum = 0;
    for(int k=0;k<width;k++)
    {
        int a = M[j*width+k];
        int b = N[k*width+i];
        sum += a*b;
    }
    P[j*width+i] = sum;
}

int main()
{
    struct timeval start, end;
    gettimeofday( &start, NULL );

    int *A = (int *)malloc(sizeof(int) * Row * Col);
    int *B = (int *)malloc(sizeof(int) * Row * Col);
    int *C = (int *)malloc(sizeof(int) * Row * Col);
    //malloc device memory
    int *d_dataA, *d_dataB, *d_dataC;
    cudaMalloc((void**)&d_dataA, sizeof(int) *Row*Col);
    cudaMalloc((void**)&d_dataB, sizeof(int) *Row*Col);
    cudaMalloc((void**)&d_dataC, sizeof(int) *Row*Col);
    //set value
    for (int i = 0; i < Row*Col; i++) {
        A[i] = 90;
        B[i] = 10;
    }

    cudaMemcpy(d_dataA, A, sizeof(int) * Row * Col, cudaMemcpyHostToDevice);
    cudaMemcpy(d_dataB, B, sizeof(int) * Row * Col, cudaMemcpyHostToDevice);
    dim3 threadPerBlock(16, 16);
    dim3 blockNumber((Col+threadPerBlock.x-1)/ threadPerBlock.x, (Row+threadPerBlock.y-1)/ threadPerBlock.y );
    printf("Block(%d,%d)   Grid(%d,%d).\n", threadPerBlock.x, threadPerBlock.y, blockNumber.x, blockNumber.y);
    matrix_mul_gpu << <blockNumber, threadPerBlock >> > (d_dataA, d_dataB, d_dataC, Col);
    //拷贝计算数据-一级数据指针
    cudaMemcpy(C, d_dataC, sizeof(int) * Row * Col, cudaMemcpyDeviceToHost);

    //释放内存
    free(A);
    free(B);
    free(C);
    cudaFree(d_dataA);
    cudaFree(d_dataB);
    cudaFree(d_dataC);

    gettimeofday( &end, NULL );
    int timeuse = 1000000 * ( end.tv_sec - start.tv_sec ) + end.tv_usec - start.tv_usec;
    printf("total time is %d ms\n", timeuse/1000);

    return 0;
}

?输出
