[Python知识库]python3GUI--微博图片爬取工具V1.5（附源码）

鉴于前面python3GUI–微博图片爬取工具（附源码），简单实现了微博大图爬取，简单的界面交互，本次在前篇上进行改进，精简代码量，增加用户搜索接口，展示用户头像，便于精准定位用户，准确爬取用户图片。

一．准备工作

基于Tkinter、requests
Tkinter为内置库，requests为第三方库，需要额外安装一下，具体不多介绍

二．预览

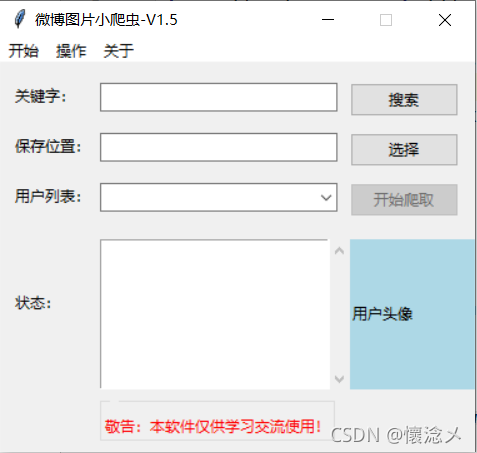

1.启动

去掉了相关图片、图标，界面更加精简。

2.搜索

通过调用微博两个搜索接口，将搜索出来的用户展示在分组框，供用户选择，展示搜索出的第一个用户头像，便于用户确定用户。

3.运行中

4.结果

这里仅拿出一张图片用作结果展示

三．设计流程

1.总体设计

本程序主要操作流程

2.详细设计

Weibo_Crawl_Engine.py主要思路

四．源代码

1.Weibo_Pic_Crawl-GUI-V1.5.py

import io
import os
import threading
from PIL import  ImageTk
from PIL import Image as imim
from tkinter import ttk
from tkinter import *
from tkinter import messagebox
from tkinter.filedialog import *
from tkinter.scrolledtext import ScrolledText
from Weibo_Crawl_Engine import Weibo_Pic_Spider

class App:
    def __init__(self):
        self.root=Tk()
        self.root.title('微博图片小爬虫-V1.5')
        self.root.resizable(0,0)
        width=380
        height=310
        left=(self.root.winfo_screenwidth()-width)/2
        top=(self.root.winfo_screenheight()-height)/2
        self.root.geometry('%dx%d+%d+%d'%(width,height,left,top))
        self.s=Weibo_Pic_Spider()
        self.create_widgets()
        self.set_widgets()
        self.place_widgets()
        self.root.mainloop()

    def create_widgets(self):
        self.label1=ttk.Label(self.root,text='关键字：')
        self.entry_keyword_var=StringVar()
        self.entry_keyword=ttk.Entry(self.root,textvariable=self.entry_keyword_var,justify='center')
        self.btn_search=ttk.Button(self.root,text='搜索',command=self.do_search_users)

        self.label_disk=ttk.Label(self.root,text='保存位置：')
        self.entry_savelocation_var=StringVar()
        self.entry_savelocation=ttk.Entry(self.root,textvariable=self.entry_savelocation_var,justify='center')
        self.check_opendir_var=BooleanVar(value=False)

        self.label_userlist=ttk.Label(self.root,text='用户列表：')
        self.combobox_userlist=ttk.Combobox(self.root,value=[],state='readonly',justify='center')
        self.btn_set_save_dir=ttk.Button(self.root,text='选择',command=self.select_save_dir)

        self.btn_startcrawl=ttk.Button(self.root,text='开始爬取',command=lambda :self.thread_it(self.do_download_pic))

        self.label_state=ttk.Label(self.root,text='状态：')
        self.scrolltext_state=ScrolledText(self.root)

        self.label_show_userimg=ttk.Label(self.root,text='用户头像',justify="center",compound='bottom',background='lightblue',width=20)

        self.lableframe=ttk.Labelframe(self.root,text='')
        self.lable_tip=ttk.Label(self.lableframe,text='敬告：本软件仅供学习交流使用！',foreground='red')

        self.m=Menu(self.root)
        self.root['menu'] = self.m
        self.s1=Menu(self.m,tearoff=False)
        self.s2=Menu(self.m,tearoff=False)
        self.s3=Menu(self.m,tearoff=False)

    def set_widgets(self):
        self.m.add_cascade(menu=self.s1,label='开始')
        self.m.add_cascade(menu=self.s2,label='操作')
        self.m.add_cascade(menu=self.s3,label='关于')
        self.s1.add_command(label='打开文件夹',command=lambda:os.startfile(self.abs_path))
        self.s1.add_separator()
        self.s1.add_command(label='退出',command=self.quit_window)

        self.combobox_userlist.bind("<<ComboboxSelected>>",self.show_user_head)
        self.entry_keyword.bind('<Return>',self.do_search_users)
        self.root.protocol("WM_DELETE_WINDOW",self.quit_window)
        self.open_dir_var=IntVar()
        #这里只能使用checkbutton用于开关
        self.s2.add_command(label='搜索',command=self.do_search_users)
        self.s2.add_command(label='开始爬取',command=lambda :self.thread_it(self.do_download_pic))
        self.s2.add_separator()
        self.s2.add_checkbutton(label='下载完后打开文件夹',variable=self.open_dir_var,command=self.open_dir_after_crawl)
        self.btn_startcrawl.config(state=DISABLED)
        self.s2.entryconfig("开始爬取", state=DISABLED)
        self.s3.add_command(label='关于作者',command=lambda :messagebox.showinfo('作者信息','作者：懷淰メ\nversion:1.5'))


    def place_widgets(self):
        self.label1.place(x=10,y=15)
        self.entry_keyword.place(x=80,y=15,width=190)
        self.btn_search.place(x=280,y=15)

        self.label_disk.place(x=10,y=55)
        self.entry_savelocation.place(x=80,y=55,width=190)
        self.btn_set_save_dir.place(x=280,y=55)

        self.label_userlist.place(x=10,y=95)
        self.combobox_userlist.place(x=80,y=95,width=190)
        self.btn_startcrawl.place(x=280,y=95)

        self.label_show_userimg.place(x=280,y=140,height=120)

        self.label_state.place(x=10,y=180)
        self.scrolltext_state.place(x=80,y=140,width=200,height=120)


        self.lableframe.place(x=80,y=260)
        self.lable_tip.pack(anchor="w",fill=X)

    def show_user_head(self,*args):
        current_index=self.combobox_userlist.current()
        paned_img=PanedWindow(self.label_show_userimg)
        head_img=self.search_result[current_index]['user_head_img'].split('?')[0]
        image_bytes=self.s.get_img_bytes(head_img)
        data_stream = io.BytesIO(image_bytes)
        pil_image = imim.open(data_stream)
        photo = pil_image.resize((95, 90))
        paned_img.image=ImageTk.PhotoImage(photo)
        self.label_show_userimg.config(image=paned_img.image,compound='bottom')

    def do_search_users(self,*args):
        key_word=self.entry_keyword_var.get().strip()
        if key_word !='':
            self.search_result=self.s.get_users(key_word)
            if self.search_result:
                user_names=[user_['user_name'] for user_ in self.search_result]
                self.combobox_userlist.config(value=user_names)
                self.btn_startcrawl.config(state=NORMAL)
                self.s2.entryconfig("开始爬取", state=NORMAL)
                self.combobox_userlist.current(0)
                self.show_user_head()
            else:
                messagebox.showinfo('提示',f'很抱歉，没有检索到关于[{key_word}]的用户！')
        else:
            messagebox.showwarning('警告','关键字不能为空！')

    def do_download_pic(self):
        try:
            if self.entry_savelocation_var.get()!='':
                current_item=self.search_result[self.combobox_userlist.current()]
                user_id=current_item['user_id']
                user_name=current_item['user_name']
                self.s.set_start_url(user_id)
                abs_path=self.entry_savelocation_var.get()+f'/{user_name}'
                self.abs_path=abs_path
                self.s.do_make_dirs(abs_path)
                for pic in self.s.get_pics_url():
                    file_name = pic.split('/')[-1]
                    self.s.do_download_pic(pic,file_name,abs_path)
                    self.insert_into_scrolltext(f"{file_name}下载完成...")
                else:
                    self.btn_startcrawl.config(state=NORMAL)
                    self.s2.entryconfig("开始爬取", state=NORMAL)
                    if self.open_dir_flag:
                        os.startfile(self.abs_path)
            else:
                messagebox.showwarning('警告', '请选择图片保存路径！')
                self.select_save_dir()
        except AttributeError :
            messagebox.showwarning('警告','请先搜索！')

    def select_save_dir(self):
        while True:
            save_dir=askdirectory(title = "选择一个图片保存目录", initialdir='./', mustexist = True)
            if save_dir:
                self.entry_savelocation_var.set(save_dir)
                break
            else:
                messagebox.showwarning('警告','请选择图片保存的文件夹！')


    def open_dir_after_crawl(self):
        #图片爬取结束后，打开文件夹
        if self.open_dir_var.get()==1:
            self.open_dir_flag=True
        else:
            pass

    def insert_into_scrolltext(self,line):
        self.scrolltext_state.insert(END,line+'\n')
        self.scrolltext_state.yview_moveto(1)

    def quit_window(self,*args):
        ret=messagebox.askyesno('退出','确定要退出？')
        if ret :
            self.root.destroy()
        else:
            pass

    def thread_it(self,func,*args):
        t=threading.Thread(target=func,args=args)
        t.setDaemon(True)
        t.start()

if __name__ == '__main__':
    a=App()

2.Weibo_Crawl_Engine.py

#coding:utf-8
import threading
import requests
import json
import random
import os
from urllib.parse import quote
from lxml import etree
import urllib3
urllib3.disable_warnings()

class Weibo_Pic_Spider:
    def __init__(self):
        self.search_api1='https://m.weibo.cn/api/container/getIndex?containerid=100103type%3D3%26q%3D{}%26t%3D0'    #微博移动端API搜索
        self.search_api2='https://s.weibo.com/user?q={}&Refer=weibo_user'   #静态网页搜索
        self.header1 = {'User-Agent': self.get_ua()}
        self.user_list=[]

    def get_user_list1(self,key_word):
        full_url1=self.search_api1.format(key_word)
        header1={'User-Agent': self.get_ua()}
        r=requests.get(full_url1,headers=header1)
        if r.status_code==200:
            _json=json.loads(r.text)
            users = _json['data']['cards'][1].get('card_group')
            for user_ in users:
                item={}
                user_info = user_.get('user')
                item['user_name'] = user_info.get('screen_name')
                item['user_id'] = user_info.get('id')
                item['user_head_img']=user_info.get('profile_image_url')
                self.user_list.append(item)
    #解析出图片地址
    def get_user_list2(self,key_word):
        current_username=[user["user_name"] for user in self.user_list]
        full_url2=self.search_api2.format(quote(key_word))
        self.header2={
            'Host': 's.weibo.com',
            'Referer':full_url2,
            'User-Agent': self.get_ua(),

        }
        r = requests.get(full_url2, headers=self.header2)
        if r.status_code == 200:
            res=etree.HTML(r.text)
            selector=res.xpath('//div[@id="pl_user_feedList"]/div')
            for data in selector:
                item={}
                user_name=''.join(data.xpath('.//div/a[1]//text()'))
                if user_name in current_username:
                    #根据API1获取的用户在这里不给予显示
                    continue
                item['user_name']=user_name
                item['user_id']=''.join(data.xpath('./div[@class="info"]/div/a[@uid]/@uid'))
                item['user_head_img']=''.join(data.xpath('.//div[@class="avator"]/a/img/@src'))
                self.user_list.append(item)

    def get_users(self,key_word):
        """
        通过API1和API2获取检索的用户信息
        :param key_word:
        :return:
        """
        self.get_user_list2(key_word)
        self.get_user_list2(key_word)
        if len(self.user_list)!=0:
            # print(self.user_list)
            return self.user_list
        else:
            return False

    def set_start_url(self,user_id):
        container_id = '107603' + str(user_id)
        start_url = f'https://m.weibo.cn/api/container/getIndex?containerid={container_id}'
        self.start_url=start_url

    def get_pics_url(self):
        i = 1
        while True:
            url = self.start_url + '&page={}'.format(i)
            header1 = {'User-Agent': self.get_ua()}
            r = requests.get(url, headers=header1)
            _json = json.loads(r.text)
            items = _json["data"]["cards"]
            flag = _json['ok']
            if flag == 1 :
                for v in items:
                    picslist = v.get('mblog')
                    if picslist is not None:
                        img_urls = picslist.get('pics')
                        if img_urls != None:
                            for img_url_ in img_urls:
                                img_url = img_url_['large']['url']
                                yield img_url
            else:
                break
            i += 1

    def get_ua(self):
        first_num = random.randint(55, 62)
        third_num = random.randint(0, 3200)
        fourth_num = random.randint(0, 140)
        os_type = [
            '(Windows NT 6.1; WOW64)', '(Windows NT 10.0; WOW64)', '(X11; Linux x86_64)',
            '(Macintosh; Intel Mac OS X 10_12_6)'
        ]
        chrome_version = 'Chrome/{}.0.{}.{}'.format(first_num, third_num, fourth_num)

        ua = ' '.join(['Mozilla/5.0', random.choice(os_type), 'AppleWebKit/537.36',
                       '(KHTML, like Gecko)', chrome_version, 'Safari/537.36']
                      )
        return ua

    def do_make_dirs(self,dir_path):
        try:
            os.makedirs(dir_path)
        except:
            pass

    def do_download_pic(self,pic_url,file_name,base_dir):
        header1 = {
            'sec-fetch-dest': 'document',
            'user-agent': 'Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/91.0.4472.124 Safari/537.36',
            'sec-ch-ua': '" Not;A Brand";v="99", "Google Chrome";v="91", "Chromium";v="91"'
        }
        r = requests.get(pic_url, headers=header1,verify=False )
        with open(base_dir+'/'+file_name, 'wb')as f:
            f.write(r.content)


    def get_img_bytes(self,img_url):
        r=requests.get(img_url,headers=self.header1)
        if r.status_code==200:
            r.encoding="utf-8"
            pic_bytes=r.content
            return pic_bytes

if __name__ == '__main__':
    s=Weibo_Pic_Spider()
    s.set_start_url('1828704871')
    for pic in s.get_pics_url():
        print(pic)

五．总结说明

本次在原版（V1.0版本）进行升级改进，仍旧实现微博图片高清原图的解析下载，但是相比之前版本主要提升在于：

1.去除无用功能，精简代码
2.将GUI于爬虫分离开来，解耦
3.在用户检索上，加入了网页版用户搜索API，增加了可被检索的用户数量
4.选择要用户后，会显示指定头像
5.优化程序运行输出逻辑

程序打包好放在了蓝奏云，思路、代码方面有什么不足欢迎各位大佬指正、批评！
