python之flask框架：
flask图标
简介
Flask是一个轻量级的基于Python的web框架。
Flask是一个轻量级的可定制框架，使用Python语言编写，较其他同类型框架更为灵活、轻便、安全且容易上手。它可以很好地结合MVC模式进行开发，开发人员分工合作，小型团队在短时间内就可以完成功能丰富的中小型网站或Web服务的实现。另外，Flask还有很强的定制性，用户可以根据自己的需求来添加相应的功能，在保持核心功能简单的同时实现功能的丰富与扩展，其强大的插件库可以让用户实现个性化的网站定制，开发出功能强大的网站。
优势
一、后续的基于机器学习的车辆检测与属性识别算法研究，主要开发语言也是应用Python，整个系统统一开发语言，便于开发和后期维护。
二、Flask因为灵活、轻便且高效的特点被业界认可，同时拥有基于Werkzeug、Jinja2等一些开源库，拥有内置服务器和单元测试，适配RESTful，支持安全的cookies，而且官方文档完整，便于学习掌握。
三、Flask中拥有灵活的Jinja2模板引擎，提高了前端代码的复用率。这样可以提高开发效率和有利于后期开发与维护。在现有标准中，Flask算是微小型框架。Flask有两个主要依赖：路由、调试和Web服务器网关接口（WebServerGatewayInterface，WSGI）子系统由Werkzeug提供；模板系统由Jinja2提供。Werkzeug和Jinja2都是由Flask的核心开发者开发而成。对于数据库访问、验证Web表单和用户身份认证等一系列功能，Flask框架是不支持的。这些功能都是以扩展组件的方式进行实现，然后再与Flask框架集成。开发者可以根据项目的需求进行相应的扩展，或者自行开发。这与大型框架恰恰相反，大型框架本身做出了大部分决定，难以灵活改变方案。
其他框架
Django的主要目的是简便、快速的开发数据库驱动的网站。它强调代码复用，多个组件可以很方便的以“插件”形式服务于整个框架，Django有许多功能强大的第三方插件，你甚至可以很方便的开发出自己的工具包。这使得Django具有很强的可扩展性。它还强调快速开发和DRY(Do Not Repeat Yourself)原则。

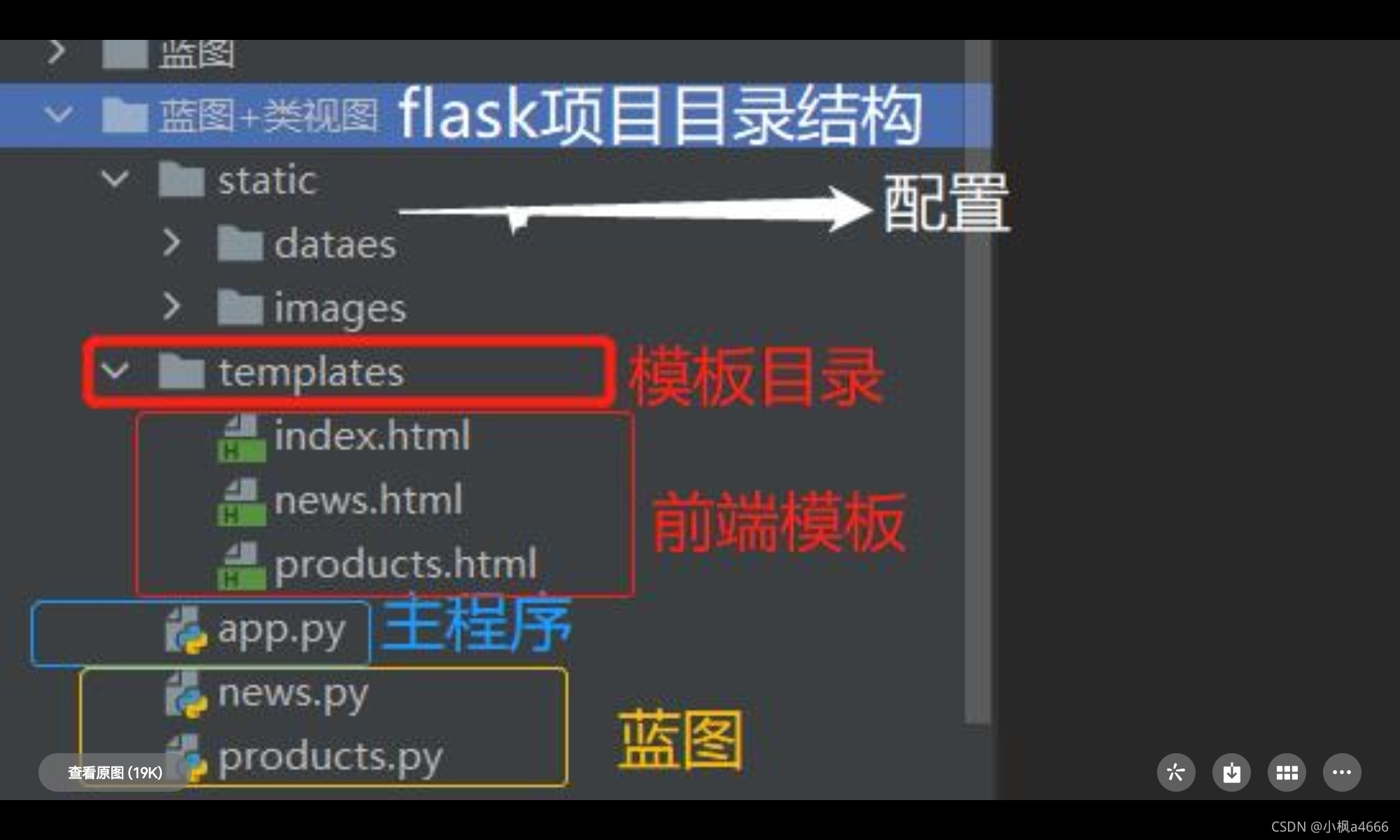

框架目录结构
默认配置
static和templates目录是默认配置，其中static用来存放静态资源，例如图片、js、css文件等。templates存放模板文件。
我们的网站逻辑基本在server.py文件中，当然，也可以给这个文件起其他的名字。
flask的目录包括以上这种框架，所谓static里就是放数据和渲染的文件，比如.csv，.txt，.css，.js，数据以及图片和视频。
templates，模板，就是HTML模板，放置HTML的地方。
app.py:flask运行的主程序
其他.py 蓝图，就是具备app.py的后端程序功能，但不是主程序，叫做蓝图
----app.py----
from flask import Flask, render_template
import news as news, products as products # 导入相应模块
app = Flask(__name__) # 创建 Flask()对象： app
@app.route('/') # 使用了蓝图，app.route() 这种模式就仍可以使用，注意路由重复的问题
def hello_world(): # 定义函数
return render_template('index.html')
app.register_blueprint(news.new_list) # 将news模块里的蓝图对象new_list注册到app
app.register_blueprint(products.product_list) # 将products模块里的蓝图对象product_list注册到app
if __name__ == '__main__':
app.run(host='127.0.0.1',port=8082, debug=True) # 调试模式开 启动服务器 运行在默认的5000端口
-----蓝图------
- news(新闻界面蓝图)
from flask import Blueprint # 导入Blueprint模块
from flask import Flask, render_template, request # 导入相应模块
new_list = Blueprint('news', __name__) # 创建一个blueprint对象。第一个参数可看做该blueprint对象的姓名
# 在一个app里，姓名不能与其余的Blueprint对象姓名重复
# 第二个参数__name__用作初始化
@new_list.route("/login", methods=['GET', 'POST']) # 将蓝图对象当做‘app’那样使用
# def new(): # 定义函数news()
#
def login(): # 定义视图函数
k = int(request.form.get('name'))
b = int(request.form.get('password'))
from pyecharts.charts import Line
import pyecharts.options as opts
import numpy as np
x = np.linspace(0, 2 * np.pi, 100)
y = k*x + b
(Line(init_opts=opts.InitOpts(width="700px", height="300px"))
.add_xaxis(xaxis_data=x)
.add_yaxis(series_name="绘制线图", y_axis=y, label_opts=opts.LabelOpts(is_show=False))
.set_global_opts(
title_opts=opts.TitleOpts(title="我是标题", subtitle="我是副标题", title_link="https://www.baidu.com/"),
tooltip_opts=opts.TooltipOpts(axis_pointer_type="cross"))
).render('templates/news.html')
return render_template('news.html',**locals())
-----蓝图------

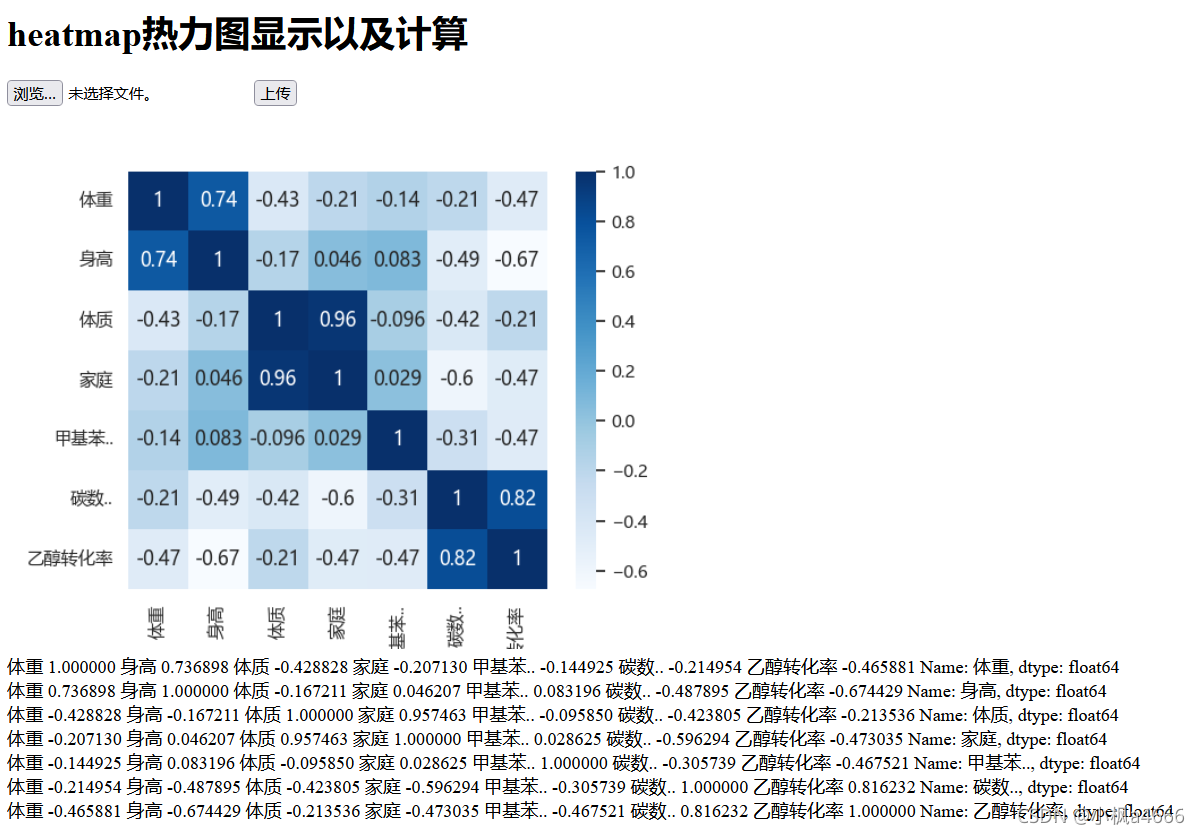

2. products(产品蓝图)
from flask import Blueprint # 导入Blueprint模块
from flask import Flask,render_template,request,redirect,url_for
from werkzeug.utils import secure_filename
import os
product_list = Blueprint('products', __name__) # 创建一个blueprint对象。第一个参数可看做该blueprint对象的名字
# 在一个app里，对象名不能与其余的Blueprint对象名重复
# 第二个参数__name__用作初始化
@product_list.route("/products", methods=['POST', 'GET']) # 将蓝图对象当做‘app’那样使用
def product():
if request.method == 'POST':
f = request.files['file']
basepath = os.path.dirname(__file__) # 当前文件所在路径
upload_path = os.path.join(basepath, 'static/dataes',secure_filename(f.filename)) #注意：没有的文件夹一定要先创建，不然会提示没有该路径
f.save(upload_path)
import pandas as pd
import matplotlib.pyplot as plt
import seaborn as sns
plt.switch_backend('agg')
sns.set(style='whitegrid', context='notebook') # style控制默认样式,context控制着默认的画幅大小
plt.rcParams['font.sans-serif'] = ['Microsoft YaHei']
df = pd.read_csv('static/dataes/kaggle.csv') # 指你要用哪些列的数据
df_corr=df.corr()
sns.heatmap(df.corr(), annot=True, vmax=1, square=True, cmap="Blues")
plt.savefig('static/images/heatmap.png')
return render_template('products.html',**locals())
—templates(模板)—

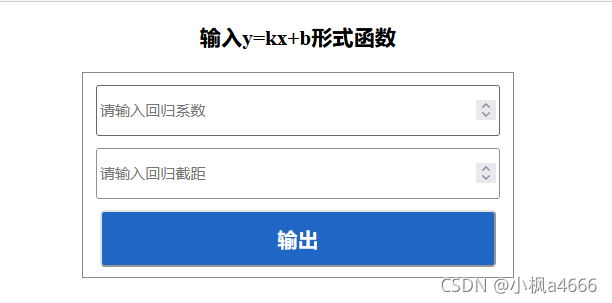

index.html
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8"><!--指定网页编码-->
<title>Title</title><!--指定网页标题-->
<style type="text/css">
.div1 {
height:180px;
width:380px;
border:1px solid #8A8989;
margin:0 auto;
}
.input{
display: block;
width: 350px;
height: 40px;
margin: 10px auto;
}
.button
{
background: #2066C5;
color: white;
font-size: 18px;
font-weight: bold;
height: 50px;
border-radius: 4px;
}
</style>
</head><!--head区域完毕-->
<body><!--body区域开始-->
<h3 style="text-align:center">输入y=kx+b形式函数</h3>
<div class="div1"><form action="login" method = "post"><!--定义表单开始-->
<input type="number" class="input" name="name" placeholder="请输入回归系数"><!--输入文本框-->
<input type="number" class="input" name="password" placeholder="请输入回归截距"><!--输入文本框-->
<input type="submit" value="输出" class="input button" ><!--定义登陆用button-->
</form></div> <!--form表单结束-->
</body><!--body区域完毕-->
</html>

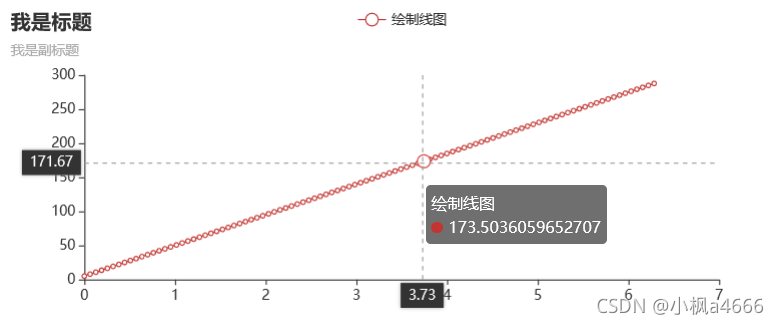

news.html
<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8">
<title>Awesome-pyecharts</title>
<script type="text/javascript" src="https://assets.pyecharts.org/assets/echarts.min.js"></script>
</head>
<body>
<div id="843fff3599974719a844a2289e4b73ff" class="chart-container" style="width:700px; height:300px;"></div>
<script>
var chart_843fff3599974719a844a2289e4b73ff = echarts.init(
document.getElementById('843fff3599974719a844a2289e4b73ff'), 'white', {renderer: 'canvas'});
var option_843fff3599974719a844a2289e4b73ff = {
"animation": true,
"animationThreshold": 2000,
"animationDuration": 1000,
"animationEasing": "cubicOut",
"animationDelay": 0,
"animationDurationUpdate": 300,
"animationEasingUpdate": "cubicOut",
"animationDelayUpdate": 0,
"color": [
"#c23531",
"#2f4554",
"#61a0a8",
"#d48265",
"#749f83",
"#ca8622",
"#bda29a",
"#6e7074",
"#546570",
"#c4ccd3",
"#f05b72",
"#ef5b9c",
"#f47920",
"#905a3d",
"#fab27b",
"#2a5caa",
"#444693",
"#726930",
"#b2d235",
"#6d8346",
"#ac6767",
"#1d953f",
"#6950a1",
"#918597"
],
"series": [
{
"type": "line",
"name": "\u7ed8\u5236\u7ebf\u56fe",
"connectNulls": false,
"symbolSize": 4,
"showSymbol": true,
"smooth": false,
"clip": true,
"step": false,
"data": [
[
0.0,
65.0
],
[
0.06346651825433926,
65.3173325912717
],
[
0.12693303650867852,
65.63466518254339
],
[
0.1903995547630178,
65.9519977738151
],
[
0.25386607301735703,
66.26933036508679
],
[
0.3173325912716963,
66.58666295635848
],
[
0.3807991095260356,
66.90399554763017
],
[
0.4442656277803748,
67.22132813890187
],
[
0.5077321460347141,
67.53866073017358
],
[
0.5711986642890533,
67.85599332144527
],
[
0.6346651825433925,
68.17332591271696
],
[
0.6981317007977318,
68.49065850398866
],
[
0.7615982190520711,
68.80799109526035
],
[
0.8250647373064104,
69.12532368653206
],
[
0.8885312555607496,
69.44265627780375
],
[
0.9519977738150889,
69.75998886907544
],
[
1.0154642920694281,
70.07732146034714
],
[
1.0789308103237674,
70.39465405161883
],
[
1.1423973285781066,
70.71198664289054
],
[
1.2058638468324459,
71.02931923416223
],
[
1.269330365086785,
71.34665182543392
],
[
1.3327968833411243,
71.66398441670562
],
[
1.3962634015954636,
71.98131700797732
],
[
1.4597299198498028,
72.29864959924902
],
[
1.5231964381041423,
72.61598219052071
],
[
1.5866629563584815,
72.9333147817924
],
[
1.6501294746128208,
73.25064737306411
],
[
1.71359599286716,
73.5679799643358
],
[
1.7770625111214993,
73.8853125556075
],
[
1.8405290293758385,
74.20264514687919
],
[
1.9039955476301778,
74.51997773815089
],
[
1.967462065884517,
74.83731032942259
],
[
2.0309285841388562,
75.15464292069429
],
[
2.0943951023931957,
75.47197551196598
],
[
2.1578616206475347,
75.78930810323767
],
[
2.221328138901874,
76.10664069450937
],
[
2.284794657156213,
76.42397328578107
],
[
2.3482611754105527,
76.74130587705277
],
[
2.4117276936648917,
77.05863846832446
],
[
2.475194211919231,
77.37597105959615
],
[
2.53866073017357,
77.69330365086785
],
[
2.6021272484279097,
78.01063624213955
],
[
2.6655937666822487,
78.32796883341125
],
[
2.729060284936588,
78.64530142468294
],
[
2.792526803190927,
78.96263401595463
],
[
2.8559933214452666,
79.27996660722633
],
[
2.9194598396996057,
79.59729919849804
],
[
2.982926357953945,
79.91463178976973
],
[
3.0463928762082846,
80.23196438104142
],
[
3.1098593944626236,
80.54929697231312
],
[
3.173325912716963,
80.86662956358481
],
[
3.236792430971302,
81.18396215485652
],
[
3.3002589492256416,
81.50129474612821
],
[
3.3637254674799806,
81.8186273373999
],
[
3.42719198573432,
82.1359599286716
],
[
3.490658503988659,
82.45329251994329
],
[
3.5541250222429985,
82.770625111215
],
[
3.6175915404973376,
83.08795770248669
],
[
3.681058058751677,
83.40529029375838
],
[
3.744524577006016,
83.72262288503008
],
[
3.8079910952603555,
84.03995547630177
],
[
3.8714576135146945,
84.35728806757348
],
[
3.934924131769034,
84.67462065884517
],
[
3.998390650023373,
84.99195325011686
],
[
4.0618571682777125,
85.30928584138856
],
[
4.1253236865320515,
85.62661843266025
],
[
4.188790204786391,
85.94395102393196
],
[
4.25225672304073,
86.26128361520365
],
[
4.3157232412950695,
86.57861620647535
],
[
4.3791897595494085,
86.89594879774704
],
[
4.442656277803748,
87.21328138901875
],
[
4.506122796058087,
87.53061398029044
],
[
4.569589314312426,
87.84794657156213
],
[
4.6330558325667655,
88.16527916283383
],
[
4.696522350821105,
88.48261175410553
],
[
4.759988869075444,
88.79994434537721
],
[
4.823455387329783,
89.11727693664892
],
[
4.886921905584122,
89.43460952792061
],
[
4.950388423838462,
89.75194211919231
],
[
5.013854942092801,
90.06927471046401
],
[
5.07732146034714,
90.3866073017357
],
[
5.14078797860148,
90.7039398930074
],
[
5.204254496855819,
91.0212724842791
],
[
5.267721015110158,
91.33860507555079
],
[
5.331187533364497,
91.6559376668225
],
[
5.394654051618837,
91.97327025809419
],
[
5.458120569873176,
92.29060284936588
],
[
5.521587088127515,
92.60793544063758
],
[
5.585053606381854,
92.92526803190927
],
[
5.648520124636194,
93.24260062318098
],
[
5.711986642890533,
93.55993321445267
],
[
5.775453161144872,
93.87726580572436
],
[
5.838919679399211,
94.19459839699606
],
[
5.902386197653551,
94.51193098826775
],
[
5.96585271590789,
94.82926357953946
],
[
6.029319234162229,
95.14659617081115
],
[
6.092785752416569,
95.46392876208284
],
[
6.156252270670908,
95.78126135335454
],
[
6.219718788925247,
96.09859394462623
],
[
6.283185307179586,
96.41592653589794
]
],
"hoverAnimation": true,
"label": {
"show": false,
"position": "top",
"margin": 8
},
"lineStyle": {
"show": true,
"width": 1,
"opacity": 1,
"curveness": 0,
"type": "solid"
},
"areaStyle": {
"opacity": 0
},
"zlevel": 0,
"z": 0
}
],
"legend": [
{
"data": [
"\u7ed8\u5236\u7ebf\u56fe"
],
"selected": {
"\u7ed8\u5236\u7ebf\u56fe": true
},
"show": true,
"padding": 5,
"itemGap": 10,
"itemWidth": 25,
"itemHeight": 14
}
],
"tooltip": {
"show": true,
"trigger": "item",
"triggerOn": "mousemove|click",
"axisPointer": {
"type": "cross"
},
"showContent": true,
"alwaysShowContent": false,
"showDelay": 0,
"hideDelay": 100,
"textStyle": {
"fontSize": 14
},
"borderWidth": 0,
"padding": 5
},
"xAxis": [
{
"show": true,
"scale": false,
"nameLocation": "end",
"nameGap": 15,
"gridIndex": 0,
"inverse": false,
"offset": 0,
"splitNumber": 5,
"minInterval": 0,
"splitLine": {
"show": false,
"lineStyle": {
"show": true,
"width": 1,
"opacity": 1,
"curveness": 0,
"type": "solid"
}
},
"data": null
}
],
"yAxis": [
{
"show": true,
"scale": false,
"nameLocation": "end",
"nameGap": 15,
"gridIndex": 0,
"inverse": false,
"offset": 0,
"splitNumber": 5,
"minInterval": 0,
"splitLine": {
"show": false,
"lineStyle": {
"show": true,
"width": 1,
"opacity": 1,
"curveness": 0,
"type": "solid"
}
}
}
],
"title": [
{
"text": "\u6211\u662f\u6807\u9898",
"link": "https://www.baidu.com/",
"subtext": "\u6211\u662f\u526f\u6807\u9898",
"padding": 5,
"itemGap": 10
}
]
};
chart_843fff3599974719a844a2289e4b73ff.setOption(option_843fff3599974719a844a2289e4b73ff);
</script>
</body>
</html>
products.html
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<title>Title</title>
</head>
<body>
<h1>heatmap热力图显示以及计算</h1>
<form action="" enctype='multipart/form-data' method='POST'>
<input type="file" name="file">
<input type="submit" value="上传">
</form>
<img src="static/images/heatmap.png">
<br>
{% for k,v in df_corr.items() %}
{{ v}}<br>
{% endfor %}
</body>
</html>
效果展示
