[Python知识库]python爬虫，爬取遥感影像瓦片并自动拼接

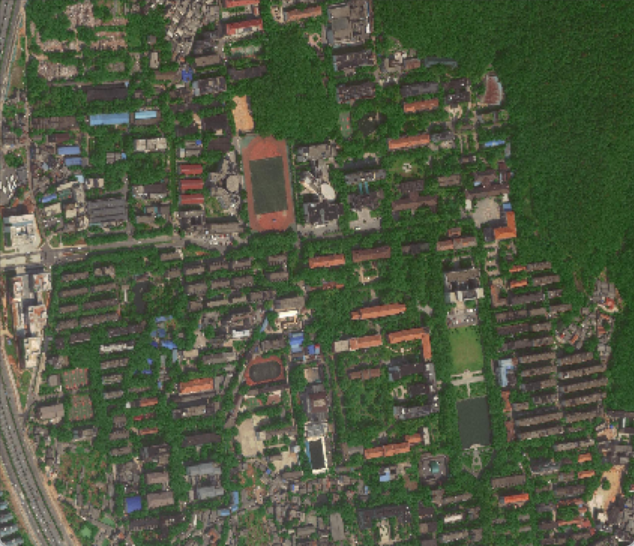

效果：

实现思路：

首先根据经纬度范围确定能够下载的瓦片最高等级（影像最大分辨率），然后下载瓦片，将瓦片按照顺序拼接起来?

?源代码：

urllib3 == 1.26.7

requests == 2.26.0

numpy == 1.21.4

Pillow == 8.4.0

opencv-python == 4.5.4.58

# -*- coding: utf-8 -*-
"""
Created on Thu Apr 29 16:41:43 2021

@author: yangzhen
2021.4.29
"""


from urllib import request
import re
import urllib.request
import random
import math
import os
import numpy as np
import io
import PIL.Image as pil
import cv2


def deg2num(lat_deg, lon_deg, zoom):
    """经纬度反算切片行列号 3857坐标系"""
    lat_rad = math.radians(lat_deg)
    n = 2.0 ** zoom
    xtile = int((lon_deg + 180.0) / 360.0 * n)
    ytile = int((1.0 - math.log(math.tan(lat_rad) + (1 / math.cos(lat_rad))) / math.pi) / 2.0 * n)
    return (xtile, ytile)


def getimg(Tpath, x, y):
    """下载瓦片"""
    # 简单的反爬虫
    agents = [
    'Mozilla/5.0 (Windows NT 6.1; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/60.0.3112.101 Safari/537.36',
    'Mozilla/5.0 (Windows; U; Windows NT 6.1; en-US) AppleWebKit/532.5 (KHTML, like Gecko) Chrome/4.0.249.0 Safari/532.5',
    'Mozilla/5.0 (Windows; U; Windows NT 5.2; en-US) AppleWebKit/532.9 (KHTML, like Gecko) Chrome/5.0.310.0 Safari/532.9',
    'Mozilla/5.0 (Windows; U; Windows NT 5.1; en-US) AppleWebKit/534.7 (KHTML, like Gecko) Chrome/7.0.514.0 Safari/534.7',
    'Mozilla/5.0 (Windows; U; Windows NT 6.0; en-US) AppleWebKit/534.14 (KHTML, like Gecko) Chrome/9.0.601.0 Safari/534.14',
    'Mozilla/5.0 (Windows; U; Windows NT 6.1; en-US) AppleWebKit/534.14 (KHTML, like Gecko) Chrome/10.0.601.0 Safari/534.14',
    'Mozilla/5.0 (Windows; U; Windows NT 6.1; en-US) AppleWebKit/534.20 (KHTML, like Gecko) Chrome/11.0.672.2 Safari/534.20", "Mozilla/5.0 (Windows NT 6.1; WOW64) AppleWebKit/534.27 (KHTML, like Gecko) Chrome/12.0.712.0 Safari/534.27',
    'Mozilla/5.0 (Windows NT 6.1; WOW64) AppleWebKit/535.1 (KHTML, like Gecko) Chrome/13.0.782.24 Safari/535.1']
    try:
        print(str(x) + '_' + str(y) + '下载成功')
        req = urllib.request.Request(Tpath)
        req.add_header('User-Agent', random.choice(agents))  # 换用随机的请求头
        pic = urllib.request.urlopen(req, timeout=60)
        timg = pic.read()
        outimg = pil.new('RGBA', (256, 256))
        outimgfile = io.BytesIO(timg)
        img = pil.open(outimgfile)
        img = cv2.cvtColor(np.asarray(img), cv2.COLOR_RGB2BGR)
    except Exception:
        print(str(x) + '_' + str(y) + '下载失败,重试')
        getimg(Tpath, x, y)
    return img

def GetMapTile(lat1, lon1, lat2, lon2):
    """根据经纬度范围获取背景"""
    zooms = []
    for i in range(1, 19):
        l = deg2num(lat1, lon1, i)
        r = deg2num(lat2, lon2, i)
        if l[0] - r[0] == 0 or l[1] - r[1] == 0:
            continue
        else:
            zooms.append(i)
    # 根据有瓦片数据的地方下载瓦片
    zoom = zooms[-1]
    # 根据经纬度确定瓦片位置
    lefttop = deg2num(lat1, lon1, zoom)
    rightbottom = deg2num(lat2, lon2, zoom)
    # 一边下载一边拼接
    imgcolumns = []
    imglist_all = []
    for x in range(lefttop[0], rightbottom[0]):
        imgrows = []
        imglist_row = []
        for y in range(lefttop[1], rightbottom[1]):
            #Google地图瓦片
            # tilepath = 'http://www.google.cn/maps/vt/pb=!1m4!1m3!1i'+str(zoom)+'!2i'+str(x)+'!3i'+str(y)+'!2m3!1e0!2sm!3i345013117!3m8!2szh-CN!3scn!5e1105!12m4!1e68!2m2!1sset!2sRoadmap!4e0'
            #Google影像瓦片
            # tilepath = 'http://mt3.google.cn/vt/lyrs=s@110&hl=zh-CN&gl=cn&src=app&x='+str(x)+'&y='+str(y)+'&z='+str(zoom)+'&s=G'
            #天地图-地图
            #tilepath = 'http://t4.tianditu.com/DataServer?T=vec_w&x='+str(x)+'&y='+str(y)+'&l='+str(zoom)+'&tk=45c78b2bc2ecfa2b35a3e4e454ada5ce'
            #天地图-标注
            #tilepath = 'http://t3.tianditu.com/DataServer?T=cva_w&x='+str(x)+'&y='+str(y)+'&l='+str(zoom)+'&tk=45c78b2bc2ecfa2b35a3e4e454ada5ce'
            #天地图-影像
            # tilepath = 'http://t2.tianditu.gov.cn/DataServer?T=img_w&x='+str(x)+'&y='+str(y)+'&l='+str(zoom)+'&tk=2ce94f67e58faa24beb7cb8a09780552'
            #天地图-影像标注
            # tilepath = 'http://t2.tianditu.gov.cn/DataServer?T=cia_w&x='+str(x)+'&y='+str(y)+'&l='+str(zoom)+'&tk=2ce94f67e58faa24beb7cb8a09780552'
            #高德地图影像瓦片
            tilepath = "http://wprd01.is.autonavi.com/appmaptile?lang=zh_cn&size=1&scl=1&style=6&x=" + \
                        str(x) + "&y=" + str(y) + "&z=" + str(zoom) + "&ltype=3"
            img = getimg(tilepath, x, y)
            imgrows.append(img)
        imgcolumn = np.vstack(imgrows)
        imgcolumns.append(imgcolumn)
    finalimg = np.hstack(imgcolumns)
    return finalimg


if __name__ == '__main__':
    img = GetMapTile(28.173161534026335,112.92222966168211,28.164762736523976,112.9360054871826)
    cv2.namedWindow('test', 0)
    cv2.imshow('test', img)
    cv2.waitKey()

?
