[Python知识库]python数据可视化06

1，隐藏全部脊轴

import numpy as np
import matplotlib.pyplot as plt
import matplotlib.patches as mpathes
polygon = mpathes.RegularPolygon((0.5,0.5),6,0.2,color='g')
ax = plt.axes((0.3,0.3,0.5,0.5))
ax.add_patch(polygon)
ax.axis('off')
plt.title(2020080603049)
plt.show()

2，隐藏部分脊轴

import numpy as np
import matplotlib.pyplot as plt
import matplotlib.patches as mpathes
xy = np.array([0.5,0.5])
polygon = mpathes.RegularPolygon(xy,5,0.2,color='y')
ax = plt.axes((0.3,0.3,0.5,0.5))
ax.add_patch(polygon)
ax.spines['top'].set_color('none')
ax.spines['left'].set_color('none')
ax.spines['right'].set_color('none')
plt.title(2020080603049)
plt.show()

3，隐藏刻度标签和刻度线

import numpy as np
import matplotlib.pyplot as plt
import matplotlib.patches as mpathes
xy = np.array([0.5,0.5])
polygon = mpathes.RegularPolygon(xy,5,0.2,color='y')
ax = plt.axes((0.3,0.3,0.5,0.5))
ax.add_patch(polygon)
ax.spines['top'].set_color('none')
ax.spines['left'].set_color('none')
ax.spines['right'].set_color('none')
ax.yaxis.set_ticks_position('none')
ax.set_yticklabels([])
plt.title(2020080603049)
plt.show()

4，平均风速（隐藏部分脊轴）

import numpy as np
from datetime import datetime
import matplotlib.pyplot as plt
from matplotlib.dates import DateFormatter, HourLocator
plt.rcParams["font.sans-serif"] = ["SimHei"]
plt.rcParams["axes.unicode_minus"] = False
dates = ['201910240','2019102402','2019102404','2019102406',
         '2019102408','2019102410','2019102412', '2019102414',
         '2019102416','2019102418','2019102420','2019102422','201910250' ]
x_date = [datetime.strptime(d, '%Y%m%d%H') for d in dates]
y_data = np.array([7, 9, 11, 14, 8, 15, 22, 11, 10, 11, 11, 13,  8])
fig = plt.figure()
ax = fig.add_axes((0.0, 0.0, 1.0, 1.0))
ax.plot(x_date, y_data, '->', ms=8, mfc='#FF9900')
ax.set_title('深圳市24小时的平均风速2020080603049')
ax.set_xlabel('时间（h）')
ax.set_ylabel('平均风速(km/h)')
date_fmt = DateFormatter('%H:%M')
ax.xaxis.set_major_formatter(date_fmt)
ax.xaxis.set_major_locator(HourLocator(interval=2))
ax.tick_params(direction='in', length=6, width=2, labelsize=12)
ax.xaxis.set_tick_params(labelrotation=45)
ax.spines['top'].set_color('none')
ax.spines['right'].set_color('none')
plt.show()

6，移动脊轴位置

import numpy as np
import matplotlib.pyplot as plt
import matplotlib.patches as mpathes
xy = np.array([0.5,0.5])
polygon = mpathes.RegularPolygon(xy, 5, 0.2,color='y')
ax = plt.axes((0.3, 0.3, 0.5, 0.5))
ax.add_patch(polygon)
ax.spines['top'].set_color('none')
ax.spines['right'].set_color('none')
ax.spines['left'].set_position(('data', 0.5))
ax.spines['bottom'].set_position(('data', 0.5))
plt.title(2020080603049)
plt.show()

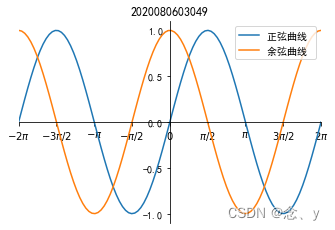

7，垂直坐标轴与水平坐标轴均移动到值为0的位置

import numpy as np
import matplotlib.pyplot as plt
plt.rcParams["font.sans-serif"] = ["SimHei"]
plt.rcParams["axes.unicode_minus"] = False
x_data = np.linspace(-2 * np.pi, 2 * np.pi, 100)
y_one = np.sin(x_data)
y_two = np.cos(x_data)
fig = plt.figure()
ax = fig.add_axes((0.2, 0.2, 0.7, 0.7))
ax.plot(x_data, y_one, label='正弦曲线 ')
ax.plot(x_data, y_two, label='余弦曲线 ')
ax.legend()
ax.set_xlim(-2 * np.pi, 2 * np.pi)
ax.set_xticks([-2  * np.pi, -3 * np.pi / 2, -1 * np.pi, -1 * np.pi / 2,
               0, np.pi / 2, np.pi, 3  * np.pi / 2, 2  * np.pi])
ax.set_xticklabels(['$-2\pi$', '$-3\pi/2$', '$-\pi$', '$-\pi/2$ ', '$0$',
                    '$\pi/2$', '$\pi$', '$3\pi/2$', '$2\pi$'])
ax.set_yticks([-1.0, -0.5, 0.0, 0.5, 1.0])
ax.set_yticklabels([-1.0, -0.5, 0.0, 0.5, 1.0])
ax.spines['right'].set_color('none')
ax.spines['top'].set_color('none')
ax.spines['left'].set_position(('data', 0))
ax.spines['bottom'].set_position(('data', 0))
plt.title(2020080603049)
plt.show()

8，绘制3D线框图

import matplotlib.pyplot as plt
from mpl_toolkits.mplot3d import axes3d
fig = plt.figure()
ax = fig.add_subplot(111, projection='3d')
X, Y, Z = axes3d.get_test_data(0.05)
ax.plot_wireframe(X, Y, Z, rstride=10, cstride=10)
plt.title(2020080603049)
plt.show()

9，绘制3D曲线图

import matplotlib.pyplot as plt
from matplotlib import cm
import numpy as np
x1 = np.arange(-5, 5, 0.25)
y1 = np.arange(-5, 5, 0.25)
x1, y1 = np.meshgrid(x1, y1)
r1 = np.sqrt(x1** 2 + y1 ** 2)
z1 = np.sin(r1)
fig = plt.figure()
ax = fig.add_subplot(111, projection='3d')
ax.plot_surface(x1, y1, z1, cmap=cm.coolwarm, linewidth=0, antialiased=False)
ax.set_zlim(-1.01, 1.01)
plt.title(2020080603049)
plt.show()

10，绘制三维空间星星

import numpy as np
import matplotlib.pyplot as plt
from mpl_toolkits.mplot3d import Axes3D
plt.rcParams["font.sans-serif"] = ["SimHei"]
plt.rcParams["axes.unicode_minus"] = False
x = np.random.randint(0, 40, 30)
y = np.random.randint(0, 40, 30)
z = np.random.randint(0, 40, 30)
fig = plt.figure()
ax = fig.add_subplot(111, projection='3d')
for xx, yy, zz in zip(x, y, z):
    color = 'y'
    if 10 < zz < 20:
        color = '#C71585'
    elif zz >= 20:
        color = '#008B8B'
    ax.scatter(xx, yy, zz, c=color, marker='*', s=160, linewidth=1, edgecolor='black')
ax.set_xlabel('x杞�')
ax.set_ylabel('y杞�')
ax.set_zlabel('z杞�')
ax.set_title('3D鏁ｇ偣鍥�', fontproperties='simhei', fontsize=14)
plt.tight_layout()
plt.title(2020080603049)
plt.show()

11，使用animation绘制动态

#%matplotlib qt5
import numpy as np
import matplotlib.pyplot as plt
from matplotlib.animation import FuncAnimation
x = np.arange(0, 2 *np.pi, 0.01)
fig, ax = plt.subplots()
line, = ax.plot(x, np.sin(x))
def animate(i):
    line.set_ydata(np.sin(x + i / 10.0))
    return line
def init():
    line.set_ydata(np.sin(x))
    return line
ani = FuncAnimation(fig=fig, func=animate, frames=100,
                    init_func=init, interval=20, blit=False)
plt.title(2020080603049)
plt.show()

12，绘制三维空间闪烁的星星

import numpy as np
import matplotlib.pyplot as plt
from mpl_toolkits.mplot3d import Axes3D
from matplotlib.animation import FuncAnimation
plt.rcParams["font.sans-serif"] = ["SimHei"]
plt.rcParams["axes.unicode_minus"] = False
xx = np.array([13, 5, 25, 13, 9, 19, 3, 39, 13, 27])
yy = np.array([4, 38, 16, 26, 7, 19, 28, 10, 17, 18])
zz = np.array([7, 19, 6, 12, 25, 19, 23, 25, 10, 15])
fig = plt.figure()
ax = fig.add_subplot(111, projection='3d')
star = ax.scatter(xx, yy, zz, c='#C71585', marker='*', s=160,
      linewidth=1, edgecolor='black')
def animate(i):
    if i % 2:
        color = '#C71585'
    else:
        color = 'white'
    next_star = ax.scatter(xx, yy, zz, c=color, marker='*', s = 160, linewidth=1, edgecolor='black')
    return next_star
def init():
    return star
ani = FuncAnimation(fig=fig, func=animate, frames=None, init_func =init, interval=1000, blit=False)
ax.set_xlabel('x轴')
ax.set_ylabel('y轴')
ax.set_zlabel('z轴')
ax.set_title('3D散点图2020080603049', fontproperties='simhei', fontsize=14)
plt.tight_layout()
plt.show()
