[人工智能]python-openCV实现银行卡卡号识别

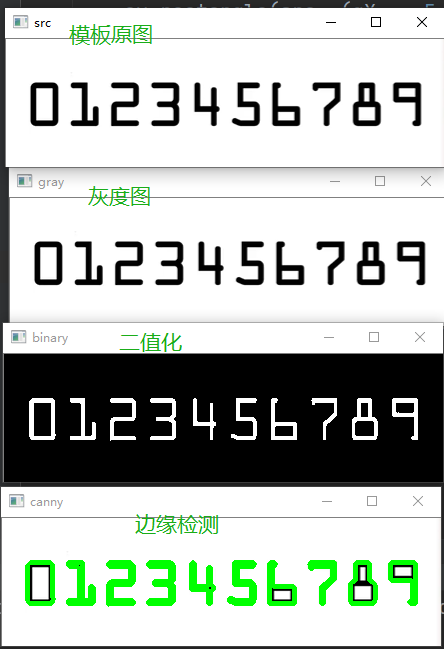

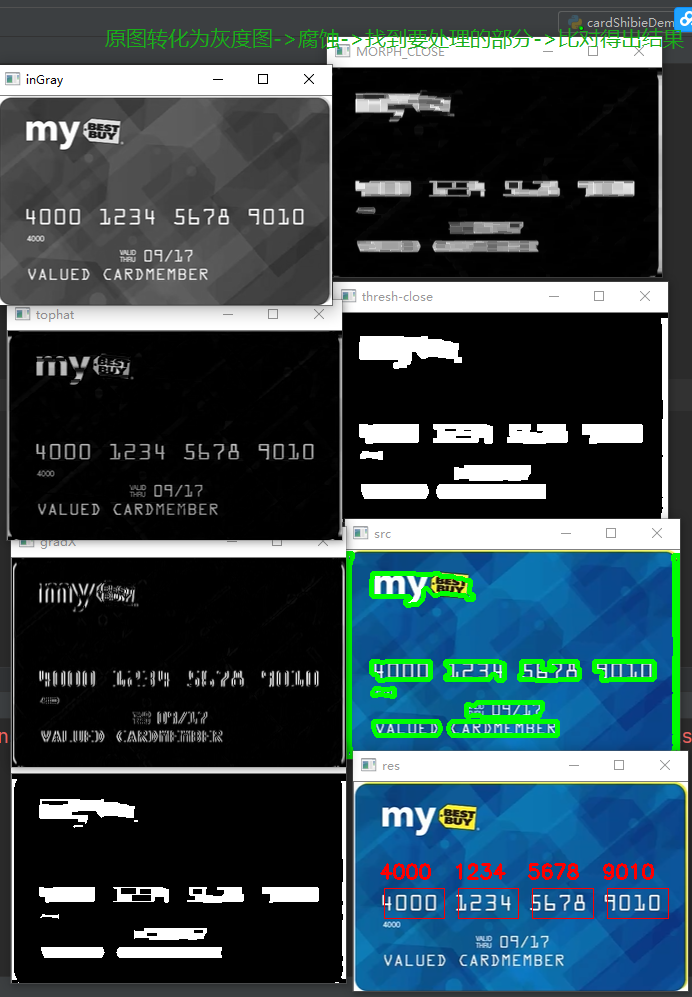

实现效果：

code

import cv2 as cv
import numpy as np

# 轮廓排序 默认从左到右
# --cnts 待排序的轮廓列表
# --method 排序方法 自上而下，从左到右等
def sort_contours(cnts, method="left-to-right"):
    # 初始化反向标志和排序索引
    reverse = False
    i = 0

    # 处理是否需要逆向排序
    if method == "right-to-left" or method == "bottom-to-top":
        reverse = True

    # 处理时根据边界框的x坐标排序还是y坐标排序，如果是自上而下或者自下而上则需要根据y坐标排序而不是x坐标
    if method == "top-to-bottom" or method == "bottom-to-top":
        i = 1

    # 构建边界框list 并使用python魔术lambda表达式进行排序
    boundingBoxes = [cv.boundingRect(c) for c in cnts]
    (cnts, boundingBoxes) = zip(*sorted(zip(cnts, boundingBoxes),
                                        key=lambda b: b[1][i], reverse=reverse))
    # 返回排序后的轮廓和边界框
    return (cnts, boundingBoxes)

# 显示图像
def cv_show(name, img):
    cv.imshow(name, img)
    # cv.waitKey(0)
    # cv.destroyAllWindows()


# =================================1.读入模板图像================================


def loadTemplate():
    img = cv.imread('template.png')
    cv_show('src', img)

    # 灰度图
    ref = cv.cvtColor(img, cv.COLOR_BGR2GRAY)
    cv_show('gray', ref)

    # 二值化
    ref = cv.threshold(ref, 10, 255, cv.THRESH_BINARY_INV)[1]
    cv_show('binary', ref)

    # 计算轮廓  外轮廓
    refCnts, hierarchy = cv.findContours(ref.copy(), cv.RETR_EXTERNAL, cv.CHAIN_APPROX_SIMPLE)

    print(np.array(refCnts).shape)
    # print('---contours', contours)
    # -1画所有的轮廓
    cv.drawContours(img, refCnts, -1, (0, 255, 0), 3)
    cv_show('canny', img)

    digits = {}
    # 对轮廓进行排序
    refCnts = sort_contours(refCnts)[0]
    #
    # 模板值的对应
    for (i, c) in enumerate(refCnts):
        (x, y, w, h) = cv.boundingRect(c)
        # print(i, ":", (x, y, w, h))
        roi = ref[y:y + h, x:x + w]

        roi = cv.resize(roi, (57, 88))
        # cv_show('roi',roi)
        digits[i] = roi
    return digits


# ==========================2.读入输入图像进行处理===============================
def dealProcess(digits):
    # 初始化卷积核
    rectKernel = cv.getStructuringElement(cv.MORPH_RECT, (9, 3))
    sqKernel = cv.getStructuringElement(cv.MORPH_RECT, (5, 5))

    src = cv.imread('card.png')
    cv_show('src', src)
    inGray = cv.cvtColor(src, cv.COLOR_BGR2GRAY)
    cv_show('inGray', inGray)

    # 礼帽操作
    tophat = cv.morphologyEx(inGray, cv.MORPH_TOPHAT, rectKernel)
    cv_show('tophat', tophat)

    # ksize=-1 3X3
    gradX = cv.Sobel(tophat, ddepth=cv.CV_32F, dx=1, dy=0, ksize=-1)

    gradX = np.absolute(gradX)
    (minVal, maxVal) = (np.min(gradX), np.max(gradX))
    gradX = (255 * ((gradX - minVal) / maxVal - minVal))
    gradX = gradX.astype("uint8")

    cv_show('gradX', gradX)

    # 闭操作
    gradX = cv.morphologyEx(gradX, cv.MORPH_CLOSE, rectKernel)
    cv_show('MORPH_CLOSE', gradX)

    # 自动寻找合适的阈值
    thresh = cv.threshold(gradX, 0, 255, cv.THRESH_BINARY | cv.THRESH_OTSU)[1]
    cv_show('thresh', thresh)

    thresh = cv.morphologyEx(thresh, cv.MORPH_CROSS, sqKernel)
    cv_show('thresh-close', thresh)

    # 计算轮廓
    srcCnts, srcHierarchy = cv.findContours(thresh.copy(), cv.RETR_EXTERNAL, cv.CHAIN_APPROX_SIMPLE)
    print(type(srcCnts))
    src2 = src.copy()
    cv.drawContours(src2, srcCnts, -1, (0, 255, 0), 3)
    cv_show('src', src2)
    locs = []
    for (i, c) in enumerate(srcCnts):
        (x, y, w, h) = cv.boundingRect(c)

        ar = w / float(h)
        # print(i, ":","rect->",(x, y, w, h), ar)
        if 2.8 < ar < 4.0:
            if (50 < w < 65) and (15 < h < 33):
                locs.append((x, y, w, h))

    locs = sorted(locs, key=lambda x: x[0])
    print('-------------------------')
    print(locs)
    output = []
    for (i, (gX, gY, gW, gH)) in enumerate(locs):
        groupOutput = []
        # 截取图像
        group = inGray[gY - 5:gY + gH + 5, gX - 5:gX + gW + 5]
        # cv_show('group', group)

        # 预处理  二值化
        group = cv.threshold(group, 0, 255, cv.THRESH_BINARY | cv.THRESH_OTSU)[1]
        cv_show('group', group)

        # 计算一组轮廓
        digitCnts, hierarchy = cv.findContours(group.copy(), cv.RETR_EXTERNAL, cv.CHAIN_APPROX_SIMPLE)

        digitCnts = sort_contours(digitCnts)[0]

        # 计算每一组中每一个数值
        for c in digitCnts:
            # 找到当前数值轮廓，resize 到合适的大小
            (x, y, w, h) = cv.boundingRect(c)
            roi = group[y:y + h, x:x + w]
            roi = cv.resize(roi, (57, 88))

            # 计算匹配得分
            scores = []
            # 在模板中计算每一个的得分
            for (digit, digitROI) in digits.items():
                # 模板匹配
                result = cv.matchTemplate(roi, digitROI, cv.TM_CCOEFF)

                # 相关系数
                (minVal, maxVal, minLoc, maxLoc) = cv.minMaxLoc(result)
                scores.append(maxVal)
                # print(maxVal)
            # 得到合适的数字
            groupOutput.append(str(np.argmax(scores)))
        cv.rectangle(src, (gX - -5, gY - 5), (gX + gW + 5, gY + gH + 5), (0, 0, 255), 1)
        cv.putText(src, "".join(groupOutput), (gX, gY - 15), cv.FONT_HERSHEY_SIMPLEX, 0.65, (0, 0, 255), 2)
        # 得到结果
        output.extend(groupOutput)
    return (src, output)


if __name__ == '__main__':
    digits = loadTemplate()
    (src, output) = dealProcess(digits)
    # 打印输出结果
    print("res:{}".format("".join(output)))
    cv_show('res', src)
    cv.waitKey()
