[人工智能]OpenCV学习笔记 - DNN模块使用(含源码、详细解释)

最近翻了翻以前做的一些笔记，碰巧翻到了2019年刚开始学习OpenCV时候做的笔记，不知不觉已经过去两年了，这两年从一个小白到现在不是太小白的小白o(╥﹏╥)o，在此分享一下，希望能帮助到更多的人。

相关视频：https://www.bilibili.com/video/BV1FJ411T7W5?p=2

DNN模块

Googlenet模型实现图像分类

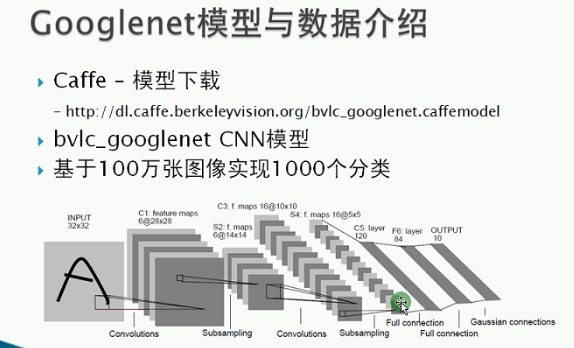

介绍：

论文：https://github.com/SnailTyan/deep-learning-papers-translation

这里有很多翻译好的论文，很方便。

所需文件：二进制模型文件，模型参数描述文件，分类label文件。

模型下载:

http://dl.caffe.berkeleyvision.org/bvlc_googlenet.caffemodel

卷积层提取特征，全连接层进行分类。

描述文件:bvlc_googlenet.prototxt

这个在opencv的源码里边有opencv-3.3.1\samples\data\dnn

模型输出为一个1000维的向量，代表1000个分类的概率。

代码：

#include <opencv2/core.hpp>
#include <opencv2/imgproc.hpp>
#include <opencv2/highgui.hpp>
#include <opencv2/dnn.hpp>
#include <iostream>
#include <fstream>
using namespace cv;
using namespace std;
using namespace cv::dnn;
String model_bin_file = "model/bvlc_googlenet.caffemodel";
String model_txt_file = "model/bvlc_googlenet.prototxt";
String labels_txt_file = "model/synset_words.txt";
vector<String> readLabels();
int main(int argc, char** argv)
{
	Mat src = imread("pictures/girl.jpg");
	if (src.empty())
	{
		cout << "could not open image……" << endl;
		return -1;
	}
	namedWindow("src", WINDOW_FREERATIO);
	imshow("src", src);
	// 读取labels
	vector<String> labels = readLabels();
	// 读取网络 包括模型描述文件和和模型文件
	Net net = readNetFromCaffe(model_txt_file, model_bin_file);
	if (net.empty())
	{
		cout << "net could not load……" << endl;
		return -1;
	}
	Mat inputBlob = blobFromImage(src, 1.0, Size(224, 224), Scalar(104, 117, 123));
	Mat prob;
	for (size_t i = 0; i < 10; i++)
	{
		net.setInput(inputBlob, "data");
		prob = net.forward("prob");	// 输出为1×1000 1000类的概率
	}
	Mat proMat = prob.reshape(1, 1);	// 单通道 一行
	Point classNumber;
	double classProb;
	minMaxLoc(proMat, NULL, &classProb, NULL, &classNumber);
	int classidx = classNumber.x;
	cout << "current image classification:" << labels.at(classidx).c_str()
		 << "possible:" << classProb <<  endl;
	putText(src, labels.at(classidx), Point(20, 20), FONT_HERSHEY_PLAIN, 1.5, Scalar(0, 0, 255), 1, 8);
	imshow("image", src);
	waitKey(0);
	return 0;
}
vector<String> readLabels()
{
	vector<String> classNames;
	ifstream fin(labels_txt_file.c_str());
	if (!fin.is_open())
	{
		cout << "could not open the file……" << endl;
		exit(-1);
	}
	string name;
	while (!fin.eof())
	{
		getline(fin, name);
		if (name.length())
		{
			classNames.push_back(name.substr(name.find(" " + 1)));// 按空格的位置往后移一位进行分割

		}
	}
	fin.close();
	return classNames;
}

结果展示：

SSD模型实现对象检测

介绍：

模型下载：

https://github.com/weiliu89/caffe/tree/ssd#models

结构：

比传统的R-CNN要好很多。把两步和为一步，帧率得到了提高。

模型文件：还是有三个 二进制模型文件，模型参数描述文件，分类label文件

模型输出为一个7维向量 后四维为检测出来目标框的矩形坐标 倒数第5维为置信度

代码：

#include <opencv2/core.hpp>
#include <opencv2/imgproc.hpp>
#include <opencv2/highgui.hpp>
#include <opencv2/dnn.hpp>
#include <iostream>
#include <fstream>

using namespace std;
using namespace cv;
using namespace cv::dnn;

const size_t width = 300;
const size_t height = 300;
String labelFile = "model\\models_VGGNet_ILSVRC2016_SSD_300x300\\models\\VGGNet\\ILSVRC2016\\SSD_300x300\\labelmap_ilsvrc_det.prototxt";
String modelFile = "model\\models_VGGNet_ILSVRC2016_SSD_300x300\\models\\VGGNet\\ILSVRC2016\\SSD_300x300\\VGG_ILSVRC2016_SSD_300x300_iter_440000.caffemodel";
String model_text_file = "model\\models_VGGNet_ILSVRC2016_SSD_300x300\\models\\VGGNet\\ILSVRC2016\\SSD_300x300\\deploy.prototxt";
const int meanValues[3] = { 104, 117, 123 };

vector<String> readLabels();
static Mat getMean(const size_t &w, const size_t &h);
static Mat preprocess(const Mat& frame);
int main(int argc, char** argv)
{
	Mat frame = imread("pictures/cat.jpg");
	if (frame.empty())
	{
		cout << "could not open image……" << endl;
		return -1;
	}
	namedWindow("input image", WINDOW_FREERATIO);
	imshow("input image", frame);

	vector<String> objNames = readLabels();
	// import Caffe SSD model
	Net net = readNetFromCaffe(model_text_file, modelFile);
	if (net.empty())
	{
		cout << "read caffe model data failure..." << endl;
		return -1;
	}

	Mat input_image = preprocess(frame);
	Mat blobImage = blobFromImage(input_image);

	net.setInput(blobImage, "data");
	Mat detection = net.forward("detection_out");
	Mat detectionMat(detection.size[2], detection.size[3], CV_32F, detection.ptr<float>());
	float confidence_threshold = 0.1;
	for (int i = 0; i < detectionMat.rows; i++)
	{
        // 输出为一个7维向量 后四维为检测出来目标框的矩形坐标 倒数第5维为置信度
		float confidence = detectionMat.at<float>(i, 2);
		if (confidence > confidence_threshold)
		{
			size_t objIndex = (size_t)(detectionMat.at<float>(i, 1));
			float tl_x = detectionMat.at<float>(i, 3) * frame.cols;
			float tl_y = detectionMat.at<float>(i, 4) * frame.rows;
			float br_x = detectionMat.at<float>(i, 5) * frame.cols;
			float br_y = detectionMat.at<float>(i, 6) * frame.rows;

			Rect object_box((int)tl_x, (int)tl_y, (int)(br_x - tl_x), (int)(br_y - tl_y));
			rectangle(frame, object_box, Scalar(0, 0, 255), 2, 8, 0);
			putText(frame, format("%s", objNames[objIndex].c_str()), Point(tl_x, tl_y), FONT_HERSHEY_SIMPLEX, 1.0, Scalar(255, 0, 0), 2);
		}
	}
	imshow("ssd-demo", frame);

	waitKey(0);
	return 0;
}

vector<String> readLabels()
{
	vector<String> objNames;
	ifstream fin(labelFile);
	if (!fin.is_open())
	{
		cout << "could not load labeFile……" << endl;
		exit(-1);
	}
	string name;
	while (!fin.eof())
	{
		getline(fin, name);
		if (name.length() && (name.find("display_name:") == 2))
		{
			string temp = name.substr(17);
			temp.replace(temp.end() - 1, temp.end(), "");
			objNames.push_back(temp);
		}
	}
	return objNames;
}

Mat getMean(const size_t& w, const size_t& h)
{
	Mat mean;
	vector<Mat> channels;
	for (size_t i = 0; i < 3; i++)
	{
		Mat channel(h, w, CV_32F, Scalar(meanValues[i]));
		channels.push_back(channel);
	}
	merge(channels, mean);
	return mean;
}

Mat preprocess(const Mat& frame)
{
	Mat preprocessed;
	frame.convertTo(preprocessed, CV_32F);
	resize(preprocessed, preprocessed, Size(width, height));	// 300*300 image
	Mat mean = getMean(width, height);
	subtract(preprocessed, mean, preprocessed);
	return preprocessed;
}

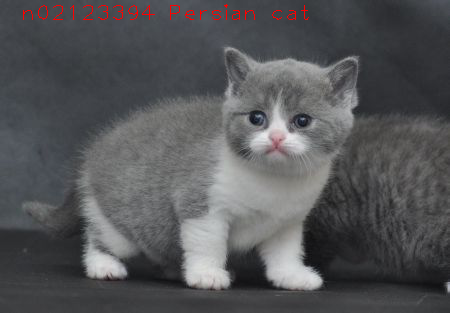

结果展示：

MobileNetSSD模型实时对象检测

介绍：

对SSD模型进行了简化，从1000个分类缩减为20个。

还是模型二进制文件，模型描述文件，label文件。

模型下载地址：https://github.com/PINTO0309/MobileNet-SSD-RealSense/blob/master/caffemodel/MobileNetSSD/MobileNetSSD_deploy.caffemodel

注意要使用deploy版本的。

模型输出也为一个7维向量 后四维为检测出来目标框的矩形坐标 倒数第5维为置信度

代码：

#include <opencv2/core.hpp>
#include <opencv2/imgproc.hpp>
#include <opencv2/highgui.hpp>
#include <opencv2/dnn.hpp>
#include <iostream>
#include <fstream>

using namespace std;
using namespace cv;
using namespace cv::dnn;

const size_t width = 300;
const size_t height = 300;
// 下面这两个参数是官方的参数
const float meanVal = 127.5;
const float scaleFactor = 0.0078;
String labelFile = "model/mobileNetSSD/pascal-classes.txt";
String modelFile = "model/mobileNetSSD/MobileNetSSD_deploy.caffemodel";
String model_text_file = "model/mobileNetSSD/MobileNetSSD_deploy.prototxt";

vector<String> readLabels();
int main(int argc, char** argv)
{
	VideoCapture capture;
	capture.open("pictures/vtest.avi");
	namedWindow("input", CV_WINDOW_FREERATIO);
	namedWindow("ssd-video-demo", CV_WINDOW_FREERATIO);
	int w = capture.get(CAP_PROP_FRAME_WIDTH);
	int h = capture.get(CAP_PROP_FRAME_HEIGHT);
	printf("frame width:%d, frame height:%d\n", w, h);

	// set up net
	Net net = readNetFromCaffe(model_text_file, modelFile);
	if (net.empty())
	{
		cout << "could not load NetModel……" << endl;
		return -1;
	}

	// read the label
	vector<String> classNames = readLabels();
	Mat frame;
	int i = 0;
	while (capture.read(frame))
	{
		i++;
		imshow("input", frame);
		// 预测
		double t1 = (double)getTickCount();
		Mat inputblob = blobFromImage(frame, scaleFactor, Size(width, height), meanVal, false);
		net.setInput(inputblob, "data");
		Mat detection = net.forward("detection_out");
		double t2 = (double)getTickCount();
		cout << "第" << i << "帧" << "耗费时间：" << (t2 - t1) / getTickFrequency() << "s\n" << endl;
		// 绘制
		Mat detectionMat(detection.size[2], detection.size[3], CV_32F, detection.ptr<float>());
		float confidence_threshold = 0.25;
		for (int i = 0; i < detectionMat.rows; i++) {
			float confidence = detectionMat.at<float>(i, 2);
			if (confidence > confidence_threshold) {
				size_t objIndex = (size_t)(detectionMat.at<float>(i, 1));
				float tl_x = detectionMat.at<float>(i, 3) * frame.cols;
				float tl_y = detectionMat.at<float>(i, 4) * frame.rows;
				float br_x = detectionMat.at<float>(i, 5) * frame.cols;
				float br_y = detectionMat.at<float>(i, 6) * frame.rows;

				Rect object_box((int)tl_x, (int)tl_y, (int)(br_x - tl_x), (int)(br_y - tl_y));
				rectangle(frame, object_box, Scalar(0, 0, 255), 2, 8, 0);
				//putText(frame, format("%s", classNames[objIndex]), Point(tl_x, tl_y), FONT_HERSHEY_SIMPLEX, 1.0, Scalar(255, 0, 0), 2);
				putText(frame, classNames[objIndex], Point(tl_x, tl_y), FONT_HERSHEY_SIMPLEX, 1.0, Scalar(255, 0, 0), 2);
			}
		}
		imshow("ssd-video-demo", frame);
		char c = waitKey(50);
		if (c == 27) // ESC
		{
			break;
		}
	}
	waitKey(0);
	return 0;
}

vector<String> readLabels()
{
	vector<String> objNames;
	ifstream fin(labelFile);
	if (!fin.is_open())
	{
		cout << "could not load labeFile……" << endl;
		exit(-1);
	}
	string name;
	while (!fin.eof())
	{
		getline(fin, name);
		if (name.length())
		{
			string temp = name.substr(0, name.find(" ", 0));
			objNames.push_back(temp);
		}
	}
	return objNames;
}

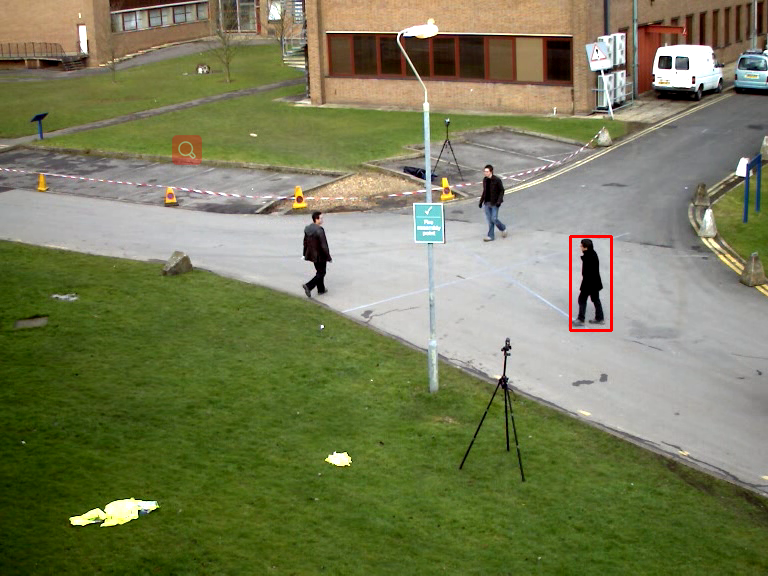

结果展示：

FCN模型图像分割

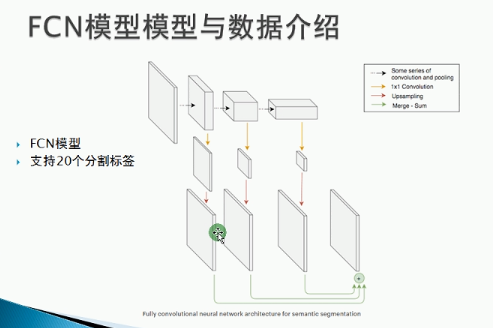

介绍：

论文：https://www.cv-foundation.org/openaccess/content_cvpr_2015/papers/Long_Fully_Convolutional_Networks_2015_CVPR_paper.pdf

全卷积网络

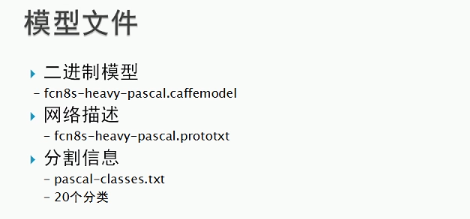

模型与数据：

还是三个文件：

模型下载地址：https://github.com/shelhamer/fcn.berkeleyvision.org

模型输出为21×500×500的数组。21为channel，也就是类别。500×500为rows×cols，对应于图片中的每一个像素值。

代码：

#include <opencv2/core.hpp>
#include <opencv2/imgproc.hpp>
#include <opencv2/highgui.hpp>
#include <opencv2/dnn.hpp>
#include <iostream>
#include <fstream>
#include <string.h>
#include <stdio.h>
using namespace std;
using namespace cv;
using namespace cv::dnn;

const size_t width = 500;
const size_t height = 500;
String labelFile = "model\\FCN\\pascal-classes.txt";
String modelFile = "model\\FCN\\fcn8s-heavy-pascal.caffemodel";
String model_text_file = "model\\FCN\\fcn8s-heavy-pascal.prototxt";
Scalar meanValues = Scalar(104, 117, 123);

vector<Vec3b> readColors();
vector<String> readLabels();

int main(int argc, char** argv)
{
	Mat frame = imread("pictures/rgb.jpg");
	//Mat frame = imread("E:/Dataset/Flange/picture_sample/水渍and砂眼/test2.jpg");
	Mat img_gray;
	cvtColor(frame, img_gray, COLOR_BGR2GRAY);
	if (frame.empty())
	{
		cout << "could not open image……" << endl;
		return -1;
	}
	namedWindow("input image", WINDOW_FREERATIO);
	imshow("input image", frame);
	resize(frame, frame, Size(500, 500));
	vector<Vec3b> colors = readColors();

	// import Caffe SSD model
	Net net = readNetFromCaffe(model_text_file, modelFile);
	if (net.empty())
	{
		cout << "read caffe model data failure..." << endl;
		return -1;
	}

	Mat blobImage = blobFromImage(frame);

	// 预测
	net.setInput(blobImage, "data");
	Mat score = net.forward("score");

	// 分割并显示
	const int rows = score.size[2];
	const int cols = score.size[3];
	const int chns = score.size[1];
	Mat maxCl(rows, cols, CV_8UC1);	// 该像素处概率最大的那个channel 类别
	Mat maxVal(rows, cols, CV_32FC1);	// 该像素处概率最大的那个channel所对应的的概率值 该类别所对应的概率	这个值下边其实没用到

	// setup LUT
	for (int c = 0; c < chns; c++)
	{
		for (int row = 0; row < rows; row++)
		{
			const float* ptrScore = score.ptr<float>(0, c, row);

			uchar* ptrMaxCl = maxCl.ptr<uchar>(row);
			float* ptrMaxVal = maxVal.ptr<float>(row);

			for (int col = 0; col < cols; col++)
			{
				if (ptrScore[col] > ptrMaxVal[col])
				{
					ptrMaxVal[col] = ptrScore[col];	// 概率
					ptrMaxCl[col] = (uchar)c;	// 类别
				}
			}
		}
	}

	// look up colors
	Mat result = Mat::zeros(rows, cols, CV_8UC3);
	for (int row = 0; row < rows; row++) {
		const uchar* ptrMaxCl = maxCl.ptr<uchar>(row);
		Vec3b* ptrColor = result.ptr<Vec3b>(row);
		for (int col = 0; col < cols; col++)
		{
			ptrColor[col] = colors[ptrMaxCl[col]];	// 取出每一个像素类别所对应的颜色 共21类
		}
	}
	Mat dst;
	addWeighted(frame, 0.3, result, 0.7, 0, dst);
	imshow("FCN-demo", dst);

	waitKey(0);
	return 0;
}

vector<Vec3b> readColors()
{
	vector<Vec3b> objColors;
	ifstream fin(labelFile);
	if (!fin.is_open())
	{
		cout << "could not load labeFile……" << endl;
		exit(-1);
	}
	string line;
	while (!fin.eof())
	{
		getline(fin, line);
		if (line.length())
		{
			//string temp = color.substr(color.find(" ") + 1);
			stringstream ss(line);
			string name;
			int temp;
			Vec3b color;
			ss >> name;
			ss >> temp;
			color[0] = (uchar)temp;
			ss >> temp;
			color[1] = (uchar)temp;
			ss >> temp;
			color[2] = (uchar)temp;
			objColors.push_back(color);
		}
	}
	return objColors;
}

vector<String> readLabels()
{
	vector<String> objNames;
	ifstream fin(labelFile);
	if (!fin.is_open())
	{
		cout << "could not load labeFile……" << endl;
		exit(-1);
	}
	string name;
	while (!fin.eof())
	{
		getline(fin, name);
		if (name.length() && (name.find("display_name:") == 2))
		{
			string temp = name.substr(17);
			temp.replace(temp.end() - 1, temp.end(), "");
			objNames.push_back(temp);
		}
	}
	return objNames;
}

结果展示：

CNN预测年龄和性别

介绍：

论文：https://talhassner.github.io/home/projects/cnn_agegender/CVPR2015_CNN_AgeGenderEstimation.pdf

模型以及描述文件下载：

https://talhassner.github.io/home/publication/2015_CVPR

使用模型的方式与之前的差不多，我自己写了一个，但是感觉年龄识别结果相当不准。

代码1：

#include <opencv2/core.hpp>
#include <opencv2/imgproc.hpp>
#include <opencv2/highgui.hpp>
#include <opencv2/dnn/dnn.hpp>
#include <iostream>
#include <fstream>

using namespace std;
using namespace cv;
using namespace cv::dnn;

string age_labels[] = { "0-2", "4-6", "8-13", "15-20", "25-32", "38-43", "48-53", "60-"};
string age_model_file = "model/ageClassication/age_net.caffemodel";
string age_model_prototxt = "model/ageClassication/deploy_age.prototxt";

string gender_labels[] = { "man", "woman"};
string gender_model_file = "model/genderClassication/gender_net.caffemodel";
string gender_model_prototxt = "model/genderClassication/deploy_gender.prototxt";
int main(int argc, char** argv)
{
	system("color 0A");
	// 加载图片
	Mat img = imread("pictures/boy.jpg");
	if (img.empty())
	{
		cout << "could not load img……" << endl;
		return -1;
	}
	namedWindow("input", CV_WINDOW_AUTOSIZE);
	imshow("input", img);

	// 加载网络模型
	Net age_net = readNetFromCaffe(age_model_prototxt, age_model_file);
	if (age_net.empty())
	{
		cout << "could not load Net age_model……" << endl;
		exit(-1);
	}

	Net gender_net = readNetFromCaffe(gender_model_prototxt, gender_model_file);
	if (gender_net.empty())
	{
		cout << "could not load Net gender_model……" << endl;
		exit(-1);
	}

	// 预测
	Mat input = blobFromImage(img, 1.0, Size(227, 227));

	age_net.setInput(input, "data");
	Mat age_prob = age_net.forward("prob");

	gender_net.setInput(input, "data");
	Mat gender_prob = gender_net.forward("prob");

	// 在图像上表示结果
	Point age_class_Number;
	double age_class_Prob;
	Mat age_probMat = age_prob.reshape(1, 1);
	minMaxLoc(age_probMat, NULL, &age_class_Prob, NULL, &age_class_Number);
	int age_index = age_class_Number.x;
	cout << "对象年龄为：" << age_labels[age_index] << endl;
	cout << "概率为：" << age_class_Prob << endl;

	Point gender_class_Number;
	double gender_class_Prob;
	Mat gender_probMat = gender_prob.reshape(1, 1);
	minMaxLoc(gender_prob, NULL, &gender_class_Prob, NULL, &gender_class_Number);
	int gender_index = gender_class_Number.x;
	cout << "对象性别为：" << gender_labels[gender_index] << endl;
	cout << "概率为：" << gender_class_Prob << endl;

	putText(img, "age:" + age_labels[age_index], Point(20, 20), FONT_HERSHEY_PLAIN, 1.5, Scalar(0, 0, 255), 1, 8);
	putText(img, "gender:" + gender_labels[gender_index], Point(20, 40), FONT_HERSHEY_PLAIN, 1.5, Scalar(0, 255, 0), 1, 8);

	namedWindow("results", CV_WINDOW_AUTOSIZE);
	imshow("results", img);



	waitKey(0);
	return 0;
}

结果1展示：

把小孩识别成38-43岁……

视频里边用了一个文件haarcascade_frontalface_alt_tree.xml，先把人脸部分提取出来了：

主要使用了一个多尺度检测的函数detectMultiScale()，得到人脸所在的矩形区域，能够检测出来一张图片中的多张人脸。

然后直接把人脸部分输入，其他地方和上面的差不多。

代码2：

#include <opencv2/opencv.hpp>
#include <opencv2/dnn.hpp>
#include <iostream>

using namespace cv;
using namespace cv::dnn;
using namespace std;
String haar_file = "D:/opencv/build/etc/haarcascades/haarcascade_frontalface_alt_tree.xml";
String age_model = "model/ageClassication/age_net.caffemodel";
String age_text = "model/ageClassication/deploy_age.prototxt";

String gender_model = "model/genderClassication/gender_net.caffemodel";
String gender_text = "model/genderClassication/deploy_gender.prototxt";

void predict_age(Net& net, Mat image);
void predict_gender(Net& net, Mat image);
int main(int argc, char** argv) {
	Mat src = imread("pictures/mutiFace1.jpg");
	if (src.empty()) {
		printf("could not load image...\n");
		return -1;
	}
	namedWindow("input", CV_WINDOW_AUTOSIZE);
	imshow("input", src);
	// 检测人脸区域
	CascadeClassifier detector;
	detector.load(haar_file);
	vector<Rect> faces;
	Mat gray;
	cvtColor(src, gray, COLOR_BGR2GRAY);
	detector.detectMultiScale(gray, faces, 1.02, 1, 0, Size(40, 40), Size(1000, 1000));

	// 加载网络模型
	Net age_net = readNetFromCaffe(age_text, age_model);
	Net gender_net = readNetFromCaffe(gender_text, gender_model);

	for (size_t t = 0; t < faces.size(); t++) {
		rectangle(src, faces[t], Scalar(30, 255, 30), 2, 8, 0);
		predict_age(age_net, src(faces[t]));	// 将人脸区域作为感兴趣区域输入网络
		predict_gender(age_net, src(faces[t]));
	}
	imshow("age-gender-prediction-demo", src);

	waitKey(0);
	return 0;
}

vector<String> ageLabels() {
	vector<String> ages;
	ages.push_back("0-2");
	ages.push_back("4 - 6");
	ages.push_back("8 - 13");
	ages.push_back("15 - 20");
	ages.push_back("25 - 32");
	ages.push_back("38 - 43");
	ages.push_back("48 - 53");
	ages.push_back("60-");
	return ages;
}

void predict_age(Net& net, Mat image) {
	// 输入
	Mat blob = blobFromImage(image, 1.0, Size(227, 227));
	net.setInput(blob, "data");
	// 预测分类
	Mat prob = net.forward("prob");
	Mat probMat = prob.reshape(1, 1);
	Point classNum;
	double classProb;

	vector<String> ages = ageLabels();
	minMaxLoc(probMat, NULL, &classProb, NULL, &classNum);
	int classidx = classNum.x;
	putText(image, format("age:%s", ages.at(classidx).c_str()), Point(2, 10), FONT_HERSHEY_PLAIN, 0.8, Scalar(0, 0, 255), 1);
}

void predict_gender(Net& net, Mat image) {
	// 输入
	Mat blob = blobFromImage(image, 1.0, Size(227, 227));
	net.setInput(blob, "data");
	// 预测分类
	Mat prob = net.forward("prob");
	Mat probMat = prob.reshape(1, 1);
	putText(image, format("gender:%s", (probMat.at<float>(0, 0) > probMat.at<float>(0, 1) ? "M" : "F")),
		Point(2, 20), FONT_HERSHEY_PLAIN, 0.8, Scalar(0, 0, 255), 1);
}

结果2展示：

GOTURN模型实现对象跟踪

介绍：

GOTURN（Generic Object Tricking Using Regression Networks）使用回归网络进行追踪

资料参考：https://zhuanlan.zhihu.com/p/25338674

算法框架

整个算法的框架其实非常简单：输入当前帧和前一帧进入网络，输出当前帧bounding-box的位置。

输入输出

网络输出目标在search region上的相对坐标（top-left和bottom-right）。

模型下载：

https://github.com/opencv/opencv_extra/tree/c4219d5eb3105ed8e634278fad312a1a8d2c182d/testdata/tracking

note: 这四个压缩包都得下载，否则会解压出错。

可以参考opencv的samples里边的例子：https://github.com/opencv/opencv_contrib/blob/3.3.1/modules/tracking/samples/goturnTracker.cpp

该网络输入为上一帧要追踪的区域data1和当前帧区域data2，输出为单通道4×1的Mat：

表示上一帧中要追踪的box在当前帧中预测的box的位置（左上角和右下角坐标）。

输入：

input: "data1"
input_dim: 1
input_dim: 3
input_dim: 227
input_dim: 227

input: "data2"
input_dim: 1
input_dim: 3
input_dim: 227
input_dim: 227

代码：

#include <opencv2/core.hpp>
#include <opencv2/imgproc.hpp>
#include <opencv2/highgui.hpp>
#include <opencv2/dnn/dnn.hpp>
#include <opencv2/video/video.hpp>
#include <iostream>
#include <fstream>

using namespace std;
using namespace cv;
using namespace cv::dnn;

string model_file = "model/GOTURN/goturn.caffemodel";
string model_prototxt = "model/GOTURN/goturn.prototxt";

Net net;
Rect trackObjects(Mat& frame, Mat& prevFrame);
Mat frame, prevFrame;
Rect prevBB;
int main(int argc, char** argv) {
	net = readNetFromCaffe(model_prototxt, model_file);
	if (net.empty())
	{
		cout << "could not load model file……";
		exit(-1);
	}
	VideoCapture capture;
	capture.open("pictures/vtest.avi");
	capture.read(frame);
	frame.copyTo(prevFrame);
	prevBB = selectROI(frame, false, false);
	namedWindow("frame", CV_WINDOW_AUTOSIZE);
	while (capture.read(frame)) {
		Rect currentBB = trackObjects(frame, prevFrame);
		rectangle(frame, currentBB, Scalar(0, 0, 255), 2, 8, 0);

		// ready for next frame
		frame.copyTo(prevFrame);
		prevBB.x = currentBB.x;
		prevBB.y = currentBB.y;
		prevBB.width = currentBB.width;
		prevBB.height = currentBB.height;

		imshow("frame", frame);
		char c = waitKey(50);
		if (c == 27) {
			break;
		}
	}
}



Rect trackObjects(Mat& frame, Mat& prevFrame) {
	Rect rect;
	int INPUT_SIZE = 227;
	//Using prevFrame & prevBB from model and curFrame GOTURN calculating curBB
	Mat curFrame = frame.clone();
	Rect2d curBB;

	float padTargetPatch = 2.0;
	Rect2f searchPatchRect, targetPatchRect;
	Point2f currCenter, prevCenter;
	Mat prevFramePadded, curFramePadded;
	Mat searchPatch, targetPatch;

	// 上一帧box的中心
	prevCenter.x = (float)(prevBB.x + prevBB.width / 2);
	prevCenter.y = (float)(prevBB.y + prevBB.height / 2);

	// 接受padTargetPatch倍的背景
	targetPatchRect.width = (float)(prevBB.width * padTargetPatch);
	targetPatchRect.height = (float)(prevBB.height * padTargetPatch);
	targetPatchRect.x = prevCenter.x + targetPatchRect.width / 2.0;	// 这里因为下面使用的是边界填充之后的prevFramePadded，等于说又加了个targetPatchRect.width，所以这里是加targetPatchRect.width / 2.0
	targetPatchRect.y = prevCenter.y + targetPatchRect.height / 2.0;

	// 对上一帧边界进行填充，并提取出框出的目标targetPatch
	copyMakeBorder(prevFrame, prevFramePadded, (int)targetPatchRect.height, (int)targetPatchRect.height, (int)targetPatchRect.width, (int)targetPatchRect.width, BORDER_REPLICATE);
	targetPatch = prevFramePadded(targetPatchRect).clone();
	// 对当前帧边界进行填充，并提取出目标targetPatch
	copyMakeBorder(curFrame, curFramePadded, (int)targetPatchRect.height, (int)targetPatchRect.height, (int)targetPatchRect.width, (int)targetPatchRect.width, BORDER_REPLICATE);
	searchPatch = curFramePadded(targetPatchRect).clone();

	//Preprocess
	//Resize
	resize(targetPatch, targetPatch, Size(INPUT_SIZE, INPUT_SIZE));
	resize(searchPatch, searchPatch, Size(INPUT_SIZE, INPUT_SIZE));

	//Mean Subtract
	targetPatch = targetPatch - 128;
	searchPatch = searchPatch - 128;

	//Convert to Float type
	targetPatch.convertTo(targetPatch, CV_32F);
	searchPatch.convertTo(searchPatch, CV_32F);

	Mat targetBlob = blobFromImage(targetPatch);
	Mat searchBlob = blobFromImage(searchPatch);

	net.setInput(targetBlob, "data1");
	net.setInput(searchBlob, "data2");

	Mat res = net.forward("scale");
	Mat resMat = res.reshape(1, 1);
	//printf("width : %d, height : %d\n", (resMat.at<float>(2) - resMat.at<float>(0)), (resMat.at<float>(3) - resMat.at<float>(1)));

	curBB.x = (double)targetPatchRect.x + (double)(resMat.at<float>(0) * targetPatchRect.width / INPUT_SIZE) - (double)targetPatchRect.width;
	curBB.y = (double)targetPatchRect.y + (double)(resMat.at<float>(1) * targetPatchRect.height / INPUT_SIZE) - (double)targetPatchRect.height;
	curBB.width = (resMat.at<float>(2) - resMat.at<float>(0)) * targetPatchRect.width / INPUT_SIZE;
	curBB.height = (resMat.at<float>(3) - resMat.at<float>(1)) * targetPatchRect.height / INPUT_SIZE;

	//Predicted BB
	Rect boundingBox = curBB;
	return boundingBox;
}

结果展示：
