[人工智能]基于seq2seq:rnn+attention的机器翻译实战

原始数据：链接：https://pan.baidu.com/s/1Xuhy7R3pPQoH_T7T-EMnaw?
提取码：手机号后四位

参考博客：

https://blog.csdn.net/u014514939/article/details/89410425?utm_medium=distribute.pc_relevant.none-task-blog-2~default~baidujs_baidulandingword~default-0.control&spm=1001.2101.3001.4242

https://work.datafountain.cn/forum?id=158&type=2&source=1

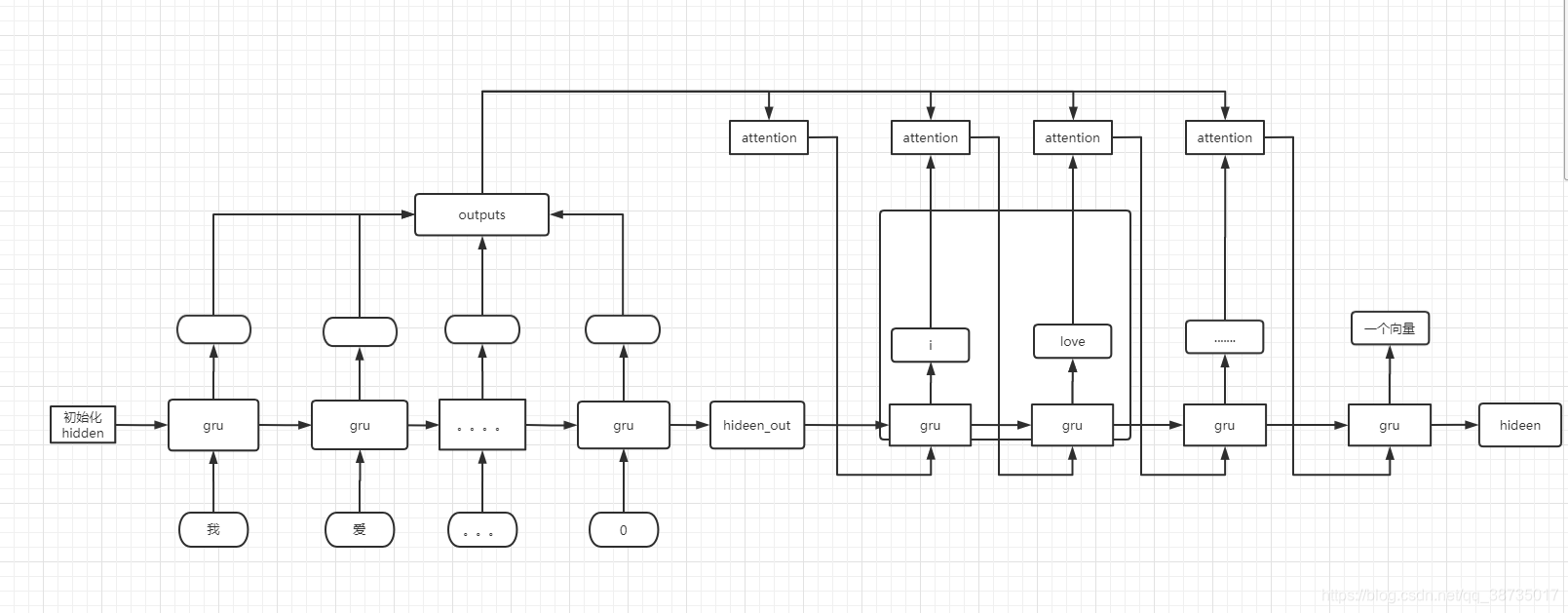

结构图

?数据处理

from __future__ import unicode_literals, print_function, division
from io import open
import unicodedata
import string
import re
import random
import torch
import torch.nn as nn
from torch import optim
import torch.nn.functional as F
import numpy as np
import re
import tensorflow as tf
import matplotlib.pyplot as plt
import matplotlib.ticker as ticker
from sklearn.model_selection import train_test_split
from tqdm import tqdm
import jieba
from nltk.translate.bleu_score import sentence_bleu
from opencc import OpenCC




# 处理英文句子 加上标记
def preprocess_english_sentence(w):
    w = w.lower().strip()
    # 在单词与跟在其后的标点符号之间插入一个空格
    # "he is a boy." => "he is a boy ."
    w = re.sub(r"([?.!,?])", r" \1 ", w)
    w = re.sub(r'[" "]+', " ", w)

    # 除了 (a-z, A-Z, ".", "?", "!", ",")，将所有字符替换为空格
    w = re.sub(r"[^a-zA-Z?.!,?]+", " ", w)
    w = w.rstrip().strip()

    # 给句子加上开始和结束标记
    # 以便模型知道何时开始和结束预测
    w = '<start> ' + w + ' <end>'
    return w
# 处理中文繁体字 加上标记
def preprocess_chinese_sentence(w):
    # 将句子里的繁体中文转化为简体中文
    w = OpenCC('t2s').convert(w)
    # 分词
    ws = [i for i in jieba.cut(w)]
    w = ' '.join(ws)

    # 给句子加上开始和结束标记，以便模型知道何时开始和结束预测
    w = '<start> ' + w + ' <end>'
    return w

# 数据读取 + 调用函数读取！
def read_data(path):
    english=[]
    chinese=[]
    with open(path,encoding='utf-8') as f:
        for line in tqdm(f):
            eng_one=line.split('\t')[0]
            eng_one=preprocess_english_sentence(eng_one)
            chin_one=line.split('\t')[1]
            chin_one= preprocess_chinese_sentence(chin_one)
            english.append(eng_one)
            chinese.append(chin_one)
    return english,chinese
target_eng,input_chin=read_data("cmn.txt")
print(target_eng[-1])
print(input_chin[-1])

把汉字句子转化成数字??

# 把句子转化成 数字表示的形式
def creat_tokenize_padd(list_data): # 传入一个列表就好了！！！！
    # 初始化Tokenizer，之前已经对句子做了预处理，这里直接按照空格将每个token切分出来
    tokenizer = tf.keras.preprocessing.text.Tokenizer(filters='')
    # 对目标语言数据集进行tokenize
    tokenizer.fit_on_texts(list_data)
    # 将文本序列转化为编码序列
    tensor = tokenizer.texts_to_sequences(list_data)
    # 把所有句子补齐
    t_tensor = tf.keras.preprocessing.sequence.pad_sequences(tensor, padding='post',maxlen=20)#
    return t_tensor,tokenizer
input_chin_tensor,input_chin_tokenizer=creat_tokenize_padd(input_chin)
target_eng_tensor,target_eng_tokenizer=creat_tokenize_padd(target_eng)

?句子padding?

MAX_INPUT_LENGTH = max([len(i) for  i in input_chin_tensor])
MAX_OUTPUT_LENGTH = max([len(i) for  i in target_eng_tensor])
print("输入句子的最大长度：", MAX_INPUT_LENGTH)
print("输出句子的最大长度：", MAX_OUTPUT_LENGTH)
print(input_chin_tensor[-1])
print(target_eng_tensor[-1])
print(type(input_chin_tensor))
print(input_chin_tensor.shape)
print(type(target_eng_tensor))
print(target_eng_tensor.shape)


target_index_word = target_eng_tokenizer.index_word
target_word_index = target_eng_tokenizer.word_index
input_index_word = input_chin_tokenizer.index_word
input_word_index = input_chin_tokenizer.word_index
print(input_word_index["我"])#测试 4
print(input_index_word[4])  # 测试 我
print("源语言词典大小：{}， 目标语言词典大小：{}".format(len(input_index_word), len(target_index_word)))

input_chin_tensor_train, input_chin_tensor_val,target_eng_tensor_train, target_eng_tensor_val = train_test_split(input_chin_tensor, target_eng_tensor, test_size=0.3)
print("训练集规模：{}， 测试集规模：{}".format(len(input_chin_tensor_train), len(input_chin_tensor_val)))
# 扩大训练测试 training_pairs = [tensorsFromPair(random.choice(pairs)) for i in range(n_iters)]

?EncoderRNN?

class EncoderRNN(nn.Module):
    def __init__(self, input_size, hidden_size):
        super(EncoderRNN, self).__init__()
        self.hidden_size = hidden_size
        # 此处的hidden_size也是embedding_dim
        self.embedding = nn.Embedding(input_size, hidden_size) # 这个embedding的模型的定义 后边需要调用这个模型
        #               输入的这个句子中单词的个数， 是每个单词的维度定义
        self.gru = nn.GRU(hidden_size,hidden_size)
        #                输入单词维度  输出单词维度 这里定义的输入输出是一样的
        # 如果说加一个参数就是num_layers：lstm隐层的层数，默认为 1

    def initHidden(self):
        return torch.zeros(1, 1, self.hidden_size)

    def forward(self, input, hidden):#  hidden：torch.Size([1, 1, 256])
        # input维度为(seq_len=1,batch_size=1)
        embedded = self.embedding(input).view(1, 1, -1)
        # 经过embedded,维度为(seq_len=1,batch_size=1,embedding_dim)
        output = embedded

        # hidden维度为(num_layers*direction_num=1, batch_size=1, hidden_size)
        # output的维度为(seq_length=1, batch_size=1, hidden_size)
        output, hidden = self.gru(output, hidden)
        return output, hidden

AttnDecoderRNN 版本一 不加mask?

class AttnDecoderRNN(nn.Module):
    def __init__(self, hidden_size, output_size, max_length):
        super(AttnDecoderRNN, self).__init__()
        # hidden_size也是embedding_dim 就是刚开始 每个单词的维度
        self.hidden_size = hidden_size
        self.output_size = output_size # self.output_size:3228  调用的时候传进来的
        self.max_length = max_length
        self.embedding = nn.Embedding(self.output_size, self.hidden_size) # 跟上边的一样  embedding模型的定义
        self.attn = nn.Linear(self.hidden_size * 2, self.max_length)
        self.attn_2 = nn.Linear(self.max_length, 1)
        self.attn_combine = nn.Linear(self.hidden_size * 2, self.hidden_size)
        self.gru = nn.GRU(self.hidden_size, self.hidden_size)
        self.out = nn.Linear(self.hidden_size, self.output_size)

    def initHidden(self):
        return torch.zeros(1, 1, self.hidden_size) #hidden_size=256

    def forward(self,decode_input,encoder_outputs,hidden,mask):
        # hidden维度为 hidden = encoder_hidden=torch.Size([1, 1, 256])
        # encoder_outputs  前边的数字向量矩阵 固定长度是10个字 torch.Size([10, 256])
        # padding_mask 是一维度的 有1 有 0

        decode_input = decode_input.view(1, -1)# torch.Size([1, 256])
        input_1=decode_input.repeat(len(encoder_outputs),1)
#         print(input_1.size())
#         print(encoder_outputs.size())
        attn_weights =torch.tanh(self.attn(torch.cat([input_1,encoder_outputs], 1)))

        attn_weights=self.attn_2(attn_weights).view(1,-1)
#         index =list(mask).index(0)# 把padding 的位置是0 的注意力权重复制为0
#         attn_weights[0][index:]=int(-5) # 经过F.softmax 让padding的位置 概率非常小
        attn_weights=F.softmax(attn_weights,dim=1)


        # torch.cat： torch.Size([10, 512]) 把两个[10,256]的tensor 拼接
        # attn_weights维度为  torch.Size([1, 10]),tensor([[0.0988, 0.0997, 0.0944, 0.1047, 0.1051, 0.0925, 0.1062, 0.1043, 0.0892,0.1052]], device='cuda:0', grad_fn=<ViewBackward>)

        attn_applied = torch.bmm(attn_weights.unsqueeze(0),encoder_outputs.unsqueeze(0))# unsqueeze(0)在第一个维度上 增加一维 1
        #   attn_applied=torch.Size([1, 1, 256])=torch.bmm([1,1,10],[1,10,256])
        #   print(attn_applied.size())

        output = torch.cat([decode_input , attn_applied[0]], 1)
        # output.size():torch.Size([1, 512])

        output = self.attn_combine(output).unsqueeze(0)
        # output.size():torch.Size([1, 1, 256])

        output = F.relu(output)
        #output.size():torch.Size([1, 1, 256])

        output, hidden = self.gru(output, hidden) # 输入端hidden:torch.Size([1, 1, 256])
        # output.size()：torch.Size([1, 1, 256])，输出端hidden.size()：torch.Size([1, 1, 256])

#         output_last=self.out(output[0])                      # 我i自己改的
        output_last = F.log_softmax(self.out(output[0]), dim=1) # 原来是这个的 log_softmax
        #output.size()：torch.Size([1, 6756])
#         print(output_last,output_last.size())
        return output_last,output, hidden, attn_weights

AttnDecoderRNN 版本二?加mask?

class AttnDecoderRNN(nn.Module):
    def __init__(self, hidden_size, output_size, max_length):
        super(AttnDecoderRNN, self).__init__()
        # hidden_size也是embedding_dim 就是刚开始 每个单词的维度
        self.hidden_size = hidden_size
        self.output_size = output_size # self.output_size:3228  调用的时候传进来的
        self.max_length = max_length
        self.embedding = nn.Embedding(self.output_size, self.hidden_size) # 跟上边的一样  embedding模型的定义
        self.attn = nn.Linear(self.hidden_size * 2, self.max_length)
        self.attn_2 = nn.Linear(self.max_length, 1)
        self.attn_combine = nn.Linear(self.hidden_size * 2, self.hidden_size)
        self.gru = nn.GRU(self.hidden_size, self.hidden_size)
        self.out = nn.Linear(self.hidden_size, self.output_size)

    def initHidden(self):
        return torch.zeros(1, 1, self.hidden_size) #hidden_size=256

    def forward(self,decode_input,encoder_outputs,hidden,mask):
        # hidden维度为 hidden = encoder_hidden=torch.Size([1, 1, 256])
        # encoder_outputs  前边的数字向量矩阵 固定长度是10个字 torch.Size([10, 256])
        # padding_mask 是一维度的 有1 有 0

        decode_input = decode_input.view(1, -1)# torch.Size([1, 256])
        input_1=decode_input.repeat(len(encoder_outputs),1)
#         print(input_1.size())
#         print(encoder_outputs.size())
        attn_weights =torch.tanh(self.attn(torch.cat([input_1,encoder_outputs], 1)))

        attn_weights=self.attn_2(attn_weights).view(1,-1)
        index =list(mask).index(0)# 把padding 的位置是0 的注意力权重复制为0
        attn_weights[0][index:]=int(-5) # 经过F.softmax 让padding的位置 概率非常小
        attn_weights=F.softmax(attn_weights,dim=1)


        # torch.cat： torch.Size([10, 512]) 把两个[10,256]的tensor 拼接
        # attn_weights维度为  torch.Size([1, 10]),tensor([[0.0988, 0.0997, 0.0944, 0.1047, 0.1051, 0.0925, 0.1062, 0.1043, 0.0892,0.1052]], device='cuda:0', grad_fn=<ViewBackward>)

        attn_applied = torch.bmm(attn_weights.unsqueeze(0),encoder_outputs.unsqueeze(0))# unsqueeze(0)在第一个维度上 增加一维 1
        #   attn_applied=torch.Size([1, 1, 256])=torch.bmm([1,1,10],[1,10,256])
        #   print(attn_applied.size())

        output = torch.cat([decode_input , attn_applied[0]], 1)
        # output.size():torch.Size([1, 512])

        output = self.attn_combine(output).unsqueeze(0)
        # output.size():torch.Size([1, 1, 256])

        output = F.relu(output)
        #output.size():torch.Size([1, 1, 256])

        output, hidden = self.gru(output, hidden) # 输入端hidden:torch.Size([1, 1, 256])
        # output.size()：torch.Size([1, 1, 256])，输出端hidden.size()：torch.Size([1, 1, 256])

#         output_last=self.out(output[0])                      # 我i自己改的
        output_last = F.log_softmax(self.out(output[0]), dim=1) # 原来是这个的 log_softmax
        #output.size()：torch.Size([1, 6756])
#         print(output_last,output_last.size())
        return output_last,output, hidden, attn_weights

训练：

换个优化器 效果会好一点

encoder_optimizer = optim.Adam(encoder.parameters(), lr=learning_rate)
decoder_optimizer = optim.Adam(attentionRNN_decoder.parameters(), lr=learning_rate)

device = torch.device('cuda' if torch.cuda.is_available() else 'cpu')
hidden_size = 256
vocab_input_size = len(input_word_index) + 1
vocab_target_size = len(target_word_index) + 1
max_length=20
learning_rate=0.001
epoch=1

encoder = EncoderRNN(vocab_input_size,hidden_size).to(device)  # 模型定义实例化
attentionRNN_decoder = AttnDecoderRNN(hidden_size,vocab_target_size,max_length).to(device) # 模型定义实例化

encoder_optimizer = optim.SGD(encoder.parameters(), lr=learning_rate)
decoder_optimizer = optim.SGD(attentionRNN_decoder.parameters(), lr=learning_rate)

criterion = nn.NLLLoss().to(device) # 交叉熵计算公式

for epo in range(epoch):
        for setence_idx,input_setence in tqdm(enumerate(input_chin_tensor_train)):
                encoder_optimizer.zero_grad()
                decoder_optimizer.zero_grad()
                loss = 0
                mask=torch.zeros(max_length).to(device)# 制作msak矩阵
                input_setence=torch.LongTensor(input_setence).to(device)
                encoder_outputs = torch.zeros(max_length, hidden_size).to(device)
                for word_inx in range(len(input_setence)):
                    hidden = encoder.initHidden().to(device)
                    encoder_output, hidden = encoder((input_setence[word_inx]), hidden) # encoder就是 EncoderRNN 模型
                    encoder_outputs[word_inx]=encoder_output[0][0]
                    mask[word_inx]=1 # 让真实的单词位置mask是1

        #-------encoder部分完成了-----------------------
#                 print("encoder部分完成了")
                target_setence=torch.LongTensor(target_eng_tensor_train[setence_idx]).to(device)
                decoder_input=encoder_outputs[len(input_setence)-1].to(device)# 输入的是真实句子的最后一个 句子 不是padding之后的
#                 print("input_setence",input_setence)
#                 print("mask",mask)
                for  word_idx in range(len(target_setence)):
                        decoder_output,decoder_input,hidden,attn_weights = attentionRNN_decoder(decoder_input,encoder_outputs,hidden,mask)
                        loss+=criterion(decoder_output.to(device), torch.LongTensor([target_setence[word_idx]]).to(device))
                        loss=loss+loss

#                 if setence_idx%100==0:# 每100次 打印一下loss
                print(setence_idx,(loss/max_length).item())
                loss.backward()
                encoder_optimizer.step()
                decoder_optimizer.step()

#         print("第",epo,"个epoch的平均loss:",loss_epoch/len(input_chin_tensor_train))
        torch.save(encoder.state_dict(),str(epo)+'encoder.pth')
        torch.save(attentionRNN_decoder.state_dict(),str(epo)+'attentionRNN_decoder.pth')

测试：

encoder=EncoderRNN(vocab_input_size,hidden_size).to(device)  # 模型定义实例化
encoder.load_state_dict(torch.load('1encoder.pth'))

attentionRNN_decoder = AttnDecoderRNN(hidden_size,vocab_target_size,max_length).to(device)
attentionRNN_decoder.load_state_dict(torch.load('1attentionRNN_decoder.pth')) #

def data_val(input_chin_tensor_val,target_eng_tensor_val):
        with torch.no_grad():
            for setence_idx,input_setence in tqdm(enumerate(input_chin_tensor_val)):
                loss = 0
                input_setence=torch.LongTensor(input_setence).to(device)
                encoder_outputs = torch.zeros(max_length, hidden_size).to(device)
                for word_inx in range(len(input_setence)):
                        hidden = encoder.initHidden().to(device)
                        encoder_output, hidden = encoder((input_setence[word_inx]), hidden) # encoder就是 EncoderRNN 模型
                        encoder_outputs[word_inx]=encoder_output[0][0]

                target_setence=torch.LongTensor(target_eng_tensor_val[setence_idx]).to(device)
                decoder_input=encoder_outputs[-1].to(device)
                shuchu_juzi=[]
                for  word_idx in range(len(target_setence)):
                    decoder_output,decoder_input,hidden,attn_weights = attentionRNN_decoder(decoder_input,encoder_outputs,hidden,mask) # encoder就是 EncoderRNN 模型

                    output_word=np.argmax(decoder_output.data.cpu().numpy())
                    shuchu_juzi.append(output_word)
                print(shuchu_juzi)
#                     loss+=criterion(decoder_output.to(device),torch.LongTensor([target_setence[word_idx]]).to(device))
#                 print("loss",loss/20)
data_val(input_chin_tensor_val,target_eng_tensor_val)

rnn+attention 单独测试：

from __future__ import unicode_literals, print_function, division
from io import open
import unicodedata
import string
import re
import random
import torch
import torch.nn as nn
from torch import optim
import torch.nn.functional as F
device = torch.device('cuda' if torch.cuda.is_available() else 'cpu')
import numpy as np
import re
import tensorflow as tf
import matplotlib.pyplot as plt
import matplotlib.ticker as ticker
from sklearn.model_selection import train_test_split
from tqdm import tqdm

import jieba
from nltk.translate.bleu_score import sentence_bleu
from opencc import OpenCC

class AttnDecoderRNN(nn.Module):
    def __init__(self, hidden_size, output_size, max_length):
        super(AttnDecoderRNN, self).__init__()
        # hidden_size也是embedding_dim 就是刚开始 每个单词的维度
        self.hidden_size = hidden_size
        self.output_size = output_size
        self.max_length = max_length
        self.embedding = nn.Embedding(self.output_size, self.hidden_size) # 跟上边的一样  embedding模型的定义
        self.attn = nn.Linear(self.hidden_size * 2, self.max_length)
        self.attn_2 = nn.Linear(self.max_length, 1)
        self.attn_combine = nn.Linear(self.hidden_size * 2, self.hidden_size)
        self.gru = nn.GRU(self.hidden_size, self.hidden_size)
        self.out = nn.Linear(self.hidden_size, self.output_size)

    def initHidden(self):
        return torch.zeros(1, 1, self.hidden_size) #hidden_size=256

    def forward(self,decode_input,encoder_outputs,hidden):
        decode_input = decode_input.view(1, -1) # torch.Size([1, 256])

        input_1=decode_input.repeat(len(encoder_outputs),1)

        attn_weights =torch.tanh(self.attn(torch.cat([input_1,encoder_outputs], 1)))

        attn_weights=F.softmax(self.attn_2(attn_weights),dim=0).view(1,-1)
        # torch.cat： torch.Size([10, 512]) 把两个[10,256]的tensor 拼接
        # attn_weights维度为  torch.Size([1, 10]),tensor([[0.0988, 0.0997, 0.0944, 0.1047, 0.1051, 0.0925, 0.1062, 0.1043, 0.0892,0.1052]], device='cuda:0', grad_fn=<ViewBackward>)

        attn_applied = torch.bmm(attn_weights.unsqueeze(0),encoder_outputs.unsqueeze(0))  # unsqueeze(0)在第一个维度上 增加一维 1
        # torch.bmm 三维矩阵相乘
        # attn_applied=torch.Size([1, 1, 256])=torch.bmm([1,1,10],[1,10,256])
        # print(attn_applied.size())

        output = torch.cat([decode_input , attn_applied[0]], 1)
        # output.size():torch.Size([1, 512])

        output = self.attn_combine(output).unsqueeze(0)
        # output.size():torch.Size([1, 1, 256])

        output = F.relu(output)
        #output.size():torch.Size([1, 1, 256])

        output, hidden = self.gru(output, hidden) # 输入端hidden:torch.Size([1, 1, 256])
        # output.size()：torch.Size([1, 1, 256])，输出端hidden.size()：torch.Size([1, 1, 256])

        output_last = F.log_softmax(self.out(output[0]), dim=1)
        #output.size()：torch.Size([1, 6756])

        return output_last,output, hidden, attn_weights

attentionRNN_decoder = AttnDecoderRNN(256,6756,10)

decode_input=torch.Tensor(1, 256)
encoder_outputs=torch.Tensor(10, 256)
hidden=torch.Tensor(1, 1, 256)
output_last,output, hidden, attn_weights=attentionRNN_decoder(decode_input,encoder_outputs,hidden)

print(output_last.size())
print(output.size())
print(hidden.size())
print(attn_weights.size())
