47.Auto-Encoder介绍

Supervised Learning
Unsupervised Learning
Reinforcement Learning

Why need Unsupervised Learning?

Dimension reduction
Preprocessing
Visualization https://projector.tensorflow.org/
Taking advantages of unsupervised data
Compression, denoising, super-resolution…

How to Train?

Loss function for binary inputs
$l(f(x))=-\sum_k(x_klog(\hat{x}_k)+(1-x_k)log(1-\hat{x}_k))$
Cross-entropy error function (reconstruction loss) $f(x)\equiv \hat{x}$
Loss function for real-valued inputs
$l(f(x))=\frac{1}{2}\sum_k(\hat{x}_k-x_k)^2$
sum of squared differences (reconstruction loss)
we use a linear activation function at the output

自编码器是一种无监督的数据维度压缩和数据特征表达方法。自编码器是神经网络的一种，由编码器和解码器组成，经过训练后能尝试将输入复制到输出。

PCA V.S. Auto-Encoders

PCA, which finds the directions of maximal variance in high-dimensional data, select only those axes that have the largest variance.
The linearity of PCA, however, places significant limitations on the kinds of feature dimensions that can be extracted.

48.Auto-Encoder变种

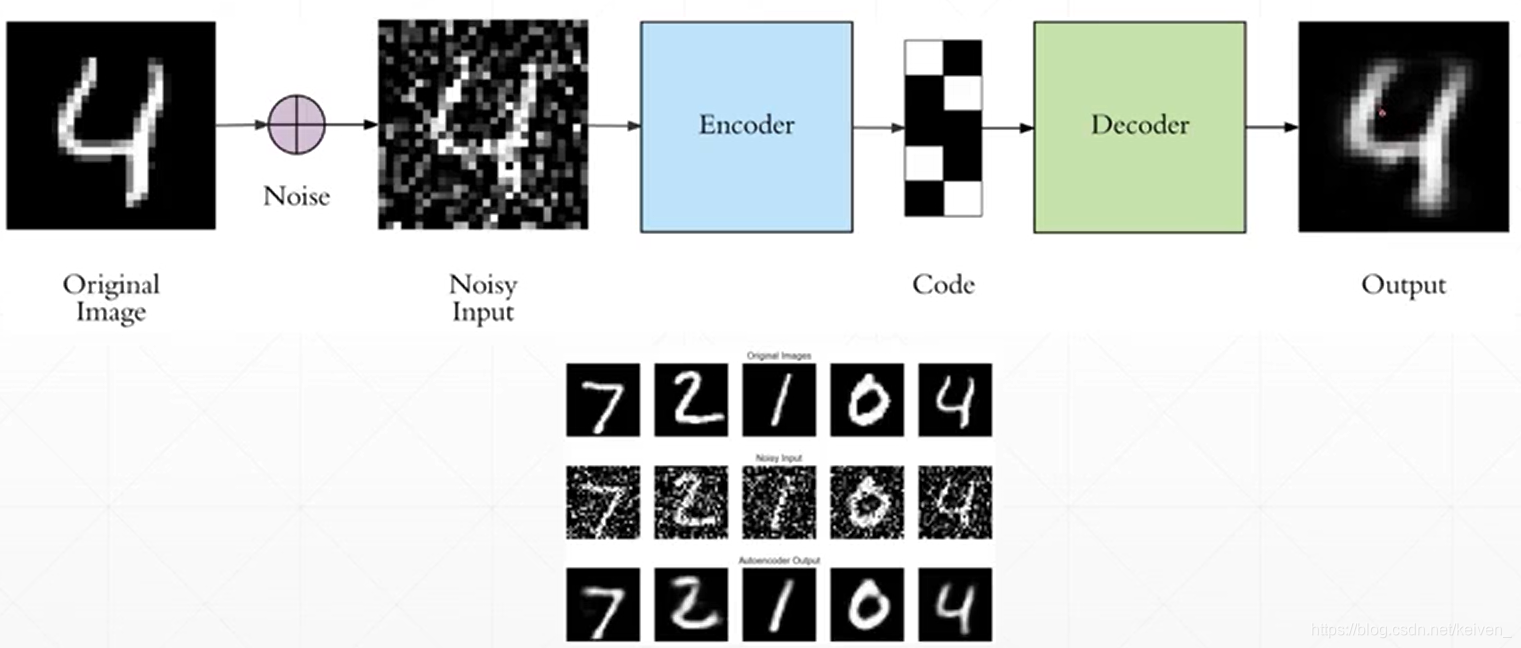

Denosing AutoEncoders
在这里插入图片描述

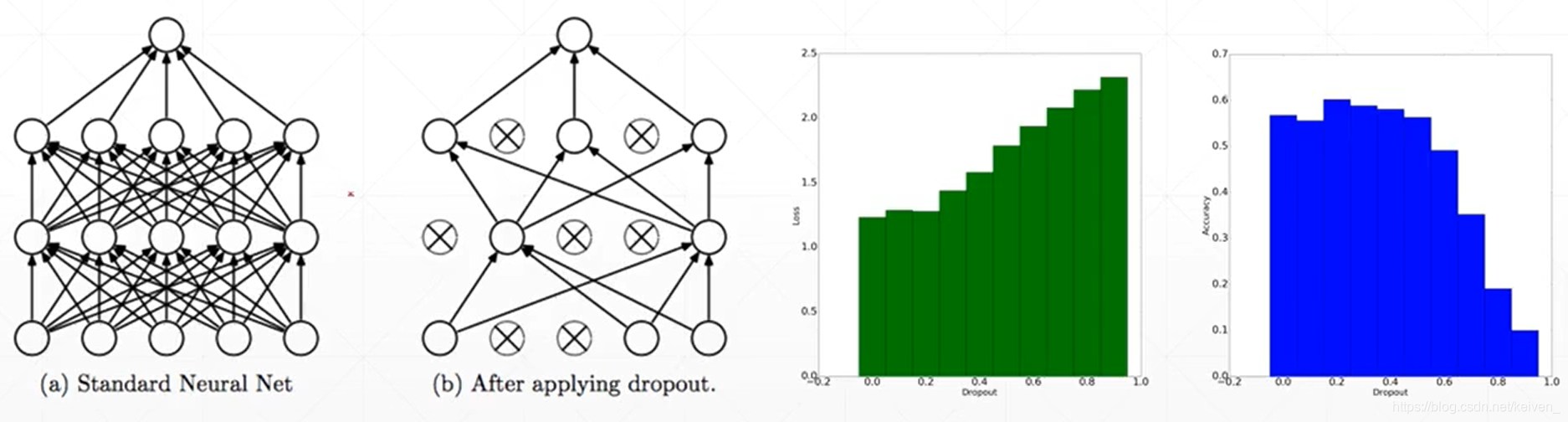

Dropout AutoEncoders

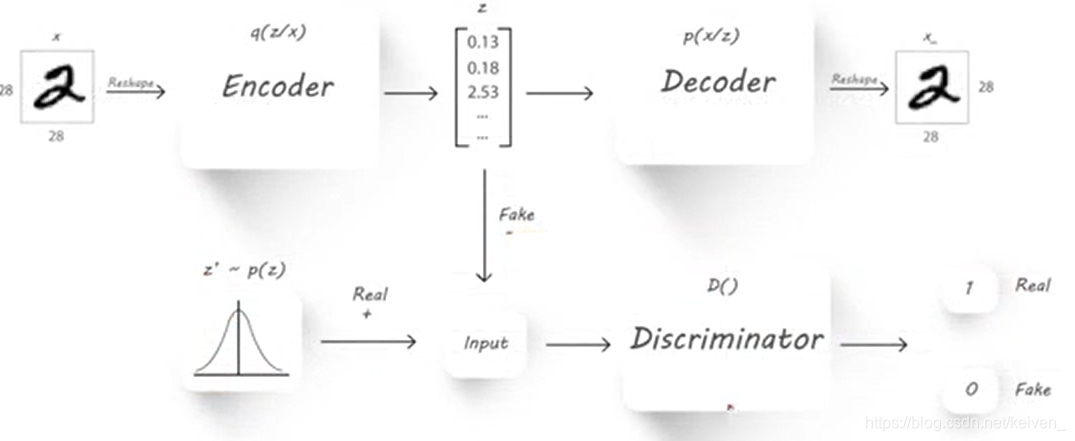

Adversarial AutoEncoders

Distribution of hidden code
Give more details after GAN

49.Variational Auto-Encoder引入

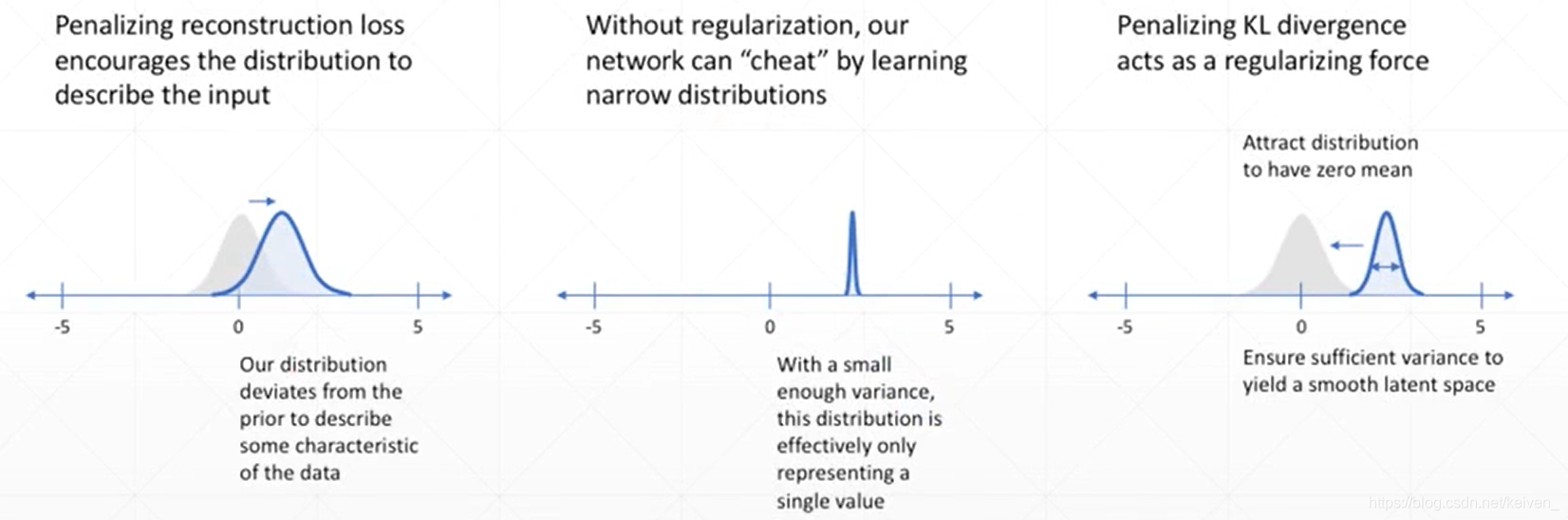

Another Approach: $q(z)\rightarrow p(z)$

Explicitly enforce
$l_i(\theta, \phi)=-E_{z\sim q_{\theta}(z|x_i)}[log\space p_{\phi}(x_i|z)]+KL(q_{\theta}(z|x_i)||p(z))$

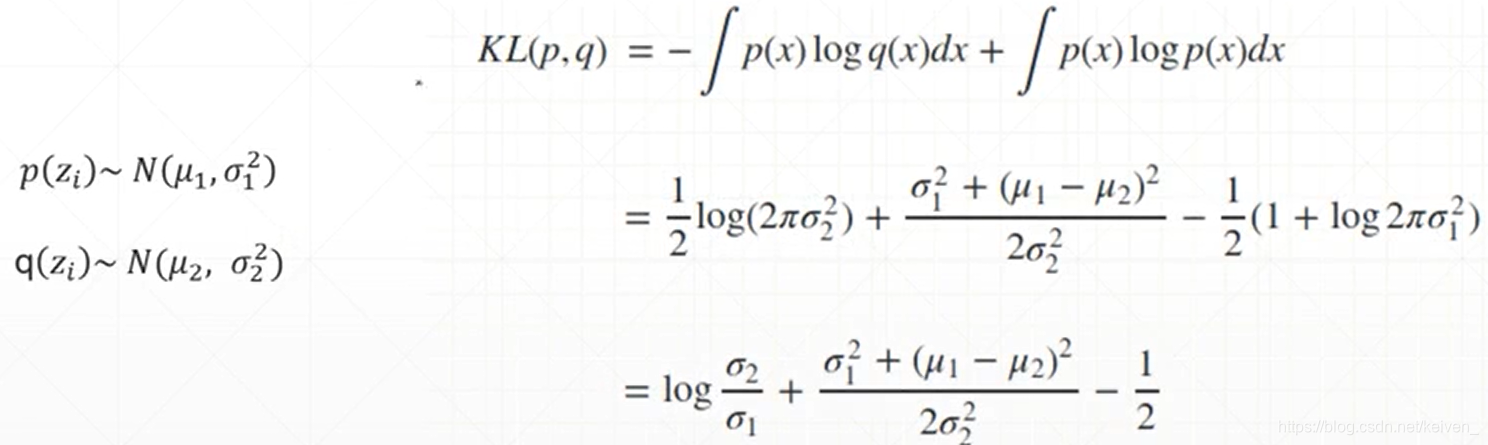

How to compute KL between $q (z)$ and $p (z)$
在这里插入图片描述
Sample() is not differentiable

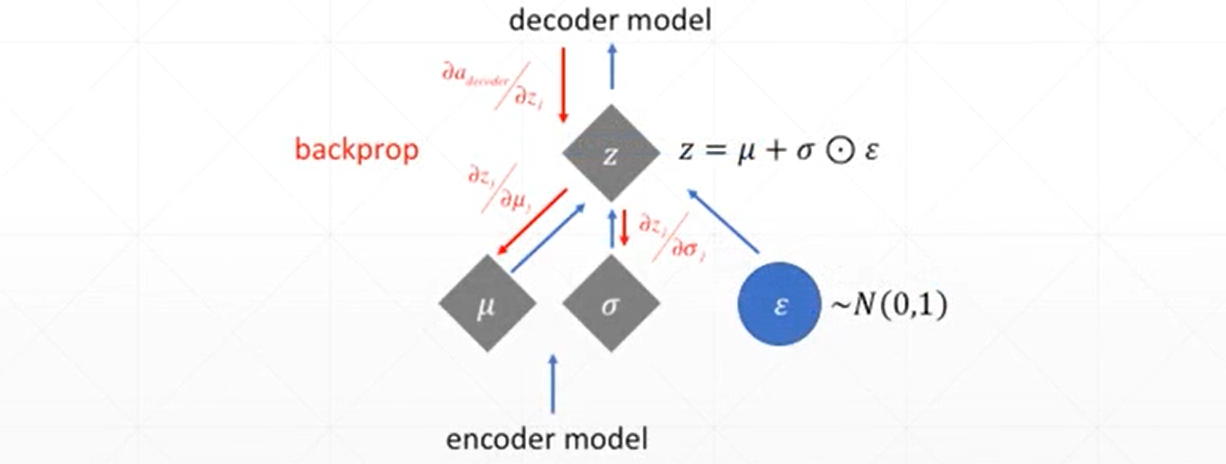

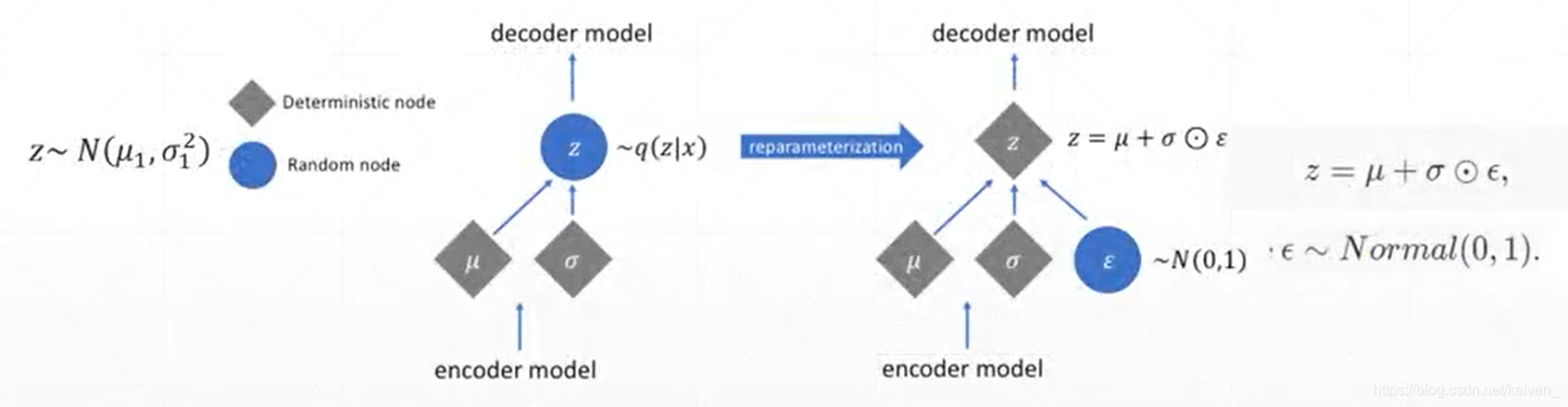

Reparameterization trick

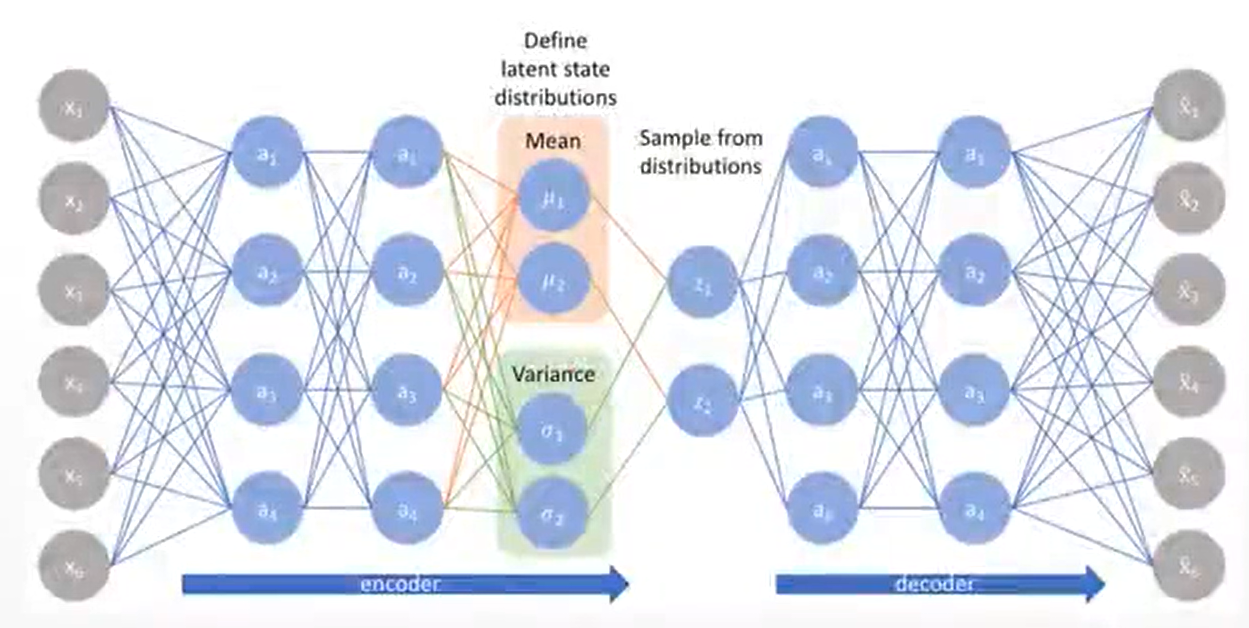

50.变分自编码器VAE

在这里插入图片描述

51.实战

main.py

import torch
from torch.utils.data import DataLoader
from torchvision import transforms, datasets
from Pytorch21_7_29.autoencoder.ae import AE
from Pytorch21_7_29.autoencoder.vae import VAE
from torch import nn, optim
import visdom

def main():
    mnist_train = datasets.MNIST('mnist', True, transform=transforms.Compose([
        transforms.ToTensor()
    ]), download=True)
    mnist_train = DataLoader(mnist_train, batch_size=32, shuffle=True)

    mnist_test = datasets.MNIST('mnist', True, transform=transforms.Compose([
        transforms.ToTensor()
    ]), download=True)
    mnist_test = DataLoader(mnist_test,batch_size=32,shuffle=True)

    x, _ = iter(mnist_train).next()
    print('x:', x.shape)    # x: torch.Size([32, 1, 28, 28])

    device = torch.device('cuda')
    # model = AE().to(device)
    model = VAE().to(device)
    criteon = nn.MSELoss()
    optimizer = optim.Adam(model.parameters(), lr=1e-3)
    print(model)

    viz = visdom.Visdom()
    for epoch in range(1000):
        for batchidx, (x, _) in enumerate(mnist_train):
            # [b, 1, 28, 28]
            x = x.to(device)

            # x_hat = model(x)
            x_hat, kld = model(x)
            loss = criteon(x_hat, x)

            if kld is not None:
                # elbo = -loss - 1.0 * kld
                # loss = -elbo
                loss = loss + kld

            # backprop
            optimizer.zero_grad()
            loss.backward()
            optimizer.step()

        # print(epoch, 'loss', loss.item())
        print(epoch, 'loss', loss.item(), 'kld:', kld.item())

        x, _ = iter(mnist_test).next()
        x = x.to(device)
        with torch.no_grad():
            # x_hat = model(x)
            x_hat, _ = model(x)
        viz.images(x, nrow=8, win='x', opts=dict(title='x'))
        viz.images(x_hat, nrow=8, win='x_hat', opts=dict(title='x_hat'))

if __name__ == '__main__':
    main()

51.1AE

ae.py

from torch import nn

class AE(nn.Module):
    def __init__(self):
        super(AE, self).__init__()

        # [b, 784] => [b, 20]
        self.encoder = nn.Sequential(
            nn.Linear(784, 256),
            nn.ReLU(),
            nn.Linear(256, 64),
            nn.ReLU(),
            nn.Linear(64, 20),
            nn.ReLU(),
        )

        # [b, 20] => [b, 784]
        self.decoder = nn.Sequential(
            nn.Linear(20, 64),
            nn.ReLU(),
            nn.Linear(64, 256),
            nn.ReLU(),
            nn.Linear(256, 784),
            nn.Sigmoid()
        )

    def forward(self, x):
        """
        :param x: [b, 1, 28, 28]
        :return:
        """
        batchsz = x.size(0)
        # flatten
        x = x.view(batchsz, 784)
        # encoder
        x = self.encoder(x)
        # decoder
        x = self.decoder(x)
        # reshape
        x = x.view(batchsz, 1, 28, 28)
        return x

在这里插入图片描述

51.2VAE

vae.py

import torch
from torch import nn

class VAE(nn.Module):
    def __init__(self):
        super(VAE, self).__init__()

        # [b, 784] => [b, 20]
        # u: [b, 10]    sigma: [b, 10]
        self.encoder = nn.Sequential(
            nn.Linear(784, 256),
            nn.ReLU(),
            nn.Linear(256, 64),
            nn.ReLU(),
            nn.Linear(64, 20),
            nn.ReLU(),
        )

        # [b, 10] => [b, 784]
        self.decoder = nn.Sequential(
            nn.Linear(10, 64),
            nn.ReLU(),
            nn.Linear(64, 256),
            nn.ReLU(),
            nn.Linear(256, 784),
            nn.Sigmoid()
        )

    def forward(self, x):
        """
        :param x: [b, 1, 28, 28]
        :return:
        """
        batchsz = x.size(0)
        # flatten
        x = x.view(batchsz, 784)
        # encoder
        # [b, 20], including mean and sigma
        h_ = self.encoder(x)
        # [b, 20] => [b, 10] + [b, 10]
        mu, sigma = h_.chunk(2, dim=1)
        # reparameterization trick, epision~N(0, 1)
        h = mu + sigma * torch.randn_like(sigma)

        # decoder
        x_hat = self.decoder(h)
        # reshape
        x_hat = x_hat.view(batchsz, 1, 28, 28)

        kld = 0.5 * torch.sum(
            torch.pow(mu, 2) +
            torch.pow(sigma, 2) +
            torch.log(1e-8 + torch.pow(sigma, 2)) - 1
        ) / (batchsz * 28 * 28)

        return x_hat, kld
