一、编码-解码

编码（训练）：处理输出，把输入编程成中甲你表达形式（特征）
解码（预测）：生成输出，把特征解码成输出

from torch import nn

class Encoder(nn.Module):
    """编码器-解码器结构的基本编码器接口。"""
    def __init__(self, **kwargs):
        super(Encoder, self).__init__(**kwargs)

    def forward(self, X, *args):
        raise NotImplementedError
class Decoder(nn.Module):
    """编码器-解码器结构的基本解码器接口。"""
    def __init__(self, **kwargs):
        super(Decoder, self).__init__(**kwargs)

    def init_state(self, enc_outputs, *args):
        raise NotImplementedError

    def forward(self, X, state):
        raise NotImplementedError
class EncoderDecoder(nn.Module):
    """编码器-解码器结构的基类。"""
    def __init__(self, encoder, decoder, **kwargs):
        super(EncoderDecoder, self).__init__(**kwargs)
        self.encoder = encoder
        self.decoder = decoder

    def forward(self, enc_X, dec_X, *args):
        enc_outputs = self.encoder(enc_X, *args)
        dec_state = self.decoder.init_state(enc_outputs, *args)
        return self.decoder(dec_X, dec_state)

二、Seq2seq

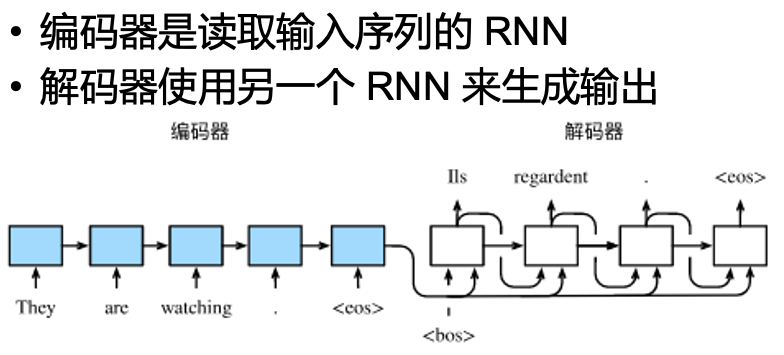

在这里插入图片描述
训练过程，即Encode的过程（一个RNN）是双向的
解码器是单向的
RNN也不需要定长的序列作为输入输出

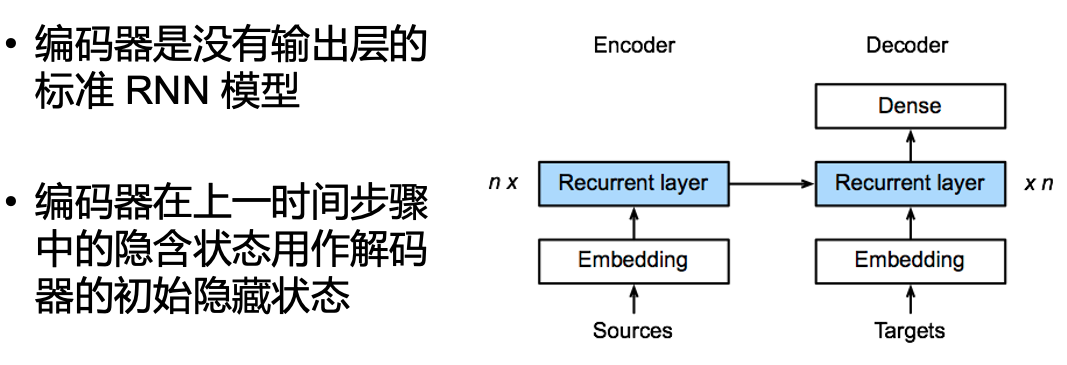

在这里插入图片描述
把编码器的RNN最后一层的输出放在解码器里，作为初始隐状态

torch

import collections
import math
import torch
from torch import nn
from d2l import torch as d2l

class Seq2SeqEncoder(d2l.Encoder):
    """用于序列到序列学习的循环神经网络编码器Encode"""
    def __init__(self, vocab_size, embed_size, num_hiddens, num_layers,dropout=0, **kwargs):
        super(Seq2SeqEncoder, self).__init__(**kwargs)
        # 嵌入层
        self.embedding = nn.Embedding(vocab_size, embed_size)
        #对每个词embedding
        self.rnn = nn.GRU(embed_size, num_hiddens, num_layers,
                          dropout=dropout)
		#numlayers是RNN的层数 numhiddens是隐藏层的层数
    def forward(self, X, *args):
        # 输出'X'的形状：(`batch_size`, `num_steps`, `embed_size`)
        X = self.embedding(X)
        # 在循环神经网络模型中，第一个轴对应于时间步，交换batchsize和numstep
        X = X.permute(1, 0, 2)
        # 如果未提及状态，则默认为0
        output, state = self.rnn(X)
        # `output`的形状: (`num_steps`, `batch_size`, `num_hiddens`)
        # `state[0]`的形状: (`num_layers`, `batch_size`, `num_hiddens`)
        return output, state

encoder = Seq2SeqEncoder(vocab_size=10, embed_size=8, num_hiddens=16,
                         num_layers=2)
encoder.eval()
X = torch.zeros((4, 7), dtype=torch.long)
output, state = encoder(X)
#output和state的形状torch.Size([7, 4, 16]) torch.Size([2, 4, 16])

class Seq2SeqDecoder(d2l.Decoder):
    """用于序列到序列学习的循环神经网络解码器。"""
    def __init__(self, vocab_size, embed_size, num_hiddens, num_layers,
                 dropout=0, **kwargs):
        super(Seq2SeqDecoder, self).__init__(**kwargs)
        self.embedding = nn.Embedding(vocab_size, embed_size)
        self.rnn = nn.GRU(embed_size + num_hiddens, num_hiddens, num_layers,
                          dropout=dropout)
        self.dense = nn.Linear(num_hiddens, vocab_size)
        #分类

    def init_state(self, enc_outputs, *args):
        return enc_outputs[1] #enc_outputs[1]为state

    def forward(self, X, state):
        # 输出'X'的形状：(`batch_size`, `num_steps`, `embed_size`)
        X = self.embedding(X).permute(1, 0, 2)
        # 广播`context`，使其具有与`X`相同的`num_steps`
        context = state[-1].repeat(X.shape[0], 1, 1)
        X_and_context = torch.cat((X, context), 2)
        output, state = self.rnn(X_and_context, state)
        output = self.dense(output).permute(1, 0, 2)
        # `output`的形状: (`batch_size`, `num_steps`, `vocab_size`)
        # `state[0]`的形状: (`num_layers`, `batch_size`, `num_hiddens`)
        return output, state
decoder = Seq2SeqDecoder(vocab_size=10, embed_size=8, num_hiddens=16,
                         num_layers=2)
decoder.eval()
state = decoder.init_state(encoder(X))
output, state = decoder(X, state)
# output和state的shape(torch.Size([4, 7, 10]), torch.Size([2, 4, 16]))
