[人工智能]opencv_C++学习（7）

1.直方图均衡化

代码演示：

#include<opencv2/opencv.hpp>
#include<iostream>
#include<math.h>
#include <opencv2\imgproc\types_c.h>

using namespace cv;
int main(int argc, char** argv)
{
	Mat src, dst;
	src = imread("C:/ERRT/140506-jordan-speedread-tease_ednmry.jpg");
	if (!src.data)
	{
		printf("could not load image...\n");
		return -1;
	}

	cvtColor(src, src, CV_BGR2GRAY);
	equalizeHist(src, dst);
	char INPUT_T[] = "input image";
	char OUTPUT_T[] = "result image";
	namedWindow(INPUT_T, WINDOW_FREERATIO);
	namedWindow(OUTPUT_T, WINDOW_FREERATIO);

	imshow(INPUT_T, src);
	imshow(OUTPUT_T, dst);

	waitKey(0);
	return 0;
}

效果图：

2.直方图计算

代码演示：

?

#include<opencv2/opencv.hpp>
#include<iostream>
#include<math.h>
#include <opencv2\imgproc\types_c.h>

using namespace cv;
using namespace std;

int main(int argc, char** argv)
{
	Mat src;
	src = imread("C:/ERRT/140506-jordan-speedread-tease_ednmry.jpg");
	if (!src.data)
	{
		printf("could not load image...\n");
		return -1;
	}
	char INPUT_T[] = "input image";
	char OUTPUT_T[] = "histogram image";
	namedWindow(INPUT_T, WINDOW_FREERATIO);
	namedWindow(OUTPUT_T, WINDOW_FREERATIO);
    imshow(INPUT_T, src);

	//分通道显示
	vector<Mat> bgr_planes;
	split(src, bgr_planes);

	//计算直方图
	int histSize = 256;
	float range[] = { 0,256 };
	const float* histRange = { range };
	Mat b_hist, g_hist, r_hist;
	calcHist(&bgr_planes[0], 1, 0, Mat(), b_hist, 1, &histSize, &histRange, true, false);
	calcHist(&bgr_planes[1], 1, 0, Mat(), g_hist, 1, &histSize, &histRange, true, false);
	calcHist(&bgr_planes[2], 1, 0, Mat(), r_hist, 1, &histSize, &histRange, true, false);

	//归一化
	int hist_h = 400;
	int hist_w = 512;
	int bin_w = hist_w / histSize;
	Mat histImage(hist_w, hist_h, CV_8UC3, Scalar(0, 0, 0));
	normalize(b_hist, b_hist, 0, hist_h, NORM_MINMAX, -1, Mat());
	normalize(g_hist, g_hist, 0, hist_h, NORM_MINMAX, -1, Mat());
	normalize(r_hist, r_hist, 0, hist_h, NORM_MINMAX, -1, Mat());

	//render histogram chart
	for (int i = 1; i < histSize ; i++)
	{
		line(histImage, Point((i - 1) * bin_w, hist_h - cvRound(b_hist.at<float>(i - 1))),
			Point((i)*bin_w, hist_h - cvRound(b_hist.at<float>(i))), Scalar(255, 0, 0), 2, LINE_AA);

		line(histImage, Point((i - 1) * bin_w, hist_h - cvRound(g_hist.at<float>(i - 1))),
			Point((i)*bin_w, hist_h - cvRound(g_hist.at<float>(i))), Scalar(0, 255, 0), 2, LINE_AA);

		line(histImage, Point((i - 1) * bin_w, hist_h - cvRound(r_hist.at<float>(i - 1))),
			Point((i)*bin_w, hist_h - cvRound(r_hist.at<float>(i))), Scalar(0, 0, 255), 2, LINE_AA);
	}
	imshow(OUTPUT_T, histImage);

	waitKey(0);
	return 0;
}

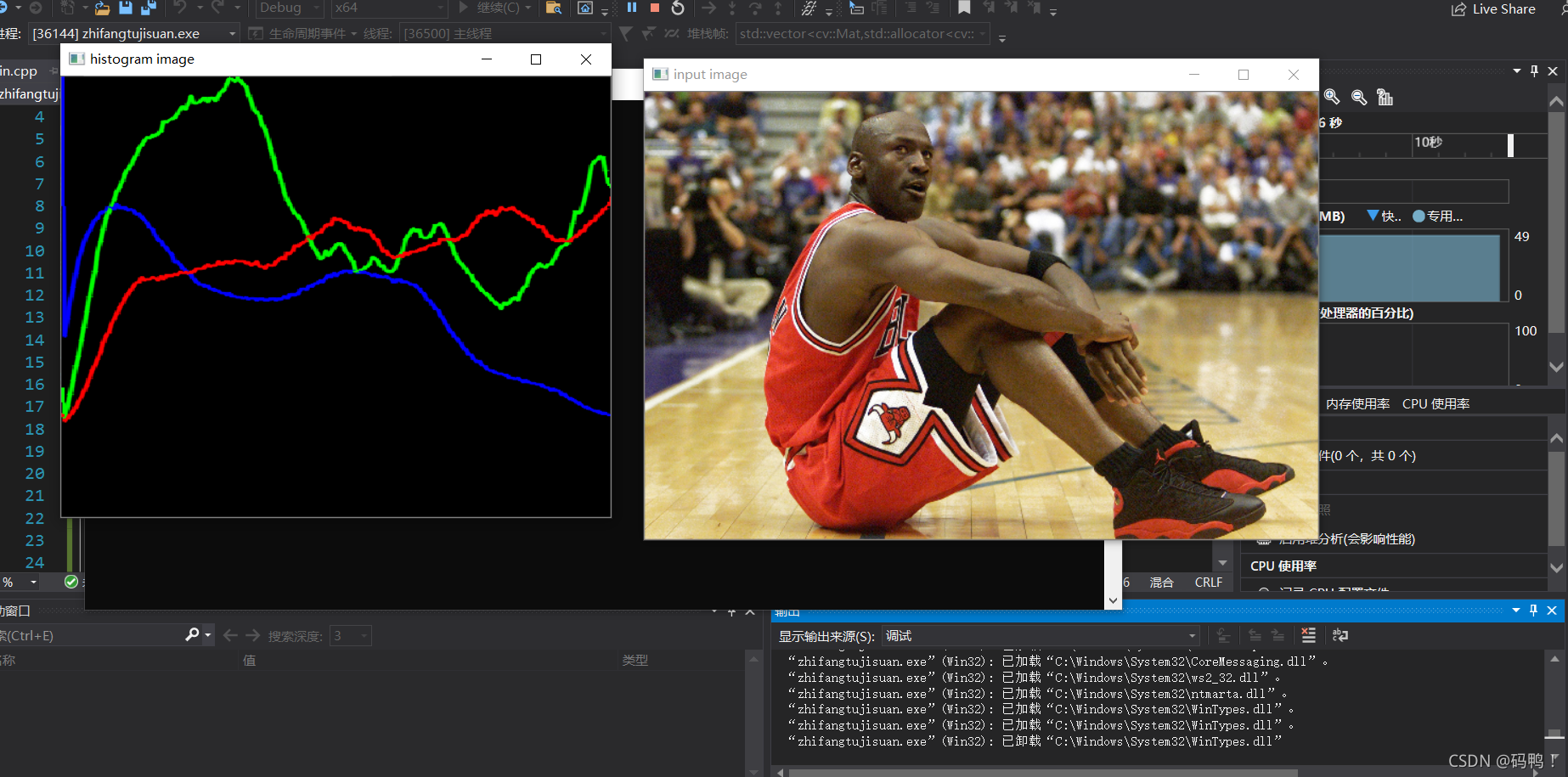

效果图：

?
