AI研习社“猫狗大战”

结果展示

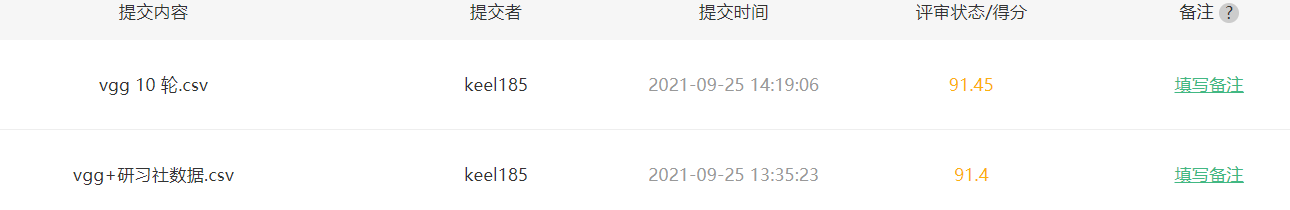

vgg结果

正确率卡在了91%
在这里插入图片描述

resnet结果

第一次迁移只有50左右的正确率，修改了损失函数有了80左右的正确率。
在这里插入图片描述
请添加图片描述

lenet结果

在这里插入图片描述

自己的cnn网络

import os
import torch
from torchvision import transforms,datasets
import torch
import torch.nn as nn
import torch.nn.functional as F
from torch.autograd import Variable
import numpy as np
from torch.utils.data import Dataset, DataLoader
from torchvision import transforms, utils
import torch.optim as optim
from PIL import Image

device = torch.device("cuda:0" if torch.cuda.is_available() else "cpu")
print('Using gpu: %s ' % torch.cuda.is_available())

数据预处理

data_transform = transforms.Compose([
    transforms.Resize(84),
    transforms.CenterCrop(84),
    transforms.ToTensor(),
    transforms.Normalize(mean = [0.485, 0.456, 0.406],std = [0.229, 0.224, 0.225])
])

获取数据，先把数据的路径，名称，标签都写入txt，然后通过txt获得信息，

class MyDataSet(Dataset):
    def __init__(self, txtPath, data_transform):
        self.imgPathArr = []
        self.labelArr = []
        with open(txtPath, "rb") as f:
            txtArr = f.readlines()
        for i in txtArr:
            fileArr = str(i.strip(), encoding = "unicode_escape").split(" ")
            self.imgPathArr.append(fileArr[0])
            self.labelArr.append(fileArr[1])
        self.transforms = data_transform

    def __getitem__(self, index):
        label = np.array(int(self.labelArr[index]))
        img_path = self.imgPathArr[index]
        pil_img = Image.open(img_path)
        if self.transforms:
            data = self.transforms(pil_img)
        else:
            pil_img = np.asarray(pil_img)
            data = torch.from_numpy(pil_img)
        return data, label

    def __len__(self):
        return len(self.imgPathArr)

一个简单的cnn网络

class Net(nn.Module):
    def __init__(self):
        super(Net, self).__init__()
        self.conv1 = nn.Sequential(
            nn.Conv2d(3, 16, 5, 1, 2),
            nn.ReLU(),
            nn.MaxPool2d(kernel_size=2),
        )
        self.conv2 = nn.Sequential(
            nn.Conv2d(16, 32, 5, 1, 2),
            nn.ReLU(),
            nn.MaxPool2d(2),
        )
        self.out = nn.Linear(32 * 21 * 21, 2)

    def forward(self, x):
        x = self.conv1(x)
        x = self.conv2(x)
        x = x.view(x.size(0), -1)
        output = self.out(x)
        return output, x

if __name__=='__main__':

    train_dataset = MyDataSet('D:/猫狗大战数据集/cat_dog/train.txt', data_transform)
    train_loader = torch.utils.data.DataLoader(train_dataset,batch_size = 4,shuffle = True,num_workers = 4)

    test_dataset = MyDataSet('D:/猫狗大战数据集/cat_dog/text.txt', data_transform)
    test_loader = torch.utils.data.DataLoader(test_dataset,batch_size = 1,shuffle = True,num_workers = 4)


    net = Net().to(device)

    cirterion = nn.CrossEntropyLoss()
    optimizer = optim.SGD(net.parameters(),lr = 0.0001,momentum = 0.9)
    t = 0
    # Train
    try:
        for epoch in range(10):
            running_loss = 0.0
            for i,data in enumerate(train_loader,0):
                inputs,labels = data
                inputs,labels = Variable(inputs),Variable(labels.long())
                outputs = net(inputs)[0]
                predicted = torch.max(outputs.data,1)[1].data.numpy()

                loss = cirterion(outputs,labels)
                optimizer.zero_grad()
                loss.backward()
                optimizer.step()

                running_loss += loss.item()


                if i % 100 == 99:
                    print('[%d %5d] loss: %.3f' % (epoch + 1,i + 1,running_loss / 100))
                    running_loss = 0.0
    finally:
        print('finished training!')
        torch.save(net.state_dict(),'net_params.pkl')


    # Test
    correct = 0
    total = 0

    for data in test_loader:
        images,labels = data
        images,labels = Variable(images),labels
        print(labels)
        outputs = net(images)[0]

        predicted = torch.max(outputs.data,1)[1].data.numpy()
        total += labels.size(0)

        correct += (predicted == labels.numpy()).sum()

    print('Accuracy of the network on the 2000 test images: %d %%' % (100 * correct / total))

vgg迁移学习

别的部分没太大的区别，就是把网络换一下，然后把网络的输入输出跟自己的数据做一下适配。

model_vgg = models.vgg16(pretrained=True)
model_vgg_new = model_vgg;

for param in model_vgg_new.parameters():
    param.requires_grad = False
model_vgg_new.classifier._modules['6'] = nn.Linear(4096, 2)
model_vgg_new.classifier._modules['7'] = torch.nn.LogSoftmax(dim = 1)

model_vgg_new = model_vgg_new.to(device)
