[人工智能]FedAvg源码学习

• 代码来源：github

• 包含：


• 简介：data、models、save、utils封装了main_fed.py与main_nn.py所需的函数，main_fed.py来运行fedavg，main_nn.py来运行普通的NN。

• 各部分代码及注释：（main_nn.py后续再补充）

• 相关知识补充：
  matpltlib.use(‘agg’)
  argparse , argparse_argument
  torch.device() , torch.device()
  copy(),deepcopy()
  PyTorch state_dict

• 代码各部分及注释

1.main_fed.py

#!/usr/bin/env python
# -*- coding: utf-8 -*-
# Python version: 3.6

# 下面是自带库
import matplotlib
matplotlib.use('Agg')                                             # 可理解为令pycharm不产生图片
import matplotlib.pyplot as plt
import copy
import numpy as np
from torchvision import datasets, transforms
import torch

# 下面是自建库
from utils.sampling import mnist_iid, mnist_noniid, cifar_iid  # 引入了三种 iid 与 non-iid 数据库类型
from utils.options import args_parser  # 导入程序运行对应选项，在终端cd到对应文件夹即可以所需方式运行程序，如：python main_fed.py --dataset mnist  --num_channels 1 --model cnn --epochs 50 --gpu -1
from models.Update import LocalUpdate
from models.Nets import MLP, CNNMnist, CNNCifar
from models.Fed import FedAvg
from models.test import test_img


if __name__ == '__main__':
    # parse args 解析参数
    args = args_parser()
    # 将torch.Tensor()进行分配到设备，来选择cpu还是gpu进行训练
    args.device = torch.device('cuda:{}'.format(args.gpu) if torch.cuda.is_available() and args.gpu != -1 else 'cpu')

    # load dataset and split users 加载数据集并进行用户分组
    if args.dataset == 'mnist':   # 如果用mnist数据集
        # 数据集的均值与方差
        trans_mnist = transforms.Compose([transforms.ToTensor(), transforms.Normalize((0.1307,), (0.3081,))])
        dataset_train = datasets.MNIST('../data/mnist/', train=True, download=True, transform=trans_mnist)  # 训练集
        dataset_test = datasets.MNIST('../data/mnist/', train=False, download=True, transform=trans_mnist)  # 测试集
        # sample users
        if args.iid:  # 如果是iid的mnist数据集
            dict_users = mnist_iid(dataset_train, args.num_users)  # 为用户分配iid数据
        else:
            dict_users = mnist_noniid(dataset_train, args.num_users)  # 否则为用户分配non-iid数据
    elif args.dataset == 'cifar':  # 如果用cifar数据集
        # 数据集均值与方差
        trans_cifar = transforms.Compose([transforms.ToTensor(), transforms.Normalize((0.5, 0.5, 0.5), (0.5, 0.5, 0.5))])
        dataset_train = datasets.CIFAR10('../data/cifar', train=True, download=True, transform=trans_cifar)
        dataset_test = datasets.CIFAR10('../data/cifar', train=False, download=True, transform=trans_cifar)
        if args.iid:  # 如果是iid的cifar数据集
            dict_users = cifar_iid(dataset_train, args.num_users)  # 为用户分配iid数据
        else:  # cifar未设置non-iid数据
            exit('Error: only consider IID setting in CIFAR10')
    else:
        exit('Error: unrecognized dataset')
    # 设置图像的size
    img_size = dataset_train[0][0].shape


    # build model 选择模型
    if args.model == 'cnn' and args.dataset == 'cifar':
        net_glob = CNNCifar(args=args).to(args.device)
    elif args.model == 'cnn' and args.dataset == 'mnist':
        net_glob = CNNMnist(args=args).to(args.device)
    elif args.model == 'mlp':
        len_in = 1
        for x in img_size:
            len_in *= x
        net_glob = MLP(dim_in=len_in, dim_hidden=200, dim_out=args.num_classes).to(args.device)
    else:
        exit('Error: unrecognized model')
    print(net_glob)
    net_glob.train()

    # copy weights
    w_glob = net_glob.state_dict()

    # training
    loss_train = []
    cv_loss, cv_acc = [], []
    val_loss_pre, counter = 0, 0
    net_best = None
    best_loss = None
    val_acc_list, net_list = [], []

    if args.all_clients:   # 选择利用所有用户进行聚合
        print("Aggregation over all clients")
        w_locals = [w_glob for i in range(args.num_users)]  # 每一个local的w与全局w相等
    for iter in range(args.epochs):
        loss_locals = []  # 对于每一个epoch，初始化worker的损失
        if not args.all_clients:  # 如果不是用所有用户进行聚合
            w_locals = []  # 此时worker的w与全局w并不一致
        m = max(int(args.frac * args.num_users), 1)  # 此时，在每一轮中，在所有worker中选取C-fraction（C∈（0,1））部分进行训练，m为选取的worker总数
        idxs_users = np.random.choice(range(args.num_users), m, replace=False)  # 在所有的worker中(0,1,2...num_workers-1)选取m个worker（m = all_workers * C_fraction）,且输出不重复
        for idx in idxs_users:  # 对于选取的m个worker
            local = LocalUpdate(args=args, dataset=dataset_train, idxs=dict_users[idx])  # 对每个worker进行本地更新
            w, loss = local.train(net=copy.deepcopy(net_glob).to(args.device))  #
            if args.all_clients:  # 如果选择全部用户
                w_locals[idx] = copy.deepcopy(w)
            else:  # 并行
                w_locals.append(copy.deepcopy(w))
            loss_locals.append(copy.deepcopy(loss))
        # update global weights
        w_glob = FedAvg(w_locals)  # 利用选取的局部w对全局w进行聚合更新，w_glob即为全局聚合更新后的值

        # copy weight to net_glob
        net_glob.load_state_dict(w_glob)

        # print loss
        loss_avg = sum(loss_locals) / len(loss_locals)
        print('Round {:3d}, Average loss {:.3f}'.format(iter, loss_avg))
        loss_train.append(loss_avg)


    # plot loss curve 绘制损失函数曲线
    plt.figure()
    plt.plot(range(len(loss_train)), loss_train)
    plt.ylabel('train_loss')
    # plt.xlabel('epoch')
    # plt.savefig('./save/fed_{}_{}_{}_C{}_iid{}.png'.format(args.dataset, args.model, args.epochs, args.frac, args.iid))
    plt.savefig('C:\\Users\\xiaobingnan0224\\Desktop\\fed_mnist_CNN_non-iid_epochs50.png'.format(args.dataset, args.model, args.epochs, args.frac, args.iid))

    # testing 在测试集上进行测试
    net_glob.eval()
    acc_train, loss_train = test_img(net_glob, dataset_train, args)
    acc_test, loss_test = test_img(net_glob, dataset_test, args)
    print("Training accuracy: {:.2f}".format(acc_train))
    print("Testing accuracy: {:.2f}".format(acc_test))

2.options.py

#!/usr/bin/env python
# -*- coding: utf-8 -*-
# Python version: 3.6

import argparse
'''
argparse 模块是 Python 内置的一个用于命令项选项与参数解析的模块，argparse 模块可以让人轻松编写用户友好的命令行接口。
通过在程序中定义好我们需要的参数，然后 argparse 将会从 sys.argv 解析出这些参数。
argparse 模块还会自动生成帮助和使用手册，并在用户给程序传入无效参数时报出错误信息。
'''

'''
ArgumentParser.add_argument(name or flags...[, action][, nargs][, const][, default][, type][, choices][, required][, help][, metavar][, dest])
'''


def args_parser():
    parser = argparse.ArgumentParser()  # 创建ArgumentParser()对象

    # 调用add_argument()方法添加参数（定义如何解析命令行参数）

    # federated arguments
    parser.add_argument('--epochs', type=int, default=10, help="rounds of training")
    parser.add_argument('--num_users', type=int, default=100, help="number of users: K")
    parser.add_argument('--frac', type=float, default=0.1, help="the fraction of clients: C")
    parser.add_argument('--local_ep', type=int, default=5, help="the number of local epochs: E")
    parser.add_argument('--local_bs', type=int, default=10, help="local batch size: B")
    parser.add_argument('--bs', type=int, default=128, help="test batch size")
    parser.add_argument('--lr', type=float, default=0.01, help="learning rate")
    parser.add_argument('--momentum', type=float, default=0.5, help="SGD momentum (default: 0.5)")
    parser.add_argument('--split', type=str, default='user', help="train-test split type, user or sample")

    # model arguments
    parser.add_argument('--model', type=str, default='mlp', help='model name')
    parser.add_argument('--kernel_num', type=int, default=9, help='number of each kind of kernel')
    parser.add_argument('--kernel_sizes', type=str, default='3,4,5',
                        help='comma-separated kernel size to use for convolution')  # 卷积核大小可选3、4、5
    parser.add_argument('--norm', type=str, default='batch_norm', help="batch_norm, layer_norm, or None")
    parser.add_argument('--num_filters', type=int, default=32, help="number of filters for conv nets")
    parser.add_argument('--max_pool', type=str, default='True',
                        help="Whether use max pooling rather than strided convolutions")  # 默认max_pooling

    # other arguments
    parser.add_argument('--dataset', type=str, default='mnist', help="name of dataset")
    parser.add_argument('--iid', action='store_true', help='whether i.i.d or not')  # 若输入--iid即选择iid数据，不填则默认是non-iid数据
    '''
    parser.add_argument('-c', action='store_true', default=false)
    #python test.py -c => c是true（因为action）
    #python test.py => c是false（default）
    '''
    parser.add_argument('--num_classes', type=int, default=10, help="number of classes")
    parser.add_argument('--num_channels', type=int, default=3, help="number of channels of images")
    parser.add_argument('--gpu', type=int, default=0, help="GPU ID, -1 for CPU")  # 输入-1即默认选用CPU训练，没显卡的我眼泪掉下来
    parser.add_argument('--stopping_rounds', type=int, default=10, help='rounds of early stopping')
    parser.add_argument('--verbose', action='store_true', help='verbose print')
    parser.add_argument('--seed', type=int, default=1, help='random seed (default: 1)')
    parser.add_argument('--all_clients', action='store_true', help='aggregation over all clients')
    args = parser.parse_args()  # 使用parse_args()解析添加的函数
    return args

3.Nets.py

#!/usr/bin/env python
# -*- coding: utf-8 -*-
# Python version: 3.6

# 模型结构设计
import torch
from torch import nn
import torch.nn.functional as F

# MLP模型
class MLP(nn.Module):
    def __init__(self, dim_in, dim_hidden, dim_out):  # 输入维度 隐层维度 输出维度
        super(MLP, self).__init__()
        self.layer_input = nn.Linear(dim_in, dim_hidden)
        self.relu = nn.ReLU()
        self.dropout = nn.Dropout()
        self.layer_hidden = nn.Linear(dim_hidden, dim_out)

    def forward(self, x):
        x = x.view(-1, x.shape[1]*x.shape[-2]*x.shape[-1])
        x = self.layer_input(x)
        x = self.dropout(x)
        x = self.relu(x)
        x = self.layer_hidden(x)
        return x

# 用CNN训练mnist
class CNNMnist(nn.Module):
    def __init__(self, args):
        super(CNNMnist, self).__init__()
        self.conv1 = nn.Conv2d(args.num_channels, 10, kernel_size=5)  # num_channels,num_classes在options.py中定义
        self.conv2 = nn.Conv2d(10, 20, kernel_size=5)
        self.conv2_drop = nn.Dropout2d()
        self.fc1 = nn.Linear(320, 50)
        self.fc2 = nn.Linear(50, args.num_classes)

    def forward(self, x):
        x = F.relu(F.max_pool2d(self.conv1(x), 2))
        x = F.relu(F.max_pool2d(self.conv2_drop(self.conv2(x)), 2))
        x = x.view(-1, x.shape[1]*x.shape[2]*x.shape[3])  # 进行reshape
        x = F.relu(self.fc1(x))
        x = F.dropout(x, training=self.training)
        x = self.fc2(x)
        return x


class CNNCifar(nn.Module):
    def __init__(self, args):
        super(CNNCifar, self).__init__()
        self.conv1 = nn.Conv2d(3, 6, 5)
        self.pool = nn.MaxPool2d(2, 2)
        self.conv2 = nn.Conv2d(6, 16, 5)
        self.fc1 = nn.Linear(16 * 5 * 5, 120)
        self.fc2 = nn.Linear(120, 84)
        self.fc3 = nn.Linear(84, args.num_classes)  # num_classes在options.py中定义

    def forward(self, x):
        x = self.pool(F.relu(self.conv1(x)))
        x = self.pool(F.relu(self.conv2(x)))
        x = x.view(-1, 16 * 5 * 5)
        x = F.relu(self.fc1(x))
        x = F.relu(self.fc2(x))
        x = self.fc3(x)
        return x

4.Fed.py

#!/usr/bin/env python
# -*- coding: utf-8 -*-
# Python version: 3.6

import copy
import torch
from torch import nn


def FedAvg(w):      # main中将w_locals赋给w，即worker计算出的权值
    w_avg = copy.deepcopy(w[0])
    for k in w_avg.keys():  # 对于每个参与的设备：
        for i in range(1, len(w)):  # 对本地更新进行聚合
            w_avg[k] += w[i][k]
        w_avg[k] = torch.div(w_avg[k], len(w))
    return w_avg

# import copy
#
# origin = [1, 2, [3, 4]]
# cop1 = copy.copy(origin)
# cop2 = copy.deepcopy(origin)
# cop3=origin
#
# print(origin)
# print(cop1)
# print(cop2)
# print(cop3)
#
# origin[2][0] = "hey!"  #改变
# print("##################")
#
# print(origin)
# print(cop1)
# print(cop2)   # 深度拷贝不变
# print(cop3)
#
# [1, 2, [3, 4]]
# [1, 2, [3, 4]]
# [1, 2, [3, 4]]
# [1, 2, [3, 4]]
# ##################
# [1, 2, ['hey!', 4]]
# [1, 2, ['hey!', 4]]
# [1, 2, [3, 4]]
# [1, 2, ['hey!', 4]]

5.sampling.py

#!/usr/bin/env python
# -*- coding: utf-8 -*-
# Python version: 3.6


import numpy as np
from torchvision import datasets, transforms


def mnist_iid(dataset, num_users):
    """
    Sample I.I.D. client data from MNIST dataset
    :param dataset:
    :param num_users:
    :return: dict of image index
    """

    num_items = int(len(dataset)/num_users)  # 每个用户数据量
    dict_users, all_idxs = {}, [i for i in range(len(dataset))]
    for i in range(num_users):  # 对于每个用户
        # set() 函数创建一个无序不重复元素集，可进行关系测试，删除重复数据，还可以计算交集、差集、并集等。
        dict_users[i] = set(np.random.choice(all_idxs, num_items, replace=False))  # 从all_idxs中采样，生成 单用户数据量的无重复的 一个字典，作为dict_users的第（i+1）个元素
        all_idxs = list(set(all_idxs) - dict_users[i])      # 取差集，删去已经被分配好的数据，直至每个用户都被分配了等量的iid数据
    return dict_users


def mnist_noniid(dataset, num_users):
    """
    Sample non-I.I.D client data from MNIST dataset
    :param dataset:
    :param num_users:
    :return:
    """
    num_shards, num_imgs = 200, 300
    idx_shard = [i for i in range(num_shards)]
    dict_users = {i: np.array([], dtype='int64') for i in range(num_users)}  # 初始化字典dict_users
    idxs = np.arange(num_shards*num_imgs)
    labels = dataset.train_labels.numpy()

    # sort labels
    idxs_labels = np.vstack((idxs, labels))
#     沿着第一个轴堆叠数组。
#     语法格式：numpy.vstack(tup)
#       参数：
#       tup：ndarrays数组序列，如果是一维数组进行堆叠，则数组长度必须相同；除此之外，其它数组堆叠时，除数组第一个轴的长度可以不同，其它轴长度必须一样。

    # y = x.argsort() 将x中的元素从小到大排列，提取其对应的index(索引)，然后输出到y
    idxs_labels = idxs_labels[:,idxs_labels[1,:].argsort()]
    idxs = idxs_labels[0,:]

    # divide and assign
    for i in range(num_users):
        rand_set = set(np.random.choice(idx_shard, 2, replace=False))
        idx_shard = list(set(idx_shard) - rand_set)
        for rand in rand_set:
            # concatenate进行矩阵拼接
            dict_users[i] = np.concatenate((dict_users[i], idxs[rand*num_imgs:(rand+1)*num_imgs]), axis=0)
    return dict_users


def cifar_iid(dataset, num_users):
    """
    Sample I.I.D. client data from CIFAR10 dataset
    :param dataset:
    :param num_users:
    :return: dict of image index
    """
    num_items = int(len(dataset)/num_users)
    dict_users, all_idxs = {}, [i for i in range(len(dataset))]
    for i in range(num_users):
        dict_users[i] = set(np.random.choice(all_idxs, num_items, replace=False))
        all_idxs = list(set(all_idxs) - dict_users[i])
    return dict_users


if __name__ == '__main__':
    dataset_train = datasets.MNIST('../data/mnist/', train=True, download=True,
                                   transform=transforms.Compose([
                                       transforms.ToTensor(),
                                       transforms.Normalize((0.1307,), (0.3081,))
                                   ]))
    num = 100
    d = mnist_noniid(dataset_train, num)

6.test.py

#!/usr/bin/env python
# -*- coding: utf-8 -*-
# @python: 3.6

import torch
from torch import nn
import torch.nn.functional as F
from torch.utils.data import DataLoader


def test_img(net_g, datatest, args):
    net_g.eval()
    # testing
    test_loss = 0
    correct = 0
    data_loader = DataLoader(datatest, batch_size=args.bs)  # bs:test batch_size
    l = len(data_loader)
    for idx, (data, target) in enumerate(data_loader):
        if args.gpu != -1:
            data, target = data.cuda(), target.cuda()
        log_probs = net_g(data)
        # sum up batch loss
        test_loss += F.cross_entropy(log_probs, target, reduction='sum').item()  # 使用交叉熵损失
        # get the index of the max log-probability
        y_pred = log_probs.data.max(1, keepdim=True)[1]
        correct += y_pred.eq(target.data.view_as(y_pred)).long().cpu().sum()

    test_loss /= len(data_loader.dataset)
    accuracy = 100.00 * correct / len(data_loader.dataset)
    if args.verbose:
        print('\nTest set: Average loss: {:.4f} \nAccuracy: {}/{} ({:.2f}%)\n'.format(
            test_loss, correct, len(data_loader.dataset), accuracy))
    return accuracy, test_loss

7.Update.py

#!/usr/bin/env python
# -*- coding: utf-8 -*-
# Python version: 3.6

import torch
from torch import nn, autograd
from torch.utils.data import DataLoader, Dataset
import numpy as np
import random
from sklearn import metrics

# 数据分组
class DatasetSplit(Dataset):
    def __init__(self, dataset, idxs):
        self.dataset = dataset
        self.idxs = list(idxs)

    def __len__(self):
        return len(self.idxs)

    def __getitem__(self, item):
        image, label = self.dataset[self.idxs[item]]
        return image, label


class LocalUpdate(object):
    def __init__(self, args, dataset=None, idxs=None):
        self.args = args
        self.loss_func = nn.CrossEntropyLoss()
        self.selected_clients = []
        self.ldr_train = DataLoader(DatasetSplit(dataset, idxs), batch_size=self.args.local_bs, shuffle=True)

    def train(self, net):
        net.train()
        # train and update
        optimizer = torch.optim.SGD(net.parameters(), lr=self.args.lr, momentum=self.args.momentum)

        epoch_loss = []
        for iter in range(self.args.local_ep):
            batch_loss = []
            for batch_idx, (images, labels) in enumerate(self.ldr_train):
                images, labels = images.to(self.args.device), labels.to(self.args.device)
                net.zero_grad()
                log_probs = net(images)
                loss = self.loss_func(log_probs, labels)
                loss.backward()
                optimizer.step()
                if self.args.verbose and batch_idx % 10 == 0:
                    print('Update Epoch: {} [{}/{} ({:.0f}%)]\tLoss: {:.6f}'.format(
                        iter, batch_idx * len(images), len(self.ldr_train.dataset),
                               100. * batch_idx / len(self.ldr_train), loss.item()))
                batch_loss.append(loss.item())
            epoch_loss.append(sum(batch_loss)/len(batch_loss))
        return net.state_dict(), sum(epoch_loss) / len(epoch_loss)

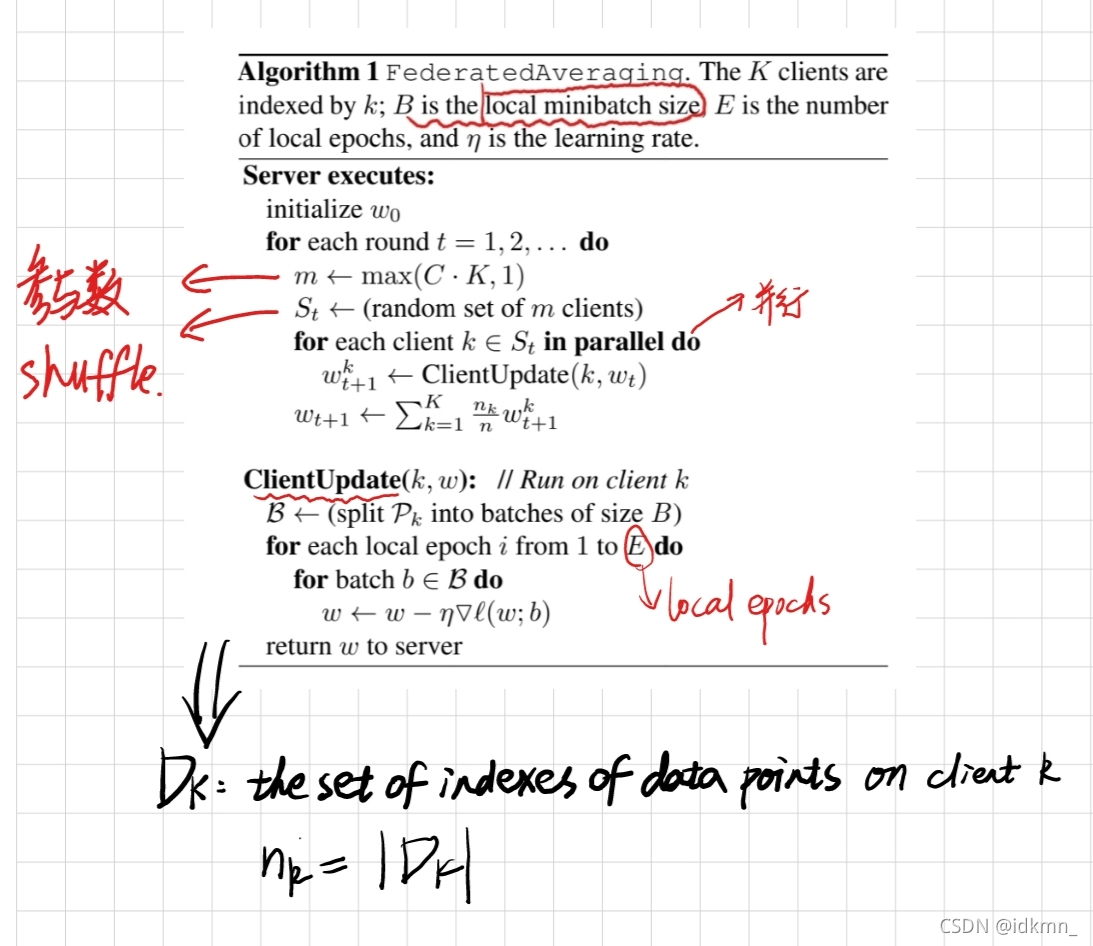

FedAvg算法流程：

下面是运行代码得到的一些可视化结果：

• epoch = 50

• epoch = 10
