版本：Matlab2021b，需要安装deeplearningToolBox
数据集是LIDC-IDRI，我已经事先切割成64*64大小的PNG了，数据集下载链接：lidc数据集增强，便于使用-互联网文档类资源-CSDN文库
话不多说直接上matlab代码
%% 数据集导入
imageDir='G:\MyLIDC\output';
trainImgLoc=fullfile(imageDir,'train','Image');
labelImgLoc = fullfile(imageDir,'train','Mask');
imds = datastore(trainImgLoc, "IncludeSubfolders",true,"Type","image",'ReadFcn',@myReader);
classNames = ["background","nodule"];
pixelLabelID = [0 255];
pxds = pixelLabelDatastore(labelImgLoc,classNames,pixelLabelID, ...
"IncludeSubfolders",true,'ReadFcn',@myReader);
dsTrain = combine(imds,pxds);
%% 网络参数配置
lgraph=myUnet();
initialLearningRate = 5e-4;
maxEpochs = 1;
minibatchSize = 20;
l2reg = 0.0001;
options = trainingOptions('adam',...
'InitialLearnRate',initialLearningRate, ...
'L2Regularization',l2reg,...
'MaxEpochs',maxEpochs,...
'MiniBatchSize',minibatchSize,...
'LearnRateSchedule','piecewise',...
'Shuffle','every-epoch',...
'GradientThresholdMethod','l2norm',...
'GradientThreshold',0.05, ...
'Plots','training-progress', ...
'VerboseFrequency',20);
[unet,info] = trainNetwork(dsTrain,lgraph_1,options);
modelDateTime = string(datetime('now','Format',"yyyy-MM-dd-HH-mm-ss"));

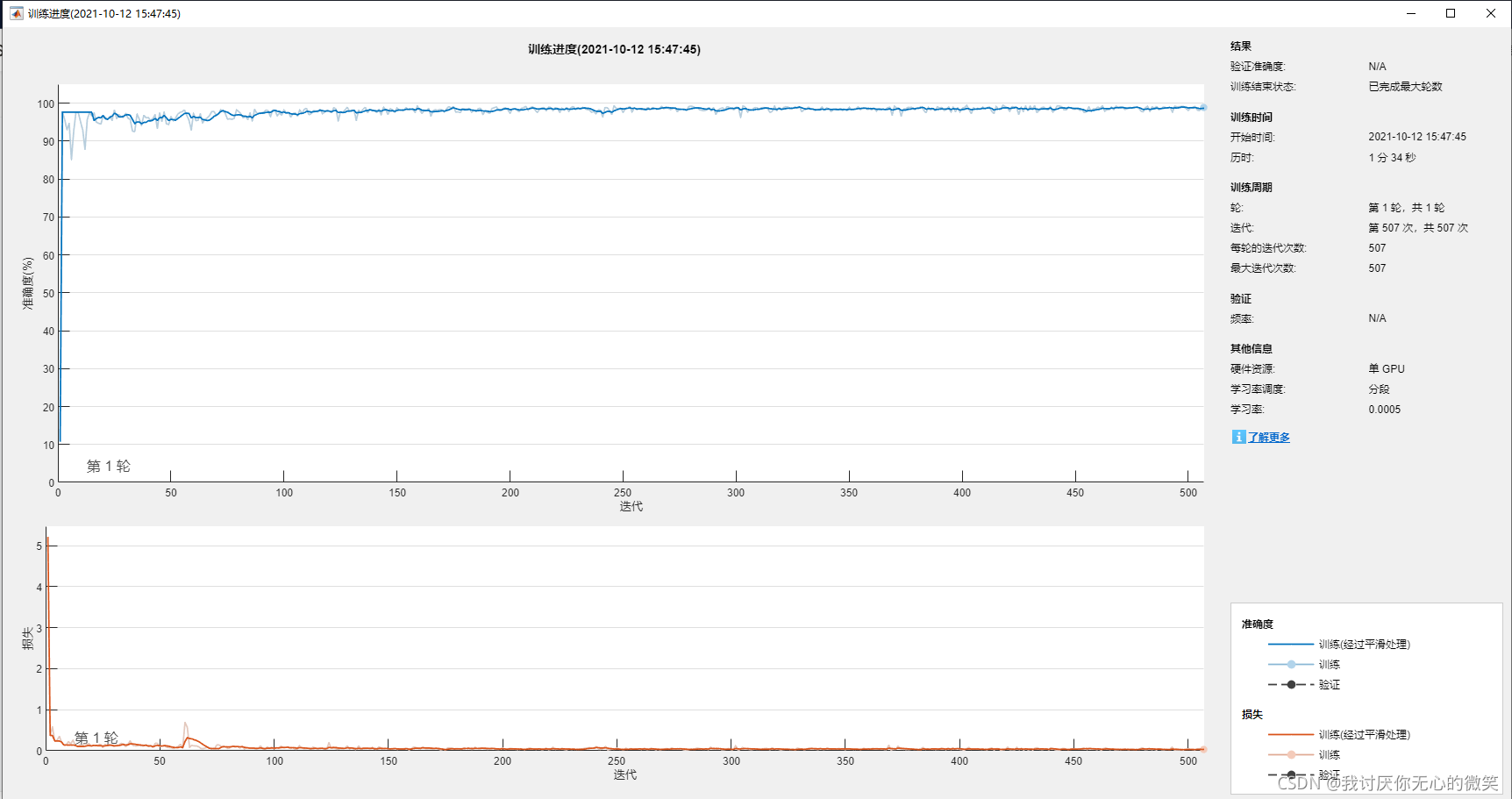

save(strcat("Lidc-Unet-",modelDateTime,"-Epoch-",num2str(maxEpochs),".mat"),'unet');训练一个epoch已经效果还ok了
?再看一下模型预测图片的代码
%% 查看模型预测结果
testimg=imread('G:\MyLIDC\output\test\Image\LIDC-IDRI-0875\0875_NI001_slice004.png');
testmask=imread('G:\MyLIDC\output\test\Mask\LIDC-IDRI-0875\0875_MA001_slice004.png');
testimg=rgb2gray(testimg);
testmask=rgb2gray(testmask);
categoricalMask=categorical(testmask,pixelLabelID,classNames);
categoricalImage=semanticseg(testimg, unet);
predict=uint8(categoricalImage=='nodule')*255;
img_predicmask = labeloverlay(testimg,categoricalImage,'Transparency',0.8);
img_gtmask = labeloverlay(testimg,categoricalMask,'Transparency',0.8);
figure
subplot(2,3,1)
imshow(testimg)
title("原始测试图像")
subplot(2,3,2)
imshow(predict)
title("测试图像预测输出")
subplot(2,3,3)
imshow(img_predicmask)
title("测试图像预测覆盖")
subplot(2,3,5)
imshow(testmask)
title("测试图像GroundTruth")
subplot(2,3,6)
imshow(img_gtmask)

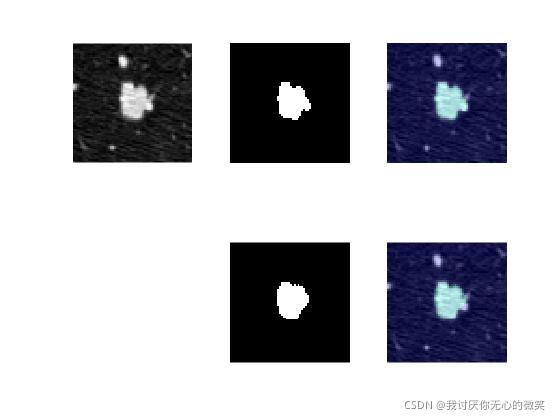

title("测试图像GroundTruth覆盖")效果图如下
?
