[人工智能]DataFrame转成DataLoader(数模总结)

在上周数模比赛中有遇到DataFrame类型数据，同时需要利用pytorch建立bp神经网络，而在pytroch输入的数据集需是DataLoader，在网络上查询许久找到使用方法，因此记录如下：
首先是pytorch建立神经网络结构（回归模型）

import torch
from torch import nn
net=nn.Sequential(
nn.Sequential(nn.Linear(20, 20),nn.Dropout(0.3),nn.Sigmoid()),
nn.Sequential(nn.Linear(20, 10),nn.Dropout(0.3),nn.Sigmoid()),
nn.Linear(10, 1)
)
# for layer in net:
#    x=layer(x)
#    print(layer.__class__.__name__,"output shape: ",x.shape)
# #

建立好神经网络后，导入数据集，此次是利用pandas从excel文件中读取，具体代码如下：

import torch.utils.data.dataset as Dataset
import torch.utils.data as data
from torch.utils.data import DataLoader
import pandas as pd
import numpy as np
from sklearn.model_selection import train_test_split
from torch.utils.data import Dataset, DataLoader, TensorDataset

def get_dataLoader(df,feature_name，batch_size):
    y=df.pop("label")
    x=df[feature_name].copy()#feature_name为网络输入向量的名字
    x=(x-x.mean())/x.std()#对输入数据进行标准化
    x_train, x_val, y_train, y_val = train_test_split(x, y, test_size=0.3, random_state=2018)
    train_set=TensorDataset(torch.from_numpy(x_train.values).to(torch.float32),torch.from_numpy(y_train.values).to(torch.float32))
    test_set = TensorDataset(torch.from_numpy(x_val.values).to(torch.float32),torch.from_numpy( y_val.values).to(torch.float32))
    #torch.from_numpy将numpy数据格式转成tensor，
    train_loader = DataLoader( train_set,batch_size=batch_size, shuffle=True,drop_last=True)
    test_loader = DataLoader(test_set, batch_size=batch_size,drop_last=True)
    return train_loader,test_loader

在得到训练集以及测试集合后就可以对网络进行训练啦！！具体代码如下：

epochs = 500
optimizer = torch.optim.Adam(net.parameters(), lr=1e-3)
loss_fn = nn.L1Loss()#使用L1损失函数对网络进行评估，当然也可以用其他的，具体依据任务来
device = torch.device("cuda" if torch.cuda.is_available() else "cpu")
#将网络以及损失函数放入gpu
net = net.to(device)
loss_fn = loss_fn.to(device)
print(device)
train_loss_list=[]
test_loss_list=[]
#训练函数
def train(net, train_loader, optimizer, device, loss_fn):
    net.train()
    step = 0
    nums = 0
    train_loss = 0
    for data in train_loader:
        optimizer.zero_grad()#每次记得将梯度清零，否则梯度会累计。
        nums+=1
        x, targets = data
        x = x.to(device)
        batch_len = len(targets)
        targets = targets.to(device)
        y_pred = net(x)
        loss = loss_fn(y_pred, targets)
        loss.backward()
        optimizer.step()
        train_loss += loss.item()
        if (step % 10 == 0):
            print("第{}次训练loss:{}".format(step, loss))
        step += 1
    epoch_loss = train_loss /nums
    train_loss_list.append(epoch_loss)
    return epoch_loss
#测试函数
def eval(net, test_loader, device, loss_fn):
    net.eval()#进入测试模式
    test_loss = 0
    len_test=0
    nums=0
    for data in test_loader:
        nums+=1
        X, targets = data
        X = X.to(device)
        targets = targets.to(device)
        y_pred = net(X)
        len_test+=len(targets)
        y_hat = torch.argmax(y_pred, 1)
        loss = loss_fn(y_pred, targets)
        test_loss += loss.item()
    test_loss_list.append(test_loss/nums)
    return test_loss/nums
for epoch in range(epochs):
    print("第{}次epoch训练开始".format(epoch + 1))
    train_loss=train(net, train_loader, optimizer, device, loss_fn)
    loss= eval(net, test_loader, device, loss_fn)
    print("第{}次epoch训练集误差{},测试集误差：{}".format(epoch + 1,train_loss, loss))

最后一步就是对训练误差进行画图啦！！！！！

import matplotlib.pyplot as plt
import numpy as np
plt.plot(train_loss_list,label="train")
plt.plot(test_loss_list,label="test")
plt.xlabel("Epoch",fontsize=15)
plt.ylabel("Loss",fontsize=15)
plt.legend(["train","test"],fontsize=15)
plt.show()

另外在结尾出附上利用pandas筛选某些列的方法（自己笨，查了很多次每次要用的时候又忘记了）以及一些在本次比赛中学到的一些处理首先：

df2['label'] = df2['label_4'].apply(lambda x: 1 if x >=3 else 0)
#若label_4>=3则转化成1否则0

lgb打印特征重要性

def bar_plot(dataset, model_bst):
    plt.figure(figsize=(8, 10))
    list_feature_name = list(dataset.columns[:])
    list_feature_importance =model_bst.feature_importance()
    dataframe_feature_importance = pd.DataFrame(
        {'feature_name': list_feature_name, 'importance': list_feature_importance})
    dataframe_feature_importance20 = dataframe_feature_importance.sort_values(by='importance', ascending=False)[:20]
    sns.barplot(x="importance", y="feature_name", data=dataframe_feature_importance20, color="tomato")
    dataframe_feature_importance20.to_excel("特征以及相应的重要性.xlsx",index=False)
    plt.savefig("第一问特征重要性20.png",dpi=1000,bbox_inches = 'tight')
bar_plot(x_train,clf_first)

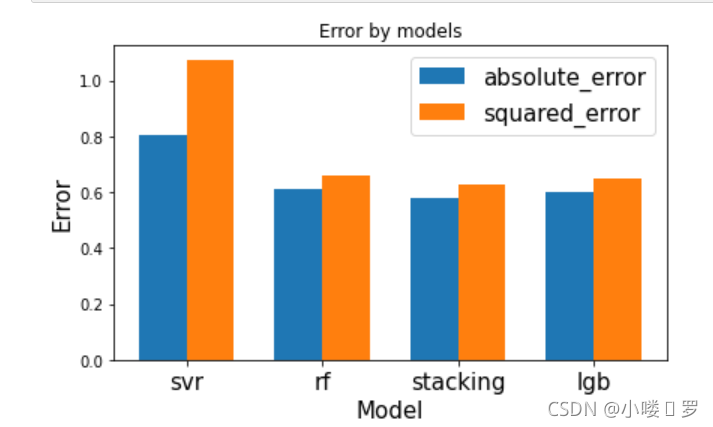

绘制对比柱状图

x = np.arange(len(df))  # the label locations
labels=df["model"]
width = 0.35# the width of the bars
fig, ax = plt.subplots()
rects1 = ax.bar(x - width/2, df["absolute_error"], width, label='absolute_error')
rects2 = ax.bar(x + width/2, df["squared_error"], width,label='squared_error')
ax.set_ylabel('Error',fontsize=15)
ax.set_xlabel('Model',fontsize=15)
ax.set_title('Error by models')
ax.set_xticks(x)
ax.set_xticklabels(labels,fontsize=15)
ax.legend(fontsize=15)
fig.tight_layout()

绘制子图

fig,axes=plt.subplots(2,2)
axes[i][j].plot(x,y）

模型打包以及加载

import pickle
with open('./get_ADMET.pkl', 'wb') as f:
    pickle.dump(clf, f)
    print("保存模型成功！")
model_1 = pickle.load(open('get_Active.pkl','rb'))
