[人工智能]Planning-Apollo6.0 planning module protobuf定义

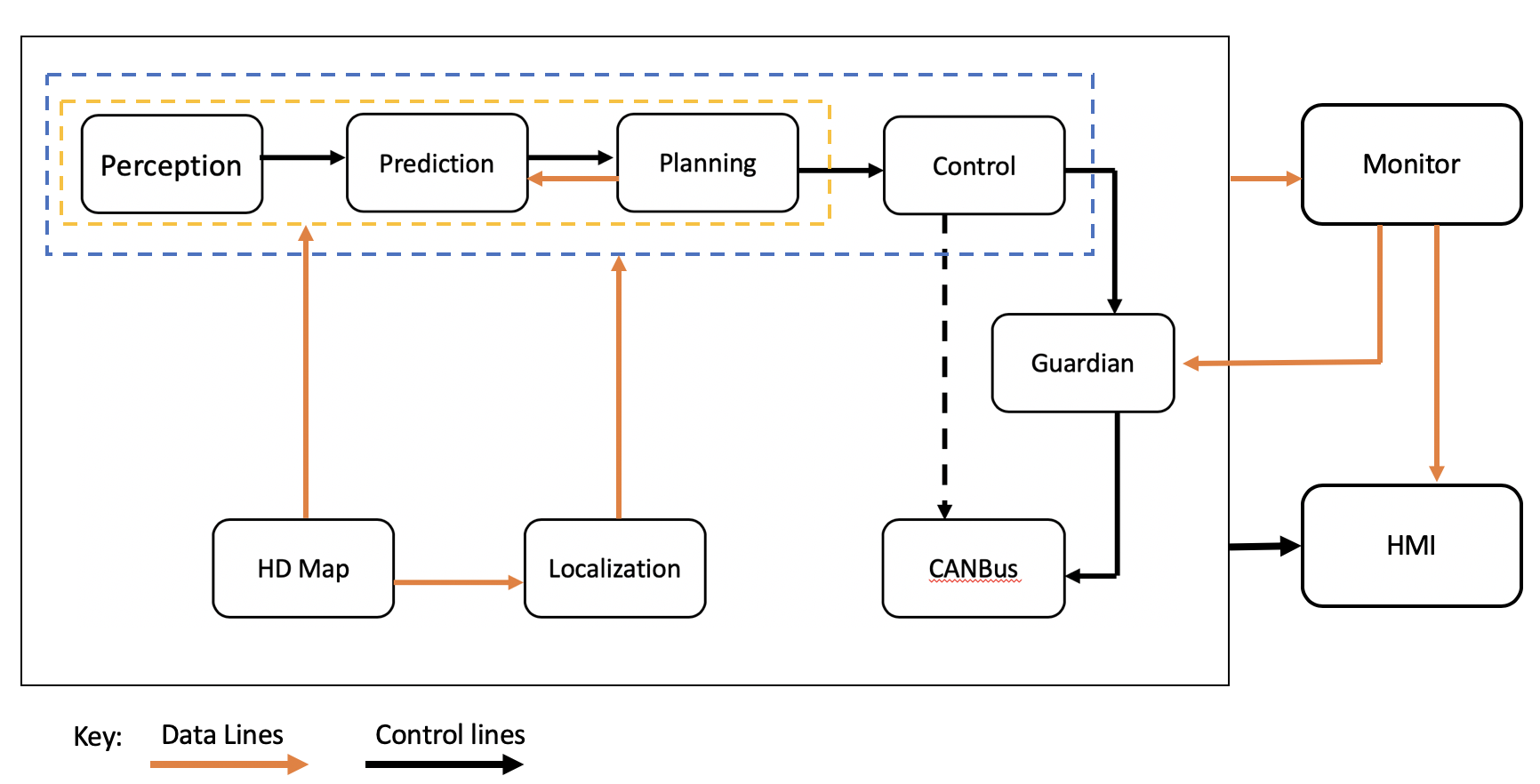

Planning module是自动驾驶的决策模块,会收集其他模块的所有信息进行综合决策,Apollo开源系统的架构如下:

?

• Planning会订阅感知,预测,地图,导航,定位,底盘,HMI(Pad),Storytelling模块发布的消息.

注: 地图信息分为HD Map(UTM坐标系)和Relative Map(相对坐标系),两者地图数据格式相同.

在L2或者L3智能驾驶系统中,没有Pad输入,此功能是Robotaix中乘客的指令信息.

目前Apollo并未对Storytelling信息做响应或者处理.

• Planning模块会向控制模块广播ADCTrajectory,向导航模块广播重规划消息,并广播用于planning模块机器学习所需的数据.

1 Input

1.1 Perception Input

1.1.1 PredictionObstacles

Perception Module检测到的障碍物PerceptionObstacles，经由Predicition Module进行封装成PredictionObstacles.

1.1.1.1 proto目录

• apollo\modules\perception\proto\perception_obstacle.proto

• apollo\modules\prediction\proto\prediction_obstacle.proto

1.1.1.2 proto定义

syntax = "proto2"; ? ? ? ? ? ?// protobuf version
?
package apollo.perception; ? ?// namespace apollo::perception
?
// 依赖的其他 proto 定义
import "modules/common/proto/error_code.proto";
import "modules/common/proto/geometry.proto";
import "modules/common/proto/header.proto";
import "modules/common/proto/pnc_point.proto";
import "modules/map/proto/map_lane.proto";
// 2D框
message BBox2D {
 ?optional double xmin = 1; ?// in pixels.  // 像素级
 ?optional double ymin = 2; ?// in pixels.
 ?optional double xmax = 3; ?// in pixels.
 ?optional double ymax = 4; ?// in pixels.
}
// 检测到车辆的灯光状态
message LightStatus {
 ?optional double brake_visible = 1; ? ? ? ? ? // 刹车灯可见
 ?optional double brake_switch_on = 2; ? ? ? ? // 刹车灯打开
 ?optional double left_turn_visible = 3; ? ? ? // 左转向灯可见
 ?optional double left_turn_switch_on = 4; ? ? // 左转向灯打开
 ?optional double right_turn_visible = 5; ? ? ?// 右转向灯可见
 ?optional double right_turn_switch_on = 6; ? ?// 右转向灯打开
}
?
message SensorMeasurement {
 ?optional string sensor_id = 1; ?// 传感器id
 ?optional int32 id = 2; ? ? ? ? ?// 障碍物ID?
?
 ?optional apollo.common.Point3D position = 3; // 障碍物坐标
 ?optional double theta = 4;
 ?optional double length = 5;
 ?optional double width = 6;
 ?optional double height = 7;
?
 ?optional apollo.common.Point3D velocity = 8;
?
 ?optional PerceptionObstacle.Type type = 9;
 ?optional PerceptionObstacle.SubType sub_type = 10;
 ?optional double timestamp = 11;
 ?optional BBox2D box = 12; ?// only for camera measurements
}
?
message Trajectory {
 ?optional double probability = 1; ?// probability of this trajectory
 ?repeated apollo.common.TrajectoryPoint trajectory_point = 2; // 可能由多条轨迹
}
?
message DebugMessage {
 ?// can have multiple trajectories per obstacle
 ?repeated Trajectory trajectory = 1;
}
?
message PerceptionObstacle {
 ?optional int32 id = 1; ?// obstacle ID.
?
 ?// obstacle position in the world coordinate system.(x, y, z)
 ?optional apollo.common.Point3D position = 2;
?
 ?optional double theta = 3; ?// heading in the world coordinate system.
 ?optional apollo.common.Point3D velocity = 4; ?// obstacle velocity.(x, y, z)
?
 ?// Size of obstacle bounding box.
 ?optional double length = 5; ?// obstacle length.
 ?optional double width = 6; ? // obstacle width.
 ?optional double height = 7; ?// obstacle height.
?
 ?repeated apollo.common.Point3D polygon_point = 8; ?// obstacle corner points.
?
 ?// duration of an obstacle since detection in s.
 ?optional double tracking_time = 9;
?
 ?enum Type {
 ? ?UNKNOWN = 0; ? ? ? ? ? ?// 不能确定的类型
 ? ?UNKNOWN_MOVABLE = 1; ? ?// 移动的不确定类型
 ? ?UNKNOWN_UNMOVABLE = 2; ?// 静止的不确定类型
 ? ?PEDESTRIAN = 3; ?// Pedestrian, usually determined by moving behavior.
 ? ?BICYCLE = 4; ? ? // bike, motor bike
 ? ?VEHICLE = 5; ? ? // Passenger car or truck.
  };
 ?optional Type type = 10; ? ? ? ? // obstacle type
 ?optional double timestamp = 11; ?// GPS time in seconds.
?
 ?// Just for offline debugging, will not fill this field on board.
 ?// Format: [x0, y0, z0, x1, y1, z1...]
 ?repeated double point_cloud = 12 [packed = true];
?
 ?optional double confidence = 13 [deprecated = true]; ?// 置信度??
 ?enum ConfidenceType {
 ? ?CONFIDENCE_UNKNOWN = 0;
 ? ?CONFIDENCE_CNN = 1;
 ? ?CONFIDENCE_RADAR = 2;
  };
 ?optional ConfidenceType confidence_type = 14 [deprecated = true];
 ?// trajectory of object.
 ?repeated apollo.common.Point3D drops = 15 [deprecated = true]; ?// 障碍物的历史轨迹
?
 ?// The following fields are new added in Apollo 4.0
 ?optional apollo.common.Point3D acceleration = 16; ?// obstacle acceleration
?
 ?// a stable obstacle point in the world coordinate system
 ?// position defined above is the obstacle bounding box ground center
 ?optional apollo.common.Point3D anchor_point = 17; // 矩形的中心点??
 ?optional BBox2D bbox2d = 18; ? // 将障碍物的多边形形状近似(放大)成矩形
?
 ?enum SubType {
 ? ?ST_UNKNOWN = 0;
 ? ?ST_UNKNOWN_MOVABLE = 1;
 ? ?ST_UNKNOWN_UNMOVABLE = 2;
 ? ?ST_CAR = 3;
 ? ?ST_VAN = 4;
 ? ?ST_TRUCK = 5;
 ? ?ST_BUS = 6;
 ? ?ST_CYCLIST = 7;
 ? ?ST_MOTORCYCLIST = 8;
 ? ?ST_TRICYCLIST = 9;
 ? ?ST_PEDESTRIAN = 10;
 ? ?ST_TRAFFICCONE = 11;
  };
 ?optional SubType sub_type = 19; ?// obstacle sub_type
?
 ?repeated SensorMeasurement measurements = 20; ?// sensor measurements 来自传感器的信息
?
 ?// orthogonal distance between obstacle lowest point and ground plane
 ?optional double height_above_ground = 21 [default = nan]; ?// 高度
?
 ?// position covariance which is a row-majored 3x3 matrix
 ?repeated double position_covariance = 22 [packed = true]; ?// 坐标的协方差
 ?// velocity covariance which is a row-majored 3x3 matrix
 ?repeated double velocity_covariance = 23 [packed = true]; ?// 速度的协方差
 ?// acceleration covariance which is a row-majored 3x3 matrix
 ?repeated double acceleration_covariance = 24 [packed = true]; ?// 加速度的协方差
?
 ?// lights of vehicles
 ?optional LightStatus light_status = 25; ?// 障碍物如果是车辆,车辆的灯光信息
?
 ?// Debug Message
 ?optional DebugMessage msg = 26;
}
?
message LaneMarker {
 ?optional apollo.hdmap.LaneBoundaryType.Type lane_type = 1; ?// 车道线类型(双黄线,实白线等)
 ?optional double quality = 2; ?// range = [0,1]; 1 = the best quality  // 车道线识别的质量
 ?optional int32 model_degree = 3; ?// 车道线多项式的阶次
?
 ?// equation X = c3 * Z^3 + c2 * Z^2 + c1 * Z + c0
 ?optional double c0_position = 4; ? ? ? ? ? ? ? // 常数项系数
 ?optional double c1_heading_angle = 5; ? ? ? ? ?// 一次项系数
 ?optional double c2_curvature = 6; ? ? ? ? ? ? ?// 二次项系数
 ?optional double c3_curvature_derivative = 7; ? // 三次项系数
 ?optional double view_range = 8; ? ? ? ? ? ? ? ?// 感知的可视范围?
 ?optional double longitude_start = 9; ? ? ? ? ? // z的最小值
 ?optional double longitude_end = 10; ? ? ? ? ? ?// z的最大值
}
// 车道线
message LaneMarkers {
 ?optional LaneMarker left_lane_marker = 1; ? ? ?// adc车道的左侧车道线
 ?optional LaneMarker right_lane_marker = 2; ? ? // adc车道的右侧车道线
 ?repeated LaneMarker next_left_lane_marker = 3; // adc左车道的左侧车道线
 ?repeated LaneMarker next_right_lane_marker = 4; // adc右车道的左侧车道线
}
// 车道上距ADC最近的车辆
message CIPVInfo {
 ?optional int32 cipv_id = 1; ? ? ? ? ? // 最近车辆的ID
 ?repeated int32 potential_cipv_id = 2; // 可能是最近车辆的ID(多个)
}
?
message PerceptionObstacles {
 ?repeated PerceptionObstacle perception_obstacle = 1; ?// An array of obstacles
 ?optional apollo.common.Header header = 2; ? ? ? ? ? ? // Header
 ?optional apollo.common.ErrorCode error_code = 3 [default = OK]; ?// 错误码
 ?optional LaneMarkers lane_marker = 4; ? ? // 本车道和左右相邻车道的标识(车道线多项式和车道边界类型)
 ?optional CIPVInfo cipv_info = 5; ? ? ? ? ?// Closest In Path Vehicle (CIPV)
}

syntax = "proto2";
?
package apollo.prediction;
?
import "modules/common/proto/error_code.proto";
import "modules/common/proto/header.proto";
import "modules/prediction/proto/scenario.proto";
import "modules/perception/proto/perception_obstacle.proto";
import "modules/prediction/proto/feature.proto";
?
// estimated obstacle intent 预测障碍物的行为/意图
message ObstacleIntent {
 ?enum Type {
 ? ?UNKNOWN = 0;
 ? ?STOP = 1;
 ? ?STATIONARY = 2;
 ? ?MOVING = 3;
 ? ?CHANGE_LANE = 4;
 ? ?LOW_ACCELERATION = 5;
 ? ?HIGH_ACCELERATION = 6;
 ? ?LOW_DECELERATION = 7;
 ? ?HIGH_DECELERATION = 8;
  }
 ?optional Type type = 1 [default = UNKNOWN];
}
?
// self driving car intent  自车的驾驶意图
message Intent {
 ?enum Type {
 ? ?UNKNOWN = 0;
 ? ?STOP = 1;
 ? ?CRUISE = 2;
 ? ?CHANGE_LANE = 3;
  }
 ?optional Type type = 1 [default = UNKNOWN];
}
?
message PredictionObstacle {
 ?optional apollo.perception.PerceptionObstacle perception_obstacle = 1; ?// 障碍物信息
 ?optional double timestamp = 2; ?// GPS time in seconds 时间戳
 ?// the length of the time for this prediction (e.g. 10s)
 ?optional double predicted_period = 3; ?// 预测周期
 ?// can have multiple trajectories per obstacle
 ?repeated Trajectory trajectory = 4; ? // 障碍物的预测轨迹,一个障碍物可能有多条预测轨迹,每条轨迹有概率值
?
 ?// estimated obstacle intent
 ?optional ObstacleIntent intent = 5; ?// 障碍物的意图
?
 ?optional ObstaclePriority priority = 6; // 预测给出的障碍物的处理的等级: caution/normal/ignore
?
 ?optional bool is_static = 7 [default = false]; ?// 是否是静态障碍物
?
 ?// Feature history latest -> earliest sequence
 ?repeated Feature feature = 8; ?// 用于做预测的特征信息, PNC模块不用关心,是prediction使用的
}
?
message PredictionObstacles {
 ?// timestamp is included in header
 ?optional apollo.common.Header header = 1;
?
 ?// make prediction for multiple obstacles
 ?repeated PredictionObstacle prediction_obstacle = 2;
?
 ?// perception error code
 ?optional apollo.common.ErrorCode perception_error_code = 3;
?
 ?// start timestamp
 ?optional double start_timestamp = 4;
?
 ?// end timestamp
 ?optional double end_timestamp = 5;
?
 ?// self driving car intent
 ?optional Intent intent = 6;
?
 ?// Scenario
 ?optional Scenario scenario = 7; // 场景信息, prediction模块使用的,PNC不用关心, Planning有自己的scenario,且二者定义不同
}

1.1.2 TrafficLightDetection

Perception Module检测到交通信号灯.

1.1.2.1 proto目录

apollo\modules\perception\proto\traffic_light_detection.proto

1.1.2.2 proto定义

syntax = "proto2";
?
package apollo.perception;
?
import "modules/common/proto/header.proto";
?
message TrafficLightBox {
 ?optional int32 x = 1;
 ?optional int32 y = 2;
 ?optional int32 width = 3;
 ?optional int32 height = 4;
 ?optional TrafficLight.Color color = 5;
 ?optional bool selected = 6;
 ?optional string camera_name = 7;
}
?
message TrafficLightDebug {
 ?optional TrafficLightBox cropbox = 1;
 ?repeated TrafficLightBox box = 2;
 ?optional int32 signal_num = 3;
 ?optional int32 valid_pos = 4;
 ?optional double ts_diff_pos = 5;
 ?optional double ts_diff_sys = 6;
 ?optional int32 project_error = 7;
 ?optional double distance_to_stop_line = 8;
 ?optional int32 camera_id = 9 [deprecated = true];
 ?repeated TrafficLightBox crop_roi = 10;
 ?repeated TrafficLightBox projected_roi = 11;
 ?repeated TrafficLightBox rectified_roi = 12;
 ?repeated TrafficLightBox debug_roi = 13;
}
?
message TrafficLight {
 ?enum Color {
 ? ?UNKNOWN = 0;
 ? ?RED = 1;
 ? ?YELLOW = 2;
 ? ?GREEN = 3;
 ? ?BLACK = 4;
  };
 ?optional Color color = 1; ?// 信号灯颜色
?
 ?// Traffic light string-ID in the map data.
 ?optional string id = 2;
?
 ?// How confidence about the detected results, between 0 and 1.
 ?optional double confidence = 3 [default = 1.0]; ?// 置信度
?
 ?// Duration of the traffic light since detected.
 ?optional double tracking_time = 4;
?
 ?// Is traffic blinking
 ?optional bool blink = 5; ?// 交通灯是否闪烁
?
 ?// v2x traffic light remaining time.
 ?optional double remaining_time = 6; ?// 持续时间,用来估算变灯时间
}
?
message TrafficLightDetection {
 ?optional apollo.common.Header header = 2;
 ?repeated TrafficLight traffic_light = 1; ? // 交通灯,多个
 ?optional TrafficLightDebug traffic_light_debug = 3; ?// debug信息,perception使用
 ?optional bool contain_lights = 4; ?// ??
 ?enum CameraID {
 ? ?CAMERA_FRONT_LONG = 0;
 ? ?CAMERA_FRONT_NARROW = 1;
 ? ?CAMERA_FRONT_SHORT = 2;
 ? ?CAMERA_FRONT_WIDE = 3;
  };
 ?optional CameraID camera_id = 5; ?// 哪个传感器检测到的?
}
?

1.2 Map Input

apollo介绍之map模块

1.2.1 proto 目录

apollo\modules\map\proto\map.proto

1.2.2 proto定义

syntax = "proto2";
?
package apollo.hdmap;
?
import "modules/map/proto/map_clear_area.proto";
import "modules/map/proto/map_crosswalk.proto";
import "modules/map/proto/map_junction.proto";
import "modules/map/proto/map_lane.proto";
import "modules/map/proto/map_overlap.proto";
import "modules/map/proto/map_signal.proto";
import "modules/map/proto/map_speed_bump.proto";
import "modules/map/proto/map_stop_sign.proto";
import "modules/map/proto/map_yield_sign.proto";
import "modules/map/proto/map_road.proto";
import "modules/map/proto/map_parking_space.proto";
import "modules/map/proto/map_pnc_junction.proto";
import "modules/map/proto/map_rsu.proto";
?
// This message defines how we project the ellipsoidal Earth surface to a plane.
message Projection {
 ?// PROJ.4 setting:
 ?// "+proj=tmerc +lat_0={origin.lat} +lon_0={origin.lon} +k={scale_factor}
 ?// +ellps=WGS84 +no_defs"
 ?optional string proj = 1;
}
?
message Header {
 ?optional bytes version = 1;
 ?optional bytes date = 2;
 ?optional Projection projection = 3;
 ?optional bytes district = 4;
 ?optional bytes generation = 5;
 ?optional bytes rev_major = 6;
 ?optional bytes rev_minor = 7;
 ?optional double left = 8;
 ?optional double top = 9;
 ?optional double right = 10;
 ?optional double bottom = 11;
 ?optional bytes vendor = 12;
}
?
message Map {
 ?optional Header header = 1;
?
 ?repeated Crosswalk crosswalk = 2; ? ? ? ?// 人行横道
 ?repeated Junction junction = 3; ? ? ? ? ?// 路口
 ?repeated Lane lane = 4; ? ? ? ? ? ? ? ? ?// lane
 ?repeated StopSign stop_sign = 5; ? ? ? ? // 停车标识
 ?repeated Signal signal = 6; ? ? ? ? ? ? ?// 交通标志
 ?repeated YieldSign yield = 7; ? ? ? ? ? ?// 让行标识(国内没有,美国有)
 ?repeated Overlap overlap = 8; ? ? ? ? ? ?// 任何一对在地图上重合的东西，包括（车道，路口，人行横道）
 ?repeated ClearArea clear_area = 9; ? ? ? // 禁停区域
 ?repeated SpeedBump speed_bump = 10; ? ? ?// 减速带
 ?repeated Road road = 11; ? ? ? ? ? ? ? ? // road
 ?repeated ParkingSpace parking_space = 12; // 停车场
 ?repeated PNCJunction pnc_junction = 13; ? // PNC 路口
 ?repeated RSU rsu = 14;
}

syntax = "proto2";
?
import "modules/common/proto/geometry.proto";
?
package apollo.hdmap;
?
// Polygon, not necessary convex.
message Polygon {
 ?repeated apollo.common.PointENU point = 1;
}
?
// Straight line segment.
message LineSegment {
 ?repeated apollo.common.PointENU point = 1;
}
?
// Generalization of a line.
message CurveSegment {
 ?oneof curve_type {
 ? ?LineSegment line_segment = 1;
  }
 ?optional double s = 6; ?// start position (s-coordinate)
 ?optional apollo.common.PointENU start_position = 7;
 ?optional double heading = 8; ?// start orientation
 ?optional double length = 9;
}
?
// An object similar to a line but that need not be straight.
message Curve {
 ?repeated CurveSegment segment = 1;
}

syntax = "proto2";
?
package apollo.hdmap;
?
import "modules/map/proto/map_id.proto";
import "modules/map/proto/map_geometry.proto";
?
// 车道线类型
message LaneBoundaryType {
 ?enum Type {
 ? ?UNKNOWN = 0;
 ? ?DOTTED_YELLOW = 1;
 ? ?DOTTED_WHITE = 2;
 ? ?SOLID_YELLOW = 3;
 ? ?SOLID_WHITE = 4;
 ? ?DOUBLE_YELLOW = 5;
 ? ?CURB = 6;
  };
 ?// Offset relative to the starting point of boundary
 ?optional double s = 1;
 ?// support multiple types
 ?repeated Type types = 2;
}
?
// 车道线
message LaneBoundary {
 ?optional Curve curve = 1;　　// 车道线的坐标点
?
 ?optional double length = 2;　　// 长度
 ?// indicate whether the lane boundary exists in real world
 ?optional bool virtual = 3;
 ?// in ascending order of s
 ?repeated LaneBoundaryType boundary_type = 4;　　// 类型
}
?
// Association between central point to closest boundary.
// lane在每个采样点ｓ处的车道宽度
message LaneSampleAssociation {
 ?optional double s = 1;
 ?optional double width = 2;
}
?
// road是由lane构成的
// A lane is part of a roadway, that is designated for use by a single line of
// vehicles.
// Most public roads (include highways) have more than two lanes.
message Lane {
 ?optional Id id = 1;
?
 ?// Central lane as reference trajectory, not necessary to be the geometry
 ?// central.
 ?// 车道中心线,不一定是车道的几何中心,在planning作为参考线.
 ?// 是由一个个的lane segment(由两个坐标点构成的线段)组成的
 ?optional Curve central_curve = 2;
?
 ?// Lane boundary curve.
 ?optional LaneBoundary left_boundary = 3; ?// 左侧车道线
 ?optional LaneBoundary right_boundary = 4; // 右侧车道线
?
 ?// in meters.
 ?optional double length = 5; ?// 长度
?
 ?// Speed limit of the lane, in meters per second.
 ?optional double speed_limit = 6; ?// 限速
?
 ?repeated Id overlap_id = 7;
?
 ?// All lanes can be driving into (or from).
 ?repeated Id predecessor_id = 8; ?// 先序,如果有多个,则本车道是汇入车道
 ?repeated Id successor_id = 9; ? ?// 后序,如果有多个,则本车道是汇出车道
?
 ?// Neighbor lanes on the same direction.
 ?repeated Id left_neighbor_forward_lane_id = 10; ? // 同向的左侧相邻车道
 ?repeated Id right_neighbor_forward_lane_id = 11; ?// 同向的右侧相邻车道
?
 ?enum LaneType {
 ? ?NONE = 1;
 ? ?CITY_DRIVING = 2;
 ? ?BIKING = 3;
 ? ?SIDEWALK = 4;
 ? ?PARKING = 5;
 ? ?SHOULDER = 6;
  };
 ?optional LaneType type = 12; ?// 车道类型: 城市道路/自行车道路/人行道/停车区域/路肩
?
 ?enum LaneTurn {
 ? ?NO_TURN = 1;
 ? ?LEFT_TURN = 2;
 ? ?RIGHT_TURN = 3;
 ? ?U_TURN = 4;
  };
 ?optional LaneTurn turn = 13; // 转弯类型
?
 ?repeated Id left_neighbor_reverse_lane_id = 14; ?// 反向的左侧相邻车道
 ?repeated Id right_neighbor_reverse_lane_id = 15; // 反向的右侧相邻车道
?
 ?optional Id junction_id = 16; ?// 路口id
?
 ?// Association between central point to closest boundary.
 ?repeated LaneSampleAssociation left_sample = 17; ? //车道中心线到左侧车道线的宽度
 ?repeated LaneSampleAssociation right_sample = 18; ?//车道中心线到左侧车道线的宽度
?
 ?enum LaneDirection {
 ? ?FORWARD = 1;
 ? ?BACKWARD = 2;
 ? ?BIDIRECTION = 3;
  }
 ?optional LaneDirection direction = 19; ?// 车道方向
?
 ?// Association between central point to closest road boundary.
 ?repeated LaneSampleAssociation left_road_sample = 20; ?//车道中心线到左侧road boudary的宽度
 ?repeated LaneSampleAssociation right_road_sample = 21; ?//车道中心线到右侧road boudary的宽度
?
 ?repeated Id self_reverse_lane_id = 22; ?// ??
}

syntax = "proto2";
?
package apollo.hdmap;
?
import "modules/map/proto/map_geometry.proto";
import "modules/map/proto/map_id.proto";
?
message BoundaryEdge {
 ?optional Curve curve = 1;
 ?enum Type {
 ? ?UNKNOWN = 0;
 ? ?NORMAL = 1;
 ? ?LEFT_BOUNDARY = 2;
 ? ?RIGHT_BOUNDARY = 3;
  };
 ?optional Type type = 2;
}
?
message BoundaryPolygon {
 ?repeated BoundaryEdge edge = 1;
}
?
// boundary with holes
message RoadBoundary {
 ?optional BoundaryPolygon outer_polygon = 1;
 ?// if boundary without hole, hole is null
 ?repeated BoundaryPolygon hole = 2; ?// ???
}
?
message RoadROIBoundary {
 ?optional Id id = 1;
 ?repeated RoadBoundary road_boundaries = 2;
}
?
// road section defines a road cross-section, At least one section must be
// defined in order to
// use a road, If multiple road sections are defined, they must be listed in
// order along the road
message RoadSection {
 ?optional Id id = 1;
 ?// lanes contained in this section
 ?repeated Id lane_id = 2; ?// section由多个lane构成
 ?// boundary of section
 ?optional RoadBoundary boundary = 3; ?// 道路边界
}
?
// The road is a collection of traffic elements, such as lanes, road boundary
// etc.
// It provides general information about the road.
message Road {
 ?optional Id id = 1;
 ?repeated RoadSection section = 2; ?// 将road沿纵向分成一个个的片段(section)，每个section在横向上由一个个lane组成
?
 ?// if lane road not in the junction, junction id is null.
 ?optional Id junction_id = 3; ?// 路口id
?
 ?enum Type {
 ? ?UNKNOWN = 0;
 ? ?HIGHWAY = 1;
 ? ?CITY_ROAD = 2;
 ? ?PARK = 3;
  };
 ?optional Type type = 4; ?// 道路类型, lane的类型会更多,更细致
}

syntax = "proto2";
?
package apollo.hdmap;
?
import "modules/map/proto/map_geometry.proto";
import "modules/map/proto/map_id.proto";
?
// Crosswalk is a place designated for pedestrians to cross a road.
message Crosswalk {
 ?optional Id id = 1;
?
 ?optional Polygon polygon = 2; ?// 人行横道区域,是一个多边形
?
 ?repeated Id overlap_id = 3; ? ?// 相互重叠区域的id
}

syntax = "proto2";
?
package apollo.hdmap;
?
import "modules/map/proto/map_id.proto";
import "modules/map/proto/map_geometry.proto";
// 两条或者两条以上道路的交叉口
// A junction is the junction at-grade of two or more roads crossing.
message Junction {
 ?optional Id id = 1;
?
 ?optional Polygon polygon = 2;
?
 ?repeated Id overlap_id = 3; ?// 相互重叠区域的id
}

syntax = "proto2";
?
package apollo.hdmap;
?
import "modules/map/proto/map_id.proto";
import "modules/map/proto/map_geometry.proto";
?
// A stop sign is a traffic sign to notify drivers that they must stop before
// proceeding.
message StopSign {
 ?optional Id id = 1;
?
 ?repeated Curve stop_line = 2; ? // 停止线(由一系列的点构成)
?
 ?repeated Id overlap_id = 3;
?
 ?enum StopType {
 ? ?UNKNOWN = 0;
 ? ?ONE_WAY = 1;
 ? ?TWO_WAY = 2;
 ? ?THREE_WAY = 3;
 ? ?FOUR_WAY = 4;
 ? ?ALL_WAY = 5;
  };
 ?optional StopType type = 4;
}

syntax = "proto2";
?
package apollo.hdmap;
?
import "modules/common/proto/geometry.proto";
import "modules/map/proto/map_geometry.proto";
import "modules/map/proto/map_id.proto";
?
message Subsignal {
 ?enum Type {
 ? ?UNKNOWN = 1;
 ? ?CIRCLE = 2; ? ? ? // 环岛?
 ? ?ARROW_LEFT = 3; ? // 左转
 ? ?ARROW_FORWARD = 4; ?// 直行
 ? ?ARROW_RIGHT = 5; ? ?// 右转
 ? ?ARROW_LEFT_AND_FORWARD = 6; ?// 左转和直行
 ? ?ARROW_RIGHT_AND_FORWARD = 7; // 右转和直行
 ? ?ARROW_U_TURN = 8; // U turn
  };
?
 ?optional Id id = 1;
 ?optional Type type = 2;
?
 ?// Location of the center of the bulb. now no data support.
 ?optional apollo.common.PointENU location = 3;
}
?
message SignInfo {
 ?enum Type {
 ? ?None = 0;
 ? ?NO_RIGHT_TURN_ON_RED = 1; ?// 红灯时禁止右转
  };
?
 ?optional Type type = 1;
}
?
message Signal {
 ?enum Type {
 ? ?UNKNOWN = 1;
 ? ?MIX_2_HORIZONTAL = 2;
 ? ?MIX_2_VERTICAL = 3;
 ? ?MIX_3_HORIZONTAL = 4;
 ? ?MIX_3_VERTICAL = 5;
 ? ?SINGLE = 6;
  };
?
 ?optional Id id = 1;
 ?optional Polygon boundary = 2;
 ?repeated Subsignal subsignal = 3;
 ?// TODO: add orientation. now no data support.
 ?repeated Id overlap_id = 4;
 ?optional Type type = 5; ?// 交通标志的形状和数量
 ?// stop line
 ?repeated Curve stop_line = 6; ?// ??
?
 ?repeated SignInfo sign_info = 7;
}

syntax = "proto2";
?
package apollo.hdmap;
?
import "modules/map/proto/map_id.proto";
import "modules/map/proto/map_geometry.proto";
?
// A yield indicates that each driver must prepare to stop if necessary to let a
// driver on another approach proceed.
// A driver who stops or slows down to let another vehicle through has yielded
// the right of way to that vehicle.
message YieldSign {
 ?optional Id id = 1;
?
 ?repeated Curve stop_line = 2;
?
 ?repeated Id overlap_id = 3;
}

syntax = "proto2";
?
package apollo.hdmap;
?
import "modules/map/proto/map_id.proto";
import "modules/map/proto/map_geometry.proto";
?
message LaneOverlapInfo {
 ?optional double start_s = 1; ?// position (s-coordinate)
 ?optional double end_s = 2; ? ?// position (s-coordinate)
 ?optional bool is_merge = 3; ? // 是否是汇入车道???
?
 ?optional Id region_overlap_id = 4;
}
?
message SignalOverlapInfo {}
?
message StopSignOverlapInfo {}
?
message CrosswalkOverlapInfo {
 ?optional Id region_overlap_id = 1;
}
?
message JunctionOverlapInfo {}
?
message YieldOverlapInfo {}
?
message ClearAreaOverlapInfo {}
?
message SpeedBumpOverlapInfo {}
?
message ParkingSpaceOverlapInfo {}
?
message PNCJunctionOverlapInfo {}
?
message RSUOverlapInfo {}
?
message RegionOverlapInfo {
 ?optional Id id = 1;
 ?repeated Polygon polygon = 2;
}
?
// Information about one object in the overlap.
message ObjectOverlapInfo {
 ?optional Id id = 1;
?
 ?oneof overlap_info {
 ? ?LaneOverlapInfo lane_overlap_info = 3;
 ? ?SignalOverlapInfo signal_overlap_info = 4;
 ? ?StopSignOverlapInfo stop_sign_overlap_info = 5;
 ? ?CrosswalkOverlapInfo crosswalk_overlap_info = 6;
 ? ?JunctionOverlapInfo junction_overlap_info = 7;
 ? ?YieldOverlapInfo yield_sign_overlap_info = 8;
 ? ?ClearAreaOverlapInfo clear_area_overlap_info = 9;
 ? ?SpeedBumpOverlapInfo speed_bump_overlap_info = 10;
 ? ?ParkingSpaceOverlapInfo parking_space_overlap_info = 11;
 ? ?PNCJunctionOverlapInfo pnc_junction_overlap_info = 12;
 ? ?RSUOverlapInfo rsu_overlap_info = 13;
  }
}
?
// Here, the "overlap" includes any pair of objects on the map
// (e.g. lanes, junctions, and crosswalks).
message Overlap {
 ?optional Id id = 1;
?
 ?// Information about one overlap, include all overlapped objects.
 ?repeated ObjectOverlapInfo object = 2;
?
 ?repeated RegionOverlapInfo region_overlap = 3;
}

syntax = "proto2";
?
package apollo.hdmap;
?
import "modules/map/proto/map_id.proto";
import "modules/map/proto/map_geometry.proto";
?
// A clear area means in which stopping car is prohibited
?
message ClearArea {
 ?optional Id id = 1;
 ?repeated Id overlap_id = 2;
 ?optional Polygon polygon = 3;
}

syntax = "proto2";
?
package apollo.hdmap;
?
import "modules/map/proto/map_id.proto";
import "modules/map/proto/map_geometry.proto";
?
message SpeedBump {
 ?optional Id id = 1;
 ?repeated Id overlap_id = 2;
 ?repeated Curve position = 3;
}

syntax = "proto2";
?
package apollo.hdmap;
?
import "modules/map/proto/map_geometry.proto";
import "modules/map/proto/map_id.proto";
?
// ParkingSpace is a place designated to park a car.
message ParkingSpace {
 ?optional Id id = 1;
?
 ?optional Polygon polygon = 2;
?
 ?repeated Id overlap_id = 3;
?
 ?optional double heading = 4;
}
?
// ParkingLot is a place for parking cars.
message ParkingLot {
 ?optional Id id = 1;
?
 ?optional Polygon polygon = 2;
?
 ?repeated Id overlap_id = 3;
}

syntax = "proto2";
?
package apollo.hdmap;
?
import "modules/map/proto/map_id.proto";
import "modules/map/proto/map_geometry.proto";
message Passage {
 ?optional Id id = 1;
?
 ?repeated Id signal_id = 2;
 ?repeated Id yield_id = 3;
 ?repeated Id stop_sign_id = 4;
 ?repeated Id lane_id = 5;
?
 ?enum Type {
 ? ?UNKNOWN = 0;
 ? ?ENTRANCE = 1;
 ? ?EXIT = 2;
  };
 ?optional Type type = 6;
};
?
message PassageGroup {
 ?optional Id id = 1;
?
 ?repeated Passage passage = 2;
};
?
message PNCJunction {
 ?optional Id id = 1;
?
 ?optional Polygon polygon = 2;
?
 ?repeated Id overlap_id = 3;
?
 ?repeated PassageGroup passage_group = 4;
}

syntax = "proto2";
?
package apollo.hdmap;
?
import "modules/map/proto/map_id.proto";
?
message RSU {
 ?optional Id id = 1;
 ?optional Id junction_id = 2;
 ?repeated Id overlap_id = 3;
};

1.3 Routing Input

解析百度Apollo之Routing模块

1.3.1 proto 目录

apollo\modules\routing\proto\routing.proto

1.3.2 proto定义

syntax = "proto2";
?
package apollo.routing;
?
import "modules/common/proto/header.proto";
import "modules/common/proto/geometry.proto";
import "modules/common/proto/error_code.proto";
import "modules/map/proto/map_parking_space.proto";
?
message LaneWaypoint {
 ?optional string id = 1;
 ?optional double s = 2;
 ?optional apollo.common.PointENU pose = 3;
}
?
message LaneSegment {
 ?optional string id = 1;
 ?optional double start_s = 2; ?// lanesegment 在lane上的起始位置
 ?optional double end_s = 3; ? ?// lanesegment 在lane上的终止位置
}
?
message ParkingInfo {
 ?optional string parking_space_id = 1;
 ?optional apollo.common.PointENU parking_point = 2;
}
?
message RoutingRequest {
 ?optional apollo.common.Header header = 1;
 ?// at least two points. The first is start point, the end is final point.
 ?// The routing must go through each point in waypoint.
 ?repeated LaneWaypoint waypoint = 2; ? // 导航路径的查询点
 ?repeated LaneSegment blacklisted_lane = 3; // ??
 ?repeated string blacklisted_road = 4; ? ? ?// ??
 ?optional bool broadcast = 5 [default = true]; ?// ??
 ?optional apollo.hdmap.ParkingSpace parking_space = 6 [deprecated = true];
 ?optional ParkingInfo parking_info = 7;
}
?
message Measurement {
 ?optional double distance = 1;
}
?
enum ChangeLaneType {
 ?FORWARD = 0;
 ?LEFT = 1;
 ?RIGHT = 2;
};
?
// passage是不是应该加上priority
message Passage {
 ?repeated LaneSegment segment = 1; ?// passage的一段，包含了id和起止点信息
 ?optional bool can_exit = 2; ?// 当前passage是否可以接续到Routing结果的另外一个passage上
 ?optional ChangeLaneType change_lane_type = 3 [default = FORWARD]; ?//道路的类型，有FORWARD，LEFT，RIGHT三种取值。
}
?

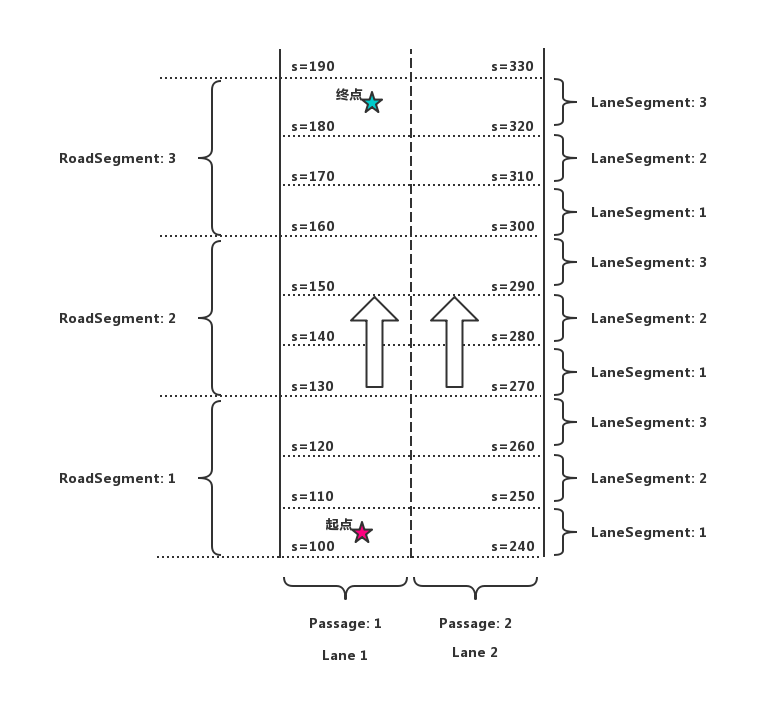

message RoadSegment {
 ?optional string id = 1;
 ?repeated Passage passage = 2; ?// 车道,把lane分段,由lane segment组成
}
?
message RoutingResponse {
 ?optional apollo.common.Header header = 1; ? ?// header
 ?repeated RoadSegment road = 2; ? ? ? ? ? ? ? // road,由纵向分割的一个个section构成
 ?optional Measurement measurement = 3; ? ? ? ?// 应该是到终点的距离
 ?optional RoutingRequest routing_request = 4; // 全局规划(导航)的查询点(必经点)
?
 ?// the map version which is used to build road graph
 ?optional bytes map_version = 5;
 ?optional apollo.common.StatusPb status = 6;
}

1.4 Localization Input

1.4.1 proto 目录

apollo\modules\localization\proto\localization.proto

1.4.2 proto定义

/******************************************************************************
 * Copyright 2017 The Apollo Authors. All Rights Reserved.
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 * http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 *****************************************************************************/
?
syntax = "proto2";
?
package apollo.localization;
?
import "modules/common/proto/header.proto";
import "modules/localization/proto/pose.proto";
import "modules/common/proto/geometry.proto";
import "modules/common/proto/pnc_point.proto";
import "modules/localization/proto/localization_status.proto";
?
message Uncertainty {
 ?// Standard deviation of position, east/north/up in meters.
 ?optional apollo.common.Point3D position_std_dev = 1;
?
 ?// Standard deviation of quaternion qx/qy/qz, unitless.
 ?optional apollo.common.Point3D orientation_std_dev = 2;
?
 ?// Standard deviation of linear velocity, east/north/up in meters per second.
 ?optional apollo.common.Point3D linear_velocity_std_dev = 3;
?
 ?// Standard deviation of linear acceleration, right/forward/up in meters per
 ?// square second.
 ?optional apollo.common.Point3D linear_acceleration_std_dev = 4;
?
 ?// Standard deviation of angular velocity, right/forward/up in radians per
 ?// second.
 ?optional apollo.common.Point3D angular_velocity_std_dev = 5;
?
 ?// TODO: Define covariance items when needed.
}
?
message LocalizationEstimate {
 ?optional apollo.common.Header header = 1;
 ?optional apollo.localization.Pose pose = 2; ?// adc的位置,速度,加速度,航向角
 ?optional Uncertainty uncertainty = 3; ? ? ? ?// 定位信息的标准差
?
 ?// The time of pose measurement, seconds since 1970-1-1 (UNIX time).
 ?optional double measurement_time = 4; ?// In seconds.
?
 ?// Future trajectory actually driven by the drivers
 ?repeated apollo.common.TrajectoryPoint trajectory_point = 5;
?
 ?// msf status
 ?optional MsfStatus msf_status = 6;
 ?// msf quality
 ?optional MsfSensorMsgStatus sensor_status = 7;
}
?
enum MeasureState {
 ?OK = 0;
 ?WARNNING = 1;
 ?ERROR = 2;
 ?CRITICAL_ERROR = 3;
 ?FATAL_ERROR = 4;
}
?
message LocalizationStatus {
 ?optional apollo.common.Header header = 1;
 ?optional MeasureState fusion_status = 2;
 ?optional MeasureState gnss_status = 3 [deprecated = true];
 ?optional MeasureState lidar_status = 4 [deprecated = true];
 ?// The time of pose measurement, seconds since 1970-1-1 (UNIX time).
 ?optional double measurement_time = 5; ?// In seconds.
 ?optional string state_message = 6;
}

/******************************************************************************
 * Copyright 2017 The Apollo Authors. All Rights Reserved.
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 * http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 *****************************************************************************/
?
syntax = "proto2";
?
package apollo.localization;
?
import "modules/common/proto/geometry.proto";
?
message Pose {
 ?// Position of the vehicle reference point (VRP) in the map reference frame.
 ?// The VRP is the center of rear axle.
 ?optional apollo.common.PointENU position = 1; ? // 车辆后轴中心的坐标(x, y, z),和地图是一样的坐标系
?
 ?// A quaternion that represents the rotation from the IMU coordinate
 ?// (Right/Forward/Up) to the
 ?// world coordinate (East/North/Up).
 ?optional apollo.common.Quaternion orientation = 2;
?
 ?// Linear velocity of the VRP in the map reference frame.
 ?// East/north/up in meters per second.
 ?optional apollo.common.Point3D linear_velocity = 3; ?// 地图所用坐标系
?
 ?// Linear acceleration of the VRP in the map reference frame.
 ?// East/north/up in meters per square second.
 ?optional apollo.common.Point3D linear_acceleration = 4; // 地图所用坐标系
?
 ?// Angular velocity of the vehicle in the map reference frame.
 ?// Around east/north/up axes in radians per second.
 ?optional apollo.common.Point3D angular_velocity = 5; // 地图所用坐标系
?
 ?// Heading
 ?// The heading is zero when the car is facing East and positive when facing
 ?// North.
 ?optional double heading = 6;
?
 ?// Linear acceleration of the VRP in the vehicle reference frame.
 ?// Right/forward/up in meters per square second.
 ?optional apollo.common.Point3D linear_acceleration_vrf = 7; ?// 车体坐标系下的加速度
?
 ?// Angular velocity of the VRP in the vehicle reference frame.
 ?// Around right/forward/up axes in radians per second.
 ?optional apollo.common.Point3D angular_velocity_vrf = 8; ?// 车体坐标系下的角速度
?
 ?// Roll/pitch/yaw that represents a rotation with intrinsic sequence z-x-y.
 ?// in world coordinate (East/North/Up)
 ?// The roll, in (-pi/2, pi/2), corresponds to a rotation around the y-axis.
 ?// The pitch, in [-pi, pi), corresponds to a rotation around the x-axis.
 ?// The yaw, in [-pi, pi), corresponds to a rotation around the z-axis.
 ?// The direction of rotation follows the right-hand rule.
 ?optional apollo.common.Point3D euler_angles = 9; ?// 欧拉角
}

1.5 Canbus Input

1.5.1 proto 目录

• apollo\modules\canbus\proto\chassis.proto

• apollo\modules\common\proto\vehicle_signal.proto

1.5.2 proto定义

syntax = "proto2";
?
package apollo.canbus;
?
import "modules/common/proto/header.proto";
import "modules/common/proto/vehicle_signal.proto";
import "modules/common/proto/drive_state.proto";
import "modules/common/proto/geometry.proto";
import "modules/common/configs/proto/vehicle_config.proto";
?
// next id :31
message Chassis
 ?// 驾驶模式
 ?enum DrivingMode {
 ? ?COMPLETE_MANUAL = 0; ?// human drive
 ? ?COMPLETE_AUTO_DRIVE = 1; // 自动驾驶模式
 ? ?AUTO_STEER_ONLY = 2; ?// only steer
 ? ?AUTO_SPEED_ONLY = 3; ?// include throttle and brake
?
 ? ?// security mode when manual intervention happens, only response status
 ? ?EMERGENCY_MODE = 4;
  }
?
 ?enum ErrorCode {
 ? ?NO_ERROR = 0;
?
 ? ?CMD_NOT_IN_PERIOD = 1; ?// control cmd not in period, Control cmd超时
?
 ? ?// car chassis report error, like steer, brake, throttle, gear fault
 ? ?CHASSIS_ERROR = 2;
?
 ? ?// classify the types of the car chassis errors
 ? ?CHASSIS_ERROR_ON_STEER = 6;
 ? ?CHASSIS_ERROR_ON_BRAKE = 7;
 ? ?CHASSIS_ERROR_ON_THROTTLE = 8;
 ? ?CHASSIS_ERROR_ON_GEAR = 9;
?
 ? ?MANUAL_INTERVENTION = 3; ?// human manual intervention
?
 ? ?// receive car chassis can frame not in period
 ? ?CHASSIS_CAN_NOT_IN_PERIOD = 4; // 底盘反馈消息超时
?
 ? ?UNKNOWN_ERROR = 5;
  }
 ?// 档位信息
 ?enum GearPosition {
 ? ?GEAR_NEUTRAL = 0;
 ? ?GEAR_DRIVE = 1;
 ? ?GEAR_REVERSE = 2;
 ? ?GEAR_PARKING = 3;
 ? ?GEAR_LOW = 4;
 ? ?GEAR_INVALID = 5;
 ? ?GEAR_NONE = 6;
  }
?
 ?optional bool engine_started = 3; ? // 发动机点火标志位
?
 ?// Engine speed in RPM.
 ?optional float engine_rpm = 4 [default = nan];
?
 ?// Vehicle Speed in meters per second.
 ?optional float speed_mps = 5 [default = nan];
?
 ?// Vehicle odometer in meters.
 ?optional float odometer_m = 6 [default = nan]; ?// 里程计
?
 ?// Fuel range in meters.
 ?optional int32 fuel_range_m = 7;
?
 ?// Real throttle location in [%], ranging from 0 to 100.
 ?optional float throttle_percentage = 8 [default = nan];
?
 ?// Real brake location in [%], ranging from 0 to 100.
 ?optional float brake_percentage = 9 [default = nan];
?
 ?// Real steering location in [%], ranging from -100 to 100.
 ?// steering_angle / max_steering_angle
 ?// Clockwise: negative
 ?// CountClockwise: positive
 ?optional float steering_percentage = 11 [default = nan];
?
 ?// Applied steering torque in [Nm].
 ?optional float steering_torque_nm = 12 [default = nan]; ?// 驾驶员施加在方向盘上的转矩??
?
 ?// Parking brake status.
 ?optional bool parking_brake = 13; ?// 驻车制动,手刹
?
 ?// Light signals.
 ?optional bool high_beam_signal = 14 [deprecated = true]; ?// 远光灯
 ?optional bool low_beam_signal = 15 [deprecated = true]; ? // 近光灯
 ?optional bool left_turn_signal = 16 [deprecated = true]; ?// 左转灯
 ?optional bool right_turn_signal = 17 [deprecated = true]; // 右转灯
 ?optional bool horn = 18 [deprecated = true]; ?// 喇叭
?
 ?optional bool wiper = 19; ?// 雨刮器
 ?optional bool disengage_status = 20 [deprecated = true]; ?// 驾驶员是否脱离方向盘???
 ?optional DrivingMode driving_mode = 21 [default = COMPLETE_MANUAL]; ?// 驾驶模式
 ?optional ErrorCode error_code = 22 [default = NO_ERROR]; ?// 错误码
 ?optional GearPosition gear_location = 23; ?// 档位
?
 ?// timestamp for steering module
 ?optional double steering_timestamp = 24; ?// In seconds, with 1e-6 accuracy
?
 ?// chassis also needs it own sending timestamp
 ?optional apollo.common.Header header = 25;
?
 ?optional int32 chassis_error_mask = 26 [default = 0]; ?// 错误码掩码??
?
 ?optional apollo.common.VehicleSignal signal = 27; ?// 驾驶员输入信号: 转向\灯光\喇叭
?
 ?// Only available for Lincoln now
 ?optional ChassisGPS chassis_gps = 28;
?
 ?optional apollo.common.EngageAdvice engage_advice = 29;
?
 ?optional WheelSpeed wheel_speed = 30; ?// 轮速信息
?
 ?optional Surround surround = 31;
?
 ?// Vehicle registration information
 ?optional License license = 32 [deprecated = true];
?
 ?// Real gear location.
 ?// optional int32 gear_location = 10 [deprecated = true]; deprecated use enum
 ?// replace this [id 23]
?
 ?optional apollo.common.VehicleID vehicle_id = 33;
?
 ?optional int32 battery_soc_percentage = 34 [default = -1];
}
?
message ChassisGPS {
 ?optional double latitude = 1;
 ?optional double longitude = 2;
 ?optional bool gps_valid = 3;
?
 ?optional int32 year = 4;
 ?optional int32 month = 5;
 ?optional int32 day = 6;
 ?optional int32 hours = 7;
 ?optional int32 minutes = 8;
 ?optional int32 seconds = 9;
 ?optional double compass_direction = 10;
 ?optional double pdop = 11;
 ?optional bool is_gps_fault = 12;
 ?optional bool is_inferred = 13;
?
 ?optional double altitude = 14;
 ?optional double heading = 15;
 ?optional double hdop = 16;
 ?optional double vdop = 17;
 ?optional GpsQuality quality = 18;
 ?optional int32 num_satellites = 19;
 ?optional double gps_speed = 20;
}
?
enum GpsQuality {
 ?FIX_NO = 0;
 ?FIX_2D = 1;
 ?FIX_3D = 2;
 ?FIX_INVALID = 3;
}
?
message WheelSpeed {
 ?enum WheelSpeedType {
 ? ?FORWARD = 0;
 ? ?BACKWARD = 1;
 ? ?STANDSTILL = 2;
 ? ?INVALID = 3;
  }
 ?optional bool is_wheel_spd_rr_valid = 1 [default = false];
 ?optional WheelSpeedType wheel_direction_rr = 2 [default = INVALID];
 ?optional double wheel_spd_rr = 3 [default = 0.0];
 ?optional bool is_wheel_spd_rl_valid = 4 [default = false];
 ?optional WheelSpeedType wheel_direction_rl = 5 [default = INVALID];
 ?optional double wheel_spd_rl = 6 [default = 0.0];
 ?optional bool is_wheel_spd_fr_valid = 7 [default = false];
 ?optional WheelSpeedType wheel_direction_fr = 8 [default = INVALID];
 ?optional double wheel_spd_fr = 9 [default = 0.0];
 ?optional bool is_wheel_spd_fl_valid = 10 [default = false];
 ?optional WheelSpeedType wheel_direction_fl = 11 [default = INVALID];
 ?optional double wheel_spd_fl = 12 [default = 0.0];
}
?
// 雷达
message Sonar {
 ?optional double range = 1; ? ? ? ? ? ? ? ? ? ? ? // Meter, 距离
 ?optional apollo.common.Point3D translation = 2; ?// Meter
 ?optional apollo.common.Quaternion rotation = 3;
}
?
message Surround {
 ?optional bool cross_traffic_alert_left = 1; ?// 左侧车辆报警
 ?optional bool cross_traffic_alert_left_enabled = 2; ?// 左侧车辆报警是否使能
 ?optional bool blind_spot_left_alert = 3; ?// 左侧盲区报警
 ?optional bool blind_spot_left_alert_enabled = 4;
 ?optional bool cross_traffic_alert_right = 5; // 右侧车辆报警
 ?optional bool cross_traffic_alert_right_enabled = 6;
 ?optional bool blind_spot_right_alert = 7; // 右侧盲区报警
 ?optional bool blind_spot_right_alert_enabled = 8;
 ?optional double sonar00 = 9; ?// 毫米波雷达测距
 ?optional double sonar01 = 10;
 ?optional double sonar02 = 11;
 ?optional double sonar03 = 12;
 ?optional double sonar04 = 13;
 ?optional double sonar05 = 14;
 ?optional double sonar06 = 15;
 ?optional double sonar07 = 16;
 ?optional double sonar08 = 17;
 ?optional double sonar09 = 18;
 ?optional double sonar10 = 19;
 ?optional double sonar11 = 20;
 ?optional bool sonar_enabled = 21; ?// 雷达是否使用
 ?optional bool sonar_fault = 22; ? ?// 雷达是否故障
 ?repeated double sonar_range = 23; ?// 雷达测距范围
 ?repeated Sonar sonar = 24;
}
?
message License {
 ?optional string vin = 1 [deprecated = true];
}

syntax = "proto2";
?
package apollo.common;
?
// 驾驶员输入信号
message VehicleSignal {
 ?enum TurnSignal {
 ? ?TURN_NONE = 0;
 ? ?TURN_LEFT = 1;
 ? ?TURN_RIGHT = 2;
  };
 ?optional TurnSignal turn_signal = 1; ? // 转向信号
 ?// lights enable command
 ?optional bool high_beam = 2; ?// 远光灯是否打开
 ?optional bool low_beam = 3; ? // 近光灯是否打开
 ?optional bool horn = 4; ? ? ? // 喇叭是否打开
 ?optional bool emergency_light = 5; ?// 双闪是否打开
}

1.6 Pad Input

在L2或者L3智能驾驶系统中,没有Pad输入,此功能是Robotaix中乘客的指令信息.

1.6.1 proto 目录

apollo\modules\planning\proto\pad.proto

1.6.2 proto定义

syntax = "proto2";
package apollo.planning;
?
import "modules/common/proto/header.proto";
?
enum DrivingAction {
 ?NONE = 100;
 ?FOLLOW = 0; ? ? ? ?// acc
 ?CHANGE_LEFT = 1; ? // 向左换道
 ?CHANGE_RIGHT = 2; ?// 向右换道
 ?PULL_OVER = 3; ? ? // 靠边停车
 ?STOP = 4; ? ? ? ? ?// 停车
 ?RESUME_CRUISE = 5; // 启动
};
?
message PadMessage {
 ?optional apollo.common.Header header = 1;
?
 ?// driving action
 ?optional DrivingAction action = 2;
}

1.7 Storytelling Input

Storytelling Module发布的信息和Planning中的scenarios相似,Planning并未对Storytelling信息做响应或者处理.

1.7.1 proto 目录

apollo\modules\storytelling\proto\story.proto

1.7.2 proto定义

syntax = "proto2";
?
package apollo.storytelling;
?
import "modules/common/proto/header.proto";
?
message CloseToCrosswalk {
 ?optional string id = 1;
 ?optional double distance = 2 [default = nan];
}
?
message CloseToClearArea {
 ?optional string id = 1;
 ?optional double distance = 2 [default = nan];
}
?
message CloseToJunction {
 ?enum JunctionType {
 ? ?PNC_JUNCTION = 1;
 ? ?JUNCTION = 2;
  };
 ?optional string id = 1;
 ?optional JunctionType type = 2;
 ?optional double distance = 3 [default = nan];
}
?
message CloseToSignal {
 ?optional string id = 1;
 ?optional double distance = 2 [default = nan];
}
?
message CloseToStopSign {
 ?optional string id = 1;
 ?optional double distance = 2 [default = nan];
}
?
message CloseToYieldSign {
 ?optional string id = 1;
 ?optional double distance = 2 [default = nan];
}
?
// Usage guide for action modules:
// 1. Call `stories.has_XXX()` to check if a story you are interested is in
// ?  charge.
// 2. Access the story details if necessary, and take action accordingly.
message Stories {
 ?optional apollo.common.Header header = 1;
?
 ?optional CloseToClearArea close_to_clear_area = 2;
 ?optional CloseToCrosswalk close_to_crosswalk = 3;
 ?optional CloseToJunction close_to_junction = 4;
 ?optional CloseToSignal close_to_signal = 5;
 ?optional CloseToStopSign close_to_stop_sign = 6;
 ?optional CloseToYieldSign close_to_yield_sign = 7;
}

2 Output

2.1 ADCTrajectory

2.1.1 proto 目录

apollo\modules\planning\proto\planning.proto

2.1.2 proto定义

syntax = "proto2";
?
package apollo.planning;
?
import "modules/canbus/proto/chassis.proto";
import "modules/common/proto/drive_state.proto";
import "modules/common/proto/geometry.proto";
import "modules/common/proto/header.proto";
import "modules/common/proto/pnc_point.proto";
import "modules/map/proto/map_id.proto";
import "modules/planning/proto/decision.proto";
import "modules/planning/proto/planning_internal.proto";
?
message EStop {
 ?// is_estop == true when emergency stop is required
 ?optional bool is_estop = 1; ?// 是否紧急刹车
 ?optional string reason = 2; ?// 紧急刹车原因
}
?
message TaskStats {
 ?optional string name = 1;
 ?optional double time_ms = 2;
}
?
message LatencyStats {
 ?optional double total_time_ms = 1;
 ?repeated TaskStats task_stats = 2;
 ?optional double init_frame_time_ms = 3;
}
?
message RSSInfo {
 ?optional bool is_rss_safe = 1;
 ?optional double cur_dist_lon = 2;
 ?optional double rss_safe_dist_lon = 3;
 ?optional double acc_lon_range_minimum = 4;
 ?optional double acc_lon_range_maximum = 5;
 ?optional double acc_lat_left_range_minimum = 6;
 ?optional double acc_lat_left_range_maximum = 7;
 ?optional double acc_lat_right_range_minimum = 8;
 ?optional double acc_lat_right_range_maximum = 9;
}
?
// next id: 24
message ADCTrajectory {
 ?optional apollo.common.Header header = 1;
?
 ?optional double total_path_length = 2; ?// in meters, 规划轨迹的长度
 ?optional double total_path_time = 3; ? ?// in seconds, 规划轨迹的时间
?
 ?// path data + speed data
 ?repeated apollo.common.TrajectoryPoint trajectory_point = 12; // 轨迹
?
 ?optional EStop estop = 6; // 紧急刹车
?
 ?// path point without speed info
 ?repeated apollo.common.PathPoint path_point = 13; // 规划的路径信息(没有速度信息)
?
 ?// is_replan == true mean replan triggered
 ?optional bool is_replan = 9 [default = false]; ?// 是否是重规划的轨迹
 ?optional string replan_reason = 22; ? ? ? ? ? ? // 重规划的原因
?
 ?// Specify trajectory gear
 ?optional apollo.canbus.Chassis.GearPosition gear = 10; ?// 档位信息
?
 ?optional apollo.planning.DecisionResult decision = 14; ?//决策信息:任务决策(停车换道等),障碍物决策,灯光信息(转向信号等)
?
 ?optional LatencyStats latency_stats = 15; ?// Planning的运算时间造成的延迟
?
 ?// the routing used for current planning result
 ?optional apollo.common.Header routing_header = 16; ?// 导航信息的时间戳
 ?optional apollo.planning_internal.Debug debug = 8; ?// planning的debug信息
?
 ?enum RightOfWayStatus { // adc右侧道路的状态:有保护,无保护
 ? ?UNPROTECTED = 0;
 ? ?PROTECTED = 1;
  }
 ?optional RightOfWayStatus right_of_way_status = 17;
?
 ?// lane id along current reference line
 ?repeated apollo.hdmap.Id lane_id = 18; // 当前车道id
?
 ?// set the engage advice for based on current planning result.
 ?optional apollo.common.EngageAdvice engage_advice = 19;
?
 ?// the region where planning cares most
 ?message CriticalRegion {
 ? ?repeated apollo.common.Polygon region = 1;
  }
?
 ?// critical region will be empty when planning is NOT sure which region is
 ?// critical
 ?// critical regions may or may not overlap
 ?optional CriticalRegion critical_region = 20; ?//
?
 ?enum TrajectoryType {
 ? ?UNKNOWN = 0;
 ? ?NORMAL = 1; ?// 规划求解成功
 ? ?PATH_FALLBACK = 2; ?// 路径规划求解失败,fallback
 ? ?SPEED_FALLBACK = 3; // 速度规划求解失败,fallback
 ? ?PATH_REUSED = 4; ? ?// 复用上一帧路路径
  }
 ?optional TrajectoryType trajectory_type = 21 [default = UNKNOWN];
?
 ?// lane id along target reference line
 ?repeated apollo.hdmap.Id target_lane_id = 23; // 目标车道ID
?
 ?// output related to RSS
 ?optional RSSInfo rss_info = 100;
}

2.2 RoutingRequest

2.2.1 proto 目录

apollo\modules\routing\proto\routing.proto

2.2.2 proto定义

见Routing Input

2.3 PlanningLearningData

2.3.1 proto 目录

apollo\modules\planning\proto\leaning_data.proto

2.3.2 proto定义

syntax = "proto2";
?
package apollo.planning;
?
import "modules/canbus/proto/chassis.proto";
import "modules/common/proto/geometry.proto";
import "modules/common/proto/header.proto";
import "modules/common/proto/pnc_point.proto";
import "modules/map/proto/map_lane.proto";
import "modules/perception/proto/perception_obstacle.proto";
import "modules/prediction/proto/feature.proto";
import "modules/prediction/proto/prediction_obstacle.proto";
import "modules/perception/proto/traffic_light_detection.proto";
import "modules/routing/proto/routing.proto";
?
message OverlapFeature {
 ?optional string id = 1;
 ?optional double distance = 2;
}
?
message PlanningTag {
 ?optional apollo.hdmap.Lane.LaneTurn lane_turn = 1;
 ?optional OverlapFeature clear_area = 2;
 ?optional OverlapFeature crosswalk = 3;
 ?optional OverlapFeature pnc_junction = 4;
 ?optional OverlapFeature signal = 5;
 ?optional OverlapFeature stop_sign = 6;
 ?optional OverlapFeature yield_sign = 7;
}
?
message ChassisFeature {
 ?optional double message_timestamp_sec = 1;
?
 ?// Features from chassis
 ?// Vehicle Speed in meters per second.
 ?optional float speed_mps = 2;
?
 ?// Real throttle location in [%], ranging from 0 to 100.
 ?optional float throttle_percentage = 3;
?
 ?// Real brake location in [%], ranging from 0 to 100.
 ?optional float brake_percentage = 4;
?
 ?// Real steering location in [%], ranging from -100 to 100.
 ?// steering_angle / max_steering_angle
 ?// Clockwise: negative
 ?// CountClockwise: positive
 ?optional float steering_percentage = 5;
?
 ?optional apollo.canbus.Chassis.GearPosition gear_location = 6;
}
?
message LocalizationFeature {
 ?optional double message_timestamp_sec = 1;
?
 ?// Position of the vehicle reference point (VRP) in the map reference frame.
 ?// The VRP is the center of rear axle.
 ?optional apollo.common.PointENU position = 2;
?
 ?// Heading
 ?// The heading is zero when the car is facing East and positive when facing
 ?// North.
 ?optional double heading = 3;
?
 ?// Linear velocity of the VRP in the map reference frame.
 ?// East/north/up in meters per second.
 ?optional apollo.common.Point3D linear_velocity = 4;
?
 ?// Linear acceleration of the VRP in the map reference frame.
 ?// East/north/up in meters per second.
 ?optional apollo.common.Point3D linear_acceleration = 5;
?
 ?// Angular velocity of the vehicle in the map reference frame.
 ?// Around east/north/up axes in radians per second.
 ?optional apollo.common.Point3D angular_velocity = 6;
}
?
// based on apollo.common.PathPoint
message CommonPathPointFeature {
 ?// coordinates
 ?optional double x = 1;
 ?optional double y = 2;
 ?optional double z = 3;
?
 ?// direction on the x-y plane
 ?optional double theta = 4;
 ?// accumulated distance from beginning of the path
 ?optional double s = 5;
 ?// The lane ID where the path point is on
 ?optional string lane_id = 6;
}
?
// based on apollo.commom.TrajectoryPoint
message CommonTrajectoryPointFeature {
 ?// path point
 ?optional CommonPathPointFeature path_point = 1;
 ?// linear velocity
 ?optional double v = 2; ?// in [m/s]
 ?// linear acceleration
 ?optional double a = 3;
 ?// relative time from beginning of the trajectory
 ?optional double relative_time = 4;
 ?// Gaussian probability information
 ?optional apollo.common.GaussianInfo gaussian_info = 5;
}
?
message TrajectoryPointFeature {
 ?optional double timestamp_sec = 1;
 ?optional CommonTrajectoryPointFeature trajectory_point = 2;
}
?
// based on apollo.perception.PerceptionObstacle
message PerceptionObstacleFeature {
 ?optional double timestamp_sec = 1; ?// GPS time in seconds
?
 ?// obstacle position in the OBJECT coordinate system
 ?optional apollo.common.Point3D position = 2;
?
 ?// heading in RELATIVE coordinate to ADC
 ?optional double theta = 3;
?
 ?// obstacle velocity in RELATIVE coordinate to ADC
 ?optional apollo.common.Point3D velocity = 4; ?// obstacle velocity
?
 ?// obstacle acceleration in RELATIVE coordinate to ADC
 ?optional apollo.common.Point3D acceleration = 5;
?
 ?// obstacle corner points in RELATIVE coordinate to ADC
 ?repeated apollo.common.Point3D polygon_point = 6;
}
// obstacle的序列化信息
message ObstacleTrajectoryFeature {
 ?repeated PerceptionObstacleFeature perception_obstacle_history = 1;
 ?repeated TrajectoryPointFeature evaluated_trajectory_point = 2;
}
?
// based on apollo.prediction.Trajectory
message PredictionTrajectoryFeature {
 ?optional double probability = 1; ?// probability of this trajectory
 ?repeated TrajectoryPointFeature trajectory_point = 2;
}
?
// based on apollo.prediction.PredictionObstacle
message PredictionObstacleFeature {
 ?optional double timestamp_sec = 1; ?// GPS time in seconds
 ?optional double predicted_period = 2;
 ?optional apollo.prediction.ObstacleIntent intent = 3;
 ?optional apollo.prediction.ObstaclePriority priority = 4;
 ?optional bool is_static = 5 [default = false];
?
 ?// can have multiple trajectories per obstacle
 ?repeated PredictionTrajectoryFeature trajectory = 6;
}
?
message ObstacleFeature {
 ?optional int32 id = 1; ? ? ? // obstacle ID.
 ?optional double length = 2; ?// obstacle length.
 ?optional double width = 3; ? // obstacle width.
 ?optional double height = 4; ?// obstacle height.
 ?optional apollo.perception.PerceptionObstacle.Type type = 5; ?// obstacle type
 ?optional ObstacleTrajectoryFeature obstacle_trajectory = 6;
 ?optional PredictionObstacleFeature obstacle_prediction = 7;
}
?
// based on apollo.routing.RoutingResponse
message RoutingResponseFeature {
 ?repeated apollo.routing.RoadSegment road = 1;
 ?optional apollo.routing.Measurement measurement = 2;
}
?
message RoutingFeature {
 ?optional RoutingResponseFeature routing_response = 1;
 ?repeated string local_routing_lane_id = 2; ?// local routing close to ADC
 ?optional RoutingResponseFeature local_routing = 3;
}
?
// based on apollo.perception.TrafficLight
message TrafficLightFeature {
 ?optional apollo.perception.TrafficLight.Color color = 1;
 ?optional string id = 2;
 ?optional double confidence = 3 [default = 1.0];
 ?optional double tracking_time = 4;
 ?optional bool blink = 5;
 ?optional double remaining_time = 6;
}
?
message TrafficLightDetectionFeature {
 ?optional double message_timestamp_sec = 1;
 ?repeated TrafficLightFeature traffic_light = 2;
}
?
message ADCTrajectoryPoint {
 ?optional double timestamp_sec = 1; ?// localization measurement_time
 ?optional PlanningTag planning_tag = 2;
 ?optional CommonTrajectoryPointFeature trajectory_point = 3;
}
?
message LearningOutput {
 ?repeated TrajectoryPointFeature adc_future_trajectory_point = 1;
}
?
message LearningDataFrame {
 ?// localization message publishing time in seconds.
 ?optional double message_timestamp_sec = 1;
 ?optional uint32 frame_num = 2;
 ?optional string map_name = 3;
?
 ?optional PlanningTag planning_tag = 4;
?
 ?// Features from chassis
 ?optional ChassisFeature chassis = 5;
?
 ?// Features from localization
 ?optional LocalizationFeature localization = 6;
?
 ?// Features from perception obstacles
 ?repeated ObstacleFeature obstacle = 7;
?
 ?// Features from routing
 ?optional RoutingFeature routing = 8;
?
 ?// Features from traffic_light_detection
 ?optional TrafficLightDetectionFeature traffic_light_detection = 9;
?
 ?// ADC past trajectory
 ?repeated ADCTrajectoryPoint adc_trajectory_point = 10;
?
 ?// Learning ouputs
 ?optional LearningOutput output = 11;
}
?
message LearningData {
 ?repeated LearningDataFrame learning_data_frame = 1;
}
?
message PlanningLearningData {
 ?optional apollo.common.Header header = 1;
 ?optional LearningDataFrame learning_data_frame = 2;
}
