[人工智能]opencv学习笔记（二）

绘制几何图形

‘’’
1’绘制直线

2‘绘制圆形

3’绘制矩形

4‘向图像中添加文字

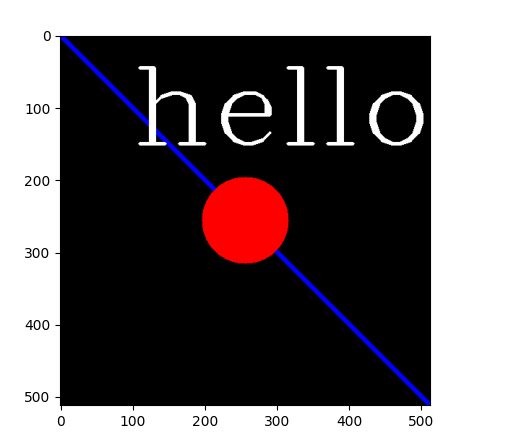

5’效果展示

import cv2
import  numpy as np
import cv2 as cv
import matplotlib.pyplot as plt
img=np.zeros((512,512,3),np.uint8)
cv.line(img,(0,0),(511,511),(255,0,0),5)
cv.circle(img,(256,256),60,(0,0,255),-1)
cv.putText(img,"hello",(100,150),cv.FONT_HERSHEY_COMPLEX,5,(255,255,255),3)
plt.imshow(img[:,:,::-1])
plt.show()

‘’’

获取并修改图像中的像素点

像素点的改变在图片上比较难以观察，则输出了改变点的像素点

# 更改（100，100）处的像素值
img[100,100]=(0,0,255)
plt.imshow(img[:,:,::-1])
#返回这一点的像素值
print(img[100,100]) #[  0   0 255]



# ####获取像素的属性

print(img.shape)
    #(512, 512, 3)行、列、通道数
print(img.dtype)
    #uint8数据类型
print(img.size)
    #786432图像大小

#####通道的拆分与合并

# b,g,r=cv.split(img)

# img=cv.merge((b,g,r))

# ####色彩空间的改变
test=cv.imread("opencv_1.png")
print(plt.imshow(test))
print(plt.imshow(test[:,:,::-1]))
    #AxesImage(80,52.8;496x369.6)
    #AxesImage(80,52.8;496x369.6)


# cv.imshow('opencv_1.png',test)

# img=cv.imread("opencv_1.png",1)
# cv.imshow('opencv_1.png',img)#灰色图形

b,g,r=cv.split(test)
plt.imshow(b,cmap=plt.cm.gray)
img2=cv.merge((b,g,r))
plt.imshow(img[:,:,::-1])


cv.imshow('opencv_1.png',test)

算术操作

‘’’
可以将两幅图相加，或者通过numpy操作添加两幅图像，
两幅图像应该具有相同的大小和类型，或者第二个图像可以是标量值
opencv加法是饱和操作，numpy中是模运算

import cv2
import numpy as np
import cv2 as cv
import matplotlib.pyplot as plt

# 读取图像
img1=cv.imread('opencv_1.png');

img2=cv.imread("opencv_2.png");
plt.imshow(img1[:,:,::-1])
#加分运算

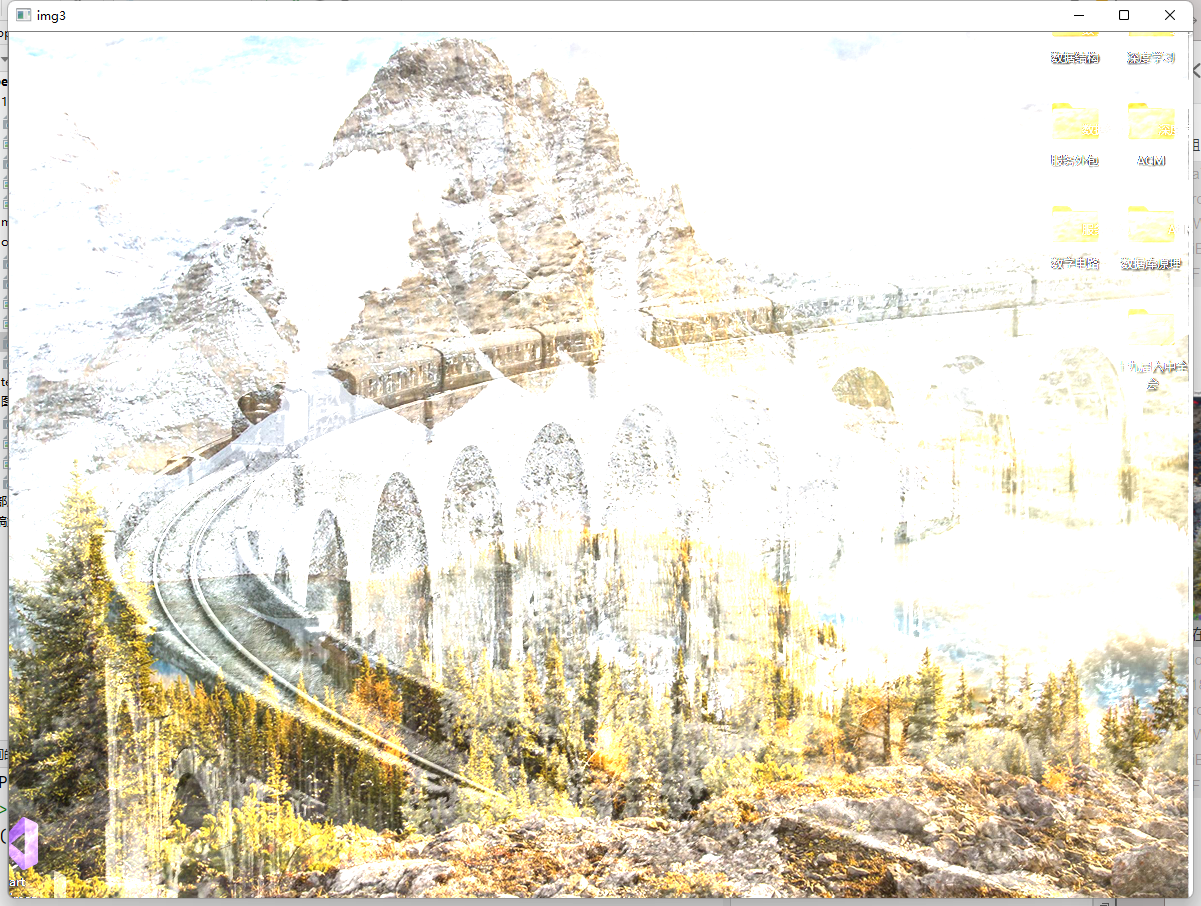

img3=cv.add(img2,img1)

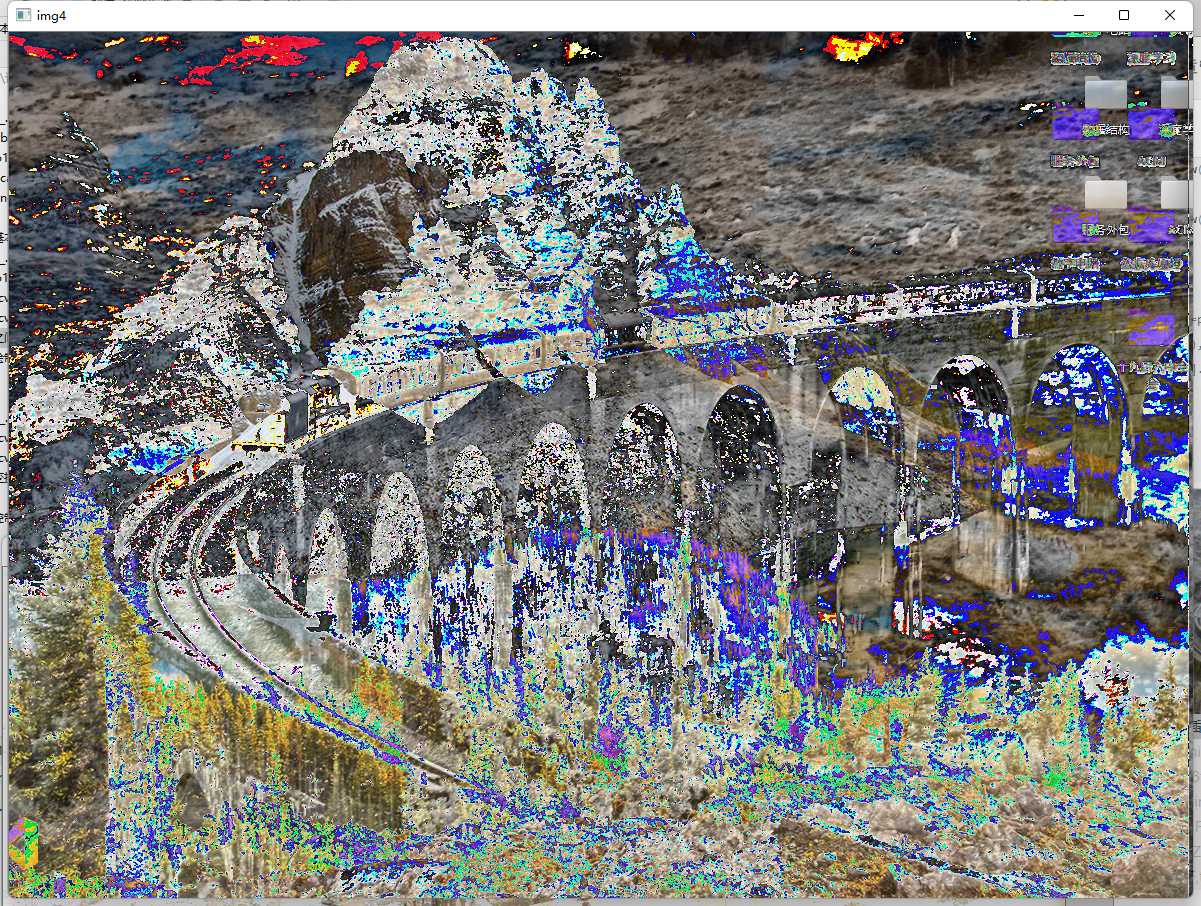

img4=img1+img2
print(img3.shape)
img_200x200=cv.resize(img1,(200,200))

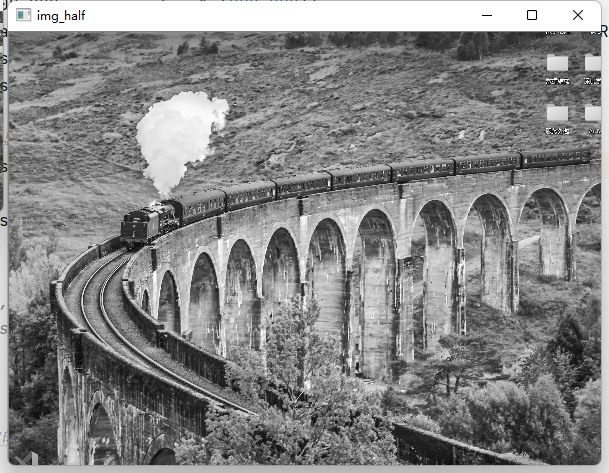

img_half=cv.resize(img1,(0,0),fx=0.5,fy=0.5,interpolation=cv.INTER_NEAREST)
cv.imshow("img_half",img_half)
cv.imshow("image",img_200x200)

# 图像显示
cv.imshow('img3',img3)

cv.imshow('img4',img4)


# fig,axes=plt.subplot(nrows=1,ncols=2,figsize=(10.8),dpi=100)
# axes[0].imshow(img3[:,:,::-1])

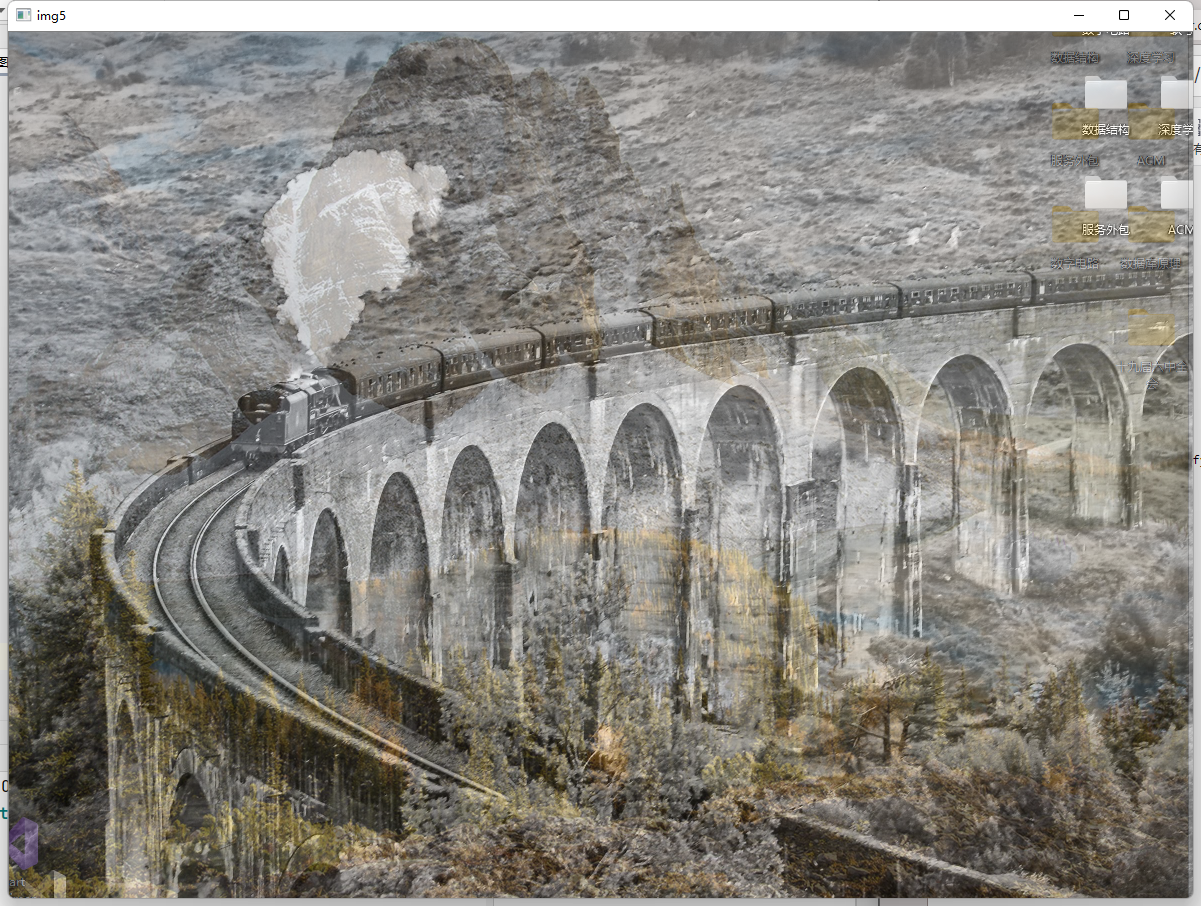

图像的混合

img5=cv2.addWeighted(img1,0.7,img2,0.3,0)#表示所占权重不同
cv.imshow('img5',img5)
# cv.waitKey(0)


# ####图像缩放

photo1=cv.imread('opencv_2.png')
cv.imshow("123",photo1)

#缩放变换
# rows,cols=photo1.shape[:2]

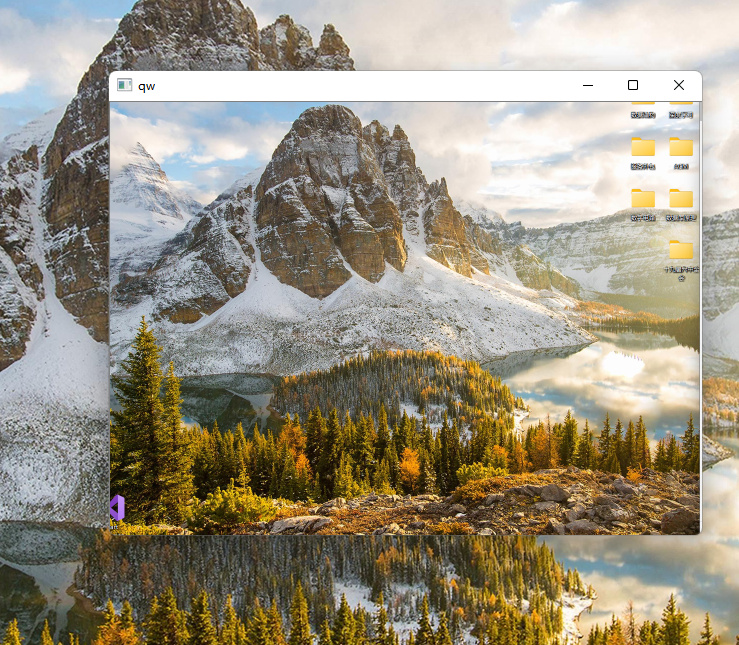

res=cv.resize(photo1,(0,0),fx=0.5,fy=0.5)

cv.imshow("qw",res)

import numpy as np
import cv2

img = cv2.imread('test.png')

# 沿着横纵轴放大1.6倍，之后平移（-150，-240），最后沿原图大小截取，等效于剪裁并放大
M_crop_dog = np.array([
    [1.6, 0, -150],
    [0, 1.6, -240]
], dtype=np.float32)

# cv2.warpAffine(原始图像, 变换矩阵,变换后的图像大小)
img_dog = cv2.warpAffine(img, M_crop_dog,(400, 400))
cv2.imshow("img_dog", img_dog)

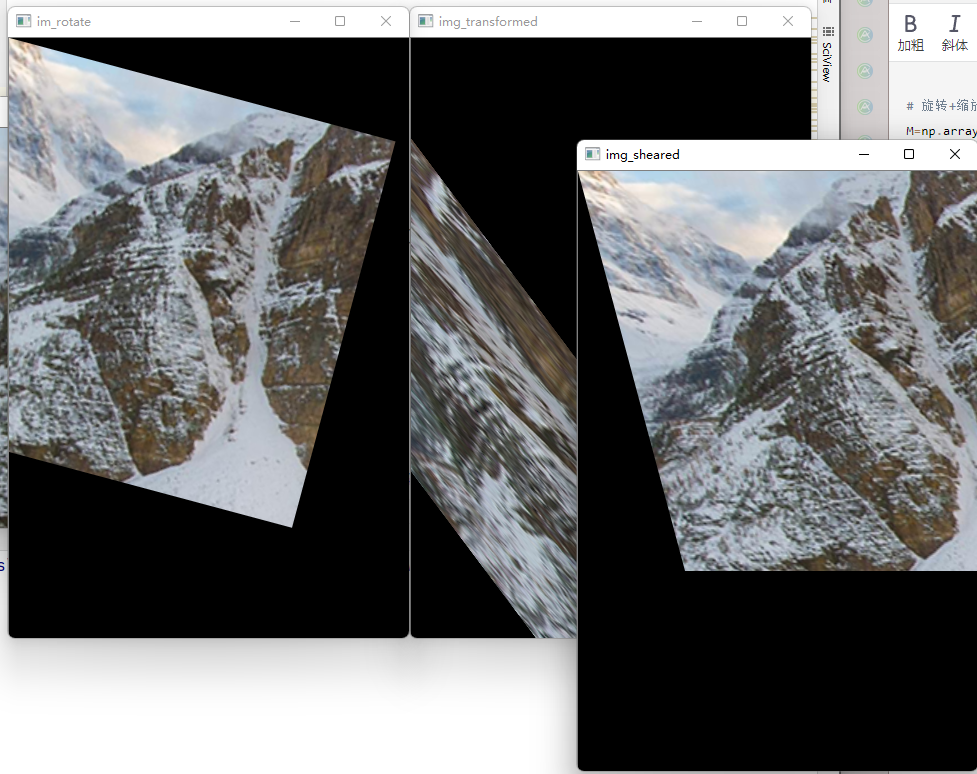

# x轴的剪切变换，逆时针旋转角度15°
theta=15*np.pi/180
M_shear=np.array([
    [1,np.tan(theta),0],
    [0,1,0]
],dtype=np.float32)

img_sheared=cv2.warpAffine(img,M_shear,(400,600))
cv2.imshow("img_sheared",img_sheared)

# 顺时针旋转，角度15°
M_rotate=np.array([
    [np.cos(theta),-np.sin(theta),0],
    [np.sin(theta),np.cos(theta),0]
],dtype=np.float32)

im_rotate=cv2.warpAffine(img,M_rotate,(400,600))
cv2.imshow("im_rotate",im_rotate)

# 旋转+缩放+旋转组合，可以通过SVD分解理解
M=np.array([
    [1,1.5,-400],
    [0.5,2,-100]
],dtype=np.float32)

img_transformed=cv2.warpAffine(img,M,(400,600))
cv2.imshow("img_transformed",img_transformed)

cv2.waitKey(0)
