[人工智能]Android Stduio+Opencv+Socket传输视频流到服务器

前言

近期，由于老师的要求，我们需要实现将Android Studio摄像头获取的视频实时传输到服务端，而在手机端实时显示。我们决定采用Opencv与Socket实现该功能，网上相关教程较少，因此我们决定写篇文章用于记录一下。

一、如何在Android Studio上部署OpenCv

关于OpenCV在Android Studio上部署，网上已经有许多教程了，我们采用直接接入OpenCV的java SDK的方式。（感谢这位大佬的细致介绍）

1.下载opencv

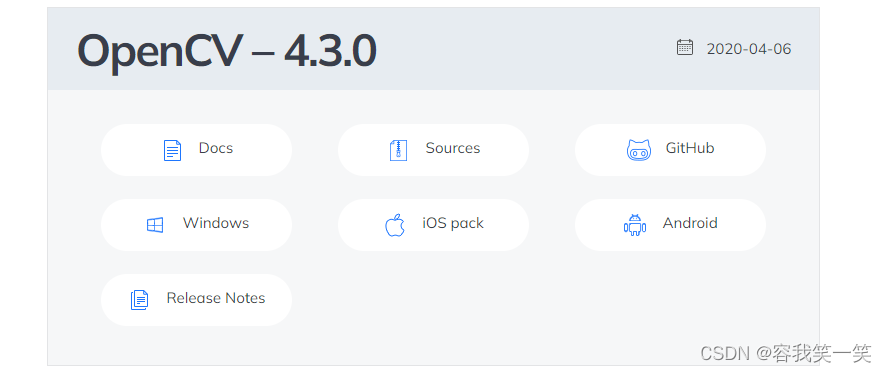

进入OpenCV的官网下载opencv,在界面中选择Android，我下载的是OpenCV4.2.0

2.Android Studio创建项目

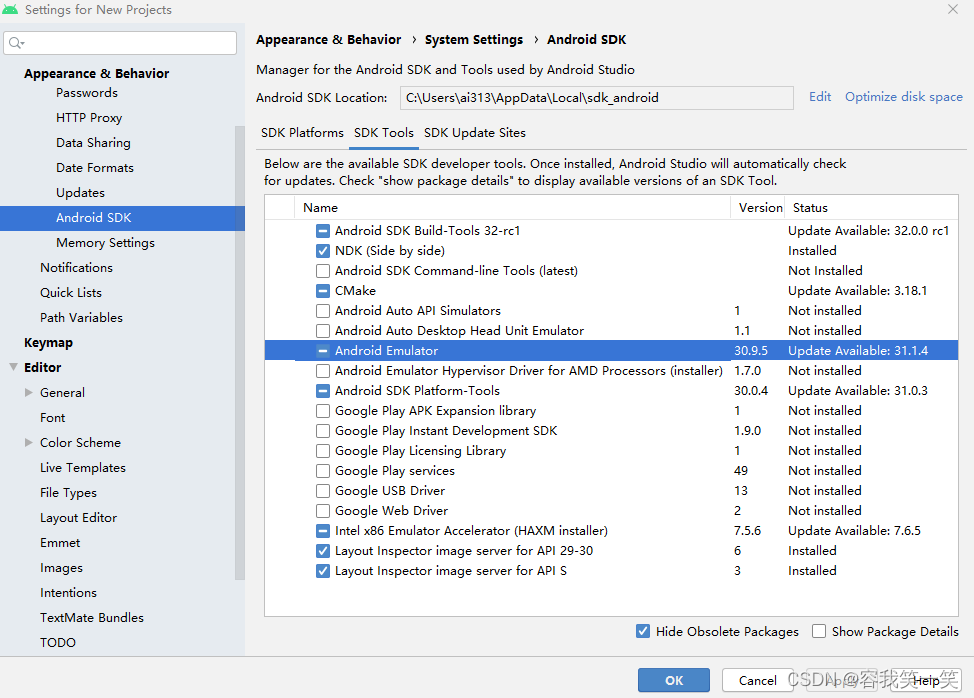

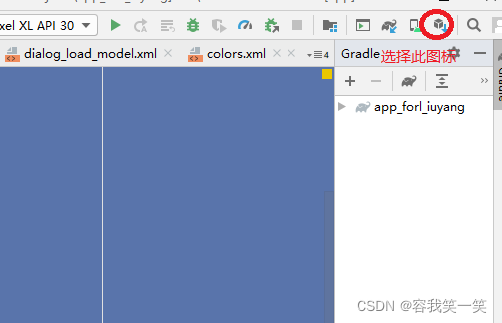

在Android 项目右上角选择SDK Manager - Android SDK - SDK Tools,确保下载了CMake, NDK。

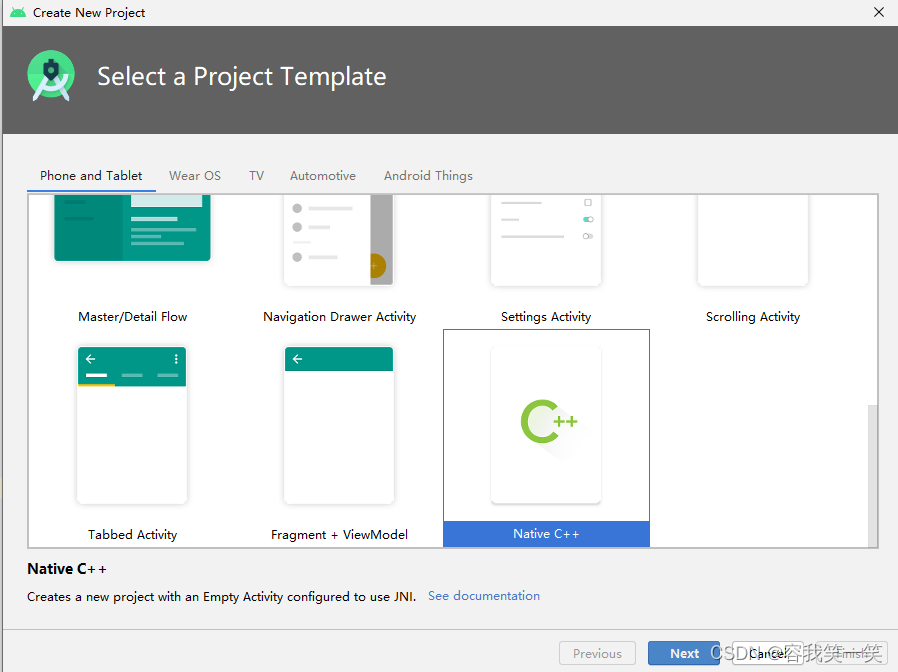

鉴于以后可能会使用ncnn的原因，我们采用native c++的方式创建了项目。

此后的选择与参考了大佬的步骤

3.配置OpenCV

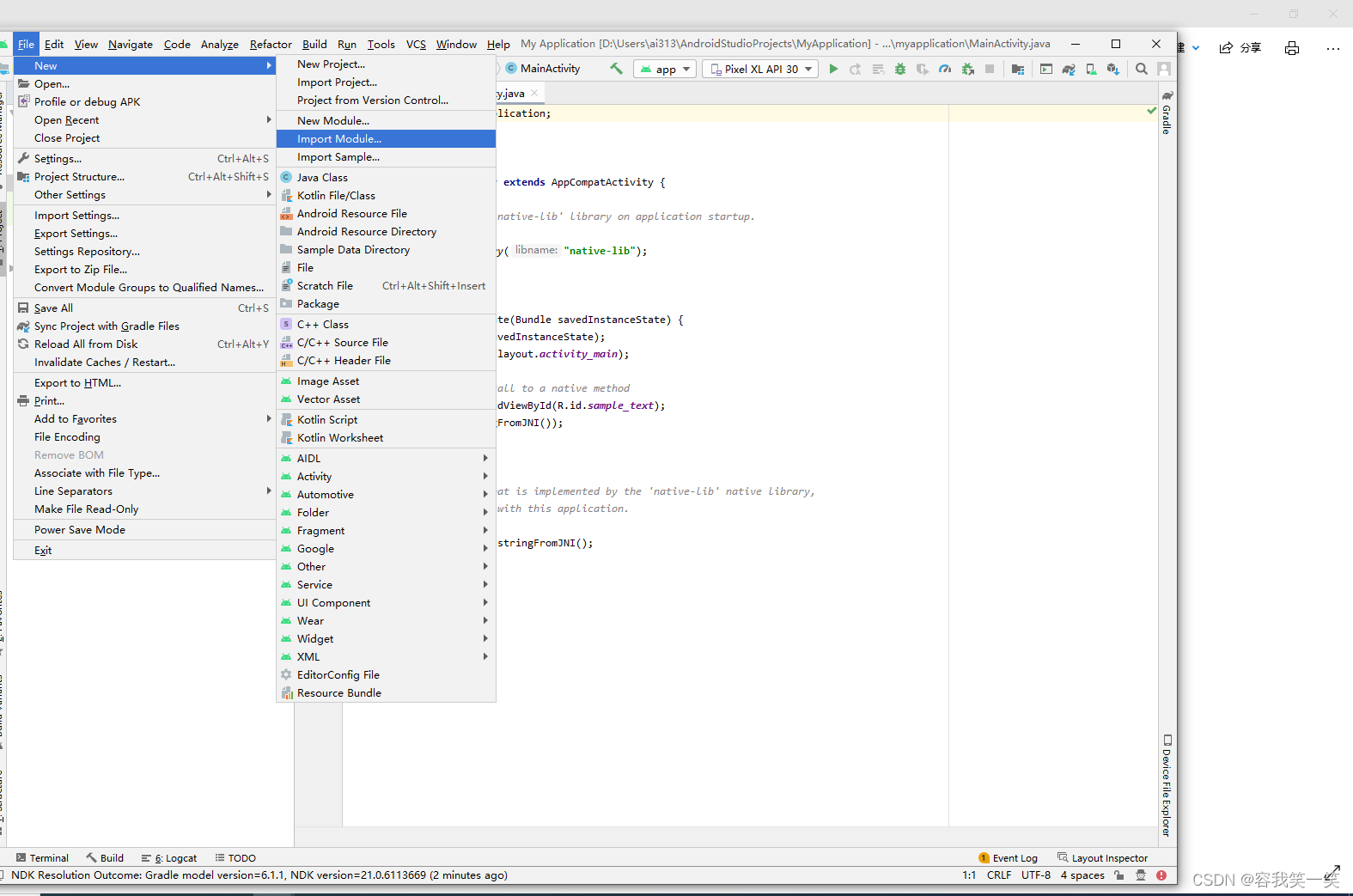

创建了项目后，点击File->New->Import Module，

引入Opencv - android中的java文件夹，我的路径如下

opencv-4.2.0-android-sdk\OpenCV-android-sdk\sdk

出现黄色警报后可以勾选import选项并更改名称为opencv:

选择Finish后导入了作为Module的OpenCV,此时选择build.gradle（注意，一定是OpenCV的build.gradle），接下来更改

apply plugin: 'com.android.application'

改为：

apply plugin: 'com.android.library'

并删除这一行

defaultConfig {
applicationId “org.opencv”
}

为了避免不必要的错误，尽可能调整app的build.gradle与opencv的build.gradle中

compileSdkVersion 29
buildToolsVersion “29.0.2”

此时，将app 的build.gradle中的

externalNativeBuild {
cmake {
cppFlags “-std=c++14”
}
}

更改为

 externalNativeBuild {
            cmake {
                arguments "-DANDROID_STL=c++_shared"
            }

用于连接opencv的共享库。
在最后

dependencies{}

之中加入

implementation project( ':opencv')

对应数值相同，如果仍可能出错，则应调整自己下载的OpenCV或SDK，点击Sync now，等待同步成功。
接下来应在AndroidMainifest.xml中申请摄像头与网络权限。

 <uses-sdk tools:overrideLibrary="android.support.compat, android.arch.lifecycle" />

    <uses-permission android:name="android.permission.CAMERA" />
    <uses-permission android:name="android.permission.WRITE_EXTERNAL_STORAGE" />
    <uses-permission android:name="android.permission.READ_EXTERNAL_STORAGE" />
    <uses-permission android:name="android.permission.INTERNET" />

    <uses-feature
        android:name="android.hardware.camera"
        android:required="false" />
    <uses-feature
        android:name="android.hardware.camera.autofocus"
        android:required="false" />
    <uses-feature
        android:name="android.hardware.camera.front"
        android:required="false" />
    <uses-feature
        android:name="android.hardware.camera.front.autofocus"
        android:required="false" />

在Andorid 项目目录

app\src\main

下创建文件夹，其名为(为与后续步骤一致，因此此处位置可以按我的方式放置)

jniLibs

并将下载的opencv-android中的libs文件复制到此文件夹下，其目录结构为

由于动态链接库*.so文件在cmke默认下是并不是按照以上的路径寻找的，因此需要在cpp文件夹下的CMakeLists.txt下加入

set_target_properties(libopencv_java4 PROPERTIES IMPORTED_LOCATION
        ${CMAKE_SOURCE_DIR}/../jniLibs/libs/${ANDROID_ABI}/libopencv_java4.so)

其中CMAKE_SOURCE_DIR表示了CMakeList.txt所在的文件夹，同时加入

add_library(libopencv_java4 SHARED IMPORTED)

target_link_libraries( # Specifies the target library.
 					   libopencv_java4 # 链接opencv的so
                       # Links the target library to the log library
                       # included in the NDK.
                       ${log-lib} )

此时opencv已经可以使用了，我们通过以上步骤可实现用JNI的方式引入了OpenCV。

二、用户端代码实现

1.利用Application实现多界面共享Socket

由于Socket在Activity中创建时，其生命周期与Activity生命周期一致，为实现Socket在不同界面的共享，我们采用了Application的方式。自定义一个Class,创建的java class名为MySocket

package com.example.myapplication;

import android.app.Application;

import java.net.Socket;

public class MySocket extends Application {
    Socket socket = null;

    public Socket getSocket() {
        System.out.println(socket);
        return socket;
    }

    public void setSocket(Socket socket) {
        this.socket = socket;
    }
}

并在AndroidManifest.xml文件中的application标签下添加:

 android:name= ".MySocket"

在后续调用中，Application可以将MySocket的生命周期调整与APP生命周期一致，因此可以实现APP与服务器的长连接。

2.更改MainActivity

在此我们并不打算将MainActivitzy作为主界面，而是用来初始化MySocekt,MainActivity的代码如下：

import androidx.appcompat.app.AppCompatActivity;

import android.app.Activity;
import android.content.Intent;
import android.os.Bundle;

import java.net.Socket;

public class MainActivity extends Activity {

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        Thread myThread=new Thread(){//创建子线程
            @Override
            public void run() {
                try{
                    Socket socket = new Socket("127.0.0.1",Integer.parseInt("5050")); //此处可更换自己的服务器IP与端口号
                    ((MySocket)getApplication()).setSocket(socket);//初始化MySocket
                    System.out.println("ok");
                }catch (Exception e){
                    e.printStackTrace();
                }
            }
        };
        myThread.start();//启动线程
        setContentView(R.layout.activity_main);
        MainActivity.this.startActivity(new Intent(MainActivity.this.getApplicationContext(), StartActivity.class));//此处用于打开主界面
        MainActivity.this.finish();
    }
}

主要注意Socket的初始化，并且Socket要放在子线程中。

2.创建StartActivity做主界面

本段并没有特别的注意事项，只需要设计一个打开摄像头的按钮即可，以下是activity_start.xml的代码

<?xml version="1.0" encoding="utf-8"?>
<androidx.constraintlayout.widget.ConstraintLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    tools:context=".StartActivity">
    <LinearLayout
        android:layout_height="match_parent"
        android:layout_width="match_parent"
        android:gravity="center"
        android:layout_weight="1">
        <Button
            android:layout_width="280dp"
            android:layout_height="32dp"
            android:text="测试按钮"
            android:id="@+id/camera"
            android:textColor="#000"
            tools:ignore="InvalidId" />
    </LinearLayout>
</androidx.constraintlayout.widget.ConstraintLayout>

其界面代码为

package com.example.myapplication;

import androidx.appcompat.app.AppCompatActivity;

import android.content.Intent;
import android.os.Bundle;
import android.view.View;
import android.widget.Button;

public class StartActivity extends AppCompatActivity {
    private Button button;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        button = findViewById(R.id.camera);
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_start);
        button.setOnClickListener(new View.OnClickListener(){
            @Override
            public void onClick(View v) {
                Intent intent = new Intent();
                intent.setClass(StartActivity.this, CameraGetActivity.class);
                StartActivity.this.startActivity(intent);//启动新的Intent

            }});
    }
}

3.创建OpenCV的展示界面

我们利用opencv可以获取手机摄像头，并将其显示到屏幕上。
以下为新建展示界面CameraGetActivity的源码

package com.example.myapplication;
import android.os.Bundle;
import android.util.Log;
import org.opencv.android.BaseLoaderCallback;
import org.opencv.android.CameraActivity;
import org.opencv.android.CameraBridgeViewBase;
import org.opencv.android.JavaCamera2View;
import org.opencv.android.LoaderCallbackInterface;
import org.opencv.android.OpenCVLoader;
import org.opencv.core.Mat;
import java.util.ArrayList;
import java.util.List;


public class CameraGetActivity extends CameraActivity {

    private static final String TAG = "OpencvCam";

    private JavaCamera2View javaCameraView;
    private int cameraId = JavaCamera2View.CAMERA_ID_ANY;

    private CameraBridgeViewBase.CvCameraViewListener2 cvCameraViewListener2 = new CameraBridgeViewBase.CvCameraViewListener2() {
        @Override
        public void onCameraViewStarted(int width, int height) {
            Log.i(TAG, "onCameraViewStarted width=" + width + ", height=" + height);
        }

        @Override
        public void onCameraViewStopped() {
            Log.i(TAG, "onCameraViewStopped");
        }

        @Override
        public Mat onCameraFrame(CameraBridgeViewBase.CvCameraViewFrame inputFrame) {
            return inputFrame.rgba();
        }
    };

    private BaseLoaderCallback baseLoaderCallback = new BaseLoaderCallback(this) {
        @Override
        public void onManagerConnected(int status) {
            Log.i(TAG, "onManagerConnected status=" + status + ", javaCameraView=" + javaCameraView);
            switch (status) {
                case LoaderCallbackInterface.SUCCESS: {
                    if (javaCameraView != null) {
                        javaCameraView.setCvCameraViewListener(cvCameraViewListener2);
                        // 禁用帧率显示
                        javaCameraView.disableFpsMeter();
                        javaCameraView.enableView();
                    }
                }
                break;
                default:
                    super.onManagerConnected(status);
                    break;
            }
        }
    };

    //复写父类的 getCameraViewList 方法，把 javaCameraView 送到父 Activity，一旦权限被授予之后，javaCameraView 的 setCameraPermissionGranted 就会自动被调用。
    @Override
    protected List<? extends CameraBridgeViewBase> getCameraViewList() {
        Log.i(TAG, "getCameraViewList");
        List<CameraBridgeViewBase> list = new ArrayList<>();
        list.add(javaCameraView);
        return list;
    }

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_cameraget);
        findView();
}

    private void findView() {
        javaCameraView = findViewById(R.id.javaCameraView);
    }


    @Override
    public void onPause() {
        Log.i(TAG, "onPause");
        super.onPause();
        if (javaCameraView != null) {
            javaCameraView.disableView();
        }
    }

    @Override
    public void onResume() {
        Log.i(TAG, "onResume");
        super.onResume();
        if (OpenCVLoader.initDebug()) {
            Log.i(TAG, "initDebug true");
            baseLoaderCallback.onManagerConnected(LoaderCallbackInterface.SUCCESS);
        } else {
            Log.i(TAG, "initDebug false");
            OpenCVLoader.initAsync(OpenCVLoader.OPENCV_VERSION, this, baseLoaderCallback);
        }
    }
}

注意上述代码中

public Mat onCameraFrame(CameraBridgeViewBase.CvCameraViewFrame inputFrame) {
return inputFrame.rgba();}

opencv处理图像就是在这里进行的，inputFrame.rgba()返回的是摄像头获取到的每一帧图片，我们实现Socket传输图片也是这样进行的。
以上界面对应的布局文件activity_cameraget.xml为

<?xml version="1.0" encoding="utf-8"?>
<androidx.constraintlayout.widget.ConstraintLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    android:layout_width="match_parent"
    android:layout_height="match_parent">

    <org.opencv.android.JavaCamera2View
        android:id="@+id/javaCameraView"
        android:layout_width="match_parent"
        android:layout_height="match_parent"
        app:show_fps="true"
        app:camera_id="any" />
</androidx.constraintlayout.widget.ConstraintLayout>

此时，展示的图像无法全屏显示,我们需要修改 OpenCV 的源码里 CameraBridgeViewBase.java 中的 deliverAndDrawFrame 方法，搜索到该方法后用以下代码替换：

/**
 * 获取屏幕旋转角度
 */
private int rotationToDegree() {
    WindowManager windowManager = (WindowManager) getContext().getSystemService(Context.WINDOW_SERVICE);
    int rotation = windowManager.getDefaultDisplay().getRotation();
    int degrees = 0;
    switch(rotation) {
        case Surface.ROTATION_0:
            if(mCameraIndex == CAMERA_ID_FRONT) {
                degrees = -90;
            } else {
                degrees = 90;
            }
            break;
        case Surface.ROTATION_90:
            break;
        case Surface.ROTATION_180:
            break;
        case Surface.ROTATION_270:
            if(mCameraIndex == CAMERA_ID_ANY || mCameraIndex == CAMERA_ID_BACK) {
                degrees = 180;
            }
            break;
    }
    return degrees;
}
/**
 * 计算得到屏幕宽高比
 */
private float calcScale(int widthSource, int heightSource, int widthTarget, int heightTarget) {
    if(widthTarget <= heightTarget) {
        return (float) heightTarget / (float) heightSource;
    } else {
        return (float) widthTarget / (float) widthSource;
    }
}
/**
  * This method shall be called by the subclasses when they have valid
  * object and want it to be delivered to external client (via callback) and
  * then displayed on the screen.
  * @param frame - the current frame to be delivered
  */
 protected void deliverAndDrawFrame(CvCameraViewFrame frame) {
     Mat modified;

     if (mListener != null) {
         modified = mListener.onCameraFrame(frame);
     } else {
         modified = frame.rgba();
     }

     boolean bmpValid = true;
     if (modified != null) {
         try {
             Utils.matToBitmap(modified, mCacheBitmap);
         } catch(Exception e) {
             Log.e(TAG, "Mat type: " + modified);
             Log.e(TAG, "Bitmap type: " + mCacheBitmap.getWidth() + "*" + mCacheBitmap.getHeight());
             Log.e(TAG, "Utils.matToBitmap() throws an exception: " + e.getMessage());
             bmpValid = false;
         }
     }

     if (bmpValid && mCacheBitmap != null) {
         Canvas canvas = getHolder().lockCanvas();
         if (canvas != null) {
             canvas.drawColor(0, android.graphics.PorterDuff.Mode.CLEAR);
             if (BuildConfig.DEBUG) Log.d(TAG, "mStretch value: " + mScale);

             //TODO 额外添加，让预览框达到全屏效果
             int degrees = rotationToDegree();
             Matrix matrix = new Matrix();
             matrix.postRotate(degrees);
             Bitmap outputBitmap = Bitmap.createBitmap(mCacheBitmap, 0, 0, mCacheBitmap.getWidth(), mCacheBitmap.getHeight(), matrix, true);

             if (outputBitmap.getWidth() <= canvas.getWidth()) {
                 mScale = calcScale(outputBitmap.getWidth(), outputBitmap.getHeight(), canvas.getWidth(), canvas.getHeight());
             } else {
                 mScale = calcScale(canvas.getWidth(), canvas.getHeight(), outputBitmap.getWidth(), outputBitmap.getHeight());
             }

             if (mScale != 0) {
                 canvas.scale(mScale, mScale, 0, 0);
             }
             Log.d(TAG, "mStretch value: " + mScale);

             canvas.drawBitmap(outputBitmap, 0, 0, null);

             /*
             if (mScale != 0) {
                 canvas.drawBitmap(mCacheBitmap, new Rect(0,0,mCacheBitmap.getWidth(), mCacheBitmap.getHeight()),
                      new Rect((int)((canvas.getWidth() - mScale*mCacheBitmap.getWidth()) / 2),
                      (int)((canvas.getHeight() - mScale*mCacheBitmap.getHeight()) / 2),
                      (int)((canvas.getWidth() - mScale*mCacheBitmap.getWidth()) / 2 + mScale*mCacheBitmap.getWidth()),
                      (int)((canvas.getHeight() - mScale*mCacheBitmap.getHeight()) / 2 + mScale*mCacheBitmap.getHeight())), null);
             } else {
                  canvas.drawBitmap(mCacheBitmap, new Rect(0,0,mCacheBitmap.getWidth(), mCacheBitmap.getHeight()),
                      new Rect((canvas.getWidth() - mCacheBitmap.getWidth()) / 2,
                      (canvas.getHeight() - mCacheBitmap.getHeight()) / 2,
                      (canvas.getWidth() - mCacheBitmap.getWidth()) / 2 + mCacheBitmap.getWidth(),
                      (canvas.getHeight() - mCacheBitmap.getHeight()) / 2 + mCacheBitmap.getHeight()), null);
             }
             */

             if (mFpsMeter != null) {
                 mFpsMeter.measure();
                 mFpsMeter.draw(canvas, 20, 30);
             }
             getHolder().unlockCanvasAndPost(canvas);
         }
     }
 }

出现的没有导入包的错误可以用Alt+Enter键修复。 如果BuildConfig显示红色，不用管，运行后会在opencv下建立相应的.class文件。
我们在大佬的帮助下实现了利用opencv获取摄像头并显示，接下来我们将实现网络传输视频的每一帧。

4.Socket实现图像传输

我们在初始化时，可以通过Socket链接上服务器，现在我们调用初始化时的Socket实例。在void onCreate方法中接收，并建立对应的IO流：

protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_cameraget);
        findView();
        socket = ((MySocket)getApplication()).getSocket();
        try {
            os = socket.getOutputStream();//注意，此处的os,pw,socket,pw,is都需要在外部定义一下类型
            pw = new PrintWriter(os);
            ps = new PrintWriter(os);
            is = socket.getInputStream();
        }catch (IOException e) {
            e.printStackTrace();}
    }

在Mat onCameraFrame中实现数据的接收与发送，图像类型从Mat 转为Bitmap，图像编码采用Base64编码， 第一次利用pw发送编码后图像的长度信息，用flush（）刷新后再发送图像信息，由于onCameraFrame方法本身就在一子线程中，故不需要再新建线程实现Socket的传输。

 public Mat onCameraFrame(CameraBridgeViewBase.CvCameraViewFrame inputFrame) {
            img = inputFrame.rgba();
            Mat img0 =  img.clone();//复制图像矩阵用于处理
            Mat dst = new  Mat();
            br=new BufferedReader(new InputStreamReader(is));
            Imgproc.resize(img0,dst, new Size(256, 256));//放缩图像降低传输的延时
            Bitmap bitmap = Bitmap.createBitmap(dst.width(), dst.height(), Bitmap.Config.ARGB_8888);
            Utils.matToBitmap(dst, bitmap,true);//添加透明度，转变Mat为Bitmap
            ByteArrayOutputStream bout = new ByteArrayOutputStream();
            bitmap.compress(Bitmap.CompressFormat.JPEG, 100, bout);
            byte[] imgBytes = bout.toByteArray();
            String sender = Base64.encodeToString(imgBytes,Base64.DEFAULT);//Base64编码
            String len_str = new String(String.format("%-16d", sender.length()).getBytes());
            pw.write(len_str);//第一次发送编码的长度
            pw.flush();
            try {
                recevied = br.readLine();//由于读取每一行信息，故服务器发送的数据也应做处理
                System.out.println(recevied);
            } catch (IOException e) {
                System.out.println(e);
            }
            ps.write(sender);//第二次发送编码信息
            ps.flush();
            return img;
    	}
	};

同时，我们希望退出摄像头后可以清除此界面的数据，而不是保存在堆栈中，因此我们应重写返回键监听函数

  public boolean onKeyDown(int keyCode, KeyEvent event) {
        if (keyCode == KeyEvent.KEYCODE_BACK && event.getRepeatCount() == 0) {

            Intent resuleIntent=new Intent(CameraGetActivity.this, StartActivity.class);


            CameraGetActivity.this.finish();
            startActivity(resuleIntent);
        }
        return false;
    }

同时，在AndroidMainfest.xml文件中为StartActivity添加` android:launchMode=“singleTask”

`这表示如果返回主界面，则清除堆栈中的其他界面。

CameraGetActivity最终代码如下：

```c
package com.example.myapplication;
import android.content.Intent;
import android.graphics.Bitmap;
import android.os.Bundle;
import android.util.Base64;
import android.util.Log;
import android.view.KeyEvent;

import org.opencv.android.BaseLoaderCallback;
import org.opencv.android.CameraActivity;
import org.opencv.android.CameraBridgeViewBase;
import org.opencv.android.JavaCamera2View;
import org.opencv.android.LoaderCallbackInterface;
import org.opencv.android.OpenCVLoader;
import org.opencv.android.Utils;
import org.opencv.core.Mat;
import org.opencv.core.Size;
import org.opencv.imgproc.Imgproc;

import java.io.BufferedReader;
import java.io.ByteArrayOutputStream;
import java.io.IOException;
import java.io.InputStream;
import java.io.InputStreamReader;
import java.io.OutputStream;
import java.io.PrintWriter;
import java.net.Socket;
import java.util.ArrayList;
import java.util.List;


public class CameraGetActivity extends CameraActivity {

    private static final String TAG = "OpencvCam";
    private Socket socket = null;
    private PrintWriter pw,ps;
    private JavaCamera2View javaCameraView;
    private OutputStream os;
    private Mat img;
    private InputStream is;
    private BufferedReader br;
    private String recevied;
    private int cameraId = JavaCamera2View.CAMERA_ID_ANY;

    private CameraBridgeViewBase.CvCameraViewListener2 cvCameraViewListener2 = new CameraBridgeViewBase.CvCameraViewListener2() {
        @Override
        public void onCameraViewStarted(int width, int height) {
            Log.i(TAG, "onCameraViewStarted width=" + width + ", height=" + height);
        }

        @Override
        public void onCameraViewStopped() {
            Log.i(TAG, "onCameraViewStopped");
        }

        @Override
        public Mat onCameraFrame(CameraBridgeViewBase.CvCameraViewFrame inputFrame) {
            img = inputFrame.rgba();
            Mat img0 =  img.clone();//复制图像矩阵用于处理
            Mat dst = new  Mat();
            br=new BufferedReader(new InputStreamReader(is));
            Imgproc.resize(img0,dst, new Size(256, 256));//放缩图像降低传输的延时
            Bitmap bitmap = Bitmap.createBitmap(dst.width(), dst.height(), Bitmap.Config.ARGB_8888);
            Utils.matToBitmap(dst, bitmap,true);//添加透明度，转变Mat为Bitmap
            ByteArrayOutputStream bout = new ByteArrayOutputStream();
            bitmap.compress(Bitmap.CompressFormat.JPEG, 100, bout);
            byte[] imgBytes = bout.toByteArray();
            String sender = Base64.encodeToString(imgBytes,Base64.DEFAULT);//Base64编码
            String len_str = new String(String.format("%-16d", sender.length()).getBytes());
            pw.write(len_str);//第一次发送编码的长度
            pw.flush();
            try {
                recevied = br.readLine();//由于读取每一行信息，故服务器发送的数据也应做处理
                System.out.println(recevied);
            } catch (IOException e) {
                System.out.println(e);
            }
            ps.write(sender);//第二次发送编码信息
            ps.flush();
            return img;
        }
    };


    private BaseLoaderCallback baseLoaderCallback = new BaseLoaderCallback(this) {
        @Override
        public void onManagerConnected(int status) {
            Log.i(TAG, "onManagerConnected status=" + status + ", javaCameraView=" + javaCameraView);
            switch (status) {
                case LoaderCallbackInterface.SUCCESS: {
                    if (javaCameraView != null) {
                        javaCameraView.setCvCameraViewListener(cvCameraViewListener2);
                        // 禁用帧率显示
                        javaCameraView.disableFpsMeter();
                        javaCameraView.enableView();
                    }
                }
                break;
                default:
                    super.onManagerConnected(status);
                    break;
            }
        }
    };

    //复写父类的 getCameraViewList 方法，把 javaCameraView 送到父 Activity，一旦权限被授予之后，javaCameraView 的 setCameraPermissionGranted 就会自动被调用。
    @Override
    protected List<? extends CameraBridgeViewBase> getCameraViewList() {
        Log.i(TAG, "getCameraViewList");
        List<CameraBridgeViewBase> list = new ArrayList<>();
        list.add(javaCameraView);
        return list;
    }

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_cameraget);
        findView();
        socket = ((MySocket)getApplication()).getSocket();
        try {


            os = socket.getOutputStream();
            pw = new PrintWriter(os);

            ps = new PrintWriter(os);

            is = socket.getInputStream();





        }catch (IOException e) {
            e.printStackTrace();}


    }

    private void findView() {
        javaCameraView = findViewById(R.id.javaCameraView);
    }


    @Override
    public void onPause() {
        Log.i(TAG, "onPause");
        super.onPause();
        if (javaCameraView != null) {
            javaCameraView.disableView();
        }
    }

    @Override
    public void onResume() {
        Log.i(TAG, "onResume");
        super.onResume();
        if (OpenCVLoader.initDebug()) {
            Log.i(TAG, "initDebug true");
            baseLoaderCallback.onManagerConnected(LoaderCallbackInterface.SUCCESS);
        } else {
            Log.i(TAG, "initDebug false");
            OpenCVLoader.initAsync(OpenCVLoader.OPENCV_VERSION, this, baseLoaderCallback);
        }
    }
    public boolean onKeyDown(int keyCode, KeyEvent event) {
        if (keyCode == KeyEvent.KEYCODE_BACK && event.getRepeatCount() == 0) {

            Intent resuleIntent=new Intent(CameraGetActivity.this, StartActivity.class);


            CameraGetActivity.this.finish();
            startActivity(resuleIntent);
        }
        return false;
    }
}

以上为用户端代码,为实现视频流的传输，我们还需实现服务端的代码。

三、服务端

服务端我们采用opencv实现，以下是服务端代码

import numpy as np
import base64
from socket import *
import time
import msvcrt
import cv2
import numpy as np
import threading
import time


def recv_img(tcpCliSock):
    while True:
        start = time.time()#用于计算帧率信息

        length = recvall(tcpCliSock,16)#获得图片文件的长度,16代表获取长度

        try:
            length = int(length)
            # print(length)

        except:
            break
            #continue
        stringData = recvall(tcpCliSock, int(length))#根据获得的文件长度，获取图片文件
        data = base64.b64decode(stringData)#将获取到的字符流数据转换成1维数组
        np_arr = np.fromstring(data, np.uint8)
        img=cv2.imdecode(np_arr,1)#将数组解码成图像
        img_90 = cv2.flip(cv2.transpose(img), 1)#由于接收到的图片方向不对，故在此旋转
        decimgs[0] = img_90
        end = time.time()
        seconds = end - start
        try:
            fps  = 'FPS:'+str(int(1/seconds))
        except:
            pass
        time.sleep(0.01)

def recvall(sock, count):
        buf = b''#buf是一个byte类型
        while count:
            #接受TCP套接字的数据。数据以字符串形式返回，count指定要接收的最大数据量.
            newbuf = sock.recv(count)
            if not newbuf:
                return None
            buf += newbuf
            count -= len(newbuf)
        return buf
HOST = '127.0.0.1'
PORT = 5050
BUFSIZ = 1024
ADDR = (HOST,PORT)
tcpSerSock = socket(AF_INET,SOCK_STREAM)
tcpSerSock.bind(ADDR)
tcpSerSock.listen(2)
decimgs = [0]
threads = []
class N():
    def __init__(self) -> None:
        self.n = -3
n = N()

for i in threads:
    i.start()

while True:
    print('waiting for connection...')
    tcpCliSock, addr = tcpSerSock.accept()
    print('...connnecting from:', addr)
    t2 = threading.Thread(target=recv_img,args=(tcpCliSock,))
    t2.setDaemon(True)
    t2.start()
    while True:
        img1=decimgs[0]
        try：
            cv2.imshow("recv1",img1)
        except Exception as e:

            print(e)

        try:
            tcpCliSock.send("收到".encode())
        except:
            tcpCliSock.send("-2\n".encode()) #为了保证用户端可以正确接收信息，而不阻塞，故添加无法识别图像时也返回信息
        cv2.waitKey(1)
    tcpCliSock.close()
tcpSerSock.close()

四、总结

以上便是通过socket与opencv实现网络传输图像的具体实现，完整的项目也可以去查看我的GitHub。希望可以帮助到你。
