构建模型

mmdection通过读取configs配置文件，创建各个模块。

def parse_args():
	'''
	not show here
	'''
def main():
    args = parse_args()
    #1、各种配置参数读取，详细参数见下图所示，列出来都包含哪些参数，想要修改哪些参数就从这里面找到对应的配置文件修改一下
    cfg = Config.fromfile(args.config)
    if args.cfg_options is not None:
        cfg.merge_from_dict(args.cfg_options)
    # set cudnn_benchmark
    if cfg.get('cudnn_benchmark', False):
        torch.backends.cudnn.benchmark = True

    # work_dir is determined in this priority: CLI > segment in file > filename
    if args.work_dir is not None:
        # update configs according to CLI args if args.work_dir is not None
        cfg.work_dir = args.work_dir
    elif cfg.get('work_dir', None) is None:
        # use config filename as default work_dir if cfg.work_dir is None
        cfg.work_dir = osp.join('./work_dirs',
                                osp.splitext(osp.basename(args.config))[0])
    if args.resume_from is not None:
        cfg.resume_from = args.resume_from
    if args.gpu_ids is not None:
        cfg.gpu_ids = args.gpu_ids
    else:
        cfg.gpu_ids = range(1) if args.gpus is None else range(args.gpus)

    # init distributed env first, since logger depends on the dist info.
    if args.launcher == 'none':
        distributed = False
    else:
        distributed = True
        init_dist(args.launcher, **cfg.dist_params)
        # re-set gpu_ids with distributed training mode
        _, world_size = get_dist_info()
        cfg.gpu_ids = range(world_size)

    # create work_dir
    mmcv.mkdir_or_exist(osp.abspath(cfg.work_dir))
    # dump config
    cfg.dump(osp.join(cfg.work_dir, osp.basename(args.config)))
    # init the logger before other steps
    timestamp = time.strftime('%Y%m%d_%H%M%S', time.localtime())
    log_file = osp.join(cfg.work_dir, f'{timestamp}.log')
    logger = get_root_logger(log_file=log_file, log_level=cfg.log_level)

    # init the meta dict to record some important information such as
    # environment info and seed, which will be logged
    meta = dict()
    # log env info
    env_info_dict = collect_env()
    env_info = '\n'.join([(f'{k}: {v}') for k, v in env_info_dict.items()])
    dash_line = '-' * 60 + '\n'
    logger.info('Environment info:\n' + dash_line + env_info + '\n' +
                dash_line)
    meta['env_info'] = env_info
    meta['config'] = cfg.pretty_text
    # log some basic info
    logger.info(f'Distributed training: {distributed}')
    logger.info(f'Config:\n{cfg.pretty_text}')

    # set random seeds
    seed = init_random_seed(args.seed)
    logger.info(f'Set random seed to {seed}, '
                f'deterministic: {args.deterministic}')
    set_random_seed(seed, deterministic=args.deterministic)
    cfg.seed = seed
    meta['seed'] = seed
    meta['exp_name'] = osp.basename(args.config)

    #2、构建模型，调用build_detector接口(在mmdect/models/builder.py里面)
    #调用了
    model = build_detector(
        cfg.model,
        train_cfg=cfg.get('train_cfg'),
        test_cfg=cfg.get('test_cfg'))
    model.init_weights()
	#3、数据构建模块
    datasets = [build_dataset(cfg.data.train)]
    if len(cfg.workflow) == 2:
        val_dataset = copy.deepcopy(cfg.data.val)
        val_dataset.pipeline = cfg.data.train.pipeline
        datasets.append(build_dataset(val_dataset))
    if cfg.checkpoint_config is not None:
        # save mmdet version, config file content and class names in
        # checkpoints as meta data
        cfg.checkpoint_config.meta = dict(
            mmdet_version=__version__ + get_git_hash()[:7],
            CLASSES=datasets[0].CLASSES)
    # add an attribute for visualization convenience
    model.CLASSES = datasets[0].CLASSES
	#训练阶段
    train_detector(
        model,
        datasets,
        cfg,
        distributed=distributed,
        validate=(not args.no_validate),
        timestamp=timestamp,
        meta=meta)

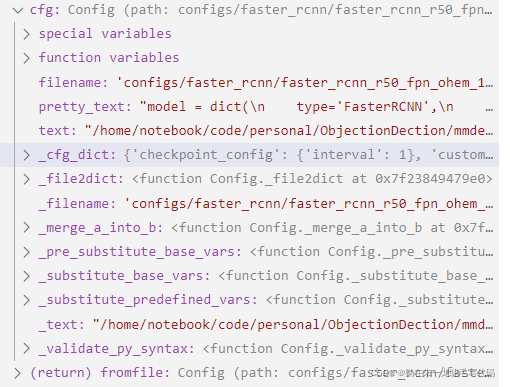

cfg字典参数：从config 下的某个 .py 文件中读取的，该py文件也会继承其他文件，包括模型和数据以及lr训练策略，均可以从这里面修改
可以参见这个博客：（详细讲解了配置文件）
在这里插入图片描述

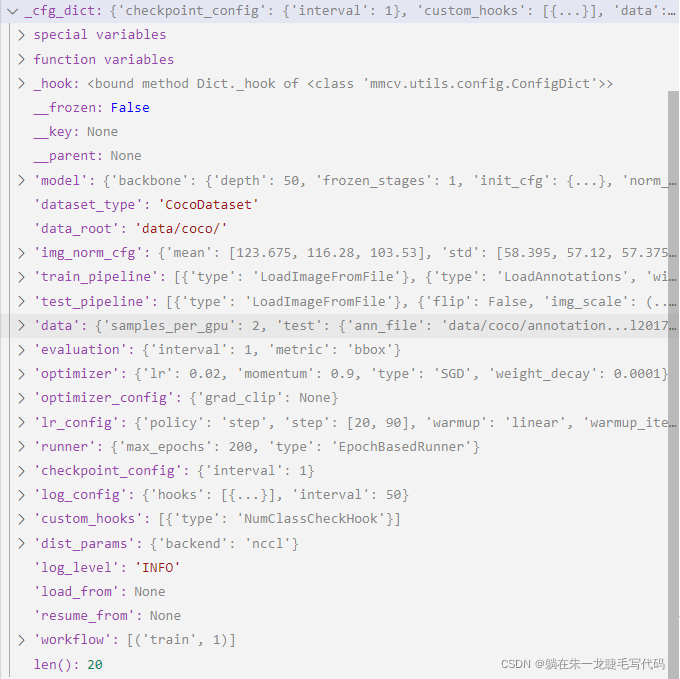

cfg字典包括这些：可以看到包括 model , train_pipelie, test_pipeline , data ,optimizer ,lr_config, checkpoint_config,等等，所以修改参数就从配置文件里面追溯进去；目前model还是dict的形式；还没有形成连起来模型的形式；
读取到的config文件
创建模型：
调用了build_from_cfg （/opt/conda/envs/open-mmlab2/lib/python3.7/site-packages/mmcv/utils/registry.py）

def build_model_from_cfg(cfg, registry, default_args=None):
    """Build a PyTorch model from config dict(s). Different from
    ``build_from_cfg``, if cfg is a list, a ``nn.Sequential`` will be built.
	这里cfg传进来的是 原_cfg.model，即 {backbone,neck,head,train_config,test_config等} ，如果是字典的形式，就Build a PyTorch model
	如果是列表形式，就创建 个nn.Sequential； （ 为什么要这么区分呢？ 如果有人知道可以告诉我）
    Args:
        cfg (dict, list[dict]): The config of modules, is is either a config
            dict or a list of config dicts. If cfg is a list, a
            the built modules will be wrapped with ``nn.Sequential``.
        registry (:obj:`Registry`): A registry the module belongs to.
        default_args (dict, optional): Default arguments to build the module.
            Defaults to None.

    Returns:
        nn.Module: A built nn module.
    """
    if isinstance(cfg, list): #如果是列表，走这个函数，可以看到返回的是Sequential
        modules = [
            build_from_cfg(cfg_, registry, default_args) for cfg_ in cfg
        ]
        return Sequential(*modules)
    else:
        return build_from_cfg(cfg, registry, default_args)  #如果是字典，走这个函数, 进入这个函数可以看到返回的是个object类型的，即对象

追溯进去 build_from_cfg函数：

def build_from_cfg(cfg, registry, default_args=None):
    """Build a module from config dict.
    通过registry类得到注册器，然后从注册器中根据key取出相应的类，得到该类后可以正常创建创建实例；
    Args:
        cfg (dict): Config dict. It should at least contain the key "type".  #如果是构建模型，type就是FasterRCNN ；如果是构建数据，就是COCOdataset
        registry (:obj:`Registry`): The registry to search the type from.    #
        default_args (dict, optional): Default initialization arguments.

    Returns:
        object: The constructed object.
    """
    if not isinstance(cfg, dict): # cfg是否是个字典
        raise TypeError(f'cfg must be a dict, but got {type(cfg)}')
    if 'type' not in cfg: # cfg中必须有type字段
        if default_args is None or 'type' not in default_args:
            raise KeyError(
                '`cfg` or `default_args` must contain the key "type", '
                f'but got {cfg}\n{default_args}')
    if not isinstance(registry, Registry):  #传进来的register必须是个Register类型的注册器实例
        raise TypeError('registry must be an mmcv.Registry object, '
                        f'but got {type(registry)}')
    if not (isinstance(default_args, dict) or default_args is None):
        raise TypeError('default_args must be a dict or None, '
                        f'but got {type(default_args)}')

    args = cfg.copy()

    if default_args is not None:  #{'test_cfg': None, 'train_cfg': None}
        for name, value in default_args.items():
            args.setdefault(name, value)

    obj_type = args.pop('type')  # 得到type的类型，这里为CocoDataset 或者 FasterRNN。
    if isinstance(obj_type, str):
        obj_cls = registry.get(obj_type) #通过register的get方法得到类
        if obj_cls is None:
            raise KeyError(
                f'{obj_type} is not in the {registry.name} registry')
    elif inspect.isclass(obj_type):
        obj_cls = obj_type
    else:
        raise TypeError(
            f'type must be a str or valid type, but got {type(obj_type)}')
    try:
        return obj_cls(**args)  #返回的是这个类
    except Exception as e:
        # Normal TypeError does not print class name.
        raise type(e)(f'{obj_cls.__name__}: {e}')

obj_cls 是个类，具体的类的实现在这里可以看到： ’ mmdet.models.detectors.faster_rcnn.FasterRCNN '；进入到这个函数看怎么构建的模型，在这个博客里写不完了。（参见这个链接）
在这里插入图片描述

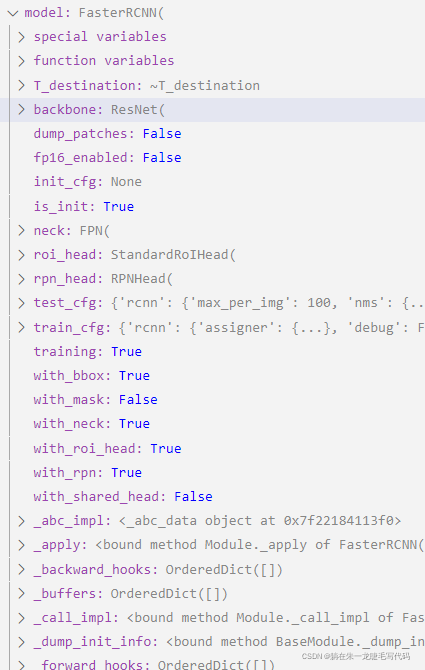

构建完model，就得到了这样的模型；用的是pytorch里的形式；
