一、前言

之前使用shufflenet-nanodet时，思考过它里面的shuffle op的部署，因为很多开发板不支持5 维 tensor，所以python中的shuffle方式，是没法继续使用的，所以就要用其他的思路来做。去年事情多，一直没有空把这个心得记录下来，现在有空了，特此记录，方便自己并抛砖引玉，如有错误，还请指出，谢谢！

二、试验

（一）思路

shufflenet的代码来自nanodet，至于它是否与原版一致，我没去比较。

上文说过的，python的shuffle方式没法用，乍一看可能觉得没法继续。但是仔细想想，shuffle操作只是对通道这一维度做了shuffle，其他维度是没有动的。

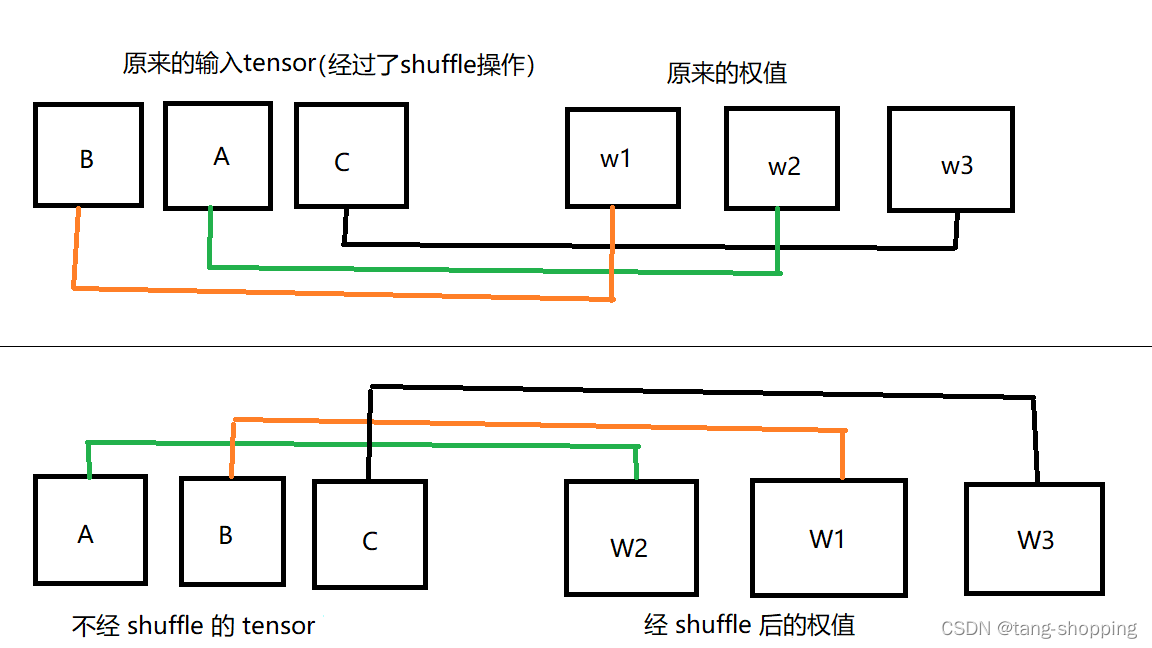

在这里插入图片描述

上图是一个shuffle + 卷积的粗略展示，很直白了。python里我们是对tensor进行shuffle操作。部署到板端时，由于硬件的限制，所以我们对权值进行shuffle操作，最后的结果是一致的，而且还省略了一个op。

（二）试验

shuffle op代码如下：

def channel_shuffle(x, groups):
    # type: (torch.Tensor, int) -> torch.Tensor
    batchsize, num_channels, height, width = x.data.size()
    channels_per_group = num_channels // groups

    # reshape
    x = x.view(batchsize, groups, channels_per_group, height, width)
    x = torch.transpose(x, 1, 2).contiguous()
    # flatten
    x = x.view(batchsize, -1, height, width)

    return x

本试验的核心代码，weight shuffle代码：

def weight_shuffle(weights, groups):
    # type: (torch.Tensor, int) -> torch.Tensor
    out_channels, in_channels, kernel_h, kernel_w = weights.data.size()
    channels_per_group = in_channels // groups

    # reshape
    # 注意此处，一开始用的是下面这行做 reshape，后来发现结果不对
    #weights = weights.view(out_channels, groups, channels_per_group, kernel_h, kernel_w)
    # 下面这行代码运行结果无误，可仔细看与上面的区别。可根据log仔细思考下
    weights = weights.view(out_channels, channels_per_group, groups, kernel_h, kernel_w)
    weights = torch.transpose(weights, 1, 2).contiguous()
    # flatten
    weights = weights.view(out_channels, -1, kernel_h, kernel_w)

    return weights

试验代码如下：

import torch
import torch.nn as nn
import numpy as np

def test():
    in_channels = 8
    out_channels = 2
    inputs = torch.rand(1, in_channels, 4, 4)
    weights = torch.rand(out_channels, in_channels, 3, 3)
    inputs_shuffle = channel_shuffle(inputs, groups=2)

    groups = 1
    conv_inputs_shuffle = nn.Conv2d(in_channels, out_channels, kernel_size=3, stride=1, padding=0, groups=groups, bias=False)
    conv_inputs_shuffle.weight.data = weights

    conv_weight_shuffle = nn.Conv2d(in_channels, out_channels, kernel_size=3, stride=1, padding=0, groups=groups, bias=False)
    conv_weight_shuffle.weight.data = weight_shuffle(weights.clone(), 2)

    with torch.no_grad():
        b = conv_inputs_shuffle(inputs_shuffle)
        print("inputs_shuffle output = \n", b)
        print("====================")
        c = conv_weight_shuffle(inputs)
        print("weight_shuffle output = \n", c)
