原图：

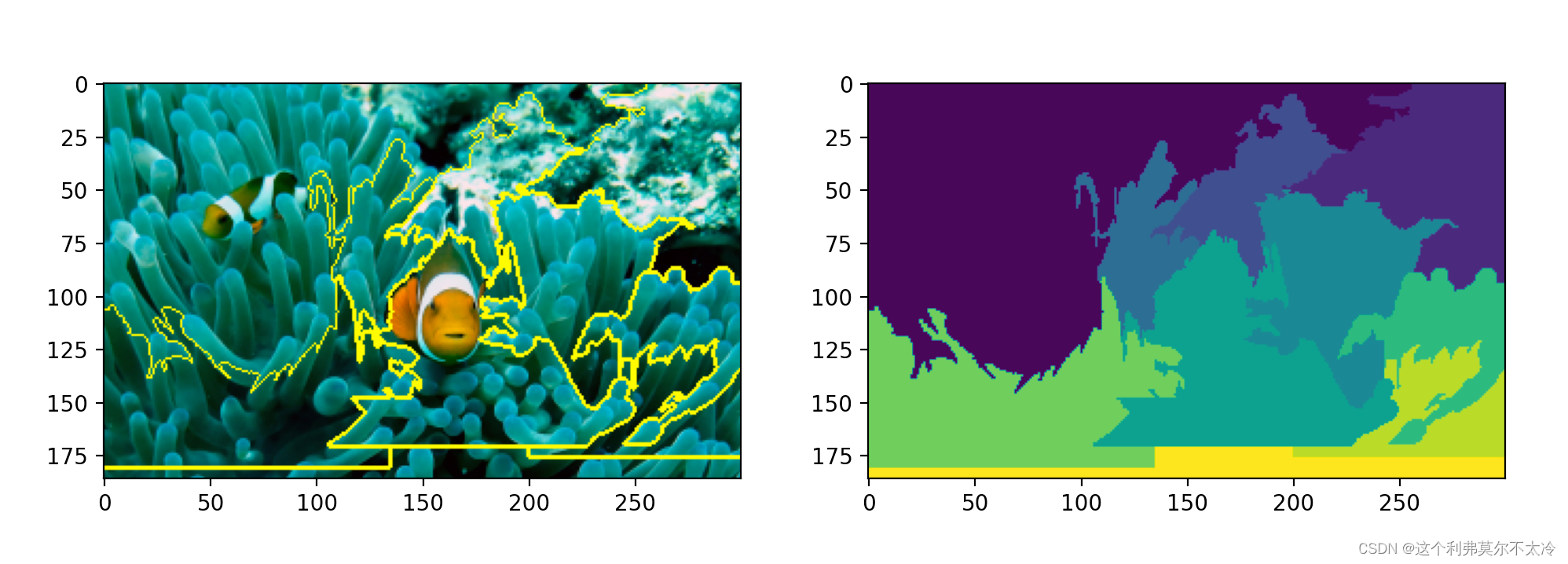

效果图：
from fast_slic import Slic
from fast_slic.avx2 import SlicAvx2
from skimage import segmentation, color
import matplotlib.pyplot as plt
import imutils
import cv2
image = cv2.imread("fish.jpg")
image = imutils.resize(image, width=300)
image = cv2.cvtColor(image, cv2.COLOR_BGR2RGB)
slic = SlicAvx2(num_components=12, compactness=10, subsample_stride=1)
n_clusters = len(slic.slic_model.clusters) # The cluster information of superpixels.
# use pre-defined centroids
centers_w = [20, 70, 120, 170, 220, 270] * 2
centers_h = [40] * 6 + [80] * 6
new_clusters = slic.slic_model.clusters.copy()
print(len(new_clusters))
for k in range(0, len(new_clusters)):
cluster = new_clusters[k]
cluster['yx'] = (centers_h[k], centers_w[k])
cluster['number'] = k
slic.slic_model.clusters = new_clusters # The cluster information of superpixels.
# print('after center assignment', slic.slic_model.clusters)
# iterate only once
slic_result = slic.iterate(image, 1) # Cluster Map
# plot results
fig, ax_arr = plt.subplots(1, 2)
ax1, ax2 = ax_arr.ravel()
# show centers in image
for cluster in new_clusters:
label = cluster['number']
center = cluster['yx']
#cv2.circle(image, (int(center[1]), int(center[0])), 3, [255, 0, 255], -1)
#cv2.putText(image, str(label), (int(center[1]), int(center[0])), cv2.FONT_HERSHEY_PLAIN, 2, [255, 0, 255], 2)
ax1.imshow(segmentation.mark_boundaries(image, slic_result))
ax2.imshow(slic_result)
plt.show()
another sample:
这回是需要一个mask来指定哪些区域不画裂纹
fastslic虽然很快，但是处理mask的函数要自己写，同时没有outline
"""
-*- coding: utf-8 -*-
author： Hao Hu
@date 2022/3/6 3:40 PM
"""
import numpy as np
import os
# Much faster than the standard class
from fast_slic.avx2 import SlicAvx2
import maskslic as seg
import os.path as osp
from tqdm import tqdm
import cv2
from skimage import segmentation
"""超像素由一系列位置相邻且颜色、亮度、纹理等特征相似的像素点组成的小区域。
这些小区域大多保留了进一步进行图像分割的有效信息，且一般不会破坏图像中物体的边界信息，
用少量的超像素代替大量像素表达图像特征，降低了图像处理的复杂度，
一般作为分割算法的预处理步骤。"""
def get_ori_list(ori_folder):
img_list = os.listdir(ori_folder)
ori_list = []
check_list = ['copper', 'bg', 'check', 'dust']
for img_name in img_list:
flag = 0
for sample in check_list:
if sample in img_name:
flag = 1
break
if flag == 0:
ori_list.append(osp.join(ori_folder, img_name))
if len(ori_list) > 50:
break
return ori_list
def use_mask_to_get_two_areas(mask,end_result,image):
"""通过将指定mask来指定不画裂纹的区域"""
where_0 = np.where(mask == False)
end_result[where_0] = image[where_0]/255
return end_result
def use_fast_slic_to_get_edge(img_path,mask_path,end_path):
image = cv2.imread(img_path)
# image = cv2.cvtColor(image, cv2.COLOR_BGR2RGB)
mask_image = cv2.imread(mask_path)
img_R = mask_image[:, :, 0]
mask = img_R > 220
# use fast slic
slic = SlicAvx2(num_components=8000, compactness=10)
slic_result = slic.iterate(image, 10) # Cluster Map
end_result = segmentation.mark_boundaries(image, slic_result, outline_color=(0, 1, 1))
end_result = use_mask_to_get_two_areas(mask,end_result,image)
cv2.imwrite(end_path,end_result*255)
if __name__ == '__main__':
ori_folder = '/Users/huhao/Documents/GitHub/real-time-semantic-segmentation/PCB/pcb_small'
end_folder = '/Users/huhao/Documents/GitHub/real-time-semantic-segmentation/PCB/slic_result'
ori_list = get_ori_list(ori_folder)
for img_path in tqdm(ori_list):
end_path = osp.join(end_folder, osp.basename(img_path[:-4])+'_end_result.jpg')
mask_path = osp.join(ori_folder, osp.basename(img_path[:-4]) + '_bg_mask.jpg')
use_fast_slic_to_get_edge(img_path, mask_path, end_path)
os.system("cp {} {}".format(img_path,end_folder))
