[人工智能]3d激光雷达开发（圆柱分割）

【 声明：版权所有，欢迎转载，请勿用于商业用途。 联系信箱：feixiaoxing @163.com】

? ? ? ? 和平面分割一样，pcl也支持圆柱分割。使用的方法和平面分割也差不多，都是基于ransac的基本原理。在pcl官方库当中，也给出了参考代码，注意关联的pcd文件，https://pcl.readthedocs.io/projects/tutorials/en/master/cylinder_segmentation.html#cylinder-segmentation

1、准备cylinder_segmentation.cpp文件

#include <pcl/ModelCoefficients.h>
#include <pcl/io/pcd_io.h>
#include <pcl/point_types.h>
#include <pcl/filters/extract_indices.h>
#include <pcl/filters/passthrough.h>
#include <pcl/features/normal_3d.h>
#include <pcl/sample_consensus/method_types.h>
#include <pcl/sample_consensus/model_types.h>
#include <pcl/segmentation/sac_segmentation.h>

typedef pcl::PointXYZ PointT;

int
main ()
{
  // All the objects needed
  pcl::PCDReader reader;
  pcl::PassThrough<PointT> pass;
  pcl::NormalEstimation<PointT, pcl::Normal> ne;
  pcl::SACSegmentationFromNormals<PointT, pcl::Normal> seg;
  pcl::PCDWriter writer;
  pcl::ExtractIndices<PointT> extract;
  pcl::ExtractIndices<pcl::Normal> extract_normals;
  pcl::search::KdTree<PointT>::Ptr tree (new pcl::search::KdTree<PointT> ());

  // Datasets
  pcl::PointCloud<PointT>::Ptr cloud (new pcl::PointCloud<PointT>);
  pcl::PointCloud<PointT>::Ptr cloud_filtered (new pcl::PointCloud<PointT>);
  pcl::PointCloud<pcl::Normal>::Ptr cloud_normals (new pcl::PointCloud<pcl::Normal>);
  pcl::PointCloud<PointT>::Ptr cloud_filtered2 (new pcl::PointCloud<PointT>);
  pcl::PointCloud<pcl::Normal>::Ptr cloud_normals2 (new pcl::PointCloud<pcl::Normal>);
  pcl::ModelCoefficients::Ptr coefficients_plane (new pcl::ModelCoefficients), coefficients_cylinder (new pcl::ModelCoefficients);
  pcl::PointIndices::Ptr inliers_plane (new pcl::PointIndices), inliers_cylinder (new pcl::PointIndices);

  // Read in the cloud data
  reader.read ("table_scene_mug_stereo_textured.pcd", *cloud);
  std::cerr << "PointCloud has: " << cloud->size () << " data points." << std::endl;

  // Build a passthrough filter to remove spurious NaNs and scene background
  pass.setInputCloud (cloud);
  pass.setFilterFieldName ("z");
  pass.setFilterLimits (0, 1.5);
  pass.filter (*cloud_filtered);
  std::cerr << "PointCloud after filtering has: " << cloud_filtered->size () << " data points." << std::endl;

  // Estimate point normals
  ne.setSearchMethod (tree);
  ne.setInputCloud (cloud_filtered);
  ne.setKSearch (50);
  ne.compute (*cloud_normals);

  // Create the segmentation object for the planar model and set all the parameters
  seg.setOptimizeCoefficients (true);
  seg.setModelType (pcl::SACMODEL_NORMAL_PLANE);
  seg.setNormalDistanceWeight (0.1);
  seg.setMethodType (pcl::SAC_RANSAC);
  seg.setMaxIterations (100);
  seg.setDistanceThreshold (0.03);
  seg.setInputCloud (cloud_filtered);
  seg.setInputNormals (cloud_normals);
  // Obtain the plane inliers and coefficients
  seg.segment (*inliers_plane, *coefficients_plane);
  std::cerr << "Plane coefficients: " << *coefficients_plane << std::endl;

  // Extract the planar inliers from the input cloud
  extract.setInputCloud (cloud_filtered);
  extract.setIndices (inliers_plane);
  extract.setNegative (false);

  // Write the planar inliers to disk
  pcl::PointCloud<PointT>::Ptr cloud_plane (new pcl::PointCloud<PointT> ());
  extract.filter (*cloud_plane);
  std::cerr << "PointCloud representing the planar component: " << cloud_plane->size () << " data points." << std::endl;
  writer.write ("table_scene_mug_stereo_textured_plane.pcd", *cloud_plane, false);

  // Remove the planar inliers, extract the rest
  extract.setNegative (true);
  extract.filter (*cloud_filtered2);
  extract_normals.setNegative (true);
  extract_normals.setInputCloud (cloud_normals);
  extract_normals.setIndices (inliers_plane);
  extract_normals.filter (*cloud_normals2);

  // Create the segmentation object for cylinder segmentation and set all the parameters
  seg.setOptimizeCoefficients (true);
  seg.setModelType (pcl::SACMODEL_CYLINDER);
  seg.setMethodType (pcl::SAC_RANSAC);
  seg.setNormalDistanceWeight (0.1);
  seg.setMaxIterations (10000);
  seg.setDistanceThreshold (0.05);
  seg.setRadiusLimits (0, 0.1);
  seg.setInputCloud (cloud_filtered2);
  seg.setInputNormals (cloud_normals2);

  // Obtain the cylinder inliers and coefficients
  seg.segment (*inliers_cylinder, *coefficients_cylinder);
  std::cerr << "Cylinder coefficients: " << *coefficients_cylinder << std::endl;

  // Write the cylinder inliers to disk
  extract.setInputCloud (cloud_filtered2);
  extract.setIndices (inliers_cylinder);
  extract.setNegative (false);
  pcl::PointCloud<PointT>::Ptr cloud_cylinder (new pcl::PointCloud<PointT> ());
  extract.filter (*cloud_cylinder);
  if (cloud_cylinder->points.empty ())
    std::cerr << "Can't find the cylindrical component." << std::endl;
  else
  {
	  std::cerr << "PointCloud representing the cylindrical component: " << cloud_cylinder->size () << " data points." << std::endl;
	  writer.write ("table_scene_mug_stereo_textured_cylinder.pcd", *cloud_cylinder, false);
  }
  return (0);
}

2、代码分析

? ? ? ? 代码的整个流程大体可以分成两个部分，第一个部分是提取平面，第二个部分是提取圆柱。

3、准备CMakeLists.txt

cmake_minimum_required(VERSION 3.5 FATAL_ERROR)

project(cylinder_segmentation)

find_package(PCL 1.2 REQUIRED)

include_directories(${PCL_INCLUDE_DIRS})
link_directories(${PCL_LIBRARY_DIRS})
add_definitions(${PCL_DEFINITIONS})

add_executable (cylinder_segmentation cylinder_segmentation.cpp)
target_link_libraries (cylinder_segmentation ${PCL_LIBRARIES})

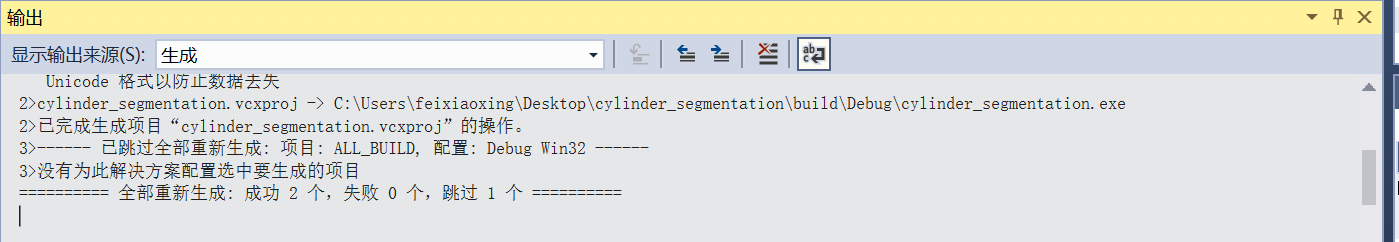

4、生成sln工程，准备编译

5、运行exe文件，注意差别

??
