VOC数据集（2012）
VOC数据集由Annotation(标注)、ImageSets(train.txt、val.txt…)、JPEGImages(原始图像)、SegmentationClass(语义分割标签)、SegmentationObject(实例分割标签)五部分组成。

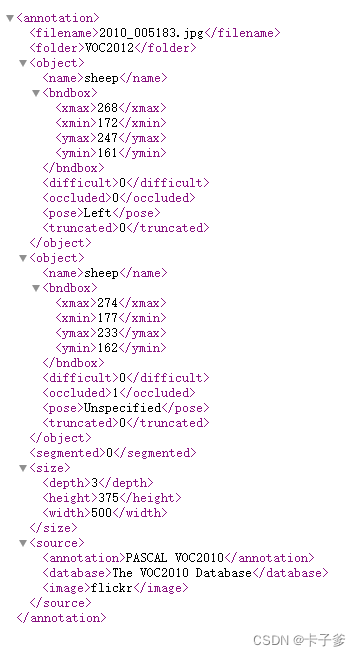

Annotation(标注)文件由.xml文件组成。
使用pytorch定义自己的数据集首先需要继承torch.utils.data中的Dataset类。
解析xml文件
# parse_xml_to_dict 解析xml文件 -> dict
# 若有多个目标 将object组成一个大[] 通过for循环取出每一个类别以及对应的坐标
def parse_xml_to_dict(self, xml):
# xml -> dict
if len(xml) == 0:
return {xml.tag: xml.text}
result = {}
for child in xml:
# child.tag: filename -> child_result: {'filename': '2020_005183'} -> result{}
# folder: VOC2012
child_result = self.parse_xml_to_dict(child)
# child.tag取出子目录的名称 判断是否为 object. eg: folfer filename...
if child.tag != 'object':
# key: folder value: VOC2012 ...
result[child.tag] = child_result[child.tag]
else:
# object:
if child.tag not in result:
result[child.tag] = []
result[child.tag].append(child_result[child.tag])
return {xml.tag: result}
def __getitem__(self, idx):
# 读取当前idx下的xml文件
xml_path = self.xml_list[idx]
with open(xml_path) as read:
xml_str = read.read()
xml = etree.fromstring(xml_str)
# parse_xml_to_dict 解析xml文件 -> dict
# 若有多个目标 将object组成一个大[] 通过for循环取出每一个类别以及对应的坐标
data = self.parse_xml_to_dict(xml)['annotation']
# 将路径与图像名称拼接起来
img_path = os.path.join(self.img_root, data['filename'])
image = Image.open(img_path)
if image.format != 'JPEG':
raise ValueError('image not jpeg')
boxes = []
labels = [] # 存入的是类别所对应的索引值
iscrowd = []
# 可能含有多个目标
for obj in data['object']:
xmin = float(obj['bndbox']['xmin'])
ymin = float(obj['bndbox']['ymin'])
xmax = float(obj['bndbox']['xmax'])
ymax = float(obj['bndbox']['ymax'])
boxes.append([xmin, ymin, xmax, ymax])
labels.append(self.class_dict[obj['name']])
iscrowd.append(int(obj['difficult'])) # 0 容易 1困难
# 转换为tensor
boxes = torch.as_tensor(boxes, dtype=torch.float32)
labels = torch.as_tensor(labels, dtype=torch.int64)
iscrowd = torch.as_tensor(iscrowd, dtype=torch.int64)
image_id = torch.tensor([idx])
area = (boxes[:, 3] - boxes[:, 1]) * (boxes[:, 2] - boxes[:, 0])
target = {}
target['boxes'] = boxes
target['labels'] = labels
target['image_id'] = image_id
target['area'] = area
target['iscrowd'] = iscrowd
完整VOC数据集（pytorch）
from torch.utils.data import Dataset
import os
import torch
import json
from PIL import Image
from lxml import etree
# 创建自己的dataset
class VOCDataset(Dataset):
def __init__(self, voc_root, transforms, train_set=True):
self.root = os.path.join(voc_root, 'VOCdevkit', 'VOC2012')
self.img_root = os.path.join(self.root, 'JPEGImages')
self.annotations_root = os.path.join(self.root, 'Annotations')
if train_set:
txt_list = os.path.join(self.root, 'ImageSets', 'Main', 'train.txt')
else:
txt_list = os.path.join(self.root, 'ImageSets', 'Main', 'val.txt')
with open(txt_list) as read:
# strip去掉换行符 得到所有标注（xml）文件的路径
self.xml_list = [os.path.join(self.annotations_root, line.strip() + '.xml') for line in read.readlines()]
# 打开每一个类别所对应索引的json文件
try:
json_file = open('pascal_voc_classes.json', 'r')
# {'name': index}
self.class_dict = json.load(json_file)
except Exception as e:
print(e)
exit(-1)
self.transforms = transforms
def __len__(self):
return len(self.xml_list)
def __getitem__(self, idx):
# 读取当前idx下的xml文件
xml_path = self.xml_list[idx]
with open(xml_path) as read:
xml_str = read.read()
xml = etree.fromstring(xml_str)
# parse_xml_to_dict 解析xml文件 -> dict
# 若有多个目标 将object组成一个list[] 通过for循环取出每一个类别以及对应的坐标
data = self.parse_xml_to_dict(xml)['annotation']
# 将路径与图像名称拼接起来
img_path = os.path.join(self.img_root, data['filename'])
image = Image.open(img_path)
if image.format != 'JPEG':
raise ValueError('image not jpeg')
boxes = []
labels = [] # 存入的是类别所对应的索引值
iscrowd = []
# 可能含有多个目标
for obj in data['object']:
xmin = float(obj['bndbox']['xmin'])
ymin = float(obj['bndbox']['ymin'])
xmax = float(obj['bndbox']['xmax'])
ymax = float(obj['bndbox']['ymax'])
boxes.append([xmin, ymin, xmax, ymax])
labels.append(self.class_dict[obj['name']])
iscrowd.append(int(obj['difficult'])) # 0 容易 1困难
# 转换为tensor
boxes = torch.as_tensor(boxes, dtype=torch.float32)
labels = torch.as_tensor(labels, dtype=torch.int64)
iscrowd = torch.as_tensor(iscrowd, dtype=torch.int64)
image_id = torch.tensor([idx])
area = (boxes[:, 3] - boxes[:, 1]) * (boxes[:, 2] - boxes[:, 0])
target = {}
target['boxes'] = boxes
target['labels'] = labels
target['image_id'] = image_id
target['area'] = area
target['iscrowd'] = iscrowd
if self.transforms is not None:
image, target = self.transforms(image, target)
return image, target
def get_height_and_width(self, idx):
# read xml
xml_path = self.xml_list[idx]
with open(xml_path) as fid:
xml_str = fid.read()
xml = etree.fromstring(xml_str)
data = self.parse_xml_to_dict(xml)['annotation']
data_height = int(data['size']['height'])
data_width = int(data['size']['width'])
return data_height, data_width
def parse_xml_to_dict(self, xml):
# xml -> dict
if len(xml) == 0:
return {xml.tag: xml.text}
result = {}
for child in xml:
# child.tag: filename -> child_result: {'filename': '2020_005183'} -> result{}
# folder: VOC2012
child_result = self.parse_xml_to_dict(child)
# child.tag取出子目录的名称 判断是否为 object. eg: folfer filename...
if child.tag != 'object':
# key: folder value: VOC2012 ...
result[child.tag] = child_result[child.tag]
else:
# object:
if child.tag not in result:
result[child.tag] = []
result[child.tag].append(child_result[child.tag])
return {xml.tag: result}

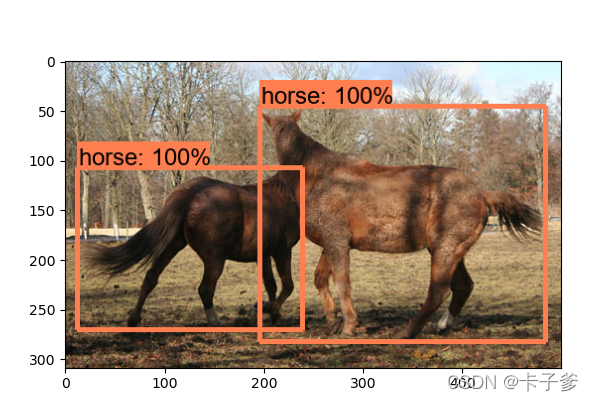

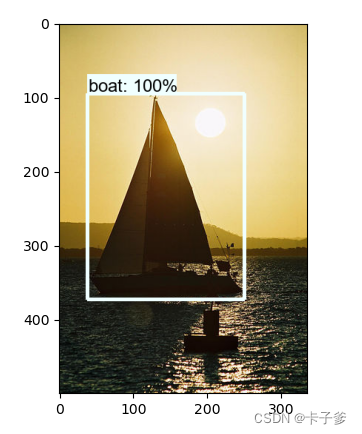

使用dataset生成的结果：
