[人工智能]【模型加速】CUDA-Pointpillars项目解读(1)

? ? ?本文主要是在官方给出的技术博客使用NVIDIA CUDA-Pointpillars检测点云中的对象的基础上结合自己的使用体验做一些扩展说明。在以往的模型部署操作中，我们习惯于将训练好的诸如Pytorch模型直接导出为onnx，再通过TensorRT?API或者trtexe等工具将onnx序列化为TensorRT引擎文件。之后，加载引擎文件进行推理加速。但是，对于点云3D检测模型pointpillars而言，这样做存在若干障碍。首先，不同于图像这类结构化数据，点云在送入网络之前需要经过相对复杂的预处理过程，其中存在过多的小型操作。强行转换一方面是若干小型操作由onnx转TensorRT不一定支持，另一方面势必会影响推理的速度。其次，pointpillars中点云经过预处理(preprocess)和点云特征提取(pfn)后还要再经过Scatter操作，生成伪图像再送入骨干网络(backbone)。当前TensorRT并不直接支持Scatter操作。所以，也不能直接进行onnx到TensorRT的转换。

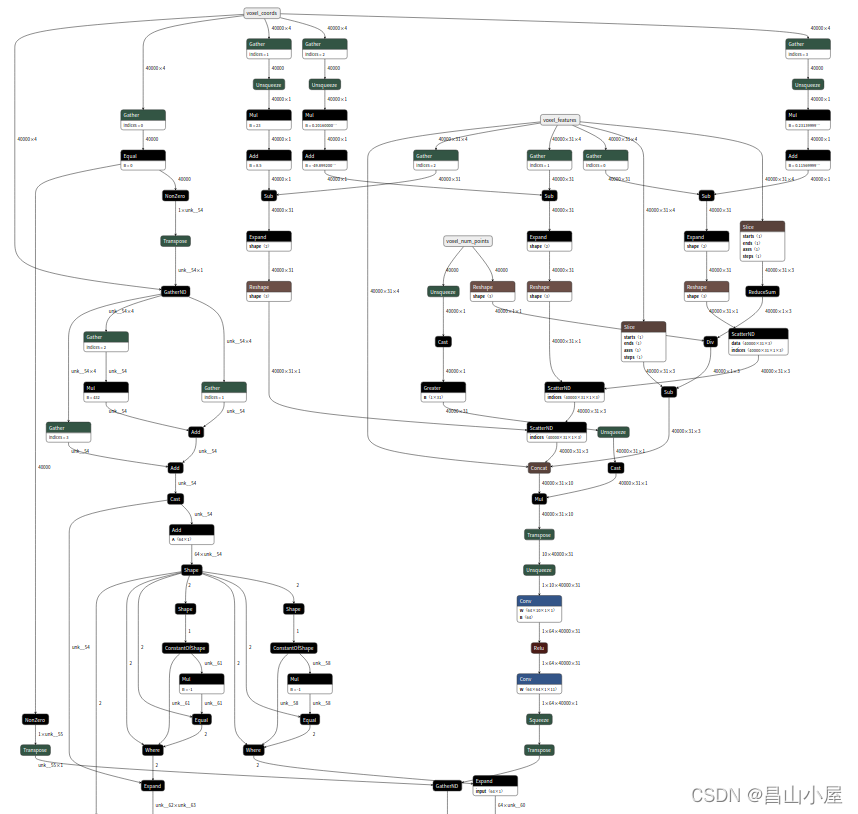

? ? 图：pointpillars点云预处理部分操作?

? ? 综上所述，作者在处理pointpillars的加速时给出了如下方案。整体上分为基础预处理，预处理，TensorRT推理，后处理四个部分。

基础预处理

? ? 基础预处理将点云转化为基本特征图，该步骤由CUDA实现。

__global__ void generateBaseFeatures_kernel(unsigned int *mask, float *voxels,
        int grid_y_size, int grid_x_size,
        unsigned int *pillar_num,
        float *voxel_features,
        float *voxel_num_points,
        float *coords)
{
  int voxel_idx = blockIdx.x * blockDim.x + threadIdx.x;
  int voxel_idy = blockIdx.y * blockDim.y + threadIdx.y;

  if(voxel_idx >= grid_x_size ||voxel_idy >= grid_y_size) return;

  unsigned int voxel_index = voxel_idy * grid_x_size
                           + voxel_idx;
  unsigned int count = mask[voxel_index];
  if( !(count>0) ) return;
  count = count<POINTS_PER_VOXEL?count:POINTS_PER_VOXEL;

  unsigned int current_pillarId = 0;
  current_pillarId = atomicAdd(pillar_num+4, 1);

  voxel_num_points[current_pillarId] = count;

  float4 coord = {0.0, 0, (float)voxel_idy, (float)voxel_idx};
  ((float4*)coords)[current_pillarId] = coord;

  for (int i=0; i<count; i++){
    int inIndex = voxel_index*POINTS_PER_VOXEL + i;
    int outIndex = current_pillarId*POINTS_PER_VOXEL + i;
    ((float4*)voxel_features)[outIndex] = ((float4*)voxels)[inIndex];
  }

  // clear buffer for next infer
  //mask[voxel_index] = 0;
  atomicExch(mask + voxel_index, 0);
}


/* create 4 channels*/
cudaError_t generateBaseFeatures_launch(unsigned int *mask, float *voxels,
        int grid_y_size, int grid_x_size,
        unsigned int *pillar_num,
        float *voxel_features,
        float *voxel_num_points,
        float *coords,
        cudaStream_t stream)
{
  dim3 threads = {32,32};
  dim3 blocks = {(grid_x_size + threads.x -1)/threads.x,
                 (grid_y_size + threads.y -1)/threads.y};

  generateBaseFeatures_kernel<<<blocks, threads, 0, stream>>>
      (mask, voxels, grid_y_size, grid_x_size,
       pillar_num,
       voxel_features,
       voxel_num_points,
       coords);
  cudaError_t err = cudaGetLastError();
  return err;
}

? ? 值得一提的时作者在组织CUDA核函数时使用了二维网格。其中threads的大小为{32,32},而blocks的大小为{(grid_x_size + threads.x -1)/threads.x,(grid_y_size + threads.y -1)/threads.y}。对应到默认的pointpillars设置的化就是{14,16}。这样一来核函数线程二维索引号正好对应pillar在x-y坐标系下的二维坐标。

?预处理

? ? ? ? 预处理部分将基本特征图(4个通道)扩展为BEV特征图(10个通道)。同样，这一步骤也是由CUDA实现。generateFeatures_launch为预处理核函数的启动函数，它设定了一个一维的线程组织结构。blocks大小为?((MAX_VOXELS+WARPS_PER_BLOCK-1)/WARPS_PER_BLOCK)，threads的大小为(WARPS_PER_BLOCK*WARP_SIZE)。默认设置,MAX_VOXELS(40000),WARPS_PER_BLOCK(4),WARP_SIZE(32)。在GPU的SM中线程的执行是以线程束为单位的，这里将单个线程块的大小设置为WARPS_PER_BLOCK个WARP_SIZE也是合情合理的。同时，这里WARP_SIZE(32)的大小正好也是pointpillars默认设置中单个pillar可包含的最大点云的数量。综合来看，也就是一个线程块对应处理4个pillar，线程块中的线程分别对应处理4个pillar中的32个点云。又因为一个pillar中个点由基础特征(4通道)扩展出BEV特征(10通道)需要依赖当前pillar所有点的综合信息。所以，在核函数内部使用了共享内存方便进行pillar内的计算结果共享。

cudaError_t generateFeatures_launch(float* voxel_features,
                                    float* voxel_num_points,
                                    float* coords,
                                    unsigned int *params,
                                    float voxel_x, float voxel_y, float voxel_z,
                                    float range_min_x, float range_min_y, float range_min_z,
                                    float* features,
                                    cudaStream_t stream)
{
    dim3 blocks((MAX_VOXELS+WARPS_PER_BLOCK-1)/WARPS_PER_BLOCK);
    dim3 threads(WARPS_PER_BLOCK*WARP_SIZE);

    generateFeatures_kernel<<<blocks, threads, 0, stream>>>
     (voxel_features,
      voxel_num_points,
      coords,
      params,
      voxel_x, voxel_y, voxel_z,
      range_min_x, range_min_y, range_min_z,
      features);

    cudaError_t err = cudaGetLastError();
    return err;
}

预处理部分的核函数作者非常注意整体性能的优化，由其是在共享内存的访问是刻意避免了bank冲突。

//<<generateFeatures 4 channels -> 10 channels
__global__ void generateFeatures_kernel(float* voxel_features,
                                        float* voxel_num_points,
                                        float* coords,
                                        unsigned int *params,
                                        float voxel_x, float voxel_y, float voxel_z,
                                        float range_min_x, float range_min_y, float range_min_z,
                                        float* features)
{
    int pillar_idx = blockIdx.x * WARPS_PER_BLOCK + threadIdx.x/WARP_SIZE; //e.g. 0,1,2..(N-1)
    int point_idx = threadIdx.x % WARP_SIZE;  //e.g. 0,1,2...31

    int pillar_idx_inBlock = threadIdx.x/32;  //e.g 0,1,2,3
    unsigned int num_pillars = params[4];

    if (pillar_idx >= num_pillars) return;

    //load src
    __shared__ float4 pillarSM[WARPS_PER_BLOCK][WARP_SIZE]; //4*32*4
    __shared__ float4 pillarSumSM[WARPS_PER_BLOCK]; //4*4
    __shared__ float4 cordsSM[WARPS_PER_BLOCK]; //4*4
    __shared__ int pointsNumSM[WARPS_PER_BLOCK]; //4
    __shared__ float pillarOutSM[WARPS_PER_BLOCK][WARP_SIZE][FEATURES_SIZE]; //4*32*10

    if (threadIdx.x < WARPS_PER_BLOCK) {
      pointsNumSM[threadIdx.x] = voxel_num_points[blockIdx.x * WARPS_PER_BLOCK + threadIdx.x];
      cordsSM[threadIdx.x] = ((float4*)coords)[blockIdx.x * WARPS_PER_BLOCK + threadIdx.x];
      pillarSumSM[threadIdx.x] = {0,0,0,0};
    }

    pillarSM[pillar_idx_inBlock][point_idx] = ((float4*)voxel_features)[pillar_idx*WARP_SIZE + point_idx];
    __syncthreads();

    //calculate sm in a pillar
    if (point_idx < pointsNumSM[pillar_idx_inBlock]) {
      atomicAdd(&(pillarSumSM[pillar_idx_inBlock].x),  pillarSM[pillar_idx_inBlock][point_idx].x);
      atomicAdd(&(pillarSumSM[pillar_idx_inBlock].y),  pillarSM[pillar_idx_inBlock][point_idx].y);
      atomicAdd(&(pillarSumSM[pillar_idx_inBlock].z),  pillarSM[pillar_idx_inBlock][point_idx].z);
    }
    __syncthreads();

    //feature-mean
    float4 mean;
    float validPoints = pointsNumSM[pillar_idx_inBlock];
    mean.x = pillarSumSM[pillar_idx_inBlock].x / validPoints;
    mean.y = pillarSumSM[pillar_idx_inBlock].y / validPoints;
    mean.z = pillarSumSM[pillar_idx_inBlock].z / validPoints;

    mean.x  = pillarSM[pillar_idx_inBlock][point_idx].x - mean.x;
    mean.y  = pillarSM[pillar_idx_inBlock][point_idx].y - mean.y;
    mean.z  = pillarSM[pillar_idx_inBlock][point_idx].z - mean.z;


    //calculate offset
    float x_offset = voxel_x / 2 + cordsSM[pillar_idx_inBlock].w * voxel_x + range_min_x;
    float y_offset = voxel_y / 2 + cordsSM[pillar_idx_inBlock].z * voxel_y + range_min_y;
    float z_offset = voxel_z / 2 + cordsSM[pillar_idx_inBlock].y * voxel_z + range_min_z;

    //feature-offset
    float4 center;
    center.x  = pillarSM[pillar_idx_inBlock][point_idx].x - x_offset;
    center.y  = pillarSM[pillar_idx_inBlock][point_idx].y - y_offset;
    center.z  = pillarSM[pillar_idx_inBlock][point_idx].z - z_offset;

    //store output
    if (point_idx < pointsNumSM[pillar_idx_inBlock]) {
      pillarOutSM[pillar_idx_inBlock][point_idx][0] = pillarSM[pillar_idx_inBlock][point_idx].x;
      pillarOutSM[pillar_idx_inBlock][point_idx][1] = pillarSM[pillar_idx_inBlock][point_idx].y;
      pillarOutSM[pillar_idx_inBlock][point_idx][2] = pillarSM[pillar_idx_inBlock][point_idx].z;
      pillarOutSM[pillar_idx_inBlock][point_idx][3] = pillarSM[pillar_idx_inBlock][point_idx].w;

      pillarOutSM[pillar_idx_inBlock][point_idx][4] = mean.x;
      pillarOutSM[pillar_idx_inBlock][point_idx][5] = mean.y;
      pillarOutSM[pillar_idx_inBlock][point_idx][6] = mean.z;

      pillarOutSM[pillar_idx_inBlock][point_idx][7] = center.x;
      pillarOutSM[pillar_idx_inBlock][point_idx][8] = center.y;
      pillarOutSM[pillar_idx_inBlock][point_idx][9] = center.z;

    } else {
      pillarOutSM[pillar_idx_inBlock][point_idx][0] = 0;
      pillarOutSM[pillar_idx_inBlock][point_idx][1] = 0;
      pillarOutSM[pillar_idx_inBlock][point_idx][2] = 0;
      pillarOutSM[pillar_idx_inBlock][point_idx][3] = 0;

      pillarOutSM[pillar_idx_inBlock][point_idx][4] = 0;
      pillarOutSM[pillar_idx_inBlock][point_idx][5] = 0;
      pillarOutSM[pillar_idx_inBlock][point_idx][6] = 0;

      pillarOutSM[pillar_idx_inBlock][point_idx][7] = 0;
      pillarOutSM[pillar_idx_inBlock][point_idx][8] = 0;
      pillarOutSM[pillar_idx_inBlock][point_idx][9] = 0;
    }

    __syncthreads();

    //避免bank冲突,按列访问
    for(int i = 0; i < FEATURES_SIZE; i ++) {
      int outputSMId = pillar_idx_inBlock*WARP_SIZE*FEATURES_SIZE + i* WARP_SIZE + point_idx;
      int outputId = pillar_idx*WARP_SIZE*FEATURES_SIZE + i*WARP_SIZE + point_idx;
      features[outputId] = ((float*)pillarOutSM)[outputSMId] ;
    }

}

关于共享内存的bank冲突，这里做一下补充说明。为了获得很高的内存带宽，共享内存在物理上被分为32个(刚好等于一个线程束中的线程数目，即内存变量wapSize的值)同样宽度的，能被同时访问的内存bank。我们可以将32个bank从0-31编号。 在每一个bank中，又可以对其中的内存地址从0开始编号。为方便起见，我们将所有bank中编号为0的内存称为第一层内存，将所有bank中编号为1的内存称为第二层内存，依此类推。

?只要同一线程束内的多个线程不同时访问同一个bank中不同层的数据，该线程束对共享内存的访问就只需要一次内存事务(memory transaction)。而当同一个线程束内的多个线程试图访问同一个bank中的不同层的数据时，就会发生bank冲突。同一个线程束内对同一个bank中的n层数据同时访问将导致n次内存事物，称为发生了n路冲突。如果无视bank冲突，采取以下赋值策略，效率会受到多大的影响呢?

   for (int i=0; i<FEATURES_SIZE; i++) {
        int outputSMId = pillar_idx_inBlock*WARP_SIZE*FEATURES_SIZE + point_idx*FEATURES_SIZE + i;
        int outputId = pillar_idx*WARP_SIZE*FEATURES_SIZE + point_idx*FEATURES_SIZE + i;
        features[outputId] = ((float*)pillarOutSM)[outputSMId] ;
    }

经过实际测算，大概会多出1.6ms左右。
