模型一：神经网络

import pandas as pd
import numpy as np
#导入划分数据集函数
from sklearn.model_selection import train_test_split

#混淆矩阵可视化函数cm_plot
def cm_plot(y, yp):

  from sklearn.metrics import confusion_matrix #

  cm = confusion_matrix(y, yp)

  import matplotlib.pyplot as plt
  plt.matshow(cm, cmap=plt.cm.Greens)
  plt.colorbar()

  for x in range(len(cm)):
    for y in range(len(cm)):
      plt.annotate(cm[x,y], xy=(x, y), horizontalalignment='center', verticalalignment='center')

  plt.ylabel('True label')
  plt.xlabel('Predicted label')
  return plt

#读取数据
datafile = './data5/data/bankloan.xls'#文件路径
data = pd.read_excel(datafile)
x = data.iloc[:,:8]
y = data.iloc[:,8]
#划分数据集
x_train, x_test, y_train, y_test = train_test_split(x, y, test_size=0.2, random_state=100)
#导入模型和函数
from keras.models import Sequential
from keras.layers import Dense,Dropout
#导入指标
from keras.metrics import BinaryAccuracy
#导入时间库计时
import time
start_time = time.time()
#-------------------------------------------------------#
model = Sequential()
model.add(Dense(input_dim=8,units=800,activation='relu'))#激活函数relu
model.add(Dropout(0.5))#防止过拟合的掉落函数
model.add(Dense(input_dim=800,units=400,activation='relu'))
model.add(Dropout(0.5))
model.add(Dense(input_dim=400,units=1,activation='sigmoid'))

model.compile(loss='binary_crossentropy', optimizer='adam',metrics=[BinaryAccuracy()])
model.fit(x_train,y_train,epochs=100,batch_size=128)
loss,binary_accuracy = model.evaluate(x,y,batch_size=128)
#--------------------------------------------------------#
end_time = time.time()
run_time = end_time-start_time#运行时间

print('模型运行时间：{}'.format(run_time))
#print('模型损失值：{}'.format(loss))
print('神经网络准确率：{}'.format(binary_accuracy))

yp = model.predict(x).reshape(len(y))
yp = np.around(yp,0).astype(int) #转换为整型
from cm_plot import *  # 导入自行编写的混淆矩阵可视化函数
cm_plot(y,yp).show()  # 显示混淆矩阵可视化结果

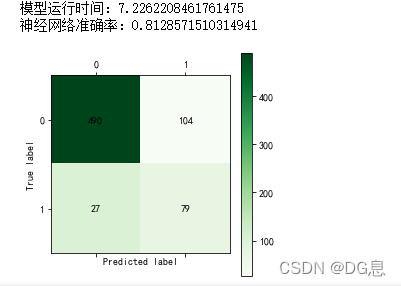

在这里插入图片描述

模型二：支持向量机(SVM)

from sklearn import svm
from sklearn.metrics import accuracy_score
from sklearn.metrics import confusion_matrix
from matplotlib import pyplot as plt
import seaborn as sns
import pandas as pd
import numpy as np
from sklearn.model_selection import train_test_split
import time
start_time = time.time()

data_load = "./data5/data/bankloan.xls"
data = pd.read_excel(data_load)
data.describe()
data.columns
data.index
## 转为np 数据切割
X = np.array(data.iloc[:,0:-1])
y = np.array(data.iloc[:,-1])
X_train, X_test, y_train, y_test = train_test_split(X, y, random_state=1, train_size=0.8, test_size=0.2, shuffle=True)
svm = svm.SVC()
svm.fit(X_test,y_test)
y_pred = svm.predict(X_test)
accuracy_score(y_test, y_pred)
end_time = time.time()
run_time = end_time-start_time#运行时间

print('模型运行时间：{}'.format(run_time))
print("SVM支持向量机准确率：{}".format(accuracy_score(y_test, y_pred)))
cm = confusion_matrix(y_test, y_pred)
heatmap = sns.heatmap(cm, annot=True, fmt='d')
heatmap.yaxis.set_ticklabels(heatmap.yaxis.get_ticklabels(), rotation=0, ha='right')
heatmap.xaxis.set_ticklabels(heatmap.xaxis.get_ticklabels(), rotation=45, ha='right')
plt.ylabel("true label")
plt.xlabel("predict label")
plt.title('SVM支持向量机')
plt.show()

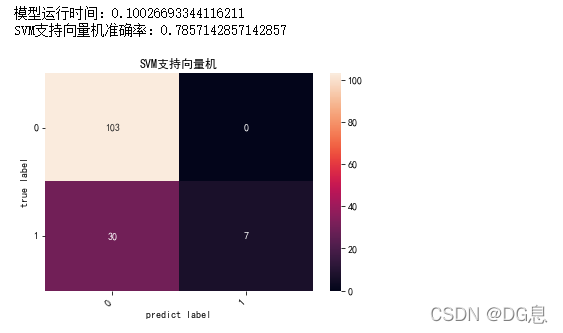

在这里插入图片描述

模型三：决策树

import pandas as pd
import seaborn as sns
import matplotlib.pyplot as plt
from sklearn.model_selection import train_test_split
from sklearn.tree import DecisionTreeClassifier as DTC
from sklearn.metrics import confusion_matrix
from sklearn.metrics import accuracy_score
import time
start_time = time.time()

filePath = './data5/data/bankloan.xls'
data = pd.read_excel(filePath)
x = data.iloc[:,:8]
y = data.iloc[:,8]
x_train, x_test, y_train, y_test = train_test_split(x, y, test_size=0.2, random_state=100)
#模型
dtc_clf = DTC(criterion='entropy')#决策树
#训练
dtc_clf.fit(x_train,y_train)
#模型评价
dtc_yp = dtc_clf.predict(x)
dtc_score = accuracy_score(y, dtc_yp)
end_time = time.time()
run_time = end_time-start_time#运行时间

print('模型运行时间：{}'.format(run_time))
print("决策树准确率：{}".format(dtc_score))
# score = sorted(score.items(),key = lambda score:score[0],reverse=True)
# print(pd.DataFrame(score))
#中文标签、负号正常显示
plt.rcParams['font.sans-serif'] = ['SimHei']
plt.rcParams['axes.unicode_minus'] = False

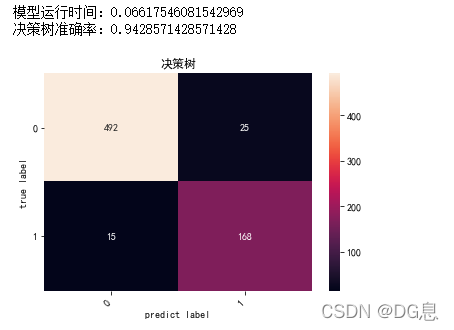

#绘制混淆矩阵

plt.title('决策树')
dtc_cm = confusion_matrix(y, dtc_yp)
heatmap = sns.heatmap(dtc_cm, annot=True, fmt='d')
heatmap.yaxis.set_ticklabels(heatmap.yaxis.get_ticklabels(), rotation=0, ha='right')
heatmap.xaxis.set_ticklabels(heatmap.xaxis.get_ticklabels(), rotation=45, ha='right')
plt.ylabel("true label")
plt.xlabel("predict label")
plt.show()

dtc = DTC(criterion='entropy')  # 建立决策树模型，基于信息熵
dtc.fit(x, y)  # 训练模型

# 导入相关函数，可视化决策树。
x = pd.DataFrame(x)
with open("./data5/data/tree.dot", 'w') as f:
    export_graphviz(dtc, feature_names = x.columns, out_file = f)
    f.close()
dot_data = tree.export_graphviz(dtc, out_file=None,  #regr_1 是对应分类器
                         feature_names=data.columns[:8],   #对应特征的名字
                         class_names=data.columns[8],    #对应类别的名字
                         filled=True, rounded=True,
                         special_characters=True)

graph = pydotplus.graph_from_dot_data(dot_data)
graph.write_png('./data5/data/决策树.png')    #保存图像
Image(graph.create_png())
