1.准备源码

https://github.com/NVIDIA/MAXINE-VFX-SDK

2.封装第三方库

?主要包括bin、lib、include三个文件夹，以及一个.build.cs文件。bin存放dll文件、lib里是引导文件和静态库文件，include里存放的是暴露出来的头文件。

3.UE4插件封装

调用代码如下（暂时没有将对应的Texture封装成UE内部资源）

#include <stdarg.h>
#include <stdio.h>
#include <string.h>

#include <chrono>
#include <string>
#include <iostream>
#include "THIRDNVIDIA_VFX_SDK/include/nvCVOpenCV.h"
#include "THIRDNVIDIA_VFX_SDK/include/nvVideoEffects.h"
#include "THIRDNVIDIA_VFX_SDK/include/opencv2/opencv.hpp"
#ifdef _MSC_VER
#define strcasecmp _stricmp
#include <Windows.h>
#else  // !_MSC_VER
#include <sys/stat.h>
#endif  // _MSC_VER


#define BAIL_IF_ERR(err) \
  do {                   \
    if (0 != (err)) {    \
      goto bail;         \
    }                    \
  } while (0)
#define BAIL_IF_NULL(x, err, code) \
  do {                             \
    if ((void *)(x) == NULL) {     \
      err = code;                  \
      goto bail;                   \
    }                              \
  } while (0)
#define NVCV_ERR_HELP 411

#ifdef _WIN32
#define DEFAULT_CODEC "avc1"
#else // !_WIN32
#define DEFAULT_CODEC "H264"
#endif // _WIN32

bool        FLAG_progress = false;
bool        FLAG_show = false;
bool        FLAG_verbose = false;
bool        FLAG_webcam = false;
bool        FLAG_cudaGraph = false;
int         FLAG_compMode = 3 /*compWhite*/;
int         FLAG_mode = 0;
float       FLAG_blurStrength = 0.5;
std::string FLAG_camRes;
std::string FLAG_codec = DEFAULT_CODEC;
std::string FLAG_inFile;
std::string FLAG_modelDir;
std::string FLAG_outDir;
std::string FLAG_outFile;
std::string FLAG_bgFile;

static bool GetFlagArgVal(const char* flag, const char* arg, const char** val) {
	if (*arg != '-') return false;
	while (*++arg == '-') continue;
	const char* s = strchr(arg, '=');
	if (s == NULL) {
		if (strcmp(flag, arg) != 0) return false;
		*val = NULL;
		return true;
	}
	size_t n = s - arg;
	if ((strlen(flag) != n) || (strncmp(flag, arg, n) != 0)) return false;
	*val = s + 1;
	return true;
}

static bool GetFlagArgVal(const char* flag, const char* arg, std::string* val) {
	const char* valStr;
	if (!GetFlagArgVal(flag, arg, &valStr)) return false;
	val->assign(valStr ? valStr : "");
	return true;
}

static bool GetFlagArgVal(const char* flag, const char* arg, bool* val) {
	const char* valStr;
	bool success = GetFlagArgVal(flag, arg, &valStr);
	if (success) {
		*val = (valStr == NULL || strcasecmp(valStr, "true") == 0 || strcasecmp(valStr, "on") == 0 ||
			strcasecmp(valStr, "yes") == 0 || strcasecmp(valStr, "1") == 0);
	}
	return success;
}

static bool GetFlagArgVal(const char* flag, const char* arg, long* val) {
	const char* valStr;
	bool success = GetFlagArgVal(flag, arg, &valStr);
	if (success) *val = strtol(valStr, NULL, 10);
	return success;
}

static bool GetFlagArgVal(const char* flag, const char* arg, int* val) {
	long longVal;
	bool success = GetFlagArgVal(flag, arg, &longVal);
	if (success) *val = (int)longVal;
	return success;
}

static bool GetFlagArgVal(const char* flag, const char* arg, float* val) {
	const char* valStr;
	bool success = GetFlagArgVal(flag, arg, &valStr);
	if (success) *val = std::stof(valStr);
	return success;
}

static void Usage() {
	printf(
		"AigsEffectApp [args ...]\n"
		"  where args is:\n"
		"  --in_file=<path>           input file to be processed\n"
		"  --out_file=<path>          output file to be written\n"
		"  --bg_file=<path>           background file for composition\n"
		"  --webcam                   use a webcam as input\n"
		"  --cam_res=[WWWx]HHH        specify resolution as height or width x height\n"
		"  --model_dir=<path>         the path to the directory that contains the models\n"
		"  --codec=<fourcc>           the FOURCC code for the desired codec (default " DEFAULT_CODEC ")\n"
		"  --show                     display the results in a window\n"
		"  --progress                 show progress\n"
		"  --mode=(0|1)               pick one of the green screen modes\n"
		"                             0 - Best quality\n"
		"                             1 - Best performance\n"
		"  --comp_mode                choose the composition mode - {\n"
		"                               0 (show matte - compMatte),\n"
		"                               1 (overlay mask on foreground - compLight),\n"
		"                               2 (composite over green - compGreen),\n"
		"                               3 (composite over white - compWhite),\n"
		"                               4 (show input - compNone),\n"
		"                               5 (composite over a specified background image - compBG),\n"
		"                               6 (blur the background of the image - compBlur) }\n"
		"  --cuda_graph               Enable cuda graph.\n"
	);
}

static int ParseMyArgs(int argc, char** argv) {
	int errs = 0;
	for (--argc, ++argv; argc--; ++argv) {
		bool help;
		const char* arg = *argv;
		if (arg[0] != '-') {
			continue;
		}
		else if ((arg[1] == '-') &&
			(GetFlagArgVal("verbose", arg, &FLAG_verbose) || GetFlagArgVal("in", arg, &FLAG_inFile) ||
				GetFlagArgVal("in_file", arg, &FLAG_inFile) || GetFlagArgVal("out", arg, &FLAG_outFile) ||
				GetFlagArgVal("out_file", arg, &FLAG_outFile) || GetFlagArgVal("model_dir", arg, &FLAG_modelDir) ||
				GetFlagArgVal("bg_file", arg, &FLAG_bgFile) ||
				GetFlagArgVal("codec", arg, &FLAG_codec) || GetFlagArgVal("webcam", arg, &FLAG_webcam) ||
				GetFlagArgVal("cam_res", arg, &FLAG_camRes) || GetFlagArgVal("mode", arg, &FLAG_mode) ||
				GetFlagArgVal("progress", arg, &FLAG_progress) || GetFlagArgVal("show", arg, &FLAG_show) ||
				GetFlagArgVal("comp_mode", arg, &FLAG_compMode) || GetFlagArgVal("blur_strength", arg, &FLAG_blurStrength) ||
				GetFlagArgVal("cuda_graph", arg, &FLAG_cudaGraph))) {
			continue;
		}
		else if (GetFlagArgVal("help", arg, &help)) {
			return NVCV_ERR_HELP;
		}
		else if (arg[1] != '-') {
			for (++arg; *arg; ++arg) {
				if (*arg == 'v') {
					FLAG_verbose = true;
				}
				else {
					printf("Unknown flag ignored: \"-%c\"\n", *arg);
				}
			}
			continue;
		}
		else {
			printf("Unknown flag ignored: \"%s\"\n", arg);
		}
	}
	return errs;
}

static bool HasSuffix(const char* str, const char* suf) {
	size_t strSize = strlen(str), sufSize = strlen(suf);
	if (strSize < sufSize) return false;
	return (0 == strcasecmp(suf, str + strSize - sufSize));
}

static bool HasOneOfTheseSuffixes(const char* str, ...) {
	bool matches = false;
	const char* suf;
	va_list ap;
	va_start(ap, str);
	while (nullptr != (suf = va_arg(ap, const char*))) {
		if (HasSuffix(str, suf)) {
			matches = true;
			break;
		}
	}
	va_end(ap);
	return matches;
}

static bool IsImageFile(const char* str) {
	return HasOneOfTheseSuffixes(str, ".bmp", ".jpg", ".jpeg", ".png", nullptr);
}

static bool IsLossyImageFile(const char* str) {
	return HasOneOfTheseSuffixes(str, ".jpg", ".jpeg", nullptr);
}

static const char* DurationString(double sc) {
	static char buf[16];
	int hr, mn;
	hr = (int)(sc / 3600.);
	sc -= hr * 3600.;
	mn = (int)(sc / 60.);
	sc -= mn * 60.;
	snprintf(buf, sizeof(buf), "%02d:%02d:%06.3f", hr, mn, sc);
	return buf;
}

struct VideoInfo {
	int codec;
	int width;
	int height;
	double frameRate;
	long long frameCount;
};

static void PrintVideoInfo(const VideoInfo* info, const char* fileName) {
	printf(
		"       file \"%s\"\n"
		"      codec %.4s\n"
		"      width %4d\n"
		"     height %4d\n"
		" frame rate %.3f\n"
		"frame count %4lld\n"
		"   duration %s\n",
		fileName, (char*)&info->codec, info->width, info->height, info->frameRate, info->frameCount,
		info->frameCount ? DurationString(info->frameCount / info->frameRate) : "(webcam)");
}

static void GetVideoInfo(cv::VideoCapture& reader, const char* fileName, VideoInfo* info) {
	info->codec = (int)reader.get(cv::CAP_PROP_FOURCC);
	info->width = (int)reader.get(cv::CAP_PROP_FRAME_WIDTH);
	info->height = (int)reader.get(cv::CAP_PROP_FRAME_HEIGHT);
	info->frameRate = (double)reader.get(cv::CAP_PROP_FPS);
	if (!strcmp(fileName, "webcam"))
		info->frameCount = 0;
	else
		info->frameCount = (long long)reader.get(cv::CAP_PROP_FRAME_COUNT);
	if (FLAG_verbose) PrintVideoInfo(info, fileName);
}

static int StringToFourcc(const std::string& str) {
	union chint {
		int i;
		char c[4];
	};
	chint x = { 0 };
	for (int n = (str.size() < 4) ? (int)str.size() : 4; n--;) x.c[n] = str[n];
	return x.i;
}

struct FXApp {
	enum Err {
		errQuit = +1,                              // Application errors
		errFlag = +2,
		errRead = +3,
		errWrite = +4,
		errNone = NVCV_SUCCESS,                     // Video Effects SDK errors
		errGeneral = NVCV_ERR_GENERAL,
		errUnimplemented = NVCV_ERR_UNIMPLEMENTED,
		errMemory = NVCV_ERR_MEMORY,
		errEffect = NVCV_ERR_EFFECT,
		errSelector = NVCV_ERR_SELECTOR,
		errBuffer = NVCV_ERR_BUFFER,
		errParameter = NVCV_ERR_PARAMETER,
		errMismatch = NVCV_ERR_MISMATCH,
		errPixelFormat = NVCV_ERR_PIXELFORMAT,
		errModel = NVCV_ERR_MODEL,
		errLibrary = NVCV_ERR_LIBRARY,
		errInitialization = NVCV_ERR_INITIALIZATION,
		errFileNotFound = NVCV_ERR_FILE,
		errFeatureNotFound = NVCV_ERR_FEATURENOTFOUND,
		errMissingInput = NVCV_ERR_MISSINGINPUT,
		errResolution = NVCV_ERR_RESOLUTION,
		errUnsupportedGPU = NVCV_ERR_UNSUPPORTEDGPU,
		errWrongGPU = NVCV_ERR_WRONGGPU,
		errCudaMemory = NVCV_ERR_CUDA_MEMORY,       // CUDA errors
		errCudaValue = NVCV_ERR_CUDA_VALUE,
		errCudaPitch = NVCV_ERR_CUDA_PITCH,
		errCudaInit = NVCV_ERR_CUDA_INIT,
		errCudaLaunch = NVCV_ERR_CUDA_LAUNCH,
		errCudaKernel = NVCV_ERR_CUDA_KERNEL,
		errCudaDriver = NVCV_ERR_CUDA_DRIVER,
		errCudaUnsupported = NVCV_ERR_CUDA_UNSUPPORTED,
		errCudaIllegalAddress = NVCV_ERR_CUDA_ILLEGAL_ADDRESS,
		errCuda = NVCV_ERR_CUDA,
	};
	enum CompMode { compMatte, compLight, compGreen, compWhite, compNone, compBG, compBlur };

	FXApp() {
		_eff = nullptr;
		_bgblurEff = nullptr;
		_effectName = nullptr;
		_inited = false;
		_total = 0.0;
		_count = 0;
		_compMode = compLight;
		_showFPS = false;
		_stream = nullptr;
		_progress = false;
		_show = false;
		_framePeriod = 0.f;
		//_lastTime = std::chrono::high_resolution_clock::time_point::min();
		_lastTime = std::chrono::high_resolution_clock::now();
		_blurStrength = 0.5f;
	}
	~FXApp() {
		NvVFX_DestroyEffect(_eff);
		NvVFX_DestroyEffect(_bgblurEff);

		if (_stream) {
			NvVFX_CudaStreamDestroy(_stream);
		}
	}

	void setShow(bool show) { _show = show; }
	NvCV_Status createAigsEffect();
	void destroyEffect();
	NvCV_Status allocBuffers(unsigned width, unsigned height);
	NvCV_Status allocTempBuffers();
	Err processImage(const char* inFile, const char* outFile);
	Err processMovie(const char* inFile, const char* outFile);
	Err processKey(int key);
	void nextCompMode();
	void drawFrameRate(cv::Mat& img);
	Err appErrFromVfxStatus(NvCV_Status status) { return (Err)status; }
	const char* errorStringFromCode(Err code);

	NvVFX_Handle _eff, _bgblurEff;
	cv::Mat _srcImg;
	cv::Mat _dstImg;
	cv::Mat _bgImg;
	cv::Mat _resizedCroppedBgImg;
	NvCVImage _srcVFX;
	NvCVImage _dstVFX;
	bool _show;
	bool _inited;
	bool _showFPS;
	bool _progress;
	const char* _effectName;
	float _total;
	int _count;
	CompMode _compMode;
	float _framePeriod;
	CUstream _stream;
	std::chrono::high_resolution_clock::time_point _lastTime;
	NvCVImage _srcNvVFXImage;
	NvCVImage _dstNvVFXImage;
	NvCVImage _blurNvVFXImage;
	float _blurStrength;
};

const char* FXApp::errorStringFromCode(Err code) {
	struct LutEntry {
		Err code;
		const char* str;
	};
	static const LutEntry lut[] = {
		{errRead, "There was a problem reading a file"},
		{errWrite, "There was a problem writing a file"},
		{errQuit, "The user chose to quit the application"},
		{errFlag, "There was a problem with the command-line arguments"},
	};
	if ((int)code <= 0) return NvCV_GetErrorStringFromCode((NvCV_Status)code);
	for (const LutEntry* p = lut; p != &lut[sizeof(lut) / sizeof(lut[0])]; ++p)
		if (p->code == code) return p->str;
	return "UNKNOWN ERROR";
}

void FXApp::drawFrameRate(cv::Mat& img) {
	const float timeConstant = 16.f;
	std::chrono::high_resolution_clock::time_point now = std::chrono::high_resolution_clock::now();
	std::chrono::duration<float> dur = std::chrono::duration_cast<std::chrono::duration<float>>(now - _lastTime);
	float t = dur.count();
	if (0.f < t && t < 100.f) {
		if (_framePeriod)
			_framePeriod += (t - _framePeriod) * (1.f / timeConstant);  // 1 pole IIR filter
		else
			_framePeriod = t;
		if (_showFPS) {
			char buf[32];
			snprintf(buf, sizeof(buf), "%.1f", 1. / _framePeriod);
			cv::putText(img, buf, cv::Point(10, img.rows - 10), cv::FONT_HERSHEY_SIMPLEX, 1, cv::Scalar(255, 255, 255), 1);
		}
	}
	else {               // Ludicrous time interval; reset
		_framePeriod = 0.f;  // WAKE UP
	}
	_lastTime = now;
}

void FXApp::nextCompMode() {
	switch (_compMode) {
	default:
	case compMatte:
		_compMode = compLight;
		break;
	case compLight:
		_compMode = compGreen;
		break;
	case compGreen:
		_compMode = compWhite;
		break;
	case compWhite:
		_compMode = compNone;
		break;
	case compNone:
		_compMode = compBG;
		break;
	case compBG:
		_compMode = compBlur;
		break;
	case compBlur:
		_compMode = compMatte;
		break;
	}
}

FXApp::Err FXApp::processKey(int key) {
	static const int ESC_KEY = 27;
	switch (key) {
	case 'Q':
	case 'q':
	case ESC_KEY:
		return errQuit;
	case 'c':
	case 'C':
		nextCompMode();
		break;
	case 'f':
	case 'F':
		_showFPS = !_showFPS;
		break;
	case 'p':
	case 'P':
	case '%':
		_progress = !_progress;
		break;
	case 'm':
		_blurStrength += 0.05f;
		if (_blurStrength > 1.0) {
			_blurStrength = 1.0;
		}
		break;
	case 'n':
		_blurStrength -= 0.05f;
		if (_blurStrength < 0.0) {
			_blurStrength = 0.0;
		}
		break;
	default:
		break;
	}
	return errNone;
}

NvCV_Status FXApp::createAigsEffect() {
	NvCV_Status vfxErr;

	vfxErr = NvVFX_CreateEffect(NVVFX_FX_GREEN_SCREEN, &_eff);
	if (NVCV_SUCCESS != vfxErr) {
		std::cerr << "Error creating effect \"" << NVVFX_FX_GREEN_SCREEN << "\"\n";
		return vfxErr;
	}
	_effectName = NVVFX_FX_GREEN_SCREEN;

	if (!FLAG_modelDir.empty()) {
		vfxErr = NvVFX_SetString(_eff, NVVFX_MODEL_DIRECTORY, FLAG_modelDir.c_str());
	}
	if (vfxErr != NVCV_SUCCESS) {
		std::cerr << "Error setting the model path to \"" << FLAG_modelDir << "\"\n";
		return vfxErr;
	}

	const char* cstr;  // TODO: This is not necessary
	vfxErr = NvVFX_GetString(_eff, NVVFX_INFO, &cstr);
	if (vfxErr != NVCV_SUCCESS) {
		std::cerr << "AIGS modes not found \n" << std::endl;
		return vfxErr;
	}

	// Choose one mode -> set() -> Load() -> Run()
	vfxErr = NvVFX_SetU32(_eff, NVVFX_MODE, FLAG_mode);
	if (vfxErr != NVCV_SUCCESS) {
		std::cerr << "Error setting the mode \n";
		return vfxErr;
	}

	vfxErr = NvVFX_SetU32(_eff, NVVFX_CUDA_GRAPH, FLAG_cudaGraph ? 1u : 0u);
	if (vfxErr != NVCV_SUCCESS) {
		std::cerr << "Error enabling cuda graph \n";
		return vfxErr;
	}

	vfxErr = NvVFX_CudaStreamCreate(&_stream);
	if (vfxErr != NVCV_SUCCESS) {
		std::cerr << "Error creating CUDA stream " << std::endl;
		return vfxErr;
	}

	vfxErr = NvVFX_SetCudaStream(_eff, NVVFX_CUDA_STREAM, _stream);
	if (vfxErr != NVCV_SUCCESS) {
		std::cerr << "Error setting up the cuda stream \n";
		return vfxErr;
	}

	vfxErr = NvVFX_Load(_eff);
	if (vfxErr != NVCV_SUCCESS) {
		std::cerr << "Error loading the model \n";
		return vfxErr;
	}

	// ------------------ create Background blur effect ------------------ //
	vfxErr = NvVFX_CreateEffect(NVVFX_FX_BGBLUR, &_bgblurEff);
	if (NVCV_SUCCESS != vfxErr) {
		std::cerr << "Error creating effect \"" << NVVFX_FX_BGBLUR << "\"\n";
		return vfxErr;
	}

	vfxErr = NvVFX_GetString(_bgblurEff, NVVFX_INFO, &cstr);
	if (vfxErr != NVCV_SUCCESS) {
		std::cerr << "BGBLUR info not found \n" << std::endl;
		return vfxErr;
	}

	vfxErr = NvVFX_SetCudaStream(_bgblurEff, NVVFX_CUDA_STREAM, _stream);
	if (vfxErr != NVCV_SUCCESS) {
		std::cerr << "BGBLUR error setting up the cuda stream \n";
		return vfxErr;
	}

	return vfxErr;
}

void FXApp::destroyEffect() {
	NvVFX_DestroyEffect(_eff);
	_eff = nullptr;
}

static void overlay(const cv::Mat& image, const cv::Mat& mask, float alpha, cv::Mat& result) {
	cv::Mat maskClr;
	cv::cvtColor(mask, maskClr, cv::COLOR_GRAY2BGR);
	result = image * (1.f - alpha) + maskClr * alpha;
}

FXApp::Err FXApp::processImage(const char* inFile, const char* outFile) {
	NvCV_Status vfxErr;
	bool ok;
	cv::Mat result;

	if (!_eff) return errEffect;
	_srcImg = cv::imread(inFile);
	if (!_srcImg.data) return errRead;

	_dstImg = cv::Mat::zeros(_srcImg.size(), CV_8UC1);
	if (!_dstImg.data) return errMemory;

	(void)NVWrapperForCVMat(&_srcImg, &_srcVFX);
	(void)NVWrapperForCVMat(&_dstImg, &_dstVFX);

	NvCVImage fxSrcChunkyGPU(_srcImg.cols, _srcImg.rows, NVCV_BGR, NVCV_U8, NVCV_CHUNKY, NVCV_GPU, 1);
	NvCVImage fxDstChunkyGPU(_srcImg.cols, _srcImg.rows, NVCV_A, NVCV_U8, NVCV_CHUNKY, NVCV_GPU, 1);

	BAIL_IF_ERR(vfxErr = NvVFX_SetImage(_eff, NVVFX_INPUT_IMAGE, &fxSrcChunkyGPU));
	BAIL_IF_ERR(vfxErr = NvVFX_SetImage(_eff, NVVFX_OUTPUT_IMAGE, &fxDstChunkyGPU));
	BAIL_IF_ERR(vfxErr = NvCVImage_Transfer(&_srcVFX, &fxSrcChunkyGPU, 1.0f, _stream, NULL));
	BAIL_IF_ERR(vfxErr = NvVFX_Run(_eff, 0));
	BAIL_IF_ERR(vfxErr = NvCVImage_Transfer(&fxDstChunkyGPU, &_dstVFX, 1.0f, _stream, NULL));

	overlay(_srcImg, _dstImg, 0.5, result);
	if (!std::string(outFile).empty()) {
		if (IsLossyImageFile(outFile))
			fprintf(stderr, "WARNING: JPEG output file format will reduce image quality\n");
		ok = cv::imwrite(outFile, result);
		if (!ok) {
			printf("Error writing: \"%s\"\n", outFile);
			return errWrite;
		}
		ok = cv::imwrite(std::string(outFile) + "_segmentation_mask.png", _dstImg);  // save segmentation mask too
		if (!ok) {
			printf("Error writing: \"%s_segmentation_mask.png\"\n", outFile);
			return errWrite;
		}
	}
	if (_show) {
		cv::imshow("Output", result);
		cv::waitKey(3000);
	}
bail:
	return (FXApp::Err)vfxErr;
}

FXApp::Err FXApp::processMovie(const char* inFile, const char* outFile) {
	float ms = 0.0f;
	FXApp::Err appErr = errNone;
	const int camIndex = 0;
	NvCV_Status vfxErr = NVCV_SUCCESS;
	bool ok;
	cv::Mat result;
	cv::VideoCapture reader;
	cv::VideoWriter writer;
	unsigned frameNum;
	VideoInfo info;

	if (inFile && !inFile[0]) inFile = nullptr;  // Set file paths to NULL if zero length
	if (outFile && !outFile[0]) outFile = nullptr;

	if (inFile) {
		reader.open(inFile);
	}
	else {
		reader.open(camIndex);
		if (!FLAG_camRes.empty()) {
			int camWidth, camHeight, n;
			n = sscanf(FLAG_camRes.c_str(), "%d%*[xX]%d", &camWidth, &camHeight);
			switch (n) {
			case 2:
				break;  // We have read both width and height
			case 1:
				camHeight = camWidth;
				camWidth = (int)(camHeight * (16. / 9.) + .5);
				break;
			default:
				camHeight = 0;
				camWidth = 0;
				break;
			}
			if (camWidth) reader.set(cv::CAP_PROP_FRAME_WIDTH, camWidth);
			if (camHeight) reader.set(cv::CAP_PROP_FRAME_HEIGHT, camHeight);
		}
		printf("Camera frame: %.0f x %.0f\n", reader.get(cv::CAP_PROP_FRAME_WIDTH), reader.get(cv::CAP_PROP_FRAME_HEIGHT));
	}
	if (!reader.isOpened()) {
		if (!FLAG_webcam) printf("Error: Could not open video: \"%s\"\n", inFile);
		else              printf("Error: Webcam not found\n");
		return errRead;
	}

	GetVideoInfo(reader, (inFile ? inFile : "webcam"), &info);

	if (outFile) {
		ok = writer.open(outFile, StringToFourcc(FLAG_codec), info.frameRate, cv::Size(info.width, info.height));
		if (!ok) {
			printf("Cannot open \"%s\" for video writing\n", outFile);
			outFile = nullptr;
		}
	}

	unsigned int width = (unsigned int)reader.get(cv::CAP_PROP_FRAME_WIDTH);
	unsigned int height = (unsigned int)reader.get(cv::CAP_PROP_FRAME_HEIGHT);

	if (!FLAG_bgFile.empty())
	{
		_bgImg = cv::imread(FLAG_bgFile);
		if (!_bgImg.data)
		{
			return errRead;
		}
		else
		{
			// Find the scale to resize background such that image can fit into background
			float scale = float(height) / float(_bgImg.rows);
			if ((scale * _bgImg.cols) < float(width))
			{
				scale = float(width) / float(_bgImg.cols);
			}
			cv::Mat resizedBg;
			cv::resize(_bgImg, resizedBg, cv::Size(), scale, scale, cv::INTER_AREA);

			// Always crop from top left of background.
			cv::Rect rect(0, 0, width, height);
			_resizedCroppedBgImg = resizedBg(rect);
		}
	}

	// allocate src for GPU
	if (!_srcNvVFXImage.pixels)
		BAIL_IF_ERR(vfxErr =
			NvCVImage_Alloc(&_srcNvVFXImage, width, height, NVCV_BGR, NVCV_U8, NVCV_CHUNKY, NVCV_GPU, 1));

	// allocate dst for GPU
	if (!_dstNvVFXImage.pixels)
		BAIL_IF_ERR(vfxErr =
			NvCVImage_Alloc(&_dstNvVFXImage, width, height, NVCV_A, NVCV_U8, NVCV_CHUNKY, NVCV_GPU, 1));

	// allocate blur for GPU
	if (!_blurNvVFXImage.pixels)
		BAIL_IF_ERR(vfxErr =
			NvCVImage_Alloc(&_blurNvVFXImage, width, height, NVCV_BGR, NVCV_U8, NVCV_CHUNKY, NVCV_GPU, 1));

	for (frameNum = 0; reader.read(_srcImg); ++frameNum) {
		if (_srcImg.empty()) printf("Frame %u is empty\n", frameNum);

		_dstImg = cv::Mat::zeros(_srcImg.size(), CV_8UC1);  // TODO: Allocate and clear outside of the loop?
		BAIL_IF_NULL(_dstImg.data, vfxErr, NVCV_ERR_MEMORY);

		(void)NVWrapperForCVMat(&_srcImg, &_srcVFX);  // Ditto
		(void)NVWrapperForCVMat(&_dstImg, &_dstVFX);

		BAIL_IF_ERR(vfxErr = NvVFX_SetImage(_eff, NVVFX_INPUT_IMAGE, &_srcNvVFXImage));
		BAIL_IF_ERR(vfxErr = NvVFX_SetImage(_eff, NVVFX_OUTPUT_IMAGE, &_dstNvVFXImage));
		BAIL_IF_ERR(vfxErr = NvCVImage_Transfer(&_srcVFX, &_srcNvVFXImage, 1.0f, _stream, NULL));

		auto startTime = std::chrono::high_resolution_clock::now();
		BAIL_IF_ERR(vfxErr = NvVFX_Run(_eff, 0));
		auto endTime = std::chrono::high_resolution_clock::now();
		ms = std::chrono::duration<float, std::milli>(endTime - startTime).count();
		_count += 1;
		if (_count > 0) {
			// skipping first frame
			_total += ms;
		}

		BAIL_IF_ERR(vfxErr = NvCVImage_Transfer(&_dstNvVFXImage, &_dstVFX, 1.0f, _stream, NULL));

		result.create(_srcImg.rows, _srcImg.cols,
			CV_8UC3);  // Make sure the result is allocated. TODO: allocate outsifde of the loop?
		BAIL_IF_NULL(result.data, vfxErr, NVCV_ERR_MEMORY);
		result.setTo(cv::Scalar::all(0));  // TODO: This may no longer be necessary since we no longer coerce to 16:9
		switch (_compMode) {
		case compNone:
			_srcImg.copyTo(result);
			break;
		case compBG: {
			if (FLAG_bgFile.empty())
			{
				_resizedCroppedBgImg = cv::Mat(_srcImg.rows, _srcImg.cols, CV_8UC3, cv::Scalar(118, 185, 0));
				size_t startX = _resizedCroppedBgImg.cols / 20;
				size_t offsetY = _resizedCroppedBgImg.rows / 20;
				std::string text = "No Background Image!";
				for (size_t startY = offsetY; startY < _resizedCroppedBgImg.rows; startY += offsetY)
				{
					cv::putText(_resizedCroppedBgImg, text, cv::Point(startX, startY),
						cv::FONT_HERSHEY_DUPLEX, 1.0, CV_RGB(0, 0, 0), 1);
				}
			}
			NvCVImage bgVFX;
			(void)NVWrapperForCVMat(&_resizedCroppedBgImg, &bgVFX);
			NvCVImage matVFX;
			(void)NVWrapperForCVMat(&result, &matVFX);
			NvCVImage_Composite(&_srcVFX, &bgVFX, &_dstVFX, &matVFX, _stream);
		} break;
		case compLight:
			if (inFile) {
				overlay(_srcImg, _dstImg, 0.5, result);
			}
			else {  // If the webcam was cropped, also crop the compositing
				cv::Rect rect(0, (_srcImg.rows - _srcVFX.height) / 2, _srcVFX.width, _srcVFX.height);
				cv::Mat subResult = result(rect);
				overlay(_srcImg(rect), _dstImg(rect), 0.5, subResult);
			}
			break;
		case compGreen: {
			const unsigned char bgColor[3] = { 0, 255, 0 };
			NvCVImage matVFX;
			(void)NVWrapperForCVMat(&result, &matVFX);
			NvCVImage_CompositeOverConstant(&_srcVFX, &_dstVFX, bgColor, &matVFX, _stream);
		} break;
		case compWhite: {
			const unsigned char bgColor[3] = { 255, 255, 255 };
			NvCVImage matVFX;
			(void)NVWrapperForCVMat(&result, &matVFX);
			NvCVImage_CompositeOverConstant(&_srcVFX, &_dstVFX, bgColor, &matVFX, _stream);
		} break;
		case compMatte:
			cv::cvtColor(_dstImg, result, cv::COLOR_GRAY2BGR);
			break;
		case compBlur:
			BAIL_IF_ERR(vfxErr = NvVFX_SetF32(_bgblurEff, NVVFX_STRENGTH, _blurStrength));
			BAIL_IF_ERR(vfxErr = NvVFX_SetImage(_bgblurEff, NVVFX_INPUT_IMAGE_0, &_srcNvVFXImage));
			BAIL_IF_ERR(vfxErr = NvVFX_SetImage(_bgblurEff, NVVFX_INPUT_IMAGE_1, &_dstNvVFXImage));
			BAIL_IF_ERR(vfxErr = NvVFX_SetImage(_bgblurEff, NVVFX_OUTPUT_IMAGE, &_blurNvVFXImage));
			BAIL_IF_ERR(vfxErr = NvVFX_Load(_bgblurEff));
			BAIL_IF_ERR(vfxErr = NvVFX_Run(_bgblurEff, 0));

			NvCVImage matVFX;
			(void)NVWrapperForCVMat(&result, &matVFX);
			BAIL_IF_ERR(vfxErr = NvCVImage_Transfer(&_blurNvVFXImage, &matVFX, 1.0f, _stream, NULL));

			break;
		}
		if (outFile) {
#define WRITE_COMPOSITE
#ifdef WRITE_COMPOSITE
			writer.write(result);
#else   // WRITE_MATTE
			writer.write(_dstImg);
#endif  // WRITE_MATTE
		}
		if (_show) {
			drawFrameRate(result);
			cv::imshow("Output", result);
			int key = cv::waitKey(1);
			if (key > 0) {
				appErr = processKey(key);
				if (errQuit == appErr) break;
			}
		}
		if (_progress)
			if (info.frameCount == 0)  // no progress for a webcam
				fprintf(stderr, "\b\b\b\b???%%");
			else
				fprintf(stderr, "\b\b\b\b%3.0f%%", 100.f * frameNum / info.frameCount);
	}

	if (_progress) fprintf(stderr, "\n");
	reader.release();
	if (outFile) writer.release();
bail:
	// Dealloc
	NvCVImage_Dealloc(&(_srcNvVFXImage));  // This is also called in the destructor, ...
	NvCVImage_Dealloc(&(_dstNvVFXImage));  // ... so is not necessary except in C code.
	NvCVImage_Dealloc(&(_blurNvVFXImage));
	return appErrFromVfxStatus(vfxErr);
}

// This path is used by nvVideoEffectsProxy.cpp to load the SDK dll
char* g_nvVFXSDKPath = NULL;

int chooseGPU() {
	// If the system has multiple supported GPUs then the application
	// should use CUDA driver APIs or CUDA runtime APIs to enumerate
	// the GPUs and select one based on the application's requirements

	// Cuda device 0
	return 0;
}

bool isCompModeEnumValid(const FXApp::CompMode& mode)
{
	if (mode != FXApp::CompMode::compMatte &&
		mode != FXApp::CompMode::compLight &&
		mode != FXApp::CompMode::compGreen &&
		mode != FXApp::CompMode::compWhite &&
		mode != FXApp::CompMode::compNone &&
		mode != FXApp::CompMode::compBG &&
		mode != FXApp::CompMode::compBlur)
	{
		return false;
	}
	return true;
}

int main_test(int argc, char** argv) {
	int nErrs = 0;
	nErrs = ParseMyArgs(argc, argv);
	if (nErrs) {
		Usage();
		return nErrs;
	}

	FXApp::Err fxErr = FXApp::errNone;
	FXApp app;

	if (FLAG_inFile.empty() && !FLAG_webcam) {
		std::cerr << "Please specify --in_file=XXX or --webcam\n";
		++nErrs;
	}
	if (FLAG_outFile.empty() && !FLAG_show) {
		std::cerr << "Please specify --out_file=XXX or --show\n";
		++nErrs;
	}

	app._progress = FLAG_progress;
	app.setShow(FLAG_show);

	app._compMode = static_cast<FXApp::CompMode>(FLAG_compMode);
	if (!isCompModeEnumValid(app._compMode))
	{
		std::cerr << "Please specify a valid --comp_mode=XXX, valid range is [0,6] check help section\n";
		++nErrs;
	}

	app._blurStrength = FLAG_blurStrength;
	if (app._blurStrength < 0) {
		app._blurStrength = 0;
	}
	else if (app._blurStrength > 1) {
		app._blurStrength = 1;
	}

	std::cout << "Processing " << FLAG_inFile << " mode " << FLAG_mode << " models " << FLAG_modelDir << std::endl;

	if (nErrs) {
		Usage();
		fxErr = FXApp::errFlag;
	}
	else {
		fxErr = app.appErrFromVfxStatus(app.createAigsEffect());
		if (FXApp::errNone == fxErr) {
			if (IsImageFile(FLAG_inFile.c_str()))
				fxErr = app.processImage(FLAG_inFile.c_str(), FLAG_outFile.c_str());
			else
				fxErr = app.processMovie(FLAG_inFile.c_str(), FLAG_outFile.c_str());
			if (fxErr == FXApp::errNone || fxErr == FXApp::errQuit) {
				fxErr = FXApp::errNone;  // Quitting isn't an error
				std::cout << "Processing time averaged over " << app._count << " runs is "
					<< ((float)app._total) / ((float)app._count - 1) << " ms. " << std::endl;
			}
		}
	}

	if (fxErr) std::cerr << "Error: " << app.errorStringFromCode(fxErr) << std::endl;
	return (int)fxErr;
}


UNVIDIA_VFX_SDKBPLibrary::UNVIDIA_VFX_SDKBPLibrary(const FObjectInitializer& ObjectInitializer)
	: Super(ObjectInitializer)
{

}

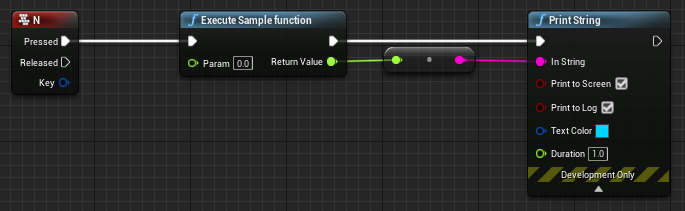

float UNVIDIA_VFX_SDKBPLibrary::NVIDIA_VFX_SDKSampleFunction(float Param)
{
	//int argc = 6;
	//char* argv[6] = { "--model_dir=D:/NVIDIA_VFX_SDK_Win_0.6.5.2/bin/models",
	//					"--in_file=D:/NVIDIA_VFX_SDK_Win_0.6.5.2/samples/input/input1.jpg",
	//					"--out_file=D:/ar_1.png",
	//					"--effect=ArtifactReduction",
	//					"--mode=1",
	//					"--show" };

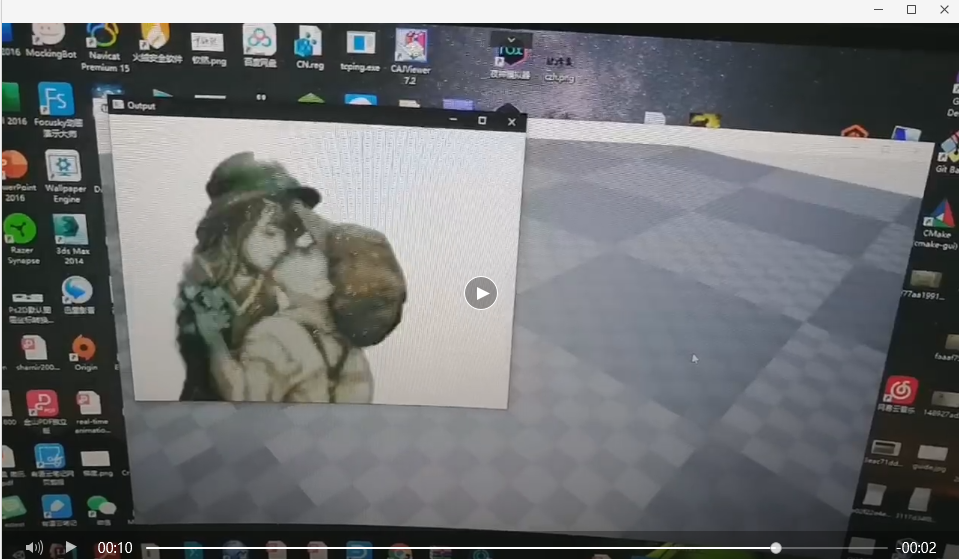

	int argc = 3;
	char* argv[3] = { "--model_dir=D:/NVIDIA_VFX_SDK_Win_0.6.5.2/bin/models",
						"--webcam",
						"--show"};
	int ret = main_test(argc, argv);
	return ret;
}
