博主的此时的环境配置见此前博客
一.图像分类的迁移学习
主要是参考官网Image classification with TensorFlow Lite Model Maker，先安装下tflite-model-maker库
pip install -q tflite-model-maker --ignore-installed

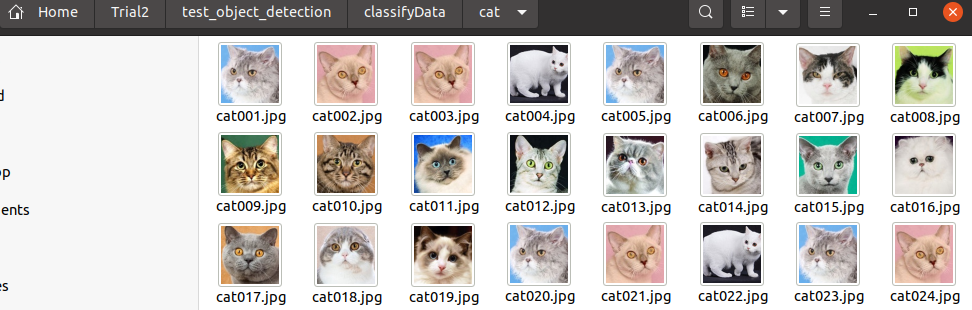

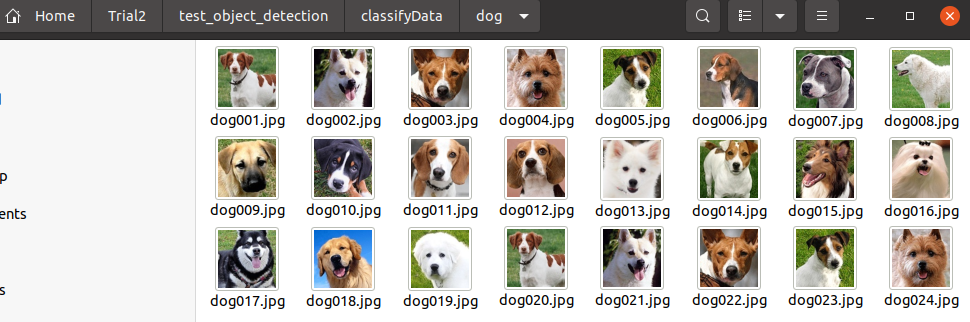

博主通过默认的模型来迁移学习自己的数据集，实现分类，这边就简单实现狗和猫的分类
?上面的数据集在之前博客中用过，可前往下载，博主在官网代码基础上修改了一些，实现代码如下，按照默认的模型路径下载会出现timeout问题，前面博客中也分析了此。
import os
import numpy as np
import tensorflow as tf
assert tf.__version__.startswith('2')
from tflite_model_maker import model_spec
from tflite_model_maker import image_classifier
from tflite_model_maker.config import ExportFormat
from tflite_model_maker.config import QuantizationConfig
from tflite_model_maker.image_classifier import DataLoader
import matplotlib.pyplot as plt
from tensorflow_examples.lite.model_maker.core.task import model_spec as ms
import tensorflow_hub as hub
import time
import cv2
physical_devices = tf.config.list_physical_devices('GPU')
tf.config.experimental.set_memory_growth(physical_devices[0], True)
# A helper function that returns 'red'/'black' depending on if its two input
# parameter matches or not.
def get_label_color(val1, val2):
if val1 == val2:
return 'black'
else:
return 'red'
data = DataLoader.from_folder("./classifyData")
train_data, rest_data = data.split(0.8)
validation_data, test_data = rest_data.split(0.5)
print(train_data.size)
print(validation_data.size)
print(test_data.size)
#plot 25 tranning images
plt.figure(figsize=(10,10))
for i, (image, label) in enumerate(data.gen_dataset().unbatch().take(25)):
plt.subplot(5,5,i+1)
plt.xticks([])
plt.yticks([])
plt.grid(False)
plt.imshow(image.numpy(), cmap=plt.cm.gray)
plt.xlabel(data.index_to_label[label.numpy()])
plt.show()
spec = image_classifier.ModelSpec(uri='https://storage.googleapis.com/tfhub-modules/tensorflow/efficientnet/lite0/feature-vector/2.tar.gz')
spec.input_image_shape = [121, 121]
model = image_classifier.create(train_data, model_spec=spec, validation_data=validation_data, epochs=5)
model.summary()
loss, accuracy = model.evaluate(test_data)
print(loss)
print(accuracy)
#config = QuantizationConfig.for_float16()
#model.export(export_dir='.', tflite_filename='model_fp16.tflite', quantization_config=config)
model.export(export_dir='./classifyMode')
# Then plot 100 test images and their predicted labels.
# If a prediction result is different from the label provided label in "test"
# dataset, we will highlight it in red color.
plt.figure(figsize=(20, 20))
predicts = model.predict_top_k(test_data)
for i, (image, label) in enumerate(test_data.gen_dataset().unbatch().take(100)):
ax = plt.subplot(10, 10, i+1)
plt.xticks([])
plt.yticks([])
plt.grid(False)
plt.imshow(image.numpy(), cmap=plt.cm.gray)
predict_label = predicts[i][0][0]
color = get_label_color(predict_label,
test_data.index_to_label[label.numpy()])
ax.xaxis.label.set_color(color)
plt.xlabel('Predicted: %s' % predict_label)
plt.show()
# Load the TFLite model in TFLite Interpreter
tflite_file_path = "./classifyMode/model.tflite"
interpreter = tf.lite.Interpreter(tflite_file_path)
interpreter.allocate_tensors()
img = cv2.imread('./classifyData/dog/dog001.jpg')
plt.imshow(img)
plt.show()
img_n = img.transpose(2, 0, 1)
img = np.expand_dims(img, axis=0)
print(img.shape)
np.save('array',img)
input = interpreter.get_input_details()[0]
output = interpreter.get_output_details()[0]
interpreter.set_tensor(input['index'], tf.convert_to_tensor(img))
t_model = time.perf_counter()
interpreter.invoke()
print(f'do inference cost:{time.perf_counter() - t_model:.8f}s')
output = interpreter.get_tensor(output['index'])
print(output)
?部分运行结果如下：
38
5
5
2022-04-17 22:07:03.038871: I tensorflow/compiler/mlir/mlir_graph_optimization_pass.cc:185] None of the MLIR Optimization Passes are enabled (registered 2)
Model: "sequential"
_________________________________________________________________
Layer (type) Output Shape Param #
=================================================================
hub_keras_layer_v1v2 (HubKer (None, 1280) 3413024
_________________________________________________________________
dropout (Dropout) (None, 1280) 0
_________________________________________________________________
dense (Dense) (None, 2) 2562
=================================================================
Total params: 3,415,586
Trainable params: 2,562
Non-trainable params: 3,413,024
_________________________________________________________________
None
/home/sxhlvye/anaconda3/envs/testTF/lib/python3.6/site-packages/keras/optimizer_v2/optimizer_v2.py:356: UserWarning: The `lr` argument is deprecated, use `learning_rate` instead.
"The `lr` argument is deprecated, use `learning_rate` instead.")
Epoch 1/5
2022-04-17 22:07:07.756702: I tensorflow/stream_executor/cuda/cuda_dnn.cc:369] Loaded cuDNN version 8100
1/1 [==============================] - 4s 4s/step - loss: 0.9480 - accuracy: 0.5312 - val_loss: 0.6193 - val_accuracy: 0.6000
Epoch 2/5
1/1 [==============================] - 0s 63ms/step - loss: 0.6182 - accuracy: 0.7500 - val_loss: 0.4740 - val_accuracy: 0.6000
Epoch 3/5
1/1 [==============================] - 0s 63ms/step - loss: 0.4008 - accuracy: 0.8750 - val_loss: 0.3973 - val_accuracy: 1.0000
Epoch 4/5
1/1 [==============================] - 0s 65ms/step - loss: 0.2639 - accuracy: 1.0000 - val_loss: 0.3816 - val_accuracy: 0.8000
Epoch 5/5
1/1 [==============================] - 0s 66ms/step - loss: 0.2988 - accuracy: 0.9688 - val_loss: 0.3701 - val_accuracy: 0.8000
Model: "sequential"
_________________________________________________________________
Layer (type) Output Shape Param #
=================================================================
hub_keras_layer_v1v2 (HubKer (None, 1280) 3413024
_________________________________________________________________
dropout (Dropout) (None, 1280) 0
_________________________________________________________________
dense (Dense) (None, 2) 2562
=================================================================
Total params: 3,415,586
Trainable params: 2,562
Non-trainable params: 3,413,024
_________________________________________________________________
1/1 [==============================] - 0s 43ms/step - loss: 0.4794 - accuracy: 0.8000
0.4793754518032074
0.800000011920929
2022-04-17 22:07:11.215935: W tensorflow/python/util/util.cc:348] Sets are not currently considered sequences, but this may change in the future, so consider avoiding using them.
2022-04-17 22:07:13.662071: I tensorflow/stream_executor/cuda/cuda_gpu_executor.cc:937] successful NUMA node read from SysFS had negative value (-1), but there must be at least one NUMA node, so returning NUMA node zero
2022-04-17 22:07:13.662357: I tensorflow/core/grappler/devices.cc:66] Number of eligible GPUs (core count >= 8, compute capability >= 0.0): 1
2022-04-17 22:07:13.662422: I tensorflow/core/grappler/clusters/single_machine.cc:357] Starting new session
2022-04-17 22:07:13.662706: I tensorflow/stream_executor/cuda/cuda_gpu_executor.cc:937] successful NUMA node read from SysFS had negative value (-1), but there must be at least one NUMA node, so returning NUMA node zero
2022-04-17 22:07:13.662998: I tensorflow/stream_executor/cuda/cuda_gpu_executor.cc:937] successful NUMA node read from SysFS had negative value (-1), but there must be at least one NUMA node, so returning NUMA node zero
2022-04-17 22:07:13.663264: I tensorflow/stream_executor/cuda/cuda_gpu_executor.cc:937] successful NUMA node read from SysFS had negative value (-1), but there must be at least one NUMA node, so returning NUMA node zero
2022-04-17 22:07:13.663575: I tensorflow/stream_executor/cuda/cuda_gpu_executor.cc:937] successful NUMA node read from SysFS had negative value (-1), but there must be at least one NUMA node, so returning NUMA node zero
2022-04-17 22:07:13.663846: I tensorflow/stream_executor/cuda/cuda_gpu_executor.cc:937] successful NUMA node read from SysFS had negative value (-1), but there must be at least one NUMA node, so returning NUMA node zero
2022-04-17 22:07:13.664073: I tensorflow/core/common_runtime/gpu/gpu_device.cc:1510] Created device /job:localhost/replica:0/task:0/device:GPU:0 with 3855 MB memory: -> device: 0, name: NVIDIA GeForce GTX 1660 Ti with Max-Q Design, pci bus id: 0000:01:00.0, compute capability: 7.5
2022-04-17 22:07:13.689299: I tensorflow/core/grappler/optimizers/meta_optimizer.cc:1137] Optimization results for grappler item: graph_to_optimize
function_optimizer: Graph size after: 913 nodes (656), 923 edges (664), time = 14.248ms.
function_optimizer: function_optimizer did nothing. time = 0.289ms.
2022-04-17 22:07:14.357053: W tensorflow/compiler/mlir/lite/python/tf_tfl_flatbuffer_helpers.cc:351] Ignored output_format.
2022-04-17 22:07:14.357079: W tensorflow/compiler/mlir/lite/python/tf_tfl_flatbuffer_helpers.cc:354] Ignored drop_control_dependency.
2022-04-17 22:07:14.389818: I tensorflow/compiler/mlir/tensorflow/utils/dump_mlir_util.cc:210] disabling MLIR crash reproducer, set env var `MLIR_CRASH_REPRODUCER_DIRECTORY` to enable.
fully_quantize: 0, inference_type: 6, input_inference_type: 3, output_inference_type: 3
WARNING:absl:For model inputs containing unsupported operations which cannot be quantized, the `inference_input_type` attribute will default to the original type.
(1, 121, 121, 3)
do inference cost:0.32141421s
[[ 9 247]]

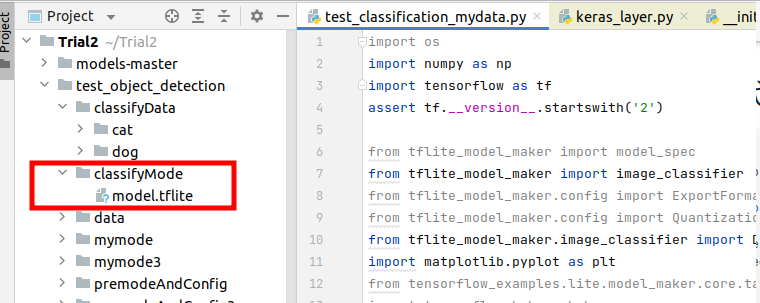

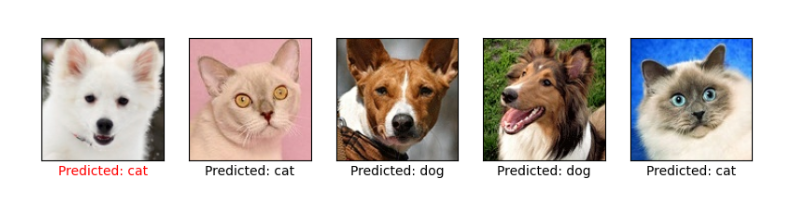

?在获得到tflite模型后，参考我之前博客加载其对图片进行了预测，结果正确。批量预测5张测试集的结果如下：
?有一张图片预测错误了，可以通过条调参等方式来提高识别率，这边就不详细描述了。
官网上还有很多好多一些资料，可详细去看下
二.目标检测的迁移学习
主要参考官网Object Detection with TensorFlow Lite Model Maker
按照官网安装下库
pip install -q --use-deprecated=legacy-resolver tflite-model-maker
pip install -q pycocotools

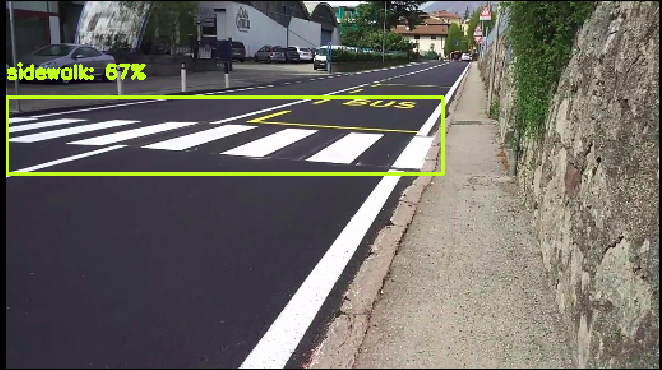

这里还是拿之前的博主自己构造的人行道数据集来做目标检测的实验，此数据集也在多个博客中所引用，关于该数据集的标注及使用可以从之前博客中查找。
ultralytics/yolov3训练预测自己数据集的配置过程_竹叶青lvye的博客-CSDN博客_ultralytics yolov3
balancap/SSD-Tensorflow使用及训练预测自己的数据集_竹叶青lvye的博客-CSDN博客_tensorflow训练自己的数据集
博主这边使用object_detector.DataLoader.from_pascal_voc函数来加载自己的数据集，仿照Pascal_VOC数据集的目录结构，博主构造了三个文件夹，分别作为训练，验证，测试集
数据集下载链接: https://pan.baidu.com/s/1AA6wm6QvT76f95ihiOWr2Q 提取码: kesp
详细代码如下（在官网代码基础上做了一些改动，供参考），至于所用模型的下载路径为什么和官网不同，可见我的之前博客：
import numpy as np
import os
from tflite_model_maker.config import QuantizationConfig
from tflite_model_maker.config import ExportFormat
from tflite_model_maker import model_spec
from tflite_model_maker import object_detector
import cv2
from PIL import Image
import tensorflow as tf
assert tf.__version__.startswith('2')
tf.get_logger().setLevel('ERROR')
from absl import logging
logging.set_verbosity(logging.ERROR)
classes = ['sidewalk']
# Define a list of colors for visualization
COLORS = np.random.randint(0, 255, size=(len(classes), 3), dtype=np.uint8)
def train():
labels = {1: 'sidewalk'}
train_imgs_dir = "./VOC2007_train/JPEGImages"
train_Anno_dir = "./VOC2007_train/Annotations"
valide_imgs_dir = "./VOC2007_valide/JPEGImages"
valide_Anno_dir = "./VOC2007_valide/Annotations"
test_imgs_dir = "./VOC2007_test/JPEGImages"
test_Anno_dir = "./VOC2007_test/Annotations"
traindata = object_detector.DataLoader.from_pascal_voc(train_imgs_dir, train_Anno_dir, labels)
validata = object_detector.DataLoader.from_pascal_voc(valide_imgs_dir, valide_Anno_dir, labels)
testdata = object_detector.DataLoader.from_pascal_voc(test_imgs_dir, test_Anno_dir, labels)
spec = model_spec.get('efficientdet_lite0')
spec.uri = 'https://storage.googleapis.com/tfhub-modules/tensorflow/efficientdet/lite0/feature-vector/1.tar.gz'
spec.input_image_shape = [512, 288]
model = object_detector.create(traindata, model_spec=spec, batch_size=6, train_whole_model=True, validation_data=validata, epochs=120)
model.summary()
model.evaluate(testdata)
model.export(export_dir='./detectMode')
def preprocess_image(image_path, input_size):
"""Preprocess the input image to feed to the TFLite model"""
img = tf.io.read_file(image_path)
img = tf.io.decode_image(img, channels=3)
img = tf.image.convert_image_dtype(img, tf.uint8)
original_image = img
resized_img = tf.image.resize(img, input_size)
resized_img = resized_img[tf.newaxis, :]
resized_img = tf.cast(resized_img, dtype=tf.uint8)
return resized_img, original_image
def detect_objects(interpreter, image, threshold):
"""Returns a list of detection results, each a dictionary of object info."""
signature_fn = interpreter.get_signature_runner()
# Feed the input image to the model
output = signature_fn(images=image)
# Get all outputs from the model
count = int(np.squeeze(output['output_0']))
scores = np.squeeze(output['output_1'])
classes = np.squeeze(output['output_2'])
boxes = np.squeeze(output['output_3'])
results = []
for i in range(count):
if scores[i] >= threshold:
result = {
'bounding_box': boxes[i],
'class_id': classes[i],
'score': scores[i]
}
results.append(result)
return results
def run_odt_and_draw_results(image_path, interpreter, threshold=0.5):
"""Run object detection on the input image and draw the detection results"""
# Load the input shape required by the model
_, input_height, input_width, _ = interpreter.get_input_details()[0]['shape']
# Load the input image and preprocess it
preprocessed_image, original_image = preprocess_image(
image_path,
(input_height, input_width)
)
# Run object detection on the input image
results = detect_objects(interpreter, preprocessed_image, threshold=threshold)
# Plot the detection results on the input image
original_image_np = original_image.numpy().astype(np.uint8)
for obj in results:
# Convert the object bounding box from relative coordinates to absolute
# coordinates based on the original image resolution
ymin, xmin, ymax, xmax = obj['bounding_box']
xmin = int(xmin * original_image_np.shape[1])
xmax = int(xmax * original_image_np.shape[1])
ymin = int(ymin * original_image_np.shape[0])
ymax = int(ymax * original_image_np.shape[0])
# Find the class index of the current object
class_id = int(obj['class_id'])
# Draw the bounding box and label on the image
color = [int(c) for c in COLORS[class_id]]
cv2.rectangle(original_image_np, (xmin, ymin), (xmax, ymax), color, 2)
# Make adjustments to make the label visible for all objects
y = ymin - 15 if ymin - 15 > 15 else ymin + 15
label = "{}: {:.0f}%".format(classes[class_id], obj['score'] * 100)
cv2.putText(original_image_np, label, (xmin, y),
cv2.FONT_HERSHEY_SIMPLEX, 0.5, color, 2)
# Return the final image
original_uint8 = original_image_np.astype(np.uint8)
return original_uint8
if __name__ == '__main__':
#start to train
train()
#start to load the tflite to predict a image
DETECTION_THRESHOLD = 0.3
model_path = './detectMode/model.tflite'
TEMP_FILE = './135.bmp'
# Load the TFLite model
interpreter = tf.lite.Interpreter(model_path=model_path)
interpreter.allocate_tensors()
# Run inference and draw detection result on the local copy of the original file
detection_result_image = run_odt_and_draw_results(
TEMP_FILE,
interpreter,
threshold=DETECTION_THRESHOLD
)
# Show the detection result
image = Image.fromarray(detection_result_image)
image.show()
先会训练，训练完毕后会加载生成的tensorflow lite模型来对图像预测，预测这块方法和之前博客类似，同时把检测的一些信息在原图上画出来。运行如上代码，部分结果信息如下：
Epoch 115/120
3/3 [==============================] - 1s 386ms/step - det_loss: 0.3284 - cls_loss: 0.1994 - box_loss: 0.0026 - reg_l2_loss: 0.0632 - loss: 0.3916 - learning_rate: 2.7517e-05 - gradient_norm: 2.6857 - val_det_loss: 0.3057 - val_cls_loss: 0.2118 - val_box_loss: 0.0019 - val_reg_l2_loss: 0.0632 - val_loss: 0.3689
Epoch 116/120
3/3 [==============================] - 1s 341ms/step - det_loss: 0.2448 - cls_loss: 0.1637 - box_loss: 0.0016 - reg_l2_loss: 0.0632 - loss: 0.3080 - learning_rate: 1.6866e-05 - gradient_norm: 2.1395 - val_det_loss: 0.2840 - val_cls_loss: 0.1994 - val_box_loss: 0.0017 - val_reg_l2_loss: 0.0632 - val_loss: 0.3472
Epoch 117/120
3/3 [==============================] - 1s 430ms/step - det_loss: 0.2688 - cls_loss: 0.1589 - box_loss: 0.0022 - reg_l2_loss: 0.0632 - loss: 0.3320 - learning_rate: 8.8173e-06 - gradient_norm: 2.5229 - val_det_loss: 0.2777 - val_cls_loss: 0.1958 - val_box_loss: 0.0016 - val_reg_l2_loss: 0.0632 - val_loss: 0.3409
Epoch 118/120
3/3 [==============================] - 1s 408ms/step - det_loss: 0.2737 - cls_loss: 0.1875 - box_loss: 0.0017 - reg_l2_loss: 0.0632 - loss: 0.3369 - learning_rate: 3.3753e-06 - gradient_norm: 3.0734 - val_det_loss: 0.2729 - val_cls_loss: 0.1928 - val_box_loss: 0.0016 - val_reg_l2_loss: 0.0632 - val_loss: 0.3361
Epoch 119/120
3/3 [==============================] - 1s 363ms/step - det_loss: 0.2607 - cls_loss: 0.1643 - box_loss: 0.0019 - reg_l2_loss: 0.0632 - loss: 0.3239 - learning_rate: 5.4449e-07 - gradient_norm: 2.8871 - val_det_loss: 0.2664 - val_cls_loss: 0.1890 - val_box_loss: 0.0015 - val_reg_l2_loss: 0.0632 - val_loss: 0.3296
Epoch 120/120
3/3 [==============================] - 1s 433ms/step - det_loss: 0.2595 - cls_loss: 0.1696 - box_loss: 0.0018 - reg_l2_loss: 0.0632 - loss: 0.3227 - learning_rate: 3.2667e-07 - gradient_norm: 2.3589 - val_det_loss: 0.2606 - val_cls_loss: 0.1856 - val_box_loss: 0.0015 - val_reg_l2_loss: 0.0632 - val_loss: 0.3238
Model: ""
_________________________________________________________________
Layer (type) Output Shape Param #
=================================================================
keras_layer (KerasLayer) multiple 3234464
_________________________________________________________________
class_net/class-predict (Sep multiple 1746
_________________________________________________________________
box_net/box-predict (Separab multiple 2916
=================================================================
Total params: 3,239,126
Trainable params: 3,191,990
Non-trainable params: 47,136
_________________________________________________________________
1/1 [==============================] - 3s 3s/step
?预测结果如下：
?
?
