RNN/LSTM
1.RNN与mRNN
mRNN(Multiplicative Recurrent Neural Network)原论文见参考1，其改进在于：
introduce a new RNN variant that uses multiplicative (or “gated”) connections which allow the current input character to determine the transition matrix from one hidden state vector to the next

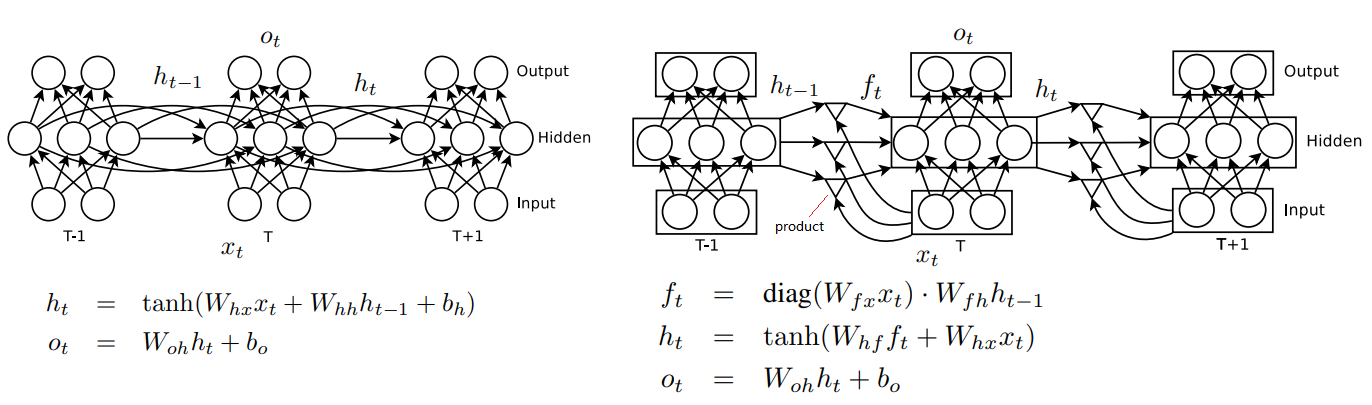

二者结构的差异如下：

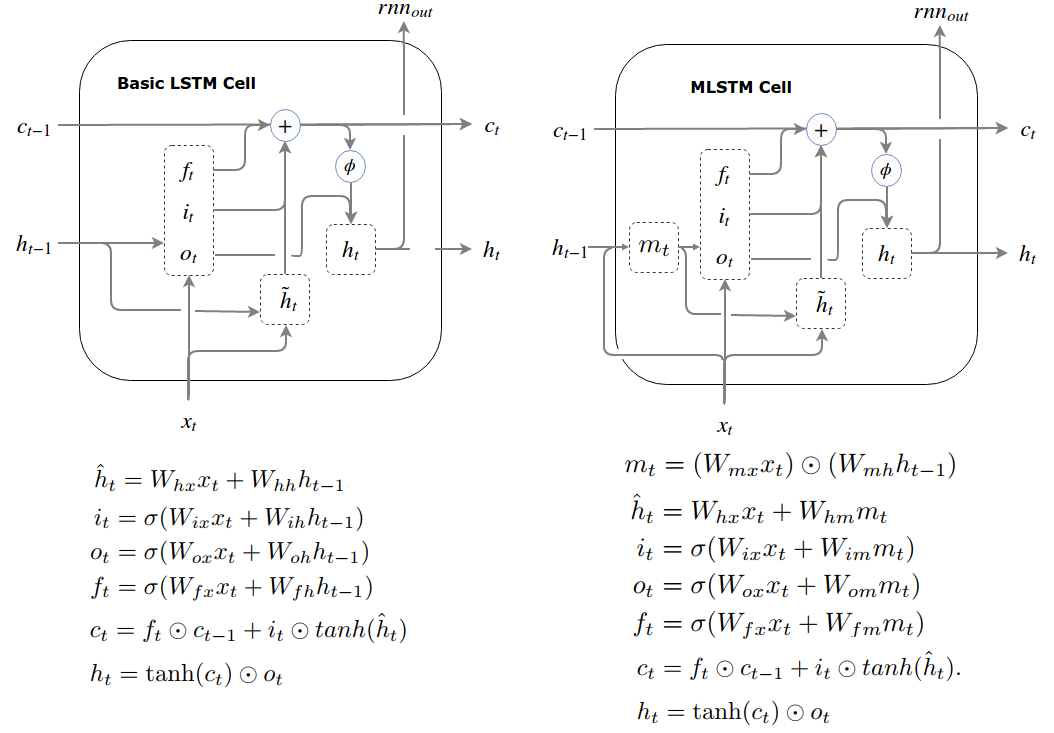

2.LSTM与mLSTM
mLSTM原论文见参考3。
相对于传统LSTM，其主要改进在于：
This mLSTM architecture was motivated by its ability to have both controlled and flexible input-dependent transitions, to allow for fast changes to the distributed hidden representation without erasing information.
代码实现见参考4,5。tf主要内容如下：
def call(self, inputs, state):
m = tf.matmul(inputs, wmx) * tf.matmul(h_prev, wmh)
z = tf.matmul(inputs, wx) + tf.matmul(m, wh) + b
i, f, o, u = tf.split(z, 4, 1)
i = tf.nn.sigmoid(i)
f = tf.nn.sigmoid(f)
o = tf.nn.sigmoid(o)
u = tf.tanh(u)
c = f * c_prev + i * u
h = o * tf.tanh(c)
return h, (c, h)
二者之间的关系与RNN/mRNN基本一致。可谓短小强悍！
未完待续
参考文献
[1] Multiplicative RNN
[2] Written Memories: Understanding, Deriving and Extending the LSTM
[3] MULTIPLICATIVE LSTM FOR SEQUENCE MODELLING
[4] mLSMT tf实现
[5] mLSMT jax实现
