1. 说明
本系列博客记录B站课程《PyTorch深度学习实践》的实践代码课程链接请点我

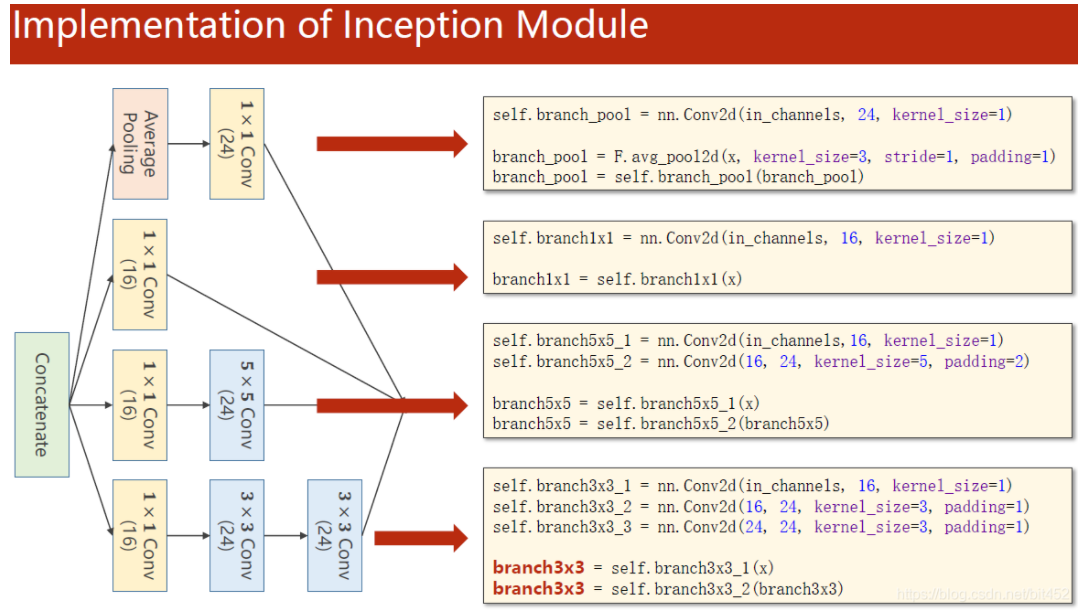

2. InceptionA块
作用：
卷积的超参数太难以选择，Inception块融合多个卷积，使其能够自动寻找最优卷积组合。
3. 代码如下
# ---------------------------
# @Time : 2022/4/21 16:05
# @Author : lcq
# @File : 11_CNN_GPU_advance.py
# @Function : CNN高级--GoogleNet的Inception实验
# ---------------------------
import torch
import torch.nn as nn
import torchvision.utils
from torchvision import transforms
from torchvision import datasets
from torch.utils.data import DataLoader
import torch.nn.functional as F
import torch.optim as optim
import matplotlib.pyplot as plt
import time
# 1.数据准备
batch_size = 64
transform = transforms.Compose([transforms.ToTensor(), transforms.Normalize((0.1307,), (0.3081,))]) # 做归一化和放长
# 1.1: 加载数据
train_dataset = datasets.MNIST(root='../dataset/mnist/', # 获取数据
train=True, # 表示获取数据集
download=True, # 若本地没有，则下载
transform=transform)
# 1.2: 按照batch_size划分成小样本
train_loader = DataLoader(dataset=train_dataset,
shuffle=True,
batch_size=batch_size)
test_dataset = datasets.MNIST(root='../dataset/mnist/', train=False, download=True, transform=transform)
test_loader = DataLoader(dataset=test_dataset, shuffle=True, batch_size=batch_size)
# # 打印图片
# data_iter = iter(test_loader)
# images, labels = data_iter.__next__()
# plt.imshow(images[0].resize(images.shape[2], images.shape[3]), cmap="Greys")
# plt.title("label = {} ".format(labels[0]))
# plt.show()
# 2. 设计基础模型
class InceptionA(torch.nn.Module):
def __init__(self, inChannels): # inChannels表输入通道数
super(InceptionA, self).__init__()
# 2.1 第一层池化 + 1*1卷积
self.branch1_1x1 = nn.Conv2d(in_channels=inChannels, # 输入通道
out_channels=24, # 输出通道
kernel_size=1) # 卷积核大小1*1
# 2.2 第二层1*1卷积
self.branch2_1x1 = nn.Conv2d(inChannels, 16, kernel_size=1)
# 2.3 第三层
self.branch3_1_1x1 = nn.Conv2d(inChannels, 16, kernel_size=1)
self.branch3_2_5x5 = nn.Conv2d(16, 24, kernel_size=5, padding=2) # padding=2,因为要保持输出的宽高保持一致
# 2.4 第四层
self.branch4_1_1x1 = nn.Conv2d(inChannels, 16, kernel_size=1)
self.branch4_2_3x3 = nn.Conv2d(16, 24, kernel_size=3, padding=1)
self.branch4_3_3x3 = nn.Conv2d(24, 24, kernel_size=3, padding=1)
def forward(self, X_input):
# 第一层
branch1_pool = F.avg_pool2d(X_input, # 输入
kernel_size=3, # 池化层的核大小3*3
stride=1, # 每次移动一步
padding=1)
branch1 = self.branch1_1x1(branch1_pool)
# 第二层
branch2 = self.branch2_1x1(X_input)
# 第三层
branch3_1= self.branch3_1_1x1(X_input)
branch3 = self.branch3_2_5x5(branch3_1)
# 第四层
branch4_1 = self.branch4_1_1x1(X_input)
branch4_2 = self.branch4_2_3x3(branch4_1)
branch4 = self.branch4_3_3x3(branch4_2)
# 输出
output = [branch2, branch3, branch4, branch1]
# (batch_size, channel, w, h) dim=1: 即安装通道进行拼接。
# eg: (1, 2, 3, 4) 和 （1, 4, 3, 4）按照dim=1拼接，则拼接后的shape为（1, 2+4, 3, 4）
return torch.cat(output, dim=1)
# 3. 整合模型
class Net(torch.nn.Module):
def __init__(self):
super(Net, self).__init__()
self.conv_1 = nn.Conv2d(in_channels=1, out_channels=10, kernel_size=5)
self.conv_2 = nn.Conv2d(in_channels=88, out_channels=20,
kernel_size=5) # in_channels=88, 原因在于经过InceptionA后拼接起来的通道数为24*3+16=88
self.inceptionA_1 = InceptionA(inChannels=10) # in_channels=10, 要和conv_1的out_channels=10对应
self.inceptionA_2 = InceptionA(inChannels=20)
self.maxPool = nn.MaxPool2d(kernel_size=2)
self.fullConnect = nn.Linear(in_features=1408, # 输入特征1408是下面，self.fullConnect(x)中的x的特征数，即列数
out_features=10) # 输出特征
def forward(self, X_input):
batchSize = X_input.size(0)
# 第一层： 卷积
x = self.conv_1(X_input) # 卷积
x = self.maxPool(x) # 池化
x = F.relu(x) # 激活
# 第二层： InceptionA
x = self.inceptionA_1(x)
# 第三层: 再卷积
x = self.conv_2(x)
x = self.maxPool(x)
x = F.relu(x)
# 第四层： 再InceptionA
x = self.inceptionA_2(x)
# 第五层，全连接层
x = x.view(batchSize, -1) # 表示将（batch_size, channels, w, h）按照batch_size进行拉伸成shape=(batchSize, chanenls*w*h)
# eg: 原x.shape=(64, 2, 3, 4),调用 y =x.view(x.size(0), -1)后，y.shape = (64, 2*3*4)=(64, 24)
y_pred = self.fullConnect(x)
return y_pred
# 4. 创建损失函数和优化器
model = Net()
device = torch.device("cuda" if torch.cuda.is_available() else "cpu")
model.to(device=device)
Loss = nn.CrossEntropyLoss() # 交叉熵损失，计算，# 如：y=[0, 1, 0],
# y_pred=[0.1, 0.6, 0.3] -> 交叉熵损失= -sum{ yln[y_pred]} = 0 + (-ln(0.6)) + 0
optimizer = optim.SGD(params=model.parameters(), # 模型中需要被更新的可学习参数
lr=0.01, # 学习率
momentum=0.9) # 动量值，引入之后的梯度下降由 w_t = w_t_1 - lr*dw
# 变为（1） v_t = momentum*v_t_1 + dw, (2) w_t = w_t_1 - lr*v_t
# 5. 训练
def train(epoch):
running_loss = 0.0
for batch_index, data in enumerate(train_loader, 0):
X_input, Y_label = data
X_input, Y_label = X_input.to(device), Y_label.to(device)
optimizer.zero_grad()
y_pred = model.forward(X_input)
loss = Loss(y_pred, Y_label) # 这里得出的loss,是batch_size=64的64个样本的平均值
loss.backward()
optimizer.step()
running_loss += loss.item()
if batch_index % 300 == 299:
# 打印图片
# plt.imshow(X_input[0].resize(X_input.shape[2], X_input.shape[3]), cmap="Greys")
# plt.title("batch_index={}, y={}, y_pred={} ".format(batch_index, Y_label[0], y_pred[0]))
# plt.show()
print('[%d, %5d] loss: %.3f' % (epoch, batch_index, running_loss / 300))
running_loss = 0.0
# 6. 训练
def test():
correct = 0
total = 0
with torch.no_grad():
for data in test_loader:
X_test_input, Y_test_label = data
X_test_input, Y_test_label = X_test_input.to(device), Y_test_label.to(device)
y_test_pred = model.forward(X_test_input)
_, predicted = torch.max(y_test_pred.data, dim=1) # dim=1, 表示求出列的最大值； 返回两个数，第一个为该列最大值，第二个为最大值的行索引
total += Y_test_label.size(0)
correct += (predicted == Y_test_label).sum().item()
print('测试集正确率: %d %% ' % (100 * correct / total))
if __name__ == '__main__':
startTime = time.time()
for epoch in range(1):
train(epoch)
test()
endTime = time.time()
print("GPU耗时： ", endTime-startTime)
4. 使用GPU跑和CPU跑模型的区别
对于图像化的运算，以前听说GPU跑起来比较快，我不太信。于是就自己多次测试了一下。
当 epoch=1 ，Time_cpu = 76s， Time_gpu = 54秒
快了差不多三分之一。
