Transformer Quality in Linear Time

在这里插入图片描述

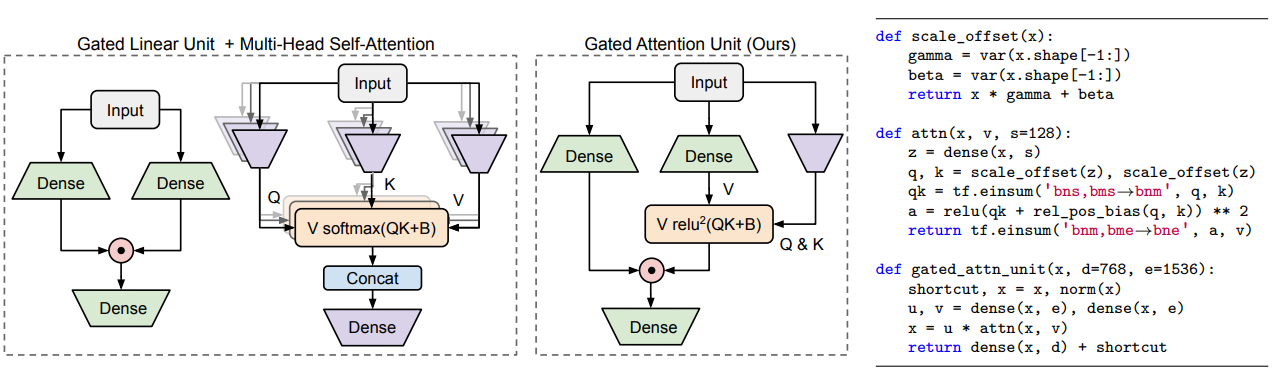

????????本文提出一种新型高效(速度，内存，效果)的注意力方法,依然具有N^2的复杂度（N:同一个 attention 中词向量的个数）。对比:(a) An augmented Transformer layer which consists of two blocks: Gated Linear Unit (GLU) and Multi-Head Self-Attention (MHSA), (b) Our proposed Gated Attention Unit (GAU), ? Pseudocode for Gated Attention Unit. Skip connection and input normalization over the residual branch are omitted in (a), (b) for brevity.

Layer 1 [1,1024,512] x [b,n,d] norm normed_x 512->2048 512->128 Z v gate [1,1024,1024] [1,1024,1024] [1,1024,128] gamma beta [2,128] [2,128] enisum(…d,n d->…，h d) + [1,1024,2,128] QK unbind(-2) Q K [1,1024,128] [1,1024,128] sim 计算向量内积并放缩 [1,1024,1024] relu()**2 A A dropout × V * 1024->512 out 如果使用残差则将输入x也加上注：用*表示哈达玛乘积，×表示矩阵乘积


import torch
import torch.nn as nn
import torch.nn.functional as F
from torch import einsum

class GAU(nn.Module):
    def __init__(
        self,
        dim,
        query_key_dim = 128,
        expansion_factor = 2.,
        add_residual = True,
        dropout = 0.,
    ):
        super().__init__()
        hidden_dim = int(expansion_factor * dim)

        self.norm = nn.LayerNorm(dim)
        self.dropout = nn.Dropout(dropout)

        self.to_hidden = nn.Sequential(
            nn.Linear(dim, hidden_dim * 2),
            nn.SiLU()
        )

        self.to_qk = nn.Sequential(
            nn.Linear(dim, query_key_dim),
            nn.SiLU()
        )

        self.gamma = nn.Parameter(torch.ones(2, query_key_dim))
        self.beta = nn.Parameter(torch.zeros(2, query_key_dim))
        nn.init.normal_(self.gamma, std=0.02)


        self.to_out = nn.Sequential(
            nn.Linear(hidden_dim, dim),
            nn.Dropout(dropout)
        )

        self.add_residual = add_residual

    def forward(self, x):
        seq_len = x.shape[-2]

        normed_x = self.norm(x) #(bs,seq_len,dim)
        v, gate = self.to_hidden(normed_x).chunk(2, dim = -1) #(bs,seq_len,seq_len)

        Z = self.to_qk(normed_x) #(bs,seq_len,query_key_dim)

        QK = einsum('... d, h d -> ... h d', Z, self.gamma) + self.beta
        q, k = QK.unbind(dim=-2)

        sim = einsum('b i d, b j d -> b i j', q, k) / seq_len
		# 注：原文提到\mathcal Q and \mathcal K are two cheap transformations that apply per-dim scalars and offsets to Z
		# 本代码的放缩因子为n

        A = F.relu(sim) ** 2
        A = self.dropout(A)

        V = einsum('b i j, b j d -> b i d', A, v)
        V = V * gate

        out = self.to_out(V)

        if self.add_residual:
            out = out + x

        return out

gau = GAU(
    dim = 512,               # nn.LayerNorm(dim) 对[*, 512]进行norm
    query_key_dim = 128,     # query / key dimension
    expansion_factor = 2,    # hidden dimension = dim * expansion_factor
)

x = torch.randn(1, 1024, 512)
out = gau(x) # (1, 1024, 512)

Vanilla MLP

$\boldsymbol{O}=\phi(\boldsymbol{X}\boldsymbol{W}_u)\boldsymbol{W}_o\\ \boldsymbol{X}\in\mathbb{R}^{n\times d},\boldsymbol{W}_u\in\mathbb{R}^{d\times e},\boldsymbol{W}_o\in\mathbb{R}^{e\times d}$

Gated Linear Unit (GLU)

$\quad \boldsymbol{U}=\phi_u(\boldsymbol{X}\boldsymbol{W}_u), \quad\boldsymbol{V}=\phi_v(\boldsymbol{X}\boldsymbol{W}_v) \in \mathbb{R}^{T\times e}\\ \boldsymbol{O}=(\boldsymbol{U}\odot\boldsymbol{V})\boldsymbol{W}_o \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \in \mathbb{R}^{T\times d}$

Gated Attention Unit (GAU)

$\boldsymbol{Z}=\phi_z(\boldsymbol{X}\boldsymbol{W}_z) \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \in \mathbb{R}^{T\times s} \\ \boldsymbol{A}=\frac{1}{n}\text{relu}^2\left(\frac{\mathcal{Q}(\boldsymbol{Z})\mathcal{K}(\boldsymbol{Z})^{\top}}{\sqrt{s}}\right)=\frac{1}{ns}\text{relu}^2\left(\mathcal{Q}(\boldsymbol{Z})\mathcal{K}(\boldsymbol{Z})^{\top}\right),\in \mathbb{R}^{T\times T}$
