# dataset settings
dataset_type = 'MyDataset'
data_root = './process_ok/mmsegment_label/'
img_norm_cfg = dict(
    mean=[123.675, 116.28, 103.53], std=[58.395, 57.12, 57.375], to_rgb=True)
crop_size = (640, 480)
train_pipeline = [
    dict(type='LoadImageFromFile'),
    dict(type='LoadAnnotations'),
    dict(type='Resize', img_scale=(640, 480), keep_ratio=True),
    dict(type='RandomCrop', crop_size=crop_size, cat_max_ratio=0.75),
    dict(type='RandomFlip', prob=0.5),
    #dict(type='PhotoMetricDistortion', hue_delta=0), #四个参数（参考博客）分别是亮度、对比度、饱和度和色调
    dict(type='Normalize', **img_norm_cfg),
    dict(type='Pad', size=crop_size, pad_val=0, seg_pad_val=255),
    dict(type='DefaultFormatBundle'),
    dict(type='Collect', keys=['img', 'gt_semantic_seg']),
]
test_pipeline = [
    dict(type='LoadImageFromFile'),
    dict(
        type='MultiScaleFlipAug',
        img_scale=(640, 480),
        # img_ratios=[0.5, 0.75, 1.0, 1.25, 1.5, 1.75],
        flip=False,
        transforms=[
            dict(type='Resize', keep_ratio=True),
            dict(type='RandomFlip'),
            dict(type='Normalize', **img_norm_cfg),
            dict(type='ImageToTensor', keys=['img']),
            dict(type='Collect', keys=['img']),
        ])
]

data = dict(
    samples_per_gpu=2,
    workers_per_gpu=2,
    train=dict(
        type=dataset_type,
        data_root=data_root,
        img_dir=['525/images/train'],
        ann_dir=['525/seg_labels/train'],
        pipeline=train_pipeline,
        split="splits/train.txt"),
    val=dict(
        type=dataset_type,
        data_root=data_root,
        img_dir=['525/images/val'],
        ann_dir=['525/seg_labels/val'],
        split="splits/val.txt",
        pipeline=test_pipeline),
    test=dict(
        type=dataset_type,
        data_root=data_root,
        img_dir=['525/images/val'],
        ann_dir=['525/seg_labels/val'],
        split="splits/val.txt",
        pipeline=test_pipeline))

splits/train.txt 和splits/val.txt生成使用代码:

'''
生成mmsegment训练使用的split
'''
import mmcv
import os.path as osp
if __name__ == '__main__':
  data_root = "./mmsegmentation-master/"
  ann_dir = "./mmsegmentation_label/525/seg_labels/train"
  split_dir = './mmsegmentation_label/splits'
  mmcv.mkdir_or_exist(osp.join(data_root, split_dir))
  filename_list = [osp.splitext(filename)[0] for filename in mmcv.scandir(
      osp.join('', ann_dir), suffix='.png')]
  with open(osp.join(data_root, split_dir, 'train.txt'), 'w') as f:
    # select first 4/5 as train set
    train_length = int(len(filename_list)*4/5)
    f.writelines(line + '\n' for line in filename_list[:train_length])
  with open(osp.join(data_root, split_dir, 'val.txt'), 'w') as f:
    # select last 1/5 as train set
    f.writelines(line + '\n' for line in filename_list[train_length:])

在mmsegmentation-master/mmseg/datasets中加入my_dataset.py

# Copyright (c) OpenMMLab. All rights reserved.

from .builder import DATASETS
from .custom import CustomDataset


@DATASETS.register_module()
class MyDataset(CustomDataset):
    """PascalContext dataset.

    In segmentation map annotation for PascalContext, 0 stands for background,
    which is included in 60 categories. ``reduce_zero_label`` is fixed to
    False. The ``img_suffix`` is fixed to '.jpg' and ``seg_map_suffix`` is
    fixed to '.png'.

    Args:
        split (str): Split txt file for PascalContext.
    """

    CLASSES = ('knife', 'lighter')

    PALETTE = [[0, 200, 0], [0, 0, 200]]

    def __init__(self, split, **kwargs):
        super(MyDataset, self).__init__(
            img_suffix='.jpg',
            seg_map_suffix='.png',
            split=split,
            reduce_zero_label=True,
            **kwargs)
        assert self.file_client.exists(self.img_dir) and self.split is not None

在?mmsegmentation-master/mmseg/datasets/__init__.py中加入

from .my_dataset import MyDataset

在__all__ 的list中加入：'MyDataset'

2.backbone选择

1)预训练模型的下载

以segformer为例；

进入mmsegmentation-master/configs/segformer/segformer.yml中有各种预训练模型下载的网址链接；

2)设置最大训练epoch数，以及多少个epoch训练一次

可进入/mmsegmentation-master/configs/_base_/schedules中的采用的文件中，以schedule_20k.py为例；

原始：

runner = dict(type='IterBasedRunner', max_iters=20000)
checkpoint_config = dict(by_epoch=False, interval=2000)
evaluation = dict(interval=2000, metric='mIoU', pre_eval=True)

修改为：

runner = dict(type='EpochBasedRunner', max_epochs=200)
checkpoint_config = dict(by_epoch=True, interval=10)
evaluation = dict(by_epoch=True, interval=5, metric='mIoU', pre_eval=True)

3)预训练模型的加载

以segformer为例，加载预训练模型的位置在mmsegmentation-master/mmseg/models/backbones/mit.py

    def init_weights(self):
        if self.init_cfg is None:#无预训练模型
            for m in self.modules():
                if isinstance(m, nn.Linear):
                    trunc_normal_init(m, std=.02, bias=0.)
                elif isinstance(m, nn.LayerNorm):
                    constant_init(m, val=1.0, bias=0.)
                elif isinstance(m, nn.Conv2d):
                    fan_out = m.kernel_size[0] * m.kernel_size[
                        1] * m.out_channels
                    fan_out //= m.groups
                    normal_init(
                        m, mean=0, std=math.sqrt(2.0 / fan_out), bias=0)
        else:
            super(MixVisionTransformer, self).init_weights()#有预训练模型

3.优化器选择

4.训练

1）单卡训练

python tools/train.py ./configs/segformer/total_config1.py --work-dir ./runs   --gpu-id 0  0

单卡训练时，将train中config改为了?--config，这也导致了后面采用多卡时，参数无法识别；后面就改回去了；

2）多卡训练

bash tools/dist_train.sh configs/segformer/total_config1.py 2 --work-dir ./runs

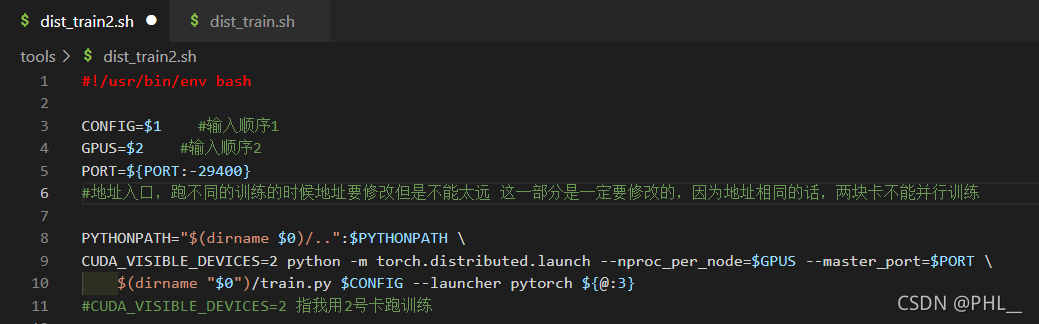

参数1（configs/segformer/total_config1.py）和参数2（2）分别对应dist_train.sh中的CONFIG=$1和GPUS=$2；

插图来源于：蒸馏模型更换backbone(错误合集)_PHL__的博客-CSDN博客?

4.loss+结果回传

5.结果

x光机数据效果：

?注：绿色的地方是一把美工刀，/(ㄒoㄒ)/~~

报错

1）type object 'FileClient' has no attribute 'infer_client'

self.file_client = mmcv.FileClient.infer_client(self.file_client_args)
AttributeError: type object 'FileClient' has no attribute 'infer_client'

报错原因：安装的mmcv-full与mmsegment版本不匹配

解决方案：参考以下网址安装匹配的版本；

mmsegmentation/get_started.md at master · open-mmlab/mmsegmentation · GitHub

2）It is expected output_size equals to 2, but got size 3

File "/home/ray/anaconda3/envs/mmsegmentation/lib/python3.7/site-packages/torch/nn/functional.py", line 3163, in interpolate
return torch._C._nn.upsample_bilinear2d(input, output_size, align_corners, sfl[0], sfl[1])
RuntimeError: It is expected output_size equals to 2, but got size 3

报错原因：分割标签不正确

解决方法：本人数据标签是yolov5格式的标签标签类别+归一化的多坐标点（label x1 y1 x2 y2 x3 y3 x4 y4 ... ...）

img = cv2.imread(img_path)
h, w = img.shape[:2]
size = (h, w)  # ( annotation.imgWidth , annotation.imgHeight )


# labelImg = Image.new("L", size, 0)
labelImg = np.zeros(size, np.uint8)
labelImg[:, :] = 0
# drawer = ImageDraw.Draw(labelImg)

lines = open(txt_path, 'r', encoding='utf-8').readlines()
save_label = False


result_list = []
for line in lines:
    dict_result = {}
    # print(line, img[:-4]+'.txt')
    # point = list(map(int, line.strip().split(' ')))

    label = line.strip().split(' ')[0]
    label_name = dict_label[label]
    dict_result["category"] = label_name



    points = list(map(float, line.strip().split(' ')[1:]))  # 读取中点，w，h
    widths = [x * w for x in points[::2]]
    heights = [y * h for y in points[1::2]]

    polygon = []
    for i_ in range(len(widths)):
        ptStart = [widths[i_], heights[i_]]
        polygon.append(ptStart)

    points = np.array(polygon, dtype=np.int32)
    if label == '0':
        # drawer.polygon(polygon, fill=100)
        # labelImg[:, :, 1] = 2

        cv2.fillPoly(labelImg, [points], color=(1))#color=(0, 200, 0))

    elif label == '1':
        # drawer.polygon(polygon, fill=200)
        # labelImg[:, :, 2] = 2
        cv2.fillPoly(labelImg, [points], color=(2))#color=(0, 0, 200))
    else:
        print('label is error:', label)

参考：https://github.com/open-mmlab/mmsegmentation/issues/550

https://github.com/open-mmlab/mmsegmentation/issues/626

在docs/zh_cn/tutorials中也有说明：

注意：标注是跟图像同样的形状 (H, W)，其中的像素值的范围是 `[0, num_classes - 1]`。
您也可以使用 [pillow](https://pillow.readthedocs.io/en/stable/handbook/concepts.html#palette) 的 `'P'` 模式去创建包含颜色的标注。

3）训练测试结果报NAN

解决办法：reduce_zero_label=False，

4）KeyError: 'MyDataset is not in the dataset registry'

如果你已经安装官方要求进行了数据层的修改（https://github.com/MengzhangLI/mmsegmentation/blob/add_doc_customization_dataset/docs/en/tutorials/customize_datasets.md#how-to-prepare-your-own-dataset）还是报数据层没有注册，那么可以按照一下方式解决；

File "/opt/conda/lib/python3.8/site-packages/mmcv/utils/registry.py", line 44, in build_from_cfg
    raise KeyError(
KeyError: 'MyDataset is not in the dataset registry'

解决办法：进入工程，对工程进行本地安装

# pwd
/home/jovyan/XXX/semantic_segment/mmsegmentation-master
# pip install -e .

?在get_started.md中也有相关的说明：

Here is a full script for setting up mmsegmentation with conda and link the dataset path (supposing that your dataset path is $DATA_ROOT).

```shell
conda create -n open-mmlab python=3.10 -y
conda activate open-mmlab

conda install pytorch=1.11.0 torchvision cudatoolkit=11.3 -c pytorch
pip install mmcv-full -f https://download.openmmlab.com/mmcv/dist/cu113/torch1.11.0/index.html
git clone https://github.com/open-mmlab/mmsegmentation.git
cd mmsegmentation
pip install -e . ?# or "python setup.py develop"

5）预训练模型和加载的网络结构层名有差异,unexpected key in source state_dict:

报错：

unexpected key in source state_dict: ...(在此省略报错的层名)

missing keys in source state_dict:...(在此省略报错的层名)

使用bycompare对比层名，发现问题：

My pretrained model key vales                  |    backbone model parameters

backbone.layers.0.ln1.weight    ->  backbone.layers.0.ln1.weight
backbone.layers.0.ln1.bias    -> backbone.layers.0.ln1.bias
backbone.layers.0.attn.qkv.weight  -> backbone.layers.0.attn.attn.in_proj_weight    -----> different
backbone.layers.0.attn.qkv.bias    -> backbone.layers.0.attn.attn.in_proj_bias     -----> different
backbone.layers.0.attn.proj.weight    -> backbone.layers.0.attn.attn.out_proj.weight     -----> different
backbone.layers.0.attn.proj.bias    -> backbone.layers.0.attn.attn.out_proj.bias     -----> different

解决方法：将预训练模型的层名修改一下，重新存储后在加载：

import torch
from collections import OrderedDict

new_state_dict = OrderedDict()
state_dict = torch.load('./segformer_mit-b0_512x512_160k_ade20k_20210726_101530-8ffa8fda.pth')
for k, v in state_dict['state_dict'].items():
    k = k.replace('backbone.', '')   # remove prefix backbone.
    new_state_dict[k] = v

result_dict = {}
result_dict['meta'] = state_dict['meta']
result_dict['state_dict'] = new_state_dict

orch.save(new_state_dict, './segformer_mit-b0_512x512_160k_ade20k_20210726_101530-8ffa8fda_nobackbone.pth')

可参考：https://github.com/open-mmlab/mmsegmentation/issues/1473

6）使用多卡训练时报错：tools/dist_train.sh：Bad substitutation

将sh dist_train.sh 改为 bash? dist_train.sh；

参考：https://blog.csdn.net/weixin_41529093/article/details/118386064

7)results['ann_info']['seg_map'])? KeyError: 'ann_info

Traceback (most recent call last):
  File "tools/train.py", line 243, in <module>
    main()
  File "tools/train.py", line 232, in main
    train_segmentor(
  File "/home/jovyan/XXX/semantic_segment/mmsegmentation-master/mmseg/apis/train.py", line 191, in train_segmentor
    runner.run(data_loaders, cfg.workflow)
  File "/opt/conda/lib/python3.8/site-packages/mmcv/runner/epoch_based_runner.py", line 127, in run
    epoch_runner(data_loaders[i], **kwargs)
  File "/opt/conda/lib/python3.8/site-packages/mmcv/runner/epoch_based_runner.py", line 54, in train
    self.call_hook('after_train_epoch')
  File "/opt/conda/lib/python3.8/site-packages/mmcv/runner/base_runner.py", line 309, in call_hook
    getattr(hook, fn_name)(self)
  File "/opt/conda/lib/python3.8/site-packages/mmcv/runner/hooks/evaluation.py", line 267, in after_train_epoch
    self._do_evaluate(runner)
  File "/home/jovyan/XXX/semantic_segment/mmsegmentation-master/mmseg/core/evaluation/eval_hooks.py", line 113, in _do_evaluate
    results = multi_gpu_test(
  File "/home/jovyan/XXX/semantic_segment/mmsegmentation-master/mmseg/apis/test.py", line 206, in multi_gpu_test
    for batch_indices, data in zip(loader_indices, data_loader):
  File "/opt/conda/lib/python3.8/site-packages/torch/utils/data/dataloader.py", line 435, in __next__
    data = self._next_data()
  File "/opt/conda/lib/python3.8/site-packages/torch/utils/data/dataloader.py", line 1085, in _next_data
    return self._process_data(data)
  File "/opt/conda/lib/python3.8/site-packages/torch/utils/data/dataloader.py", line 1111, in _process_data
    data.reraise()
  File "/opt/conda/lib/python3.8/site-packages/torch/_utils.py", line 428, in reraise
    raise self.exc_type(msg)
KeyError: Caught KeyError in DataLoader worker process 0.
Original Traceback (most recent call last):
  File "/opt/conda/lib/python3.8/site-packages/torch/utils/data/_utils/worker.py", line 198, in _worker_loop
    data = fetcher.fetch(index)
  File "/opt/conda/lib/python3.8/site-packages/torch/utils/data/_utils/fetch.py", line 44, in fetch
    data = [self.dataset[idx] for idx in possibly_batched_index]
  File "/opt/conda/lib/python3.8/site-packages/torch/utils/data/_utils/fetch.py", line 44, in <listcomp>
    data = [self.dataset[idx] for idx in possibly_batched_index]
  File "/opt/conda/lib/python3.8/site-packages/torch/utils/data/dataset.py", line 218, in __getitem__
    return self.datasets[dataset_idx][sample_idx]
  File "/home/jovyan/XXX/semantic_segment/mmsegmentation-master/mmseg/datasets/custom.py", line 214, in __getitem__
    return self.prepare_test_img(idx)
  File "/home/jovyan/XXX/semantic_segment/mmsegmentation-master/mmseg/datasets/custom.py", line 249, in prepare_test_img
    return self.pipeline(results)
  File "/home/jovyan/XXX/semantic_segment/mmsegmentation-master/mmseg/datasets/pipelines/compose.py", line 41, in __call__
    data = t(data)
  File "/home/jovyan/XXX/semantic_segment/mmsegmentation-master/mmseg/datasets/pipelines/loading.py", line 131, in __call__
    results['ann_info']['seg_map'])
KeyError: 'ann_info'

报错原因：

dataset_2009_test = dict(
? ? type=dataset_type,
? ? data_root=data_root,
? ? img_dir=['2009/images/train'],
? ? ann_dir=['2009/seg_labels/train'],
? ? pipeline=test_pipeline,
? ? split="splits/2009_train.txt"
)

中的pipeline=test_pipeline,写成了'pipeline=train_pipeline,',改过来就可以了；

参考：

https://github.com/open-mmlab/mmdetection/issues/5351

https://github.com/open-mmlab/mmdetection/issues/4881
