简介
Frontier 是 Substrate 的以太坊兼容层。它允许您运行未经修改以太坊 dapp。
以太坊兼容层的目标是能够：
- 通过兼容层运行一个普通的 web3 应用程序，使用本地节点，其中额外的网桥二进制文件是可以接受的。
- 能够从以太坊主网导入状态
部署
- clone代码
git clone https://github.com/paritytech/frontier.git
cd template
- 构建(比较耗时)
cargo build --release
- 添加账户(已导入到metamask)
修改template/node/src/chain_spec.rs,这里最后一个账号5763e8fea803CAa7b2D6C18709Ef36b1b54fc1Cf是我们新添加的
evm: EVMConfig {
accounts: {
let mut map = BTreeMap::new();
......
......
map.insert(
H160::from_str("5763e8fea803CAa7b2D6C18709Ef36b1b54fc1Cf")
.expect("internal H160 is valid; qed"),
pallet_evm::GenesisAccount {
balance: U256::from_str("0xffffffffffffffffffffffffffffffff")
.expect("internal U256 is valid; qed"),
code: Default::default(),
nonce: Default::default(),
storage: Default::default(),
},
);
map
},
}
- 启动
./target/release/frontier-template-node --dev --tmp --ws-external
2021-10-20 12:28:44 Running in --dev mode, RPC CORS has been disabled.
2021-10-20 12:28:44 Frontier Node
2021-10-20 12:28:44 ?? version 0.0.0-8b34fb3-x86_64-linux-gnu
2021-10-20 12:28:44 ?? by Substrate DevHub <https://github.com/substrate-developer-hub>, 2021-2021
2021-10-20 12:28:44 📋 Chain specification: Development
2021-10-20 12:28:44 🏷 Node name: regular-smash-8365
2021-10-20 12:28:44 👤 Role: AUTHORITY
2021-10-20 12:28:44 💾 Database: RocksDb at /tmp/substrateThe7EF/chains/dev/db/full
2021-10-20 12:28:44 ? Native runtime: node-frontier-template-1 (node-frontier-template-1.tx1.au1)
2021-10-20 12:28:44 🔨 Initializing Genesis block/state (state: 0x68e5…2119, header-hash: 0xaf46…4ef5)
2021-10-20 12:28:44 👴 Loading GRANDPA authority set from genesis on what appears to be first startup.
2021-10-20 12:28:45 ? Loaded block-time = 6s from block 0xaf467f5c8683e1317ff3e426253f5d53f15adc9227c67f2ea483cca6db964ef5
2021-10-20 12:28:45 Using default protocol ID "sup" because none is configured in the chain specs
2021-10-20 12:28:45 🏷 Local node identity is: 12D3KooWRmxzyA7K1mDvemBTW2GuqS3GeW2XcVkjenmjygw9fLD6
2021-10-20 12:28:45 📦 Highest known block at #0
2021-10-20 12:28:45 ?? Prometheus exporter started at 127.0.0.1:9615
2021-10-20 12:28:45 Listening for new connections on 0.0.0.0:9944.
2021-10-20 12:28:48 🙌 Starting consensus session on top of parent 0xaf467f5c8683e1317ff3e426253f5d53f15adc9227c67f2ea483cca6db964ef5
2021-10-20 12:28:48 🎁 Prepared block for proposing at 1 [hash: 0xcd08fddbf3574f5207548efa138bb8f303b58b08f803f6c8a01d70ff4bb78dca; parent_hash: 0xaf46…4ef5; extrinsics (2): [0x8542…22c3, 0x549b…7957]]
2021-10-20 12:28:48 🔖 Pre-sealed block for proposal at 1. Hash now 0xfe92b68fb7ce5ffe92d0cbf74ca3b5efe07638a8ea6d79cc5ff3e82cce73a7d3, previously 0xcd08fddbf3574f5207548efa138bb8f303b58b08f803f6c8a01d70ff4bb78dca.
2021-10-20 12:28:48 ? Imported #1 (0xfe92…a7d3)
2021-10-20 12:28:48 Accepted a new tcp connection from 119.123.221.119:52362.
2021-10-20 12:28:50 💤 Idle (0 peers), best: #1 (0xfe92…a7d3), finalized #0 (0xaf46…4ef5), ? 0 ? 0
2021-10-20 12:28:54 🙌 Starting consensus session on top of parent 0xfe92b68fb7ce5ffe92d0cbf74ca3b5efe07638a8ea6d79cc5ff3e82cce73a7d3
使用rpc接口查看账户余额
连接metamask
设置网络,网络id为42

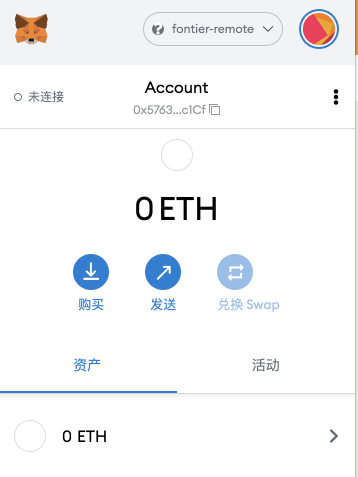

可以看到余额不能正常显示，这样remix等工具就不能使用了
连接polkadot-js
可以本地启动一个，也可以直接使用https://polkadot.js.org/apps/#/explorer
docker run --rm -it --name polkadot-ui -e WS_URL=ws://yourip:9944 -p 80:80 jacogr/polkadot-js-apps:latest
打开浏览器访问,可以正常使用
使用polkadot-js查看账户余额
进入设置，开发者，配置以下json
{
"Address": "MultiAddress",
"LookupSource": "MultiAddress",
"Account": {
"nonce": "U256",
"balance": "U256"
},
"Transaction": {
"nonce": "U256",
"action": "String",
"gas_price": "u64",
"gas_limit": "u64",
"value": "U256",
"input": "Vec<u8>",
"signature": "Signature"
},
"Signature": {
"v": "u64",
"r": "H256",
"s": "H256"
}
}

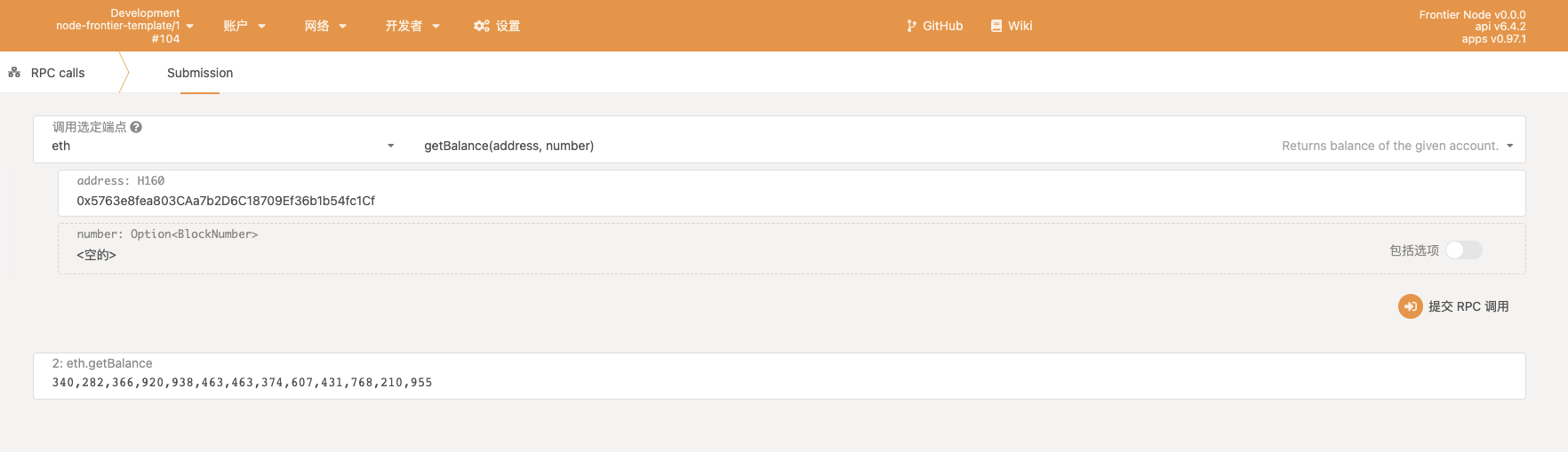

RPC calls选项卡查询 eth > getBalance(address, number) 查看账户余额
使用polkadot-js部署智能合约
打开polkadot-js,进入超级管理
选择evm，再选择create
填入参数
bytecode来自这里
source: 0xd43593c715fdd31c61141abd04a99fd6822c8558
init: <raw contract bytecode, a very long hex value>
value: 0
gas_limit: 4294967295
gas_price: 1
nonce: <empty> {None}
点击提交sudo

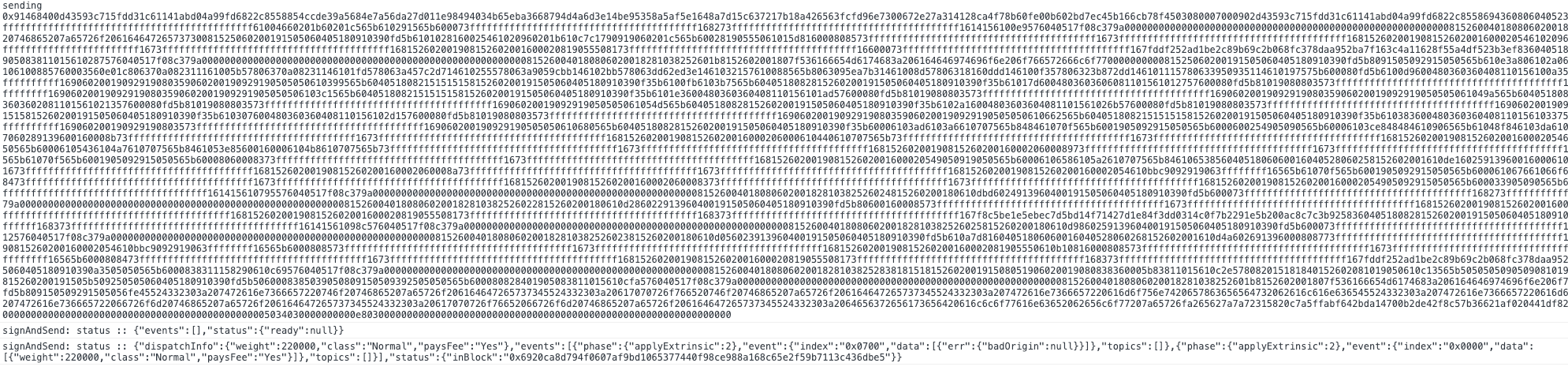

打开f12 查看console。点击签名并提交

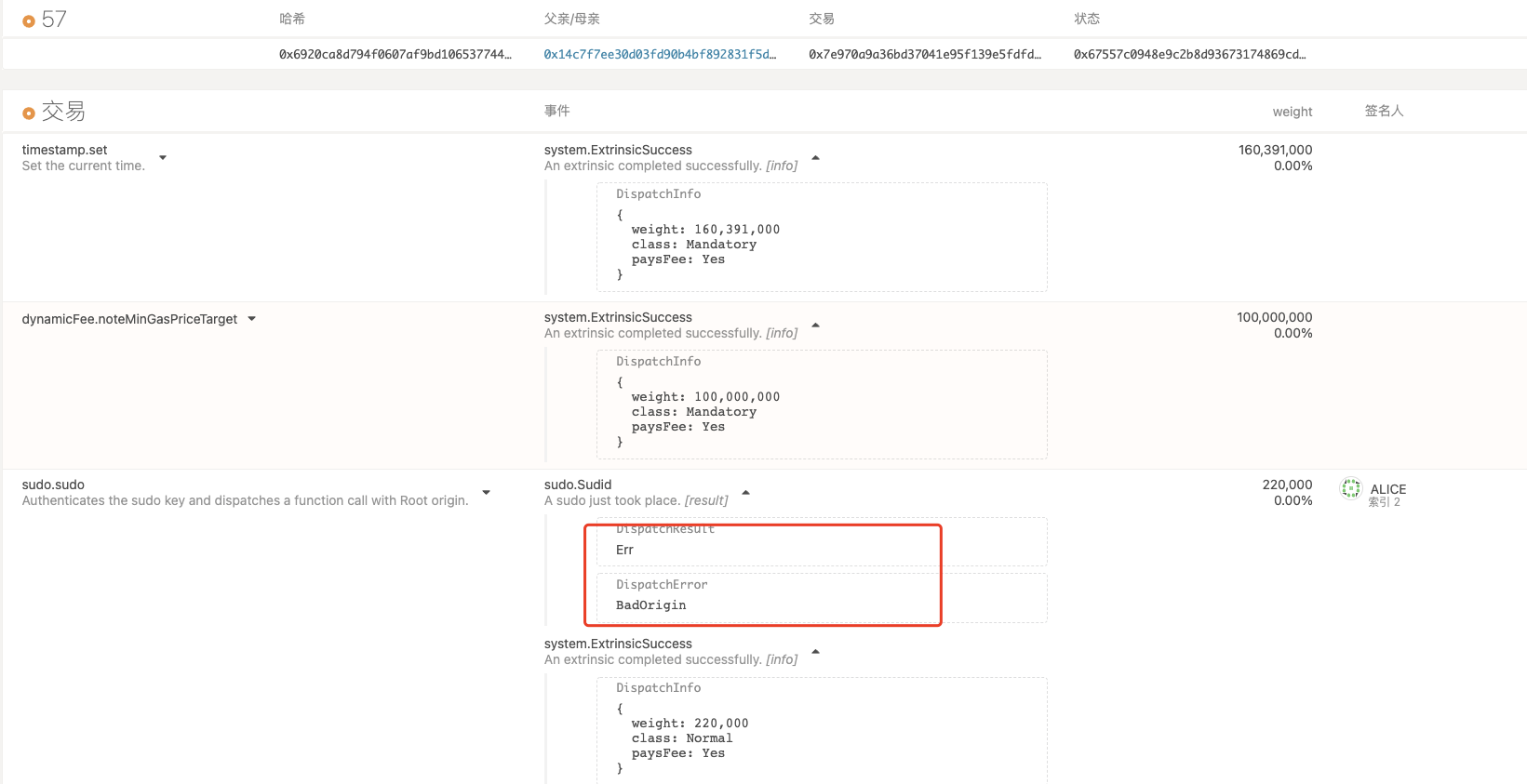

失败！返回badOrigin 目前最新代码还有问题？？
根据blockId查看
