[区块链]Bitcoin script

1. 引言

Bitcoin script可用于实现比特币网络的智能合约，其为stack-based（First in Last out），自左向右执行的。Bitcoin script不具备loops，为非图灵完备的。

a script本质为：

• 记录在交易中的一组指令，用于描述下一个人该如何来花费 在该交易中所发送的bitcoin。

一笔发送bitcoin到目标地址$D$的交易，其script中包含了下一个spender需提供的2个信息：

• 1）一个公钥，当对该公钥进行hash运算，结果与script中嵌入的目标地址$D$一致。
• 2）一个签名，用于证明该spender具有与该公钥对应的私钥。

script可灵活修改spend transferred bitcoin的参数，如可要求具有2个私钥、一组秘钥、甚至可以不要秘钥。

若交易中的script未触发failure，且当script执行完退出时the top stack item为True（非零值）时，即可认为该笔交易是valid的。

script中的opcodes分为如下类型：

• constants
• flowcontrol
• stack
• splice
• bitwise
• logic
• arithmetic
• crypto
• arithmetic
• crypto
• locktime
• pesudo-words
• reserved words

详细参看：Bitcoin wiki——Script

关键opcode有：

• Constants

• Locktime

• Stack

• Flow control

• Crypto

• Bitwise logic

• Splice

2. Bitcoin script debug

可使用 btcdeb 来进行script调试。

btcdeb可提供的功能有：

btcdeb> help
step     Execute one instruction and iterate in the script.
rewind   Go back in time one instruction.
stack    Print stack content.
altstack Print altstack content.
vfexec   Print vfexec content.
exec     Execute command.
tf       Transform a value using a given function.
print    Print script.
help     Show help information.
btcdeb> tf -h
echo             [*]       show as-is serialized value
hex              [*]       convert into a hex string
int              [arg]     convert into an integer
reverse          [arg]     reverse the value according to the type
sha256           [message] perform SHA256
ripemd160        [message] perform RIPEMD160
hash256          [message] perform HASH256 (SHA256(SHA256(message))
hash160          [message] perform HASH160 (RIPEMD160(SHA256(message))
base58chk-encode [pubkey]  encode [pubkey] using base58 encoding (with checksum)
base58chk-decode [string]  decode [string] into a pubkey using base58 encoding (with checksum)
bech32-encode    [pubkey]  encode [pubkey] using bech32 encoding
bech32-decode    [string]  decode [string] into a pubkey using bech32 encoding
verify-sig       [sighash] [pubkey] [signature] verify the given signature for the given sighash and pubkey (der)
compact-verify-sig [sighash] [pubkey] [signature] verify the given signature for the given sighash and pubkey (compact)
combine-pubkeys  [pubkey1] [pubkey2] combine the two pubkeys into one pubkey
tweak-pubkey     [value] [pubkey] multiply the pubkey with the given 32 byte value
pubkey-to-xpubkey [pubkey] convert the given pubkey into an x-only pubkey, as those used in taproot/tapscript
addr-to-scriptpubkey [address] convert a base58 encoded address into its corresponding scriptPubKey
scriptpubkey-to-addr [script]  convert a scriptPubKey into its corresponding base58 encoded address
add              [value1] [value2] add two values together
sub              [value1] [value2] subtract value2 from value1
jacobi-symbol    [n] ([k]) calculate the Jacobi symbol for n modulo k, where k defaults to the secp256k1 field size
tagged-hash      [tag] [message] generate the [tag]ged hash of [message]
taproot-tweak-pubkey [pubkey] [tweak] tweak the pubkey with the tweak
prefix-compact-size [value] prefix [value] with its compact size encoded byte length

The inline operators have slightly different names; they are called: echo, hex, int, reverse, sha256, ripemd160, hash256, hash160, base58chkenc, base58chkdec, bech32enc, bech32dec, verify_sig, combine_pubkeys, tweak_pubkey, pubkey_to_xpubkey, addr_to_spk, spk_to_addr, add, sub, jacobi, tagged_hash, taproot_tweak_pubkey, prefix_compact_size

如对于script：【即判断 6-2=4是否成立？】

OP_6 OP_2 OP_SUB OP_4 OP_EQUAL

采用btcdeb运行的结果为：

$ btcdeb ['OP_6 OP_2 OP_SUB OP_4 OP_EQUAL']
btcdeb 0.4.21 -- type `btcdeb -h` for start up options
LOG: sign segwit taproot
notice: btcdeb has gotten quieter; use --verbose if necessary (this message is temporary)
5 op script loaded. type `help` for usage information
script   |  stack
---------+--------
6        |
2        |
OP_SUB   |
4        |
OP_EQUAL |
#0000 6
btcdeb> step
		<> PUSH stack 06
script   |  stack
---------+--------
2        |      06
OP_SUB   |
4        |
OP_EQUAL |
#0001 2
btcdeb> step
		<> PUSH stack 02
script   |  stack
---------+--------
OP_SUB   |      02
4        |      06
OP_EQUAL |
#0002 OP_SUB
btcdeb> step
		<> POP  stack
		<> POP  stack
		<> PUSH stack 04
script   |  stack
---------+--------
4        |      04
OP_EQUAL |
#0003 4
btcdeb> step
		<> PUSH stack 04
script   |  stack
---------+--------
OP_EQUAL |      04
         |      04
#0004 OP_EQUAL
btcdeb> step
		<> POP  stack
		<> POP  stack
		<> PUSH stack 01
script   |  stack
---------+--------
         |      01
btcdeb>

最终输出结果为01，表示6-2=4 成立。

3. Bitcoin script分类

Bitcoin transactions encodes spending conditions through:

• a scriptPubKey in outputs。
• a witness and scriptSig in inputs。

具体可参看：

• Bitcoin Core PR Review Club 2021年7月7日发布的 Use script_util helpers for creating P2{PKH,SH,WPKH,WSH} scripts (tests, refactoring)
• What are the scriptPubKey, scriptSig, redeem script and witness for the various output types?
• BIP-0141 之 examples
• Bitcoin script

• 1）P2PK（Pay To Pubkey）：为a script pattern that locks an output to a public key。

• 2）P2PKH（Pay To Pubkey Hash）：为the most common script used for locking an output to someone’s public key。、

• 3）P2MS（Pay To Multisig）：2012年1月引入，用于lock bitcoins to multiple public keys，且要求signatures for some (or all) of those public keys to unlock it。P2MS并不多见，大多数multisig transactions都使用P2SH script实现。

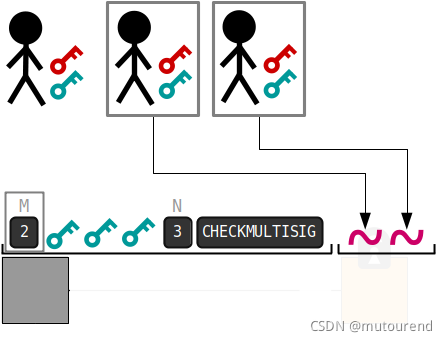

  如，需要3个人中的2个人签名即可花费该bitcoin，则可表示为：

• 4）P2SH（Pay To Script Hash）：2012年4月引入。用于lock bitcoins to the hash of a script，当unlock时，需提供that original script。该original script 称为 redeem script。redeem script即为P2MS locking script。
  实际执行分2个阶段：先判断script hash是否相等，然后执行redeem script。

  其中的[20-byte-hash-value] 实际为 push-20-bytes-onto-the-stack opcode (0x14) followed by exactly 20 bytes。因此，P2SH的scriptPubKey一共为23 byte。

   OP_HASH160 [20-byte-hash-value] OP_EQUAL

• 5）P2WPKH（Pay To Witness Public Key Hash）：witness中必须包含2个items。其scriptPubKey 比 P2PKH 的少占用了3个字节。且将signature和public key由 scriptSig移到了witness。
  分为2个阶段：先验证HASH160(pubkey)一致，然后验签<signature> <pubkey> CHECKSIG。

   witness:      <signature> <pubkey>
   scriptSig:    (empty)
   scriptPubKey: 0 <20-byte-key-hash>
                 (0x0014{20-byte-key-hash})

• 6）P2WSH（Pay To Witness Script Hash）：P2SH的scriptPubKey为23字节，而P2WSH的为34字节，增加的size可提升security against possible collision attacks。将P2SH sigScript中的内容移至了witness。
  分2个阶段执行：首先验证 SHA256(last item in witness) 与 scriptPubKey中的32-byte-hash 值是否一致（即SHA256(<1 <pubkey1> <pubkey2> 2 CHECKMULTISIG>)=<32-byte-hash>）；然后执行witness程序（即0 <signature1> 1 <pubkey1> <pubkey2> 2 CHECKMULTISIG）。以1-of-2 multi-signature P2WSH为例：

   witness:      0 <signature1> <1 <pubkey1> <pubkey2> 2 CHECKMULTISIG>
   scriptSig:    (empty)
   scriptPubKey: 0 <32-byte-hash>
                 (0x0020{32-byte-hash})
