1.Flink-sql客户端入湖

1.1 启动flink-sql客户端

进入flink的Home目录xxx/flink/flink-1.11.3

./bin/sql-client.sh embedded shell

[root@xxxx flink-1.11.3]# ./bin/sql-client.sh embedded shell
No default environment specified.
Searching for '/data/bd/flink/flink-1.11.3/conf/sql-client-defaults.yaml'...found.
Reading default environment from: file:/data/bd/flink/flink-1.11.3/conf/sql-client-defaults.yaml
No session environment specified.
2021-07-06 18:39:15,856 INFO  org.apache.hadoop.hive.conf.HiveConf                         [] - Found configuration file null

Command history file path: /root/.flink-sql-history
                                   ?▓██▓██?
                               ▓████??█▓?▓███▓?
                            ▓███▓??        ???▓██?  ?
                          ?██?   ??▓▓█▓▓??      ?████
                          ██?         ??▓███?    ?█?█?
                            ?▓█            ███   ▓??██
                              ▓█       ?????▓██▓???▓▓█
                            █? █   ???       ███▓▓█ ?█???
                            ████?   ?▓█▓      ██??? ▓███?
                         ??█▓▓██       ▓█?    ▓█?▓██▓ ?█?
                   ▓??▓████? ██         ?█    █▓??█???█?
                  ███▓?██▓  ▓█           █   █▓ ?▓█▓▓█?
                ?██▓  ?█?            █  █? ?█████▓? ██▓??
               ███? ? █?          ▓ ?█ █████???    ?█?▓  ▓?
              ██▓█ ??▓?          ▓███████▓?       ?█? ?▓ ▓██▓
           ?██▓ ▓█ █▓█       ??█████▓▓??         ██??  █ ?  ▓█?
           ▓█▓  ▓█ ██▓ ?▓▓▓▓▓▓▓?              ?██▓           ?█?
           ▓█    █ ▓███▓??              ?▓▓▓███▓          ??? ▓█
           ██▓    ██?    ??▓▓███▓▓▓▓▓██████▓?            ▓███  █
          ▓███? ███   ?▓▓???   ?▓████▓?                  ??▓?  █▓
          █▓??▓▓██  ??????????▓██▓?                            █▓
          ██ ▓??█   ▓▓▓▓???  ?█▓       ?▓▓██▓    ▓?          ??▓
          ▓█▓ ▓?█  █▓?  ??▓▓██?            ?▓█?   ??????▓█████?
           ██? ▓█?█?  ?▓▓?  ▓█                █?      ????   ?█?
           ▓█   ?█▓   ?     █?                ?█              █▓
            █▓   ██         █?                 ▓▓        ?█▓▓▓?█?
             █▓ ?▓██?       ▓?                  ▓█▓?????▓█?    ?█
              ██   ▓█▓?      ?                    ??█?██?      ▓▓
               ▓█?   ?█▓??                         ?? █?█▓?????██
                ?██?    ?▓▓?                     ▓██▓?█? ?▓▓▓▓?█▓
                  ?▓██?                          ▓?  ?█▓█  ?????
                      ?▓▓▓▓▓?????????????????????????▓▓  ▓??█?

    ______ _ _       _       _____  ____  _         _____ _ _            _  BETA
   |  ____| (_)     | |     / ____|/ __ \| |       / ____| (_)          | |
   | |__  | |_ _ __ | | __ | (___ | |  | | |      | |    | |_  ___ _ __ | |_
   |  __| | | | '_ \| |/ /  \___ \| |  | | |      | |    | | |/ _ \ '_ \| __|
   | |    | | | | | |   <   ____) | |__| | |____  | |____| | |  __/ | | | |_
   |_|    |_|_|_| |_|_|\_\ |_____/ \___\_\______|  \_____|_|_|\___|_| |_|\__|

        Welcome! Enter 'HELP;' to list all available commands. 'QUIT;' to exit.


Flink SQL>

1.2 创建hive_catalog

CREATE CATALOG hive_catalog WITH (
  'type'='iceberg',
  'catalog-type'='hive',
  'uri'='thrift://localhost:9083',
  'clients'='5',
  'property-version'='1',
  'warehouse'='hdfs://localhost:9000/user/hive/warehouse/'
);

? ?show catalogs显示所有的catalog

Flink SQL> show catalogs;?
default_catalog
hadoop_catalog
hive_catalog
myhive

?1.3 创建iceberg db

use catalog iceberg;

CREATE DATABASE iceberg_db;

USE iceberg_db;

1.4 创建iceberg Table

CREATE TABLE hive_catalog.iceberg_db.iceberg_003 (
uid STRING COMMENT '用户uid',

qipu_id STRING COMMENT '视频id',

stime STRING COMMENT '客户端时间'
) WITH ('connector'='iceberg','write.format.default'='ORC');

1.5 创建kafka流表?

CREATE TABLE kafka_dwd_rr_fact_kafka_all_interact_collect_anti (

uid STRING COMMENT '用户uid',

qipu_id STRING COMMENT '视频id',

stime STRING COMMENT '客户端时间'
)

WITH (

? 'connector' = 'kafka',
? 'topic' = 'dwd_rr_fact_kafka_all_interact_collect_anti',
? 'properties.bootstrap.servers' = 'xxx:9092',
? 'properties.group.id' = 'testGroup',
? 'scan.startup.mode' = 'earliest-offset',
? 'format' = 'json'

)

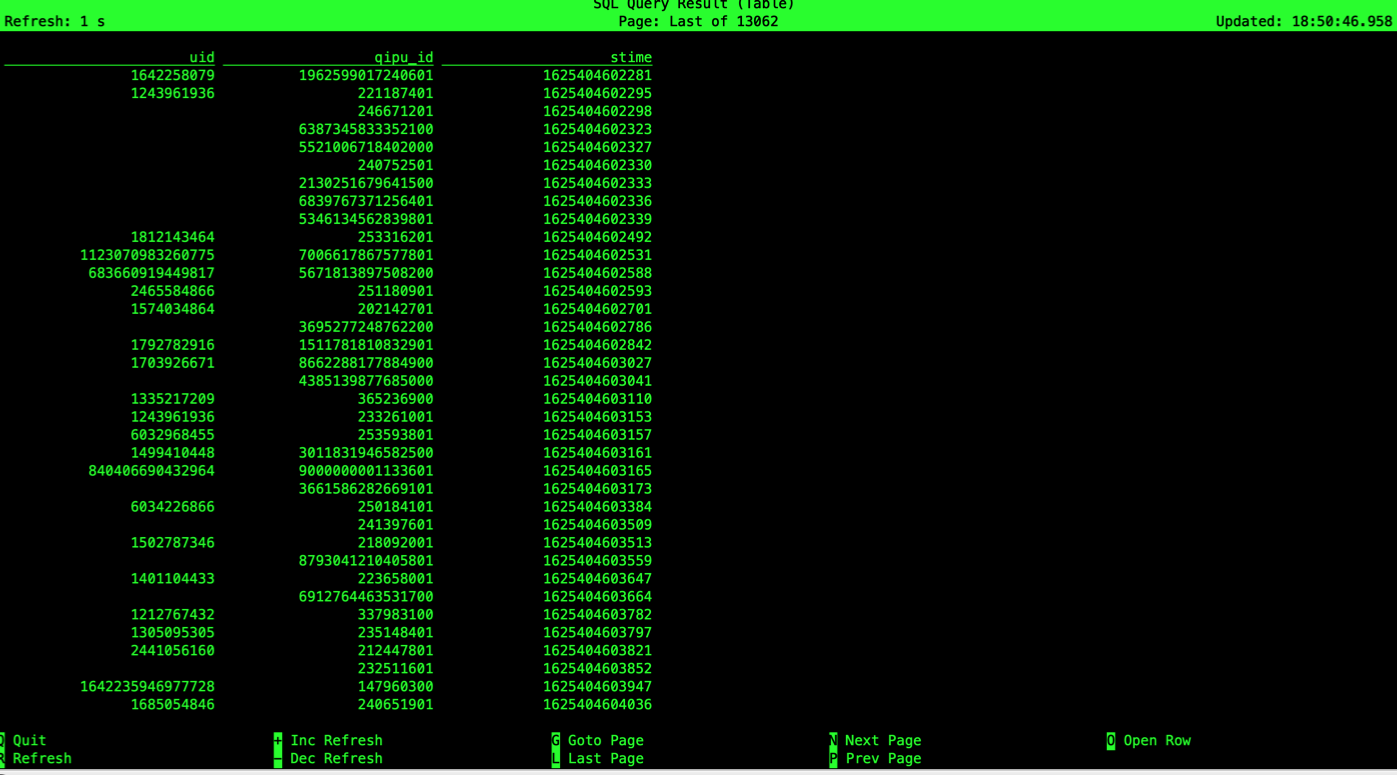

1.6 kafka流表插入iceberg表

insert into hive_catalog.iceberg_db.iceberg_003 ?select uid,qipu_id,stime from kafka_dwd_rr_fact_kafka_all_interact_collect_anti;?

1.6.1 测试数据的制造方法

创建一个datagen的connector

CREATE TABLE sourceTable (
?userid int,
?f_random_str STRING
) WITH (
?'connector' = 'datagen',
?'rows-per-second'='100',
?'fields.userid.kind'='random',
?'fields.userid.min'='1',
?'fields.userid.max'='100',
'fields.f_random_str.length'='10'
)
