1 异常现象

? spark读取csv、orc等文件出现解析异常

? java.lang.IllegalArgumentException: Illegal pattern component: XXX
java.lang.NoSuchFieldError: KRYO_SARG_BUFFER

1.1 读取csv文件异常内容如下：

Exception in thread "main" java.lang.IllegalArgumentException: Illegal pattern component: XXX
        at org.apache.commons.lang3.time.FastDateFormat.parsePattern(FastDateFormat.java:577)
        at org.apache.commons.lang3.time.FastDateFormat.init(FastDateFormat.java:444)
        at org.apache.commons.lang3.time.FastDateFormat.<init>(FastDateFormat.java:437)
        at org.apache.commons.lang3.time.FastDateFormat$1.createInstance(FastDateFormat.java:110)
        at org.apache.commons.lang3.time.FastDateFormat$1.createInstance(FastDateFormat.java:109)
        at org.apache.commons.lang3.time.FormatCache.getInstance(FormatCache.java:82)
        at org.apache.commons.lang3.time.FastDateFormat.getInstance(FastDateFormat.java:205)
        at org.apache.spark.sql.execution.datasources.csv.CSVOptions.<init>(CSVOptions.scala:140)
        at org.apache.spark.sql.execution.datasources.csv.CSVOptions.<init>(CSVOptions.scala:42)
        at org.apache.spark.sql.execution.datasources.csv.CSVFileFormat.inferSchema(CSVFileFormat.scala:60)
        at org.apache.spark.sql.execution.datasources.DataSource$$anonfun$7.apply(DataSource.scala:187)
        at org.apache.spark.sql.execution.datasources.DataSource$$anonfun$7.apply(DataSource.scala:187)
        at scala.Option.orElse(Option.scala:289)
        at org.apache.spark.sql.execution.datasources.DataSource.getOrInferFileFormatSchema(DataSource.scala:186)
        at org.apache.spark.sql.execution.datasources.DataSource.resolveRelation(DataSource.scala:466)
        at org.apache.spark.sql.DataFrameReader.loadV1Source(DataFrameReader.scala:223)
        at org.apache.spark.sql.DataFrameReader.load(DataFrameReader.scala:211)
        at org.apache.spark.sql.DataFrameReader.load(DataFrameReader.scala:178)

1.2 读取orc文件异常内容如下：


java.lang.NoSuchFieldError: KRYO_SARG_BUFFER
        at org.apache.orc.mapred.OrcInputFormat.setSearchArgument(OrcInputFormat.java:95)
        at org.apache.orc.mapreduce.OrcInputFormat.setSearchArgument(OrcInputFormat.java:57)
        at org.apache.spark.sql.execution.datasources.orc.OrcFileFormat$$anonfun$buildReaderWithPartitionValues$1.apply(OrcFileFormat.scala:160)
        at org.apache.spark.sql.execution.datasources.orc.OrcFileFormat$$anonfun$buildReaderWithPartitionValues$1.apply(OrcFileFormat.scala:159)
        at scala.Option.foreach(Option.scala:257)
        at org.apache.spark.sql.execution.datasources.orc.OrcFileFormat.buildReaderWithPartitionValues(OrcFileFormat.scala:159)
        at org.apache.spark.sql.execution.FileSourceScanExec.inputRDD$lzycompute(DataSourceScanExec.scala:339)
        at org.apache.spark.sql.execution.FileSourceScanExec.inputRDD(DataSourceScanExec.scala:331)
        at org.apache.spark.sql.execution.FileSourceScanExec.inputRDDs(DataSourceScanExec.scala:381)
        at org.apache.spark.sql.execution.FilterExec.inputRDDs(basicPhysicalOperators.scala:310)
        at org.apache.spark.sql.execution.ProjectExec.inputRDDs(basicPhysicalOperators.scala:42)
        at org.apache.spark.sql.execution.BaseLimitExec$class.inputRDDs(limit.scala:62)
        at org.apache.spark.sql.execution.LocalLimitExec.inputRDDs(limit.scala:98)
        at org.apache.spark.sql.execution.WholeStageCodegenExec.doExecute(WholeStageCodegenExec.scala:627)
        at org.apache.spark.sql.execution.SparkPlan$$anonfun$execute$1.apply(SparkPlan.scala:137)
        at org.apache.spark.sql.execution.SparkPlan$$anonfun$execute$1.apply(SparkPlan.scala:133)
        at org.apache.spark.sql.execution.SparkPlan$$anonfun$executeQuery$1.apply(SparkPlan.scala:161)
        at org.apache.spark.rdd.RDDOperationScope$.withScope(RDDOperationScope.scala:151)
        at org.apache.spark.sql.execution.SparkPlan.executeQuery(SparkPlan.scala:158)
        at org.apache.spark.sql.execution.SparkPlan.execute(SparkPlan.scala:133)
        at org.apache.spark.sql.execution.exchange.ShuffleExchangeExec.prepareShuffleDependency(ShuffleExchangeExec.scala:70)
        at org.apache.spark.sql.execution.exchange.ShuffleExchangeExec.eagerExecute(ShuffleExchangeExec.scala:112)
        at org.apache.spark.sql.execution.adaptive.ShuffleQueryStage.executeStage(QueryStage.scala:249)
        at org.apache.spark.sql.execution.adaptive.QueryStage.doExecute(QueryStage.scala:201)
        at org.apache.spark.sql.execution.SparkPlan$$anonfun$execute$1.apply(SparkPlan.scala:137)
        at org.apache.spark.sql.execution.SparkPlan$$anonfun$execute$1.apply(SparkPlan.scala:133)
        at org.apache.spark.sql.execution.SparkPlan$$anonfun$executeQuery$1.apply(SparkPlan.scala:161)
        at org.apache.spark.rdd.RDDOperationScope$.withScope(RDDOperationScope.scala:151)
        at org.apache.spark.sql.execution.SparkPlan.executeQuery(SparkPlan.scala:158)
        at org.apache.spark.sql.execution.SparkPlan.execute(SparkPlan.scala:133)
        at org.apache.spark.sql.execution.adaptive.QueryStage$$anonfun$7$$anonfun$apply$2$$anonfun$apply$3.apply(QueryStage.scala:77)
        at org.apache.spark.sql.execution.adaptive.QueryStage$$anonfun$7$$anonfun$apply$2$$anonfun$apply$3.apply(QueryStage.scala:77)
        at org.apache.spark.sql.execution.SQLExecution$.withExecutionIdAndJobDesc(SQLExecution.scala:162)
        at org.apache.spark.sql.execution.adaptive.QueryStage$$anonfun$7$$anonfun$apply$2.apply(QueryStage.scala:76)
        at org.apache.spark.sql.execution.adaptive.QueryStage$$anonfun$7$$anonfun$apply$2.apply(QueryStage.scala:76)
        at scala.concurrent.impl.Future$PromiseCompletingRunnable.liftedTree1$1(Future.scala:24)
        at scala.concurrent.impl.Future$PromiseCompletingRunnable.run(Future.scala:24)
        at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1149)
        at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:624)
        at java.lang.Thread.run(Thread.java:748)

2 排查思路及流程

同等代码在原环境运行正常，忽然出现运行出现异常情况，在idea模拟代码，发现可正常运行；
查看org.apache.commons.lang3.time.FastDateFormat源码（commons-lang3），557、444等行数与报错代码对应不上。

引入commons-lang3 3.10版本的包，发现出现与服务器上一样的错误信息；

Exception in thread "main" java.lang.IllegalArgumentException: Illegal pattern component: XXX
	at org.apache.commons.lang3.time.FastDateFormat.parsePattern(FastDateFormat.java:577)
	at org.apache.commons.lang3.time.FastDateFormat.init(FastDateFormat.java:444)
	at org.apache.commons.lang3.time.FastDateFormat.<init>(FastDateFormat.java:437)
	at org.apache.commons.lang3.time.FastDateFormat$1.createInstance(FastDateFormat.java:110)
	at org.apache.commons.lang3.time.FastDateFormat$1.createInstance(FastDateFormat.java:109)
	at org.apache.commons.lang3.time.FormatCache.getInstance(FormatCache.java:82)
	at org.apache.commons.lang3.time.FastDateFormat.getInstance(FastDateFormat.java:205)
	at org.apache.spark.sql.execution.datasources.csv.CSVOptions.<init>(CSVOptions.scala:139)
	at org.apache.spark.sql.execution.datasources.csv.CSVOptions.<init>(CSVOptions.scala:41)
	at org.apache.spark.sql.execution.datasources.csv.CSVFileFormat.inferSchema(CSVFileFormat.scala:58)
	at org.apache.spark.sql.execution.datasources.DataSource$$anonfun$6.apply(DataSource.scala:180)
	at org.apache.spark.sql.execution.datasources.DataSource$$anonfun$6.apply(DataSource.scala:180)
	at scala.Option.orElse(Option.scala:289)
	at org.apache.spark.sql.execution.datasources.DataSource.getOrInferFileFormatSchema(DataSource.scala:179)
	at org.apache.spark.sql.execution.datasources.DataSource.resolveRelation(DataSource.scala:373)
	at org.apache.spark.sql.DataFrameReader.loadV1Source(DataFrameReader.scala:223)
	at org.apache.spark.sql.DataFrameReader.load(DataFrameReader.scala:211)
	at org.apache.spark.sql.DataFrameReader.load(DataFrameReader.scala:178)

排查线上是否是jar包版本变更所致

发现线上jar包版本为3.5，且idea切换为3.5版本可正常运行。故排除jar包版本问题。
参照网上资料https://blog.csdn.net/qq1226317595/article/details/100540091，增加option(“timestampFormat”, “yyyy/MM/dd HH:mm:ss ZZ”) 可解决此问题。但考虑到读取orc也有异常情况，且之前运行正常，故继续深究其原因。

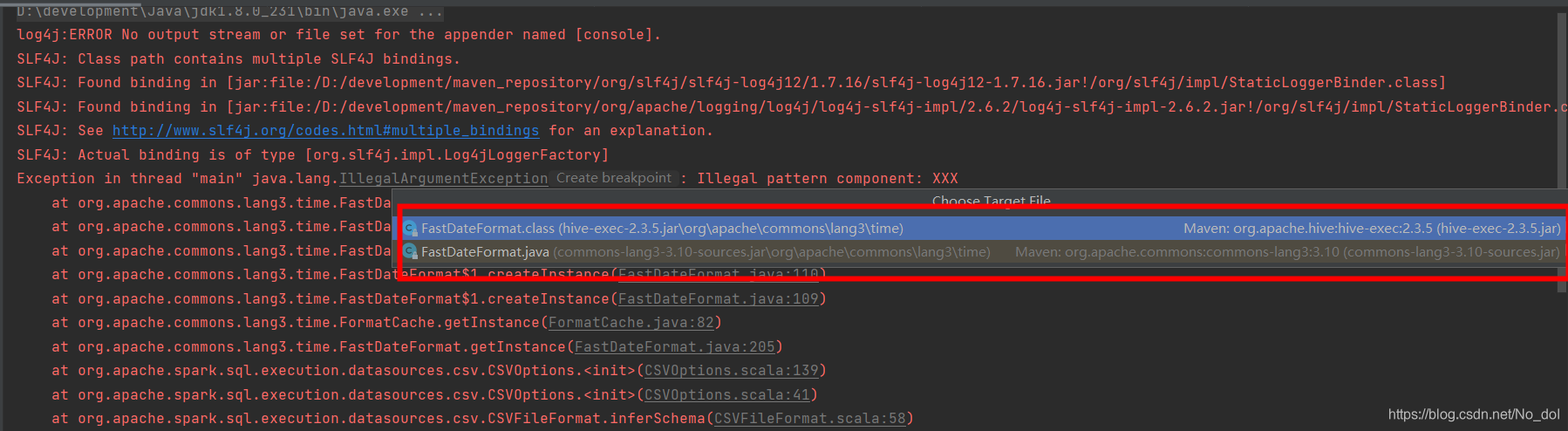

查看idea报错信息具体位置，发现有两个FastDateFormat类，分别在 commons-lang3-3.10和hive-exec 2.3.5的包中。

于是怀疑是hive-exec中的FastDateFormat类与commons-lang3中的FastDateFormat冲突所致。
取消引入pom中hive-exec依赖，改用spark-hive依赖。重新运行后，异常消失，程序正常运行。

注：也不知当初怎么傻傻的引入了hive-exec依赖，也恰是这样的巧合才致使本地可以场景重现，提供了排查问题的便利。
验证线上环境是否也是引入了hive-exec包

确认线上使用了引入了同样的依赖。因yarn界面只能查看到当天任务的情况，故无法判断之前正常运行的时候是否没有引入hive-exec包，排查到这里，感觉很快就能解决这个问题了。
查看hive-exec包是如何引入的，干掉它应该就可以恢复正常了

搜索 /opt/apps/extra-jars/hive-exec-2.3.5.jar 发现只有一个结果
搜索 /opt/apps/extra-jars/ 发现有10个结果,并查看到hive-exec是通过spark.driver.extraClassPath和spark.executor.extraClassPath 的方式提交到上去的。
手动指定spark.executor.extraClassPath 、spark.driver.extraClassPath避免默认加载hive-exec包产生冲突。增加配置如下 jar包为任一jar包即可，只要不加载其默认配置即可。
```
  --conf spark.executor.extraClassPath=commons-lang3-3.5.jar \
  --conf spark.driver.extraClassPath=commons-lang3-3.5.jar \
```

验证结果

程序提交，并正常运行结束。读取orc文件问题同样解决。

 spark-submit \
  --master yarn \
  --deploy-mode client \
  --conf spark.executor.extraClassPath=commons-lang3-3.5.jar \
  --conf spark.driver.extraClassPath=commons-lang3-3.5.jar \
  --conf spark.rdd.compress=true \
  --conf spark.sql.sources.default=csv \
  --conf spark.scheduler.listenerbus.eventqueue.capacity=100000 \
  --queue default \
  --class com.sinoiov.bigdata.track.ParseTrack \
  original-parse-vehicle-track-1.0.0.jar
