[大数据]PB级企业电商离线数仓项目实战【下】

第一部分电商分析之--核心交易

第1节业务需求

本主题是电商系统业务中最关键的业务，电商的运营活动都是围绕这个主题展开。
选取的指标包括：订单数、商品数、支付金额。对这些指标按销售区域、商品类型进
行分析。

第2节业务数据库表结构

业务数据库：数据源

交易订单表（trade_orders）
订单产品表（order_product）
产品信息表（product_info）
产品分类表（product_category）
商家店铺表（shops）
商家地域组织表（shop_admin_org）
支付方式表（payments）

交易订单表

CREATE TABLE `lagou_trade_orders` (
`orderId` bigint(11) NOT NULL AUTO_INCREMENT COMMENT '订单id',
`orderNo` varchar(20) NOT NULL COMMENT '订单编号',
`userId` bigint(11) NOT NULL COMMENT '用户id',
`status` tinyint(4) NOT NULL DEFAULT '-2' COMMENT '订单状态-3:用户拒收 -2:未付款的订单 -1用户取消 0:待发货 1:配送中 2:用户确认收货',
`productMoney` decimal(11,2) NOT NULL COMMENT '商品金额',
`totalMoney` decimal(11,2) NOT NULL COMMENT '订单金额（包括运费）',
`payMethod` tinyint(4) NOT NULL DEFAULT '0' COMMENT '支付方式,0:未知;1:支付宝，2：微信;3、现金；4、其他',
`isPay` tinyint(4) NOT NULL DEFAULT '0' COMMENT '是否支付 0:未支付 1:已支付',
`areaId` int(11) NOT NULL COMMENT '区域最低一级',
`tradeSrc` tinyint(4) NOT NULL DEFAULT '0' COMMENT '订单来源0:商城 1:微信 2:手机版 3:安卓App 4:苹果App',
`tradeType` int(11) DEFAULT '0' COMMENT '订单类型',
`isRefund` tinyint(4) NOT NULL DEFAULT '0' COMMENT '是否退款0:否 1：是',
`dataFlag` tinyint(4) NOT NULL DEFAULT '1' COMMENT '订单有效标志 -1：删除 1:有效',
`createTime` varchar(25) NOT NULL COMMENT '下单时间',
`payTime` varchar(25) DEFAULT NULL COMMENT '支付时间',
`modifiedTime` timestamp NOT NULL DEFAULT '0000-00-00
00:00:00' COMMENT '订单更新时间',
PRIMARY KEY (`orderId`)
) ENGINE=InnoDB AUTO_INCREMENT=355 DEFAULT CHARSET=utf8;

备注：

记录订单的信息
status。订单状态
createTime、payTime、modifiedTime。创建时间、支付时间、修改时间

订单产品表

CREATE TABLE `lagou_order_product` (
`id` bigint(11) NOT NULL AUTO_INCREMENT,
`orderId` bigint(11) NOT NULL COMMENT '订单id',
`productId` bigint(11) NOT NULL COMMENT '商品id',
`productNum` bigint(11) NOT NULL DEFAULT '0' COMMENT '商品数量',
`productPrice` decimal(11,2) NOT NULL DEFAULT '0.00' COMMENT'商品价格',
`money` decimal(11,2) DEFAULT '0.00' COMMENT '付款金额',
`extra` text COMMENT '额外信息',
`createTime` varchar(25) DEFAULT NULL COMMENT '创建时间',
PRIMARY KEY (`id`),
KEY `orderId` (`orderId`),
KEY `goodsId` (`productId`)
) ENGINE=InnoDB AUTO_INCREMENT=1260 DEFAULT CHARSET=utf8;

备注：
记录订单中购买产品的信息，包括产品的数量、单价等

产品信息表

CREATE TABLE `lagou_product_info` (
`productId` bigint(11) NOT NULL AUTO_INCREMENT COMMENT '商品id',
`productName` varchar(200) NOT NULL COMMENT '商品名称',
`shopId` bigint(11) NOT NULL COMMENT '门店ID',
`price` decimal(11,2) NOT NULL DEFAULT '0.00' COMMENT '门店价',
`isSale` tinyint(4) NOT NULL DEFAULT '1' COMMENT '是否上架0:不上架 1:上架',
`status` tinyint(4) NOT NULL DEFAULT '0' COMMENT '是否新品0:否 1:是',
`categoryId` int(11) NOT NULL COMMENT 'goodsCatId 最后一级商品分类ID',
`createTime` varchar(25) NOT NULL,
`modifyTime` datetime DEFAULT NULL ON UPDATE
CURRENT_TIMESTAMP COMMENT '修改时间',
PRIMARY KEY (`productId`),
KEY `shopId` (`shopId`) USING BTREE,
KEY `goodsStatus` (`isSale`)
) ENGINE=InnoDB AUTO_INCREMENT=115909 DEFAULT CHARSET=utf8;

记录产品的详细信息，对应商家ID、商品属性（是否新品、是否上架）
createTime、modifyTime。创建时间和修改时间

产品分类表

CREATE TABLE `lagou_product_category` (
`catId` int(11) NOT NULL AUTO_INCREMENT COMMENT '品类ID',
`parentId` int(11) NOT NULL COMMENT '父ID',
`catName` varchar(20) NOT NULL COMMENT '分类名称',
`isShow` tinyint(4) NOT NULL DEFAULT '1' COMMENT '是否显示0:隐藏 1:显示',
`sortNum` int(11) NOT NULL DEFAULT '0' COMMENT '排序号',
`isDel` tinyint(4) NOT NULL DEFAULT '1' COMMENT '删除标志 1:有效 -1：删除',
`createTime` varchar(25) NOT NULL COMMENT '建立时间',
`level` tinyint(4) DEFAULT '0' COMMENT '分类级别，共3级',
PRIMARY KEY (`catId`),
KEY `parentId` (`parentId`,`isShow`,`isDel`)
) ENGINE=InnoDB AUTO_INCREMENT=10442 DEFAULT CHARSET=utf8;

备注：产品分类表，共分3个级别

-- 第一级产品目录
select catName, catid from lagou_product_category where level =1;
-- 查看电脑、办公的子类（查看二级目录）
select catName, catid from lagou_product_category where level =2 and parentId = 32;
-- 查看电脑整机的子类（查看三级目录）
select catName, catid from lagou_product_category where level =3 and parentId = 10250;

商家店铺表

CREATE TABLE `lagou_shops` (
`shopId` int(11) NOT NULL AUTO_INCREMENT COMMENT '商铺ID，自增',
`userId` int(11) NOT NULL COMMENT '商铺联系人ID',
`areaId` int(11) DEFAULT '0',
`shopName` varchar(100) DEFAULT '' COMMENT '商铺名称',
`shopLevel` tinyint(4) NOT NULL DEFAULT '1' COMMENT '店铺等级',
`status` tinyint(4) NOT NULL DEFAULT '1' COMMENT '商铺状态',
`createTime` date DEFAULT NULL,
`modifyTime` datetime DEFAULT NULL COMMENT '修改时间',
PRIMARY KEY (`shopId`),
KEY `shopStatus` (`status`)
) ENGINE=InnoDB AUTO_INCREMENT=105317 DEFAULT CHARSET=utf8;

备注：记录店铺的详细信息
商家地域组织表

CREATE TABLE `lagou_shop_admin_org` (
`id` int(11) NOT NULL AUTO_INCREMENT COMMENT '组织ID',
`parentId` int(11) NOT NULL COMMENT '父ID',
`orgName` varchar(100) NOT NULL COMMENT '组织名称',
`orgLevel` tinyint(4) NOT NULL DEFAULT '1' COMMENT '组织级别1;总部及大区级部门;2：总部下属的各个部门及基部门;3:具体工作部门',
`isDelete` tinyint(4) NOT NULL DEFAULT '0' COMMENT '删除标志,1:删除;0:有效',
`createTime` varchar(25) DEFAULT NULL COMMENT '创建时间',
`updateTime` varchar(25) DEFAULT NULL COMMENT '最后修改时间',
`isShow` tinyint(4) NOT NULL DEFAULT '1' COMMENT '是否显示,0:是 1:否',
`orgType` tinyint(4) NOT NULL DEFAULT '1' COMMENT '组织类型,0:总裁办;1:研发;2:销售;3:运营;4:产品',
PRIMARY KEY (`id`),
KEY `parentId` (`parentId`)
) ENGINE=InnoDB AUTO_INCREMENT=100332 DEFAULT CHARSET=utf8;

备注：记录店铺所属区域
支付方式表

CREATE TABLE `lagou_payments` (
`id` int(11) NOT NULL,
`payMethod` varchar(20) DEFAULT NULL,
`payName` varchar(255) DEFAULT NULL,
`description` varchar(255) DEFAULT NULL,
`payOrder` int(11) DEFAULT '0',
`online` tinyint(4) DEFAULT NULL,
PRIMARY KEY (`id`),
KEY `payCode` (`payMethod`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8;

备注：记录支付方式

第3节数据导入

已经确定的事情：DataX、导出7张表的数据。
MySQL 导出：全量导出、增量导出（导出前一天的数据）。
业务数据保存在MySQL中，每日凌晨导入上一天的表数据。

表数据量少，采用全量方式导出MySQL
表数据量大，而且根据字段能区分出每天新增数据，采用增量方式导出MySQL

3张增量表：

订单表 lagou_trade_orders
订单产品表 lagou_order_produce
产品信息表 lagou_product_info

4张全量表：

产品分类表 lagou_product_category
商家店铺表 lagou_shops
商家地域组织表 lagou_shop_admin_org
支付方式表 lagou_payment

3.1、全量数据导入

MySQL => HDFS => Hive
每日加载全量数据，形成新的分区；(ODS如何建表有指导左右)
MySQLReader ===> HdfsWriter
ebiz.lagou_product_category ===> ods.ods_trade_product_category
1、产品分类表
/data/lagoudw/json/product_category.json

{
	"job": {
		"setting": {
			"speed": {
				"channel": 1
			}
		},
		"content": [{
			"reader": {
				"name": "mysqlreader",
				"parameter": {
					"username": "teacher",
					"password": "teacher123",
					"column": [
						"catId", "parentId", "catName",
						"isShow",
						"sortNum",
						"isDel",
						"createTime",
						"level"
					],
					"connection": [{
						"table": [
							"lagou_product_category"
						],
						"jdbcUrl": [
							"jdbc:mysql://hadoop1:3306/ebiz"
						]
					}]
				}
			},
			"writer": {
				"name": "hdfswriter",
				"parameter": {
					"defaultFS": "hdfs://hadoop1:9000",
					"fileType": "text",
					"path": "/user/data/trade.db/product_category/dt=$do_date",
					"fileName": "product_category_$do_date",
					"column": [{
							"name": "catId",
							"type": "INT"
						},
						{
							"name": "parentId",
							"type": "INT"
						},
						{
							"name": "catName",
							"type": "STRING"
						},
						{
							"name": "isShow",
							"type": "TINYINT"
						},
						{
							"name": "sortNum",
							"type": "INT"
						},
						{
							"name": "isDel",
							"type": "TINYINT"
						},
						{
							"name": "createTime",
							"type": "STRING"
						},
						{
							"name": "level",
							"type": "TINYINT"
						}
					],
					"writeMode": "append",
					"fieldDelimiter": ","
				}
			}
		}]
	}
}

备注：
数据量小的表没有必要使用多个channel；使用多个channel会生成多个小文件
执行命令之前要在HDFS上创建对应的目录：/user/data/trade.db/product_category/dt=yyyy-mm-dd?

do_date='2020-07-01'
# 创建目录
hdfs dfs -mkdir -p /user/data/trade.db/product_category/dt=$do_date
# 数据迁移
python $DATAX_HOME/bin/datax.py -p "-Ddo_date=$do_date" /data/lagoudw/json/product_category.json
# 加载数据
hive -e "alter table ods.ods_trade_product_category add partition(dt='$do_date')"

2、商家店铺表
lagou_shops ====> ods.ods_trade_shops
/data/lagoudw/json/shops.json?

{
	"job": {
		"setting": {
			"speed": {
				"channel": 1
			},
			"errorLimit": {
				"record": 0
			}
		},
		"content": [{
			"reader": {
				"name": "mysqlreader",
				"parameter": {
					"username": "teacher",
					"password": "teacher123",
					"column": [
						"shopId", "userId", "areaId",
						"shopName", "shopLevel", "status", "createTime", "modifyTime"
					],
					"connection": [{
						"table": [
							"lagou_shops"
						],
						"jdbcUrl": [
							"jdbc:mysql://hadoop1:3306/ebiz"
						]
					}]
				}
			},
			"writer": {
				"name": "hdfswriter",
				"parameter": {
					"defaultFS": "hdfs://hadoop1:9000",
					"fileType": "text",
					"path": "/user/data/trade.db/shops/dt=$do_date",
					"fileName": "shops_$do_date",
					"column": [{
							"name": "shopId",
							"type": "INT"
						},
						{
							"name": "userId",
							"type": "INT"
						},
						{
							"name": "areaId",
							"type": "INT"
						},
						{
							"name": "shopName",
							"type": "STRING"
						},
						{
							"name": "shopLevel",
							"type": "TINYINT"
						},
						{
							"name": "status",
							"type": "TINYINT"
						},
						{
							"name": "createTime",
							"type": "STRING"
						},
						{
							"name": "modifyTime",
							"type": "STRING"
						}
					],
					"writeMode": "append",
					"fieldDelimiter": ","
				}
			}
		}]
	}
}

do_date='2020-07-02'
# 创建目录
hdfs dfs -mkdir -p /user/data/trade.db/shops/dt=$do_date
# 数据迁移
python $DATAX_HOME/bin/datax.py -p "-Ddo_date=$do_date" /data/lagoudw/json/shops.json
# 加载数据
hive -e "alter table ods.ods_trade_shops add partition(dt='$do_date')"

3、商家地域组织表
lagou_shop_admin_org ====> ods.ods_trade_shop_admin_org
/data/lagoudw/json/shop_org.json

{
	"job": {
		"setting": {
			"speed": {
				"channel": 1
			},
			"errorLimit": {
				"record": 0
			}
		},
		"content": [{
			"reader": {
				"name": "mysqlreader",
				"parameter": {
					"username": "teacher",
					"password": "teacher123",
					"column": [
						"id", "parentId", "orgName",
						"orgLevel", "isDelete", "createTime", "updateTime", "isShow",
						"orgType"
					],
					"connection": [{
						"table": [
							"lagou_shop_admin_org"
						],
						"jdbcUrl": [
							"jdbc:mysql://hadoop1:3306/ebiz"
						]
					}]
				}
			},
			"writer": {
				"name": "hdfswriter",
				"parameter": {
					"defaultFS": "hdfs://hadoop1:9000",
					"fileType": "text",
					"path": "/user/data/trade.db/shop_org/dt=$do_date",
					"fileName": "shop_admin_org_$do_date.dat",
					"column": [{
							"name": "id",
							"type": "INT"
						},
						{
							"name": "parentId",
							"type": "INT"
						},
						{
							"name": "orgName",
							"type": "STRING"
						},
						{
							"name": "orgLevel",
							"type": "TINYINT"
						},
						{
							"name": "isDelete",
							"type": "TINYINT"
						},
						{
							"name": "createTime",
							"type": "STRING"
						},
						{
							"name": "updateTime",
							"type": "STRING"
						},
						{
							"name": "isShow",
							"type": "TINYINT"
						},
						{
							"name": "orgType",
							"type": "TINYINT"
						}
					],
					"writeMode": "append",
					"fieldDelimiter": ","
				}
			}
		}]
	}
}

do_date='2020-07-01'
# 创建目录
hdfs dfs -mkdir -p /user/data/trade.db/shop_org/dt=$do_date
# 数据迁移
python $DATAX_HOME/bin/datax.py -p "-Ddo_date=$do_date" /data/lagoudw/json/shop_org.json
# 加载数据
hive -e "alter table ods.ods_trade_shop_admin_org add partition(dt='$do_date')"

4、支付方式表
lagou_payments ====> ods.ods_trade_payments
/data/lagoudw/json/payments.json

{
	"job": {
		"setting": {
			"speed": {
				"channel": 1
			},
			"errorLimit": {
				"record": 0
			}
		},
		"content": [{
			"reader": {
				"name": "mysqlreader",
				"parameter": {
					"username": "teacher",
					"password": "teacher123",
					"column": [
						"id", "payMethod", "payName",
						"description", "payOrder", "online"
					],
					"connection": [{
						"table": [
							"lagou_payments"
						],
						"jdbcUrl": [
							"jdbc:mysql://hadoop1:3306/ebiz"
						]
					}]
				}
			},
			"writer": {
				"name": "hdfswriter",
				"parameter": {
					"defaultFS": "hdfs://hadoop1:9000",
					"fileType": "text",
					"path": "/user/data/trade.db/payments/dt=$do_date",
					"fileName": "payments_$do_date.dat",
					"column": [{
							"name": "id",
							"type": "INT"
						},
						{
							"name": "payMethod",
							"type": "STRING"
						},
						{
							"name": "payName",
							"type": "STRING"
						},
						{
							"name": "description",
							"type": "STRING"
						},
						{
							"name": "payOrder",
							"type": "INT"
						},
						{
							"name": "online",
							"type": "TINYINT"
						}
					],
					"writeMode": "append",
					"fieldDelimiter": ","
				}
			}
		}]
	}
}

do_date='2020-07-01'
# 创建目录
hdfs dfs -mkdir -p /user/data/trade.db/payments/dt=$do_date
# 数据迁移
python $DATAX_HOME/bin/datax.py -p "-Ddo_date=$do_date" /data/lagoudw/json/payments.json
# 加载数据
hive -e "alter table ods.ods_trade_payments add partition(dt='$do_date')"

3.2、增量数据导入

3张增量表：

订单表 lagou_trade_orders
订单产品表 lagou_order_produce
产品信息表 lagou_product_info

初始数据装载（执行一次）；可以将前面的全量加载作为初次装载
每日加载增量数据（每日数据形成分区）；
1、订单表
lagou_trade_orders ====> ods.ods_trade_orders
/data/lagoudw/json/orders.json
备注：条件的选择，选择时间字段 modifiedTime

{
	"job": {
		"setting": {
			"speed": {
				"channel": 1
			},
			"errorLimit": {
				"record": 0
			}
		},
		"content": [{
			"reader": {
				"name": "mysqlreader",
				"parameter": {
					"username": "teacher",
					"password": "teacher123",
					"connection": [{
						"querySql": [
							"select orderId, orderNo, userId,status, productMoney, totalMoney, payMethod, isPay, areaId,tradeSrc, tradeType, isRefund, dataFlag, createTime, payTime,modifiedTime from lagou_trade_orders wheredate_format(modifiedTime, '%Y-%m-%d') = '$do_date'"
						],
						"jdbcUrl": [
							"jdbc:mysql://hadoop1:3306/ebiz"
						]
					}]
				}
			},
			"writer": {
				"name": "hdfswriter",
				"parameter": {
					"defaultFS": "hdfs://hadoop1:9000",
					"fileType": "text",
					"path": "/user/data/trade.db/orders/dt=$do_date",
					"fileName": "orders_$do_date",
					"column": [{
							"name": "orderId",
							"type": "INT"
						},
						{
							"name": "orderNo",
							"type": "STRING"
						},
						{
							"name": "userId",
							"type": "BIGINT"
						},
						{
							"name": "status",
							"type": "TINYINT"
						},
						{
							"name": "productMoney",
							"type": "Float"
						},
						{
							"name": "totalMoney",
							"type": "Float"
						},
						{
							"name": "payMethod",
							"type": "TINYINT"
						},
						{
							"name": "isPay",
							"type": "TINYINT"
						},
						{
							"name": "areaId",
							"type": "INT"
						},
						{
							"name": "tradeSrc",
							"type": "TINYINT"
						},
						{
							"name": "tradeType",
							"type": "INT"
						},
						{
							"name": "isRefund",
							"type": "TINYINT"
						},
						{
							"name": "dataFlag",
							"type": "TINYINT"
						},
						{
							"name": "createTime",
							"type": "STRING"
						},
						{
							"name": "payTime",
							"type": "STRING"
						},
						{
							"name": "modifiedTime",
							"type": "STRING"
						}
					],
					"writeMode": "append",
					"fieldDelimiter": ","
				}
			}
		}]
	}
}

-- MySQL 中的时间日期转换
select date_format(createTime, '%Y-%m-%d'), count(*) from lagou_trade_orders group by date_format(createTime, '%Y-%m-%d');

do_date='2020-07-12'
# 创建目录
hdfs dfs -mkdir -p /user/data/trade.db/orders/dt=$do_date
# 数据迁移
python $DATAX_HOME/bin/datax.py -p "-Ddo_date=$do_date" /data/lagoudw/json/orders.json
# 加载数据
hive -e "alter table ods.ods_trade_orders add partition(dt='$do_date')"

2、订单明细表
lagou_order_product ====> ods.ods_trade_order_product
/data/lagoudw/json/order_product.json

{
	"job": {
		"setting": {
			"speed": {
				"channel": 1
			},
			"errorLimit": {
				"record": 0
			}
		},
		"content": [{
			"reader": {
				"name": "mysqlreader",
				"parameter": {
					"username": "teacher",
					"password": "teacher123",
					"connection": [{
						"querySql": [
							"select id, orderId, productId,productNum, productPrice, money, extra, createTime from lagou_order_product where date_format(createTime, '%Y-%m-%d') = '$do_date'"
						],
						"jdbcUrl": [
							"jdbc:mysql://hadoop1:3306/ebiz"
						]
					}]
				}
			},
			"writer": {
				"name": "hdfswriter",
				"parameter": {
					"defaultFS": "hdfs://hadoop1:9000",
					"fileType": "text",
					"path": "/user/data/trade.db/order_product/dt=$do_date",
					"fileName": "order_product_$do_date.dat",
					"column": [{
							"name": "id",
							"type": "INT"
						},
						{
							"name": "orderId",
							"type": "INT"
						},
						{
							"name": "productId",
							"type": "INT"
						},
						{
							"name": "productNum",
							"type": "INT"
						},
						{
							"name": "productPrice",
							"type": "Float"
						},
						{
							"name": "money",
							"type": "Float"
						},
						{
							"name": "extra",
							"type": "STRING"
						},
						{
							"name": "createTime",
							"type": "STRING"
						}
					],
					"writeMode": "append",
					"fieldDelimiter": ","
				}
			}
		}]
	}
}

do_date='2020-07-12'
# 创建目录
hdfs dfs -mkdir -p /user/data/trade.db/order_product/dt=$do_date
# 数据迁移
python $DATAX_HOME/bin/datax.py -p "-Ddo_date=$do_date" /data/lagoudw/json/order_product.json
# 加载数据
hive -e "alter table ods.ods_trade_order_product add partition(dt='$do_date')"

3、产品明细表
lagou_product_info ====> ods.ods_trade_product_info
/data/lagoudw/json/product_info.json

{
	"job": {
		"setting": {
			"speed": {
				"channel": 1
			},
			"errorLimit": {
				"record": 0
			}
		},
		"content": [{
			"reader": {
				"name": "mysqlreader",
				"parameter": {
					"username": "teacher",
					"password": "teacher123",
					"connection": [{
						"querySql": [
							"select productid, productname,shopid, price, issale, status, categoryid, createtime,modifytime from lagou_product_info wheredate_format(modifyTime, '%Y-%m-%d') = '$do_date'"
						],
						"jdbcUrl": [
							"jdbc:mysql://hadoop1:3306/ebiz"
						]
					}]
				}
			},
			"writer": {
				"name": "hdfswriter",
				"parameter": {
					"defaultFS": "hdfs://hadoop1:9000",
					"fileType": "text",
					"path": "/user/data/trade.db/product_info/dt=$do_date",
					"fileName": "product_info_$do_date.dat",
					"column": [{
							"name": "productid",
							"type": "BIGINT"
						},
						{
							"name": "productname",
							"type": "STRING"
						},
						{
							"name": "shopid",
							"type": "STRING"
						},
						{
							"name": "price",
							"type": "FLOAT"
						},
						{
							"name": "issale",
							"type": "TINYINT"
						},
						{
							"name": "status",
							"type": "TINYINT"
						},
						{
							"name": "categoryid",
							"type": "STRING"
						},
						{
							"name": "createTime",
							"type": "STRING"
						},
						{
							"name": "modifytime",
							"type": "STRING"
						}
					],
					"writeMode": "append",
					"fieldDelimiter": ","
				}
			}
		}]
	}
}

do_date='2020-07-12'
# 创建目录
hdfs dfs -mkdir -p /user/data/trade.db/product_info/dt=$do_date
# 数据迁移
python $DATAX_HOME/bin/datax.py -p "-Ddo_date=$do_date" /data/lagoudw/json/product_info.json
# 加载数据
hive -e "alter table ods.ods_trade_product_info add partition(dt='$do_date')"

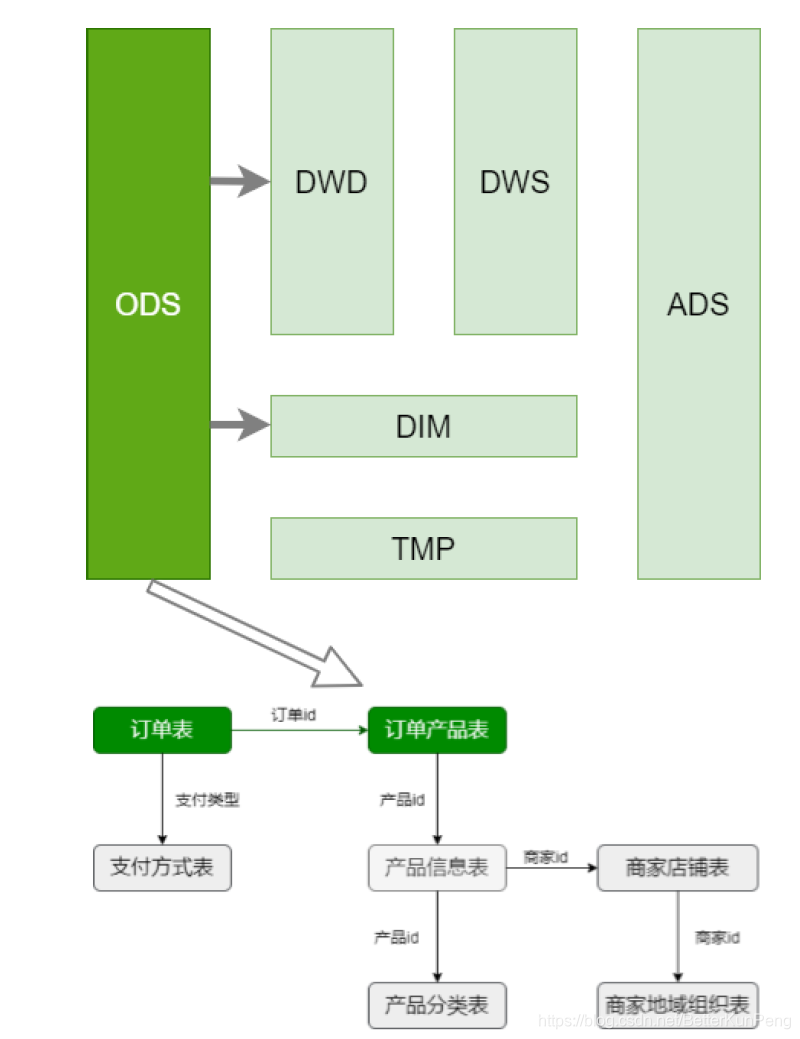

第4节 ODS层建表与数据加载

ODS建表：

ODS层的表结构与源数据基本类似（列名及数据类型）；
ODS层的表名遵循统一的规范；

4.1 ODS层建表

所有的表都是分区表；字段之间的分隔符为, ；为表的数据数据文件指定了位置；

DROP TABLE IF EXISTS `ods.ods_trade_orders`;
CREATE EXTERNAL TABLE `ods.ods_trade_orders`(
`orderid` int,
`orderno` string,
`userid` bigint,
`status` tinyint,
`productmoney` decimal(10, 0),
`totalmoney` decimal(10, 0),
`paymethod` tinyint,
`ispay` tinyint,
`areaid` int,
`tradesrc` tinyint,
`tradetype` int,
`isrefund` tinyint,
`dataflag` tinyint,
`createtime` string,
`paytime` string,
`modifiedtime` string)
COMMENT '订单表'
PARTITIONED BY (`dt` string)
row format delimited fields terminated by ','
location '/user/data/trade.db/orders/';

DROP TABLE IF EXISTS `ods.ods_trade_order_product`;
CREATE EXTERNAL TABLE `ods.ods_trade_order_product`(
`id` string,
`orderid` decimal(10,2),
`productid` string,
`productnum` string,
`productprice` string,
`money` string,
`extra` string,
`createtime` string)
COMMENT '订单明细表'
PARTITIONED BY (`dt` string)
row format delimited fields terminated by ','
location '/user/data/trade.db/order_product/';


DROP TABLE IF EXISTS `ods.ods_trade_product_info`;
CREATE EXTERNAL TABLE `ods.ods_trade_product_info`(
`productid` bigint,
`productname` string,
`shopid` string,
`price` decimal(10,0),
`issale` tinyint,
`status` tinyint,
`categoryid` string,
`createtime` string,
`modifytime` string)
COMMENT '产品信息表'
PARTITIONED BY (`dt` string)
row format delimited fields terminated by ','
location '/user/data/trade.db/product_info/';

DROP TABLE IF EXISTS `ods.ods_trade_product_category`;
CREATE EXTERNAL TABLE `ods.ods_trade_product_category`(
`catid` int,
`parentid` int,
`catname` string,
`isshow` tinyint,
`sortnum` int,
`isdel` tinyint,
`createtime` string,
`level` tinyint)
COMMENT '产品分类表'
PARTITIONED BY (`dt` string)
row format delimited fields terminated by ','
location '/user/data/trade.db/product_category';

DROP TABLE IF EXISTS `ods.ods_trade_shops`;
CREATE EXTERNAL TABLE `ods.ods_trade_shops`(
`shopid` int,
`userid` int,
`areaid` int,
`shopname` string,
`shoplevel` tinyint,
`status` tinyint,
`createtime` string,
`modifytime` string)
COMMENT '商家店铺表'
PARTITIONED BY (`dt` string)
row format delimited fields terminated by ','
location '/user/data/trade.db/shops';

DROP TABLE IF EXISTS `ods.ods_trade_shop_admin_org`;
CREATE EXTERNAL TABLE `ods.ods_trade_shop_admin_org`(
`id` int,
`parentid` int,
`orgname` string,
`orglevel` tinyint,
`isdelete` tinyint,
`createtime` string,
`updatetime` string,
`isshow` tinyint,
`orgType` tinyint)
COMMENT '商家地域组织表'
PARTITIONED BY (`dt` string)
row format delimited fields terminated by ','
location '/user/data/trade.db/shop_org/';

DROP TABLE IF EXISTS `ods.ods_trade_payments`;
CREATE EXTERNAL TABLE `ods.ods_trade_payments`(
`id` string,
`paymethod` string,
`payname` string,
`description` string,
`payorder` int,
`online` tinyint)
COMMENT '支付方式表'
PARTITIONED BY (`dt` string)
row format delimited fields terminated by ','
location '/user/data/trade.db/payments/';

4.2 ODS层数据加载

DataX仅仅是将数据导入到了 HDFS ，数据并没有与Hive表建立关联。
脚本的任务：数据迁移、数据加载到ODS层；
对于增量加载数据而言：初始数据加载；该任务仅执行一次，不在脚本中。
/data/lagoudw/script/trade/ods_load_trade.sh

#!/bin/bash
source /etc/profile
if [ -n "$1" ] ;then
do_date=$1
else
do_date=`date -d "-1 day" +%F`
fi
# 创建目录
hdfs dfs -mkdir -p
/user/data/trade.db/product_category/dt=$do_date
hdfs dfs -mkdir -p /user/data/trade.db/shops/dt=$do_date
hdfs dfs -mkdir -p /user/data/trade.db/shop_org/dt=$do_date
hdfs dfs -mkdir -p /user/data/trade.db/payments/dt=$do_date
hdfs dfs -mkdir -p /user/data/trade.db/orders/dt=$do_date
hdfs dfs -mkdir -p
/user/data/trade.db/order_product/dt=$do_date
hdfs dfs -mkdir -p
/user/data/trade.db/product_info/dt=$do_date
# 数据迁移
python $DATAX_HOME/bin/datax.py -p "-Ddo_date=$do_date"
/data/lagoudw/json/product_category.json
python $DATAX_HOME/bin/datax.py -p "-Ddo_date=$do_date"
/data/lagoudw/json/shops.json
python $DATAX_HOME/bin/datax.py -p "-Ddo_date=$do_date"
/data/lagoudw/json/shop_org.json
python $DATAX_HOME/bin/datax.py -p "-Ddo_date=$do_date"
/data/lagoudw/json/payments.json
python $DATAX_HOME/bin/datax.py -p "-Ddo_date=$do_date"
/data/lagoudw/json/orders.json
python $DATAX_HOME/bin/datax.py -p "-Ddo_date=$do_date"
/data/lagoudw/json/order_product.json
python $DATAX_HOME/bin/datax.py -p "-Ddo_date=$do_date"
/data/lagoudw/json/product_info.json
# 加载 ODS 层数据
sql="
alter table ods.ods_trade_orders add partition(dt='$do_date');
alter table ods.ods_trade_order_product add
partition(dt='$do_date');
alter table ods.ods_trade_product_info add
partition(dt='$do_date');
alter table ods.ods_trade_product_category add
partition(dt='$do_date');
alter table ods.ods_trade_shops add partition(dt='$do_date');
alter table ods.ods_trade_shop_admin_org add
partition(dt='$do_date');
alter table ods.ods_trade_payments add
partition(dt='$do_date');
"
hive -e "$sql"

第5节缓慢变化维与周期性事实表

5.1、缓慢变化维

缓慢变化维（SCD；Slowly Changing Dimensions）。在现实世界中，维度的属性随着时间的流失发生缓慢的变化（缓慢是相对事实表而言，事实表数据变化的速度比维度表快）。
处理维度表的历史变化信息的问题称为处理缓慢变化维的问题，简称SCD问题。处理
缓慢变化维的方法有以下几种常见方式：

保留原值
直接覆盖
增加新属性列
快照表
拉链表

1、保留原始值
维度属性值不做更改，保留原始值。
如商品上架售卖时间：一个商品上架售卖后由于其他原因下架，后来又再次上架，此种情况产生了多个商品上架售卖时间。如果业务重点关注的是商品首次上架售卖时间，则采用该方式。
2、直接覆盖
修改维度属性为最新值，直接覆盖，不保留历史信息。
如商品属于哪个品类：当商品品类发生变化时，直接重写为新品类。

3、增加新属性列
在维度表中增加新的一列，原先属性列存放上一版本的属性值，当前属性列存放当前
版本的属性值，还可以增加一列记录变化的时间。
缺点：只能记录最后一次变化的信息。
4、快照表
每天保留一份全量数据。
简单、高效。缺点是信息重复，浪费磁盘空间。
适用范围：维表不能太大
使用场景多，范围广；一般而言维表都不大。

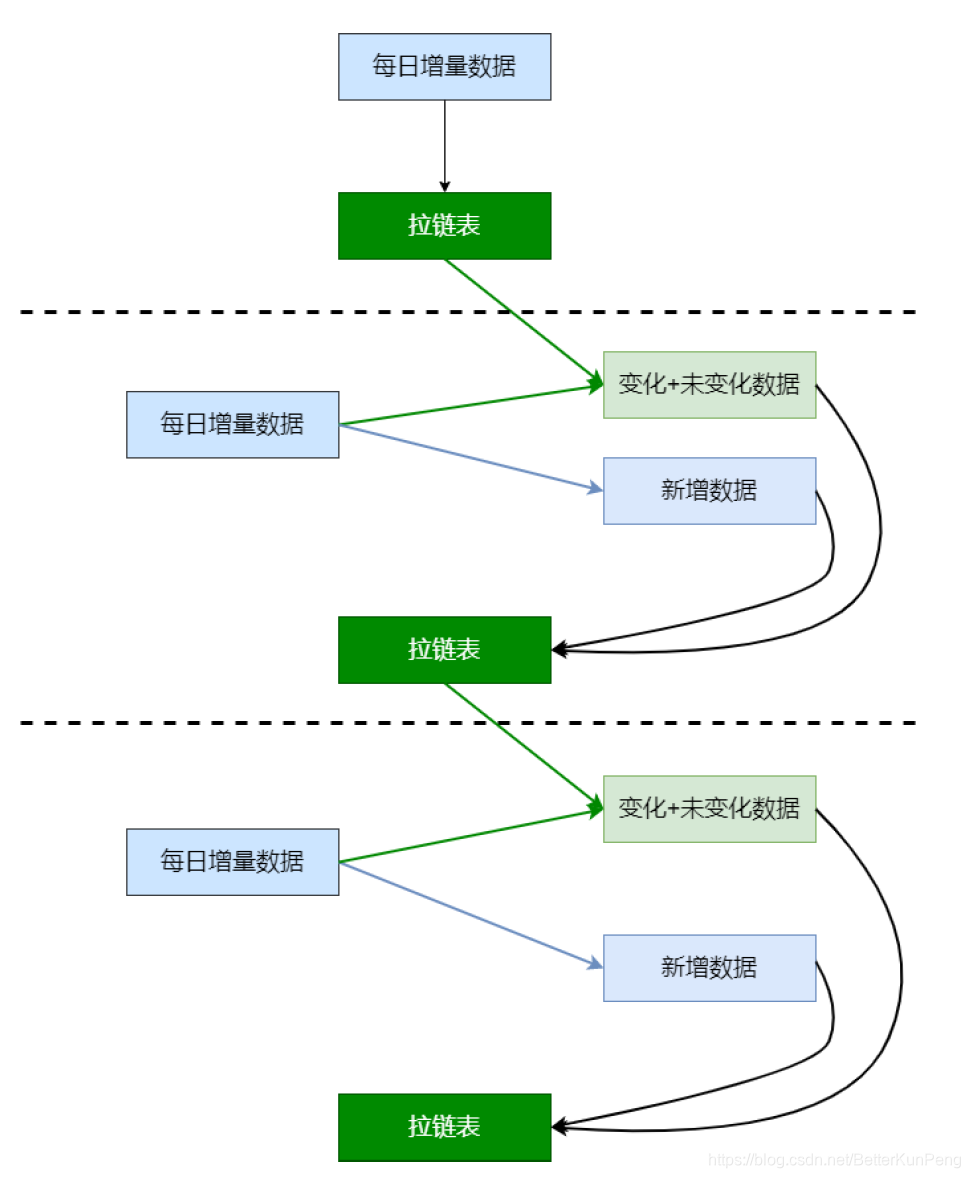

5、拉链表
拉链表适合于：表的数据量大，而且数据会发生新增和变化，但是大部分是不变的
（数据发生变化的百分比不大），且是缓慢变化的（如电商中用户信息表中的某些用
户基本属性不可能每天都变化）。主要目的是节省存储空间。
适用场景：

表的数据量大
表中部分字段会被更新
表中记录变量的比例不高
需要保留历史信息

5.2、维表拉链表应用案例

?1、创建表加载数据（准备工作）

-- 用户信息
DROP TABLE IF EXISTS test.userinfo;
CREATE TABLE test.userinfo(
userid STRING COMMENT '用户编号',
mobile STRING COMMENT '手机号码',
regdate STRING COMMENT '注册日期')
COMMENT '用户信息'
PARTITIONED BY (dt string)
row format delimited fields terminated by ',';
-- 拉链表（存放用户历史信息）
-- 拉链表不是分区表；多了两个字段start_date、end_date
DROP TABLE IF EXISTS test.userhis;
CREATE TABLE test.userhis(
userid STRING COMMENT '用户编号',
mobile STRING COMMENT '手机号码',
regdate STRING COMMENT '注册日期',
start_date STRING,
end_date STRING)
COMMENT '用户信息拉链表'
row format delimited fields terminated by ',';
-- 数据(/data/lagoudw/data/userinfo.dat)
001,13551111111,2020-03-01,2020-06-20
002,13561111111,2020-04-01,2020-06-20
003,13571111111,2020-05-01,2020-06-20
004,13581111111,2020-06-01,2020-06-20
002,13562222222,2020-04-01,2020-06-21
004,13582222222,2020-06-01,2020-06-21
005,13552222222,2020-06-21,2020-06-21
004,13333333333,2020-06-01,2020-06-22
005,13533333333,2020-06-21,2020-06-22
006,13733333333,2020-06-22,2020-06-22
001,13554444444,2020-03-01,2020-06-23
003,13574444444,2020-05-01,2020-06-23
005,13555554444,2020-06-21,2020-06-23
007,18600744444,2020-06-23,2020-06-23
008,18600844444,2020-06-23,2020-06-23

-- 静态分区数据加载（略）
/data/lagoudw/data/userinfo0620.dat
001,13551111111,2020-03-01
002,13561111111,2020-04-01
003,13571111111,2020-05-01
004,13581111111,2020-06-01
load data local inpath '/data/lagoudw/data/userinfo0620.dat'
into table test.userinfo
partition(dt='2020-06-20');

-- 动态分区数据加载：分区的值是不固定的，由输入数据确定
-- 创建中间表(非分区表)
drop table if exists test.tmp1;
create table test.tmp1 as
select * from test.userinfo;
-- tmp1 非分区表，使用系统默认的字段分割符'\001'
alter table test.tmp1 set serdeproperties('field.delim'=',');
-- 向中间表加载数据
load data local inpath '/data/lagoudw/data/userinfo.dat' into
table test.tmp1;
-- 从中间表向分区表加载数据
set hive.exec.dynamic.partition.mode=nonstrict;
insert into table test.userinfo
partition(dt)
select  * from test.tmp1;

?与动态分区相关的参数
hive.exec.dynamic.partition
Default Value: false prior to Hive 0.9.0; true in Hive 0.9.0 and later
Added In: Hive 0.6.0
Whether or not to allow dynamic partitions in DML/DDL.
表示开启动态分区功能
hive.exec.dynamic.partition.mode
Default Value: strict
Added In: Hive 0.6.0
In strict mode, the user must specify at least one static partition in case the
user accidentally overwrites all partitions. In nonstrict mode all partitions are
allowed to be dynamic.
Set to nonstrict to support INSERT ... VALUES, UPDATE, and DELETE transactions
(Hive 0.14.0 and later).
strict：最少需要有一个是静态分区
nonstrict：可以全部是动态分区
hive.exec.max.dynamic.partitions
Default Value: 1000
Added In: Hive 0.6.0
Maximum number of dynamic partitions allowed to be created in total.
表示一个动态分区语句可以创建的最大动态分区个数，超出报错
hive.exec.max.dynamic.partitions.pernode
Default Value: 100
Added In: Hive 0.6.0

Maximum number of dynamic partitions allowed to be created in each mapper/reducer node.
表示每个mapper / reducer可以允许创建的最大动态分区个数，默认是100，超出则会报错。
hive.exec.max.created.files
Default Value: 100000
Added In: Hive 0.7.0
Maximum number of HDFS files created by all mappers/reducers in a MapReduce job.
表示一个MR job可以创建的最大文件个数，超出报错。

2、拉链表的实现
userinfo(分区表) => userid、mobile、regdate => 每日变更的数据（修改的+新增的） / 历史数据（第一天）
userhis（拉链表）=> 多了两个字段 start_date / end_date

-- 步骤：
-- 1、userinfo初始化（2020-06-20）。获取历史数据
001,13551111111,2020-03-01,2020-06-20
002,13561111111,2020-04-01,2020-06-20
003,13571111111,2020-05-01,2020-06-20
004,13581111111,2020-06-01,2020-06-20
-- 2、初始化拉链表（2020-06-20）。userinfo => userhis
insert overwrite table test.userhis
select userid, mobile, regdate, dt as start_date, '9999-12-
31' as end_date
from test.userinfo
where dt='2020-06-20';
-- 3、次日新增数据（2020-06-21）；获取新增数据
002,13562222222,2020-04-01,2020-06-21
004,13582222222,2020-06-01,2020-06-21
005,13552222222,2020-06-21,2020-06-21
-- 4、构建拉链表(userhis)（2020-06-21）【核心】 userinfo(2020-06-
21) + userhis => userhis
-- userinfo: 新增数据
-- userhis：历史数据
-- 第一步：处理新增数据【userinfo】（处理逻辑与加载历史数据类似）
select userid, mobile, regdate, dt as start_date, '9999-12-
31' as end_date
from test.userinfo
where dt='2020-06-21';
-- 第二步：处理历史数据【userhis】（历史包括两部分：变化的、未变化的）
-- 变化的：start_date:不变；end_date：传入日期-1
-- 未变化的：不做处理
-- 观察数据
select A.userid, B.userid, B.mobile, B.regdate, B.start_Date,
B.end_date
from (select * from test.userinfo where dt='2020-06-21') A
right join test.userhis B
on A.userid=B.userid;
-- 编写SQL，处理历史数据
select B.userid,
B.mobile,
B.regdate,
B.start_Date,
case when B.end_date='9999-12-31' and A.userid is not
null
then date_add('2020-06-21', -1)
else B.end_date
end as end_date
from (select * from test.userinfo where dt='2020-06-21') A
right join test.userhis B
on A.userid=B.userid;
-- 最终的处理（新增+历史数据）
insert overwrite table test.userhis
select userid, mobile, regdate, dt as start_date, '9999-12-
31' as end_date
from test.userinfo
where dt='2020-06-21'
union all
select B.userid,
B.mobile,
B.regdate,
B.start_Date,
case when B.end_date='9999-12-31' and A.userid is not
null
then date_add('2020-06-21', -1)
else B.end_date
end as end_date
from (select * from test.userinfo where dt='2020-06-21') A
right join test.userhis B
on A.userid=B.userid;
-- 5、第三日新增数据（2020-06-22）；获取新增数据
004,13333333333,2020-06-01,2020-06-22
005,13533333333,2020-06-21,2020-06-22
006,13733333333,2020-06-22,2020-06-22
-- 6、构建拉链表（2020-06-22） userinfo(2020-06-22) + userhis =>
userhis
-- 7、第四日新增数据（2020-06-23）
001,13554444444,2020-03-01,2020-06-23
003,13574444444,2020-05-01,2020-06-23
005,13555554444,2020-06-21,2020-06-23
007,18600744444,2020-06-23,2020-06-23
008,18600844444,2020-06-23,2020-06-23
-- 8、构建拉链表(2020-06-23)

?处理拉链表的脚本(测试脚本)：
/data/lagoudw/data/userzipper.sh

#!/bin/bash
source /etc/profile
if [ -n "$1" ] ;then
do_date=$1
else
do_date=`date -d "-1 day" +%F`
fi
sql="insert overwrite table test.userhis
select userid, mobile, regdate, dt as start_date, '9999-12-
31' as end_date
from test.userinfo
where dt='$do_date'
union all
select B.userid,
B.mobile,
B.regdate,
B.start_Date,
case when B.end_date='9999-12-31' and A.userid is not
null
then date_add('$do_date', -1)
else B.end_date
end as end_date
from (select * from test.userinfo where dt='$do_date') A
right join test.userhis B
on A.userid=B.userid;
"
hive -e "$sql"

?拉链表的使用：

-- 查看拉链表中最新数据(2020-06-23以后的数据)
select * from userhis where end_date='9999-12-31';
-- 查看拉链表中给定日期数据("2020-06-22")
select * from userhis where start_date <= '2020-06-22' and end_date >= '2020-06-22';
-- 查看拉链表中给定日期数据("2020-06-21")
select * from userhis where start_date <= '2020-06-21' and end_date >= '2020-06-21';
-- 查看拉链表中给定日期数据("2020-06-20")
select * from userhis where start_date <= '2020-06-20' and end_date >= '2020-06-20';

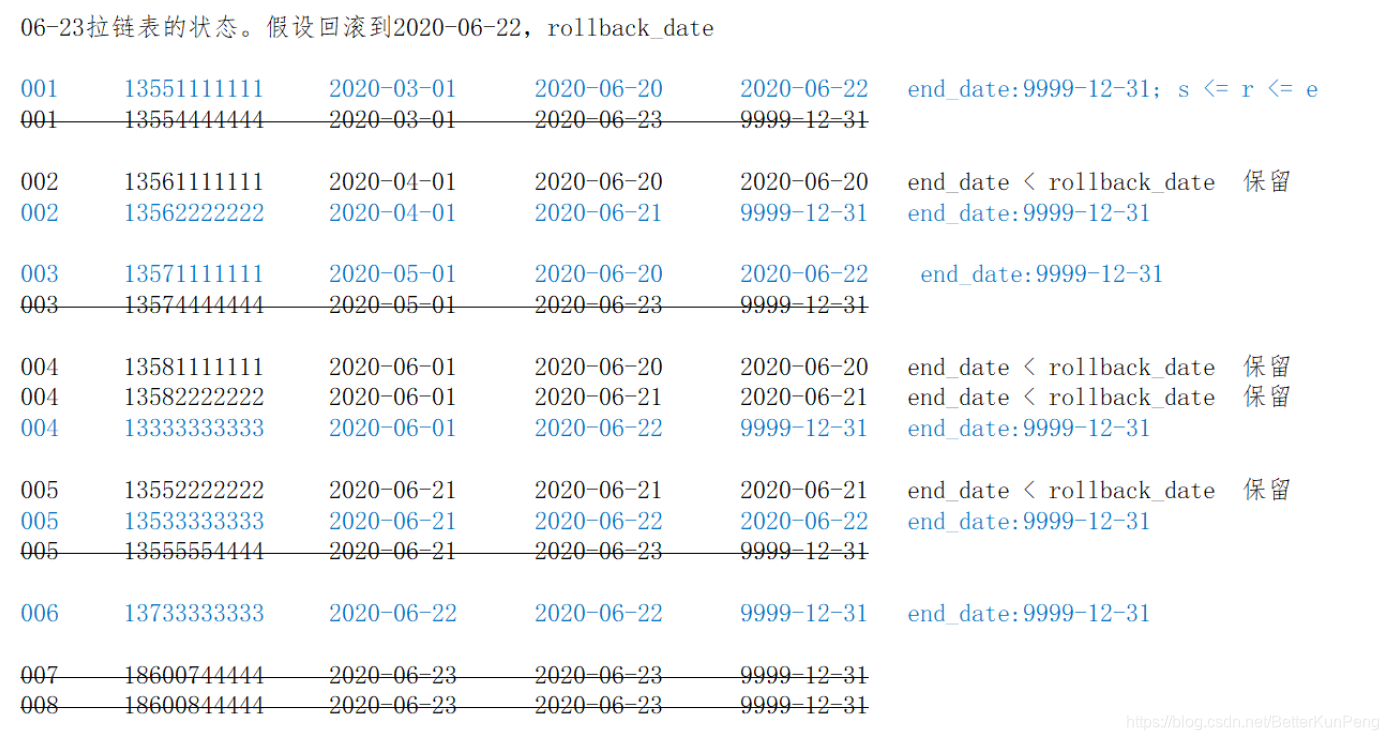

3、拉链表的回滚

由于种种原因需要将拉链表恢复到 rollback_date 那一天的数据。此时有：
end_date < rollback_date，即结束日期 < 回滚日期。表示该行数据在rollback_date 之前产生，这些数据需要原样保留
start_date <= rollback_date <= end_date，即开始日期 <= 回滚日期 <= 结束日期。这些数据是回滚日期之后产生的，但是需要修改。将end_date 改为 9999-12-31
其他数据不用管?

?按以上方案进行编码：
1、处理 end_date < rollback_date 的数据，保留

select userid, mobile, regdate, start_date, end_date, '1' as
tag
from test.userhis
where end_date < '2020-06-22';

2、处理 start_date <= rollback_date <= end_date 的数据，设置end_date=9999-12-31

select userid, mobile, regdate, start_date, '9999-12-31' as
end_date, '2' as tag
from test.userhis
where start_date <= '2020-06-22' and end_date >= '2020-06-22';

3、将前面两步的数据写入临时表tmp（拉链表）

#!/bin/bash
source /etc/profile
if [ -n "$1" ] ;then
do_date=$1
else
do_date=`date -d "-1 day" +%F`
fi
sql="
drop table test.tmp;
create table test.tmp as
select userid, mobile, regdate, start_date, end_date, '1' as
tag
from test.userhis
where end_date < '$do_date'
union all
select userid, mobile, regdate, start_date, '9999-12-31' as
end_date, '2' as tag
from test.userhis
where start_date <= '$do_date' and end_date >= '$do_date';
"
hive -e "$sql"

?第6节 DIM层建表加载数据

首先要确定哪些是事实表、哪些是维表。绿色的是事实表，灰色的维表
用什么方式处理维表，每日快照、拉链表？
小表使用每日快照：产品分类表、商家店铺表、商家地域组织表、支付方式表
大表使用拉链表：产品信息表?

?6.1 商品分类表

数据库中的数据是规范的（满足三范式），但是规范化的数据给查询带来不便。
备注：这里对商品分类维度表做了逆规范化
省略了无关信息，做成了宽表

DROP TABLE IF EXISTS dim.dim_trade_product_cat;
create table if not exists dim.dim_trade_product_cat(
firstId int, -- 一级商品分类id
firstName string, -- 一级商品分类名称
secondId int, -- 二级商品分类Id
secondName string, -- 二级商品分类名称
thirdId int, -- 三级商品分类id
thirdName string -- 三级商品分类名称
)
partitioned by (dt string)
STORED AS PARQUET;

实现：

select T1.catid, T1.catname, T2.catid, T2.catname, T3.catid,
T3.catname
from (select catid, catname, parentid
from ods.ods_trade_product_category
where level=3 and dt='2020-07-01') T3
left join
(select catid, catname, parentid
from ods.ods_trade_product_category
where level=2 and dt='2020-07-01') T2
on T3.parentid=T2.catid
left join
(select catid, catname, parentid
from ods.ods_trade_product_category
where level=1 and dt='2020-07-01') T1
on T2.parentid=T1.catid;

数据加载：
/data/lagoudw/script/trade/dim_load_product_cat.sh

#！/bin/bash
source /etc/profile
if [ -n "$1" ]
then
do_date=$1
else
do_date=`date -d "-1 day" +%F`
fi
sql="
insert overwrite table dim.dim_trade_product_cat
partition(dt='$do_date')
select
t1.catid, -- 一级分类id
t1.catname, -- 一级分类名称
t2.catid, -- 二级分类id
t2.catname, -- 二级分类名称
t3.catid, -- 三级分类id
t3.catname -- 三级分类名称
from
-- 商品三级分类数据
(select catid, catname, parentid
from ods.ods_trade_product_category
where level=3 and dt='$do_date') t3
left join
-- 商品二级分类数据
(select catid, catname, parentid
from ods.ods_trade_product_category
where level=2 and dt='$do_date') t2
on t3.parentid = t2.catid
left join
-- 商品一级分类数据
(select catid, catname, parentid
from ods.ods_trade_product_category
where level=1 and dt='$do_date') t1
on t2.parentid = t1.catid;
"
hive -e "$sql"

6.2 商品地域组织表

商家店铺表、商家地域组织表 => 一张维表
这里也是逆规范化的设计，将商家店铺表、商家地域组织表组织成一张表，并拉宽。
在一行数据中体现：商家信息、城市信息、地域信息。信息中包括 id 和 name ；

drop table if exists dim.dim_trade_shops_org;
create table dim.dim_trade_shops_org(
shopid int,
shopName string,
cityId int,
cityName string ,
regionId int ,
regionName string
)
partitioned by (dt string)
STORED AS PARQUET;

实现

#！/bin/bash
source /etc/profile
if [ -n "$1" ]
then
do_date=$1
else
do_date=`date -d "-1 day" +%F`
fi
sql="
insert overwrite table dim.dim_trade_shops_org
partition(dt='$do_date')
select t1.shopid,
t1.shopname,
t2.id as cityid,
t2.orgname as cityName,
t3.id as region_id,
t3.orgname as region_name
from (select shopId, shopName, areaId
from ods.ods_trade_shops
where dt='$do_date') t1
left join
(select id, parentId, orgname, orglevel
from ods.ods_trade_shop_admin_org
where orglevel=2 and dt='$do_date') t2
on t1.areaid = t2.id
left join
(select id, parentId, orgname, orglevel
from ods.ods_trade_shop_admin_org
where orglevel=1 and dt='$do_date') t3
on t2.parentid = t3.id;
"
hive -e "$sql"

6.3 支付方式表

对ODS中表的信息做了裁剪，只保留了必要的信息。

drop table if exists dim.dim_trade_payment;
create table if not exists dim.dim_trade_payment(
paymentId string, -- 支付方式id
paymentName string -- 支付方式名称
)
partitioned by (dt string)
STORED AS PARQUET;

/data/lagoudw/script/trade/dim_load_payment.sh

#！/bin/bash
source /etc/profile
if [ -n "$1" ]
then
do_date=$1
else
do_date=`date -d "-1 day" +%F`
fi
sql="
insert overwrite table dim.dim_trade_payment
partition(dt='$do_date')
select id, payName
from ods.ods_trade_payments
where dt='$do_date';
"
hive -e "$sql"

6.4 商品信息表

使用拉链表对商品信息进行处理。
1、历史数据 => 初始化拉链表(开始日期：当日；结束日期：9999-12-31)【只执行一次】
2、拉链表的每日处理【每次加载数据时处理】
新增数据。每日新增数据(ODS) => 开始日期：当日；结束日期：9999-12-31
历史数据。拉链表(DIM) 与每日新增数据(ODS) 做左连接
连接上数据。数据有变化，结束日期：当日；
未连接上数据。数据无变化，结束日期保持不变；
1、创建维表
拉链表要增加两列，分别记录生效日期和失效日期

drop table if exists dim.dim_trade_product_info;
create table dim.dim_trade_product_info(
`productId` bigint,
`productName` string,
`shopId` string,
`price` decimal,
`isSale` tinyint,
`status` tinyint,
`categoryId` string,
`createTime` string,
`modifyTime` string,
`start_dt` string,
`end_dt` string
) COMMENT '产品表'
STORED AS PARQUET;

2、初始数据加载（历史数据加载，只做一次）

insert overwrite table dim.dim_trade_product_info
select productId,
productName,
shopId,
price,
isSale,
status,
categoryId,
createTime,
modifyTime,
-- modifyTime非空取modifyTime，否则取createTime；substr取日期
case when modifyTime is not null
then substr(modifyTime, 0, 10)
else substr(createTime, 0, 10)
end as start_dt,
'9999-12-31' as end_dt
from ods.ods_trade_product_info
where dt = '2020-07-12';

3、增量数据导入（重复执行，每次加载数据执行）
/data/lagoudw/script/trade/dim_load_product_info.sh

#！/bin/bash
source /etc/profile
if [ -n "$1" ]
then
do_date=$1
else
do_date=`date -d "-1 day" +%F`
fi
sql="
insert overwrite table dim.dim_trade_product_info
select productId,
productName,
shopId,
price,
isSale,
status,
categoryId,
createTime,
modifyTime,
case when modifyTime is not null
then substr(modifyTime,0,10)
else substr(createTime,0,10)
end as start_dt,
'9999-12-31' as end_dt
from ods.ods_trade_product_info
where dt='$do_date'
union all
select dim.productId,
dim.productName,
dim.shopId,
dim.price,
dim.isSale,
dim.status,
dim.categoryId,
dim.createTime,
dim.modifyTime,
dim.start_dt,
case when dim.end_dt >= '9999-12-31' and ods.productId
is not null
then '$do_date'
else dim.end_dt
end as end_dt
from dim.dim_trade_product_info dim left join
(select *
from ods.ods_trade_product_info
where dt='$do_date' ) ods
on dim.productId = ods.productId
"
hive -e "$sql"

第7节 DWD层建表加载数据

要处理的表有两张：订单表、订单产品表。其中：
订单表是周期性事实表；为保留订单状态，可以使用拉链表进行处理；
订单产品表普通的事实表，用常规的方法进行处理；

如果有数据清洗、数据转换的业务需求，ODS => DWD
如果没有数据清洗、数据转换的业务需求，保留在ODS，不做任何变化。这个是本项目的处理方式

订单状态：

-3：用户拒收
-2：未付款的订单
-1：用户取消
0：待发货
1：配送中
2：用户确认收货
订单从创建到最终完成，是有时间限制的；业务上也不允许订单在一个月之后，状态仍然在发生变化；

7.1、DWD层建表

备注：
与维表不同，订单事实表的记录数非常多
订单有生命周期；订单的状态不可能永远处于变化之中（订单的生命周期一般在15天左右）
订单是一个拉链表，而且是分区表
分区的目的：订单一旦终止，不会重复计算
分区的条件：订单创建日期；保证相同的订单在用一个分区

-- 订单事实表(拉链表)
DROP TABLE IF EXISTS dwd.dwd_trade_orders;
create table dwd.dwd_trade_orders(
`orderId` int,
`orderNo` string,
`userId` bigint,
`status` tinyint,
`productMoney` decimal,
`totalMoney` decimal,
`payMethod` tinyint,
`isPay` tinyint,
`areaId` int,
`tradeSrc` tinyint,
`tradeType` int,
`isRefund` tinyint,
`dataFlag` tinyint,
`createTime` string,
`payTime` string,
`modifiedTime` string,
`start_date` string,
`end_date` string
) COMMENT '订单事实拉链表'
partitioned by (dt string)
STORED AS PARQUET;

7.2、DWD层数据加载

-- 备注：时间日期格式转换
-- 'yyyy-MM-dd HH:mm:ss' => timestamp => 'yyyy-MM-dd'
select unix_timestamp(modifiedtime, 'yyyy-MM-dd HH:mm:ss') from ods.ods_trade_orders limit 10;
select from_unixtime(unix_timestamp(modifiedtime, 'yyyy-MM-dd HH:mm:ss'), 'yyyy-MM-dd') from ods.ods_trade_orders limit 10;

/data/lagoudw/script/trade/dwd_load_trade_orders.sh

#！/bin/bash
source /etc/profile
if [ -n "$1" ]
then
do_date=$1
else
do_date=`date -d "-1 day" +%F`
fi
sql="
set hive.exec.dynamic.partition.mode=nonstrict;
set hive.exec.dynamic.partition=true;
INSERT OVERWRITE TABLE dwd.dwd_trade_orders
partition(dt)
SELECT orderId,
orderNo,
userId,
status,
productMoney,
totalMoney,
payMethod,
isPay,
areaId,
tradeSrc,
tradeType,
isRefund,
dataFlag,
createTime,
payTime,
modifiedTime,
case when modifiedTime is not null
then from_unixtime(unix_timestamp(modifiedTime,
'yyyy-MM-dd HH:mm:ss'),'yyyy-MM-dd')
else from_unixtime(unix_timestamp(createTime,
'yyyy-MM-dd HH:mm:ss'), 'yyyy-MM-dd')
end as start_date,
'9999-12-31' as end_date,
from_unixtime(unix_timestamp(createTime, 'yyyy-MM-dd
HH:mm:ss'), 'yyyy-MM-dd') as dt
FROM ods.ods_trade_orders
WHERE dt='$do_date'
union all
SELECT A.orderId,
A.orderNo,
A.userId,
A.status,
A.productMoney,
A.totalMoney,
A.payMethod,
A.isPay,
A.areaId,
A.tradeSrc,
A.tradeType,
A.isRefund,
A.dataFlag,
A.createTime,
A.payTime,
A.modifiedTime,
A.start_date,
CASE WHEN B.orderid IS NOT NULL AND A.end_date >
'$do_date'
THEN date_add('$do_date', -1)
ELSE A.end_date END AS end_date,
from_unixtime(unix_timestamp(A.createTime, 'yyyy-MM-dd
HH:mm:ss'), 'yyyy-MM-dd') as dt
FROM (SELECT * FROM dwd.dwd_trade_orders WHERE
dt>date_add('$do_date', -15)) A
left outer join (SELECT * FROM ods.ods_trade_orders
WHERE dt='$do_date') B
ON A.orderId = B.orderId;
"
hive -e "$sql"

第8节 DWS层建表及数据加载

DIM、DWD => 数据仓库分层、数据仓库理论
需求：计算当天
全国所有订单信息
全国、一级商品分类订单信息
全国、二级商品分类订单信息
大区所有订单信息
大区、一级商品分类订单信息
大区、二级商品分类订单信息
城市所有订单信息
城市、一级商品分类订单信息
城市、二级商品分类订单信息
需要的信息：订单表、订单商品表、商品信息维表、商品分类维表、商家地域维表
订单表 => 订单id、订单状态
订单商品表 => 订单id、商品id、商家id、单价、数量
商品信息维表 => 商品id、三级分类id
商品分类维表 => 一级名称、一级分类id、二级名称、二级分类id、三级名称、三级分类id
商家地域维表 => 商家id、区域名称、区域id、城市名称、城市id
订单表、订单商品表、商品信息维表 => 订单id、商品id、商家id、三级分类id、单价、数量（订单明细表）

订单明细表、商品分类维表、商家地域维表 => 订单id、商品id、商家id、三级分类名称、三级分类名称、三级分类名称、单价、数量、区域、城市 => 订单明细宽表

8.1、DWS层建表

dws_trade_orders（订单明细）由以下表轻微聚合而成：
dwd.dwd_trade_orders (拉链表、分区表)
ods.ods_trade_order_product （分区表）
dim.dim_trade_product_info（维表、拉链表）

dws_trade_orders_w（订单明细宽表）由以下表组成：
dws.dws_trade_orders (分区表)
dim.dim_trade_product_cat（分区表）
dim.dim_trade_shops_org（分区表)

-- 订单明细表(轻度汇总事实表)。每笔订单的明细
DROP TABLE IF EXISTS dws.dws_trade_orders;
create table if not exists dws.dws_trade_orders(
orderid string, -- 订单id
cat_3rd_id string, -- 商品三级分类id
shopid string, -- 店铺id
paymethod tinyint, -- 支付方式
productsnum bigint, -- 商品数量
paymoney double, -- 订单商品明细金额
paytime string -- 订单时间
)
partitioned by (dt string)
STORED AS PARQUET;


-- 订单明细表宽表
DROP TABLE IF EXISTS dws.dws_trade_orders_w;
create table if not exists dws.dws_trade_orders_w(
orderid string, -- 订单id
cat_3rd_id string, -- 商品三级分类id
thirdname string, -- 商品三级分类名称
secondname string, -- 商品二级分类名称
firstname string, -- 商品一级分类名称
shopid string, -- 店铺id
shopname string, -- 店铺名
regionname string, -- 店铺所在大区
cityname string, -- 店铺所在城市
paymethod tinyint, -- 支付方式
productsnum bigint, -- 商品数量
paymoney double, -- 订单明细金额
paytime string -- 订单时间
)
partitioned by (dt string)
STORED AS PARQUET;

8.2、DWS层加载数据
/data/lagoudw/script/trade/dws_load_trade_orders.sh
备注：dws_trade_orders/dws_trade_orders_w 中一笔订单可能出现多条记录！

#！/bin/bash
source /etc/profile
if [ -n "$1" ]
then
do_date=$1
else
do_date=`date -d "-1 day" +%F`
fi
sql="
insert overwrite table dws.dws_trade_orders
partition(dt='$do_date')
select t1.orderid as orderid,
t3.categoryid as cat_3rd_id,
t3.shopid as shopid,
t1.paymethod as paymethod,
t2.productnum as productsnum,
t2.productnum*t2.productprice as pay_money,
t1.paytime as paytime
from (select orderid, paymethod, paytime
from dwd.dwd_trade_orders
where dt='$do_date') T1
left join
(select orderid, productid, productnum, productprice
from ods.ods_trade_order_product
where dt='$do_date') T2
on t1.orderid = t2.orderid
left join
(select productid, shopid, categoryid
from dim.dim_trade_product_info
where start_dt <= '$do_date'
and end_dt >= '$do_date' ) T3
on t2.productid=t3.productid;
insert overwrite table dws.dws_trade_orders_w
partition(dt='$do_date')
select t1.orderid,
t1.cat_3rd_id,
t2.thirdname,
t2.secondname,
t2.firstname,
t1.shopid,
t3.shopname,
t3.regionname,
t3.cityname,
t1.paymethod,
t1.productsnum,
t1.paymoney,
t1.paytime
from (select orderid,
cat_3rd_id,
shopid,
paymethod,
productsnum,
paymoney,
paytime
from dws.dws_trade_orders
where dt='$do_date') T1
join
(select thirdid, thirdname, secondid, secondname,
firstid, firstname
from dim.dim_trade_product_cat
where dt='$do_date') T2
on T1.cat_3rd_id = T2.thirdid
join
(select shopid, shopname, regionname, cityname
from dim.dim_trade_shops_org
where dt='$do_date') T3
on T1.shopid = T3.shopid
"
hive -e "$sql"

第9节 ADS层开发

需求：计算当天
全国所有订单信息
全国、一级商品分类订单信息
全国、二级商品分类订单信息
大区所有订单信息
大区、一级商品分类订单信息
大区、二级商品分类订单信息
城市所有订单信息
城市、一级商品分类订单信息
城市、二级商品分类订单信息
用到的表：
dws.dws_trade_orders_w

9.1、ADS层建表

-- ADS层订单分析表
DROP TABLE IF EXISTS ads.ads_trade_order_analysis;
create table if not exists ads.ads_trade_order_analysis(
areatype string, -- 区域范围：区域类型（全国、大
区、城市）
regionname string, -- 区域名称
cityname string, -- 城市名称
categorytype string, -- 商品分类类型（一级、二级）
category1 string, -- 商品一级分类名称
category2 string, -- 商品二级分类名称
totalcount bigint, -- 订单数量
total_productnum bigint, -- 商品数量
totalmoney double -- 支付金额
)
partitioned by (dt string)
row format delimited fields terminated by ',';

?9.2、ADS层加载数据

/data/lagoudw/script/trade/ads_load_trade_order_analysis.sh
备注：1笔订单，有多个商品；多个商品有不同的分类；这会导致一笔订单有多个分类，它们是分别统计的；

#！/bin/bash
source /etc/profile
if [ -n "$1" ]
then
do_date=$1
else
do_date=`date -d "-1 day" +%F`
fi
sql="
with mid_orders as (
select regionname,
cityname,
firstname category1,
secondname category2,
count(distinct orderid) as totalcount,
sum(productsnum) as total_productnum,
sum(paymoney) as totalmoney
from dws.dws_trade_orders_w
where dt='$do_date'
group by regionname, cityname, firstname, secondname
)
insert overwrite table ads.ads_trade_order_analysis
partition(dt='$do_date')
select '全国' as areatype,
'' as regionname,
'' as cityname,
'' as categorytype,
'' as category1,
'' as category2,
sum(totalcount),
sum(total_productnum),
sum(totalmoney)
from mid_orders
union all
select '全国' as areatype,
'' as regionname,
'' as cityname,
'一级' as categorytype,
category1,
'' as category2,
sum(totalcount),
sum(total_productnum),
sum(totalmoney)
from mid_orders
group by category1
union all
select '全国' as areatype,
'' as regionname,
'' as cityname,
'二级' as categorytype,
'' as category1,
category2,
sum(totalcount),
sum(total_productnum),
sum(totalmoney)
from mid_orders
group by category2
union all
select '大区' as areatype,
regionname,
'' as cityname,
'' as categorytype,
'' as category1,
'' as category2,
sum(totalcount),
sum(total_productnum),
sum(totalmoney)
from mid_orders
group by regionname
union all
select '大区' as areatype,
regionname,
'' as cityname,
'一级' as categorytype,
category1,
'' as category2,
sum(totalcount),
sum(total_productnum),
sum(totalmoney)
from mid_orders
group by regionname, category1
union all
select '大区' as areatype,
regionname,
'' as cityname,
'二级' as categorytype,
'' as category1,
category2,
sum(totalcount),
sum(total_productnum),
sum(totalmoney)
from mid_orders
group by regionname, category2
union all
select '城市' as areatype,
'' as regionname,
cityname,
'' as categorytype,
'' as category1,
'' as category2,
sum(totalcount),
sum(total_productnum),
sum(totalmoney)
from mid_orders
group by cityname
union all
select '城市' as areatype,
'' as regionname,
cityname,
'一级' as categorytype,
category1,
'' as category2,
sum(totalcount),
sum(total_productnum),
sum(totalmoney)
from mid_orders
group by cityname, category1
union all
select '城市' as areatype,
'' as regionname,
cityname,
'二级' as categorytype,
'' as category1,
category2,
sum(totalcount),
sum(total_productnum),
sum(totalmoney)
from mid_orders
group by cityname, category2;
"
hive -e "$sql"

备注：由于在dws.dws_trade_orders_w中，一笔订单可能有多条记录，所以在统计订单数量的时候要用count(distinct orderid)

第10节数据导出

ads.ads_trade_order_analysis 分区表，使用DataX导出到MySQL
